RocketMQ 源码解析——Controller 高可用切换架构

延伸阅读：🔍「RocketMQ 中文社区」 持续更新源码解析/最佳实践，提供 RocketMQ 专家 AI 答疑服务

一、原理及核心概念浅述

1.1 核心架构

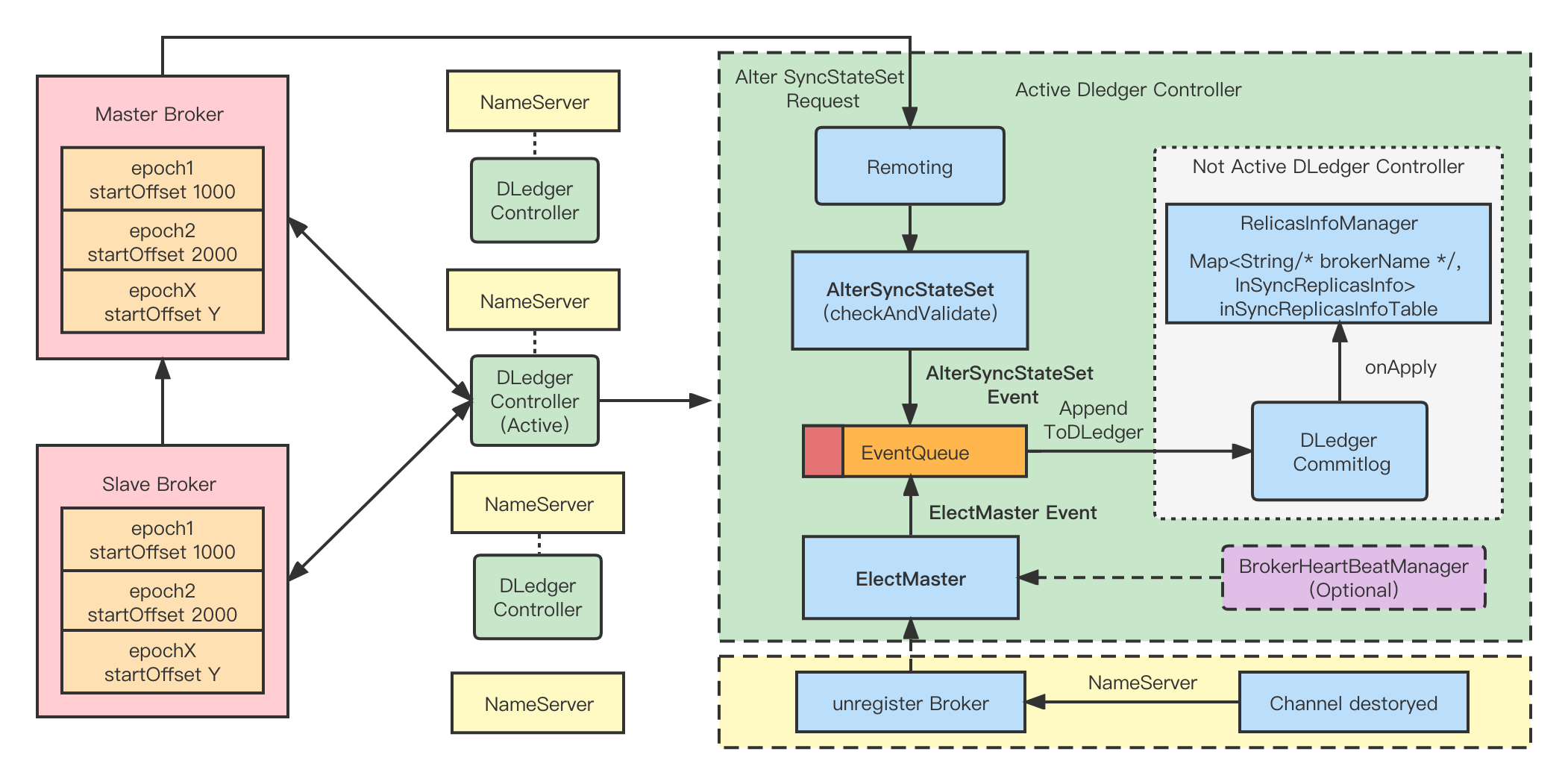

1.2 核心概念

1. controller：负责管理broker间的主备关系，可以挂在namesrv中，不影响namesrv能力，支持独立部署。
2. master/slave：主备身份。
3. syncStateSet：字面意思为"同步状态集合"。当备节点能够及时跟上主节点，则会纳入syncStateSet。
4. epoch：用于记录每一次主备切换时的状态，避免切换后产生数据丢失或者不一致的情况。

为方便理解，在某些过程中可以把controller当作班主任，master作为小组长，slave作为小组成员。同步过程是各位同学向小组长抄作业的过程，位于syncStateSet中的是优秀作业。

二、相关代码文件及说明

核心是"controller+broker+复制过程"，因此分三块进行叙述。

2.1 Controller

该部分代码主要集中在rocketmq-controller模块下，主要有如下代码文件：

• **ControllerManager:**负责管理controller，其中存储了许多controller相关配置，并负责了心跳管理等核心功能。(班主任管理条例)
• DLederController: Controller的DLedger实现。包含了controller的基本功能。在其中实现了副本信息管理、broker存活情况探测、选举Master等核心功能。（某种班主任）
• **DefaultBrokerHeartbeatManager:**负责管理broker心跳，其中包含了broker存活情况表，以及在broker下线时的listeners，当副本掉线时，触发重新选举。（点名册）
• ReplicasInfoManager: 负责controller中事件的处理。即各种选举事件、更换SyncStateSet事件等等。（小组登记册）
• **ControllerRequestProcessor:**处理向controller发送的requests，例如让controller选举、向controller注册broker、心跳、更换SyncStateSet等等。（班主任信箱）
• **DefaultElectPolicy:**选举Master的策略。可以选择从sync状态的副本中选，也可以支持从所有副本中（无论是否同步）的unclean选举。（班规）
• ......

2.2 Broker

该部分代码主要集中在rocketmq-broker模块中，可进入org/apache/rocketmq/broker/controller进行查看：

• ReplicasManager: 完成自己作为一个replica的使命------找controller，角色管理，Master更新(Expand/Shrink)SyncStateSet等等。

2.3 复制模块

该部分代码主要集中在rocketmq-store模块中的ha文件夹下：

• **HAService:**每个Replica必备的的service，负责管理作为主、备的同步任务。
• **HAClient:**每个Slave 的HAService中必备的client，负责管理同步任务中的读、写操作。
• HAConnection: 代表在Master中的HA连接，每个connection理论上对应一个slave。在该connection类中存储了传输过程中的诸多内容，包括channel、传输状态、当前传输位点等等信息。

三、核心流程

3.1 心跳

核心CODE：BROKER_HEARTBEAT

Broker端：

该部分较简单，带上code向controller发request，不再赘述：

BrokerController.sendHeartbeat() -> brokerOuterAPI.sendHeartbeat()

Controller端：

1. 首先由ControllerRequestProcessor接收到code，进入处理逻辑：

   private RemotingCommand handleBrokerHeartbeat(ChannelHandlerContext ctx, RemotingCommand request) throws Exception {
   final BrokerHeartbeatRequestHeader requestHeader = (BrokerHeartbeatRequestHeader) request.decodeCommandCustomHeader(BrokerHeartbeatRequestHeader.class);
   if (requestHeader.getBrokerId() == null) {
   return RemotingCommand.createResponseCommand(ResponseCode.CONTROLLER_INVALID_REQUEST, "Heart beat with empty brokerId");
   }
   this.heartbeatManager.onBrokerHeartbeat(requestHeader.getClusterName(), requestHeader.getBrokerName(), requestHeader.getBrokerAddr(), requestHeader.getBrokerId(),
   requestHeader.getHeartbeatTimeoutMills(), ctx.channel(), requestHeader.getEpoch(), requestHeader.getMaxOffset(), requestHeader.getConfirmOffset(), requestHeader.getElectionPriority());
   return RemotingCommand.createResponseCommand(ResponseCode.SUCCESS, "Heart beat success");
   }

2. 之后在onBrokerHeartbeat()中，主要更新controller brokerHeartbeatManager中的brokerLiveTable：

   public void onBrokerHeartbeat(String clusterName, String brokerName, String brokerAddr, Long brokerId,
   Long timeoutMillis, Channel channel, Integer epoch, Long maxOffset, Long confirmOffset, Integer electionPriority) {
   BrokerIdentityInfo brokerIdentityInfo = new BrokerIdentityInfo(clusterName, brokerName, brokerId);
   BrokerLiveInfo prev = this.brokerLiveTable.get(brokerIdentityInfo);
   ......
   if (null == prev) {
   this.brokerLiveTable.put(...);
   log.info("new broker registered, {}, brokerId:{}", brokerIdentityInfo, realBrokerId);
   } else {
   prev.setXXX(......)
   }
   }

3.2 选举

相关CODE: CONTROLLER_ELECT_MASTER

有如下几种情形可能触发选举：

1.controller主动发起，通过triggerElectMaster()：

a.HeartbeatManager监听到有broker心跳失效。 (班主任发现有小组同学退学了)

b.Controller检测到有一组Replica Set不存在master。（班主任发现有组长虽然在名册里，但是挂了）

2.broker发起将自己选为master，通过ReplicaManager.brokerElect()：

a.Broker向controller查metadata时，没找到master信息。（同学定期检查小组情况，问班主任为啥没小组长）

b.Broker向controller注册完后，仍未从controller获取到master信息。（同学报道后发现没小组长，汇报）

3.通过tools发起:

a.通过选举命令ReElectMasterSubCommand发起。（校长直接任命）

上述所有过程，最终均触发:

controller.electMaster() -> replicasInfoManager.electMaster()

// 即，所有小组长必须通过班主任任命

public ControllerResult<ElectMasterResponseHeader> electMaster(final ElectMasterRequestHeader request,
                                                               final ElectPolicy electPolicy) {
    ...
    // 从request中取信息
    ...
    if (syncStateInfo.isFirstTimeForElect()) {
        // 从未注册，直接任命
        newMaster = brokerId;
    }

    // 按选举政策选主
    if (newMaster == null) {
        // we should assign this assignedBrokerId when the brokerAddress need to be elected by force
        Long assignedBrokerId = request.getDesignateElect() ? brokerId : null;
        newMaster = electPolicy.elect(brokerReplicaInfo.getClusterName(), brokerReplicaInfo.getBrokerName(), syncStateSet, allReplicaBrokers, oldMaster, assignedBrokerId);
    }

    if (newMaster != null && newMaster.equals(oldMaster)) {
        // 老主 == 新主
        // old master still valid, change nothing
        String err = String.format("The old master %s is still alive, not need to elect new master for broker %s", oldMaster, brokerReplicaInfo.getBrokerName());
        LOGGER.warn("{}", err);
        // the master still exist
        response.setXXX()

        result.setBody(new ElectMasterResponseBody(syncStateSet).encode());
        result.setCodeAndRemark(ResponseCode.CONTROLLER_MASTER_STILL_EXIST, err);
        return result;
    }

    // a new master is elected
    if (newMaster != null) {
        // 出现不一样的新主
        final int masterEpoch = syncStateInfo.getMasterEpoch();
        final int syncStateSetEpoch = syncStateInfo.getSyncStateSetEpoch();
        final HashSet<Long> newSyncStateSet = new HashSet<>();
        //设置新的syncStateSet
        newSyncStateSet.add(newMaster);
        response.setXXX()...
        ElectMasterResponseBody responseBody =
        		new ElectMasterResponseBody(newSyncStateSet);
    }

        result.setBody(responseBody.encode());
        final ElectMasterEvent event = new ElectMasterEvent(brokerName, newMaster);
        result.addEvent(event);
        return result;
    }

    // 走到这里，说明没有主，选举失败
    // If elect failed and the electMaster is triggered by controller (we can figure it out by brokerAddress),
    // we still need to apply an ElectMasterEvent to tell the statemachine
    // that the master was shutdown and no new master was elected.
    if (request.getBrokerId() == null) {
        final ElectMasterEvent event = new ElectMasterEvent(false, brokerName);
        result.addEvent(event);
        result.setCodeAndRemark(ResponseCode.CONTROLLER_MASTER_NOT_AVAILABLE, "Old master has down and failed to elect a new broker master");
    } else {
        result.setCodeAndRemark(ResponseCode.CONTROLLER_ELECT_MASTER_FAILED, "Failed to elect a new master");
    }
        return result;
    }

3.3 更新SyncStateSet

核心CODE： CONTROLLER_ALTER_SYNC_STATE_SET

1.由master发起，主动向controller更换syncStateSet（等价于小组长汇报优秀作业）

2.controllerRequestProcessor接收更换syncStateSet的请求，进入handleAlterSyncStateSet()方法：

private RemotingCommand handleAlterSyncStateSet(ChannelHandlerContext ctx,
                                                RemotingCommand request) throws Exception {
    final AlterSyncStateSetRequestHeader controllerRequest = (AlterSyncStateSetRequestHeader) request.decodeCommandCustomHeader(AlterSyncStateSetRequestHeader.class);
    final SyncStateSet syncStateSet = RemotingSerializable.decode(request.getBody(), SyncStateSet.class);
    final CompletableFuture<RemotingCommand> future = this.controllerManager.getController().alterSyncStateSet(controllerRequest, syncStateSet);
    if (future != null) {
        return future.get(WAIT_TIMEOUT_OUT, TimeUnit.SECONDS);
    }
    return RemotingCommand.createResponseCommand(null);
}

3. 之后进入Controller.alterSyncStateSet() -> replicasInfoManager.alterSyncStateSet()方法：

   public ControllerResult<AlterSyncStateSetResponseHeader> alterSyncStateSet(
   final AlterSyncStateSetRequestHeader request, final SyncStateSet syncStateSet,
   final BrokerValidPredicate brokerAlivePredicate) {
   final String brokerName = request.getBrokerName();
   ...
   final Set<Long> newSyncStateSet = syncStateSet.getSyncStateSet();
   final SyncStateInfo syncStateInfo = this.syncStateSetInfoTable.get(brokerName);
   final BrokerReplicaInfo brokerReplicaInfo = this.replicaInfoTable.get(brokerName);

    // 检查syncStateSet是否有变化
    final Set<Long> oldSyncStateSet = syncStateInfo.getSyncStateSet();
    if (oldSyncStateSet.size() == newSyncStateSet.size() && oldSyncStateSet.containsAll(newSyncStateSet)) {
        String err = "The newSyncStateSet is equal with oldSyncStateSet, no needed to update syncStateSet";
        ...
    }

    // 检查是否是master发起的
    if (!syncStateInfo.getMasterBrokerId().equals(request.getMasterBrokerId())) {
        String err = String.format("Rejecting alter syncStateSet request because the current leader is:{%s}, not {%s}",
                                   syncStateInfo.getMasterBrokerId(), request.getMasterBrokerId());
        ...
    }

    // 检查master的任期epoch是否一致
    if (request.getMasterEpoch() != syncStateInfo.getMasterEpoch()) {
        String err = String.format("Rejecting alter syncStateSet request because the current master epoch is:{%d}, not {%d}",
                                   syncStateInfo.getMasterEpoch(), request.getMasterEpoch());
        ...
    }

    // 检查syncStateSet的epoch
    if (syncStateSet.getSyncStateSetEpoch() != syncStateInfo.getSyncStateSetEpoch()) {
        String err = String.format("Rejecting alter syncStateSet request because the current syncStateSet epoch is:{%d}, not {%d}",
                                   syncStateInfo.getSyncStateSetEpoch(), syncStateSet.getSyncStateSetEpoch());
        ...
    }

    // 检查新的syncStateSet的合理性
    for (Long replica : newSyncStateSet) {
        // 检查replica是否存在
        if (!brokerReplicaInfo.isBrokerExist(replica)) {
            String err = String.format("Rejecting alter syncStateSet request because the replicas {%s} don't exist", replica);
            ...
        }
        // 检查broker是否存活
        if (!brokerAlivePredicate.check(brokerReplicaInfo.getClusterName(), brokerReplicaInfo.getBrokerName(), replica)) {
            String err = String.format("Rejecting alter syncStateSet request because the replicas {%s} don't alive", replica);
            ...
        }
    }

    // 检查是否包含master
    if (!newSyncStateSet.contains(syncStateInfo.getMasterBrokerId())) {
        String err = String.format("Rejecting alter syncStateSet request because the newSyncStateSet don't contains origin leader {%s}", syncStateInfo.getMasterBrokerId());
        ...
    }

    // 更新epoch
    int epoch = syncStateInfo.getSyncStateSetEpoch() + 1;
    ...
    // 生成事件，替换syncStateSet
    final AlterSyncStateSetEvent event = new AlterSyncStateSetEvent(brokerName, newSyncStateSet);
    ...

   }

4.最后通过syncStateInfo.updateSyncStateSetInfo()，更新syncStateSetInfoTable.get(brokerName)得到的syncStateInfo信息（该过程可以理解为班主任在班级分组册上找到了组长的名字，拿出组员名单，更新）。

3.4 复制

该部分较复杂，其中HAService/HAClient/HAConnection以及其中的各种Service/Reader/Writer容易产生混淆，对阅读造成阻碍。因此绘制本图帮助理解（可在粗读源码后回头理解）：

下面对HA复制过程作拆解，分别讲解：

1. 在各个replica的DefaultMessageStore中均注册了HAService，负责管理HA的复制。

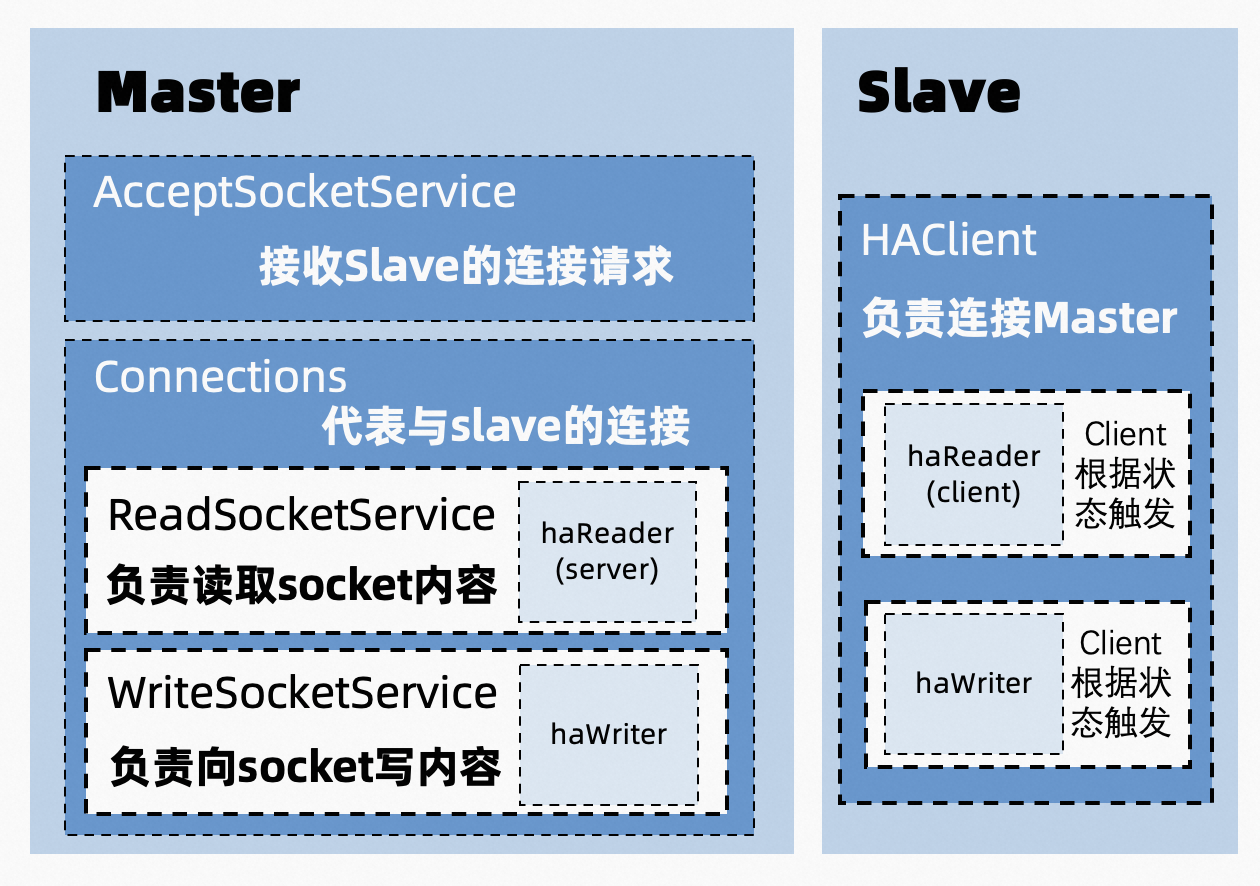

2. 在Master的 HAService中有一个AcceptSocketService, 负责自动接收各个slave的连接：

   protected abstract class AcceptSocketService extends ServiceThread {
   ...

    /**
     * Starts listening to slave connections.
     *
     * @throws Exception If fails.
     */
    public void beginAccept() throws Exception {
        ...
    }

    @Override
    public void shutdown(final boolean interrupt) {
        ...
    }

    @Override
    public void run() {
        log.info(this.getServiceName() + " service started");

        while (!this.isStopped()) {
            try {
                this.selector.select(1000);
                Set<SelectionKey> selected = this.selector.selectedKeys();

                if (selected != null) {
                    for (SelectionKey k : selected) {
                        if (k.isAcceptable()) {
                            SocketChannel sc = ((ServerSocketChannel) k.channel()).accept();

                            if (sc != null) {
                                DefaultHAService.log.info("HAService receive new connection, "
                                                          + sc.socket().getRemoteSocketAddress());
                                try {
                                    HAConnection conn = createConnection(sc);
                                    conn.start();
                                    DefaultHAService.this.addConnection(conn);
                                } catch (Exception e) {
                                    log.error("new HAConnection exception", e);
                                    sc.close();
                                }
                            }
                        }
                        ...
    }

   }

3.在各个Slave 的HAService中存在一个HAClient，负责向master发起连接、传输请求。

public class AutoSwitchHAClient extends ServiceThread implements HAClient {
    ...
}

public interface HAClient {
    void start();

    void shutdown();

    void wakeup();

    void updateMasterAddress(String newAddress);

    void updateHaMasterAddress(String newAddress);

    String getMasterAddress();

    String getHaMasterAddress();

    long getLastReadTimestamp();

    long getLastWriteTimestamp();

    HAConnectionState getCurrentState();

    void changeCurrentState(HAConnectionState haConnectionState);

    void closeMaster();

    long getTransferredByteInSecond();
}

4.当master收到slave的连接请求后，将会创建一个HAConnection，负责收发内容。

public interface HAConnection {
    void start();

    void shutdown();

    void close();

    SocketChannel getSocketChannel();

    HAConnectionState getCurrentState();

    String getClientAddress();

    long getTransferredByteInSecond();

    long getTransferFromWhere();

    long getSlaveAckOffset();
}

5.Master的HAConnection会与Slave的HAClient建立连接，二者均通过HAWriter（较简单，不解读，位于HAWriter类）往socket中写内容，再通过HAReader读取socket中的内容。只不过一个是HAServerReader，一个是HAClientReader：

public abstract class AbstractHAReader {
    private static final Logger LOGGER = LoggerFactory.getLogger(LoggerName.STORE_LOGGER_NAME);
    protected final List<HAReadHook> readHookList = new ArrayList<>();

    public boolean read(SocketChannel socketChannel, ByteBuffer byteBufferRead) {
        int readSizeZeroTimes = 0;
        while (byteBufferRead.hasRemaining()) {
            ...
            boolean result = processReadResult(byteBufferRead);
            ...
        }

    }

	...

    protected abstract boolean processReadResult(ByteBuffer byteBufferRead);
}

6.两种HAReader均实现了processReadResult()方法，负责处理从socket中得到的数据。client需要详细阐述该方法，因为涉及到如何将读进来的数据写入commitlog，client的processReadResult():

@Override
protected boolean processReadResult(ByteBuffer byteBufferRead) {
int readSocketPos = byteBufferRead.position();
try {
    while (true) {
        ...
            switch (AutoSwitchHAClient.this.currentState) {
                case HANDSHAKE: {
                    ...
                    // 握手阶段，先检查commitlog完整性，截断
                }
                    break;
                case TRANSFER: {
                    // 传输阶段，将body写入commitlog
                    ...
                    byte[] bodyData = new byte[bodySize];
                    ...

                    if (bodySize > 0) {
                        // 传输阶段，将body写入commitlog
                        AutoSwitchHAClient.this.messageStore.appendToCommitLog(masterOffset, bodyData, 0, bodyData.length);
                    }
                    haService.updateConfirmOffset(Math.min(confirmOffset, messageStore.getMaxPhyOffset()));
                    ...
                    break;
                }
                default:
                    break;
            }
            if (isComplete) {
                continue;
            }

        }
    	// 检查buffer中是否还有数据, 如果有, compact()
        ...
        break;
    }
}
...
}

7.server的processReadResult()主要用于接收client的握手等请求，较简单。更需要解释其WriteSocketService如何向socket中调用HAwriter去写数据：

abstract class AbstractWriteSocketService extends ServiceThread {
    ...

    private void transferToSlave() throws Exception {
        ...
        int size = this.getNextTransferDataSize();
        if (size > 0) {
            ...
            buildTransferHeaderBuffer(this.transferOffset, size);
            this.lastWriteOver = this.transferData(size);
        } else {
            // 无需传输，直接更新caught up的时间
            AutoSwitchHAConnection.this.haService.updateConnectionLastCaughtUpTime(AutoSwitchHAConnection.this.slaveId, System.currentTimeMillis());
            haService.getWaitNotifyObject().allWaitForRunning(100);
        }
    }

    @Override
    public void run() {
        AutoSwitchHAConnection.LOGGER.info(this.getServiceName() + " service started");

        while (!this.isStopped()) {
            try {
                this.selector.select(1000);

                switch (currentState) {
                    case HANDSHAKE:
                        // Wait until the slave send it handshake msg to master.
                        // 等待slave的握手请求，并进行回复
                        break;
                    case TRANSFER:
                        ...
                        transferToSlave();
                        break;
                    default: ...
                }
            } catch (Exception e) {
                ...
            }
        }
		...
        // 在service结束后的一些事情
    }
    ...
}

此处同样附上server实现processReadResult()，读socket中数据的代码：

@Override
protected boolean processReadResult(ByteBuffer byteBufferRead) {
while (true) {
    ...
    HAConnectionState slaveState = HAConnectionState.values()[byteBufferRead.getInt(readPosition)];
    switch (slaveState) {
        case HANDSHAKE:
            // 收到了client的握手
            ...
            LOGGER.info("Receive slave handshake, slaveBrokerId:{}, isSyncFromLastFile:{}, isAsyncLearner:{}",
                        AutoSwitchHAConnection.this.slaveId, AutoSwitchHAConnection.this.isSyncFromLastFile, AutoSwitchHAConnection.this.isAsyncLearner);
            break;
        case TRANSFER:
            // 收到了client的transfer状态
            ...
            // 更新client状态信息
            break;
        default:
            ...
    }
...
}

3.5 Active Controller的选举

该选举主要通过DLedger实现，在DLedgerController中通过RoleChangeHandler.handle()更新自身身份：

class RoleChangeHandler implements DLedgerLeaderElector.RoleChangeHandler {

    private final String selfId;
    private final ExecutorService executorService = Executors.newSingleThreadExecutor(new ThreadFactoryImpl("DLedgerControllerRoleChangeHandler_"));
    private volatile MemberState.Role currentRole = MemberState.Role.FOLLOWER;

    public RoleChangeHandler(final String selfId) {
        this.selfId = selfId;
    }

    @Override
    public void handle(long term, MemberState.Role role) {
        Runnable runnable = () -> {
            switch (role) {
                case CANDIDATE:
                    this.currentRole = MemberState.Role.CANDIDATE;
                    // 停止扫描inactive broker任务
                    ...
                case FOLLOWER:
                    this.currentRole = MemberState.Role.FOLLOWER;
                    // 停止扫描inactive broker任务
                    ...
                case LEADER: {
                    log.info("Controller {} change role to leader, try process a initial proposal", this.selfId);
                    int tryTimes = 0;
                    while (true) {
                        // 将会开始扫描inactive brokers
                        ...
                    break;
                }
            }
        };
        this.executorService.submit(runnable);
    }
	...
}
