完整源码 ：ImageEditor 基于 HarmonyOS 5.0+，实现图片编辑器的马赛克画笔功能。本篇聚焦纹理马赛克方案，采用策略模式设计，便于扩展更多绘制工具。

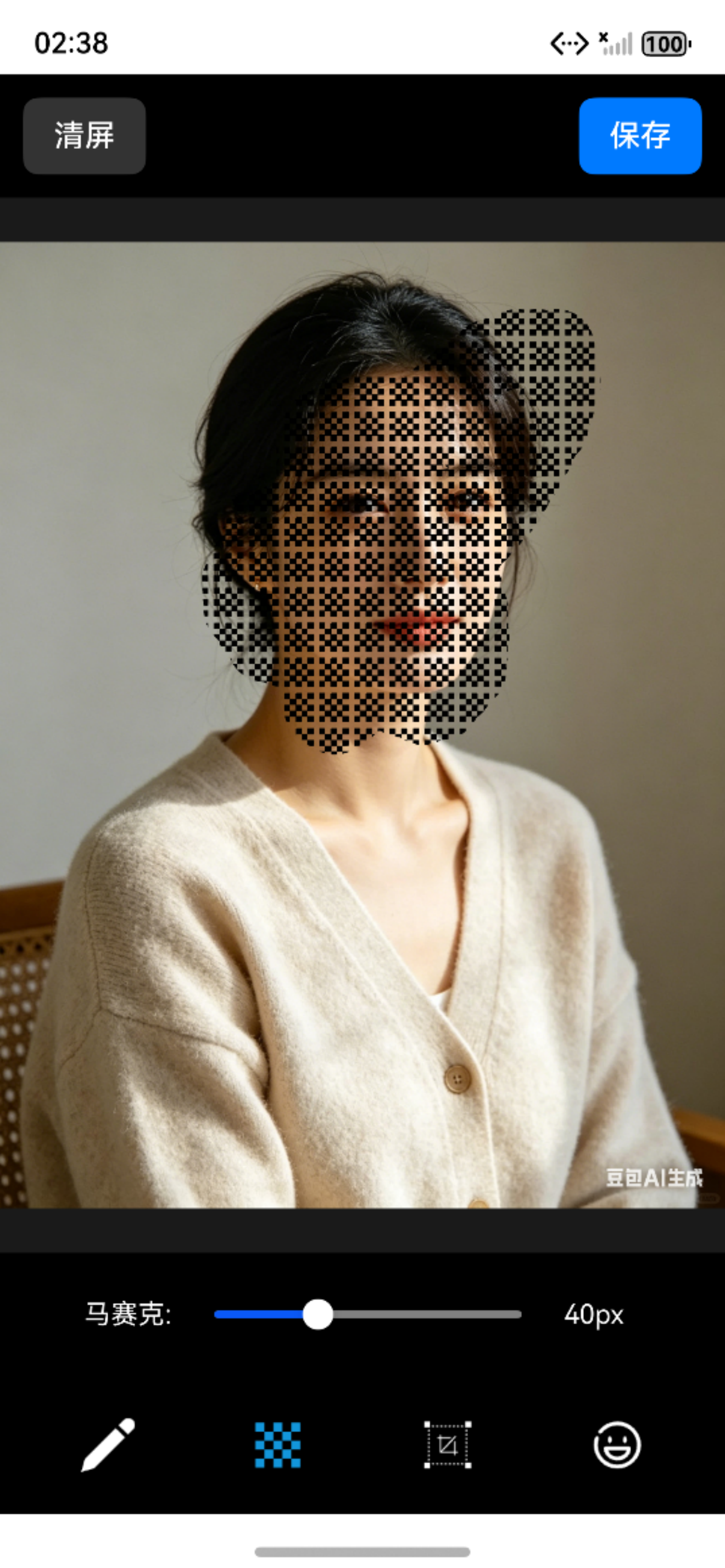

一、效果演示
示例中纹理背景透明导致遮挡效果不佳，更换不透明纹理即可解决。
二、方案选型
马赛克画笔用于遮盖图片中的敏感信息（人脸、车牌、文字等）。常见实现有两种：
| 对比项 | 纹理马赛克（本文） | 像素马赛克 |
|---|---|---|
| 实现原理 | 预置纹理图片重复填充 | 实时计算像素块平均色 |
| 性能表现 | 满帧流畅 | 同步大量计算卡顿 |
| CPU占用 | 极低 | 高 |
| 实现复杂度 | 简单 | 复杂 |
| 效果真实度 | 取决于纹理设计 | 强 |
本文选择纹理马赛克方案，用极致性能换取流畅的涂抹体验。像素马赛克独立分享解决卡顿问题。
注意 ：纹理马赛克的原理是给图片"贴瓷砖"进行遮挡，纹理图片不能是透明背景 ，否则
createPattern平铺后会穿透。资源文件放置：
resources/rawfile/mosaic.png
三、架构设计
3.1 整体架构
┌─────────────────────────────────────────────────────────────┐
│ UI 层 (Index.ets) │
│ Canvas + 手势处理 │
└─────────────────────────────┬───────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────┐
│ 管理层 (CanvasManager) │
│ 策略注册、工具切换、画布渲染 │
└─────────────────────────────┬───────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────┐
│ 策略层 (IDrawingStrategy) │
│ ┌──────────────┐ ┌──────────────┐ │
│ │ Mosaic │ │ Draw │ │
│ │ Strategy │ │ Strategy │ │
│ └──────────────┘ └──────────────┘ │
└─────────────────────────────────────────────────────────────┘3.2 目录结构
ImageEditor/
├── pages/
│ └── Index.ets // 主界面
├── drawing/
│ ├── IDrawingStrategy.ets // 绘制策略接口
│ ├── MosaicStrategy.ets // 马赛克实现（本篇）
│ └── DrawStrategy.ets // 涂鸦实现
├── manager/
│ └── CanvasManager.ets // 画布管理器
├── components/
│ └── DrawToolBar.ets // 工具栏组件
├── model/
│ ├── DrawPoint.ets // 坐标点类型
│ ├── DrawConfig.ets // 涂鸦配置类型
│ └── ToolButtonProps.ets // 按钮属性类型
└── utils/
└── ImageHelper.ets // 图片选择与保存3.3 模块职责
| 模块 | 职责 |
|---|---|
| Index | 主页面，协调各模块，处理手势 |
| CanvasManager | 管理画布、策略调度、图片加载与渲染 |
| MosaicStrategy | 马赛克绘制核心逻辑 |
| DrawToolBar | 工具栏UI，工具切换，参数调节 |
| ImageHelper | 相册选图、图片保存 |
四、核心实现
4.1 策略接口
javascript
export interface IDrawingStrategy {
setContext(ctx: CanvasRenderingContext2D): void;
startDraw(x: number, y: number): void;
updateDraw(x: number, y: number): void;
endDraw(): void;
clear(): void;
}4.2 马赛克实现
javascript
import { IDrawingStrategy } from './IDrawingStrategy';
import { DrawPoint } from '../model/DrawPoint';
import { common } from '@kit.AbilityKit';
import { image } from '@kit.ImageKit';
export class MosaicStrategy implements IDrawingStrategy {
private ctx: CanvasRenderingContext2D | null = null;
private points: DrawPoint[] = [];
private brushSize: number = 40;
private mosaicPattern: CanvasPattern | null = null;
private context: common.Context;
constructor(context: common.Context) {
this.context = context;
}
async setContext(ctx: CanvasRenderingContext2D): Promise<void> {
this.ctx = ctx;
await this.loadMosaicTexture();
}
// 加载马赛克纹理图片
private async loadMosaicTexture(): Promise<void> {
if (!this.ctx) return;
const resourceMgr = this.context.resourceManager;
const imageBuffer = await resourceMgr.getRawFileContent('mosaic.png');
const imageSource = image.createImageSource(imageBuffer.buffer);
const pixelMap = await imageSource.createPixelMap();
const imageBitmap = new ImageBitmap(pixelMap);
this.mosaicPattern = this.ctx.createPattern(imageBitmap, 'repeat');
}
startDraw(x: number, y: number): void {
if (!this.ctx || !this.mosaicPattern) return;
this.points = [{ x, y }];
this.drawMosaicAtPoint(x, y);
}
updateDraw(x: number, y: number): void {
if (!this.ctx || !this.mosaicPattern || this.points.length === 0) return;
const lastPoint = this.points[this.points.length - 1];
this.points.push({ x, y });
// 两点之间插值，确保连续绘制
const distance = Math.hypot(x - lastPoint.x, y - lastPoint.y);
const steps = Math.max(Math.ceil(distance / (this.brushSize / 3)), 1);
for (let i = 1; i <= steps; i++) {
const t = i / steps;
const ix = lastPoint.x + (x - lastPoint.x) * t;
const iy = lastPoint.y + (y - lastPoint.y) * t;
this.drawMosaicAtPoint(ix, iy);
}
}
// 圆形笔刷绘制马赛克
private drawMosaicAtPoint(centerX: number, centerY: number): void {
if (!this.ctx || !this.mosaicPattern) return;
this.ctx.save();
this.ctx.beginPath();
this.ctx.arc(centerX, centerY, this.brushSize / 2, 0, Math.PI * 2);
this.ctx.fillStyle = this.mosaicPattern;
this.ctx.fill();
this.ctx.restore();
}
endDraw(): void {
this.points = [];
}
clear(): void {
this.points = [];
}
setBrushSize(size: number): void {
this.brushSize = Math.max(20, Math.min(100, size));
}
setMosaicIntensity(intensity: number): void {
// 强度参数可用于调整笔刷大小
this.brushSize = intensity * 2;
}
}代码说明：
loadMosaicTexture()：从 rawfile 加载纹理图片，创建重复图案drawMosaicAtPoint()：圆形笔刷，用纹理填充updateDraw()：通过插值保证连续绘制，防止滑动过快出现断点
4.3 画布管理器
javascript
import { IDrawingStrategy } from '../drawing/IDrawingStrategy';
import { image } from '@kit.ImageKit';
import { CanvasDimensions } from '../model/CanvasDimensions';
export class CanvasManager {
private ctx: CanvasRenderingContext2D;
private strategies: Map<string, IDrawingStrategy> = new Map();
private currentStrategy: IDrawingStrategy | null = null;
private currentImage: image.PixelMap | null = null;
private dimensions: CanvasDimensions | null = null;
constructor(ctx: CanvasRenderingContext2D) {
this.ctx = ctx;
}
// 注册绘制策略
registerStrategy(toolType: string, strategy: IDrawingStrategy): void {
strategy.setContext(this.ctx);
this.strategies.set(toolType, strategy);
}
// 切换工具
setCurrentTool(toolType: string): void {
this.currentStrategy = this.strategies.get(toolType) || null;
}
startDraw(x: number, y: number): void {
this.currentStrategy?.startDraw(x, y);
}
updateDraw(x: number, y: number): void {
this.currentStrategy?.updateDraw(x, y);
}
endDraw(): void {
this.currentStrategy?.endDraw();
}
// 加载并居中显示图片
async loadImage(pixelMap: image.PixelMap): Promise<void> {
this.currentImage = pixelMap;
await this.renderImage();
}
private async renderImage(): Promise<void> {
if (!this.currentImage) return;
const info = await this.currentImage.getImageInfo();
const canvasWidth = this.ctx.width;
const canvasHeight = this.ctx.height;
const ratio = Math.min(canvasWidth / info.size.width, canvasHeight / info.size.height);
const displayWidth = info.size.width * ratio;
const displayHeight = info.size.height * ratio;
const offsetX = (canvasWidth - displayWidth) / 2;
const offsetY = (canvasHeight - displayHeight) / 2;
this.dimensions = {
width: canvasWidth,
height: canvasHeight,
imgWidth: info.size.width,
imgHeight: info.size.height,
displayWidth,
displayHeight,
offsetX,
offsetY
};
this.ctx.clearRect(0, 0, canvasWidth, canvasHeight);
this.ctx.drawImage(this.currentImage, offsetX, offsetY, displayWidth, displayHeight);
}
// 清空绘制，恢复原图
clearCanvas(): void {
if (this.dimensions && this.currentImage) {
this.ctx.clearRect(0, 0, this.dimensions.width, this.dimensions.height);
this.ctx.drawImage(
this.currentImage,
this.dimensions.offsetX,
this.dimensions.offsetY,
this.dimensions.displayWidth,
this.dimensions.displayHeight
);
}
this.strategies.forEach(strategy => strategy.clear());
}
getDimensions(): CanvasDimensions | null {
return this.dimensions;
}
}代码说明：
registerStrategy()：注册不同工具的绘制策略setCurrentTool()：切换当前激活的工具renderImage()：计算图片居中位置并渲染
4.4 工具栏组件
javascript
import { promptAction } from "@kit.ArkUI";
import { DrawToolType } from '../model/ToolButtonProps';
import { ToolButtonProps } from '../model/ToolButtonProps';
@Component
export struct DrawToolBar {
@Link currentTool: DrawToolType;
@Link penColor: string;
@Link penSize: number;
@Prop showDrawTools: boolean = false;
onToolChange?: (tool: DrawToolType) => void;
onConfigChange?: () => void;
build() {
Column() {
// 涂鸦工具设置栏
if (this.showDrawTools && this.currentTool === 'draw') {
this.buildDrawToolsPanel()
}
// 马赛克工具设置栏
if (this.currentTool === 'mosaic') {
this.buildMosaicToolsPanel()
}
// 工具按钮栏
Row({ space: 16 }) {
this.buildToolButton({
toolType: 'draw',
normalImg: 'pen',
activeImg: 'pen_active',
onClick: () => this.onToolChange?.('draw')
})
this.buildToolButton({
toolType: 'mosaic',
normalImg: 'mosaic',
activeImg: 'mosaic_active',
onClick: () => this.onToolChange?.('mosaic')
})
this.buildToolButton({
toolType: 'crop',
normalImg: 'cut',
activeImg: 'cut_active',
onClick: () => {
this.onToolChange?.('crop');
promptAction.showToast({ message: '裁剪功能开发中' });
}
})
this.buildToolButton({
toolType: 'emoji',
normalImg: 'emoji',
activeImg: 'emoji_active',
onClick: () => {
this.onToolChange?.('emoji');
promptAction.showToast({ message: '表情功能开发中' });
}
})
}
.padding(12)
.width('100%')
.justifyContent(FlexAlign.SpaceAround)
.backgroundColor('rgba(0,0,0,0.7)')
}
.width('100%')
}
@Builder
buildDrawToolsPanel() {
Column() {
Row({ space: 12 }) {
Text('颜色:')
.fontColor('#fff')
.fontSize(14)
ForEach(['#ff0000', '#00ff00', '#0000ff', '#ffff00', '#ffffff', '#ff00ff', '#00ffff'], (color: string) => {
Circle()
.width(30)
.height(30)
.fill(color)
.stroke(this.penColor === color ? '#fff' : 'transparent')
.strokeWidth(3)
.onClick(() => {
this.penColor = color;
this.onConfigChange?.();
})
})
}
.padding({ left: 12, right: 12, top: 8, bottom: 8 })
.width('100%')
.justifyContent(FlexAlign.Start)
Row({ space: 12 }) {
Text('笔刷:')
.fontColor('#fff')
.fontSize(14)
Slider({ value: this.penSize, min: 2, max: 20, step: 1 })
.width(180)
.trackColor(Color.Gray)
.onChange((v: number) => {
this.penSize = v;
this.onConfigChange?.();
})
Text(`${Math.round(this.penSize)}px`)
.fontColor('#fff')
.fontSize(14)
.width(40)
}
.padding({ left: 12, right: 12, top: 8, bottom: 8 })
.width('100%')
.justifyContent(FlexAlign.Start)
}
.backgroundColor('rgba(0,0,0,0.8)')
.width('100%')
}
@Builder
buildMosaicToolsPanel() {
Row({ space: 12 }) {
Text('马赛克:')
.fontColor('#fff')
.fontSize(14)
Slider({ value: this.penSize, min: 20, max: 80, step: 5 })
.width(180)
.trackColor(Color.Gray)
.onChange((v: number) => {
this.penSize = v;
this.onConfigChange?.();
})
Text(`${Math.round(this.penSize)}px`)
.fontColor('#fff')
.fontSize(14)
.width(40)
}
.padding(12)
.width('100%')
.justifyContent(FlexAlign.Center)
.backgroundColor('rgba(0,0,0,0.8)')
}
@Builder
buildToolButton(props: ToolButtonProps) {
Button({ stateEffect: false }) {
if (this.currentTool === props.toolType) {
Image($r(`app.media.${props.activeImg}`))
.width(28)
.height(28)
.objectFit(ImageFit.Contain)
} else {
Image($r(`app.media.${props.normalImg}`))
.width(28)
.height(28)
.objectFit(ImageFit.Contain)
}
}
.width(48)
.height(48)
.backgroundColor(Color.Transparent)
.onClick(props.onClick)
}
}4.5 主界面注册与手势
javascript
import { ImageHelper } from '../utils/ImageHelper';
import promptAction from '@ohos.promptAction';
import { image } from '@kit.ImageKit';
import { common } from '@kit.AbilityKit';
import { componentSnapshot } from '@kit.ArkUI';
import { CanvasManager } from '../manager/CanvasManager';
import { DrawStrategy } from '../drawing/DrawStrategy';
import { MosaicStrategy } from '../drawing/MosaicStrategy';
import { DrawToolType } from '../model/ToolButtonProps';
import { DrawConfig } from '../model/DrawConfig';
import { DrawToolBar } from '../components/DrawToolBar';
@Entry
@Component
struct Index {
@State currentImage: image.PixelMap | null = null;
@State currentTool: DrawToolType = 'mosaic';
@State penColor: string = '#ff0000';
@State penSize: number = 40;
@State showDrawTools: boolean = false;
private settings: RenderingContextSettings = new RenderingContextSettings(true);
private ctx: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
private context = getContext(this) as common.Context;
private canvasManager: CanvasManager | null = null;
private drawStrategy: DrawStrategy | null = null;
private mosaicStrategy: MosaicStrategy | null = null;
private readonly SNAPSHOT_ID: string = 'editor_canvas';
aboutToAppear() {
this.initStrategies();
}
private initStrategies() {
const drawConfig: DrawConfig = {
color: this.penColor,
size: this.penSize > 20 ? 8 : this.penSize
};
this.drawStrategy = new DrawStrategy(drawConfig);
this.mosaicStrategy = new MosaicStrategy(this.context);
}
private onCanvasReady() {
if (!this.currentImage) return;
this.canvasManager = new CanvasManager(this.ctx);
this.canvasManager.registerStrategy('draw', this.drawStrategy!);
this.canvasManager.registerStrategy('mosaic', this.mosaicStrategy!);
this.canvasManager.setCurrentTool(this.currentTool);
this.canvasManager.loadImage(this.currentImage);
// 初始化马赛克配置
if (this.mosaicStrategy) {
this.mosaicStrategy.setBrushSize(this.penSize);
}
}
private onToolChange(tool: DrawToolType) {
this.currentTool = tool;
this.showDrawTools = tool === 'draw';
this.canvasManager?.setCurrentTool(tool);
// 根据工具调整笔刷大小
if (tool === 'mosaic') {
if (this.penSize < 20) {
this.penSize = 40;
this.onConfigurationChange();
}
} else if (tool === 'draw') {
if (this.penSize > 20) {
this.penSize = 8;
this.onConfigurationChange();
}
}
}
private onConfigurationChange() {
// 更新涂鸦配置
if (this.drawStrategy) {
this.drawStrategy.updateConfig({
color: this.penColor,
size: this.penSize > 20 ? 8 : this.penSize
});
}
// 更新马赛克配置
if (this.mosaicStrategy) {
this.mosaicStrategy.setBrushSize(this.penSize);
}
}
private async onSelectImage() {
const pixelMap = await ImageHelper.pickImage();
if (pixelMap) {
this.currentImage = pixelMap;
if (this.canvasManager) {
await this.canvasManager.loadImage(pixelMap);
}
} else {
promptAction.showToast({ message: "未选择图片" });
}
}
private clearCanvas() {
this.canvasManager?.clearCanvas();
}
private async saveCanvas() {
const snapshot = await this.capture();
if (snapshot) {
const success = await ImageHelper.saveToAlbum(snapshot, this.context);
promptAction.showToast({ message: success ? "保存成功" : "保存失败" });
}
}
private async capture(): Promise<image.PixelMap | null> {
return new Promise((resolve) => {
componentSnapshot.get(this.SNAPSHOT_ID, (err, pixmap) => {
if (err) {
console.error('截图失败:', err);
resolve(null);
} else {
resolve(pixmap);
}
});
});
}
private onGestureStart(e: GestureEvent) {
const x = e.fingerList[0].localX;
const y = e.fingerList[0].localY;
this.canvasManager?.startDraw(x, y);
}
private onGestureUpdate(e: GestureEvent) {
const x = e.fingerList[0].localX;
const y = e.fingerList[0].localY;
this.canvasManager?.updateDraw(x, y);
}
private onGestureEnd() {
this.canvasManager?.endDraw();
}
build() {
Column() {
// 顶部工具栏
if (this.currentImage) {
Row({ space: 16 }) {
Button('清屏')
.backgroundColor('#333')
.fontColor(Color.White)
.borderRadius(8)
.height(40)
.padding({ left: 16, right: 16 })
.onClick(() => this.clearCanvas())
Button('保存')
.backgroundColor('#007aff')
.fontColor(Color.White)
.borderRadius(8)
.height(40)
.padding({ left: 16, right: 16 })
.onClick(() => this.saveCanvas())
}
.width('100%')
.padding(12)
.backgroundColor('rgba(0,0,0,0.6)')
.justifyContent(FlexAlign.SpaceBetween)
}
// 无图片状态
if (!this.currentImage) {
Column({ space: 20 }) {
Text('✨ 图片编辑器 ✨')
.fontSize(24)
.fontWeight(FontWeight.Bold)
.fontColor('#fff')
Text('选择图片开始编辑')
.fontSize(16)
.fontColor('#aaa')
Button('选择图片')
.width(180)
.height(50)
.backgroundColor('#007aff')
.borderRadius(25)
.fontSize(16)
.fontWeight(FontWeight.Medium)
.onClick(() => this.onSelectImage())
}
.width('100%')
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
}
// Canvas画布
if (this.currentImage) {
Canvas(this.ctx)
.width('100%')
.layoutWeight(1)
.id(this.SNAPSHOT_ID)
.backgroundColor('#1a1a1a')
.onReady(() => {
this.onCanvasReady()
})
.gesture(
PanGesture({ fingers: 1, distance: 1 })
.onActionStart((e) => {
this.onGestureStart(e)
})
.onActionUpdate((e) => {
this.onGestureUpdate(e)
})
.onActionEnd(() => {
this.onGestureEnd()
})
)
}
// 底部工具栏
if (this.currentImage) {
DrawToolBar({
currentTool: $currentTool,
penColor: $penColor,
penSize: $penSize,
showDrawTools: this.showDrawTools,
onToolChange: (tool: DrawToolType) => {
this.onToolChange(tool)
},
onConfigChange: () => {
this.onConfigurationChange()
}
})
}
}
.backgroundColor('#000000')
.width('100%')
.height('100%')
}
}五、关键技术点
5.1 圆形笔刷
javascript
this.ctx.beginPath();
this.ctx.arc(centerX, centerY, radius, 0, Math.PI * 2);
this.ctx.fill();圆形笔刷比方形笔刷涂抹边缘更自然。
5.2 连续绘制插值
手指滑动时 onActionUpdate 触发频率有限（约 60fps），两点距离过大时会断开。通过插值补充中间点：
javascript
const steps = Math.max(Math.ceil(distance / (this.brushSize / 3)), 1);
for (let i = 1; i <= steps; i++) {
const t = i / steps;
const ix = lastPoint.x + (x - lastPoint.x) * t;
const iy = lastPoint.y + (y - lastPoint.y) * t;
this.drawMosaicAtPoint(ix, iy);
}5.3 策略模式扩展
新增工具只需三步：
javascript
// 1. 实现接口
export class NewStrategy implements IDrawingStrategy { /* ... */ }
// 2. 注册
canvasManager.registerStrategy('newTool', new NewStrategy());
// 3. 工具栏添加按钮
this.buildToolButton('newTool', 'icon', 'icon_active', () => this.onToolChange?.('newTool'))六、总结
架构设计优势：
- 策略模式：各工具独立实现，互不干扰
- 单一职责：CanvasManager 负责调度，Strategy 负责绘制
- 开闭原则：新增工具无需修改现有代码
纹理马赛克的核心优势：
- 无需像素计算，性能极佳
- 实现简单，代码量少
- 纹理可自由替换，风格多变
纹理要求：
- 需要无缝拼接的图片
- 不能是透明背景
- 建议尺寸 40-60px
后续可扩展：
- 涂鸦画笔（颜色选择、笔刷大小）
- 像素马赛克（真正的像素化效果）
- 裁剪功能
- 表情贴纸
如果觉得本文对你有帮助，请点赞、收藏、转发，谢谢！
