Formality：层次化验证（write_hierarchical_verification_script命令）

日晨难再2026-06-14 8:47

相关阅读

Formalityhttps://blog.csdn.net/weixin_45791458/category_12841971.html?spm=1001.2014.3001.5482

在进行RTL2Gate或Gate2Gate等价性检查时，最常见的挑战之一是设计规模过大带来的验证复杂度问题。对于包含大量层级、重复实例以及复杂子模块的SoC设计，如果采用展平验证(Flat Verification)，工具需要在同一层级展开所有逻辑进行整体比对，这不仅会显著增加匹配与证明的计算开销，还容易因为局部约束不完整或上下文丢失而产生假失败(False Failure)。

为了解决这一问题，Formality提供了层次化验证(Hierarchical Verification)机制。其核心思想是将整体设计按照层级结构拆分为多个可独立验证的Block，并以"逐层向上"的方式完成等价性证明。具体来说，验证过程从设计的最底层模块开始，对每一个可匹配的子Block进行独立验证；在该Block验证完成后，将其设置为黑盒(Black Box)，从而在上层验证中不再考虑其内部逻辑。随后，上层Block在这些已验证模块的基础上继续进行等价性检查，如此逐级向上推进，直到完成顶层验证。

这种方法的优势在于：每个Block都是在相对隔离且受控的上下文中验证的，既降低了匹配空间，也减少了由于层次耦合导致的误判。同时，通过Block级端口约束的精确建模，可以进一步减少边界条件错误，使验证结果更加稳定可靠。

在Formailty中，这一层次化验证流程通常不是手工逐个执行的，而是通过自动生成Tcl脚本来完成。工具会根据当前参考设计(Reference Design)与实现设计(Implementation Design)的匹配关系，自动生成一套完整的层次化验证脚本，用于控制黑盒设置、端口匹配、约束传递以及会话保存等行为。

可以通过以下两种方式生成脚本（需要注意的是，脚本需要在完成SVF文件读取和设计读取后才可生成或运行）。

|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|

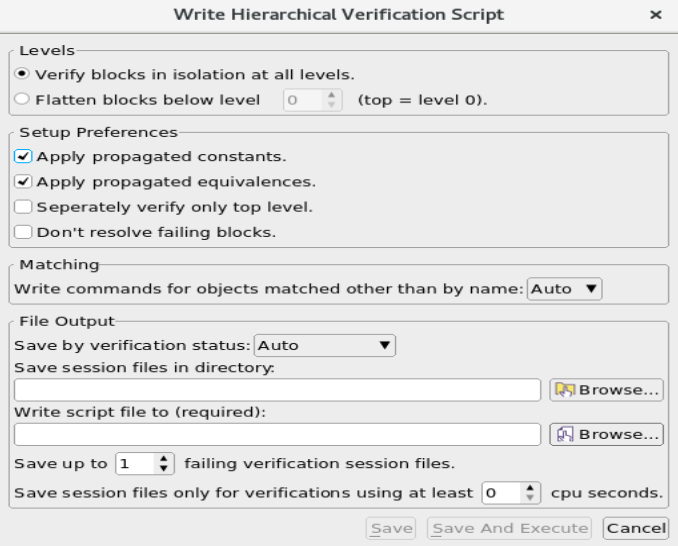

| fm_shell | GUI |
| 使用write_hierarchical_verification_script命令 选项包括 -replace -noconstant -noequivalence -match type -save_mode mode -save_directory pathname -save_file_limit integer -save_time_limit integer -level integer -path instance-specific-pathname(s) -block instance-specific-pathname(s) -dont_resolve_failures -top_level_only filename | 1、选择File > Write Hierarchical Script。 2、设置需要隔离的Block层次(Levels)。 3、设置偏好(Setup Preferences)。 4、设置匹配类型(Matching)。 5、设置文件输出(FIle Output)（包含会话保存方式、会话保存位置、会话保存数量、会话超时保存、脚本保存位置）。 |

下面对各个选项进行说明。

-replace

-replace选项用于指定是否覆盖已有脚本文件。默认情况下，如果文件已存在则会报错。

-noconstant

-noconstant选项用于指定是否在子Block边界生成常量约束。默认情况下，脚本会自动提取输入端口常量约束(set_constant命令)，用于增强匹配稳定性。

-noequivalence

-noequivalence选项用于指定是否在子Block边界生成等价约束。默认情况下，脚本会对那些已知等价但未匹配的端口生成等价约束（set_constraint coupled命令）。

-match -match选项用于指定匹配信息的生成范围。如果为auto （默认）即仅对非基于名称的匹配的对象生成匹配信息、为all即对所有对象生成完整匹配信息。关于匹配的更详细内容，可以参考下面的博客。

Formality：匹配(match)是如何进行的？https://blog.csdn.net/weixin_45791458/article/details/144404964?ops_request_misc=elastic_search_misc&request_id=5fa0541072fe8dac30639b0c9b14bc62&biz_id=0&utm_medium=distribute.pc_search_result.none-task-blog-2~all~ElasticSearch~search_v2-1-144404964-null-null.nonecase&utm_term=%E5%8C%B9%E9%85%8D&spm=1018.2226.3001.4450

-save_mode

-save_mode选项用于指定在哪些验证结果下保存会话。如果为auto （默认）仅保存不确定(inconclusive)结果（若开启Failure Resolve，则同时保存失败结果）、为not_passed 即保存所有未通过验证结果、为failed 仅保存失败(Failed)结果、为inconclusive仅保存不确定结果。

-save_directory

-save_directory选项用于指定会话文件保存路径，默认是当前工作目录。

-save_file_limit

-save_file_limit选项用于指定最多保存的会话文件数量，默认值为1。

-save_time_limit

-save_time_limit选项用于指定控制会话保存的CPU时间阈值，默认值为0。只有大于阈值的会话能被保存。

-level

-level选项用于指定层次，仅对指定层次及以上Block进行黑盒化和独立验证，顶层模块的层次为0。

例如，对于以下的设计结构，如果指定-level选项为1，则首先验证top_block/u1和top_block/u2，随后在top_block将这二者设置为黑盒后进行顶层验证；如果指定-level选项为2，则首先验证top_block/u1/u1_sub和top_block/u2/u2_sub，随后自底而上进行层次验证。

复制代码
top_block (level 0)
 ├── u1 (level 1)
 │     └── u1_sub (level 2)
 └── u2 (level 1)
       └── u2_sub (level 2)

-path

-path选项用于指定沿着具体路径开始进行黑盒化和独立验证。例如，对于以下的设计结构，如果指定-path选项为top_block/u1，则首先验证top_block/u1，随后在top_block将这top_block/u1设置为黑盒后进行顶层验证；如果指定-path选项为top_block/u1/u1_sub，则首先验证top_block/u1/u1_sub，随后在top_block/u1将top_block/u1/u1_sub设置为黑盒后进行验证，最后在top_block将top_block/u1为黑盒后进行顶层验证。

复制代码
top_block (level 0)
 ├── u1 (level 1)
 │     └── u1_sub (level 2)
 └── u2 (level 1)
       └── u2_sub (level 2)

-block-block选项用于指定仅对具体Block进行黑盒化和独立验证。例如，对于以下的设计结构，如果指定-block选项为top_block/u1，则首先验证top_block/u1，随后在top_block将这top_block/u1设置为黑盒后进行顶层验证；如果指定-block选项为top_block/u1/u1_sub和top_block/u2/u2_sub，则首先验证top_block/u1/u1_sub和top_block/u2/u2_sub，随后直接在top_block将这二者设置为黑盒后进行顶层验证。

复制代码
top_block (level 0)
 ├── u1 (level 1)
 │     └── u1_sub (level 2)
 └── u2 (level 1)
       └── u2_sub (level 2)

-dont_resolve_failures

-dont_resolve_failures选项用于指定是否开启重新验证。默认情况下，当上层Block验证失败时，会尝试将下层Block的黑盒移除，重新进行验证。

-top_level_only

-top_level_only选项用于指定只将顶层Block下的子Block设置为黑盒后进行顶层验证。如与-block选项一起使用，则将指定Block设置为黑盒后，将直接进行顶层验证，而不会验证指定Block；如与-path选项一起使用，则将指定路径下属于顶层Block下的子Block设置为黑盒后进行顶层验证。

下面展示了一个write_hierarchical_verification_script命令输出的层次化验证脚本。

复制代码
###
### Formality (R) hierarchical verification script: hier.tcl
###
### Reference design: r:/WORK/top_block
### Implementation design: i:/WORK/top_block
### Generated Sat Jun 13 22:40:43 2026
###

global ref
global impl
global verification_constant_prop_mode
global signature_analysis_match_blackbox_input
global signature_analysis_match_blackbox_output
global signature_analysis_match_primary_input
global signature_analysis_match_primary_output
global verification_status
global fm_tmp_result_count
global fm_hier_result_array

redirect         ./sess_fail/fm_hier.log {echo "**************************************************************************************************"}
redirect -append ./sess_fail/fm_hier.log {echo "Results of hierarchical verification script: hier.tcl"}
redirect -append ./sess_fail/fm_hier.log {echo "**************************************************************************************************"}

setup

if [info exists verification_constant_prop_mode] {
  set fm_write_hier_saved_vars(verification_constant_prop_mode) $verification_constant_prop_mode
}
set verification_constant_prop_mode none

if [info exists signature_analysis_match_blackbox_input] {
  set fm_write_hier_saved_vars(signature_analysis_match_blackbox_input) $signature_analysis_match_blackbox_input
}
set signature_analysis_match_blackbox_input false

if [info exists signature_analysis_match_blackbox_output] {
  set fm_write_hier_saved_vars(signature_analysis_match_blackbox_output) $signature_analysis_match_blackbox_output
}
set signature_analysis_match_blackbox_output false

if [info exists signature_analysis_match_primary_input] {
  set fm_write_hier_saved_vars(signature_analysis_match_primary_input) $signature_analysis_match_primary_input
}
set signature_analysis_match_primary_input false

if [info exists signature_analysis_match_primary_output] {
  set fm_write_hier_saved_vars(signature_analysis_match_primary_output) $signature_analysis_match_primary_output
}
set signature_analysis_match_primary_output false

if [info exists fm_hier_result_array] {
  unset fm_hier_result_array
}
set fm_hier_result_count 0
set fm_tmp_result_count 0
set fm_session_files_saved 0
set fm_save_file_limit 1
set fm_save_time_limit 0

proc get_verification_status {ref_inst imp_inst} {
  global fm_tmp_result_count
  global fm_hier_result_array

  for {set i 0} {$i < $fm_tmp_result_count} {incr i} {
    if [expr (![string compare [lindex $fm_hier_result_array([expr $i + 1]) 0] $ref_inst])] {
      if [expr (![string compare [lindex $fm_hier_result_array([expr $i + 1]) 1] $imp_inst])] {
        return [lindex $fm_hier_result_array([expr $i + 1]) 2]
      }
    }
  }

  return UNKNOWN
}

###
### Verifying instances:
###   Ref: r:/WORK/top_block/inst_u1/inst_u1_sub
###   Imp: i:/WORK/top_block/inst_u1/inst_u1_sub
###
set_reference_design      r:/WORK/u1_sub
set_implementation_design i:/WORK/u1_sub
set_user_match -type port $impl/a $ref/a
set_user_match -type port $impl/b $ref/b
set_user_match -type port $impl/y $ref/y
set fm_begin_cputime [cputime]
verify
set fm_end_cputime [cputime]
set fm_this_verification_cputime [expr $fm_end_cputime - $fm_begin_cputime]
set fm_cumulative_memory [expr [memory] / 1000]
set fm_tmp_result_count [expr $fm_tmp_result_count + 1]
set fm_hier_result_array($fm_tmp_result_count) [list {r:/WORK/top_block/inst_u1/inst_u1_sub} {i:/WORK/top_block/inst_u1/inst_u1_sub} $verification_status]
set fm_failure_comment ""
if [expr (![string compare $verification_status "FAILED"])] {
  set fm_failure_comment " (may be resolved in the parent level verification)"
}
redirect -append ./sess_fail/fm_hier.log {format "  "}
redirect -append ./sess_fail/fm_hier.log {format "Verification %s%s:" $verification_status $fm_failure_comment}
redirect -append ./sess_fail/fm_hier.log {format "  Ref: %s (instance of %s)" {r:/WORK/top_block/inst_u1/inst_u1_sub} $ref}
redirect -append ./sess_fail/fm_hier.log {format "  Imp: %s (instance of %s)" {i:/WORK/top_block/inst_u1/inst_u1_sub} $impl}
redirect -append ./sess_fail/fm_hier.log {format "  %s, %4.0fMB (cumulative), %7.2fsec (incremental)" [date] $fm_cumulative_memory $fm_this_verification_cputime}
if [expr (![string compare $verification_status "INCONCLUSIVE"]) && \
         ($fm_session_files_saved < $fm_save_file_limit) && \
         ($fm_this_verification_cputime >= $fm_save_time_limit)] {
  save_session -replace ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  lappend fm_hier_result_array($fm_tmp_result_count) ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  redirect -append ./sess_fail/fm_hier.log {format "  Session file: ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss"}
  set fm_session_files_saved [expr $fm_session_files_saved + 1]
}
setup
remove_user_match -type port $impl/a
remove_user_match -type port $impl/b
remove_user_match -type port $impl/y

###
### Verifying instances:
###   Ref: r:/WORK/top_block/inst_u1
###   Imp: i:/WORK/top_block/inst_u1
###
set_reference_design      r:/WORK/u1
set_implementation_design i:/WORK/u1
set at_least_one_black_box 0
set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u1/inst_u1_sub} {i:/WORK/top_block/inst_u1/inst_u1_sub}]
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
  set_black_box  $ref/inst_u1_sub
  set_black_box $impl/inst_u1_sub
  set at_least_one_black_box 1
  set_user_match -type cell $impl/inst_u1_sub $ref/inst_u1_sub
  set_user_match -type pin $impl/inst_u1_sub/a $ref/inst_u1_sub/a
  set_user_match -type pin $impl/inst_u1_sub/b $ref/inst_u1_sub/b
  set_user_match -type pin $impl/inst_u1_sub/y $ref/inst_u1_sub/y
}
if [expr true] {
}
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
}
set_user_match -type port $impl/a $ref/a
set_user_match -type port $impl/b $ref/b
set_user_match -type port $impl/y $ref/y
set fm_begin_cputime [cputime]
verify
if [expr ($at_least_one_black_box) && \
         (![string compare $verification_status "FAILED"])] {
  setup
  set at_least_one_black_box 0
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u1/inst_u1_sub} {i:/WORK/top_block/inst_u1/inst_u1_sub}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u1_sub
    remove_black_box $impl/inst_u1_sub
    remove_user_match -type cell $impl/inst_u1_sub
    remove_user_match -type pin $impl/inst_u1_sub/a
    remove_user_match -type pin $impl/inst_u1_sub/b
    remove_user_match -type pin $impl/inst_u1_sub/y
  }
  verify
}
set fm_end_cputime [cputime]
set fm_this_verification_cputime [expr $fm_end_cputime - $fm_begin_cputime]
set fm_cumulative_memory [expr [memory] / 1000]
set fm_tmp_result_count [expr $fm_tmp_result_count + 1]
set fm_hier_result_array($fm_tmp_result_count) [list {r:/WORK/top_block/inst_u1} {i:/WORK/top_block/inst_u1} $verification_status]
set fm_failure_comment ""
if [expr (![string compare $verification_status "FAILED"])] {
  set fm_failure_comment " (may be resolved in the parent level verification)"
}
redirect -append ./sess_fail/fm_hier.log {format "  "}
redirect -append ./sess_fail/fm_hier.log {format "Verification %s%s:" $verification_status $fm_failure_comment}
redirect -append ./sess_fail/fm_hier.log {format "  Ref: %s (instance of %s)" {r:/WORK/top_block/inst_u1} $ref}
redirect -append ./sess_fail/fm_hier.log {format "  Imp: %s (instance of %s)" {i:/WORK/top_block/inst_u1} $impl}
redirect -append ./sess_fail/fm_hier.log {format "  %s, %4.0fMB (cumulative), %7.2fsec (incremental)" [date] $fm_cumulative_memory $fm_this_verification_cputime}
if [expr (![string compare $verification_status "INCONCLUSIVE"]) && \
         ($fm_session_files_saved < $fm_save_file_limit) && \
         ($fm_this_verification_cputime >= $fm_save_time_limit)] {
  save_session -replace ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  lappend fm_hier_result_array($fm_tmp_result_count) ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  redirect -append ./sess_fail/fm_hier.log {format "  Session file: ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss"}
  set fm_session_files_saved [expr $fm_session_files_saved + 1]
}
setup
if [expr ($at_least_one_black_box)] {
  set at_least_one_black_box 0
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u1/inst_u1_sub} {i:/WORK/top_block/inst_u1/inst_u1_sub}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u1_sub
    remove_black_box $impl/inst_u1_sub
    remove_user_match -type cell $impl/inst_u1_sub
    remove_user_match -type pin $impl/inst_u1_sub/a
    remove_user_match -type pin $impl/inst_u1_sub/b
    remove_user_match -type pin $impl/inst_u1_sub/y
  }
}
remove_user_match -type port $impl/a
remove_user_match -type port $impl/b
remove_user_match -type port $impl/y

###
### Verifying instances:
###   Ref: r:/WORK/top_block/inst_u2/inst_u2_sub
###   Imp: i:/WORK/top_block/inst_u2/inst_u2_sub
###
set_reference_design      r:/WORK/u2_sub
set_implementation_design i:/WORK/u2_sub
set_user_match -type port $impl/a $ref/a
set_user_match -type port $impl/b $ref/b
set_user_match -type port $impl/y $ref/y
set fm_begin_cputime [cputime]
verify
set fm_end_cputime [cputime]
set fm_this_verification_cputime [expr $fm_end_cputime - $fm_begin_cputime]
set fm_cumulative_memory [expr [memory] / 1000]
set fm_tmp_result_count [expr $fm_tmp_result_count + 1]
set fm_hier_result_array($fm_tmp_result_count) [list {r:/WORK/top_block/inst_u2/inst_u2_sub} {i:/WORK/top_block/inst_u2/inst_u2_sub} $verification_status]
set fm_failure_comment ""
if [expr (![string compare $verification_status "FAILED"])] {
  set fm_failure_comment " (may be resolved in the parent level verification)"
}
redirect -append ./sess_fail/fm_hier.log {format "  "}
redirect -append ./sess_fail/fm_hier.log {format "Verification %s%s:" $verification_status $fm_failure_comment}
redirect -append ./sess_fail/fm_hier.log {format "  Ref: %s (instance of %s)" {r:/WORK/top_block/inst_u2/inst_u2_sub} $ref}
redirect -append ./sess_fail/fm_hier.log {format "  Imp: %s (instance of %s)" {i:/WORK/top_block/inst_u2/inst_u2_sub} $impl}
redirect -append ./sess_fail/fm_hier.log {format "  %s, %4.0fMB (cumulative), %7.2fsec (incremental)" [date] $fm_cumulative_memory $fm_this_verification_cputime}
if [expr (![string compare $verification_status "INCONCLUSIVE"]) && \
         ($fm_session_files_saved < $fm_save_file_limit) && \
         ($fm_this_verification_cputime >= $fm_save_time_limit)] {
  save_session -replace ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  lappend fm_hier_result_array($fm_tmp_result_count) ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  redirect -append ./sess_fail/fm_hier.log {format "  Session file: ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss"}
  set fm_session_files_saved [expr $fm_session_files_saved + 1]
}
setup
remove_user_match -type port $impl/a
remove_user_match -type port $impl/b
remove_user_match -type port $impl/y

###
### Verifying instances:
###   Ref: r:/WORK/top_block/inst_u2
###   Imp: i:/WORK/top_block/inst_u2
###
set_reference_design      r:/WORK/u2
set_implementation_design i:/WORK/u2
set at_least_one_black_box 0
set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u2/inst_u2_sub} {i:/WORK/top_block/inst_u2/inst_u2_sub}]
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
  set_black_box  $ref/inst_u2_sub
  set_black_box $impl/inst_u2_sub
  set at_least_one_black_box 1
  set_user_match -type cell $impl/inst_u2_sub $ref/inst_u2_sub
  set_user_match -type pin $impl/inst_u2_sub/a $ref/inst_u2_sub/a
  set_user_match -type pin $impl/inst_u2_sub/b $ref/inst_u2_sub/b
  set_user_match -type pin $impl/inst_u2_sub/y $ref/inst_u2_sub/y
}
if [expr true] {
}
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
}
set_user_match -type port $impl/a $ref/a
set_user_match -type port $impl/b $ref/b
set_user_match -type port $impl/y $ref/y
set fm_begin_cputime [cputime]
verify
if [expr ($at_least_one_black_box) && \
         (![string compare $verification_status "FAILED"])] {
  setup
  set at_least_one_black_box 0
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u2/inst_u2_sub} {i:/WORK/top_block/inst_u2/inst_u2_sub}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u2_sub
    remove_black_box $impl/inst_u2_sub
    remove_user_match -type cell $impl/inst_u2_sub
    remove_user_match -type pin $impl/inst_u2_sub/a
    remove_user_match -type pin $impl/inst_u2_sub/b
    remove_user_match -type pin $impl/inst_u2_sub/y
  }
  verify
}
set fm_end_cputime [cputime]
set fm_this_verification_cputime [expr $fm_end_cputime - $fm_begin_cputime]
set fm_cumulative_memory [expr [memory] / 1000]
set fm_tmp_result_count [expr $fm_tmp_result_count + 1]
set fm_hier_result_array($fm_tmp_result_count) [list {r:/WORK/top_block/inst_u2} {i:/WORK/top_block/inst_u2} $verification_status]
set fm_failure_comment ""
if [expr (![string compare $verification_status "FAILED"])] {
  set fm_failure_comment " (may be resolved in the parent level verification)"
}
redirect -append ./sess_fail/fm_hier.log {format "  "}
redirect -append ./sess_fail/fm_hier.log {format "Verification %s%s:" $verification_status $fm_failure_comment}
redirect -append ./sess_fail/fm_hier.log {format "  Ref: %s (instance of %s)" {r:/WORK/top_block/inst_u2} $ref}
redirect -append ./sess_fail/fm_hier.log {format "  Imp: %s (instance of %s)" {i:/WORK/top_block/inst_u2} $impl}
redirect -append ./sess_fail/fm_hier.log {format "  %s, %4.0fMB (cumulative), %7.2fsec (incremental)" [date] $fm_cumulative_memory $fm_this_verification_cputime}
if [expr (![string compare $verification_status "INCONCLUSIVE"]) && \
         ($fm_session_files_saved < $fm_save_file_limit) && \
         ($fm_this_verification_cputime >= $fm_save_time_limit)] {
  save_session -replace ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  lappend fm_hier_result_array($fm_tmp_result_count) ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  redirect -append ./sess_fail/fm_hier.log {format "  Session file: ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss"}
  set fm_session_files_saved [expr $fm_session_files_saved + 1]
}
setup
if [expr ($at_least_one_black_box)] {
  set at_least_one_black_box 0
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u2/inst_u2_sub} {i:/WORK/top_block/inst_u2/inst_u2_sub}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u2_sub
    remove_black_box $impl/inst_u2_sub
    remove_user_match -type cell $impl/inst_u2_sub
    remove_user_match -type pin $impl/inst_u2_sub/a
    remove_user_match -type pin $impl/inst_u2_sub/b
    remove_user_match -type pin $impl/inst_u2_sub/y
  }
}
remove_user_match -type port $impl/a
remove_user_match -type port $impl/b
remove_user_match -type port $impl/y

###
### Verifying instances:
###   Ref: r:/WORK/top_block
###   Imp: i:/WORK/top_block
###
set_reference_design      r:/WORK/top_block
set_implementation_design i:/WORK/top_block
set at_least_one_black_box 0
set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u1} {i:/WORK/top_block/inst_u1}]
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
  set_black_box  $ref/inst_u1
  set_black_box $impl/inst_u1
  set at_least_one_black_box 1
  set_user_match -type cell $impl/inst_u1 $ref/inst_u1
  set_user_match -type pin $impl/inst_u1/a $ref/inst_u1/a
  set_user_match -type pin $impl/inst_u1/b $ref/inst_u1/b
  set_user_match -type pin $impl/inst_u1/y $ref/inst_u1/y
}
if [expr true] {
}
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
}
set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u2} {i:/WORK/top_block/inst_u2}]
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
  set_black_box  $ref/inst_u2
  set_black_box $impl/inst_u2
  set at_least_one_black_box 1
  set_user_match -type cell $impl/inst_u2 $ref/inst_u2
  set_user_match -type pin $impl/inst_u2/a $ref/inst_u2/a
  set_user_match -type pin $impl/inst_u2/b $ref/inst_u2/b
  set_user_match -type pin $impl/inst_u2/y $ref/inst_u2/y
}
if [expr true] {
}
if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
          (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
}
set fm_begin_cputime [cputime]
verify
if [expr ($at_least_one_black_box) && \
         (![string compare $verification_status "FAILED"])] {
  setup
  set at_least_one_black_box 0
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u1} {i:/WORK/top_block/inst_u1}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u1
    remove_black_box $impl/inst_u1
    remove_user_match -type cell $impl/inst_u1
    remove_user_match -type pin $impl/inst_u1/a
    remove_user_match -type pin $impl/inst_u1/b
    remove_user_match -type pin $impl/inst_u1/y
  }
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u2} {i:/WORK/top_block/inst_u2}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u2
    remove_black_box $impl/inst_u2
    remove_user_match -type cell $impl/inst_u2
    remove_user_match -type pin $impl/inst_u2/a
    remove_user_match -type pin $impl/inst_u2/b
    remove_user_match -type pin $impl/inst_u2/y
  }
  verify
}
set fm_end_cputime [cputime]
set fm_this_verification_cputime [expr $fm_end_cputime - $fm_begin_cputime]
set fm_cumulative_memory [expr [memory] / 1000]
set fm_tmp_result_count [expr $fm_tmp_result_count + 1]
set fm_hier_result_array($fm_tmp_result_count) [list {r:/WORK/top_block} {i:/WORK/top_block} $verification_status]
redirect -append ./sess_fail/fm_hier.log {format "  "}
redirect -append ./sess_fail/fm_hier.log {format "Verification %s:" $verification_status}
redirect -append ./sess_fail/fm_hier.log {format "  Ref: %s (top)" {r:/WORK/top_block}}
redirect -append ./sess_fail/fm_hier.log {format "  Imp: %s (top)" {i:/WORK/top_block}}
redirect -append ./sess_fail/fm_hier.log {format "  %s, %4.0fMB (cumulative), %7.2fsec (incremental)" [date] $fm_cumulative_memory $fm_this_verification_cputime}
if [expr (![string compare $verification_status "INCONCLUSIVE"]) && \
         ($fm_session_files_saved < $fm_save_file_limit) && \
         ($fm_this_verification_cputime >= $fm_save_time_limit)] {
  save_session -replace ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  lappend fm_hier_result_array($fm_tmp_result_count) ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss
  redirect -append ./sess_fail/fm_hier.log {format "  Session file: ./sess_fail/fm_hier.tcl.$fm_tmp_result_count.fss"}
  set fm_session_files_saved [expr $fm_session_files_saved + 1]
}
setup
if [expr ($at_least_one_black_box)] {
  set at_least_one_black_box 0
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u1} {i:/WORK/top_block/inst_u1}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u1
    remove_black_box $impl/inst_u1
    remove_user_match -type cell $impl/inst_u1
    remove_user_match -type pin $impl/inst_u1/a
    remove_user_match -type pin $impl/inst_u1/b
    remove_user_match -type pin $impl/inst_u1/y
  }
  set tmp_verification_status [get_verification_status {r:/WORK/top_block/inst_u2} {i:/WORK/top_block/inst_u2}]
  if [expr ((![string compare $tmp_verification_status "SUCCEEDED"]) || \
            (![string compare $tmp_verification_status "INCONCLUSIVE"]))] {
    remove_black_box  $ref/inst_u2
    remove_black_box $impl/inst_u2
    remove_user_match -type cell $impl/inst_u2
    remove_user_match -type pin $impl/inst_u2/a
    remove_user_match -type pin $impl/inst_u2/b
    remove_user_match -type pin $impl/inst_u2/y
  }
}

if [info exists fm_write_hier_saved_vars] {
  foreach _var [array names fm_write_hier_saved_vars] {
    set $_var $fm_write_hier_saved_vars($_var)
  };
  unset fm_write_hier_saved_vars
}

###
### Report results
###
set fm_hier_result_count $fm_tmp_result_count
set fm_log_fp [open ./sess_fail/fm_hier.log]
puts [read $fm_log_fp]
close $fm_log_fp
相关推荐
IC修真院8 天前
高赞问题：NPU可不可以代替GPU？
gpu·ic设计·芯片·微电子·数字ic·npu
日晨难再10 天前
SDC命令详解：使用report_hierarchy命令进行报告
数字ic
日晨难再1 个月前
Library Compiler：时序弧建模与约束全解析（三）
数字ic
日晨难再1 个月前
Library Compiler：时序弧建模与约束全解析（二）
数字ic
日晨难再1 个月前
Library Compiler：时序弧建模与约束全解析（一）
数字ic
内有小猪卖2 个月前
数字IC设计流程及术语
硬件架构·数字ic
70asunflower2 个月前
研发一款CPU/SoC，到底需要哪些IP和功能单元？
芯片设计·数字ic·模拟ic
日晨难再3 个月前
Power Compiler：UPF模式下的单元映射规则
数字ic
日晨难再3 个月前
Innovus：Cadence那些曾经的布局布线工具
数字ic
热门推荐
01HTTP 与 HTTPS 的区别：从原理到实战详解022026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？03【AI】2026 年具身智能模型和世界模型总结042026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？05AI科技热点日报 | 2026年6月1日06《置身钉内》原文-可播放阅读07Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析08GitHub 镜像站点092026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf10AI一周事件 · 2026-06-03 至 2026-06-09
