分享自己写的一个通信协议源码，支持C++和C，双包头+不定长

小灰灰搞电子2026-08-30 9:46

分享自己写的一个通信协议源码，支持C++和C，双包头+不定长

一、源码分享

1、protocol.h

cpp 复制代码
#ifndef __PROTOCOL_H__
#define __PROTOCOL_H__

#include <stdint.h>
#include <stddef.h>

#ifdef __cplusplus
extern "C" {
#endif

#define PROTO_HEAD0     0xAAU
#define PROTO_HEAD1     0xBBU
#define PROTO_MAX_PAYLOAD_LEN  256U

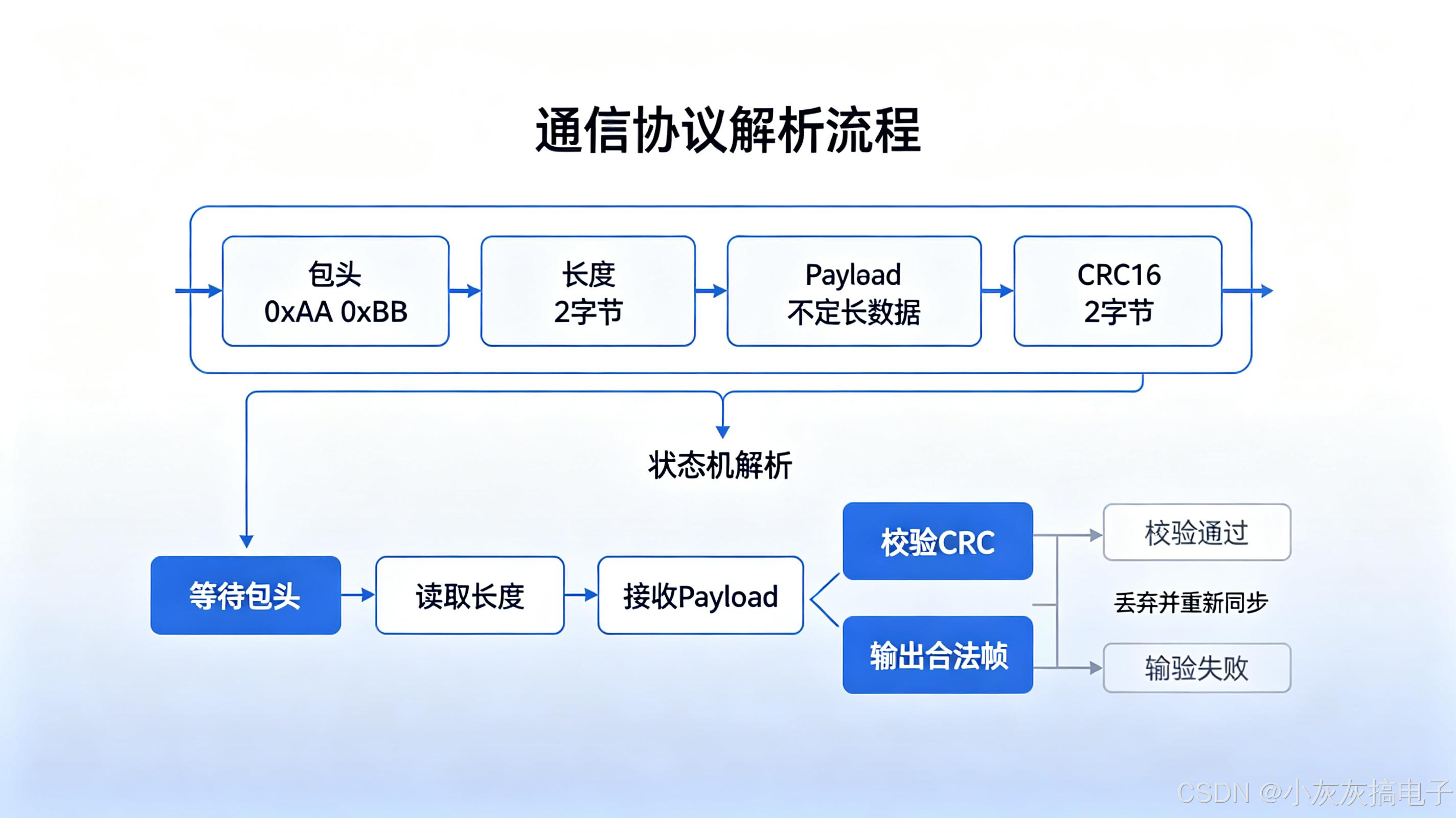

    typedef enum
    {
        PROTO_WAIT_HEAD0,
        PROTO_WAIT_HEAD1,
        PROTO_READ_LEN_H,
        PROTO_READ_LEN_L,
        PROTO_READ_PAYLOAD,
        PROTO_READ_CRC_H,
        PROTO_READ_CRC_L
    }ProtoState_e;

    typedef void (*ProtoFrameCb)(const uint8_t* payload, uint16_t len);

    typedef struct
    {
        ProtoState_e state;
        uint16_t expect_payload_len;
        uint16_t crc_read;
        uint16_t payload_recv_cnt;
        uint8_t payload_buf[PROTO_MAX_PAYLOAD_LEN];
        ProtoFrameCb frame_cb;
    }ProtocolDecoder_t;

    uint16_t crc16_modbus(const uint8_t* data, size_t len);

    void proto_decoder_init(ProtocolDecoder_t* dec, ProtoFrameCb cb);
    void proto_decoder_put_byte(ProtocolDecoder_t* dec, uint8_t byte);
    // 批量输入buffer
    void proto_decoder_put_buffer(ProtocolDecoder_t* dec, const uint8_t* buf, size_t len);

    // 编码，返回生成帧总字节数；0代表失败
    size_t proto_encode_frame(uint8_t* out_buf, size_t out_buf_sz,
        const uint8_t* payload, uint16_t payload_len);

#ifdef __cplusplus
}
#endif

#endif

2、protocol.c

cpp 复制代码
#include "protocol.h"

static const uint16_t crc16_table[256] = {
0x0000,0xC0C1,0xC181,0x0140,0xC301,0x03C0,0x0280,0xC241,0xC601,0x06C0,0x0780,0xC741,0x0500,0xC5C1,0xC481,0x0440,
0xCC01,0x0CC0,0x0D80,0xCD41,0x0F00,0xCFC1,0xCE81,0x0E40,0x0A00,0xCAC1,0xCB81,0x0B40,0xC901,0x09C0,0x0880,0xC841,
0xD801,0x18C0,0x1980,0xD941,0x1B00,0xDBC1,0xDA81,0x1A40,0x1E00,0xDEC1,0xDF81,0x1F40,0xDD01,0x1DC0,0x1C80,0xDC41,
0x1400,0xD4C1,0xD581,0x1540,0xD701,0x17C0,0x1680,0xD641,0xD201,0x12C0,0x1380,0xD341,0x1100,0xD1C1,0xD081,0x1040,
0xF001,0x30C0,0x3180,0xF141,0x3300,0xF3C1,0xF281,0x3240,0x3600,0xF6C1,0xF781,0x3740,0xF501,0x35C0,0x3480,0xF441,
0x3C00,0xFCC1,0xFD81,0x3D40,0xFF01,0x3FC0,0x3E80,0xFE41,0xFA01,0x3AC0,0x3B80,0xFB41,0x3900,0xF9C1,0xF881,0x3840,
0x2800,0xE8C1,0xE981,0x2940,0xEB01,0x2BC0,0x2A80,0xEA41,0xEE01,0x2EC0,0x2F80,0xEF41,0x2D00,0xEDC1,0xEC81,0x2C40,
0xE401,0x24C0,0x2580,0xE541,0x2700,0xE7C1,0xE681,0x2640,0x2200,0xE2C1,0xE381,0x2340,0xE101,0x21C0,0x2080,0xE041,
0xA001,0x60C0,0x6180,0xA141,0x6300,0xA3C1,0xA281,0x6240,0x6600,0xA6C1,0xA781,0x6740,0xA501,0x65C0,0x6480,0xA441,
0x6C00,0xACC1,0xAD81,0x6D40,0xAF01,0x6FC0,0x6E80,0xAE41,0xAA01,0x6AC0,0x6B80,0xAB41,0x6900,0xA9C1,0xA881,0x6840,
0x7800,0xB8C1,0xB981,0x7940,0xBB01,0x7BC0,0x7A80,0xBA41,0xBE01,0x7EC0,0x7F80,0xBF41,0x7D00,0xBDC1,0xBC81,0x7C40,
0xB401,0x74C0,0x7580,0xB541,0x7700,0xB7C1,0xB681,0x7640,0x7200,0xB2C1,0xB381,0x7340,0xB101,0x71C0,0x7080,0xB041,
0x5000,0x90C1,0x9181,0x5140,0x9301,0x53C0,0x5280,0x9241,0x9601,0x56C0,0x5780,0x9741,0x5500,0x95C1,0x9481,0x5440,
0x9C01,0x5CC0,0x5D80,0x9D41,0x5F00,0x9FC1,0x9E81,0x5E40,0x5A00,0x9AC1,0x9B81,0x5B40,0x9901,0x59C0,0x5880,0x9841,
0x8801,0x48C0,0x4980,0x8941,0x4B00,0x8BC1,0x8A81,0x4A40,0x4E00,0x8EC1,0x8F81,0x4F40,0x8D01,0x4DC0,0x4C80,0x8C41,
0x4400,0x84C1,0x8581,0x4540,0x8701,0x47C0,0x4680,0x8641,0x8201,0x42C0,0x4380,0x8341,0x4100,0x81C1,0x8081,0x4040
};

uint16_t crc16_modbus(const uint8_t* data, size_t len)
{
    uint16_t crc = 0xFFFFU;
    size_t i;
    for (i = 0; i < len; i++)
    {
        uint8_t byte = data[i];
        crc = (uint16_t)((crc >> 8U) ^ crc16_table[(crc ^ byte) & 0xFFU]);
    }
    return crc;
}

void proto_decoder_init(ProtocolDecoder_t* dec, ProtoFrameCb cb)
{
    dec->state = PROTO_WAIT_HEAD0;
    dec->expect_payload_len = 0U;
    dec->crc_read = 0U;
    dec->payload_recv_cnt = 0U;
    dec->frame_cb = cb;
}

void proto_decoder_put_buffer(ProtocolDecoder_t* dec, const uint8_t* buf, size_t len)
{
    size_t i;
    for (i = 0; i < len; i++)
    {
        proto_decoder_put_byte(dec, buf[i]);
    }
}

void proto_decoder_put_byte(ProtocolDecoder_t* dec, uint8_t byte)
{
    switch (dec->state)
    {
    case PROTO_WAIT_HEAD0:
        if (byte == PROTO_HEAD0)
        {
            dec->state = PROTO_WAIT_HEAD1;
        }
        break;

    case PROTO_WAIT_HEAD1:
        if (byte == PROTO_HEAD1)
        {
            dec->state = PROTO_READ_LEN_H;
        }
        else
        {
            dec->state = PROTO_WAIT_HEAD0;
        }
        break;

    case PROTO_READ_LEN_H:
        dec->expect_payload_len = ((uint16_t)byte) << 8U;
        dec->state = PROTO_READ_LEN_L;
        break;

    case PROTO_READ_LEN_L:
        dec->expect_payload_len |= byte;
        dec->payload_recv_cnt = 0U;
        if (dec->expect_payload_len > PROTO_MAX_PAYLOAD_LEN)
        {
            dec->state = PROTO_WAIT_HEAD0;
        }
        else if (dec->expect_payload_len == 0U)
        {
            dec->state = PROTO_READ_CRC_H;
        }
        else
        {
            dec->state = PROTO_READ_PAYLOAD;
        }
        break;

    case PROTO_READ_PAYLOAD:
    {
        dec->payload_buf[dec->payload_recv_cnt++] = byte;
        if (dec->payload_recv_cnt >= dec->expect_payload_len)
        {
            dec->state = PROTO_READ_CRC_H;
        }
        break;
    }

    case PROTO_READ_CRC_H:
        dec->crc_read = ((uint16_t)byte) << 8U;
        dec->state = PROTO_READ_CRC_L;
        break;

    case PROTO_READ_CRC_L:
    {
        dec->crc_read |= byte;
        uint8_t len_buf[2];
        len_buf[0] = (uint8_t)(dec->expect_payload_len >> 8U);
        len_buf[1] = (uint8_t)(dec->expect_payload_len & 0xFFU);

        uint16_t calc_crc = crc16_modbus(len_buf, 2U);
        uint16_t i;
        for (i = 0; i < dec->expect_payload_len; i++)
        {
            uint8_t b = dec->payload_buf[i];
            calc_crc = (uint16_t)((calc_crc >> 8U) ^ crc16_table[(calc_crc ^ b) & 0xFFU]);
        }

        if (calc_crc == dec->crc_read)
        {
            if (dec->frame_cb != NULL)
            {
                dec->frame_cb(dec->payload_buf, dec->expect_payload_len);
            }
        }
        dec->state = PROTO_WAIT_HEAD0;
        break;
    }

    default:
        proto_decoder_init(dec, dec->frame_cb);
        break;
    }
}

size_t proto_encode_frame(uint8_t* out_buf, size_t out_buf_sz,
    const uint8_t* payload, uint16_t payload_len)
{
    const size_t total_frame_size = 2U + 2U + payload_len + 2U;
    if (out_buf_sz < total_frame_size)
    {
        return 0U;
    }
    if (payload_len > PROTO_MAX_PAYLOAD_LEN)
    {
        return 0U;
    }

    uint8_t* p = out_buf;
    *p++ = PROTO_HEAD0;
    *p++ = PROTO_HEAD1;

    uint8_t len_buf[2];
    len_buf[0] = (uint8_t)(payload_len >> 8U);
    len_buf[1] = (uint8_t)(payload_len & 0xFFU);
    *p++ = len_buf[0];
    *p++ = len_buf[1];

    uint16_t i;
    for (i = 0; i < payload_len; i++)
    {
        *p++ = payload[i];
    }

    // CRC：先算2字节长度，再接续算payload
    uint16_t crc = crc16_modbus(len_buf, 2U);
    for (i = 0; i < payload_len; i++)
    {
        uint8_t byte = payload[i];
        crc = (uint16_t)((crc >> 8U) ^ crc16_table[(crc ^ byte) & 0xFFU]);
    }

    *p++ = (uint8_t)(crc >> 8U);
    *p++ = (uint8_t)(crc & 0xFFU);

    return total_frame_size;
}

3、ProtocolParser.hpp

cpp 复制代码
#ifndef PROTOCOL_PARSER_HPP
#define PROTOCOL_PARSER_HPP

#include <cstdint>
#include <cstddef>
#include <functional>

#define PROTO_HEAD0     0xAAU
#define PROTO_HEAD1     0xBBU
#define PROTO_MAX_PAYLOAD_LEN  256U

enum class ProtoState
{
    WAIT_HEAD0,
    WAIT_HEAD1,
    READ_LEN_H,
    READ_LEN_L,
    READ_PAYLOAD,
    READ_CRC_H,
    READ_CRC_L
};

class ProtocolParser
{
public:
    using FrameCallback = std::function<void(const uint8_t* payload, uint16_t len)>;

    ProtocolParser();
    void setCallback(FrameCallback cb);
    void reset();

    // 单字节喂入
    void feedByte(uint8_t byte);
    // 批量buffer喂入（方便测试）
    void feedBuffer(const uint8_t* buf, size_t len);

    static uint16_t crc16Modbus(const uint8_t* data, size_t len);
    // 编码输出完整帧，返回帧总字节；返回0代表失败
    static size_t encodeFrame(uint8_t* outBuf, size_t outBufSize, const uint8_t* payload, uint16_t payloadLen);

private:
    ProtoState m_state;
    uint16_t m_expectPayloadLen;  // 需要接收的payload剩余字节数
    uint16_t m_crcRead;
    uint8_t m_payloadBuf[PROTO_MAX_PAYLOAD_LEN];
    uint16_t m_payloadRecvCnt;    // 已经收到payload字节数【新增修复】
    FrameCallback m_cb;
};

#endif

4、ProtocolParser.cpp

cpp 复制代码
#include "ProtocolParser.hpp"

static const uint16_t crc16_table[256] = {
0x0000,0xC0C1,0xC181,0x0140,0xC301,0x03C0,0x0280,0xC241,0xC601,0x06C0,0x0780,0xC741,0x0500,0xC5C1,0xC481,0x0440,
0xCC01,0x0CC0,0x0D80,0xCD41,0x0F00,0xCFC1,0xCE81,0x0E40,0x0A00,0xCAC1,0xCB81,0x0B40,0xC901,0x09C0,0x0880,0xC841,
0xD801,0x18C0,0x1980,0xD941,0x1B00,0xDBC1,0xDA81,0x1A40,0x1E00,0xDEC1,0xDF81,0x1F40,0xDD01,0x1DC0,0x1C80,0xDC41,
0x1400,0xD4C1,0xD581,0x1540,0xD701,0x17C0,0x1680,0xD641,0xD201,0x12C0,0x1380,0xD341,0x1100,0xD1C1,0xD081,0x1040,
0xF001,0x30C0,0x3180,0xF141,0x3300,0xF3C1,0xF281,0x3240,0x3600,0xF6C1,0xF781,0x3740,0xF501,0x35C0,0x3480,0xF441,
0x3C00,0xFCC1,0xFD81,0x3D40,0xFF01,0x3FC0,0x3E80,0xFE41,0xFA01,0x3AC0,0x3B80,0xFB41,0x3900,0xF9C1,0xF881,0x3840,
0x2800,0xE8C1,0xE981,0x2940,0xEB01,0x2BC0,0x2A80,0xEA41,0xEE01,0x2EC0,0x2F80,0xEF41,0x2D00,0xEDC1,0xEC81,0x2C40,
0xE401,0x24C0,0x2580,0xE541,0x2700,0xE7C1,0xE681,0x2640,0x2200,0xE2C1,0xE381,0x2340,0xE101,0x21C0,0x2080,0xE041,
0xA001,0x60C0,0x6180,0xA141,0x6300,0xA3C1,0xA281,0x6240,0x6600,0xA6C1,0xA781,0x6740,0xA501,0x65C0,0x6480,0xA441,
0x6C00,0xACC1,0xAD81,0x6D40,0xAF01,0x6FC0,0x6E80,0xAE41,0xAA01,0x6AC0,0x6B80,0xAB41,0x6900,0xA9C1,0xA881,0x6840,
0x7800,0xB8C1,0xB981,0x7940,0xBB01,0x7BC0,0x7A80,0xBA41,0xBE01,0x7EC0,0x7F80,0xBF41,0x7D00,0xBDC1,0xBC81,0x7C40,
0xB401,0x74C0,0x7580,0xB541,0x7700,0xB7C1,0xB681,0x7640,0x7200,0xB2C1,0xB381,0x7340,0xB101,0x71C0,0x7080,0xB041,
0x5000,0x90C1,0x9181,0x5140,0x9301,0x53C0,0x5280,0x9241,0x9601,0x56C0,0x5780,0x9741,0x5500,0x95C1,0x9481,0x5440,
0x9C01,0x5CC0,0x5D80,0x9D41,0x5F00,0x9FC1,0x9E81,0x5E40,0x5A00,0x9AC1,0x9B81,0x5B40,0x9901,0x59C0,0x5880,0x9841,
0x8801,0x48C0,0x4980,0x8941,0x4B00,0x8BC1,0x8A81,0x4A40,0x4E00,0x8EC1,0x8F81,0x4F40,0x8D01,0x4DC0,0x4C80,0x8C41,
0x4400,0x84C1,0x8581,0x4540,0x8701,0x47C0,0x4680,0x8641,0x8201,0x42C0,0x4380,0x8341,0x4100,0x81C1,0x8081,0x4040
};

uint16_t ProtocolParser::crc16Modbus(const uint8_t *data, size_t len)
{
    uint16_t crc = 0xFFFFU;
    for(size_t i = 0; i < len; i++)
    {
        uint8_t byte = data[i];
        crc = static_cast<uint16_t>((crc >> 8U) ^ crc16_table[(crc ^ byte) & 0xFFU]);
    }
    return crc;
}

size_t ProtocolParser::encodeFrame(uint8_t* outBuf, size_t outBufSize, const uint8_t* payload, uint16_t payloadLen)
{
    const size_t totalFrameSize = 2U + 2U + payloadLen + 2U;
    if(outBufSize < totalFrameSize) return 0U;
    if(payloadLen > PROTO_MAX_PAYLOAD_LEN) return 0U;

    uint8_t* p = outBuf;
    // 包头
    *p++ = PROTO_HEAD0;
    *p++ = PROTO_HEAD1;
    // 长度大端
    uint8_t lenBuf[2];
    lenBuf[0] = static_cast<uint8_t>(payloadLen >> 8U);
    lenBuf[1] = static_cast<uint8_t>(payloadLen & 0xFFU);
    *p++ = lenBuf[0];
    *p++ = lenBuf[1];
    // payload
    for(uint16_t i = 0; i < payloadLen; i++)
    {
        *p++ = payload[i];
    }

    // =========修复CRC：crc = lenBuf(2字节) + payload 全部连续数据========
    uint16_t crc = crc16Modbus(lenBuf, 2);
    if(payloadLen > 0)
    {
        // 注意：不能重新从头算payload，要接续crc状态
        for(uint16_t i = 0; i < payloadLen; i++)
        {
            uint8_t byte = payload[i];
            crc = static_cast<uint16_t>((crc >> 8U) ^ crc16_table[(crc ^ byte) & 0xFFU]);
        }
    }
    *p++ = static_cast<uint8_t>(crc >> 8U);
    *p++ = static_cast<uint8_t>(crc & 0xFFU);
    return totalFrameSize;
}

ProtocolParser::ProtocolParser()
{
    reset();
}

void ProtocolParser::setCallback(FrameCallback cb)
{
    m_cb = std::move(cb);
}

void ProtocolParser::reset()
{
    m_state = ProtoState::WAIT_HEAD0;
    m_expectPayloadLen = 0U;
    m_crcRead = 0U;
    m_payloadRecvCnt = 0U;
}

void ProtocolParser::feedBuffer(const uint8_t* buf, size_t len)
{
    for(size_t i = 0; i < len; i++)
    {
        feedByte(buf[i]);
    }
}

void ProtocolParser::feedByte(uint8_t byte)
{
    switch(m_state)
    {
    case ProtoState::WAIT_HEAD0:
        if(byte == PROTO_HEAD0)
        {
            m_state = ProtoState::WAIT_HEAD1;
        }
        break;

    case ProtoState::WAIT_HEAD1:
        if(byte == PROTO_HEAD1)
        {
            m_state = ProtoState::READ_LEN_H;
        }
        else
        {
            m_state = ProtoState::WAIT_HEAD0;
        }
        break;

    case ProtoState::READ_LEN_H:
        m_expectPayloadLen = static_cast<uint16_t>(byte) << 8U;
        m_state = ProtoState::READ_LEN_L;
        break;

    case ProtoState::READ_LEN_L:
        m_expectPayloadLen |= byte;
        m_payloadRecvCnt = 0U;
        if(m_expectPayloadLen > PROTO_MAX_PAYLOAD_LEN)
        {
            // 超长帧丢弃
            m_state = ProtoState::WAIT_HEAD0;
        }
        else if(m_expectPayloadLen == 0U)
        {
            m_state = ProtoState::READ_CRC_H;
        }
        else
        {
            m_state = ProtoState::READ_PAYLOAD;
        }
        break;

    case ProtoState::READ_PAYLOAD:
    {
        m_payloadBuf[m_payloadRecvCnt++] = byte;
        if(m_payloadRecvCnt >= m_expectPayloadLen)
        {
            m_state = ProtoState::READ_CRC_H;
        }
        break;
    }

    case ProtoState::READ_CRC_H:
        m_crcRead = static_cast<uint16_t>(byte) << 8U;
        m_state = ProtoState::READ_CRC_L;
        break;

    case ProtoState::READ_CRC_L:
    {
        m_crcRead |= byte;
        // 重建参与crc校验的数据流：2字节长度 + payload
        uint8_t lenBuf[2];
        lenBuf[0] = static_cast<uint8_t>(m_expectPayloadLen >> 8U);
        lenBuf[1] = static_cast<uint8_t>(m_expectPayloadLen & 0xFFU);

        uint16_t calcCrc = crc16Modbus(lenBuf,2);
        for(uint16_t i = 0; i < m_expectPayloadLen; i++)
        {
            uint8_t b = m_payloadBuf[i];
            calcCrc = static_cast<uint16_t>((calcCrc >> 8U) ^ crc16_table[(calcCrc ^ b) &0xFFU]);
        }

        if(calcCrc == m_crcRead)
        {
            if(m_cb)
            {
                m_cb(m_payloadBuf, m_expectPayloadLen);
            }
        }
        // 无论成功失败，重置，等待下一帧
        m_state = ProtoState::WAIT_HEAD0;
        break;
    }
    default:
        reset();
        break;
    }
}

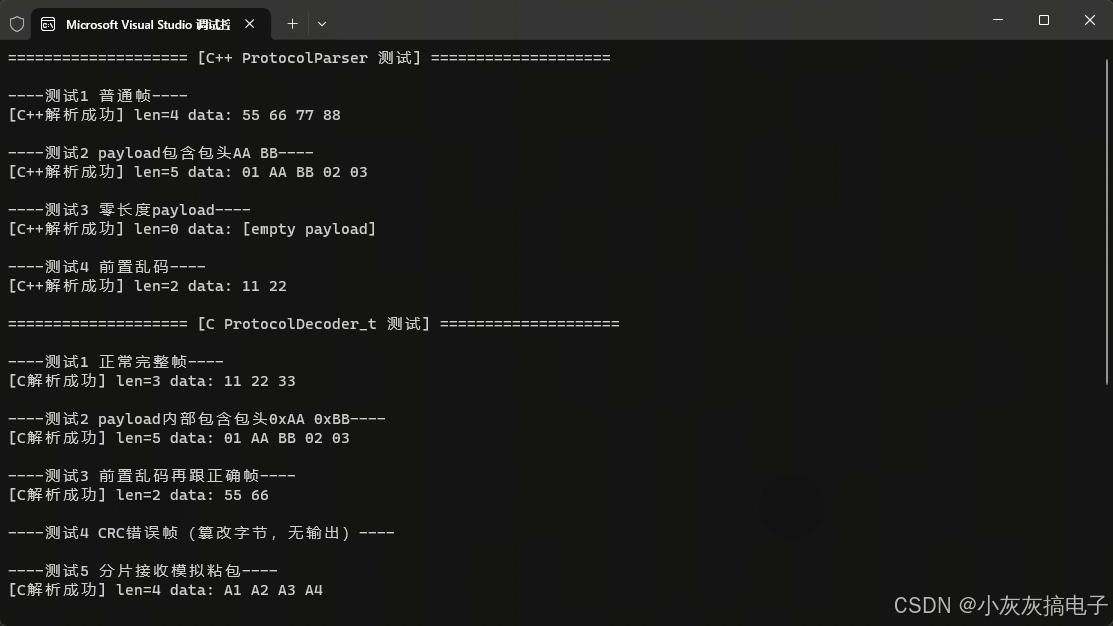

5、main.cpp

cpp 复制代码
#include <iostream>
#include <cstdio>
#include <cstdint>
#include <cstddef>
#include <cstring>
#include "ProtocolParser.hpp"
#include <Windows.h>
#include "protocol.h"

/**
 * @brief 打印十六进制数据
 * @param title 标题前缀
 * @param payload 数据指针
 * @param len 数据长度
 */
static void print_hex(const char* title, const uint8_t* payload, uint16_t len)
{
    printf("%s len=%u data: ", title, (unsigned int)len);
    if (len == 0)
    {
        printf("[empty payload]");
    }
    else
    {
        for (uint16_t i = 0; i < len; i++)
        {
            printf("%02X ", payload[i]);
        }
    }
    printf("\n");
}

// C版本回调
static void frame_callback(const uint8_t* payload, uint16_t len)
{
    print_hex("[C解析成功]", payload, len);
}

int main()
{
    SetConsoleOutputCP(CP_UTF8);

    // ===================== C++ Parser 测试组 =====================
    std::cout << "==================== [C++ ProtocolParser 测试] ====================" << std::endl;

    ProtocolParser parser;
    parser.setCallback([](const uint8_t* payload, uint16_t len) {
        print_hex("[C++解析成功]", payload, len);
        });

    uint8_t buf[128] = { 0 };
    size_t flen;

    // 测试1：普通payload
    {
        uint8_t payload[]{ 0x55,0x66,0x77,0x88 };
        flen = ProtocolParser::encodeFrame(buf, sizeof(buf), payload, sizeof(payload));
        std::cout << "\n----测试1 普通帧----" << std::endl;
        if (flen == 0)
        {
            std::cout << "encodeFrame 失败!" << std::endl;
        }
        else
        {
            parser.feedBuffer(buf, flen);
        }
    }

    // 测试2：payload内部包含包头魔数 AA BB
    {
        uint8_t payload[]{ 0x01,0xAA,0xBB,0x02,0x03 };
        flen = ProtocolParser::encodeFrame(buf, sizeof(buf), payload, sizeof(payload));
        std::cout << "\n----测试2 payload包含包头AA BB----" << std::endl;
        if (flen == 0)
        {
            std::cout << "encodeFrame 失败!" << std::endl;
        }
        else
        {
            parser.feedBuffer(buf, flen);
        }
    }

    // 测试3：payload长度=0
    {
        flen = ProtocolParser::encodeFrame(buf, sizeof(buf), nullptr, 0);
        std::cout << "\n----测试3 零长度payload----" << std::endl;
        if (flen == 0)
        {
            std::cout << "encodeFrame 失败!" << std::endl;
        }
        else
        {
            parser.feedBuffer(buf, flen);
        }
    }

    // 测试4：前置乱码
    {
        uint8_t payload[]{ 0x11,0x22 };
        flen = ProtocolParser::encodeFrame(buf, sizeof(buf), payload, sizeof(payload));
        std::cout << "\n----测试4 前置乱码----" << std::endl;
        if (flen == 0)
        {
            std::cout << "encodeFrame 失败!" << std::endl;
        }
        else
        {
            parser.feedByte(0x10);
            parser.feedByte(0x20);
            parser.feedBuffer(buf, flen);
        }
    }

    // ===================== C Decoder 测试组 =====================
    std::cout << "\n==================== [C ProtocolDecoder_t 测试] ====================" << std::endl;

    ProtocolDecoder_t dec;
    proto_decoder_init(&dec, frame_callback);

    uint8_t frame_buf[128] = { 0 };
    size_t frame_len;

    printf("\n----测试1 正常完整帧----\n");
    {
        uint8_t payload1[] = { 0x11,0x22,0x33 };
        frame_len = proto_encode_frame(frame_buf, sizeof(frame_buf), payload1, sizeof(payload1));
        if (frame_len != 0)
        {
            proto_decoder_put_buffer(&dec, frame_buf, frame_len);
        }
    }

    printf("\n----测试2 payload内部包含包头0xAA 0xBB----\n");
    {
        uint8_t payload2[] = { 0x01,0xAA,0xBB,0x02,0x03 };
        frame_len = proto_encode_frame(frame_buf, sizeof(frame_buf), payload2, sizeof(payload2));
        if (frame_len != 0)
        {
            proto_decoder_put_buffer(&dec, frame_buf, frame_len);
        }
    }

    printf("\n----测试3 前置乱码再跟正确帧----\n");
    {
        uint8_t payload3[] = { 0x55,0x66 };
        frame_len = proto_encode_frame(frame_buf, sizeof(frame_buf), payload3, sizeof(payload3));
        if (frame_len != 0)
        {
            proto_decoder_put_byte(&dec, 0x00);
            proto_decoder_put_byte(&dec, 0x12);
            proto_decoder_put_byte(&dec, 0x34);
            proto_decoder_put_buffer(&dec, frame_buf, frame_len);
        }
    }

    printf("\n----测试4 CRC错误帧（篡改字节，无输出）----\n");
    {
        uint8_t bad_frame[128];
        uint8_t payload4[] = { 0x77,0x88 };
        frame_len = proto_encode_frame(frame_buf, sizeof(frame_buf), payload4, sizeof(payload4));
        if (frame_len != 0)
        {
            memcpy(bad_frame, frame_buf, frame_len);
            bad_frame[4] ^= 0x01; // 修改一个字节制造CRC错误
            proto_decoder_put_buffer(&dec, bad_frame, frame_len);
        }
    }

    printf("\n----测试5 分片接收模拟粘包----\n");
    {
        uint8_t payload5[] = { 0xA1,0xA2,0xA3,0xA4 };
        frame_len = proto_encode_frame(frame_buf, sizeof(frame_buf), payload5, sizeof(payload5));
        if (frame_len != 0)
        {
            size_t half = frame_len / 2;
            proto_decoder_put_buffer(&dec, frame_buf, half);
            proto_decoder_put_buffer(&dec, frame_buf + half, frame_len - half);
        }
    }

    printf("\n----测试6 零长度payload----\n");
    {
        frame_len = proto_encode_frame(frame_buf, sizeof(frame_buf), NULL, 0);
        if (frame_len != 0)
        {
            proto_decoder_put_buffer(&dec, frame_buf, frame_len);
        }
    }

    // ---------------- 混用场景1：C++编码组帧 → C语言解码器解析 ----------------
    std::cout << "\n========== 场景1：C++编码 → C解码器解析 ==========\n";
    {
        // C++编码器组帧
        uint8_t buf[128] = { 0 };
        uint8_t cpp_payload[] = { 0xA0,0xA1,0xA2,0xA3,0xA4 };
        size_t frame_len = ProtocolParser::encodeFrame(buf, sizeof(buf), cpp_payload, sizeof(cpp_payload));

        if (frame_len == 0)
        {
            std::cout << "C++ encodeFrame 失败\n";
        }
        else
        {
            // 初始化C解码器
            ProtocolDecoder_t c_dec;
            proto_decoder_init(&c_dec, frame_callback);

            // 将C++生成的完整帧，喂给C语言解析器
            proto_decoder_put_buffer(&c_dec, buf, frame_len);
        }
    }

    // ---------------- 混用场景2：C语言编码组帧 → C++解码器解析 ----------------
    std::cout << "\n========== 场景2：C编码 → C++解码器解析 ==========\n";
    {
        uint8_t buf[128] = { 0 };
        uint8_t c_payload[] = { 0xB0,0xB1,0xB2,0xB3 };

        // C编码器组帧
        size_t frame_len = proto_encode_frame(buf, sizeof(buf), c_payload, sizeof(c_payload));
        if (frame_len == 0)
        {
            std::cout << "C proto_encode_frame 失败\n";
        }
        else
        {
            // C++解码器实例
            ProtocolParser cpp_parser;
            cpp_parser.setCallback([](const uint8_t* payload, uint16_t len) {
                print_hex("[C++解码器收到] ", payload, len);
                });

            // C生成的二进制帧直接送入C++解析器
            cpp_parser.feedBuffer(buf, frame_len);
        }
    }

    // ---------------- 场景3：分片数据流跨实现测试（模拟串口字节流） ----------------
    std::cout << "\n========== 场景3：分片字节流 C++编码 → C解码器分片喂入 ==========\n";
    {
        uint8_t buf[128] = { 0 };
        uint8_t payload[] = { 0xCC,0xDD,0xEE };
        size_t frame_len = ProtocolParser::encodeFrame(buf, sizeof(buf), payload, sizeof(payload));
        if (frame_len > 0)
        {
            ProtocolDecoder_t c_dec;
            proto_decoder_init(&c_dec, frame_callback);

            // 模拟串口分包，一字节一字节喂给C解析器
            for (size_t i = 0; i < frame_len; i++)
            {
                proto_decoder_put_byte(&c_dec, buf[i]);
            }
        }
    }

    // ---------------- 场景4：零长度payload跨实现互测 ----------------
    std::cout << "\n========== 场景4：零长度payload C编码 → C++解析 ==========\n";
    {
        uint8_t buf[128] = { 0 };
        size_t frame_len = proto_encode_frame(buf, sizeof(buf), nullptr, 0);
        if (frame_len > 0)
        {
            ProtocolParser cpp_parser;
            cpp_parser.setCallback([](const uint8_t* payload, uint16_t len) {
                print_hex("[C++解码器收到(空帧)] ", payload, len);
                });
            cpp_parser.feedBuffer(buf, frame_len);
        }
    }

    printf("\n====所有测试执行完毕====\n");
    return 0;
}

6、测试结果

cpp 复制代码
==================== [C++ ProtocolParser 测试] ====================

----测试1 普通帧----
[C++解析成功] len=4 data: 55 66 77 88

----测试2 payload包含包头AA BB----
[C++解析成功] len=5 data: 01 AA BB 02 03

----测试3 零长度payload----
[C++解析成功] len=0 data: [empty payload]

----测试4 前置乱码----
[C++解析成功] len=2 data: 11 22

==================== [C ProtocolDecoder_t 测试] ====================

----测试1 正常完整帧----
[C解析成功] len=3 data: 11 22 33

----测试2 payload内部包含包头0xAA 0xBB----
[C解析成功] len=5 data: 01 AA BB 02 03

----测试3 前置乱码再跟正确帧----
[C解析成功] len=2 data: 55 66

----测试4 CRC错误帧（篡改字节，无输出）----

----测试5 分片接收模拟粘包----
[C解析成功] len=4 data: A1 A2 A3 A4

----测试6 零长度payload----
[C解析成功] len=0 data: [empty payload]

========== 场景1：C++编码 → C解码器解析 ==========
[C解析成功] len=5 data: A0 A1 A2 A3 A4

========== 场景2：C编码 → C++解码器解析 ==========
[C++解码器收到]  len=4 data: B0 B1 B2 B3

========== 场景3：分片字节流 C++编码 → C解码器分片喂入 ==========
[C解析成功] len=3 data: CC DD EE

========== 场景4：零长度payload C编码 → C++解析 ==========
[C++解码器收到(空帧)]  len=0 data: [empty payload]

====所有测试执行完毕====

d:\user\01417804\桌面\CppProject\cppTest\x64\Debug\cppTest.exe (进程 57548)已退出，代码为 0 (0x0)。
要在调试停止时自动关闭控制台，请启用"工具"->"选项"->"调试"->"调试停止时自动关闭控制台"。
按任意键关闭此窗口. . .

二、实现原理

1、帧格式设计

本协议采用固定结构的二进制帧，帧格式如下：

字段 长度（字节） 说明
帧头0 1 固定为 0xAA，用于帧同步
帧头1 1 固定为 0xBB，用于帧同步
长度高字节 1 payload 长度的高 8 位（大端序）
长度低字节 1 payload 长度的低 8 位（大端序）
payload 0~256 实际业务数据，长度由前两字节决定
CRC 高字节 1 CRC16-Modbus 校验值的高 8 位
CRC 低字节 1 CRC16-Modbus 校验值的低 8 位

帧头使用 0xAA 0xBB 双字节魔数，相比单字节帧头能显著降低误同步概率。长度字段采用大端序（高字节在前），便于在串口等字节流中逐字节解析。payload 最大长度为 256 字节，由 PROTO_MAX_PAYLOAD_LEN 宏统一约束。

2、CRC16-Modbus 校验算法

CRC 校验覆盖 2 字节长度字段 + payload 全部数据 ，不包含帧头。算法采用查表法实现，多项式为 CRC16-Modbus 标准多项式 0x8005（反射形式 0xA001），初始值为 0xFFFF。

cpp 复制代码
uint16_t crc16_modbus(const uint8_t* data, size_t len)
{
    uint16_t crc = 0xFFFFU;
    size_t i;
    for (i = 0; i < len; i++)
    {
        uint8_t byte = data[i];
        crc = (uint16_t)((crc >> 8U) ^ crc16_table[(crc ^ byte) & 0xFFU]);
    }
    return crc;
}

查表法将每个字节的 CRC 计算压缩为一次查表和两次异或运算，相比逐位计算效率更高，适合在嵌入式等资源受限场景下使用。编码时先对 2 字节长度字段计算 CRC，再接续该 CRC 状态继续计算 payload，保证收发两端校验范围完全一致。

3、状态机解析原理

解码器采用**有限状态机（FSM）**逐字节解析，核心状态定义如下：

cpp 复制代码
typedef enum
{
    PROTO_WAIT_HEAD0,      // 等待帧头0（0xAA）
    PROTO_WAIT_HEAD1,      // 等待帧头1（0xBB）
    PROTO_READ_LEN_H,      // 读取长度高字节
    PROTO_READ_LEN_L,      // 读取长度低字节
    PROTO_READ_PAYLOAD,    // 读取 payload 数据
    PROTO_READ_CRC_H,      // 读取 CRC 高字节
    PROTO_READ_CRC_L       // 读取 CRC 低字节
}ProtoState_e;

状态迁移流程如下：
#mermaid-svg-fSQfgeb8RO4jiYm3{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-fSQfgeb8RO4jiYm3 .error-icon{fill:#552222;}#mermaid-svg-fSQfgeb8RO4jiYm3 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-fSQfgeb8RO4jiYm3 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .marker.cross{stroke:#333333;}#mermaid-svg-fSQfgeb8RO4jiYm3 svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-fSQfgeb8RO4jiYm3 p{margin:0;}#mermaid-svg-fSQfgeb8RO4jiYm3 .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .cluster-label text{fill:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .cluster-label span{color:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .cluster-label span p{background-color:transparent;}#mermaid-svg-fSQfgeb8RO4jiYm3 .label text,#mermaid-svg-fSQfgeb8RO4jiYm3 span{fill:#333;color:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .node rect,#mermaid-svg-fSQfgeb8RO4jiYm3 .node circle,#mermaid-svg-fSQfgeb8RO4jiYm3 .node ellipse,#mermaid-svg-fSQfgeb8RO4jiYm3 .node polygon,#mermaid-svg-fSQfgeb8RO4jiYm3 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .rough-node .label text,#mermaid-svg-fSQfgeb8RO4jiYm3 .node .label text,#mermaid-svg-fSQfgeb8RO4jiYm3 .image-shape .label,#mermaid-svg-fSQfgeb8RO4jiYm3 .icon-shape .label{text-anchor:middle;}#mermaid-svg-fSQfgeb8RO4jiYm3 .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .rough-node .label,#mermaid-svg-fSQfgeb8RO4jiYm3 .node .label,#mermaid-svg-fSQfgeb8RO4jiYm3 .image-shape .label,#mermaid-svg-fSQfgeb8RO4jiYm3 .icon-shape .label{text-align:center;}#mermaid-svg-fSQfgeb8RO4jiYm3 .node.clickable{cursor:pointer;}#mermaid-svg-fSQfgeb8RO4jiYm3 .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .arrowheadPath{fill:#333333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-fSQfgeb8RO4jiYm3 .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-fSQfgeb8RO4jiYm3 .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-fSQfgeb8RO4jiYm3 .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-fSQfgeb8RO4jiYm3 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .cluster text{fill:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 .cluster span{color:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-fSQfgeb8RO4jiYm3 .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-fSQfgeb8RO4jiYm3 rect.text{fill:none;stroke-width:0;}#mermaid-svg-fSQfgeb8RO4jiYm3 .icon-shape,#mermaid-svg-fSQfgeb8RO4jiYm3 .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-fSQfgeb8RO4jiYm3 .icon-shape p,#mermaid-svg-fSQfgeb8RO4jiYm3 .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-fSQfgeb8RO4jiYm3 .icon-shape .label rect,#mermaid-svg-fSQfgeb8RO4jiYm3 .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-fSQfgeb8RO4jiYm3 .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-fSQfgeb8RO4jiYm3 .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-fSQfgeb8RO4jiYm3 :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 收到 0xAA
其他字节
收到 0xBB
其他字节
读取长度高字节
长度 > 256
长度 = 0
正常长度
收满 payload
读取 CRC 高字节
CRC 校验通过
CRC 校验失败
WAIT_HEAD0
WAIT_HEAD1
READ_LEN_H
READ_LEN_L
READ_CRC_H
READ_PAYLOAD
READ_CRC_L
回调通知

状态机设计的关键点：

  • 逐字节驱动 ：proto_decoder_put_byte 每收到一个字节就驱动状态机前进一步，天然适配串口中断或 DMA 接收等流式场景。
  • 自动同步 ：任何状态收到非法字节都会回退到 WAIT_HEAD0 重新搜索帧头，因此即使数据流中间出现乱码，也能在下一次完整帧到来时自动恢复同步。
  • 长度校验 ：读取长度低字节后立即判断 expect_payload_len > PROTO_MAX_PAYLOAD_LEN，超长帧直接丢弃并回到等待帧头状态，防止缓冲区溢出。
  • CRC 校验：收齐 CRC 后重新计算校验值并与接收值比对，只有校验通过才触发回调，保证数据完整性。

4、C 与 C++ 双实现的设计考量

本文同时提供 C 和 C++ 两套实现，二者在协议层面完全兼容，可交叉编解码：

对比项 C 实现（protocol.c） C++ 实现（ProtocolParser.cpp）
封装方式 结构体 + 函数 类 + 成员函数
回调机制 函数指针 std::function
适用场景 嵌入式 C 工程、单片机 C++ 工程、桌面应用
编码接口 proto_encode_frame ProtocolParser::encodeFrame
解码接口 proto_decoder_put_byte/buffer feedByte/feedBuffer

两套实现共享相同的帧格式、CRC 算法和状态机逻辑，因此 C 编码器生成的帧可以被 C++ 解码器正确解析，反之亦然。main.cpp 中的场景 1~4 正是为了验证这种跨实现互操作性。

5、关键实现细节

5.1 payload 接收计数

C 实现中 payload_recv_cnt 和 C++ 实现中 m_payloadRecvCnt 用于记录已接收的 payload 字节数。在 READ_LEN_L 状态收到完整长度后必须清零，否则连续接收多帧时计数会残留上一帧的值，导致 payload 接收不完整。

5.2 零长度 payload 处理

当长度字段为 0 时，解码器跳过 READ_PAYLOAD 状态直接进入 READ_CRC_H，此时 CRC 仅覆盖 2 字节长度字段。编码端 proto_encode_frame 对 payload_len == 0 同样只计算长度字段的 CRC，保证收发一致。

5.3 粘包与分片处理

  • 粘包 ：多个帧连续到达时，状态机解析完一帧后自动回到 WAIT_HEAD0，继续解析下一帧，无需额外拆包逻辑。
  • 分片：一帧数据被拆成多次到达时，状态机在中间状态挂起，等待剩余字节补齐后再完成校验和回调，天然支持串口分片接收。

6、总结

本协议通过「双字节帧头 + 长度字段 + CRC16 校验」的组合，在简单性和可靠性之间取得了良好平衡。状态机解析方式让解码器具备自动同步、抗干扰能力，且逐字节驱动模型非常适合嵌入式串口通信场景。C 与 C++ 双实现既满足了不同工程的技术栈需求，又通过交叉测试验证了协议实现的正确性。

相关推荐
bu_shuo22 分钟前
Linux中修改demo.c文件的权限
linux·c语言
Brilliantwxx26 分钟前
【C++】初入嵌入式C++复习-----经典面试题100道
开发语言·c++·算法·面试·职场和发展
汉克老师28 分钟前
CSP-J 初赛（以满分为目标）：第十六课 《STL容器与常见数据结构——C++自带的“数据结构工具箱”》
c++·csp-j·小学生·学c++编程
Freak嵌入式35 分钟前
告别死循环！Pico 外部中断控制 LED，比轮询高效 100 倍
java·开发语言·stm32·单片机·嵌入式硬件
nangonghen35 分钟前
Agent如何传递不同类型的ID给MCP Server
开发语言·python
luj_17681 小时前
断舍离中的项目管理智慧
c语言·开发语言·c++·经验分享·算法
FFZero11 小时前
[mpv架构] (三) mpv 怎么实现 MP4 秒开？
c++·音视频·mpv
老王爱玩车1 小时前
关于函数递归的优缺点分析
开发语言·数据结构·学习·算法
Dovis(誓平步青云）1 小时前
同一条路线在手机和平板上怎样换一种排版
android·开发语言·数据库·智能手机·音视频
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03ZCode 周末送额度活动开启：3 亿 Token 免费领取042026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？05历年考研数学一、数学二、数学三真题试卷及答案PDF06微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新07AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路08Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费09蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接10VSCode+CodeX扩展，无法启动
