exists子查询改写思考

1、问题

项目中遇到以下写法

bash 复制代码

select count(1)
  from (select *
          from test1 t1
         where t1.stime>=?
           and t1.etime<=?
           and exists (select 1 from test2 t2 where t2.wpid=t1.id and t2.did=?
               union all
               select 1 from test3 t3 where t3.wpid=t1.id and t3.did=?) )

参数：

2026-08-28 00:00:00

2026-08-30 00:00:00

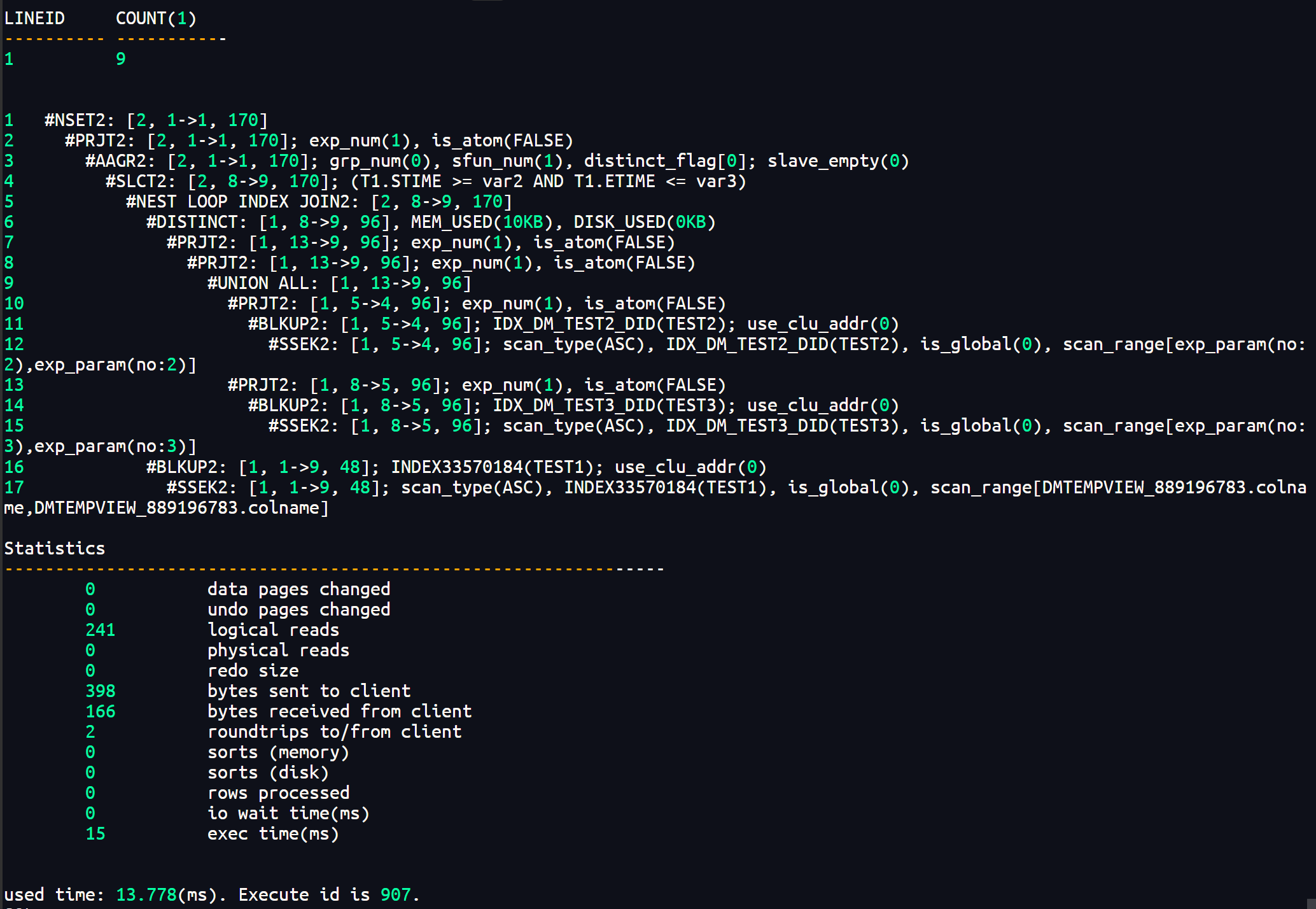

计划：

这里有过滤性的条件来自exists中，从计划分析，exists中union all的共同部分是t1.id即关联列，优化器会考虑提取公因子即主查询做临时结果集（HEAP TABLE)减少一次扫描。此时合并的结果集和主查询（临时结果集）做hash semi join，而无法单独利用过滤性较好的条件让计划做index join，所以我们可以拆分成单个去和主查询关联，过去的or改写中提到union all可以替代or，反之亦然，可以改写or exists

2、改写1

bash 复制代码

select count(1)
  from (select *
          from test1 t1
         where t1.stime>=to_date(?,'YYYY-MM-DD HH24:MI:SS')
           and t1.etime<=to_date(?,'YYYY-MM-DD HH24:MI:SS')
           and (exists (select 1 from test2 t2 where t2.wpid=t1.id and t2.did=?)
               or exists (
               select 1 from test3 t3 where t3.wpid=t1.id and t3.did=?) ));

参数：

2026-08-28 00:00:00

2026-08-30 00:00:00

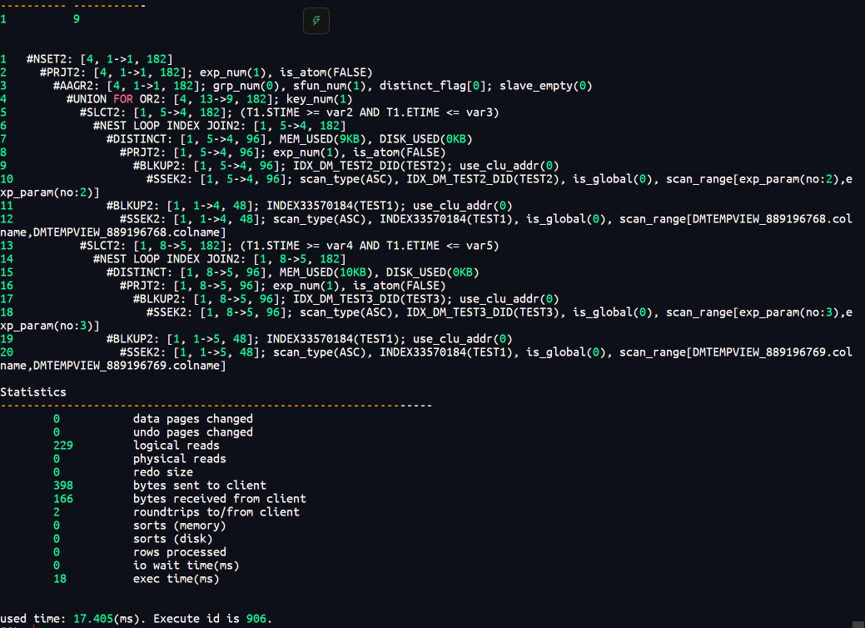

计划：

执行时间从7s提升至0.017s。

另外我们看原计划它做成HEAP TABLE，优化器会认为提取临时表是减少一次扫描会提高效率，那么我们可以考虑如果把主查询和exists子查询做成同一层，让优化器根据估算去考虑做成index join，所以我们可以把union all把共同列获取后再和主查询关联。

3、改写2

bash 复制代码

select count(1)
  from (select *
          from test1 t1
         where t1.stime>=to_date(?,'YYYY-MM-DD HH24:MI:SS')
           and t1.etime<=to_date(?,'YYYY-MM-DD HH24:MI:SS')
           and exists (select 1
                  from (select t2.wpid from test2 t2 where t2.did=?
                       union all
                       select t3.wpid from test3 t3 where t3.did=?) tt
                 where tt.wpid=t1.id))

参数

2026-08-28 00:00:00

2026-08-30 00:00:00

计划：

也是符合预期，性能提升至0.013s

4、小结

exists （select 1 from union all select 1 from ）写法，exists中有过滤性较好的条件，可以考虑改写成or exists 或union all合并得出关联列结果集，再与主查询做exists。

5、附加测试数据

bash 复制代码

create table test1(id varchar2(36) primary key,stime timestamp,etime timestamp,pcode varchar2(4));
insert into test1 select 'A'||level,SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),'03'
from dual connect by level<=800000;
commit;
insert into test1 select 'A'||(level+800000),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),'03'
from dual connect by level<=200000;
commit;
create index IDX_DM_TIME on TEST1(stime,etime);
dbms_stats.gather_table_stats(USER,'TEST1',null,100);
create table test2(id varchar2(36) primary key,stime timestamp,etime timestamp,pcode varchar2(4),did varchar2(20),wpid varchar2(20));
insert into test2 select sys_guid(),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),'03'
,'B'||to_char(round(dbms_random.value(1,30000),0)),'A'||to_char(round(dbms_random.value(1,8000),0))
from dual connect by level<=150000;
commit;
create index IDX_DM_TEST2_WID_DID on TEST2(WPID,DID);
dbms_stats.gather_table_stats(USER,'TEST2',null,100);


create table test3(id varchar2(36) primary key,stime timestamp,etime timestamp,pcode varchar2(4),did varchar2(20),wpid varchar2(20));
insert into test3 select sys_guid(),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),SYSDATE-INTERVAL '1' SECOND * TRUNC(DBMS_RANDOM.VALUE(-10000,10000)),'03'
,'B'||to_char(round(dbms_random.value(1,12134),0)),'A'||to_char(round(dbms_random.value(1,8000),0))
from dual connect by level<=100000;
commit;

create index IDX_DM_TEST3_WID_DID on TEST3(WPID,DID);
create index IDX_DM_TEST3_DID on TEST3(DID);
create index IDX_DM_TEST2_DID on TEST2(DID);
