RAG Embedding 模型替换与索引回归

ShallWeL2026-09-08 12:57

RAG Embedding 模型替换与索引回归

文章目录

  • [RAG Embedding 模型替换与索引回归](#RAG Embedding 模型替换与索引回归)
    • [1. 换模型名不等于完成了向量层升级](#1. 换模型名不等于完成了向量层升级)
    • [2. 先说结论](#2. 先说结论)
    • [3. 演示：TF-IDF 换成哈希 Embedding](#3. 演示：TF-IDF 换成哈希 Embedding)
    • [4. 演示：弱模型替换被阻断](#4. 演示：弱模型替换被阻断)
    • [5. 策略与后端说明](#5. 策略与后端说明)
    • [6. Embedding 后端实现](#6. Embedding 后端实现)
    • [7. 按后端构建索引包](#7. 按后端构建索引包)
    • [8. 双层评测](#8. 双层评测)
    • [9. 换模闸门](#9. 换模闸门)
    • [10. 一键换模与回归](#10. 一键换模与回归)
    • [11. 人工核对清单](#11. 人工核对清单)
    • [12. 常见错误](#12. 常见错误)
      • [12.1 改模型配置但不重建索引](#12.1 改模型配置但不重建索引)
      • [12.2 只验收原话层](#12.2 只验收原话层)
      • [12.3 model_id 不写进元数据](#12.3 model_id 不写进元数据)
      • [12.4 把演示哈希向量当成生产模型](#12.4 把演示哈希向量当成生产模型)
      • [12.5 换模时改动题集口径](#12.5 换模时改动题集口径)
      • [12.6 切分参数随手改](#12.6 切分参数随手改)
    • [13. 术语速查](#13. 术语速查)
    • [14. 小结](#14. 小结)
    • [15. 相关阅读](#15. 相关阅读)

摘要 ：《RAG 向量索引重建与回归》把索引包做成带指纹的版本制品后，下一步常是把演示用的 TF-IDF 换成真实 Embedding 模型。换模若只改配置名、不重建索引、不做双层回归，变体问法会悄悄退步。本文用同一套题集与闸门口径，演示从 tfidf_cosine_v1 替换到定长哈希 Embedding（接口对齐真实模型），并给出弱模型替换被阻断的对照；标准库即可跑通，上线时只替换向量层实现。
说明 ：承接 RAG 向量索引重建与回归。上一篇解决"索引何时重建"；本篇解决"Embedding 模型怎么换、怎样回归才允许切换"。

承接前文：

建议目录：

bash 复制代码
mkdir -p ~/kb-embedding-swap/{notes,scripts,configs,fixtures/{docs,eval},images,logs/embedding_swap}
cd ~/kb-embedding-swap
文件 作用
configs/embedding_swap_policy.example.json 换模闸门阈值
configs/embedding_backends.example.json 后端与 model_id 说明
scripts/embed_backends.py TF-IDF / 哈希 Embedding / 弱模型
scripts/build_embedding_index.py 按后端构建索引包
scripts/eval_embedding_index.py 原话层与变体层评测
scripts/embedding_swap_gate.py 换模放行闸门
scripts/run_embedding_swap.py 一键对比与闸门

文中配置与脚本均全文给出。哈希 Embedding 用于演示定长向量接口 ；上线可换成 sentence-transformers 或云端 Embedding API，题集、扩展表、指纹字段与闸门输出保持不变。

1. 换模型名不等于完成了向量层升级

《RAG 关键词检索与向量检索的切换边界》给出切换建议，《RAG 向量索引重建与回归》要求文档与扩展表变更后重建索引。工程上还有第三种变更：Embedding 后端本身换了。

常见缺口有三类：

  1. 只改配置里的模型名：服务进程仍加载旧向量文件。
  2. 只看原话层：弱模型在文档原句上仍可能满分，变体层才暴露掉点。
  3. 元数据无 model_id：无法证明线上索引包对应哪一个 Embedding 版本。

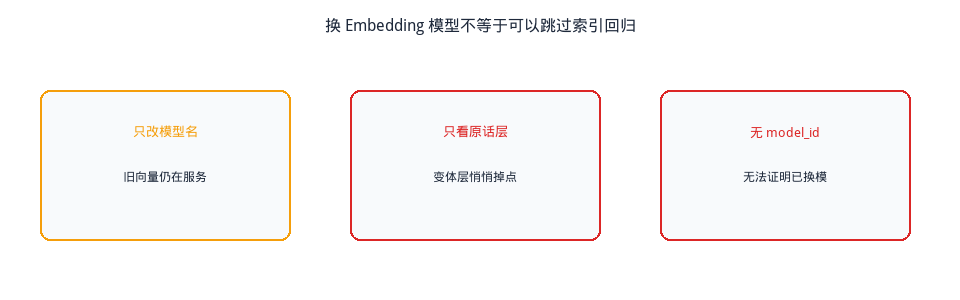

图1. 换 Embedding 必须重建索引包，并做与基线的双层对比。

本篇硬规则：

Embedding 后端变更后，必须重建索引包并过 EMBEDDING_SWAP_ALLOWED；未达标不得切换线上模型或索引指针。

2. 先说结论

本篇用到的说法，先统一说明：

说法 含义
Embedding 后端 把文本变成向量的实现，本篇用 backend 字段标识
模型编号 脚本字段 model_id，区分不同向量实现或权重版本
模型指纹 对 backend + model_id 做哈希，证明索引包绑的是哪套模型
基线后端 当前已验收的实现，演示为 tfidf_cosine_v1
目标后端 准备切换的实现，演示为 hashing_embedding_v1
弱模型 故意变差的对照实现，用于证明闸门会阻断
步骤 动作 通过标准
1 用基线后端建索引并评测 得到 baseline_eval.json
2 用目标后端重建索引 model_id 相对基线变化
3 双层评测目标索引 命中率写入 target_eval.json
4 与基线对比退步问法 compare_report.json
5 换模闸门 EMBEDDING_SWAP_ALLOWED

四条落地判断：

  1. 题集与扩展表不动------换的是向量层，不是验收口径。
  2. model_id 必须变化------同名"假换模"直接阻断。
  3. 原话层与变体层都要过------只过原话层不够。
  4. 真实模型只替换实现------闸门字段与脚本入参保持稳定。

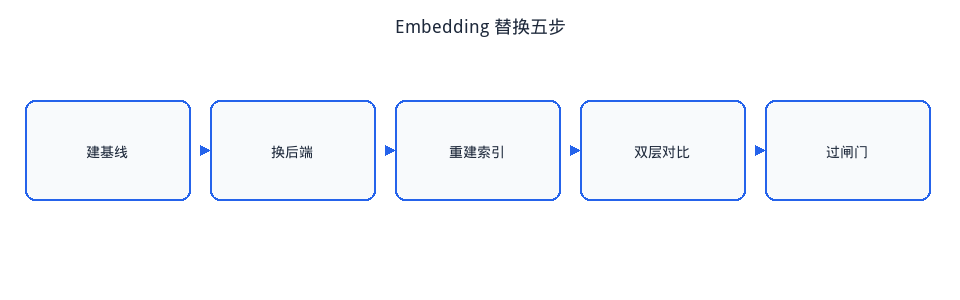

图2. 建基线 → 换后端 → 重建 → 双层对比 → 闸门。

3. 演示：TF-IDF 换成哈希 Embedding

bash 复制代码
python3 scripts/run_embedding_swap.py \
  --policy configs/embedding_swap_policy.example.json \
  --docs-dir fixtures/docs \
  --expansion configs/query_expansion.example.json \
  --canonical fixtures/eval/questions_canonical.jsonl \
  --paraphrase fixtures/eval/questions_paraphrase.jsonl \
  --workdir .

本机输出节选：

复制代码
EMBED_INDEX_OK backend=tfidf_cosine_v1 model_id=demo-tfidf-v1
EMBED_INDEX_OK backend=hashing_embedding_v1 model_id=demo-hashing-emb-v1
EMBED_EVAL ... canonical=100.0% paraphrase=100.0%
COMPARE paraphrase 100.0% -> 100.0% drop=0.0% regressed=0
EMBEDDING_SWAP_ALLOWED
swap tfidf_cosine_v1 -> hashing_embedding_v1
EMBEDDING_SWAP_OK
侧 backend model_id 原话层 变体层
基线 tfidf_cosine_v1 demo-tfidf-v1 100% 100%
目标 hashing_embedding_v1 demo-hashing-emb-v1 100% 100%

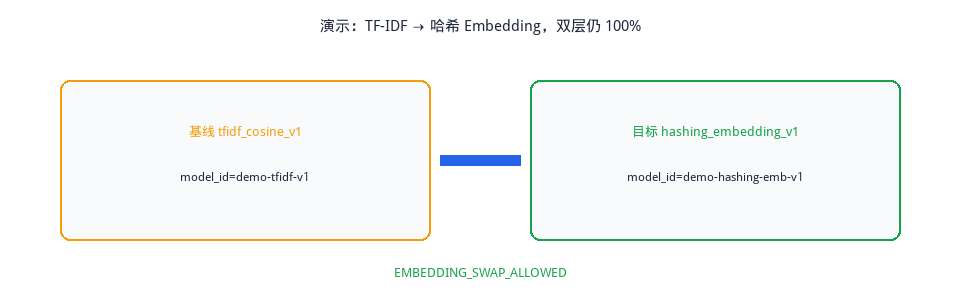

图3. 后端与 model_id 都变化，双层命中率不掉，闸门放行。

4. 演示：弱模型替换被阻断

把目标后端改成 bag_of_chars_v0（无二元字、忽略扩展表）：

bash 复制代码
python3 scripts/run_embedding_swap.py \
  --policy configs/embedding_swap_policy.example.json \
  --docs-dir fixtures/docs \
  --expansion configs/query_expansion.example.json \
  --canonical fixtures/eval/questions_canonical.jsonl \
  --paraphrase fixtures/eval/questions_paraphrase.jsonl \
  --workdir . \
  --target-backend bag_of_chars_v0

本机输出节选：

复制代码
EMBED_EVAL ... canonical=100.0% paraphrase=60.0%
COMPARE paraphrase 100.0% -> 60.0% drop=40.0% regressed=2
EMBEDDING_SWAP_BLOCKED
FAIL: paraphrase_hit_rate 0.600 < min_paraphrase_hit_rate 0.85
FAIL: regressed_count 2 > max_regressed_questions 0

原话层仍 100%，变体层掉到 60%，V2、V3 退步。这说明：换模验收必须以变体层为主约束之一。

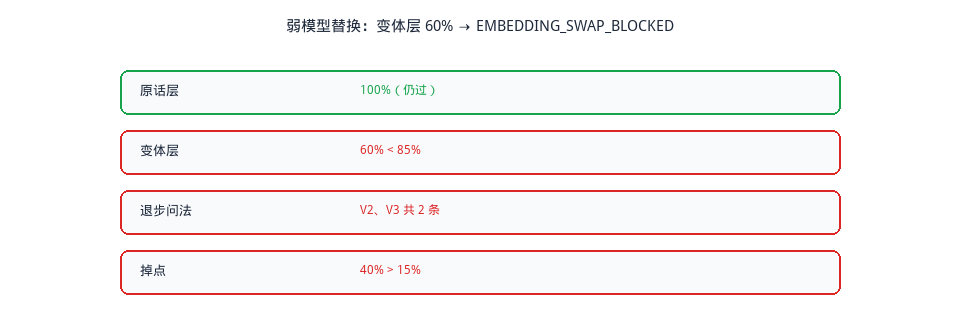

图4. 原话层满分不能掩盖变体层掉点。

5. 策略与后端说明

保存为 configs/embedding_swap_policy.example.json：

json 复制代码
{
  "baseline_backend": "tfidf_cosine_v1",
  "target_backend": "hashing_embedding_v1",
  "min_canonical_hit_rate": 1.0,
  "min_paraphrase_hit_rate": 0.85,
  "max_regressed_questions": 0,
  "max_hit_drop": 0.15,
  "require_model_id_change": true,
  "require_rebuild_after_swap": true,
  "canonical_top_k": 3,
  "paraphrase_top_k": 1,
  "max_chars": 240,
  "overlap_chars": 40
}

保存为 configs/embedding_backends.example.json：

json 复制代码
{
  "backends": {
    "tfidf_cosine_v1": {
      "model_id": "demo-tfidf-v1",
      "kind": "sparse",
      "note": "演示基线，非神经网络"
    },
    "hashing_embedding_v1": {
      "model_id": "demo-hashing-emb-v1",
      "kind": "dense",
      "dim": 128,
      "note": "定长哈希向量，接口对齐真实 embedding；上线可换成 sentence-transformers / API"
    },
    "bag_of_chars_v0": {
      "model_id": "demo-bag-chars-v0",
      "kind": "sparse_weak",
      "note": "弱模型，仅用于阻断演示"
    }
  }
}

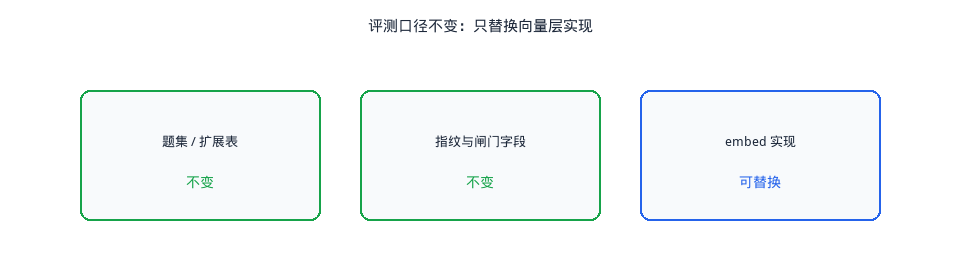

图5. 题集、扩展表、闸门字段固定；可替换的是 embed 实现。

6. Embedding 后端实现

保存为 scripts/embed_backends.py：

python 复制代码
#!/usr/bin/env python3
"""Embedding backends for demo: TF-IDF sparse and hashing dense (stdlib only)."""

from __future__ import annotations

import hashlib
import math
import re
from collections import Counter
from typing import Any

WORD_RE = re.compile(r"[A-Za-z0-9_./-]+|[\u4e00-\u9fff]+", re.UNICODE)


def tokenize(text: str) -> list[str]:
    tokens: list[str] = []
    for piece in WORD_RE.findall(text):
        if re.fullmatch(r"[A-Za-z0-9_./-]+", piece):
            if len(piece) > 1:
                tokens.append(piece.lower())
            continue
        chars = list(piece)
        tokens.extend(chars)
        tokens.extend(chars[i] + chars[i + 1] for i in range(len(chars) - 1))
    return tokens


def expand_query(query: str, expansion: dict[str, list[str]]) -> str:
    if not expansion:
        return query
    extra: list[str] = []
    q_lower = query.lower()
    for _key, aliases in expansion.items():
        for alias in aliases:
            a = alias.lower()
            if a in q_lower or alias in query:
                extra.extend(aliases)
                break
    if not extra:
        return query
    return query + " " + " ".join(dict.fromkeys(extra))


def _signed_bucket(token: str, dim: int) -> tuple[int, float]:
    digest = hashlib.md5(token.encode("utf-8")).hexdigest()
    idx = int(digest[:8], 16) % dim
    sign = 1.0 if int(digest[8:10], 16) % 2 == 0 else -1.0
    return idx, sign


def l2_normalize(vec: list[float]) -> list[float]:
    norm = math.sqrt(sum(x * x for x in vec)) or 1.0
    return [x / norm for x in vec]


def dense_cosine(a: list[float], b: list[float]) -> float:
    return sum(x * y for x, y in zip(a, b))


def sparse_cosine(a: dict[str, float], b: dict[str, float]) -> float:
    if not a or not b:
        return 0.0
    keys = set(a) & set(b)
    dot = sum(a[k] * b[k] for k in keys)
    na = math.sqrt(sum(v * v for v in a.values())) or 1.0
    nb = math.sqrt(sum(v * v for v in b.values())) or 1.0
    return dot / (na * nb)


def embed_tfidf(chunks: list[dict]) -> tuple[list[dict[str, float]], dict[str, float]]:
    df: Counter[str] = Counter()
    tfs: list[Counter[str]] = []
    for row in chunks:
        tf = Counter(tokenize(row["text"]))
        tfs.append(tf)
        for term in tf:
            df[term] += 1
    n = max(len(chunks), 1)
    idf = {t: math.log((n + 1) / (df[t] + 1)) + 1.0 for t in df}
    vectors = [{t: w * idf.get(t, 0.0) for t, w in tf.items()} for tf in tfs]
    return vectors, idf


def embed_query_tfidf(query: str, idf: dict[str, float], expansion: dict[str, list[str]]) -> dict[str, float]:
    q = expand_query(query, expansion)
    tf = Counter(tokenize(q))
    return {t: w * idf.get(t, 0.0) for t, w in tf.items()}


def embed_hashing(texts: list[str], dim: int = 128) -> list[list[float]]:
    out: list[list[float]] = []
    for text in texts:
        vec = [0.0] * dim
        for tok in tokenize(text):
            idx, sign = _signed_bucket(tok, dim)
            vec[idx] += sign
        out.append(l2_normalize(vec))
    return out


def embed_query_hashing(query: str, dim: int, expansion: dict[str, list[str]]) -> list[float]:
    q = expand_query(query, expansion)
    return embed_hashing([q], dim=dim)[0]


def embed_bag_of_chars(texts: list[str]) -> list[dict[str, float]]:
    """Weak backend: only single Chinese chars / ascii tokens, no bigrams --- for BLOCKED demo."""
    vectors: list[dict[str, float]] = []
    for text in texts:
        toks = []
        for piece in WORD_RE.findall(text):
            if re.fullmatch(r"[A-Za-z0-9_./-]+", piece):
                if len(piece) > 1:
                    toks.append(piece.lower())
            else:
                toks.extend(list(piece))
        tf = Counter(toks)
        norm = math.sqrt(sum(v * v for v in tf.values())) or 1.0
        vectors.append({t: v / norm for t, v in tf.items()})
    return vectors


def embed_query_bag_of_chars(query: str, expansion: dict[str, list[str]]) -> dict[str, float]:
    # deliberately ignore expansion to simulate a bad model swap
    _ = expansion
    return embed_bag_of_chars([query])[0]


BACKENDS = {
    "tfidf_cosine_v1": {
        "kind": "sparse",
        "model_id": "demo-tfidf-v1",
        "description": "演示用 TF-IDF 余弦（非神经网络）",
    },
    "hashing_embedding_v1": {
        "kind": "dense",
        "model_id": "demo-hashing-emb-v1",
        "dim": 128,
        "description": "定长哈希向量，演示替换真实 embedding 时的接口与闸门",
    },
    "bag_of_chars_v0": {
        "kind": "sparse_weak",
        "model_id": "demo-bag-chars-v0",
        "description": "弱模型：无二元字、忽略扩展表，用于阻断演示",
    },
}


def build_backend(name: str, chunks: list[dict], expansion: dict[str, list[str]]) -> dict[str, Any]:
    meta = BACKENDS.get(name)
    if not meta:
        raise SystemExit(f"unknown backend: {name}; choose from {list(BACKENDS)}")
    texts = [c["text"] for c in chunks]
    if name == "tfidf_cosine_v1":
        vectors, idf = embed_tfidf(chunks)
        return {
            "backend": name,
            "kind": "sparse",
            "model_id": meta["model_id"],
            "idf": idf,
            "vectors": vectors,
            "chunk_ids": [c.get("chunk_id") for c in chunks],
            "uses_expansion_at_query": True,
        }
    if name == "hashing_embedding_v1":
        dim = int(meta["dim"])
        # bake expansion aliases into chunk side lightly by appending known aliases present in text
        enriched = []
        for t in texts:
            extra = []
            for aliases in expansion.values():
                if any(a in t for a in aliases):
                    extra.extend(aliases)
            enriched.append(t + (" " + " ".join(dict.fromkeys(extra)) if extra else ""))
        vectors = embed_hashing(enriched, dim=dim)
        return {
            "backend": name,
            "kind": "dense",
            "model_id": meta["model_id"],
            "dim": dim,
            "vectors": vectors,
            "chunk_ids": [c.get("chunk_id") for c in chunks],
            "uses_expansion_at_query": True,
        }
    if name == "bag_of_chars_v0":
        vectors = embed_bag_of_chars(texts)
        return {
            "backend": name,
            "kind": "sparse_weak",
            "model_id": meta["model_id"],
            "vectors": vectors,
            "chunk_ids": [c.get("chunk_id") for c in chunks],
            "uses_expansion_at_query": False,
        }
    raise SystemExit(f"unhandled backend: {name}")


def score_query(
    query: str,
    chunks: list[dict],
    payload: dict[str, Any],
    expansion: dict[str, list[str]],
) -> list[tuple[float, dict]]:
    kind = payload.get("kind")
    vectors = payload["vectors"]
    if kind == "sparse":
        qv = embed_query_tfidf(query, payload.get("idf") or {}, expansion)
        ranked = [(sparse_cosine(qv, vectors[i]), chunks[i]) for i in range(len(chunks))]
    elif kind == "dense":
        qv = embed_query_hashing(query, int(payload.get("dim") or 128), expansion)
        ranked = [(dense_cosine(qv, vectors[i]), chunks[i]) for i in range(len(chunks))]
    elif kind == "sparse_weak":
        qv = embed_query_bag_of_chars(query, expansion)
        ranked = [(sparse_cosine(qv, vectors[i]), chunks[i]) for i in range(len(chunks))]
    else:
        raise SystemExit(f"unknown kind: {kind}")
    ranked.sort(key=lambda x: x[0], reverse=True)
    return ranked

上线替换真实模型时，优先新增一个 backend 名（例如 sbert_minilm_v1），在 build_backend / score_query 里接模型推理；不要改闸门字段名。

7. 按后端构建索引包

保存为 scripts/build_embedding_index.py：

python 复制代码
#!/usr/bin/env python3
"""Build embedding index package for a chosen backend."""

from __future__ import annotations

import argparse
import hashlib
import json
import subprocess
import sys
from datetime import datetime, timezone
from pathlib import Path

ROOT = Path(__file__).resolve().parent
sys.path.insert(0, str(ROOT))
from embed_backends import BACKENDS, build_backend  # noqa: E402
from retrieve_vector import load_chunks, load_expansion  # noqa: E402


def sha256_file(path: Path) -> str:
    return hashlib.sha256(path.read_bytes()).hexdigest()


def sha256_text(text: str) -> str:
    return hashlib.sha256(text.encode("utf-8")).hexdigest()


def main() -> None:
    parser = argparse.ArgumentParser(description="Build embedding index for one backend")
    parser.add_argument("--docs-dir", type=Path, required=True)
    parser.add_argument("--expansion", type=Path, required=True)
    parser.add_argument("--backend", required=True, choices=sorted(BACKENDS.keys()))
    parser.add_argument("--out-dir", type=Path, required=True)
    parser.add_argument("--max-chars", type=int, default=240)
    parser.add_argument("--overlap-chars", type=int, default=40)
    parser.add_argument("--label", default="current")
    args = parser.parse_args()

    out_dir = args.out_dir
    out_dir.mkdir(parents=True, exist_ok=True)
    chunks_path = out_dir / "chunks.jsonl"
    meta_path = out_dir / "index_meta.json"
    vectors_path = out_dir / "vectors.json"
    manifest_path = out_dir / "docs_manifest.json"
    py = sys.executable

    subprocess.run(
        [py, str(ROOT / "fingerprint_docs.py"), "--docs-dir", str(args.docs_dir), "--out", str(manifest_path)],
        check=True,
    )
    subprocess.run(
        [
            py,
            str(ROOT / "chunk_docs.py"),
            "--docs-dir",
            str(args.docs_dir),
            "--out",
            str(chunks_path),
            "--max-chars",
            str(args.max_chars),
            "--overlap-chars",
            str(args.overlap_chars),
        ],
        check=True,
    )

    chunks = load_chunks(chunks_path)
    expansion = load_expansion(args.expansion)
    payload = build_backend(args.backend, chunks, expansion)
    vectors_path.write_text(json.dumps(payload, ensure_ascii=False) + "\n", encoding="utf-8")

    manifest = json.loads(manifest_path.read_text(encoding="utf-8"))
    docs_fp = sha256_text(json.dumps(manifest, sort_keys=True, ensure_ascii=False))
    expansion_fp = sha256_file(args.expansion)
    model_fp = sha256_text(json.dumps({"backend": args.backend, "model_id": payload["model_id"]}, sort_keys=True))

    meta = {
        "label": args.label,
        "backend": args.backend,
        "model_id": payload["model_id"],
        "model_fingerprint": model_fp,
        "kind": payload.get("kind"),
        "built_at": datetime.now(timezone.utc).isoformat(),
        "docs_dir": str(args.docs_dir.resolve()),
        "expansion_path": str(args.expansion.resolve()),
        "max_chars": args.max_chars,
        "overlap_chars": args.overlap_chars,
        "chunk_count": len(chunks),
        "docs_fingerprint": docs_fp,
        "expansion_fingerprint": expansion_fp,
        "chunks_fingerprint": sha256_file(chunks_path),
        "docs_manifest": manifest,
    }
    meta_path.write_text(json.dumps(meta, ensure_ascii=False, indent=2) + "\n", encoding="utf-8")
    print(
        f"EMBED_INDEX_OK label={args.label} backend={args.backend} "
        f"model_id={payload['model_id']} chunks={len(chunks)} -> {out_dir}"
    )


if __name__ == "__main__":
    main()

index_meta.json 至少包含：backend、model_id、model_fingerprint、文档指纹、扩展表指纹、切分参数。

8. 双层评测

保存为 scripts/eval_embedding_index.py：

python 复制代码
#!/usr/bin/env python3
"""Evaluate an embedding index package on canonical + paraphrase sets."""

from __future__ import annotations

import argparse
import json
import sys
from pathlib import Path

ROOT = Path(__file__).resolve().parent
sys.path.insert(0, str(ROOT))
from embed_backends import score_query  # noqa: E402
from retrieve_vector import load_chunks, load_expansion  # noqa: E402


def load_jsonl(path: Path) -> list[dict]:
    rows = []
    for line in path.read_text(encoding="utf-8").splitlines():
        line = line.strip()
        if line:
            rows.append(json.loads(line))
    return rows


def eval_one(chunks: list[dict], payload: dict, questions: list[dict], expansion: dict, top_k: int) -> dict:
    details = []
    hits = 0
    for q in questions:
        ranked = score_query(q["question"], chunks, payload, expansion)[:top_k]
        got_docs = [row["doc_id"] for _, row in ranked]
        gold = set(q.get("gold_docs") or [])
        ok = bool(gold & set(got_docs))
        if ok:
            hits += 1
        details.append(
            {
                "id": q.get("id"),
                "ok": ok,
                "gold_docs": sorted(gold),
                "got_docs": got_docs,
                "question": q.get("question"),
            }
        )
    total = len(questions) or 1
    return {
        "total": len(questions),
        "hits": hits,
        "hit_rate": round(hits / total, 4),
        "top_k": top_k,
        "failed_ids": [d["id"] for d in details if not d["ok"]],
        "details": details,
    }


def main() -> None:
    parser = argparse.ArgumentParser(description="Evaluate embedding index")
    parser.add_argument("--index-dir", type=Path, required=True)
    parser.add_argument("--canonical", type=Path, required=True)
    parser.add_argument("--paraphrase", type=Path, required=True)
    parser.add_argument("--expansion", type=Path, required=True)
    parser.add_argument("--canonical-top-k", type=int, default=3)
    parser.add_argument("--paraphrase-top-k", type=int, default=1)
    parser.add_argument("--out", type=Path, required=True)
    args = parser.parse_args()

    chunks = load_chunks(args.index_dir / "chunks.jsonl")
    payload = json.loads((args.index_dir / "vectors.json").read_text(encoding="utf-8"))
    meta = json.loads((args.index_dir / "index_meta.json").read_text(encoding="utf-8"))
    expansion = load_expansion(args.expansion)

    c_rep = eval_one(chunks, payload, load_jsonl(args.canonical), expansion, args.canonical_top_k)
    p_rep = eval_one(chunks, payload, load_jsonl(args.paraphrase), expansion, args.paraphrase_top_k)

    summary = {
        "backend": meta.get("backend") or payload.get("backend"),
        "model_id": meta.get("model_id") or payload.get("model_id"),
        "canonical_top_k": args.canonical_top_k,
        "paraphrase_top_k": args.paraphrase_top_k,
        "canonical_hit_rate": c_rep["hit_rate"],
        "paraphrase_hit_rate": p_rep["hit_rate"],
        "canonical_failed_ids": c_rep["failed_ids"],
        "paraphrase_failed_ids": p_rep["failed_ids"],
        "canonical_total": c_rep["total"],
        "paraphrase_total": p_rep["total"],
    }
    args.out.parent.mkdir(parents=True, exist_ok=True)
    args.out.write_text(json.dumps(summary, ensure_ascii=False, indent=2) + "\n", encoding="utf-8")
    print(f"wrote {args.out}")
    print(
        f"EMBED_EVAL backend={summary['backend']} model_id={summary['model_id']} "
        f"canonical={summary['canonical_hit_rate']:.1%} paraphrase={summary['paraphrase_hit_rate']:.1%}"
    )
    for d in c_rep["details"]:
        print(f"[C {'PASS' if d['ok'] else 'FAIL'}] {d['id']}: got={d['got_docs']} gold={d['gold_docs']}")
    for d in p_rep["details"]:
        print(f"[P {'PASS' if d['ok'] else 'FAIL'}] {d['id']}: got={d['got_docs']} gold={d['gold_docs']}")


if __name__ == "__main__":
    main()

对比脚本沿用前篇的 compare_index_evals.py（字段同为 canonical_hit_rate / paraphrase_hit_rate）。

9. 换模闸门

保存为 scripts/embedding_swap_gate.py：

python 复制代码
#!/usr/bin/env python3
"""Gate embedding model swap against policy."""

from __future__ import annotations

import argparse
import json
from pathlib import Path


def main() -> None:
    parser = argparse.ArgumentParser(description="Gate embedding model swap")
    parser.add_argument("--policy", type=Path, required=True)
    parser.add_argument("--baseline-eval", type=Path, required=True)
    parser.add_argument("--target-eval", type=Path, required=True)
    parser.add_argument("--compare-report", type=Path, required=True)
    parser.add_argument("--baseline-meta", type=Path, default=None)
    parser.add_argument("--target-meta", type=Path, default=None)
    parser.add_argument("--json", action="store_true")
    args = parser.parse_args()

    policy = json.loads(args.policy.read_text(encoding="utf-8"))
    base = json.loads(args.baseline_eval.read_text(encoding="utf-8"))
    cur = json.loads(args.target_eval.read_text(encoding="utf-8"))
    cmp = json.loads(args.compare_report.read_text(encoding="utf-8"))
    errors: list[str] = []

    min_c = float(policy.get("min_canonical_hit_rate", 1.0))
    min_p = float(policy.get("min_paraphrase_hit_rate", 0.85))
    c_hit = float(cur.get("canonical_hit_rate") or 0)
    p_hit = float(cur.get("paraphrase_hit_rate") or 0)
    if c_hit < min_c:
        errors.append(f"canonical_hit_rate {c_hit:.3f} < min_canonical_hit_rate {min_c}")
    if p_hit < min_p:
        errors.append(f"paraphrase_hit_rate {p_hit:.3f} < min_paraphrase_hit_rate {min_p}")

    max_reg = int(policy.get("max_regressed_questions", 0))
    max_drop = float(policy.get("max_hit_drop", 1.0))
    reg = int(cmp.get("regressed_count") or 0)
    drop = max(float(cmp.get("canonical_hit_drop") or 0), float(cmp.get("paraphrase_hit_drop") or 0))
    if reg > max_reg:
        errors.append(f"regressed_count {reg} > max_regressed_questions {max_reg}")
    if drop > max_drop:
        errors.append(f"hit_drop {drop:.3f} > max_hit_drop {max_drop}")

    if policy.get("require_model_id_change") and args.baseline_meta and args.target_meta:
        bmeta = json.loads(args.baseline_meta.read_text(encoding="utf-8"))
        tmeta = json.loads(args.target_meta.read_text(encoding="utf-8"))
        if bmeta.get("model_id") == tmeta.get("model_id"):
            errors.append("model_id unchanged; swap did not change embedding model")
        if bmeta.get("backend") == tmeta.get("backend"):
            errors.append("backend unchanged; expected a different embedding backend")
        if policy.get("require_rebuild_after_swap"):
            if bmeta.get("model_fingerprint") == tmeta.get("model_fingerprint"):
                errors.append("model_fingerprint unchanged; rebuild required after swap")

    allow = not errors
    out = {
        "allow": allow,
        "baseline_backend": base.get("backend"),
        "target_backend": cur.get("backend"),
        "baseline_model_id": base.get("model_id"),
        "target_model_id": cur.get("model_id"),
        "canonical_hit_rate": c_hit,
        "paraphrase_hit_rate": p_hit,
        "regressed_count": reg,
        "errors": errors,
    }
    if args.json:
        print(json.dumps(out, ensure_ascii=False, indent=2))
    else:
        print("EMBEDDING_SWAP_ALLOWED" if allow else "EMBEDDING_SWAP_BLOCKED")
        for e in errors:
            print(f"FAIL: {e}")
        if allow:
            print(
                f"swap {base.get('backend')} -> {cur.get('backend')} "
                f"canonical={c_hit:.1%} paraphrase={p_hit:.1%}"
            )
    raise SystemExit(0 if allow else 2)


if __name__ == "__main__":
    main()
bash 复制代码
python3 scripts/embedding_swap_gate.py \
  --policy configs/embedding_swap_policy.example.json \
  --baseline-eval logs/embedding_swap/baseline_eval.json \
  --target-eval logs/embedding_swap/target_eval.json \
  --compare-report logs/embedding_swap/compare_report.json \
  --baseline-meta logs/embedding_swap/index_baseline/index_meta.json \
  --target-meta logs/embedding_swap/index_target/index_meta.json

10. 一键换模与回归

保存为 scripts/run_embedding_swap.py：

python 复制代码
#!/usr/bin/env python3
"""One-shot: build baseline + target embedding indexes, eval, compare, gate."""

from __future__ import annotations

import argparse
import json
import shutil
import subprocess
import sys
from pathlib import Path

ROOT = Path(__file__).resolve().parent


def run(cmd: list[str], cwd: Path, check: bool = True) -> int:
    proc = subprocess.run(cmd, cwd=str(cwd), capture_output=True, text=True)
    text = (proc.stdout or "") + (proc.stderr or "")
    if text.strip():
        print(text[-2200:])
    if check and proc.returncode != 0:
        raise SystemExit(proc.returncode)
    return proc.returncode


def main() -> None:
    parser = argparse.ArgumentParser(description="Swap embedding backend and regress")
    parser.add_argument("--policy", type=Path, required=True)
    parser.add_argument("--docs-dir", type=Path, required=True)
    parser.add_argument("--expansion", type=Path, required=True)
    parser.add_argument("--canonical", type=Path, required=True)
    parser.add_argument("--paraphrase", type=Path, required=True)
    parser.add_argument("--workdir", type=Path, default=Path("."))
    parser.add_argument("--baseline-backend", default=None)
    parser.add_argument("--target-backend", default=None)
    args = parser.parse_args()

    workdir = args.workdir.resolve()
    policy = json.loads(args.policy.read_text(encoding="utf-8"))
    log = workdir / "logs/embedding_swap"
    log.mkdir(parents=True, exist_ok=True)
    py = sys.executable

    baseline_backend = args.baseline_backend or policy.get("baseline_backend", "tfidf_cosine_v1")
    target_backend = args.target_backend or policy.get("target_backend", "hashing_embedding_v1")
    max_chars = int(policy.get("max_chars", 240))
    overlap = int(policy.get("overlap_chars", 40))
    c_k = int(policy.get("canonical_top_k", 3))
    p_k = int(policy.get("paraphrase_top_k", 1))

    baseline_dir = log / "index_baseline"
    target_dir = log / "index_target"
    for d in (baseline_dir, target_dir):
        if d.exists():
            shutil.rmtree(d)

    for label, backend, out_dir in [
        ("baseline", baseline_backend, baseline_dir),
        ("target", target_backend, target_dir),
    ]:
        run(
            [
                py,
                str(ROOT / "build_embedding_index.py"),
                "--docs-dir",
                str(args.docs_dir),
                "--expansion",
                str(args.expansion),
                "--backend",
                backend,
                "--out-dir",
                str(out_dir),
                "--max-chars",
                str(max_chars),
                "--overlap-chars",
                str(overlap),
                "--label",
                label,
            ],
            workdir,
        )

    for name, index_dir, out_name in [
        ("baseline", baseline_dir, "baseline_eval.json"),
        ("target", target_dir, "target_eval.json"),
    ]:
        run(
            [
                py,
                str(ROOT / "eval_embedding_index.py"),
                "--index-dir",
                str(index_dir),
                "--canonical",
                str(args.canonical),
                "--paraphrase",
                str(args.paraphrase),
                "--expansion",
                str(args.expansion),
                "--canonical-top-k",
                str(c_k),
                "--paraphrase-top-k",
                str(p_k),
                "--out",
                str(log / out_name),
            ],
            workdir,
        )

    # reuse compare_index_evals from day51 (same field names)
    run(
        [
            py,
            str(ROOT / "compare_index_evals.py"),
            "--baseline",
            str(log / "baseline_eval.json"),
            "--current",
            str(log / "target_eval.json"),
            "--out",
            str(log / "compare_report.json"),
        ],
        workdir,
    )

    gate = run(
        [
            py,
            str(ROOT / "embedding_swap_gate.py"),
            "--policy",
            str(args.policy),
            "--baseline-eval",
            str(log / "baseline_eval.json"),
            "--target-eval",
            str(log / "target_eval.json"),
            "--compare-report",
            str(log / "compare_report.json"),
            "--baseline-meta",
            str(baseline_dir / "index_meta.json"),
            "--target-meta",
            str(target_dir / "index_meta.json"),
        ],
        workdir,
        check=False,
    )
    print("EMBEDDING_SWAP_OK" if gate == 0 else "EMBEDDING_SWAP_FAIL")
    raise SystemExit(gate)


if __name__ == "__main__":
    main()

成功时末尾输出 EMBEDDING_SWAP_OK。

11. 人工核对清单

保存为 notes/embedding_swap_checklist.md：

Embedding 模型替换与索引回归核对清单

替换前

  • 基线索引包已归档（index_baseline/ + baseline_eval.json）
  • 原话层与变体层题集与线上一致
  • 查询扩展表版本已锁定
  • 策略文件写明 baseline_backend 与 target_backend

构建与元数据

  • 目标后端重建后 index_meta.json 含 backend、model_id、model_fingerprint
  • model_id 相对基线已变化
  • 切分参数与基线一致（max_chars / overlap）

双层回归

  • 原话层前三条检索命中率 ≥ 策略阈值
  • 变体层排名第一命中率 ≥ 策略阈值
  • 相对基线退步问法条数 ≤ max_regressed_questions
  • 命中率掉点 ≤ max_hit_drop

闸门与切换

  • embedding_swap_gate 输出 EMBEDDING_SWAP_ALLOWED
  • 未达标时不得切换线上索引指针 / 模型配置
  • 发布记录归档 compare_report.json 与两侧 index_meta.json

收尾

  • 将目标索引包设为下一轮基线
  • 真实 embedding（本地或 API）只替换 embed_backends 中对应实现，闸门字段保持不变

12. 常见错误

12.1 改模型配置但不重建索引

旧 vectors.json 仍按旧 backend 生成。换模必须走构建脚本，写出新的 model_fingerprint。

12.2 只验收原话层

弱模型对照里原话层仍 100%。变体层才是 Embedding 质量的主信号。

12.3 model_id 不写进元数据

没有 model_id，线上事故无法回答"当前向量是哪一版模型算的"。

12.4 把演示哈希向量当成生产模型

hashing_embedding_v1 只证明接口与闸门。生产应换成真实 Embedding，并沿用同一套评测与闸门。

12.5 换模时改动题集口径

题集与阈值应先冻结；否则无法判断掉点来自模型还是来自题目变更。

12.6 切分参数随手改

基线 240 字、目标 360 字，对比失去意义。切分参数与换模正交，应分开变更单。

13. 术语速查

术语 含义
EMBEDDING_SWAP_ALLOWED 目标后端重建后评测达标，可切换
EMBEDDING_SWAP_BLOCKED 命中率、退步或模型元数据未达标
model_id Embedding 实现或权重的可读编号
model_fingerprint 绑定 backend + model_id 的哈希
定长向量 维度固定的稠密向量，便于接真实 Embedding API
弱模型对照 故意变差的后端，用于验证闸门会阻断

14. 小结

Embedding 升级的正确动作是换后端 → 重建索引包 → 双层回归 → 闸门放行：

  1. 冻结题集、扩展表与切分参数
  2. 基线后端与目标后端各自产出带 model_id 的索引包
  3. 对比原话层与变体层命中率及退步问法
  4. EMBEDDING_SWAP_ALLOWED 后再切线上指针

上文已给出策略、后端实现、构建、评测、闸门与一键脚本全文。可把本阶段接到《RAG 文档更新后的全链路闸门验收》：在向量索引重建之后增加换模闸门，再进入总闸门。

15. 相关阅读

《RAG 向量索引重建与回归》回答文档变更后如何重建；《RAG Embedding 模型替换与索引回归》回答向量实现本身如何替换。闸门口径稳定后，再把哈希后端换成真实 Embedding，不会把验收链路一起打乱。

如果本篇对你有帮助，欢迎点赞、收藏，也欢迎关注后续更新。

相关推荐
爱吃火鸡面呀1 小时前
OpenCV 人脸检测与识别实战：从静态图像到视频流
人工智能·opencv·计算机视觉
北京晶数信息科技1 小时前
加油站成品油智慧监管云平台成品油流通数智化监管平台加油机数据采集设备交易即开票全链路技术实现方案：技术拆解、架构设计与落地实践
大数据·人工智能
知了一笑1 小时前
职场丨岗位减少，职责增加
大数据·人工智能·职场·产品·业务
懂压力传感器的涌客1 小时前
机器人触觉传感器方案中FSR如何选型与集成
人工智能·机器人·压力传感器·fsr·源头工厂·fsr压力传感器
超级架构师1 小时前
连接企业系统，不等于把接口直接交给 Agent：LIMENORA 的集成边界
网络·人工智能·架构·ai编程
@MMiL1 小时前
PMSM基于SMO反电动势的PLL位置与速度估计
人工智能·机器学习
陕西企来客1 小时前
2026年9月西安生成式引擎优化是什么：概念与应用解析
人工智能·西安生成式引擎优化是什么
小王2041 小时前
Day 35：DETR与检测Transformer — 目标检测的范式革命
人工智能·深度学习·transformer
萧鼎1 小时前
2026新库实测：sbxloop 1.5.24 让 AI Agent 在 Docker 沙箱中安全自治，告别环境混乱
人工智能·python·开源·开发工具·ai agent
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03历年考研数学一、数学二、数学三真题试卷及答案PDF04蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接052026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？06微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新07ZCode 周末送额度活动开启：3 亿 Token 免费领取08Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费09AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路10VSCode+CodeX扩展，无法启动
