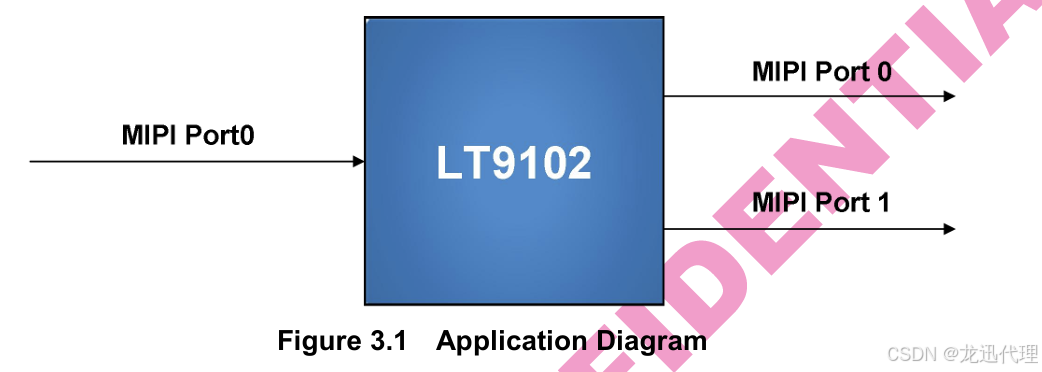

LT9102---MIPI Single-port to MIPI Dual-port

 Single-PortMIPIDSI/CSIReceiver
 CompliantwithD-PHY2.1&DSI1.1&CSI-22.0- 1clocklaneand1/2/3/4configurabledatalanesper
port- Upto4.5Gbpsperdatalane
 CompliantwithC-PHY1.2&DSI-21.0&CSI-22.0- 1/2/3configurable data trios- Upto3.5Gspsperdatatrio
 SupportBTA(BusTurnaround)
 Supportupto4K@90HzRGB8bpc
 Supportupto8K@60DSCpass-through

 Dual-PortMIPI®DSI/CSITransmitter
 CompliantwithD-PHY2.1&DSI1.1&DSI-21.0&CSI-2
2.0- Support1/2configurableports- 1clocklaneand1/2/3/4configurabledatalanesper
port- Upto4.5Gbpsperdatalane
 CompliantwithC-PHY1.2 &DSI-21.0&CSI-2 2.0- Support1/2configurableports- 1/2/3configurable data trios perport- Upto3.5Gspsperdatatrio
 DSISupport16/20/24-bit YCbCr4:2:2,16/18/24/30-bit
RGB,12-bitYcbCr420,12CompressedPixelStream
 CSISupportRGB888/666/565,YUV4228/10bit,
YUV4208bit(legacy), RAW(pass-through)

 SupportDSILowPowerCommand
 Supportsidebysideandeven/odd3Dmode
 SupportDSIVideomode
 SupportDSICommandmode(pass-through)
 D-PHYsupport port swap,lane swap and PN swap
 C-PHYsupport port swap and trios wap
 Supportmirror copy on two ports
 Supportvirtual channel dataseparation ontwoports
 Programmabletransmitterswingandpre-emphasis
 OSD
 Supportfont-basedandbit-mapOSD
 Supportadjustable transparency
 SupportVariable RefreshRate
 Miscellaneous
 CSC:RGB<->YCbCr4:4:4<->YCbCr4:2:2
