Unity 万能物理检测工具：射线检测 / 范围检测 / 层级过滤 / 编辑器可视化（可直接拿去用）
一套开箱即用的 Unity 物理检测封装：射线、扫掠、球形/盒形/扇形范围检测，支持指定层级、指定距离、忽略自身、Generic 泛型查询，编辑器模式下也能实时看到射线和命中结果。附完整源码 + 使用教程 + 避坑指南。
一、前言：为什么要自己封装一套？
做 Unity 项目，几乎每天都要跟 Physics.Raycast / Physics.OverlapSphere 打交道。但原生的 API 用起来有几处很啰嗦的地方：
| 痛点 | 原生写法 | 本工具写法 |
|---|---|---|
| 只想拿"最近"的命中，却得到一堆杂乱结果 | Physics.RaycastAll 返回数组不排序，还要自己遍历找最小 distance |
PhysicsDetectUtil.Raycast(...) 直接 out 最近命中 |
| 每次检测都产生 GC | RaycastAll / OverlapSphere 每次 new 一个数组 |
内部用 NonAlloc + 复用缓冲区，运行时零 GC |
| 老是打中自己 | 手动 if (hit.collider.gameObject == gameObject) continue; |
一个 ignoreRoot 参数搞定（含所有子物体） |
| 调试全靠猜 | 只能 Debug.DrawLine，运行时看不见 |
Scene 视图直接画射线、范围、命中点、命中信息 |
| 编辑器里调距离/半径要反复输数字 | 手改 Inspector 数值，改完切回 Scene 看效果 | Scene 视图里直接拖手柄调节 |
于是就有了这一套东西。它不依赖任何第三方插件，纯 UnityEngine，Unity 2019 ~ Unity 6 都能用。
二、功能特性一览
① 射线检测
- 单条射线取最近命中 / 取全部命中（自动按距离排序）
- 屏幕点击射线（鼠标拾取）、屏幕中心射线（准星射击）
- 两点线检测
Linecast、视线遮挡判断HasLineOfSight
② 扫掠检测
SphereCast（球形扫掠）/BoxCast（盒形扫掠，支持旋转）/CapsuleCast（胶囊扫掠）CheckSphere（点周围是否有碰撞体，比 Overlap 更省）
③ 范围检测
- 球形
OverlapSphere/ 盒形OverlapBox/ 胶囊OverlapCapsule - 扇形（视锥）
OverlapCone------怪物视野、扇形技能范围 - 泛型版
OverlapSphere<T>：一次直接拿到范围内所有挂载了某组件/接口的对象
④ 过滤器（全部方法通用）
layerMask指定层级distance指定距离triggerInteraction是否检测触发器ignoreRoot忽略自身及全部子物体
⑤ 结果后处理
SortByDistance按距离排序、GetNearestCollider取最近ToRootTransforms按根物体去重（打中一个角色的 3 个碰撞体只算 1 次）FindNearest<T>找最近的敌人
⑥ 编辑器可视化
- 运行时 + 编辑器模式都能实时绘制射线 / 球形 / 盒形 / 扇形 / 命中点 / 命中法线 / 命中信息文字
- 自定义 Inspector 面板：一键"立即检测"、"检测并打印"
- Scene 视图手柄：直接拖拽调整检测原点 / 检测距离 / 检测半径
- 支持
Undo撤销

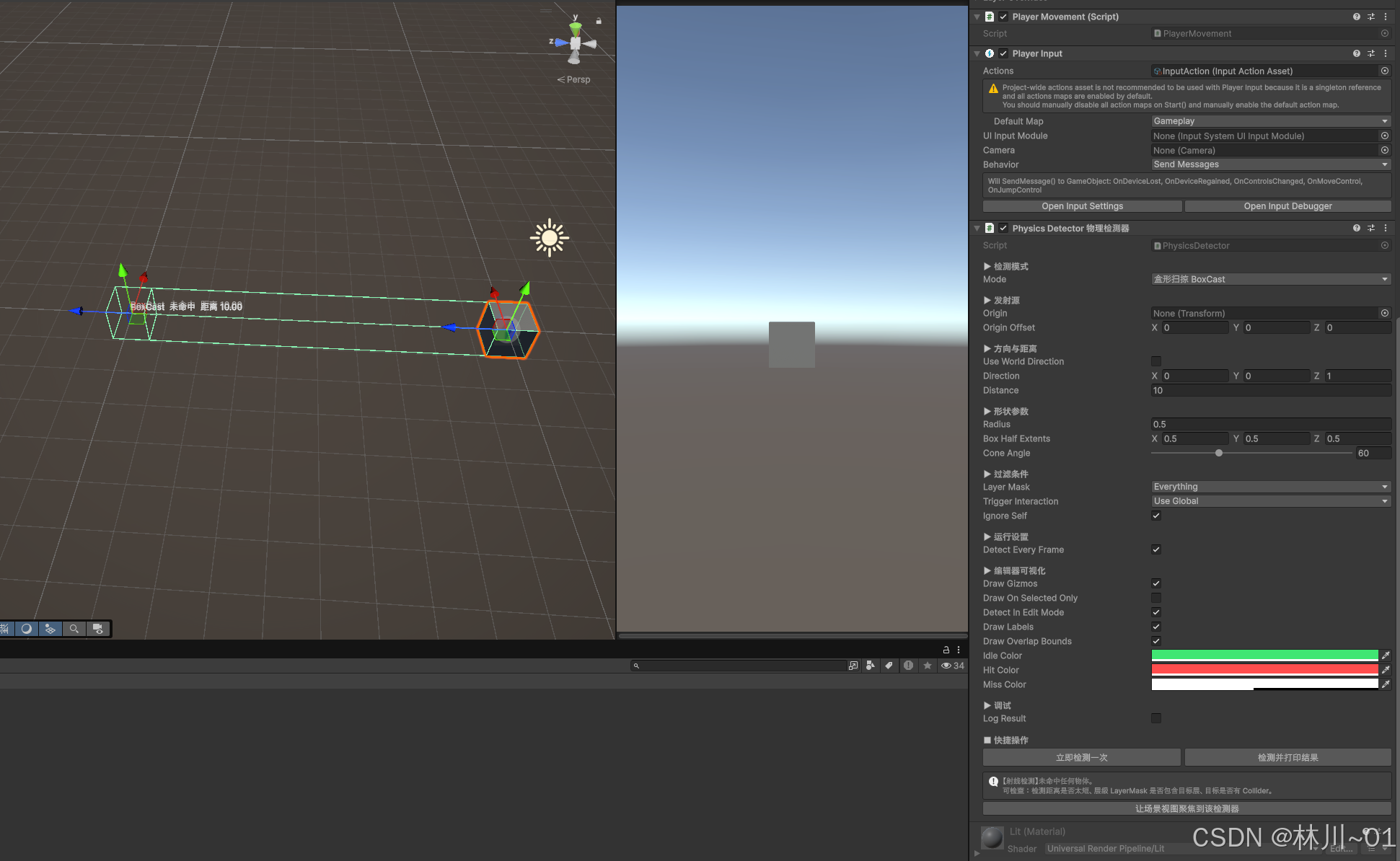

效果预览（Scene 视图里能看到什么）
把 PhysicsDetector 组件挂到物体上之后，不用进入 Play 模式，Scene 视图就会实时显示：
- 🟢 未命中：绿色射线 + 末端小圆点
- 🔴 命中：红色射线 + 命中点实心球 + 法线方向短线
- 🟠 范围检测：球形 / 盒形 / 扇形线框，范围内每个命中碰撞体都会画出红色包围盒和指引线
- ❓ 信息文字：跟随在检测末端，实时显示「命中 XXX / 距离 X.XX」
三、文件结构与安装（3 步）
Assets/
└── XKTools/
└── Detection/
├── PhysicsDetectUtil.cs ← 核心工具类（必须）
├── PhysicsDetector.cs ← 可视化检测组件（必须）
├── PhysicsDetectDemo.cs ← 使用示例（可选，学完可删）
└── Editor/
└── PhysicsDetectorEditor.cs ← 编辑器扩展（可选，但要放 Editor 文件夹）-
在
Assets下新建文件夹XKTools/Detection；或者直接将本文附带的资源下载放在Assets文件下 -
把下面 4 个脚本按上面的路径丢进去（
Editor文件夹的名字必须 叫Editor，否则打包会报错）； -
回到 Unity 等待编译完成。任意脚本顶部加
using XKTools.Detection;即可调用。
⚠️ 注意：
Editor文件夹在 Unity 里是特殊目录，里面的脚本不会被打进最终包体，只用于编辑器。
四、核心脚本 ①：PhysicsDetectUtil.cs（工具类）
纯静态类，不需要挂载到任何物体，PhysicsDetectUtil.XXX() 直接调用。
csharp
// =============================================================================
// PhysicsDetectUtil.cs
// Unity 物理检测工具 ------ 核心工具类（射线检测 / 扫掠检测 / 范围检测）
// · 纯静态类，无需挂载，任何脚本中直接调用
// · 所有方法均支持「指定层级 LayerMask + 指定距离 + 触发器过滤 + 忽略自身」
// · 内部使用 NonAlloc 接口 + 复用缓冲区，运行时零 GC Alloc
// 依赖：UnityEngine 内置 Physics，无任何第三方插件
// =============================================================================
using System;
using System.Collections.Generic;
using UnityEngine;
namespace XKTools.Detection
{
public static class PhysicsDetectUtil
{
/// <summary>默认缓冲区大小：单次检测最多返回的命中数量</summary>
public const int DefaultBufferSize = 64;
private static readonly RaycastHit[] HitBuffer = new RaycastHit[DefaultBufferSize];
private static readonly Collider[] ColliderBuffer = new Collider[DefaultBufferSize];
private static readonly RaycastHit[] EmptyHits = new RaycastHit[0];
private static readonly Collider[] EmptyColliders = new Collider[0];
/// <summary>排序用的临时点（避免每次排序产生闭包 GC）</summary>
private static Vector3 _comparePoint;
#region ==================== 一、射线检测（Ray） ====================
/// <summary>
/// 发射一条射线，返回距离「最近」的那个命中物体（最常用）
/// </summary>
/// <param name="origin">发射点（世界坐标）</param>
/// <param name="direction">射线方向（世界坐标，无需提前归一化）</param>
/// <param name="distance">检测距离</param>
/// <param name="hit">最近的命中信息</param>
/// <param name="layerMask">层级过滤，如 1 << 8 或 LayerMask 变量</param>
/// <param name="triggerInteraction">是否检测触发器</param>
/// <param name="ignoreRoot">忽略该物体及其全部子物体（常用于忽略自身）</param>
/// <returns>是否命中</returns>
public static bool Raycast(Vector3 origin, Vector3 direction, float distance, out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
hit = default(RaycastHit);
if (direction.sqrMagnitude < 1e-8f || distance <= 0f) return false;
int count = Physics.RaycastNonAlloc(origin, direction.normalized, HitBuffer,
distance, layerMask, triggerInteraction);
return PickNearest(count, ignoreRoot, out hit);
}
/// <summary>
/// 发射一条射线，返回「所有」命中并按距离从近到远排序
/// </summary>
public static RaycastHit[] RaycastAll(Vector3 origin, Vector3 direction, float distance,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
if (direction.sqrMagnitude < 1e-8f || distance <= 0f) return EmptyHits;
int count = Physics.RaycastNonAlloc(origin, direction.normalized, HitBuffer,
distance, layerMask, triggerInteraction);
List<RaycastHit> list = new List<RaycastHit>(count);
for (int i = 0; i < count; i++)
{
RaycastHit h = HitBuffer[i];
if (h.collider == null) continue;
if (IsIgnored(h.collider.transform, ignoreRoot)) continue;
list.Add(h);
}
RaycastHit[] result = list.ToArray();
Array.Sort(result, CompareHitByDistance);
return result;
}
/// <summary>
/// 从相机屏幕点发射射线（鼠标点击拾取、拖拽对象必用）
/// </summary>
public static bool RaycastFromScreenPoint(Camera camera, Vector3 screenPoint, float distance,
out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
hit = default(RaycastHit);
if (camera == null) return false;
Ray ray = camera.ScreenPointToRay(screenPoint);
if (distance <= 0f) distance = camera.farClipPlane;
return Raycast(ray.origin, ray.direction, distance, out hit, layerMask, triggerInteraction, ignoreRoot);
}
/// <summary>从屏幕正中心发射射线（准星射击、第一人称交互必用）</summary>
public static bool RaycastFromCameraCenter(Camera camera, float distance, out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
Vector3 center = new Vector3(Screen.width * 0.5f, Screen.height * 0.5f, 0f);
return RaycastFromScreenPoint(camera, center, distance, out hit,
layerMask, triggerInteraction, ignoreRoot);
}
/// <summary>直接使用 Ray 结构体检测</summary>
public static bool Raycast(Ray ray, float distance, out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
return Raycast(ray.origin, ray.direction, distance, out hit, layerMask, triggerInteraction, ignoreRoot);
}
/// <summary>两点之间做线检测（返回最近的障碍物）</summary>
public static bool Linecast(Vector3 start, Vector3 end, out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
Vector3 dir = end - start;
return Raycast(start, dir, dir.magnitude, out hit, layerMask, triggerInteraction, ignoreRoot);
}
/// <summary>
/// 视线是否通畅（之间没有任何遮挡）
/// 注意：默认忽略触发器，只看实体碰撞体
/// </summary>
public static bool HasLineOfSight(Vector3 start, Vector3 end,
int layerMask = Physics.AllLayers,
Transform ignoreRoot = null)
{
RaycastHit hit;
return !Linecast(start, end, out hit, layerMask, QueryTriggerInteraction.Ignore, ignoreRoot);
}
#endregion
#region ==================== 二、扫掠检测（Cast） ====================
/// <summary>球形扫掠：把一个球沿方向推出，返回最近命中</summary>
public static bool SphereCast(Vector3 origin, float radius, Vector3 direction, float distance,
out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
hit = default(RaycastHit);
if (direction.sqrMagnitude < 1e-8f || distance <= 0f || radius <= 0f) return false;
int count = Physics.SphereCastNonAlloc(origin, radius, direction.normalized, HitBuffer,
distance, layerMask, triggerInteraction);
return PickNearest(count, ignoreRoot, out hit);
}
/// <summary>球形扫掠，返回所有命中并按距离排序</summary>
public static RaycastHit[] SphereCastAll(Vector3 origin, float radius, Vector3 direction, float distance,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
if (direction.sqrMagnitude < 1e-8f || distance <= 0f || radius <= 0f) return EmptyHits;
int count = Physics.SphereCastNonAlloc(origin, radius, direction.normalized, HitBuffer,
distance, layerMask, triggerInteraction);
List<RaycastHit> list = new List<RaycastHit>(count);
for (int i = 0; i < count; i++)
{
RaycastHit h = HitBuffer[i];
if (h.collider == null) continue;
if (IsIgnored(h.collider.transform, ignoreRoot)) continue;
list.Add(h);
}
RaycastHit[] result = list.ToArray();
Array.Sort(result, CompareHitByDistance);
return result;
}
/// <summary>胶囊体扫掠（角色移动、近战攻击判定）</summary>
public static bool CapsuleCast(Vector3 point1, Vector3 point2, float radius, Vector3 direction,
float distance, out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
hit = default(RaycastHit);
if (direction.sqrMagnitude < 1e-8f || distance <= 0f || radius <= 0f) return false;
int count = Physics.CapsuleCastNonAlloc(point1, point2, radius, direction.normalized, HitBuffer,
distance, layerMask, triggerInteraction);
return PickNearest(count, ignoreRoot, out hit);
}
/// <summary>盒形扫掠（带旋转）</summary>
public static bool BoxCast(Vector3 center, Vector3 halfExtents, Vector3 direction, Quaternion orientation,
float distance, out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
hit = default(RaycastHit);
if (direction.sqrMagnitude < 1e-8f || distance <= 0f) return false;
int count = Physics.BoxCastNonAlloc(center, halfExtents, direction.normalized, HitBuffer,
orientation, distance, layerMask, triggerInteraction);
return PickNearest(count, ignoreRoot, out hit);
}
/// <summary>盒形扫掠（不旋转）</summary>
public static bool BoxCast(Vector3 center, Vector3 halfExtents, Vector3 direction, float distance,
out RaycastHit hit,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null)
{
return BoxCast(center, halfExtents, direction, Quaternion.identity, distance, out hit,
layerMask, triggerInteraction, ignoreRoot);
}
/// <summary>
/// 判断某个点周围是否有碰撞体（掉坑、陷地、脚下有无地面判定）
/// 比 OverlapSphere 更轻量，只返回 bool
/// </summary>
public static bool CheckSphere(Vector3 position, float radius,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal)
{
return Physics.CheckSphere(position, radius, layerMask, triggerInteraction);
}
#endregion
#region ==================== 三、范围检测（Overlap） ====================
/// <summary>
/// 球形范围检测：返回范围内的所有碰撞体
/// </summary>
/// <param name="center">球心（世界坐标）</param>
/// <param name="radius">半径</param>
/// <param name="sortByDistance">是否按距离从近到远排序</param>
public static Collider[] OverlapSphere(Vector3 center, float radius,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null,
bool sortByDistance = true)
{
if (radius <= 0f) return EmptyColliders;
int count = Physics.OverlapSphereNonAlloc(center, radius, ColliderBuffer, layerMask, triggerInteraction);
Collider[] result = CopyColliders(count, ignoreRoot);
if (sortByDistance) SortByDistance(center, result);
return result;
}
/// <summary>球形范围检测 + 泛型版：直接拿到挂载了指定组件（或接口）的对象</summary>
public static T[] OverlapSphere<T>(Vector3 center, float radius,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null,
bool sortByDistance = true) where T : class
{
Collider[] colliders = OverlapSphere(center, radius, layerMask, triggerInteraction, ignoreRoot, sortByDistance);
List<T> list = new List<T>(colliders.Length);
for (int i = 0; i < colliders.Length; i++)
{
// GetComponentInParent 可以兼容「碰撞体在子物体、脚本在父物体」的常见结构
T item = colliders[i].GetComponentInParent<T>();
if (item != null && !list.Contains(item)) list.Add(item);
}
return list.ToArray();
}
/// <summary>盒形范围检测（可带旋转）</summary>
public static Collider[] OverlapBox(Vector3 center, Vector3 halfExtents, Quaternion orientation,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null,
bool sortByDistance = true)
{
int count = Physics.OverlapBoxNonAlloc(center, halfExtents, ColliderBuffer, orientation,
layerMask, triggerInteraction);
Collider[] result = CopyColliders(count, ignoreRoot);
if (sortByDistance) SortByDistance(center, result);
return result;
}
/// <summary>盒形范围检测（不旋转）</summary>
public static Collider[] OverlapBox(Vector3 center, Vector3 halfExtents,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null,
bool sortByDistance = true)
{
return OverlapBox(center, halfExtents, Quaternion.identity, layerMask, triggerInteraction,
ignoreRoot, sortByDistance);
}
/// <summary>胶囊体范围检测（角色周围、走廊型范围判定）</summary>
public static Collider[] OverlapCapsule(Vector3 point0, Vector3 point1, float radius,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null,
bool sortByDistance = true)
{
if (radius <= 0f) return EmptyColliders;
int count = Physics.OverlapCapsuleNonAlloc(point0, point1, radius, ColliderBuffer,
layerMask, triggerInteraction);
Collider[] result = CopyColliders(count, ignoreRoot);
if (sortByDistance) SortByDistance((point0 + point1) * 0.5f, result);
return result;
}
/// <summary>
/// 扇形（视锥）范围检测：常用于怪物视野、扇形范围攻击
/// 先用球形范围筛出候选，再用夹角过滤，避免 O(n) 全场景遍历
/// </summary>
/// <param name="origin">扇形顶点</param>
/// <param name="direction">扇形朝向</param>
/// <param name="radius">扇形半径</param>
/// <param name="angle">扇形总夹角（1~179 度）</param>
public static Collider[] OverlapCone(Vector3 origin, Vector3 direction, float radius, float angle,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null,
bool sortByDistance = true)
{
if (radius <= 0f) return EmptyColliders;
Collider[] candidates = OverlapSphere(origin, radius, layerMask, triggerInteraction, ignoreRoot, false);
if (candidates.Length == 0) return candidates;
direction = direction.normalized;
float halfAngle = Mathf.Clamp(angle, 0f, 360f) * 0.5f;
List<Collider> list = new List<Collider>(candidates.Length);
for (int i = 0; i < candidates.Length; i++)
{
Vector3 to = candidates[i].bounds.center - origin;
// 顶点就在碰撞体内部，直接算命中
if (to.sqrMagnitude < 1e-6f) { list.Add(candidates[i]); continue; }
if (Vector3.Angle(direction, to) <= halfAngle) list.Add(candidates[i]);
}
Collider[] result = list.ToArray();
if (sortByDistance) SortByDistance(origin, result);
return result;
}
#endregion
#region ==================== 四、结果处理辅助 ====================
/// <summary>在碰撞体数组中找到离某点最近的一个</summary>
public static Collider GetNearestCollider(Vector3 point, Collider[] colliders)
{
if (colliders == null || colliders.Length == 0) return null;
Collider nearest = null;
float min = float.MaxValue;
for (int i = 0; i < colliders.Length; i++)
{
if (colliders[i] == null) continue;
float d = SqrDistanceTo(colliders[i], point);
if (d < min) { min = d; nearest = colliders[i]; }
}
return nearest;
}
/// <summary>把碰撞体数组按距离从近到远原地排序（基于包围盒，兼容非凸网格碰撞体）</summary>
public static Collider[] SortByDistance(Vector3 point, Collider[] colliders)
{
if (colliders == null || colliders.Length < 2) return colliders;
_comparePoint = point;
Array.Sort(colliders, CompareColliderByDistance);
return colliders;
}
/// <summary>点到碰撞体的平方距离（直接用包围盒，性能好且对 MeshCollider 安全）</summary>
public static float SqrDistanceTo(Collider collider, Vector3 point)
{
if (collider == null) return float.MaxValue;
Bounds bounds = collider.bounds;
return (bounds.ClosestPoint(point) - point).sqrMagnitude;
}
/// <summary>
/// 把碰撞体数组转换成 Transform 数组（按根物体去重）
/// 例如一次爆炸打中同一个角色的头 / 身体 / 武器三个碰撞体，这里只会返回一次
/// </summary>
public static Transform[] ToRootTransforms(Collider[] colliders, bool distinct = true)
{
if (colliders == null || colliders.Length == 0) return new Transform[0];
List<Transform> list = new List<Transform>(colliders.Length);
for (int i = 0; i < colliders.Length; i++)
{
if (colliders[i] == null) continue;
Transform root = colliders[i].transform.root;
if (distinct && list.Contains(root)) continue;
list.Add(root);
}
return list.ToArray();
}
/// <summary>在球形范围内查找最近的、挂载了 T 组件（或实现了接口 T）的对象</summary>
public static T FindNearest<T>(Vector3 origin, float radius,
int layerMask = Physics.AllLayers,
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal,
Transform ignoreRoot = null) where T : class
{
Collider[] colliders = OverlapSphere(origin, radius, layerMask, triggerInteraction, ignoreRoot, true);
for (int i = 0; i < colliders.Length; i++)
{
T item = colliders[i].GetComponentInParent<T>();
if (item != null) return item;
}
return null;
}
#endregion
#region ==================== 五、调试可视化（运行时） ====================
/// <summary>运行时绘制射线（需在 Scene 视图开启 Gizmos）</summary>
public static void DebugDrawRay(Vector3 origin, Vector3 direction, float distance, Color color,
float duration = 0f)
{
if (direction.sqrMagnitude < 1e-8f) return;
Debug.DrawLine(origin, origin + direction.normalized * distance, color, duration);
}
/// <summary>运行时绘制十字标记（标记命中点非常好用）</summary>
public static void DebugDrawCross(Vector3 position, float size, Color color, float duration = 0f)
{
Debug.DrawLine(position + Vector3.left * size, position + Vector3.right * size, color, duration);
Debug.DrawLine(position + Vector3.down * size, position + Vector3.up * size, color, duration);
Debug.DrawLine(position + Vector3.back * size, position + Vector3.forward * size, color, duration);
}
/// <summary>运行时绘制球形范围（用三个正交圆近似）</summary>
public static void DebugDrawSphere(Vector3 center, float radius, Color color, float duration = 0f,
int segments = 32)
{
float step = Mathf.PI * 2f / segments;
for (int i = 0; i < segments; i++)
{
float a = step * i;
float b = step * (i + 1);
Debug.DrawLine(center + new Vector3(Mathf.Cos(a), Mathf.Sin(a), 0f) * radius,
center + new Vector3(Mathf.Cos(b), Mathf.Sin(b), 0f) * radius, color, duration);
Debug.DrawLine(center + new Vector3(Mathf.Cos(a), 0f, Mathf.Sin(a)) * radius,
center + new Vector3(Mathf.Cos(b), 0f, Mathf.Sin(b)) * radius, color, duration);
Debug.DrawLine(center + new Vector3(0f, Mathf.Cos(a), Mathf.Sin(a)) * radius,
center + new Vector3(0f, Mathf.Cos(b), Mathf.Sin(b)) * radius, color, duration);
}
}
#endregion
#region ==================== 内部实现 ====================
/// <summary>从缓冲区里挑出最近的一个命中</summary>
private static bool PickNearest(int count, Transform ignoreRoot, out RaycastHit hit)
{
hit = default(RaycastHit);
float nearest = float.MaxValue;
bool found = false;
for (int i = 0; i < count; i++)
{
RaycastHit h = HitBuffer[i];
if (h.collider == null) continue;
if (IsIgnored(h.collider.transform, ignoreRoot)) continue;
if (h.distance < nearest)
{
nearest = h.distance;
hit = h;
found = true;
}
}
return found;
}
/// <summary>把缓冲区里的碰撞体拷贝出来并做忽略过滤</summary>
private static Collider[] CopyColliders(int count, Transform ignoreRoot)
{
List<Collider> list = new List<Collider>(count);
for (int i = 0; i < count; i++)
{
Collider c = ColliderBuffer[i];
if (c == null) continue;
if (IsIgnored(c.transform, ignoreRoot)) continue;
list.Add(c);
}
return list.ToArray();
}
/// <summary>是否属于需要忽略的层级（自身或自身的子物体）</summary>
private static bool IsIgnored(Transform target, Transform ignoreRoot)
{
if (ignoreRoot == null || target == null) return false;
return target == ignoreRoot || target.IsChildOf(ignoreRoot);
}
private static int CompareHitByDistance(RaycastHit a, RaycastHit b)
{
return a.distance.CompareTo(b.distance);
}
private static int CompareColliderByDistance(Collider a, Collider b)
{
float da = SqrDistanceTo(a, _comparePoint);
float db = SqrDistanceTo(b, _comparePoint);
return da.CompareTo(db);
}
#endregion
}
}五、核心脚本 ②：PhysicsDetector.cs（可视化检测组件）
挂到任意物体上，在 Inspector 里配置参数，Scene 视图立刻就能看到检测射线和命中结果。编辑器模式下也会实时检测。
csharp
// =============================================================================
// PhysicsDetector.cs
// Unity 物理检测工具 ------ 可视化检测组件
// · 在 Inspector 里配置：检测模式 / 方向 / 距离 / 半径 / 层级 / 触发器
// · 运行时（Play）实时检测，编辑器模式（Edit）也能实时预览射线
// · Scene 视图直接绘制：射线、球形 / 盒形范围、命中点、命中法线、命中信息文字
// · 提供 HasHit / Hit / OverlapResults 以及 OnRayHit / OnOverlapDetected 事件
// =============================================================================
using System;
using UnityEngine;
namespace XKTools.Detection
{
[ExecuteAlways]
[DisallowMultipleComponent]
[AddComponentMenu("XKTools/Physics Detector 物理检测器")]
public class PhysicsDetector : MonoBehaviour
{
/// <summary>检测模式</summary>
public enum DetectMode
{
[InspectorName("射线 Ray")] Ray = 0,
[InspectorName("球形扫掠 SphereCast")] SphereCast = 1,
[InspectorName("盒形扫掠 BoxCast")] BoxCast = 2,
[InspectorName("球形范围 OverlapSphere")] OverlapSphere = 3,
[InspectorName("盒形范围 OverlapBox")] OverlapBox = 4,
[InspectorName("扇形范围 OverlapCone")] OverlapCone = 5,
}
// ------------------------------------------------------------------
// 检测配置
// ------------------------------------------------------------------
[Header("▶ 检测模式")]
[Tooltip("选择本次检测的类型：射线 / 扫掠 / 范围")]
public DetectMode mode = DetectMode.Ray;
[Header("▶ 发射源")]
[Tooltip("留空则使用当前物体自身作为发射源")]
public Transform origin;
[Tooltip("在发射源局部坐标系下的偏移量")]
public Vector3 originOffset;
[Header("▶ 方向与距离")]
[Tooltip("勾选后 direction 视为世界方向，否则视为发射源的局部方向")]
public bool useWorldDirection;
[Tooltip("检测方向")]
public Vector3 direction = Vector3.forward;
[Tooltip("检测距离（范围检测模式下作为可视化长度参考）")]
public float distance = 10f;
[Header("▶ 形状参数")]
[Tooltip("球形扫掠 / 球形范围 / 扇形范围的半径")]
public float radius = 0.5f;
[Tooltip("盒形扫掠 / 盒形范围的半尺寸")]
public Vector3 boxHalfExtents = new Vector3(0.5f, 0.5f, 0.5f);
[Range(1f, 179f)]
[Tooltip("扇形范围的总夹角（度）")]
public float coneAngle = 60f;
[Header("▶ 过滤条件")]
[Tooltip("只检测这些层级的物体")]
public LayerMask layerMask = ~0;
[Tooltip("是否把触发器也纳入检测")]
public QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.UseGlobal;
[Tooltip("忽略自身（含所有子物体），一般保持勾选")]
public bool ignoreSelf = true;
[Header("▶ 运行设置")]
[Tooltip("运行时是否每帧自动检测；关闭后可在代码里手动调用 Detect()")]
public bool detectEveryFrame = true;
[Header("▶ 编辑器可视化")]
[Tooltip("是否绘制 Gizmos")]
public bool drawGizmos = true;
[Tooltip("只在选中该物体时绘制，场景物体多的时候建议勾选")]
public bool drawOnSelectedOnly;
[Tooltip("编辑器（非运行）模式下是否也实时执行检测")]
public bool detectInEditMode = true;
[Tooltip("是否绘制命中信息文字")]
public bool drawLabels = true;
[Tooltip("是否把范围内命中的碰撞体包围盒画出来")]
public bool drawOverlapBounds = true;
public Color idleColor = new Color(0.25f, 0.9f, 0.45f, 1f);
public Color hitColor = new Color(1f, 0.3f, 0.3f, 1f);
public Color missColor = new Color(1f, 1f, 1f, 0.45f);
[Header("▶ 调试")]
[Tooltip("命中时是否打印日志")]
public bool logResult;
// ------------------------------------------------------------------
// 检测结果（只读）
// ------------------------------------------------------------------
/// <summary>最近一次检测是否命中</summary>
public bool HasHit { get; private set; }
/// <summary>最近一次检测的命中信息（范围检测模式下为 default）</summary>
public RaycastHit Hit { get; private set; }
/// <summary>范围检测命中的碰撞体数组</summary>
public Collider[] OverlapResults { get; private set; } = EmptyColliders;
private static readonly Collider[] EmptyColliders = new Collider[0];
/// <summary>命中的物体（未命中返回 null）</summary>
public Transform HitTransform { get { return Hit.collider != null ? Hit.collider.transform : null; } }
/// <summary>命中点（未命中返回 null）</summary>
public Vector3? HitPoint { get { return Hit.collider != null ? (Vector3?)Hit.point : null; } }
/// <summary>射线类检测命中时触发</summary>
public event Action<PhysicsDetector, RaycastHit> OnRayHit;
/// <summary>范围类检测完成时触发（即使没命中也会触发，数组长度为 0）</summary>
public event Action<PhysicsDetector, Collider[]> OnOverlapDetected;
// ------------------------------------------------------------------
// 对外接口
// ------------------------------------------------------------------
/// <summary>实际使用的发射源 Transform</summary>
public Transform OriginTransform
{
get { return origin != null ? origin : transform; }
}
/// <summary>取世界空间的发射点</summary>
public Vector3 GetWorldOrigin()
{
return OriginTransform.TransformPoint(originOffset);
}
/// <summary>取世界空间的检测方向（已归一化）</summary>
public Vector3 GetWorldDirection()
{
if (useWorldDirection)
{
return direction.sqrMagnitude < 1e-8f ? Vector3.forward : direction.normalized;
}
Vector3 dir = OriginTransform.TransformDirection(direction);
return dir.sqrMagnitude < 1e-8f ? OriginTransform.forward : dir.normalized;
}
/// <summary>当前模式是否属于「范围检测」</summary>
public bool IsOverlapMode
{
get
{
return mode == DetectMode.OverlapSphere
|| mode == DetectMode.OverlapBox
|| mode == DetectMode.OverlapCone;
}
}
/// <summary>执行一次检测，返回是否命中</summary>
public bool Detect()
{
Vector3 o = GetWorldOrigin();
Vector3 d = GetWorldDirection();
float dist = Mathf.Max(0f, distance);
Transform ignore = ignoreSelf ? transform.root : null;
if (IsOverlapMode)
{
switch (mode)
{
case DetectMode.OverlapSphere:
OverlapResults = PhysicsDetectUtil.OverlapSphere(o, radius, layerMask,
triggerInteraction, ignore, true);
break;
case DetectMode.OverlapBox:
OverlapResults = PhysicsDetectUtil.OverlapBox(o, boxHalfExtents, GetBoxRotation(),
layerMask, triggerInteraction, ignore, true);
break;
case DetectMode.OverlapCone:
OverlapResults = PhysicsDetectUtil.OverlapCone(o, d, radius, coneAngle,
layerMask, triggerInteraction, ignore, true);
break;
}
Hit = default(RaycastHit);
HasHit = OverlapResults != null && OverlapResults.Length > 0;
if (OnOverlapDetected != null) OnOverlapDetected(this, OverlapResults);
if (logResult && HasHit)
{
Debug.Log(string.Format("[PhysicsDetector] {0} 命中 {1} 个碰撞体（{2}）",
mode, OverlapResults.Length, name), this);
}
return HasHit;
}
RaycastHit h;
bool result;
switch (mode)
{
case DetectMode.SphereCast:
result = PhysicsDetectUtil.SphereCast(o, radius, d, dist, out h,
layerMask, triggerInteraction, ignore);
break;
case DetectMode.BoxCast:
result = PhysicsDetectUtil.BoxCast(o, boxHalfExtents, d, GetBoxRotation(), dist, out h,
layerMask, triggerInteraction, ignore);
break;
default: // DetectMode.Ray
result = PhysicsDetectUtil.Raycast(o, d, dist, out h,
layerMask, triggerInteraction, ignore);
break;
}
Hit = result ? h : default(RaycastHit);
HasHit = result;
OverlapResults = EmptyColliders;
if (result)
{
if (OnRayHit != null) OnRayHit(this, Hit);
if (logResult)
{
Debug.Log(string.Format("[PhysicsDetector] {0} 命中 {1}，距离 {2:F2}，命中点 {3}",
mode, Hit.collider.name, Hit.distance, Hit.point), this);
}
}
else if (logResult)
{
Debug.Log(string.Format("[PhysicsDetector] {0} 未命中任何物体", mode), this);
}
return result;
}
/// <summary>执行一次检测并把结果打印到 Console</summary>
public void DetectAndLog()
{
bool r = Detect();
if (!r)
{
Debug.Log(string.Format("[PhysicsDetector] {0} 结果：未命中（距离 {1}，层级掩码 {2}）",
mode, distance, layerMask.value), this);
return;
}
if (IsOverlapMode)
{
string names = "";
for (int i = 0; i < OverlapResults.Length; i++)
{
if (i > 0) names += ", ";
names += OverlapResults[i].name;
}
Debug.Log(string.Format("[PhysicsDetector] {0} 结果：命中 {1} 个 → {2}",
mode, OverlapResults.Length, names), this);
}
else
{
Debug.Log(string.Format("[PhysicsDetector] {0} 结果：命中 {1}（Tag: {2} / Layer: {3}）距离 {4:F2}",
mode, Hit.collider.name, Hit.collider.tag,
LayerMask.LayerToName(Hit.collider.gameObject.layer), Hit.distance), this);
}
}
/// <summary>盒形检测使用的旋转</summary>
public Quaternion GetBoxRotation()
{
return useWorldDirection ? Quaternion.identity : OriginTransform.rotation;
}
// ------------------------------------------------------------------
// 生命周期
// ------------------------------------------------------------------
private void Update()
{
if (!Application.isPlaying) return;
if (!detectEveryFrame) return;
Detect();
}
private void OnDrawGizmos()
{
if (!drawGizmos || drawOnSelectedOnly) return;
RunEditModeDetect();
DrawGizmosInternal();
}
private void OnDrawGizmosSelected()
{
if (!drawGizmos) return;
if (drawOnSelectedOnly) RunEditModeDetect();
DrawGizmosInternal();
}
private void RunEditModeDetect()
{
#if UNITY_EDITOR
if (Application.isPlaying) return;
if (!detectInEditMode) return;
if (!isActiveAndEnabled) return;
Detect();
#endif
}
// ------------------------------------------------------------------
// Gizmos 绘制
// ------------------------------------------------------------------
private void DrawGizmosInternal()
{
if (!isActiveAndEnabled) return;
Vector3 o = GetWorldOrigin();
Vector3 d = GetWorldDirection();
float dist = Mathf.Max(0.001f, distance);
Color mainColor = Application.isPlaying
? (HasHit ? hitColor : missColor)
: (HasHit ? hitColor : idleColor);
Matrix4x4 cache = Gizmos.matrix;
Gizmos.matrix = Matrix4x4.identity;
// ---------------- 发射点 ----------------
Gizmos.color = idleColor;
Gizmos.DrawWireSphere(o, 0.07f);
// ---------------- 各模式形状 ----------------
switch (mode)
{
case DetectMode.Ray:
{
float len = HasHit ? Mathf.Max(Hit.distance, 0f) : dist;
Gizmos.color = mainColor;
Gizmos.DrawLine(o, o + d * len);
Gizmos.DrawWireSphere(o + d * len, 0.05f);
break;
}
case DetectMode.SphereCast:
{
float len = HasHit ? Mathf.Max(Hit.distance, 0f) : dist;
Vector3 end = o + d * len;
Gizmos.color = mainColor;
Gizmos.DrawWireSphere(o, radius);
Gizmos.DrawWireSphere(end, radius);
// 扫掠路径的四条轮廓线（先求两个与方向垂直的向量，避免方向平行于 up 时退化）
Vector3 aid = Vector3.up;
if (Mathf.Abs(Vector3.Dot(d, aid)) > 0.99f) aid = Vector3.right;
Vector3 perp1 = Vector3.Cross(d, aid).normalized;
Vector3 perp2 = Vector3.Cross(d, perp1).normalized;
DrawSweepLine(o, end, perp1, radius);
DrawSweepLine(o, end, perp2, radius);
break;
}
case DetectMode.BoxCast:
{
float len = HasHit ? Mathf.Max(Hit.distance, 0f) : dist;
Quaternion rot = GetBoxRotation();
Gizmos.color = mainColor;
Gizmos.matrix = Matrix4x4.TRS(o, rot, Vector3.one);
Gizmos.DrawWireCube(Vector3.zero, boxHalfExtents * 2f);
Gizmos.matrix = Matrix4x4.TRS(o + d * len, rot, Vector3.one);
Gizmos.DrawWireCube(Vector3.zero, boxHalfExtents * 2f);
Gizmos.matrix = Matrix4x4.identity;
Vector3 right = rot * Vector3.right;
Vector3 up = rot * Vector3.up;
Vector3 fwd = rot * Vector3.forward;
DrawCornerLines(o, o + d * len, right, up, fwd, boxHalfExtents);
break;
}
case DetectMode.OverlapSphere:
{
Gizmos.color = mainColor;
Gizmos.DrawWireSphere(o, radius);
break;
}
case DetectMode.OverlapBox:
{
Gizmos.color = mainColor;
Gizmos.matrix = Matrix4x4.TRS(o, GetBoxRotation(), Vector3.one);
Gizmos.DrawWireCube(Vector3.zero, boxHalfExtents * 2f);
Gizmos.matrix = Matrix4x4.identity;
break;
}
case DetectMode.OverlapCone:
{
Gizmos.color = mainColor;
Gizmos.DrawWireSphere(o, radius);
DrawCone(o, d, radius, coneAngle);
break;
}
}
// ---------------- 命中点 ----------------
if (!IsOverlapMode && HasHit && Hit.collider != null)
{
Gizmos.color = hitColor;
Gizmos.DrawSphere(Hit.point, 0.08f);
Gizmos.DrawLine(Hit.point, Hit.point + Hit.normal * 0.6f);
Gizmos.DrawWireSphere(Hit.point + Hit.normal * 0.6f, 0.04f);
}
// ---------------- 范围内命中的碰撞体 ----------------
if (drawOverlapBounds && OverlapResults != null && OverlapResults.Length > 0)
{
for (int i = 0; i < OverlapResults.Length; i++)
{
Collider c = OverlapResults[i];
if (c == null) continue;
Gizmos.color = hitColor;
Gizmos.DrawWireCube(c.bounds.center, c.bounds.size);
Gizmos.color = new Color(hitColor.r, hitColor.g, hitColor.b, 0.6f);
Gizmos.DrawLine(o, c.bounds.center);
}
}
Gizmos.matrix = cache;
// ---------------- 文字标签 ----------------
DrawLabel(o, d, dist);
}
private void DrawSweepLine(Vector3 from, Vector3 to, Vector3 offsetDir, float radius)
{
Gizmos.DrawLine(from + offsetDir * radius, to + offsetDir * radius);
Gizmos.DrawLine(from - offsetDir * radius, to - offsetDir * radius);
}
private void DrawCornerLines(Vector3 from, Vector3 to, Vector3 right, Vector3 up, Vector3 fwd, Vector3 half)
{
for (int sx = -1; sx <= 1; sx += 2)
{
for (int sy = -1; sy <= 1; sy += 2)
{
for (int sz = -1; sz <= 1; sz += 2)
{
Vector3 offset = right * half.x * sx + up * half.y * sy + fwd * half.z * sz;
Gizmos.DrawLine(from + offset, to + offset);
}
}
}
}
private void DrawCone(Vector3 origin, Vector3 dir, float radius, float angle)
{
Vector3 axis = OriginTransform.up;
if (Vector3.Cross(dir, axis).sqrMagnitude < 1e-6f) axis = OriginTransform.right;
float half = Mathf.Clamp(angle, 0f, 360f) * 0.5f;
Vector3 leftDir = Quaternion.AngleAxis(-half, axis) * dir;
Vector3 rightDir = Quaternion.AngleAxis(half, axis) * dir;
Gizmos.DrawLine(origin, origin + leftDir * radius);
Gizmos.DrawLine(origin, origin + rightDir * radius);
// 弧线
int segments = 24;
Vector3 prev = origin + leftDir * radius;
for (int i = 1; i <= segments; i++)
{
float a = -half + (half * 2f) * i / segments;
Vector3 cur = origin + (Quaternion.AngleAxis(a, axis) * dir) * radius;
Gizmos.DrawLine(prev, cur);
prev = cur;
}
}
private void DrawLabel(Vector3 o, Vector3 d, float dist)
{
#if UNITY_EDITOR
if (!drawLabels) return;
string text;
if (IsOverlapMode)
{
text = string.Format("{0} 半径 {1:F2} 命中 {2}",
mode, radius, OverlapResults != null ? OverlapResults.Length : 0);
}
else if (HasHit && Hit.collider != null)
{
text = string.Format("命中 {0}\n距离 {1:F2}", Hit.collider.name, Hit.distance);
}
else
{
text = string.Format("{0} 未命中 距离 {1:F2}", mode, dist);
}
UnityEditor.Handles.color = HasHit ? hitColor : Color.white;
UnityEditor.Handles.Label(o + d * dist + Vector3.up * 0.25f, text);
#endif
}
}
}六、编辑器扩展：Editor/PhysicsDetectorEditor.cs
给 PhysicsDetector 加上快捷按钮和 Scene 视图拖拽手柄。
csharp
// =============================================================================
// PhysicsDetectorEditor.cs
// Unity 物理检测工具 ------ 编辑器扩展
// · Inspector 底部增加「立即检测 / 检测并打印」按钮，实时查看结果
// · Scene 视图中可以直接拖拽：检测原点、检测距离、检测半径
// 注意：必须放在任意名为 Editor 的文件夹内（如 Assets/Tools/Editor/）
// =============================================================================
#if UNITY_EDITOR
using UnityEditor;
using UnityEngine;
namespace XKTools.Detection.EditorTools
{
[CustomEditor(typeof(PhysicsDetector))]
[CanEditMultipleObjects]
public class PhysicsDetectorEditor : Editor
{
private const float HandleSize = 0.12f;
public override void OnInspectorGUI()
{
DrawDefaultInspector();
PhysicsDetector detector = target as PhysicsDetector;
if (detector == null) return;
EditorGUILayout.Space(8);
EditorGUILayout.LabelField("■ 快捷操作", EditorStyles.boldLabel);
EditorGUILayout.BeginHorizontal();
if (GUILayout.Button("立即检测一次", GUILayout.Height(26)))
{
detector.Detect();
SceneView.RepaintAll();
EditorUtility.SetDirty(detector);
}
if (GUILayout.Button("检测并打印结果", GUILayout.Height(26)))
{
detector.DetectAndLog();
}
EditorGUILayout.EndHorizontal();
EditorGUILayout.Space(4);
// 实时结果面板
if (detector.IsOverlapMode)
{
int count = detector.OverlapResults != null ? detector.OverlapResults.Length : 0;
EditorGUILayout.HelpBox(count > 0
? string.Format("【范围检测】当前命中 {0} 个碰撞体，最近的是：{1}", count, detector.OverlapResults[0].name)
: "【范围检测】范围内没有命中任何碰撞体",
count > 0 ? MessageType.Warning : MessageType.Info);
}
else if (detector.HasHit && detector.Hit.collider != null)
{
EditorGUILayout.HelpBox(string.Format(
"【射线检测】命中 {0}\n距离：{1:F3}\n命中点：{2:F2}, {3:F2}, {4:F2}\n法线：{5:F2}, {6:F2}, {7:F2}",
detector.Hit.collider.name,
detector.Hit.distance,
detector.Hit.point.x, detector.Hit.point.y, detector.Hit.point.z,
detector.Hit.normal.x, detector.Hit.normal.y, detector.Hit.normal.z),
MessageType.Warning);
}
else
{
EditorGUILayout.HelpBox("【射线检测】未命中任何物体。\n可检查：检测距离是否太短、层级 LayerMask 是否包含目标层、目标是否有 Collider。",
MessageType.Info);
}
if (GUILayout.Button("让场景视图聚焦到该检测器"))
{
SceneView.lastActiveSceneView?.FrameSelected();
}
}
private void OnSceneGUI()
{
PhysicsDetector detector = target as PhysicsDetector;
if (detector == null) return;
// 若 Gizmos 没有在持续刷新（关闭绘制 / 仅选中时绘制），这里补一次检测，保证手柄和文字实时
if (!Application.isPlaying && (!detector.drawGizmos || detector.drawOnSelectedOnly))
{
detector.Detect();
}
Vector3 origin = detector.GetWorldOrigin();
Vector3 dir = detector.GetWorldDirection();
Transform originT = detector.OriginTransform;
// ---------------- 拖拽：检测原点 ----------------
EditorGUI.BeginChangeCheck();
Vector3 newOrigin = Handles.PositionHandle(origin, Quaternion.identity);
if (EditorGUI.EndChangeCheck())
{
Undo.RecordObject(detector, "移动检测原点");
detector.originOffset = originT.InverseTransformPoint(newOrigin);
EditorUtility.SetDirty(detector);
}
Handles.color = detector.HasHit ? detector.hitColor : detector.idleColor;
// ---------------- 拖拽：检测距离（末端点，只沿方向生效） ----------------
if (!detector.IsOverlapMode || detector.mode == PhysicsDetector.DetectMode.OverlapCone)
{
Vector3 endPoint = origin + dir * Mathf.Max(0.01f, detector.distance);
EditorGUI.BeginChangeCheck();
Vector3 dragged = Handles.PositionHandle(endPoint, Quaternion.LookRotation(dir, Vector3.up));
if (EditorGUI.EndChangeCheck())
{
Undo.RecordObject(detector, "调整检测距离");
detector.distance = Mathf.Max(0.01f, Vector3.Dot(dragged - origin, dir));
EditorUtility.SetDirty(detector);
}
}
// ---------------- 拖拽：检测半径 ----------------
if (detector.mode == PhysicsDetector.DetectMode.SphereCast
|| detector.mode == PhysicsDetector.DetectMode.OverlapSphere
|| detector.mode == PhysicsDetector.DetectMode.OverlapCone)
{
EditorGUI.BeginChangeCheck();
float newRadius = Handles.RadiusHandle(Quaternion.identity, origin, detector.radius);
if (EditorGUI.EndChangeCheck())
{
Undo.RecordObject(detector, "调整检测半径");
detector.radius = Mathf.Max(0.01f, newRadius);
EditorUtility.SetDirty(detector);
}
}
// ---------------- 结果文字（不勾选 Gizmos 也能看到） ----------------
string label;
if (detector.IsOverlapMode)
{
int count = detector.OverlapResults != null ? detector.OverlapResults.Length : 0;
label = string.Format("{0} 半径 {1:F2} 命中 {2}", detector.mode, detector.radius, count);
}
else if (detector.HasHit && detector.Hit.collider != null)
{
label = string.Format("命中 {0} 距离 {1:F2}", detector.Hit.collider.name, detector.Hit.distance);
}
else
{
label = string.Format("{0} 未命中 距离 {1:F2}", detector.mode, detector.distance);
}
Handles.Label(origin + dir * Mathf.Max(0.01f, detector.distance) + Vector3.up * 0.35f, label);
}
}
}
#endif七、使用示例：PhysicsDetectDemo.cs
6 个最常见实战场景的完整写法，直接挂到场景物体上就能跑。
csharp
// =============================================================================
// PhysicsDetectDemo.cs
// Unity 物理检测工具 ------ 使用示例
// 演示 6 个最常见的实战场景，直接挂到场景任意物体上即可体验：
// 1. 鼠标点击拾取（屏幕射线）
// 2. 第一人称/第三人称准星射击
// 3. 视线遮挡判断（能不能看见目标）
// 4. 范围伤害（爆炸 AOE）
// 5. 怪物扇形视野
// 6. 查找最近的敌人
// =============================================================================
using UnityEngine;
namespace XKTools.Detection
{
public class PhysicsDetectDemo : MonoBehaviour
{
[Header("拾取 / 射击")]
[Tooltip("留空自动取 Camera.main")]
public Camera cam;
[Tooltip("射线最大检测距离")]
public float shootDistance = 50f;
[Tooltip("射线检测的层级（地面、敌人、可交互物...）")]
public LayerMask shootLayerMask = ~0;
[Header("范围伤害")]
[Tooltip("爆炸半径")]
public float explodeRadius = 6f;
[Tooltip("爆炸影响的层级")]
public LayerMask damageLayerMask = ~0;
[Header("扇形视野")]
[Tooltip("视野半径")]
public float viewRadius = 12f;
[Range(1f, 179f)]
[Tooltip("视野夹角")]
public float viewAngle = 90f;
[Tooltip("阻挡视线的层级（墙壁、地形）")]
public LayerMask obstacleLayerMask = ~0;
[Header("忽略自身")]
[Tooltip("勾选后所有检测都会忽略本物体及其子物体")]
public bool ignoreSelf = true;
/// <summary>需要忽略的根物体</summary>
private Transform IgnoreRoot
{
get { return ignoreSelf ? transform.root : null; }
}
private void Awake()
{
if (cam == null) cam = Camera.main;
}
private void Update()
{
#if ENABLE_LEGACY_INPUT_MANAGER
if (Input.GetMouseButtonDown(0)) PickByMouse();
if (Input.GetKeyDown(KeyCode.Space)) ShootByCrosshair();
if (Input.GetKeyDown(KeyCode.E)) Explode();
if (Input.GetKeyDown(KeyCode.V)) CheckSectorVision();
if (Input.GetKeyDown(KeyCode.F)) FindClosestEnemy();
#endif
}
// ==================================================================
// 1. 鼠标点击拾取：屏幕 → 世界射线
// ==================================================================
public void PickByMouse()
{
RaycastHit hit;
// 一行搞定：指定层级 + 指定距离 + 忽略自身
if (PhysicsDetectUtil.RaycastFromScreenPoint(cam, Input.mousePosition, shootDistance,
out hit, shootLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot))
{
Debug.Log(string.Format("点击命中：{0}（Tag:{1}）距离 {2:F2}，命中点 {3}",
hit.collider.name, hit.collider.tag, hit.distance, hit.point));
// 在屏幕上标出命中位置（Scene 视图需开启 Gizmos）
PhysicsDetectUtil.DebugDrawCross(hit.point, 0.3f, Color.red, 3f);
PhysicsDetectUtil.DebugDrawRay(hit.point, hit.normal, 1f, Color.yellow, 3f);
}
else
{
Debug.Log("点击没有命中任何物体");
}
}
// ==================================================================
// 2. 准星射击：从屏幕中心发射
// ==================================================================
public void ShootByCrosshair()
{
RaycastHit hit;
if (PhysicsDetectUtil.RaycastFromCameraCenter(cam, shootDistance, out hit,
shootLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot))
{
Debug.Log(string.Format("开火命中：{0}，距离 {1:F2}", hit.collider.name, hit.distance));
// 拿到命中物体身上（或父物体上）的组件，做扣血等逻辑
IDamageable target = hit.collider.GetComponentInParent<IDamageable>();
if (target != null) target.TakeDamage(10f, hit.point, hit.normal);
}
}
// ==================================================================
// 3. 视线遮挡：两点之间是否有墙
// ==================================================================
public bool CanSee(Transform target)
{
if (target == null) return false;
Vector3 eye = transform.position + Vector3.up * 1.6f;
Vector3 targetPoint = target.position + Vector3.up * 1.0f;
// 视线方向只检测「遮挡层」，命中说明被挡住了
bool blocked = PhysicsDetectUtil.Linecast(eye, targetPoint, out RaycastHit obstacle,
obstacleLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot);
if (blocked)
{
Debug.Log(string.Format("视线被 {0} 挡住了", obstacle.collider.name));
}
return !blocked;
}
// ==================================================================
// 4. 范围伤害：球形范围检测
// ==================================================================
public void Explode()
{
Vector3 center = transform.position;
// 泛型版：一次拿到范围内所有 IDamageable，且已按距离从近到远排序
IDamageable[] targets = PhysicsDetectUtil.OverlapSphere<IDamageable>(
center, explodeRadius, damageLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot, true);
Debug.Log(string.Format("爆炸命中 {0} 个目标", targets.Length));
for (int i = 0; i < targets.Length; i++)
{
// 距离越远伤害越低（典型的范围衰减）
Component c = targets[i] as Component;
float dist = c != null ? Vector3.Distance(center, c.transform.position) : 0f;
float damage = Mathf.Lerp(100f, 20f, Mathf.Clamp01(dist / explodeRadius));
targets[i].TakeDamage(damage, c != null ? c.transform.position : center, Vector3.up);
}
// 可视化爆炸范围
PhysicsDetectUtil.DebugDrawSphere(center, explodeRadius, new Color(1f, 0.5f, 0f, 1f), 2f);
}
// ==================================================================
// 5. 扇形视野：怪物 / 摄像头视野判定
// ==================================================================
public void CheckSectorVision()
{
Vector3 eye = transform.position + Vector3.up * 1.6f;
// 先做扇形范围筛选
Collider[] inSector = PhysicsDetectUtil.OverlapCone(eye, transform.forward,
viewRadius, viewAngle, damageLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot, true);
for (int i = 0; i < inSector.Length; i++)
{
Transform t = inSector[i].transform;
// 再做一次视线检测，排除被墙挡住的目标
bool visible = PhysicsDetectUtil.HasLineOfSight(eye, t.position, obstacleLayerMask, IgnoreRoot);
Debug.Log(string.Format("目标 {0}：在视野范围内，可见 = {1}", t.name, visible));
}
Debug.Log(string.Format("视野内共有 {0} 个碰撞体", inSector.Length));
}
// ==================================================================
// 6. 查找最近的敌人
// ==================================================================
public void FindClosestEnemy()
{
IDamageable nearest = PhysicsDetectUtil.FindNearest<IDamageable>(
transform.position, 20f, damageLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot);
Component c = nearest as Component;
Debug.Log(nearest != null ? "最近的敌人是：" + c.name : "20 米内没有敌人");
// 顺带演示：拿到范围内的全部对象 + 按距离排序
Collider[] all = PhysicsDetectUtil.OverlapSphere(transform.position, 20f,
damageLayerMask, QueryTriggerInteraction.Ignore, IgnoreRoot, true);
for (int i = 0; i < all.Length; i++)
{
Debug.Log(string.Format(" 第 {0} 近：{1}", i + 1, all[i].name));
}
}
// ==================================================================
// 自定义编辑器可视化：不挂 PhysicsDetector 也能画线（OnDrawGizmos 里调用）
// ==================================================================
private void OnDrawGizmosSelected()
{
if (cam == null) return;
Gizmos.color = Color.cyan;
Gizmos.DrawWireSphere(transform.position, explodeRadius);
// 模拟一次射线并把结果画出来（编辑器模式下也能看到）
RaycastHit hit;
Vector3 origin = cam.transform.position;
Vector3 dir = cam.transform.forward;
if (PhysicsDetectUtil.Raycast(origin, dir, shootDistance, out hit, shootLayerMask,
QueryTriggerInteraction.Ignore, IgnoreRoot))
{
Gizmos.color = Color.red;
Gizmos.DrawLine(origin, hit.point);
Gizmos.DrawWireSphere(hit.point, 0.2f);
}
else
{
Gizmos.color = new Color(1f, 1f, 1f, 0.3f);
Gizmos.DrawLine(origin, origin + dir * shootDistance);
}
}
}
/// <summary>受击接口示例（按需替换成你自己的接口 / 基类）</summary>
public interface IDamageable
{
void TakeDamage(float damage, Vector3 hitPoint, Vector3 hitNormal);
}
}八、手把手使用教程
8.1 方式一：纯代码调用（99% 的场景）
第一步：using
csharp
using XKTools.Detection;第二步：调用
csharp
// 射线检测：从 origin 沿 direction 打出 distance 米，只检测 enemyLayer 层，忽略自身
RaycastHit hit;
if (PhysicsDetectUtil.Raycast(transform.position, transform.forward, 20f, out hit,
enemyLayer, QueryTriggerInteraction.Ignore, transform.root))
{
Debug.Log("打中了：" + hit.collider.name);
}就这三行。所有参数都有默认值，用不到的可以省略：
csharp
// 最简写法：检测所有层、检测触发器、不忽略任何物体
PhysicsDetectUtil.Raycast(origin, dir, 10f, out RaycastHit hit);8.2 方式二：挂组件 + 可视化（调试试错必备）
- 选中场景里的物体 →
Add Component→ 搜索 Physics Detector 物理检测器； - 或者菜单栏
Component→XKTools→Physics Detector 物理检测器； - 在 Inspector 里选择 检测模式 ，设置 层级 / 距离 / 半径；
- 此时 Scene 视图里就已经能看到射线了，不需要进入 Play 模式。
在代码里读取它的结果：
csharp
public class Turret : MonoBehaviour
{
public PhysicsDetector detector;
public Transform muzzle;
private void Awake()
{
// 订阅事件：命中时自动回调
detector.OnRayHit += OnHit;
detector.OnOverlapDetected += OnOverlap;
}
private void OnDestroy()
{
// 记得退订，避免内存泄漏
detector.OnRayHit -= OnHit;
detector.OnOverlapDetected -= OnOverlap;
}
private void OnHit(PhysicsDetector d, RaycastHit hit)
{
Debug.Log($"炮塔命中 {hit.collider.name}，距离 {hit.distance:F2}");
// 生成弹孔、火花、伤害数字...
}
private void OnOverlap(PhysicsDetector d, Collider[] colliders)
{
Debug.Log($"范围内有 {colliders.Length} 个目标");
}
private void Update()
{
// 也可以每帧把检测器对准枪口
detector.origin = muzzle;
}
}重要 ：
detector.origin是Transform类型，可以指向任意物体 。你可以让检测源挂在一个空物体muzzlePoint上，而不是脚本自身。
九、六大实战场景
场景 1：鼠标点击拾取物体
csharp
public Camera cam;
public float maxDistance = 100f;
public LayerMask pickableLayer;
private void Update()
{
if (Input.GetMouseButtonDown(0))
{
RaycastHit hit;
if (PhysicsDetectUtil.RaycastFromScreenPoint(
cam, Input.mousePosition, maxDistance, out hit,
pickableLayer, // 只点这些层
QueryTriggerInteraction.Ignore, // 忽略触发器
transform.root)) // 忽略自己
{
Debug.Log("点到了：" + hit.collider.name);
PhysicsDetectUtil.DebugDrawCross(hit.point, 0.3f, Color.red, 3f);
}
}
}场景 2：第一人称准星射击
csharp
RaycastHit hit;
if (PhysicsDetectUtil.RaycastFromCameraCenter(cam, 100f, out hit,
shootLayer, QueryTriggerInteraction.Ignore, transform.root))
{
// 打中了，取它身上（或父物体上）的受击组件
IDamageable target = hit.collider.GetComponentInParent<IDamageable>();
target?.TakeDamage(25f, hit.point, hit.normal);
}场景 3：爆炸 AOE 范围伤害
csharp
Vector3 center = transform.position;
float radius = 6f;
// 泛型版：一次拿到范围内所有 IDamageable，并且已按距离从近到远排好序
IDamageable[] targets = PhysicsDetectUtil.OverlapSphere<IDamageable>(
center, radius, damageLayer, QueryTriggerInteraction.Ignore, transform.root, true);
foreach (var t in targets)
{
var c = t as Component;
float dist = Vector3.Distance(center, c.transform.position);
float damage = Mathf.Lerp(100f, 20f, dist / radius); // 距离衰减
t.TakeDamage(damage, c.transform.position, Vector3.up);
}💡 为什么用泛型版？因为一个角色身上通常有多个碰撞体（头、身体、武器、脚），
直接遍历
Collider[]会对同一个角色造成多次伤害。泛型版内部用
GetComponentInParent<T>()+ 去重，一个角色只会返回一次。
场景 4：怪物扇形视野（配合视线遮挡）
csharp
Vector3 eye = transform.position + Vector3.up * 1.6f;
// 第一步：扇形范围粗筛
Collider[] inSector = PhysicsDetectUtil.OverlapCone(
eye, transform.forward, 12f, 90f, // 半径 12，夹角 90°
targetLayer, QueryTriggerInteraction.Ignore, transform.root, true);
// 第二步：视线精筛（排除被墙挡住的）
foreach (var col in inSector)
{
if (PhysicsDetectUtil.HasLineOfSight(eye, col.transform.position, obstacleLayer, transform.root))
{
Debug.Log("发现目标：" + col.name);
}
}场景 5：两点之间是否被遮挡
csharp
// 返回 true 表示视线通畅
bool visible = PhysicsDetectUtil.HasLineOfSight(
eye.position, player.position, wallLayer, transform.root);场景 6：查找最近的敌人
csharp
// 一步到位：范围内最近的、挂载了 Enemy 组件（或 IDamageable 接口）的对象
Enemy nearest = PhysicsDetectUtil.FindNearest<Enemy>(
transform.position, 25f, enemyLayer, QueryTriggerInteraction.Ignore, transform.root);
if (nearest != null) Debug.Log("最近的敌人：" + nearest.name);十、API 速查表
10.1 射线检测
| 方法 | 说明 |
|---|---|
Raycast(origin, dir, distance, out hit, layerMask, trigger, ignoreRoot) |
取最近命中，返回 bool |
RaycastAll(origin, dir, distance, layerMask, trigger, ignoreRoot) |
取全部命中，已按距离排序 |
Raycast(ray, distance, out hit, ...) |
直接用 Ray 结构体 |
RaycastFromScreenPoint(cam, screenPoint, distance, out hit, ...) |
屏幕点射线（鼠标拾取） |
RaycastFromCameraCenter(cam, distance, out hit, ...) |
屏幕中心射线（准星射击） |
Linecast(start, end, out hit, ...) |
两点之间线检测 |
HasLineOfSight(start, end, layerMask, ignoreRoot) |
视线是否通畅（忽略触发器） |
10.2 扫掠检测
| 方法 | 说明 |
|---|---|
SphereCast(origin, radius, dir, distance, out hit, ...) |
球形扫掠取最近命中 |
SphereCastAll(origin, radius, dir, distance, ...) |
球形扫掠取全部（已排序） |
CapsuleCast(p1, p2, radius, dir, distance, out hit, ...) |
胶囊扫掠（角色移动检测） |
BoxCast(center, halfExtents, dir, orientation, distance, out hit, ...) |
盒形扫掠（带旋转） |
BoxCast(center, halfExtents, dir, distance, out hit, ...) |
盒形扫掠（不旋转） |
CheckSphere(position, radius, layerMask, trigger) |
点周围是否有碰撞体（轻量） |
10.3 范围检测
| 方法 | 说明 |
|---|---|
OverlapSphere(center, radius, layerMask, trigger, ignoreRoot, sort) |
球形范围，返回 Collider[] |
OverlapSphere<T>(center, radius, ...) |
泛型版，返回 T[]，自动去重 |
OverlapBox(center, halfExtents, orientation, ...) |
盒形范围（带旋转） |
OverlapBox(center, halfExtents, ...) |
盒形范围（不旋转） |
OverlapCapsule(p0, p1, radius, ...) |
胶囊范围 |
OverlapCone(origin, dir, radius, angle, ...) |
扇形范围，直接给角度 |
10.4 结果处理 & 调试
| 方法 | 说明 |
|---|---|
GetNearestCollider(point, colliders) |
数组中离某点最近的碰撞体 |
SortByDistance(point, colliders) |
原地按距离排序 |
SqrDistanceTo(collider, point) |
点到碰撞体的平方距离 |
ToRootTransforms(colliders, distinct) |
转成根物体 Transform 并按根去重 |
FindNearest<T>(origin, radius, ...) |
找最近的挂载了 T 的对象 |
DebugDrawRay / DebugDrawCross / DebugDrawSphere |
运行时画射线 / 十字 / 球 |
十一、可视化组件参数详解
| 分组 | 参数 | 说明 |
|---|---|---|
| 检测模式 | mode |
射线 / 球形扫掠 / 盒形扫掠 / 球形范围 / 盒形范围 / 扇形范围 |
| 发射源 | origin |
留空用自身；也可指定枪口、眼睛等任意 Transform |
originOffset |
在发射源局部坐标系下的偏移 | |
| 方向与距离 | useWorldDirection |
勾选则 direction 为世界方向，否则为发射源局部方向 |
direction |
检测方向，默认 (0,0,1) 即物体正前方 |
|
distance |
检测距离 | |
| 形状参数 | radius |
球形扫掠 / 球形范围 / 扇形范围的半径 |
boxHalfExtents |
盒形的半尺寸（不是完整尺寸！） | |
coneAngle |
扇形总夹角（1~179 度） | |
| 过滤条件 | layerMask |
只检测勾选的层级 |
triggerInteraction |
是否把 Trigger 也算进去，默认 UseGlobal |
|
ignoreSelf |
忽略自身及所有子物体，一般保持勾选 | |
| 运行设置 | detectEveryFrame |
关掉后需在代码里手动调用 Detect() |
| 可视化 | drawGizmos |
是否绘制 |
drawOnSelectedOnly |
只在选中时绘制（场景物体多时建议开） | |
detectInEditMode |
编辑器模式下也实时检测 | |
drawLabels |
是否显示命中信息文字 | |
drawOverlapBounds |
是否画范围内命中碰撞体的包围盒 | |
idleColor / hitColor / missColor |
未命中 / 命中 / 运行未命中 的颜色 | |
| 调试 | logResult |
命中时打印日志 |
只读结果 & 事件
csharp
detector.HasHit // 是否命中
detector.Hit // RaycastHit 命中信息（范围检测模式下无意义）
detector.OverlapResults // 范围检测命中的 Collider[]
detector.HitTransform // 命中物体的 Transform
detector.OnRayHit // event Action<PhysicsDetector, RaycastHit>
detector.OnOverlapDetected // event Action<PhysicsDetector, Collider[]>
detector.Detect() // 手动检测一次，返回 bool
detector.DetectAndLog() // 检测并打印结果十二、性能与避坑指南
1. LayerMask 千万别填错
csharp
// ✅ 推荐几种写法
public LayerMask enemyLayer; // Inspector 里勾选，最推荐
PhysicsDetectUtil.Raycast(o, d, 10f, out h, 1 << 8); // 只检测第 8 层
PhysicsDetectUtil.Raycast(o, d, 10f, out h, ~(1 << 8)); // 检测除第 8 层外所有层
PhysicsDetectUtil.Raycast(o, d, 10f, out h, LayerMask.GetMask("Enemy", "Ground")); // 按名字
// ❌ 常见错误：把 GameObject.layer（int 层号）直接当 mask 传
PhysicsDetectUtil.Raycast(o, d, 10f, out h, gameObject.layer); // 错！应为 1 << gameObject.layer2. 让射线忽略自身
两种方式，任选其一：
csharp
// 方式 A：传 ignoreRoot（会忽略该物体及其所有子物体）
PhysicsDetectUtil.Raycast(o, d, 10f, out RaycastHit h,
mask, QueryTriggerInteraction.Ignore, transform.root);
// 方式 B：把玩家放到单独的 Layer，然后用 mask 排除它（性能更好，推荐）3. QueryTriggerInteraction 的选择
| 取值 | 含义 |
|---|---|
UseGlobal |
跟随 Project Settings → Physics → Queries Hit Triggers（默认） |
Collide |
强制检测 Trigger，做"拾取道具"时用 |
Ignore |
强制忽略 Trigger，做"子弹射击""视线遮挡"时用 |
4. 关于 GC Alloc
RaycastAll / OverlapSphere 这类原生 API 每次调用都会 new 一个数组 。本工具内部统一使用 Physics.XXXNonAlloc 接口 + 静态复用缓冲区，运行时零 GC。
但要注意两点：
- 工具类里的缓冲区是
static的（大小为 64），所以不要在多线程中调用； - 同一帧内不要嵌套调用 （比如在
RaycastAll的循环里又调用RaycastAll），否则缓冲区数据会被覆盖------本工具的所有方法都先把结果拷贝出来再返回，正常使用不会踩坑； - 如果一次检测真的可能命中超过 64 个碰撞体（比如超大范围 AOE），可以把
PhysicsDetectUtil.DefaultBufferSize改大。
5. 编辑器模式检测的性能
PhysicsDetector 在编辑器模式下会随着 Scene 视图重绘而实时检测。场景里挂了几十个的话，可能会感觉 Scene 视图有点卡，此时：
- 打开
drawOnSelectedOnly（只在选中时绘制）； - 或者关掉
detectInEditMode； - 或者关掉
drawGizmos，直接用面板上的"立即检测"按钮。
6. 打包注意事项
PhysicsDetector.cs 里用 #if UNITY_EDITOR 包住了 Handles.Label，PhysicsDetectorEditor.cs 整个文件也包在 #if UNITY_EDITOR 里并且放在 Editor 文件夹，打包不会报错，可以放心使用。
7. 常见"检测不到"排查清单
按顺序检查：
- 目标物体上有没有 Collider ？（Mesh 需要勾选
Convex或换成 Box/Sphere 才适合做查询）； - Layer 是否在
layerMask里？（重点怀疑对象）； distance是不是太短了？- 方向对不对？（
transform.forward是物体蓝轴 ；UI/2D 项目前方向可能是transform.up）； - 是不是被自己挡住了？→ 加
ignoreRoot； - 目标在 Trigger 上而查询用了
Ignore？→ 改成Collide； - 目标物体被禁用了（
SetActive(false)）？物理系统查不到它。
十三、FAQ
Q1：这套工具支持 2D 吗？
不支持开箱即用。2D 项目请把 Physics.XXX 换成 Physics2D.XXX（方法名基本一致，RaycastHit 换成 RaycastHit2D）。思路完全一样，照着改即可。
Q2：为什么 Hit.distance 显示 0？
常见于 SphereCast / BoxCast 起点已经和碰撞体重叠 的情况，此时 Physics 会返回一个距离为 0、法线为零向量、point 为 (0,0,0) 的命中。判断方式：
csharp
if (hit.distance == 0f && hit.normal == Vector3.zero)
{
// 起点就重叠了，不是正常的表面命中
}Q3：boxHalfExtents 填多少？
填半 尺寸。想要一个 2×2×2 的立方体检测范围，就填 (1,1,1)。
Q4：OverlapCone 对超大物体判定不准？
是的。扇形检测用碰撞体的 bounds.center 计算夹角，所以对特别巨大且离检测点很近 的物体可能误判。解决方式：把大物体拆成多个带 Collider 的子物体，或者改用"先 OverlapSphere 粗筛 + 对关键点 Linecast 精筛"的组合。
Q5：可以用新版 Input System 吗？
可以。本工具与输入系统完全无关，只是示例脚本 PhysicsDetectDemo.cs 用了老版 Input（已用 #if ENABLE_LEGACY_INPUT_MANAGER 条件编译包住）。你只要把触发时机换成自己的输入回调即可。
Q6：能不能在 FixedUpdate 里调用？
可以。物理查询本身不受帧率影响，但如果你想和刚体运动严格同步，建议放在 FixedUpdate。
十四、结语
这套工具的核心其实就一句话：把"重复啰嗦的物理查询 + 调试可视化"一次性封装掉。
实际项目里，我的使用习惯是：
- 写逻辑 ：用
PhysicsDetectUtil静态方法，一行一个检测； - 调参数 ：挂一个
PhysicsDetector，在 Scene 视图里拖手柄把距离、半径、角度调舒服，再把数值抄到逻辑代码里，最后删掉组件； - 查 bug ：临时挂一个
PhysicsDetector，命中/未命中一目了然，比打一堆Debug.Log快得多。
如果这篇文章帮到了你，点个赞再走～ 有问题欢迎评论区交流 👇
本文代码均基于 Unity 内置物理系统，无需任何第三方插件。
