一个文件夹下大量图纸(几百甚至几千个文件)需要改图层颜色时,可采用插件实现,效果如下:

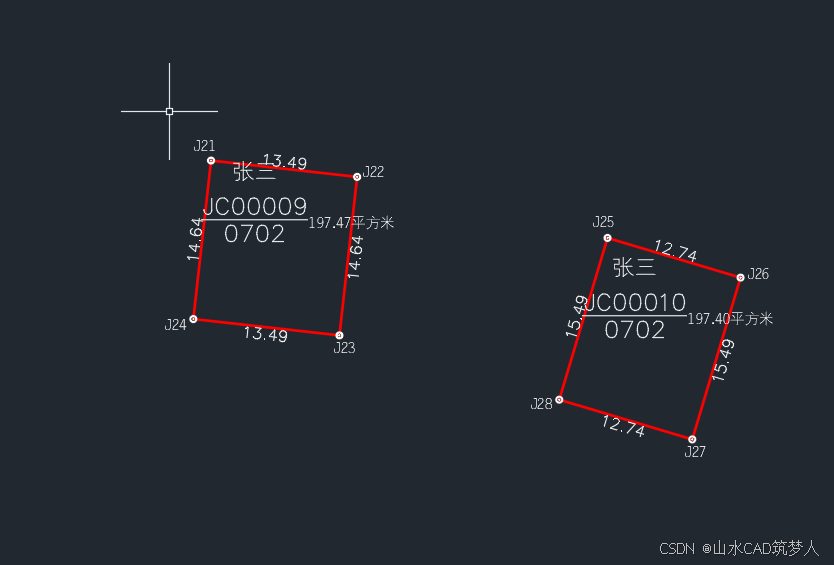

转换前:

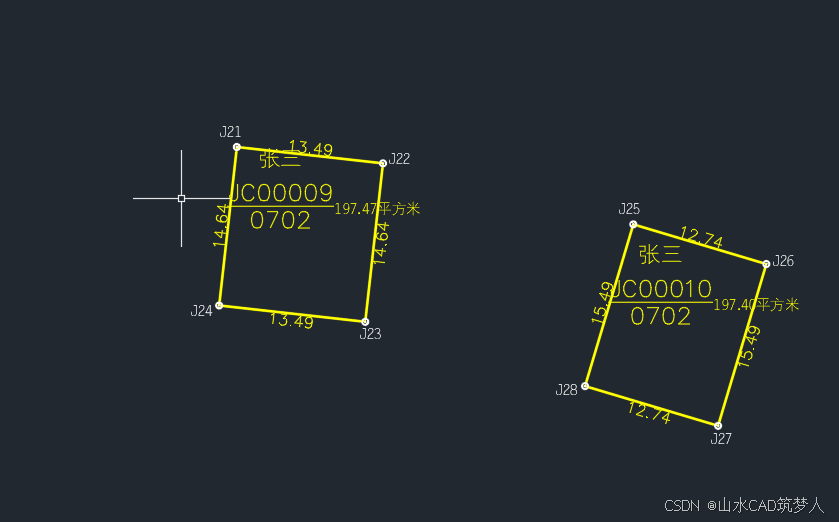

转换后:

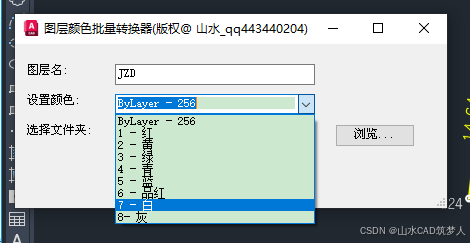

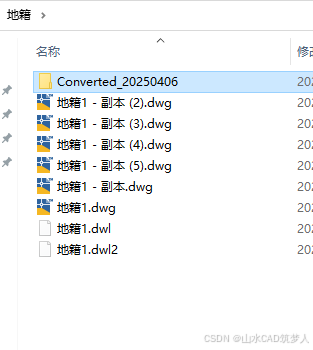

使用方式如下:netload加载此dll插件,输入xx运行。
附部分代码如下:
cs
public void ProcessDwgFile(string filePath, string savePath, string layerName, short colorIndex)
{
Database db = new Database(false, true); // 无文档模式
try
{
// 读取DWG文件
db.ReadDwgFile(filePath, FileOpenMode.OpenForReadAndAllShare, false, null);
using (Transaction tr = db.TransactionManager.StartTransaction())
{
LayerTable lt = (LayerTable)tr.GetObject(db.LayerTableId, OpenMode.ForRead);
// 用于存储找到的图层ID
ObjectId layerId = ObjectId.Null;
// 遍历所有图层名,进行不区分大小写的比较
foreach (ObjectId id in lt)
{
LayerTableRecord ltr = (LayerTableRecord)tr.GetObject(id, OpenMode.ForRead);
if (ltr.Name.Equals(layerName, StringComparison.OrdinalIgnoreCase))
{
layerId = id;
break;
}
}
// 如果未找到图层,跳过该文件
if (layerId.IsNull)
{
tr.Commit();
return;
}
LayerTableRecord ltrToModify = (LayerTableRecord)tr.GetObject(layerId, OpenMode.ForWrite);
// 设置图层颜色(如果选择的不是ByLayer则设置图层颜色)
if (colorIndex != 256)
{
ltrToModify.Color = Color.FromColorIndex(ColorMethod.ByAci, colorIndex);
}
// 修改所有图元的颜色属性
BlockTable bt = (BlockTable)tr.GetObject(db.BlockTableId, OpenMode.ForRead);
BlockTableRecord btr = (BlockTableRecord)tr.GetObject(bt[BlockTableRecord.ModelSpace], OpenMode.ForRead);
foreach (ObjectId entId in btr)
{
*****省略部分代码
tr.Commit();
}
// 保存文件
string fileName = Path.GetFileName(filePath);
string saveFile = Path.Combine(savePath, fileName);
db.SaveAs(saveFile, DwgVersion.Current);
}
catch (Exception ex)
{
MessageBox.Show($"处理文件 {filePath} 时出错: {ex.Message}");
}
finally
{
db.Dispose();
}
}
