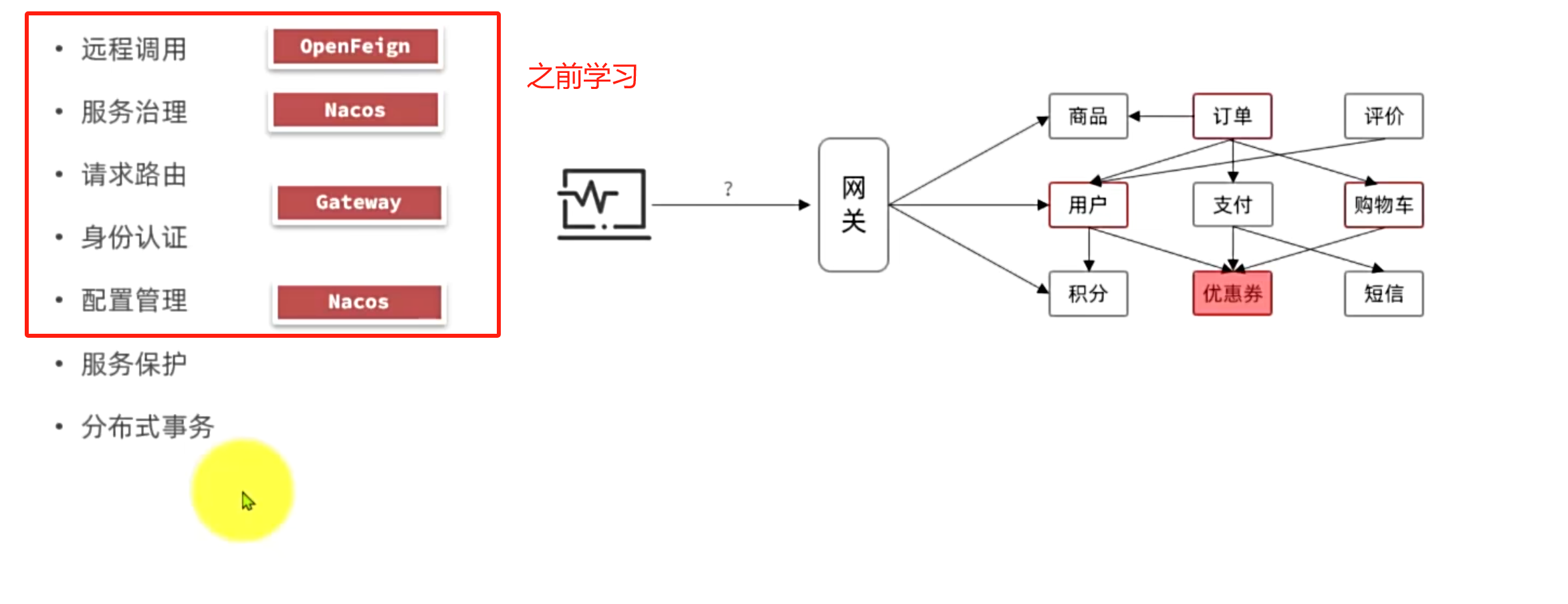

黑马商城(五)微服务保护和分布式事务

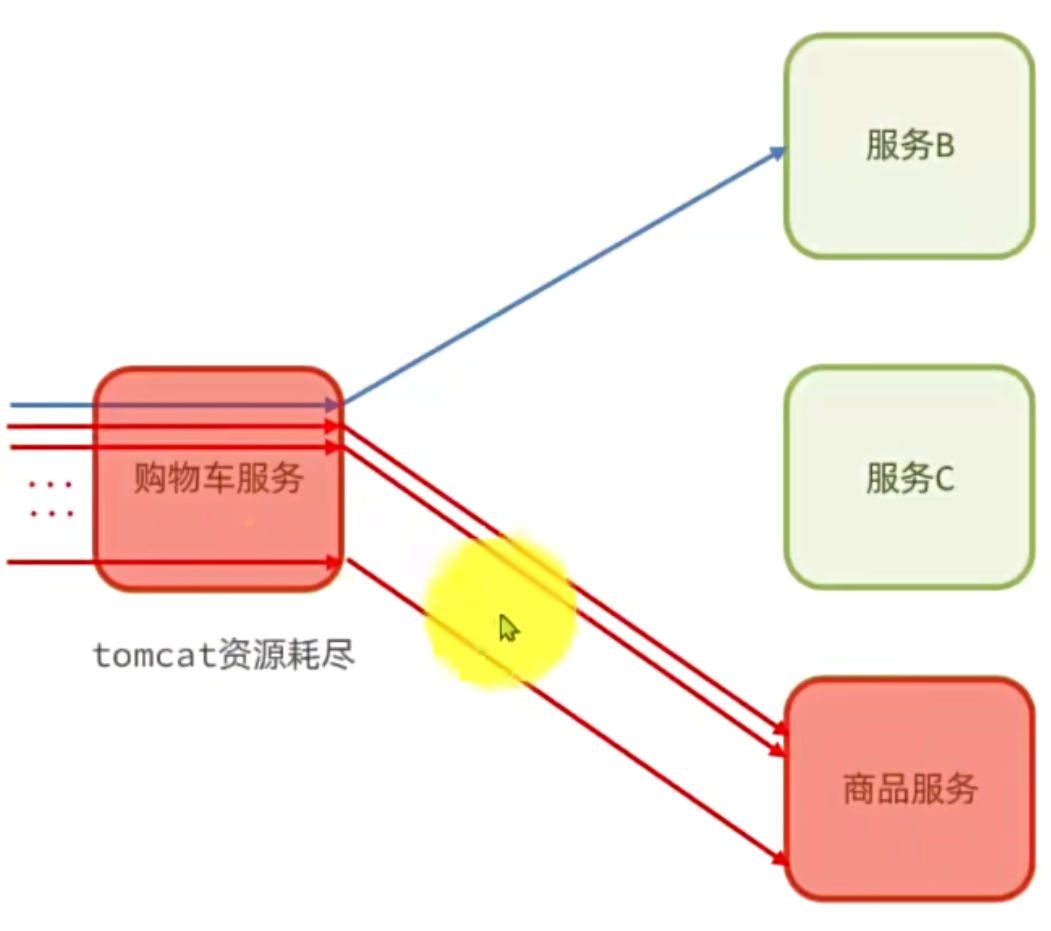

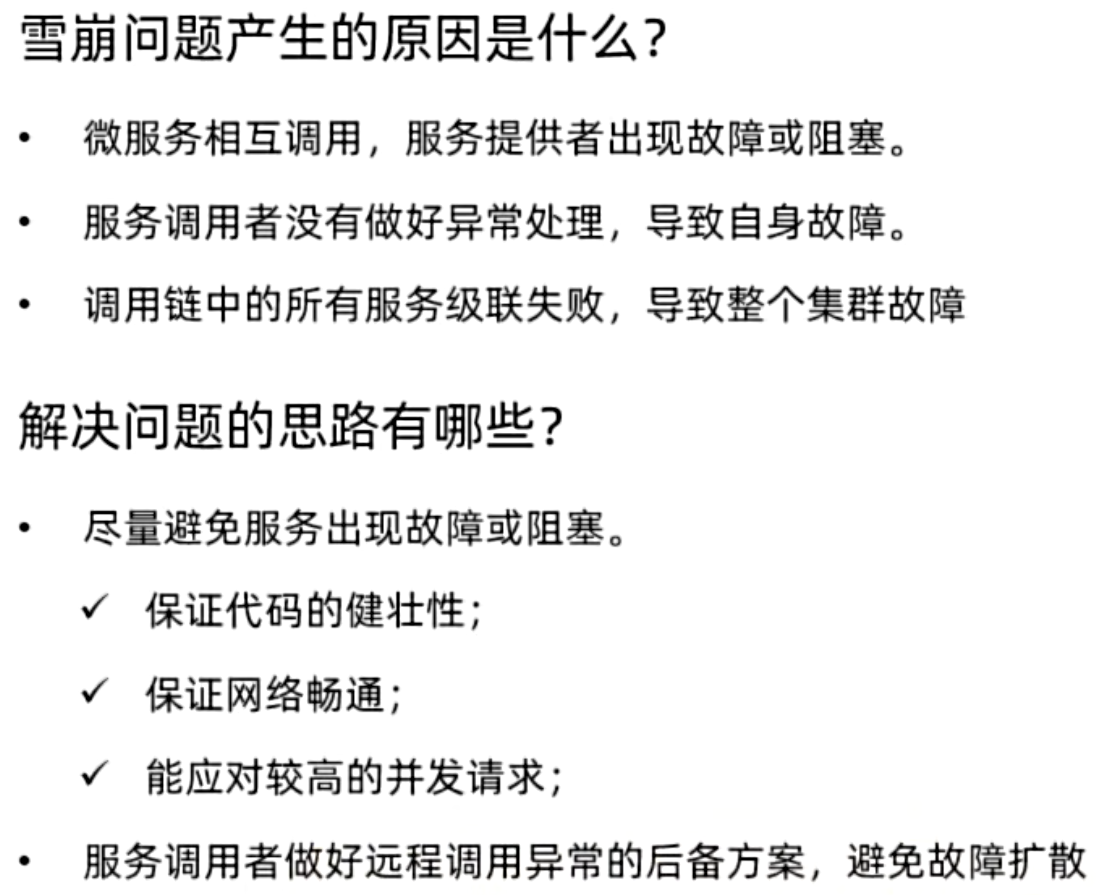

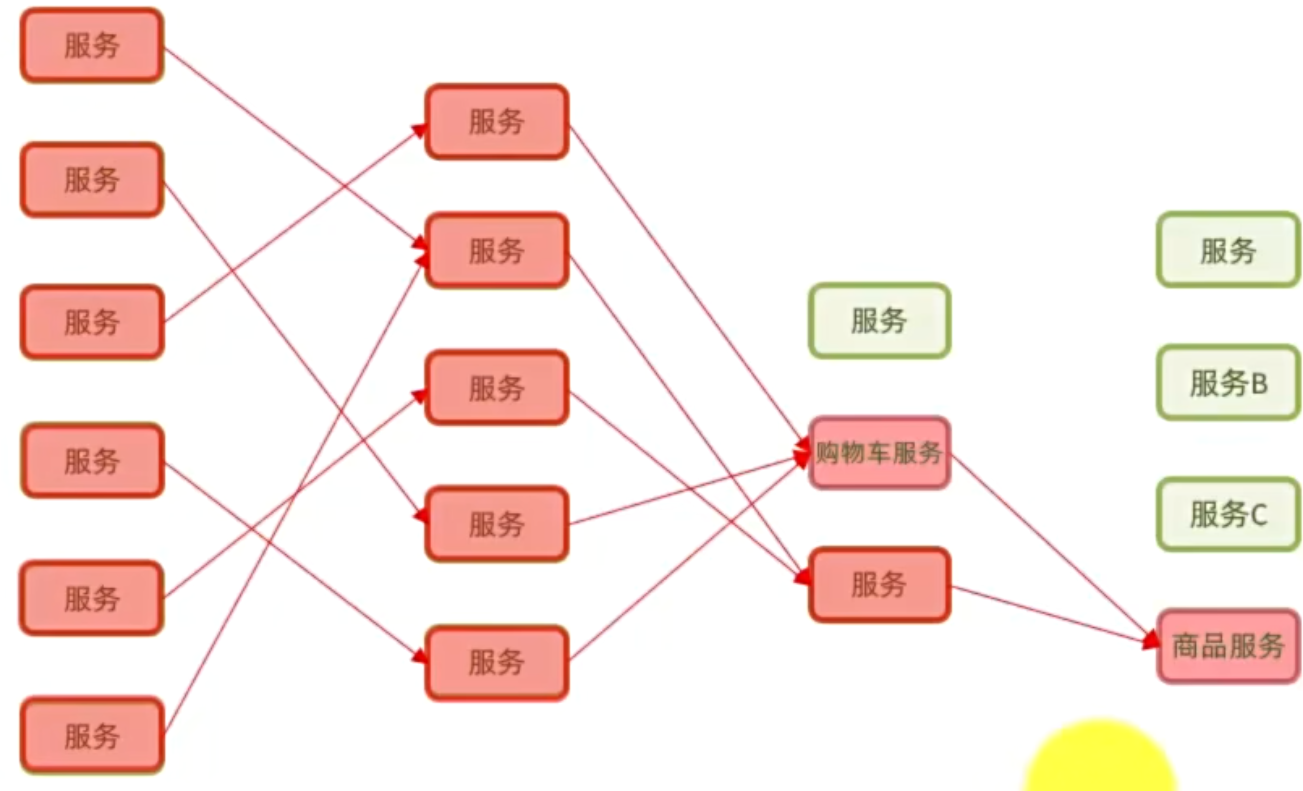

一、雪崩问题

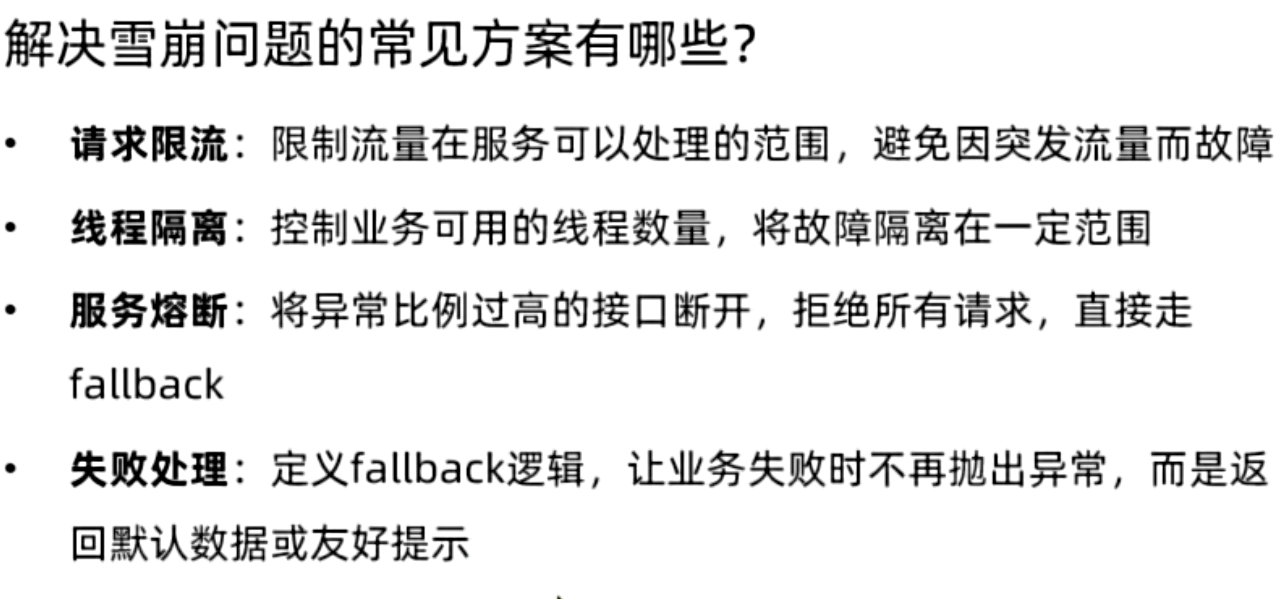

二、雪崩-解决方案(服务保护方案)

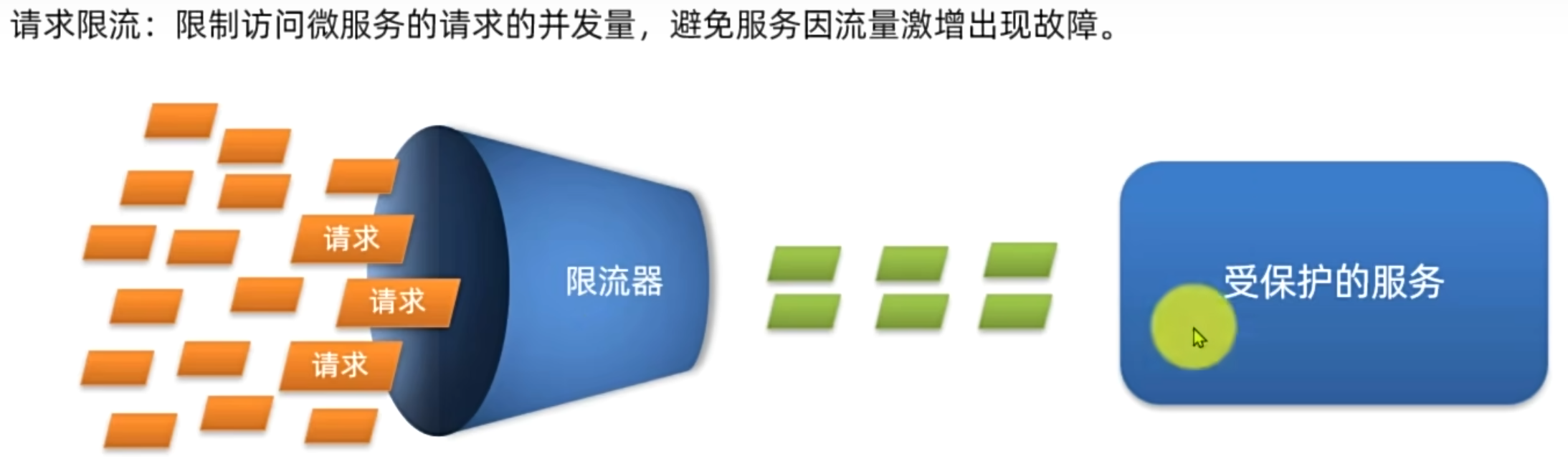

请求限流:

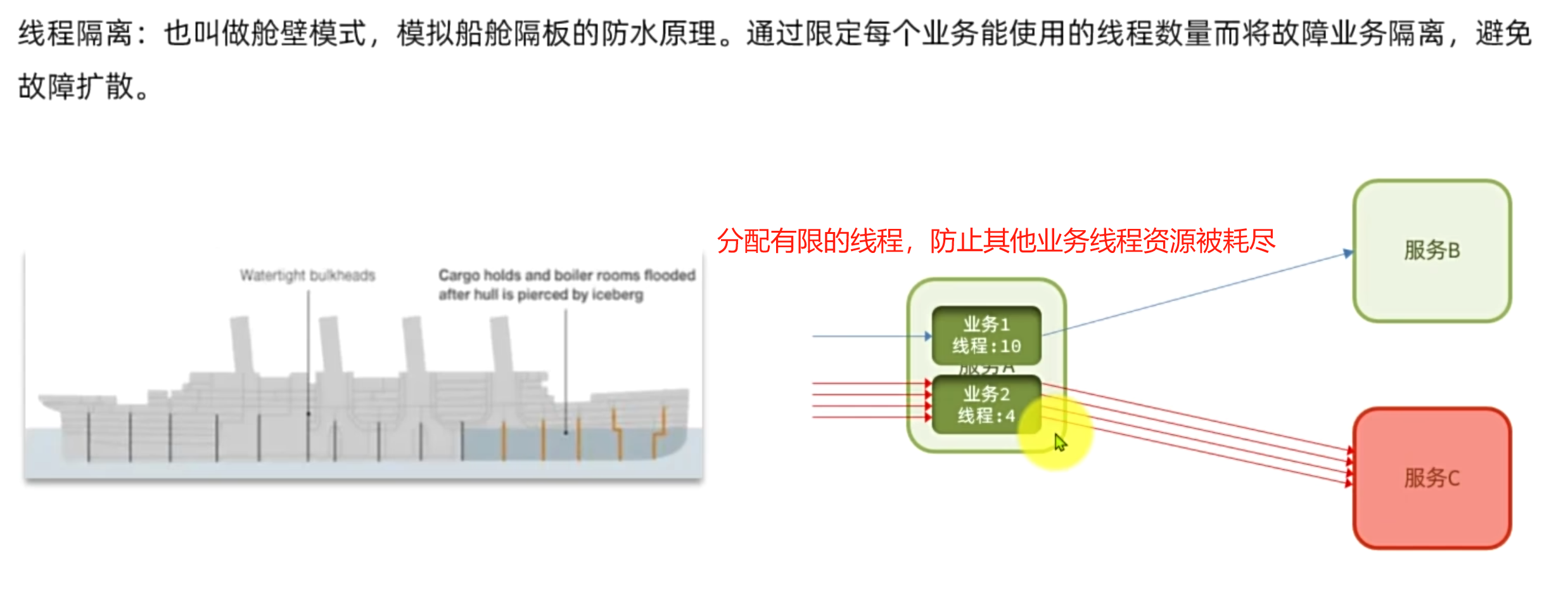

线程隔离:

服务熔断:

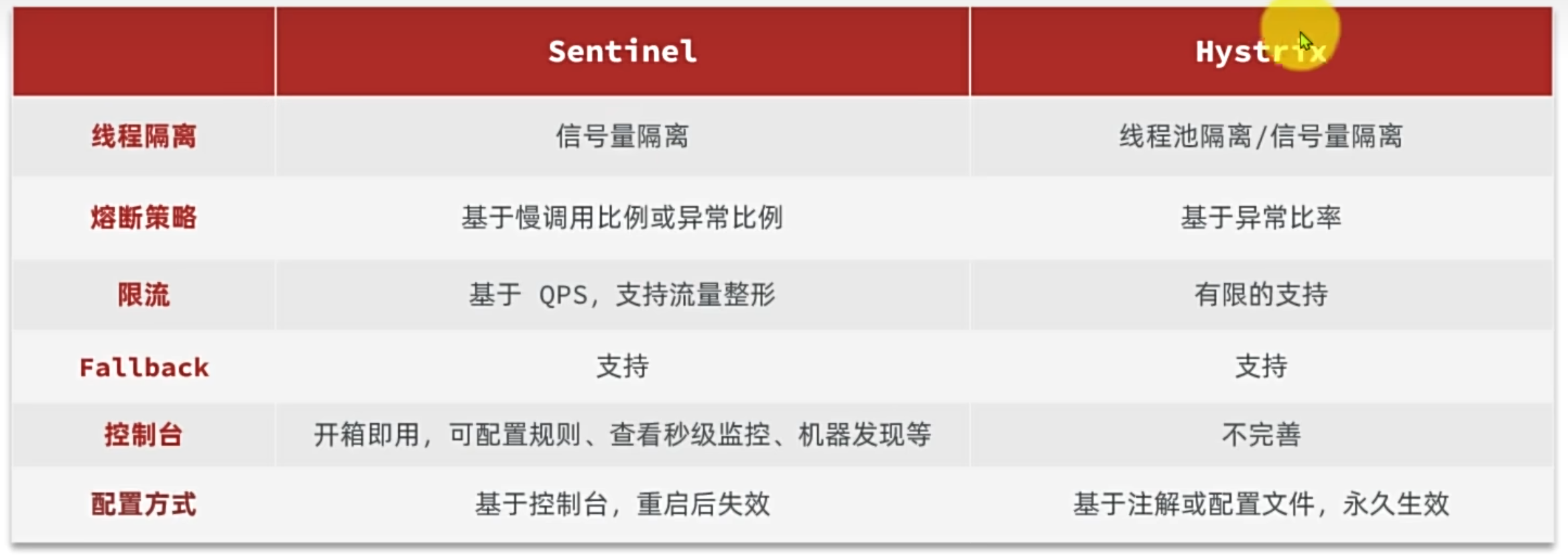

服务保护组件:

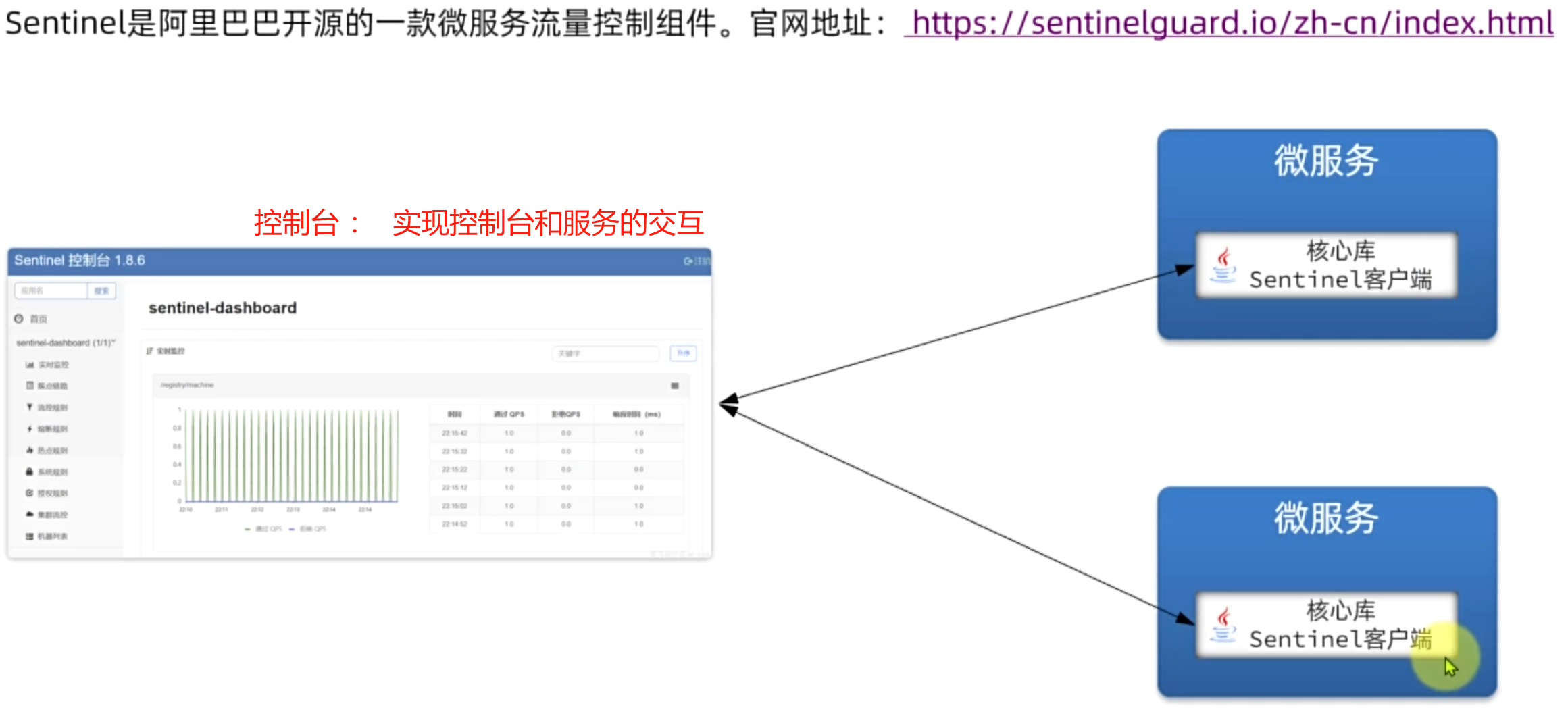

三、Sentinel

引入依赖:

java 复制代码
<!--sentinel-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
bash 复制代码
server:
  port: 8082
feign:
  okhttp:
    enabled: true #配置连接池开关
  swagger:
    title: "黑马商城购物车服务接口文档"
    package: "com.hmall.cart.controller"
    description: "购物车服务接口"
spring:
  cloud:
    sentinel:
      transport:
        dashboard: localhost:8090 #sentinel控制台地址

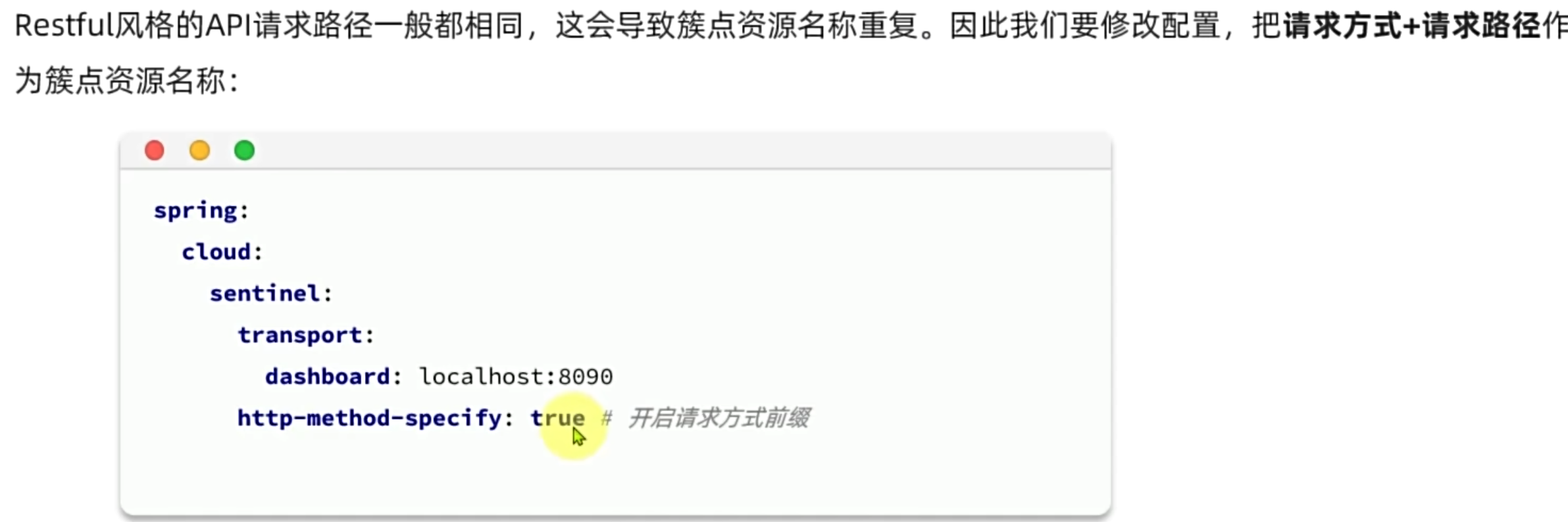

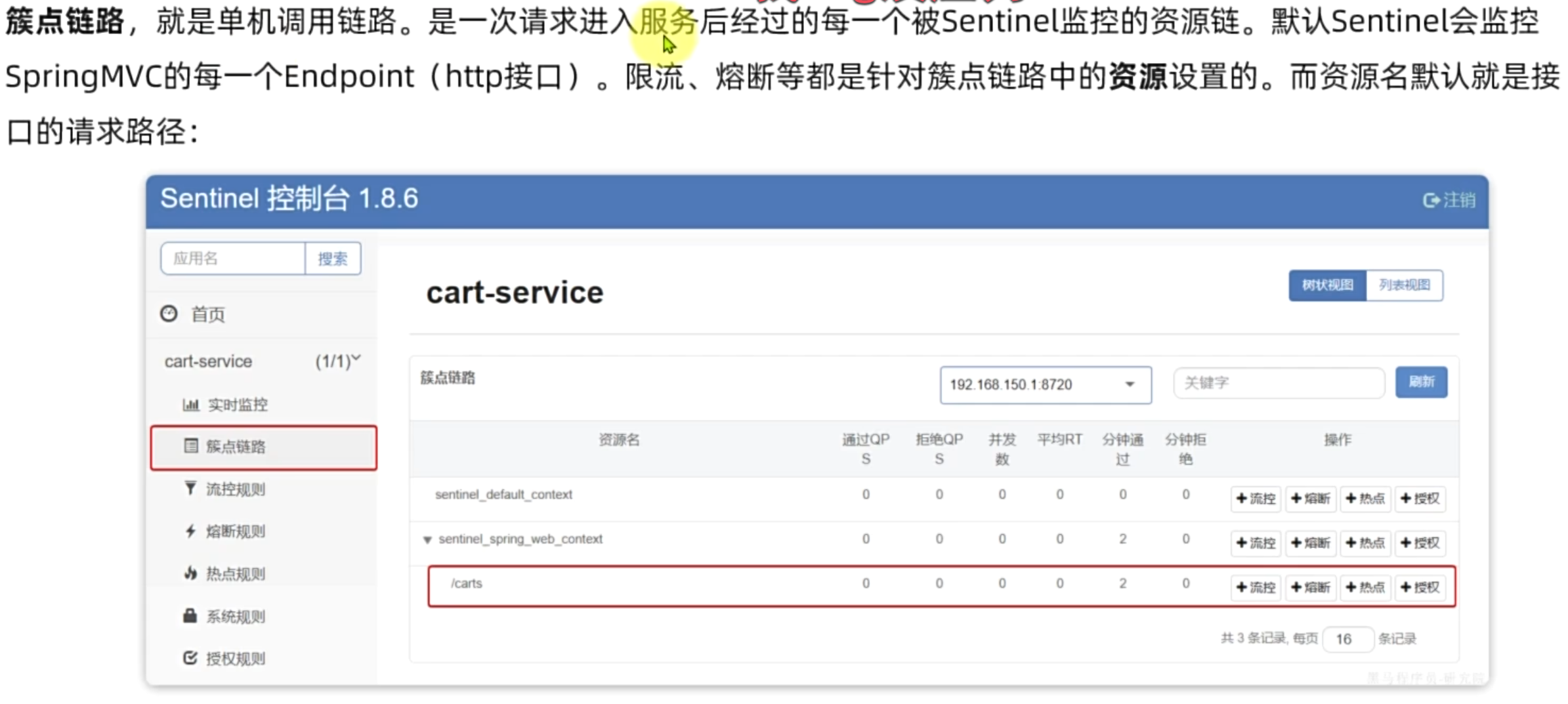

簇点链路:

Endpoint==Controller里的各种路径

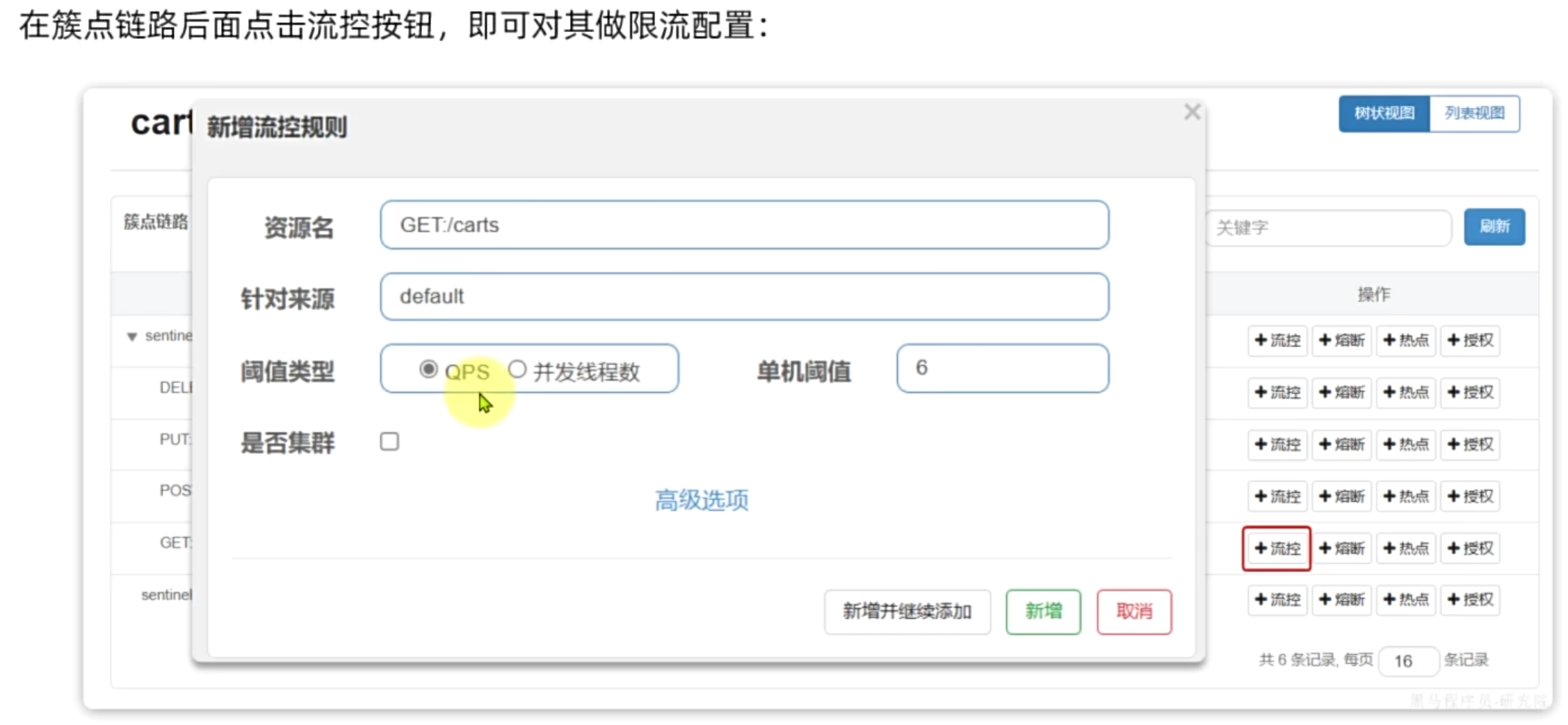

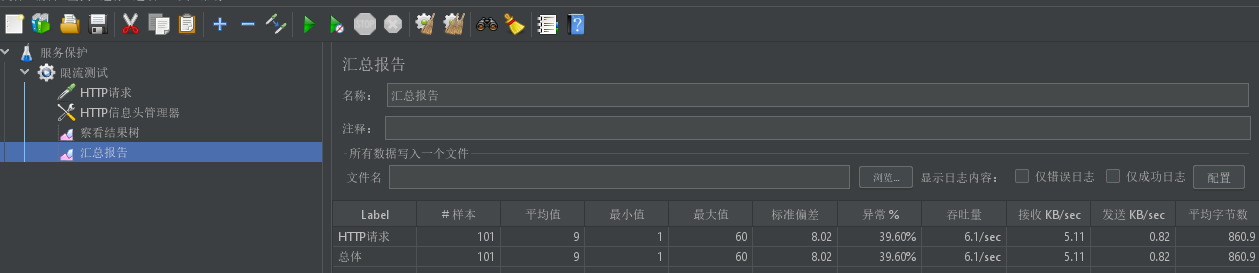

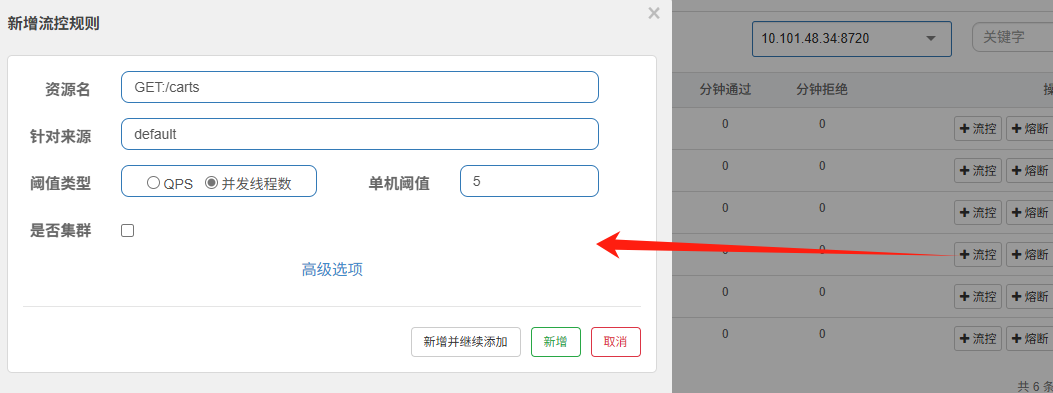

请求限流:

QPS:每秒钟请求的数量

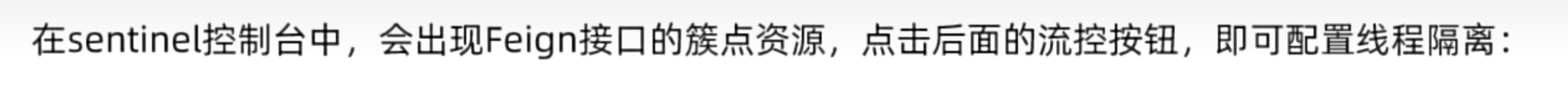

线程隔离:

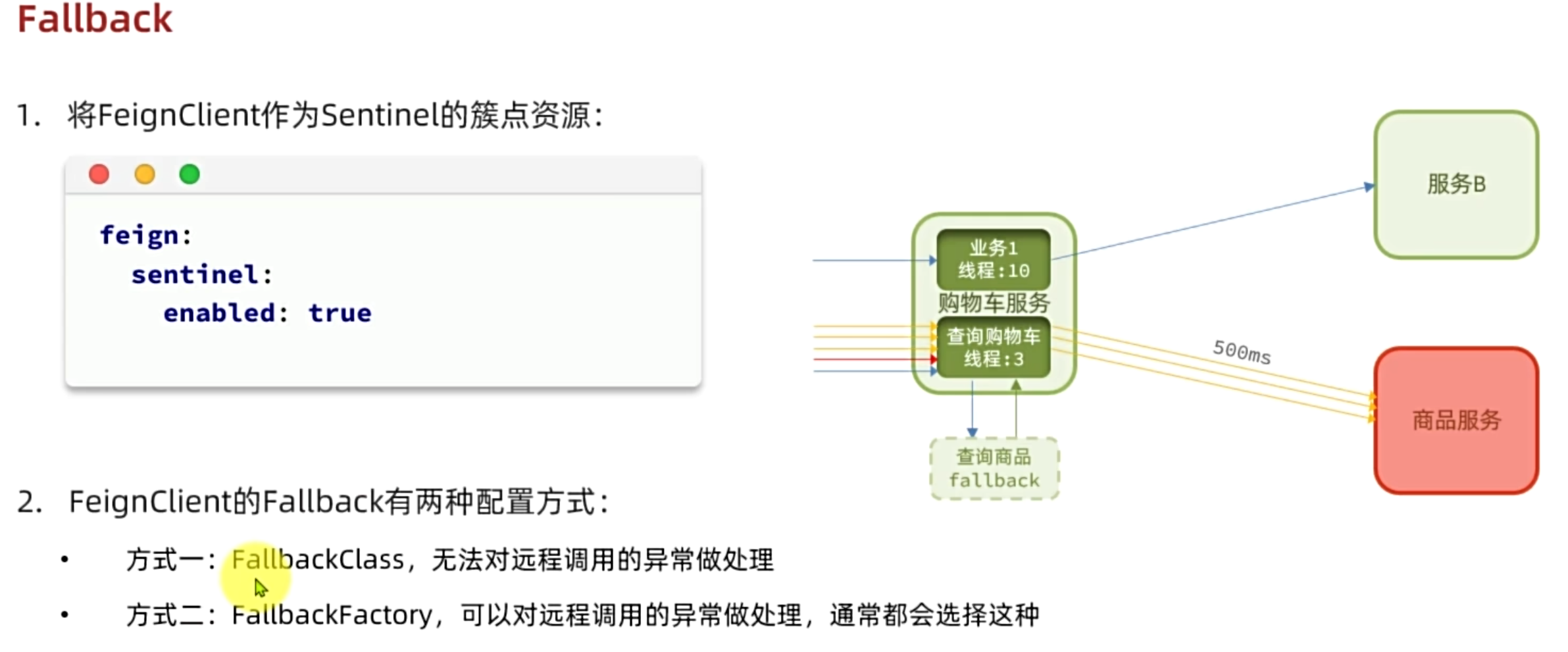

fallback:

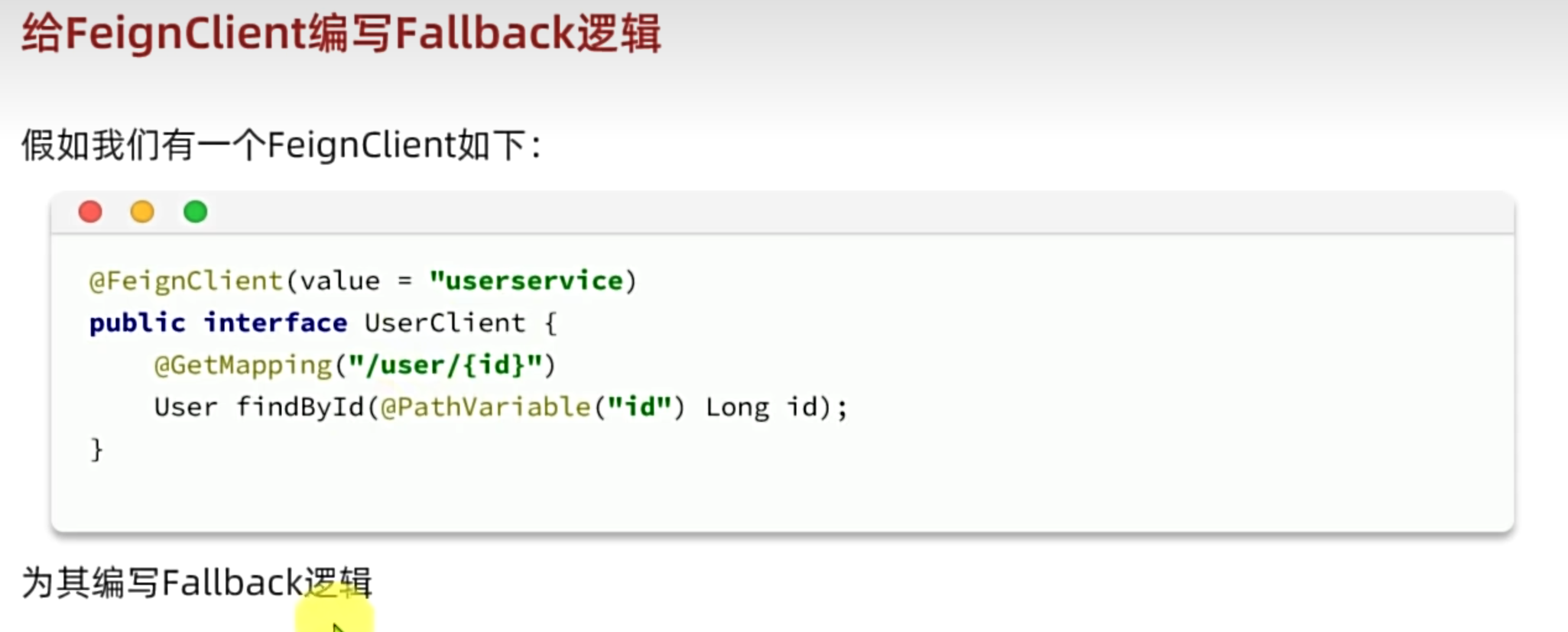

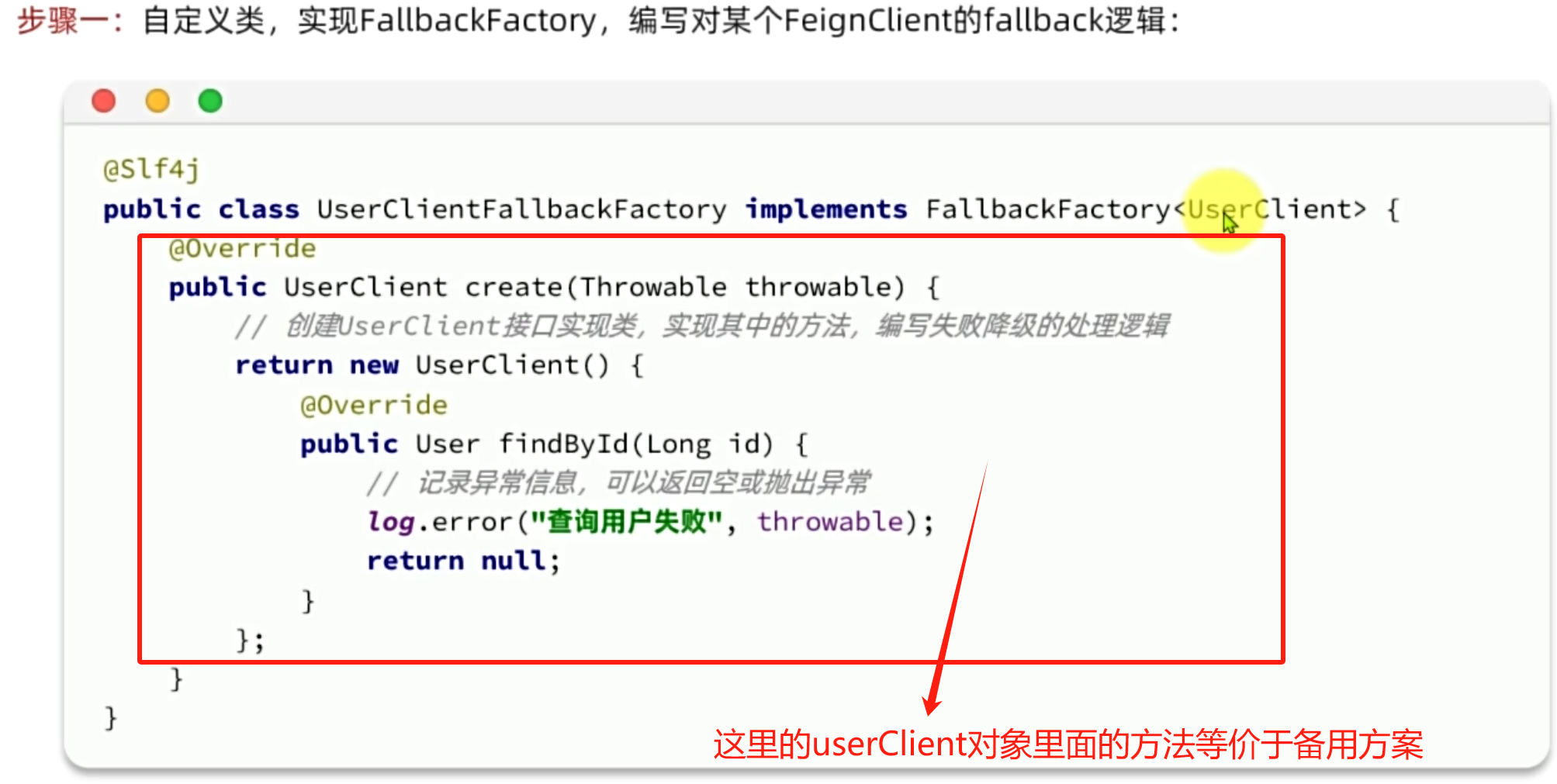

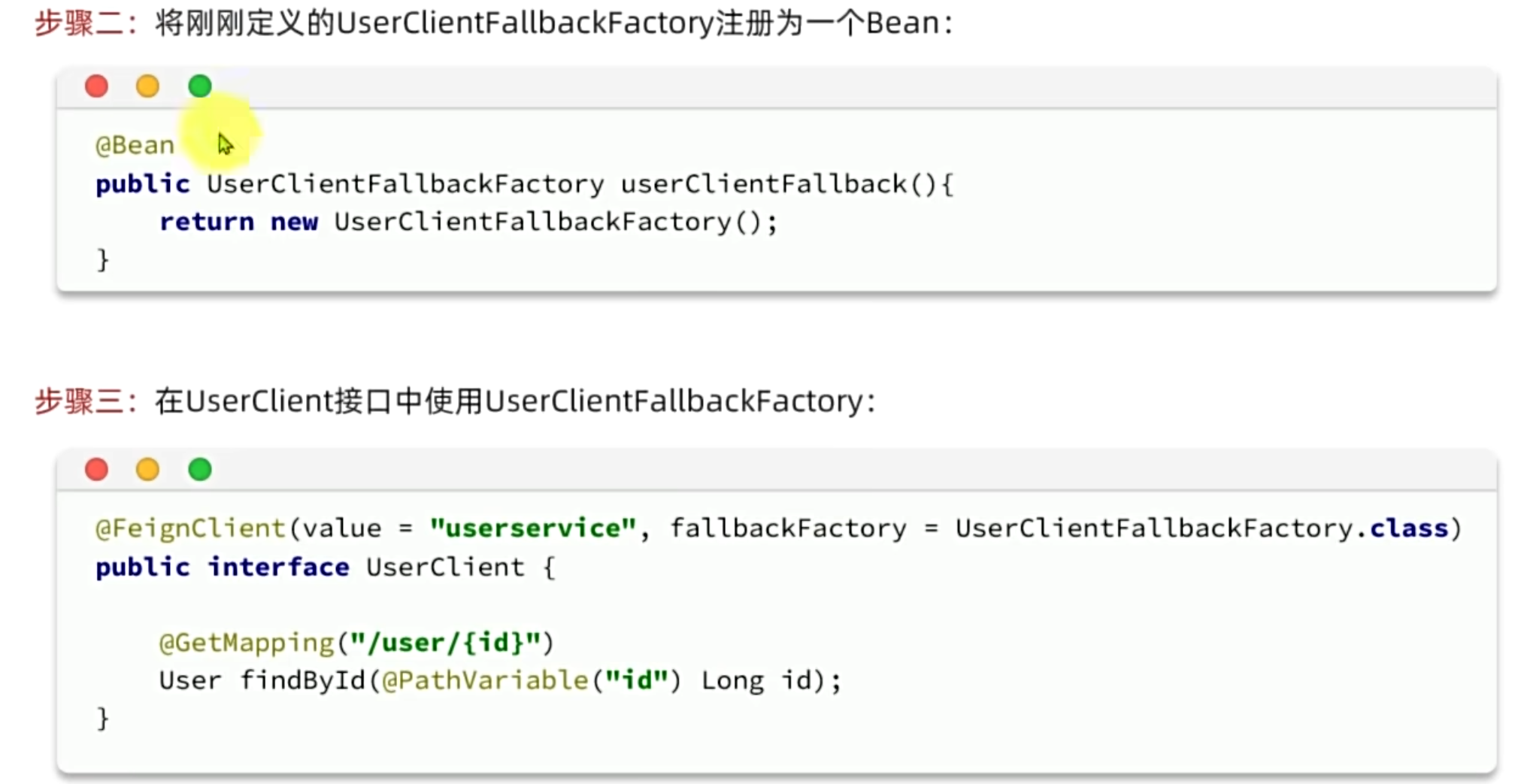

案例-给FeignClient添加Fallback逻辑:
java 复制代码
package com.hmall.api.fallback;

import com.hmall.api.client.ItemClient;
import com.hmall.api.dto.ItemDTO;
import com.hmall.api.dto.OrderDetailDTO;
import com.hmall.common.utils.CollUtils;
import lombok.extern.slf4j.Slf4j;
import org.springframework.cloud.openfeign.FallbackFactory;

import java.util.Collection;
import java.util.List;

@Slf4j
public class ItemClientFallbackFactory implements FallbackFactory<ItemClient> {
    @Override
    public ItemClient create(Throwable cause) {
        return new ItemClient() {
            @Override
            public List<ItemDTO> queryItemByIds(Collection<Long> ids) {
                log.error("查询商品失败!",cause);
                //查询不到返回一个空集合
                return CollUtils.emptyList();
            }

            @Override
            public void deductStock(List<OrderDetailDTO> items) {
                log.error("扣减商品库存失败!",cause);
                throw new RuntimeException(cause);
            }
        };
    }
}
java 复制代码
package com.hmall.api.config;

import com.hmall.api.fallback.ItemClientFallbackFactory;
import com.hmall.common.utils.UserContext;
import feign.Logger;
import feign.RequestInterceptor;
import feign.RequestTemplate;
import org.springframework.context.annotation.Bean;

public class DefaultFeignConfig { //配置类中声明bean对象

    @Bean
    public Logger.Level feignLoggerLevel(){
        return Logger.Level.FULL;
    }

    @Bean
    public RequestInterceptor userInfoRequestInterceptor(){
        return new RequestInterceptor() {
            @Override
            public void apply(RequestTemplate requestTemplate) {
                Long userId = UserContext.getUser();
                if(userId!=null) {
                    requestTemplate.header("user-info", userId.toString());
                }
            }
        };
    }

    @Bean
    public ItemClientFallbackFactory itemClientFallbackFactory(){
        return new ItemClientFallbackFactory();
    }
}

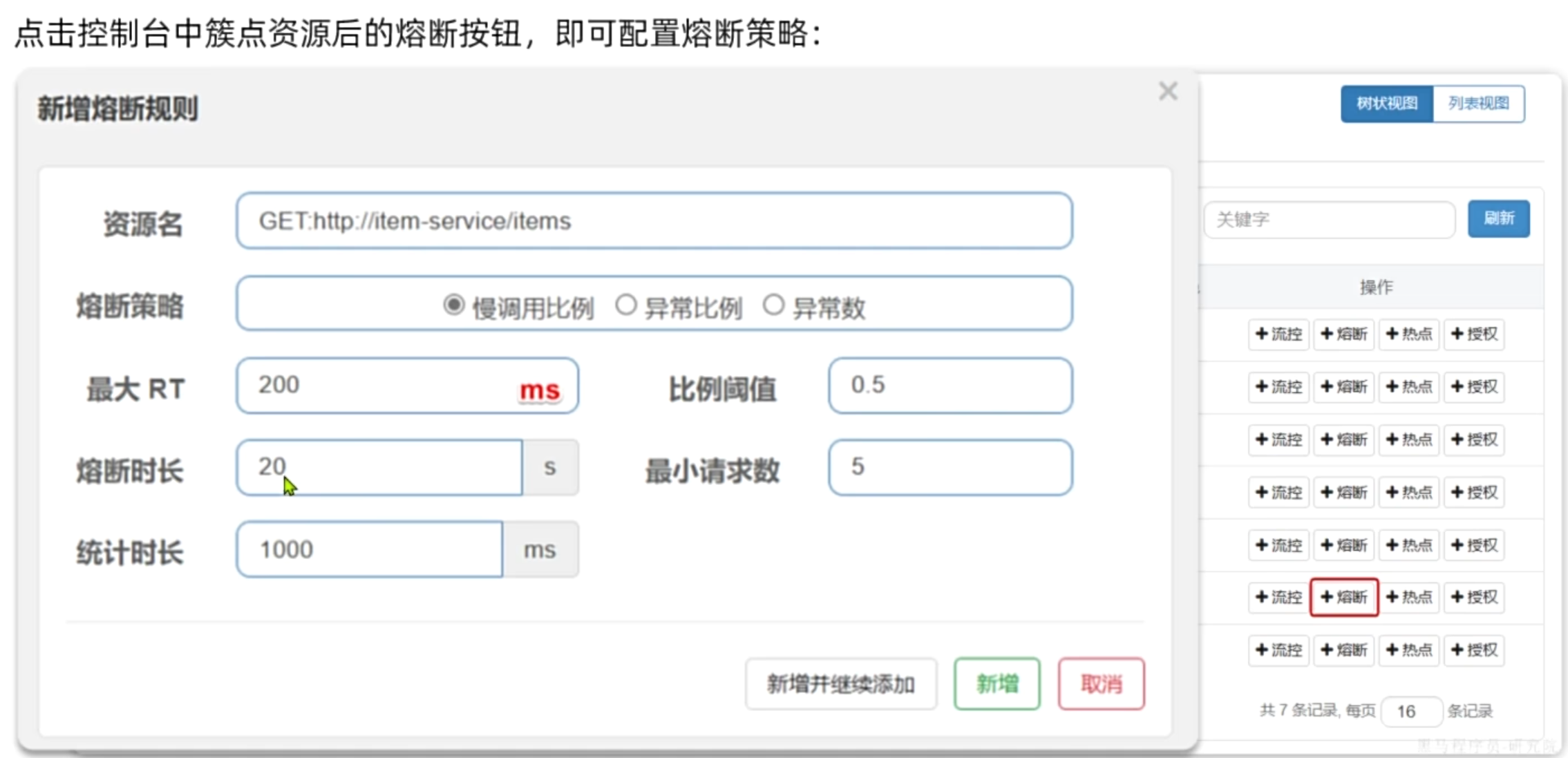

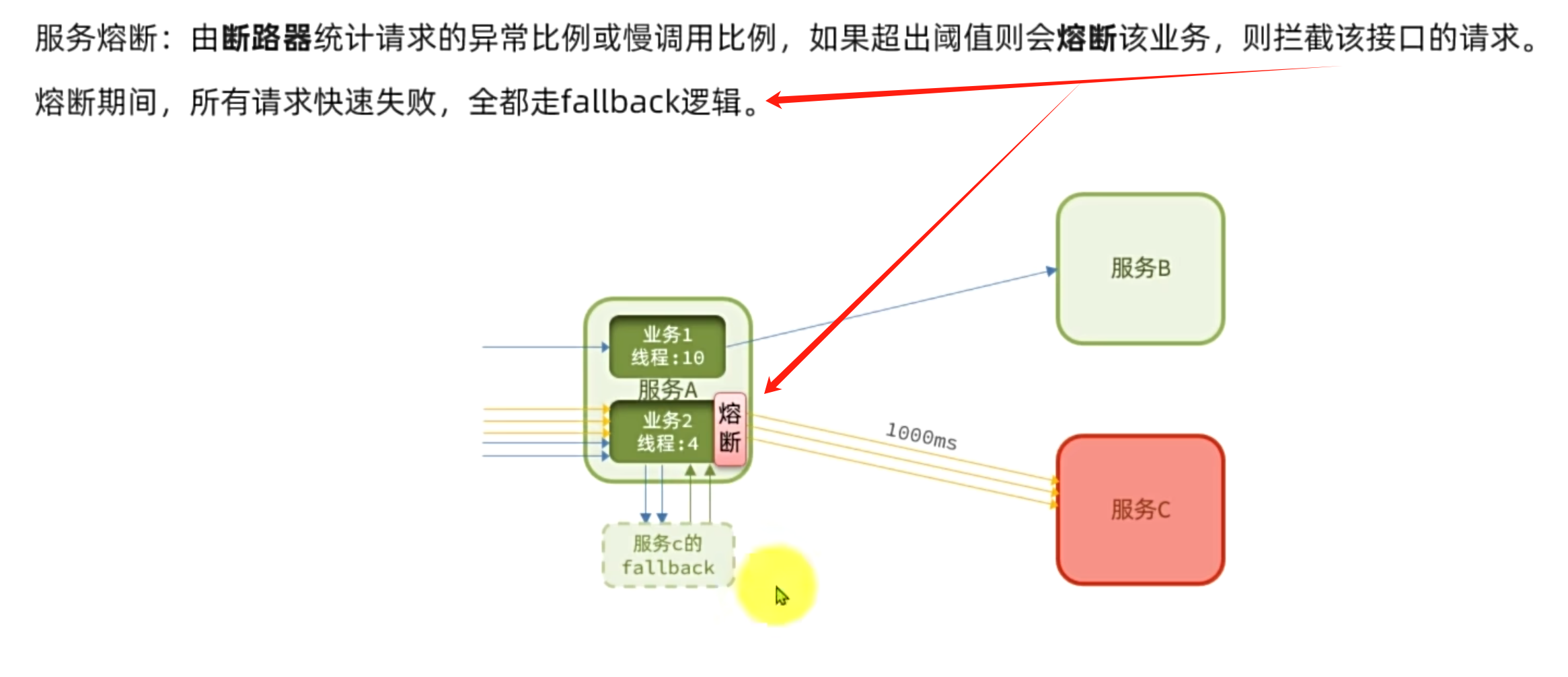

服务熔断:

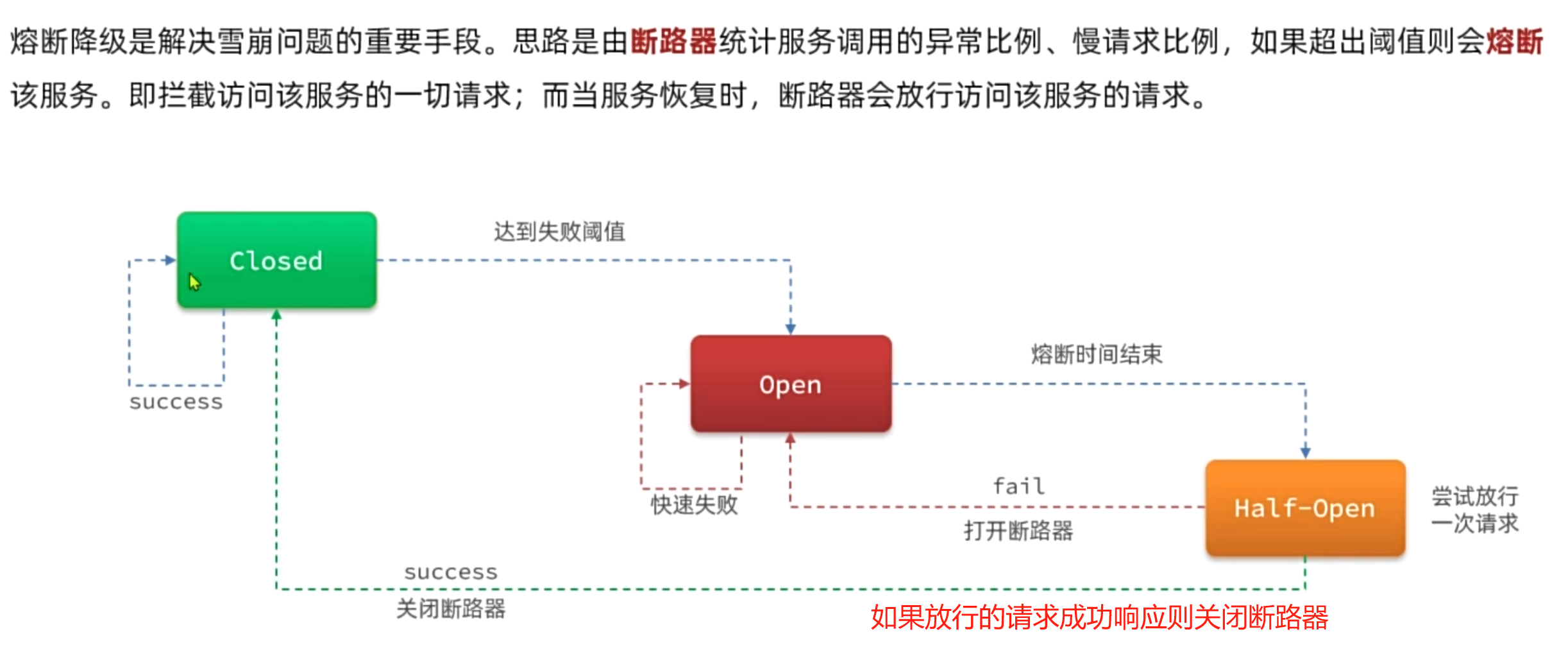

断路器:

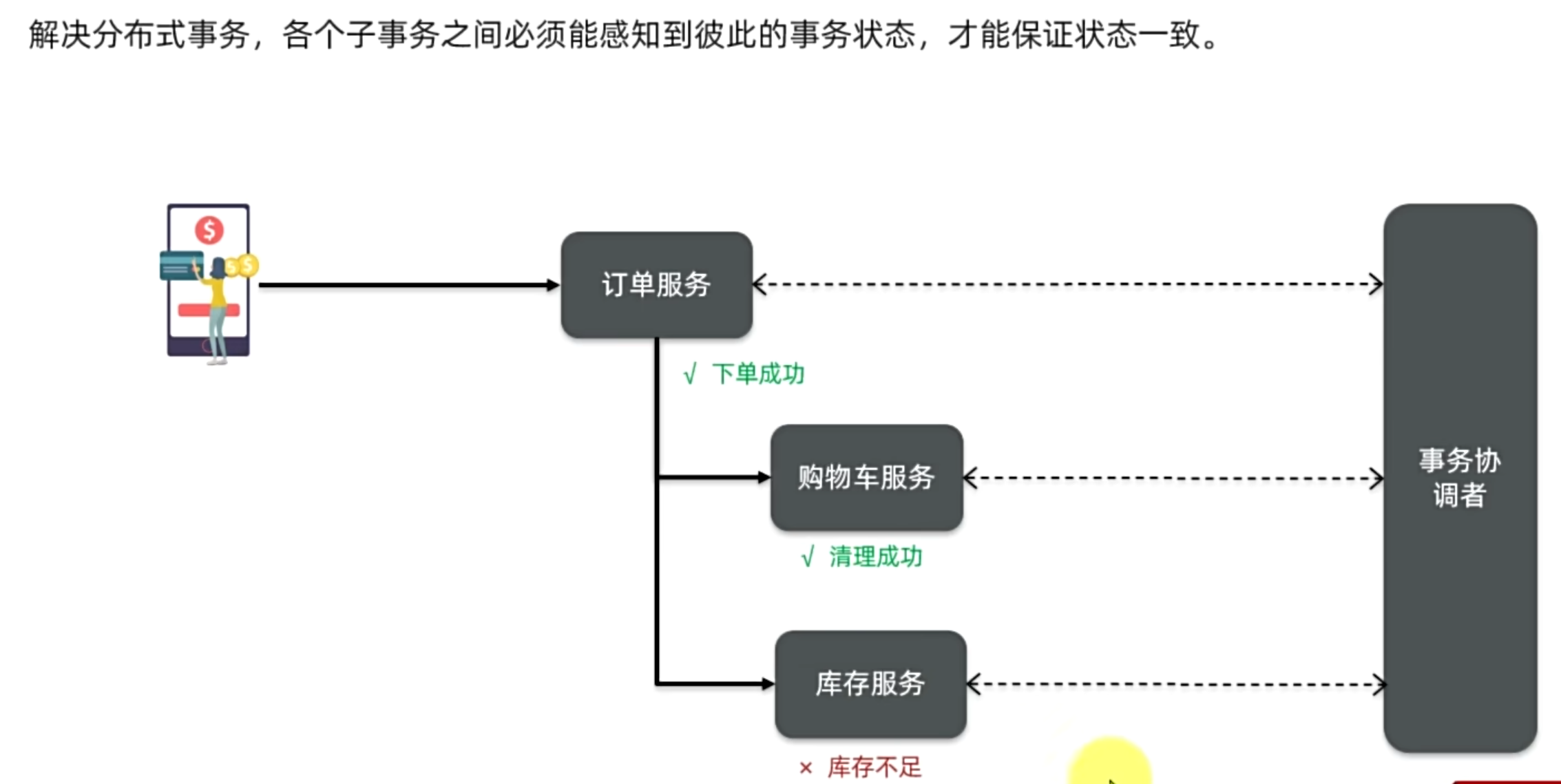

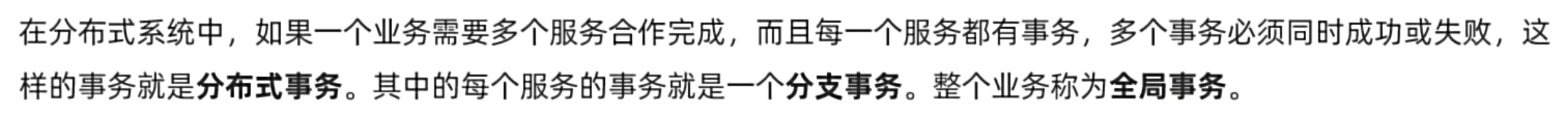

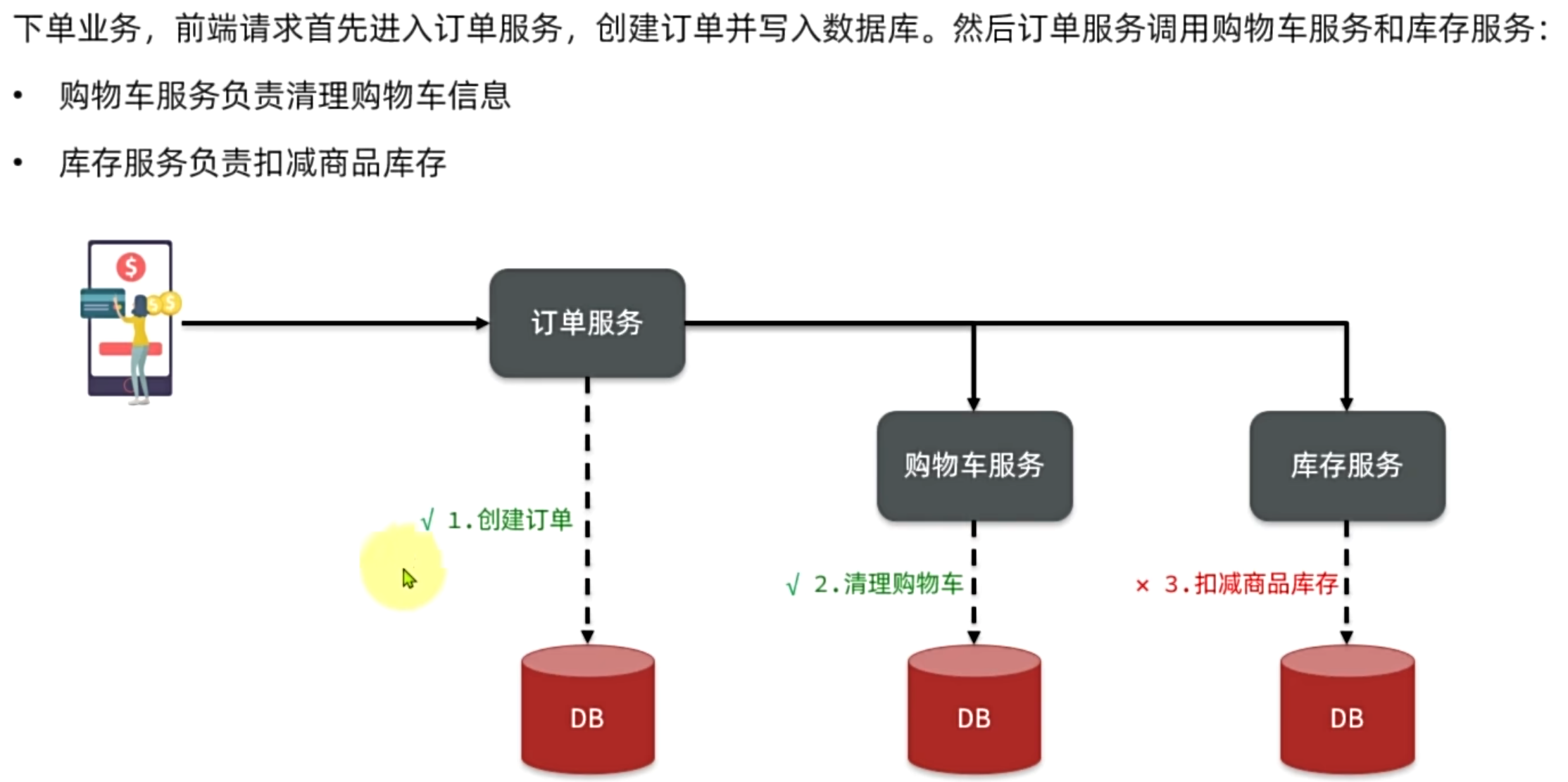

四、分布式事务

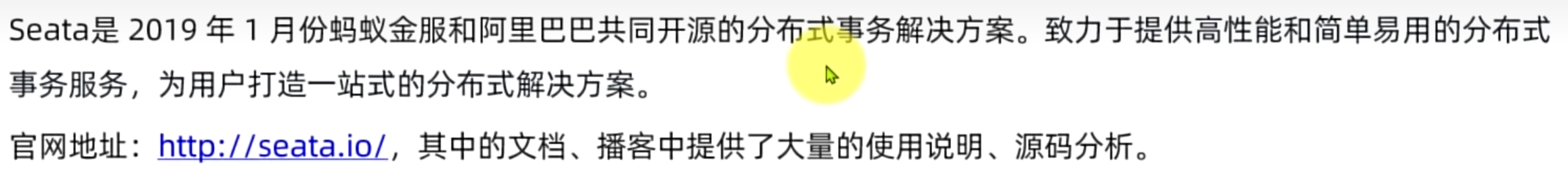

Seata:

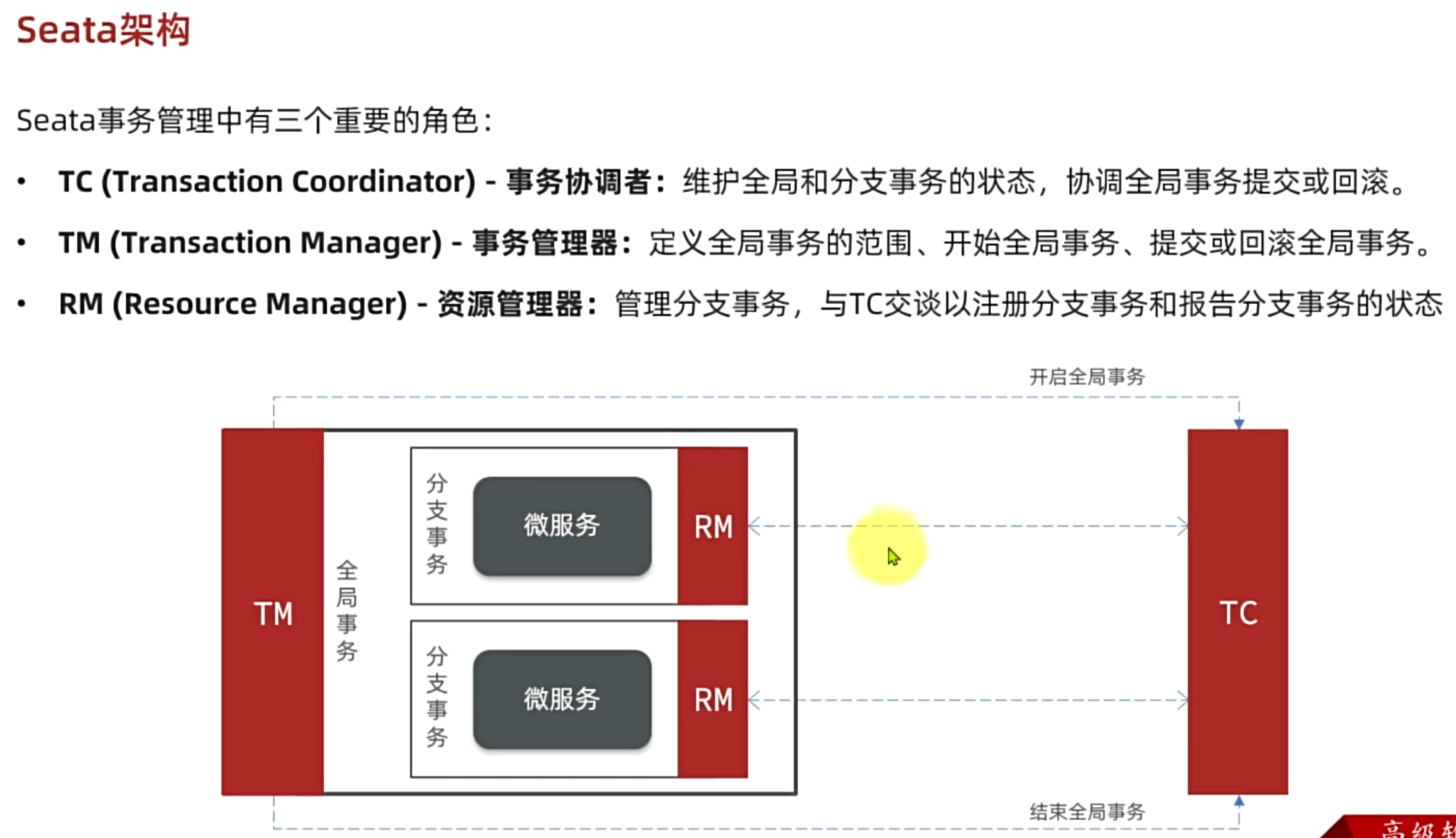

Seata架构:

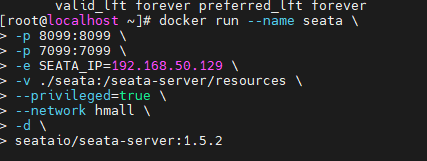

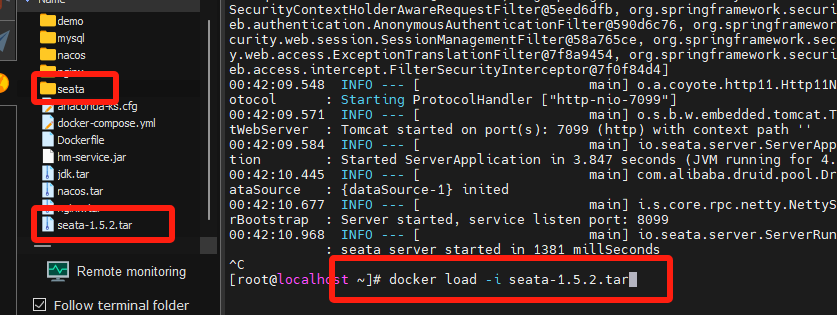

部署TC服务:

bash 复制代码
docker run --name seata \
-p 8099:8099 \
-p 7099:7099 \
-e SEATA_IP=192.168.50.129 \    #自己的IP地址
-v ./seata:/seata-server/resources \
--privileged=true \
--network hmall \    #确保和nacos mysql在一个网络下
-d \
seataio/seata-server:1.5.2

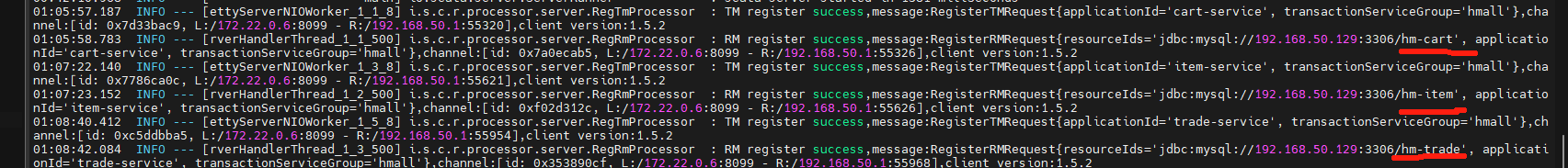

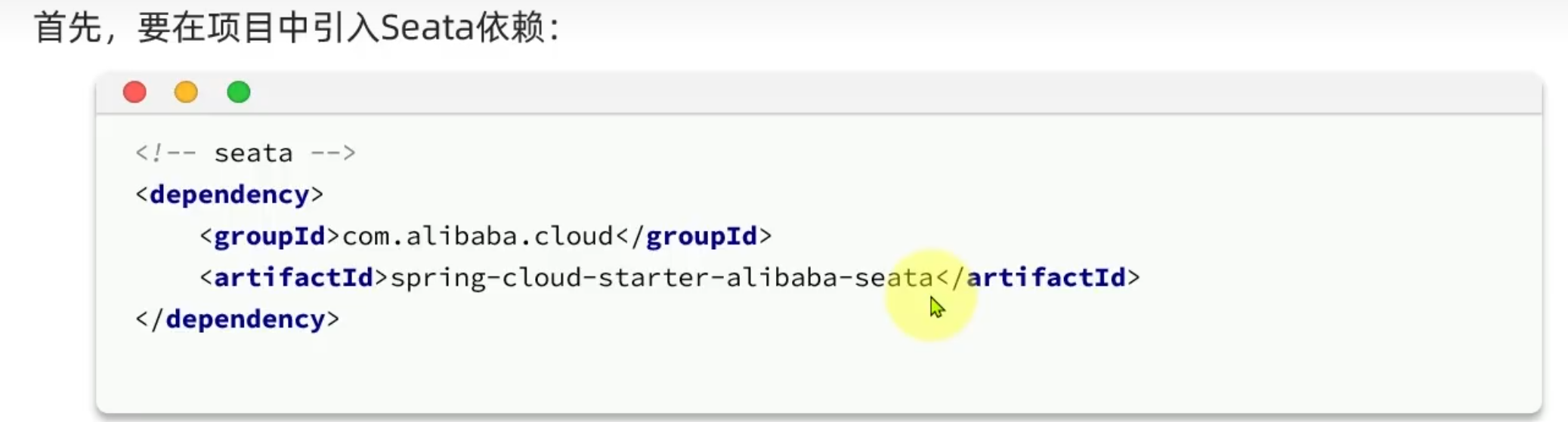

微服务继承Seata:

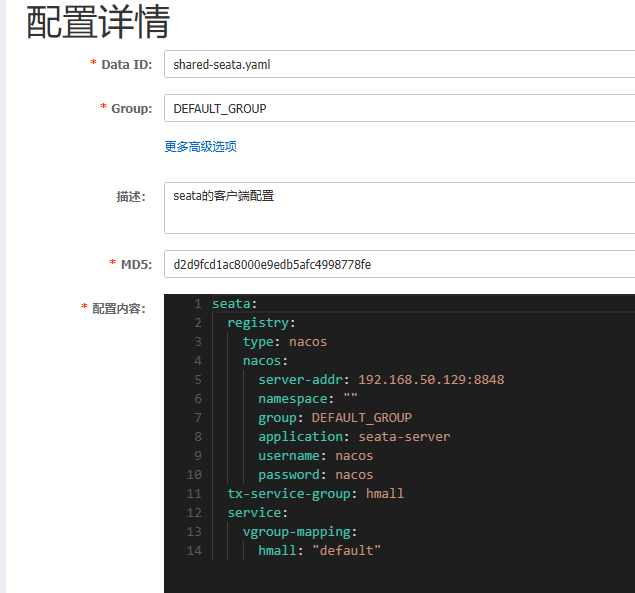

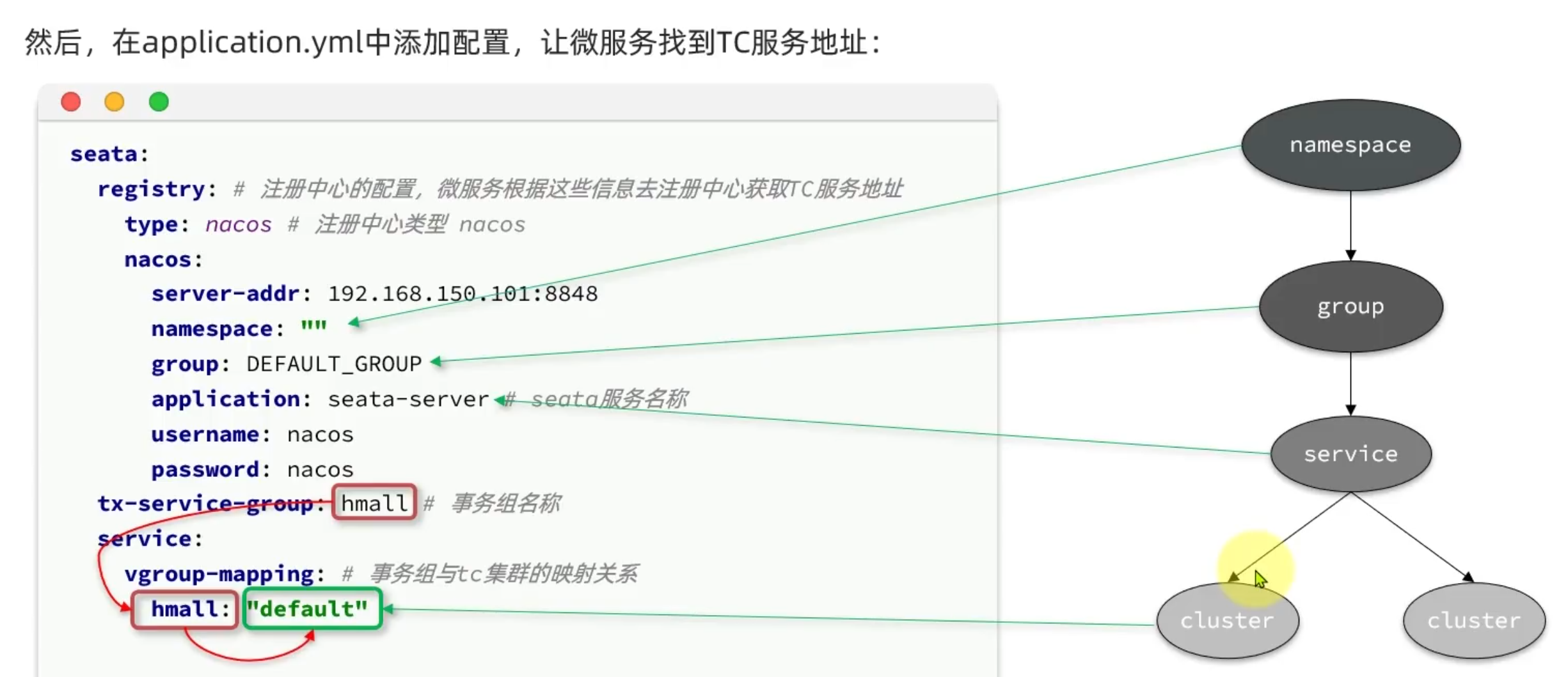

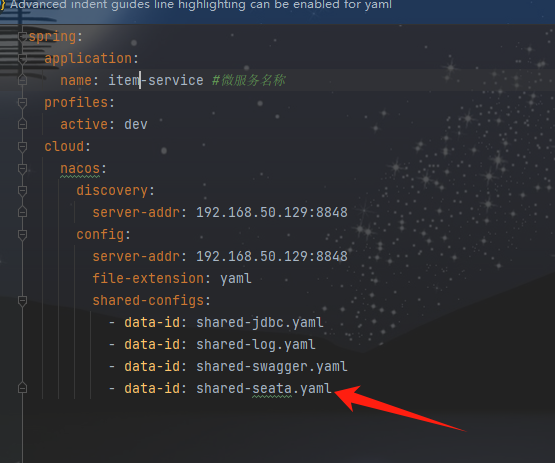

通过nacos共享配置:

bash 复制代码
seata:
  registry: # TC服务注册中心的配置,微服务根据这些信息去注册中心获取tc服务地址
    type: nacos # 注册中心类型 nacos
    nacos:
      server-addr: 192.168.50.129:8848 # nacos地址
      namespace: "" # namespace,默认为空
      group: DEFAULT_GROUP # 分组,默认是DEFAULT_GROUP
      application: seata-server # seata服务名称
      username: nacos
      password: nacos
  tx-service-group: hmall # 事务组名称
  service:
    vgroup-mapping: # 事务组与tc集群的映射关系
      hmall: "default"

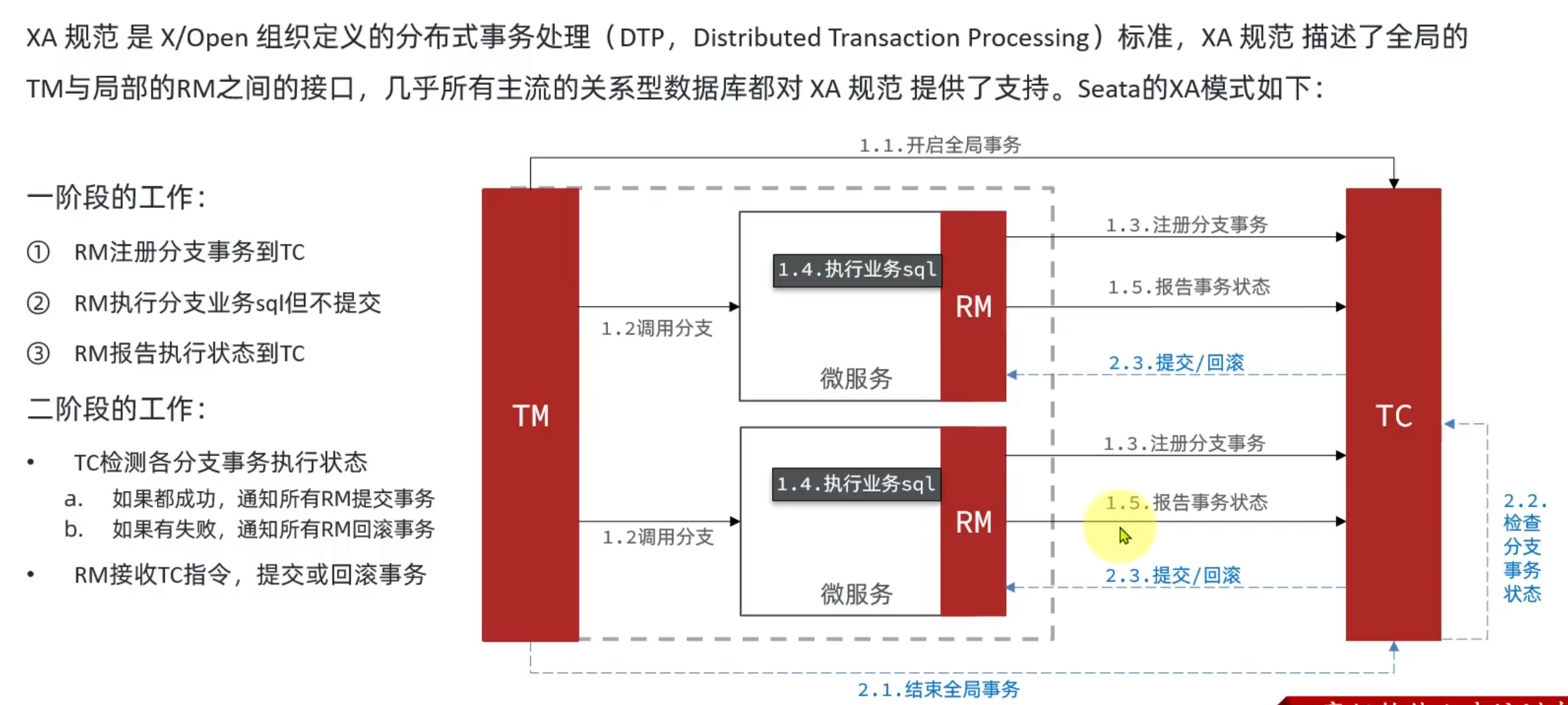

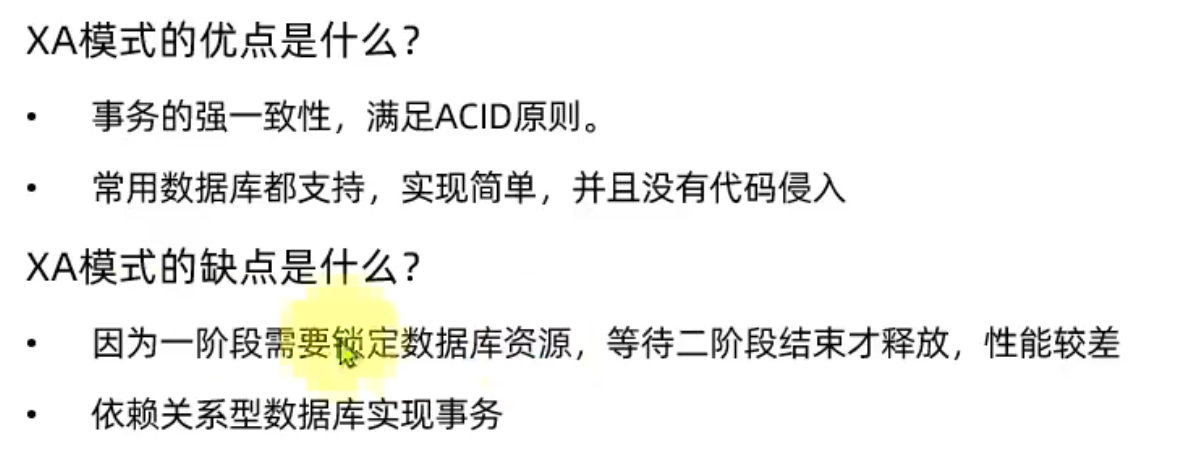

XA模式:

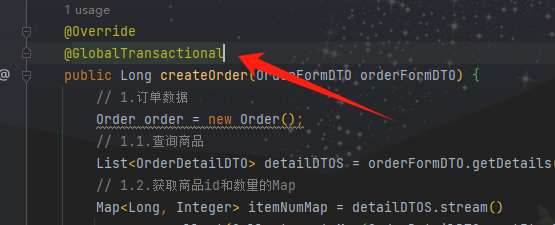

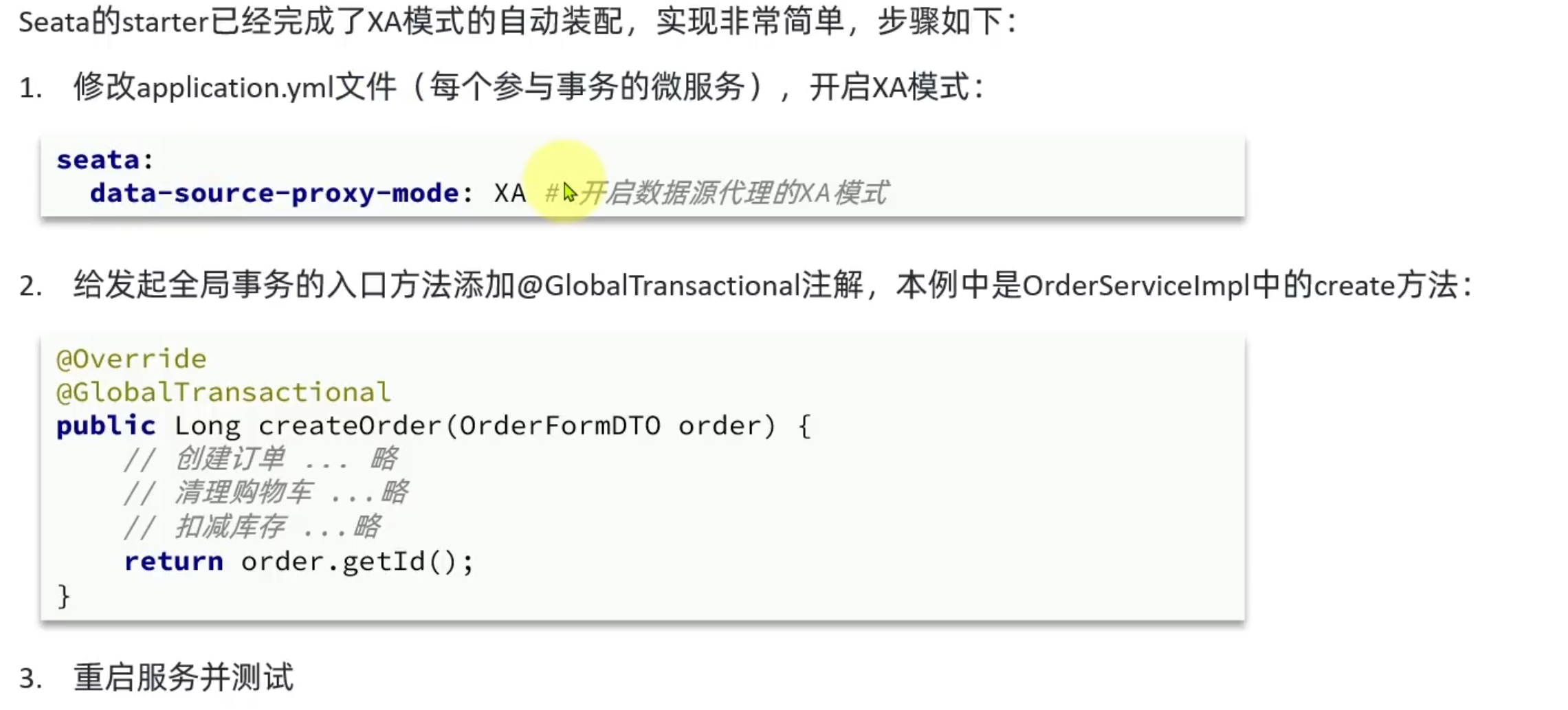

实现XA模式:

整个事务中其他微服务端的事务因为后续也需要实现事务管理,都需要在对应方法上加上@Transactional

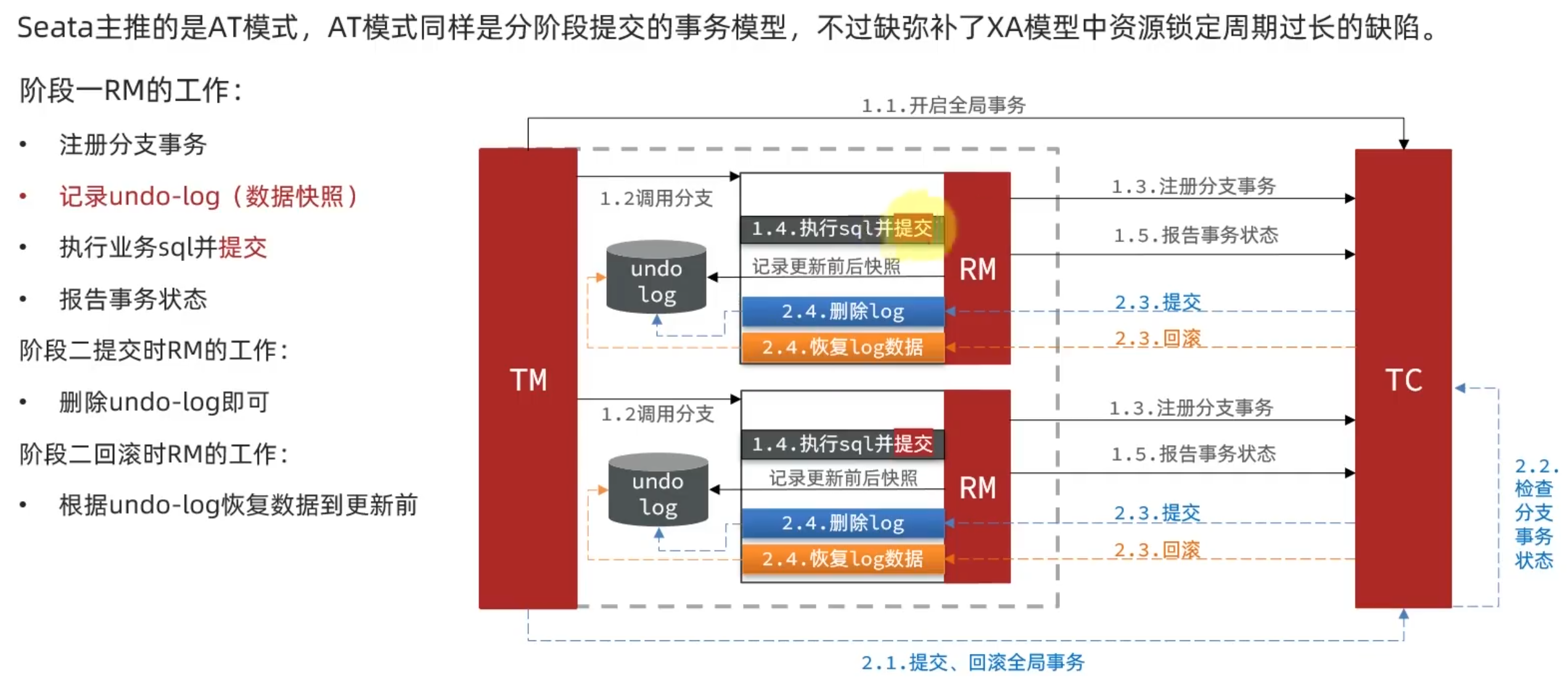

AT模式:

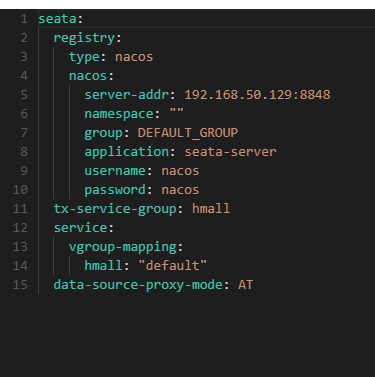

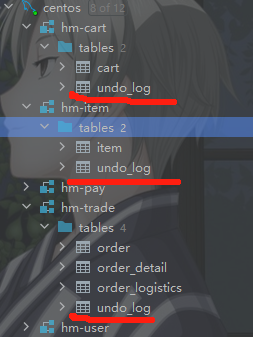

实现AT模式:

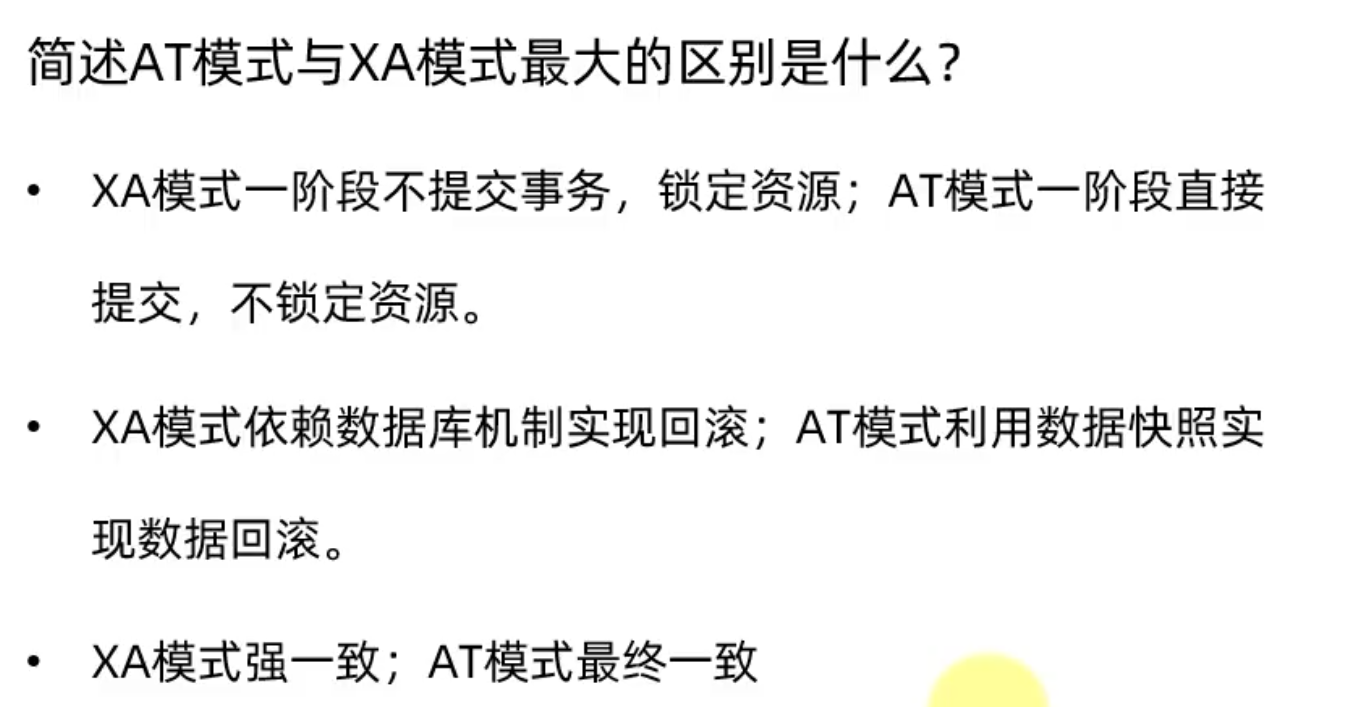

AT与XA区别:

追求一致性选XA

追求性能选AT
