cs
复制代码
#if UNITY_EDITOR
using UnityEditor;
using UnityEngine;
using System.IO;
using UnityEditorInternal;
using System.Collections.Generic;
using System;
public class TextureImporterWindow : EditorWindow
{
private string folderPath = "D:/";
private string filePath = "D:/";
private string searchPattern = "*.png";
private string savePath = "C:/Users/26679/Desktop";

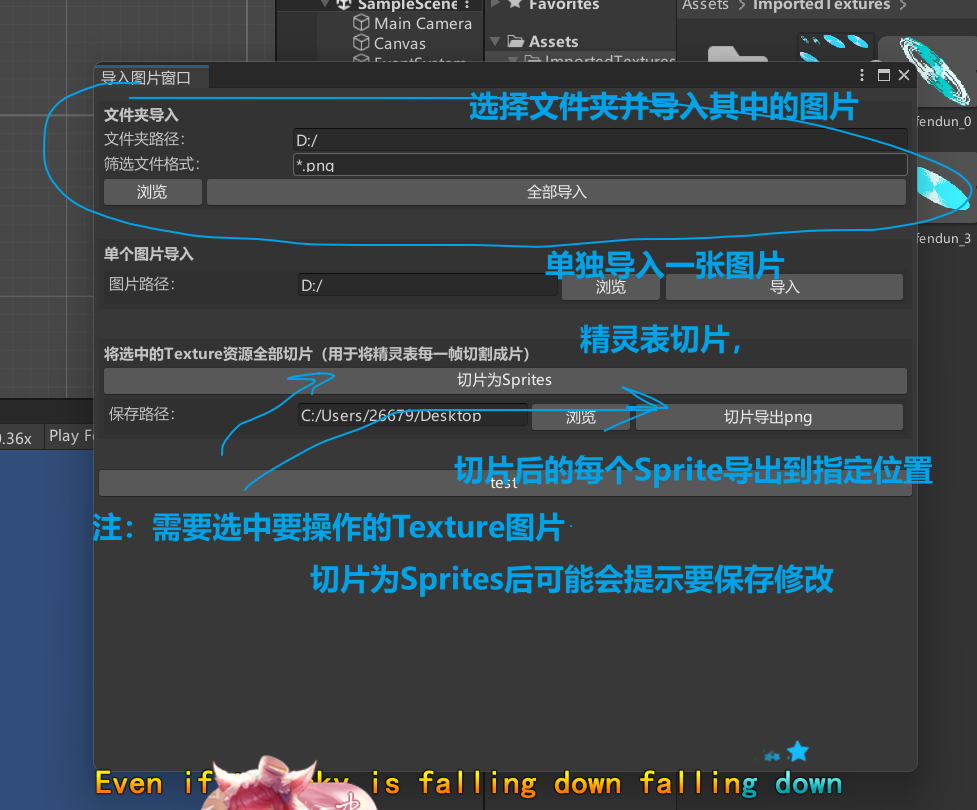

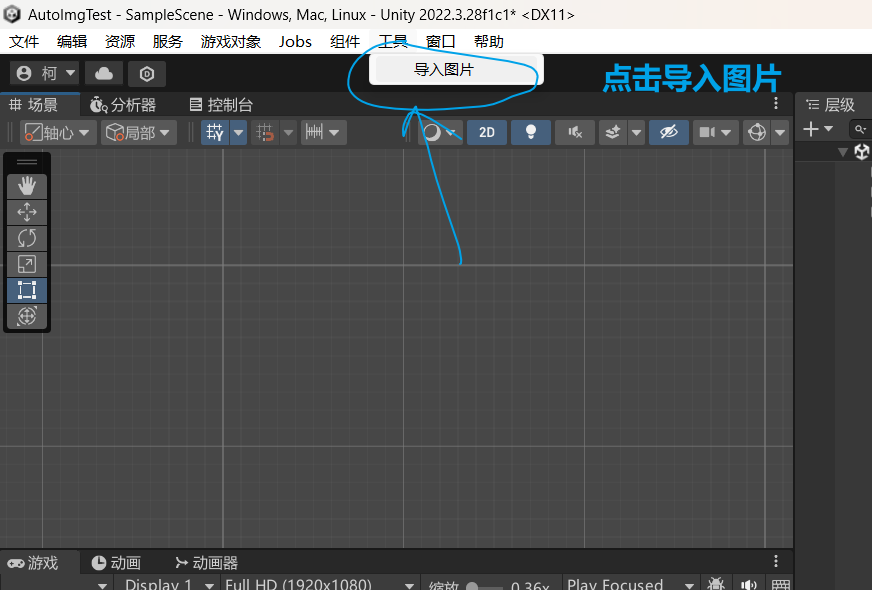

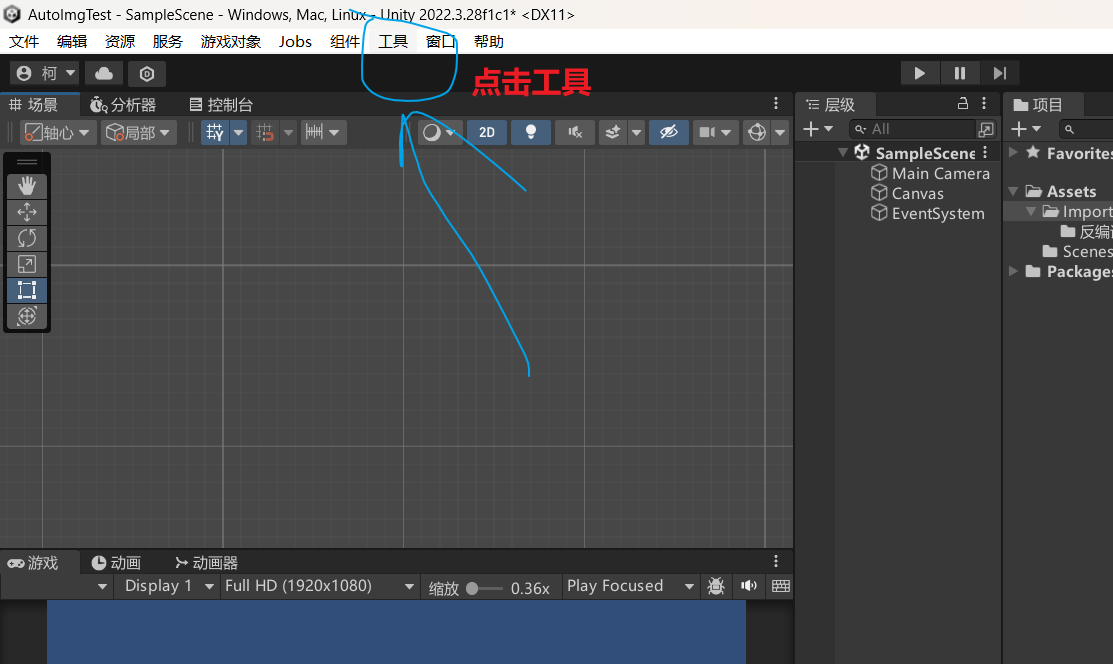

[MenuItem("Tools/导入图片")]
public static void ShowWindow()
{
GetWindow<TextureImporterWindow>("导入图片窗口");
}
[Obsolete]
void OnGUI()
{
// 顶部留白10像素
GUILayout.Space(10);
EditorGUILayout.BeginVertical("box");
GUILayout.Label("文件夹导入", EditorStyles.boldLabel);
// 路径设置
folderPath = EditorGUILayout.TextField("文件夹路径：", folderPath);
// 文件过滤
searchPattern = EditorGUILayout.TextField("筛选文件格式：", searchPattern);
EditorGUILayout.BeginHorizontal();
if (GUILayout.Button("浏览", GUILayout.Width(80)))
{
folderPath = EditorUtility.OpenFolderPanel("选择一个文件夹", "D:/", "");
}
// 导入按钮
if (GUILayout.Button("全部导入"))
{
if (Directory.Exists(folderPath))
{
ImportTexturesFromFolder(folderPath, searchPattern);
}
else
{
EditorUtility.DisplayDialog("Error", "文件夹不存在!", "OK");
}
}
EditorGUILayout.EndHorizontal();
GUILayout.EndVertical();
GUILayout.Space(20);
EditorGUILayout.BeginVertical("box");
GUILayout.Label("单个图片导入", EditorStyles.boldLabel);
EditorGUILayout.BeginHorizontal("box");
filePath = EditorGUILayout.TextField("图片路径：", filePath);
if (GUILayout.Button("浏览", GUILayout.Width(80)))
{
// 打开文件选择对话框
filePath = EditorUtility.OpenFilePanel("请选择图片文件", "", "png,jpg,jpeg");
}
// 导入按钮
if (GUILayout.Button("导入"))
{
if (!string.IsNullOrEmpty(filePath))
{
ImportTexturesFromFile(filePath);
}
else
{
EditorUtility.DisplayDialog("Error", "文件不存在!", "OK");
}
}
EditorGUILayout.EndHorizontal();
EditorGUILayout.EndVertical();
GUILayout.Space(20);
EditorGUILayout.BeginVertical("box");
GUILayout.Label("将选中的Texture资源全部切片（用于将精灵表每一帧切割成片）", EditorStyles.boldLabel);
// 切割按钮
if (GUILayout.Button("切片为Sprites"))
{
// 获取所有选中的纹理资源
Texture2D[] textures = Selection.GetFiltered<Texture2D>(SelectionMode.Assets);
if (textures.Length > 0)
{
foreach (Texture2D texture in textures)
{
string path = AssetDatabase.GetAssetPath(texture);
TextureImporter importer = AssetImporter.GetAtPath(path) as TextureImporter;
if (importer != null)
{
importer.textureType = TextureImporterType.Sprite;//纹理类型为Sprite
// importer.spriteImportMode = SpriteImportMode.Single;//Sprite模式为多个；
importer.filterMode = FilterMode.Point;//过滤模式为点； 对像素图处理比较好，还有其它双线算法；
importer.textureCompression = TextureImporterCompression.Uncompressed;//不压缩；
importer.isReadable = true;//可读写；
importer.maxTextureSize = 2048;
importer.SaveAndReimport();
}
else
{
Debug.Log("导入设置失败！");
}
DoAutomaticSlicing(false, texture);
}
}
else
{
Debug.LogWarning("0 个Texture2D 资源被选中！");
}
}
EditorGUILayout.BeginHorizontal("box");
savePath = EditorGUILayout.TextField("保存路径：", savePath);
if (GUILayout.Button("浏览", GUILayout.Width(80)))
{
// 打开文件选择对话框
savePath = EditorUtility.OpenFolderPanel("选择一个文件夹", "D:/", "");
}
// 切割按钮
if (GUILayout.Button("切片导出png"))
{
// 获取所有选中的纹理资源
Texture2D[] textures = Selection.GetFiltered<Texture2D>(SelectionMode.Assets);
if (textures.Length > 0)
{
foreach (Texture2D texture in textures)
{
string path = AssetDatabase.GetAssetPath(texture);
TextureImporter importer = AssetImporter.GetAtPath(path) as TextureImporter;
if (importer != null)
{
importer.textureType = TextureImporterType.Sprite;//纹理类型为Sprite
importer.spriteImportMode = SpriteImportMode.Multiple;//Sprite模式为多个；
importer.filterMode = FilterMode.Point;//过滤模式为点； 对像素图处理比较好，还有其它双线算法；
importer.textureCompression = TextureImporterCompression.Uncompressed;//不压缩；
importer.isReadable = true;//可读写；
importer.maxTextureSize = 2048;
importer.SaveAndReimport();
}
else
{
Debug.Log("导入设置失败！");
}
DoAutomaticSlicing(true, texture);
}
}
else
{
Debug.LogWarning("0 个Texture2D 资源被选中！");
}
}
EditorGUILayout.EndHorizontal();
EditorGUILayout.EndVertical();
GUILayout.Space(20);
if (GUILayout.Button("test"))
{
Debug.Log("This is a test!");
//测试代码；
}
}
#region 图片导入
void ImportTexturesFromFolder(string path, string pattern)
{
string[] files = Directory.GetFiles(path, pattern, SearchOption.AllDirectories);
string projectPath = Application.dataPath;
string targetFolder = "Assets/ImportedTextures/" + new DirectoryInfo(folderPath).Name + "/";
// 创建目标文件夹
if (!AssetDatabase.IsValidFolder(targetFolder))
{
AssetDatabase.CreateFolder("Assets", "ImportedTextures");
AssetDatabase.CreateFolder("Assets/ImportedTextures", new DirectoryInfo(folderPath).Name);
}
int successCount = 0;
foreach (string file in files)
{
try
{
string fileName = Path.GetFileName(file);
string destPath = Path.Combine(targetFolder, fileName);
// 复制文件到项目目录
File.Copy(file, destPath, true);
// Debug.Log($"复制: {file} -> {destPath}");
successCount++;
}
catch (System.Exception e)
{
Debug.LogError($"导入失败 {file}: {e.Message}");
}
}
// 刷新资源数据库
AssetDatabase.Refresh();
// 设置导入设置
foreach (string file in files)
{
string fileName = Path.GetFileName(file);
string assetPath = $"{targetFolder}{fileName}";
TextureImporter importer = AssetImporter.GetAtPath(assetPath) as TextureImporter;
if (importer != null)
{
importer.textureType = TextureImporterType.Sprite;//纹理类型为Sprite
importer.spriteImportMode = SpriteImportMode.Multiple;//Sprite模式为单个；
importer.filterMode = FilterMode.Point;//过滤模式为点； 对像素图处理比较好，还有其它双线算法；
importer.textureCompression = TextureImporterCompression.Uncompressed;//不压缩；
importer.isReadable = true;//可读写；
importer.maxTextureSize = 2048;
importer.SaveAndReimport();
}
else
{
Debug.Log("importer 为null");
}
}
EditorUtility.DisplayDialog("导入完成",
$"导入成功 {successCount}/{files.Length} textures", "OK");
}
void ImportTexturesFromFile(string file)
{
string projectPath = Application.dataPath;
string targetFolder = "Assets/ImportedTextures/";
// 创建目标文件夹
if (!AssetDatabase.IsValidFolder(targetFolder))
{
AssetDatabase.CreateFolder("Assets", "ImportedTextures");
}
try
{
string fileName = Path.GetFileName(file);
string destPath = Path.Combine(targetFolder, fileName);
// 复制文件到项目目录
File.Copy(file, destPath, true);
// Debug.Log($"Copied: {file} -> {destPath}");
// 刷新资源数据库
AssetDatabase.Refresh();
// 设置导入设置
string assetPath = $"Assets/ImportedTextures/{fileName}";
TextureImporter importer = AssetImporter.GetAtPath(assetPath) as TextureImporter;
if (importer != null)
{
importer.textureType = TextureImporterType.Sprite;//纹理类型为Sprite
importer.spriteImportMode = SpriteImportMode.Multiple;//Sprite模式为单个；
importer.filterMode = FilterMode.Point;//过滤模式为点； 对像素图处理比较好，还有其它双线算法；
importer.textureCompression = TextureImporterCompression.Uncompressed;//不压缩；
importer.isReadable = true;//可读写；
importer.maxTextureSize = 2048;
importer.SaveAndReimport();
}
EditorUtility.DisplayDialog("导入完成！",
$"成功导入 1 textures", "OK");
}
catch (System.Exception e)
{
Debug.LogError($"Failed to import {file}: {e.Message}");
}
}
#endregion
#region Slice图片
[Obsolete]
private void DoAutomaticSlicing(bool isExport, Texture2D OrigonTxr, int minimumSpriteSize = 4)
{
Texture2D copyTexture = new Texture2D(OrigonTxr.width, OrigonTxr.height);
copyTexture.SetPixels(OrigonTxr.GetPixels());
copyTexture.Apply();
Rect[] one = InternalSpriteUtility.GenerateAutomaticSpriteRectangles(copyTexture, minimumSpriteSize, 0);
List<Rect> frames = new List<Rect>(one);
frames = SortRects(frames, OrigonTxr.width);
int index = 0;
if (isExport)
{
foreach (Rect frame in frames)
{
ExportSpriteRectToPNG(OrigonTxr, frame, index++);
}
Debug.Log($"源{OrigonTxr.name}已经成功导出{index}张png图片，并保存到：{savePath}");
}
else
{
string path = AssetDatabase.GetAssetPath(OrigonTxr);
TextureImporter importer = AssetImporter.GetAtPath(path) as TextureImporter;
if (importer != null)
{
importer.textureType = TextureImporterType.Sprite;//纹理类型为Sprite
importer.spriteImportMode = SpriteImportMode.Multiple;//Sprite模式为多个；
importer.filterMode = FilterMode.Point;//过滤模式为点； 对像素图处理比较好，还有其它双线算法；
importer.textureCompression = TextureImporterCompression.Uncompressed;//不压缩；
importer.isReadable = true;//可读写；
importer.maxTextureSize = 2048;
importer.SaveAndReimport();
}
else
{
Debug.Log("importer 为null");
}
List<SpriteMetaData> metas = new List<SpriteMetaData>();//于生成精灵的编辑器数据。表的名字；用于给子图命名；
foreach (Rect rect in frames)//生成精灵小图；
{
SpriteMetaData meta = new SpriteMetaData();
meta.rect = rect;
meta.name = OrigonTxr.name + "_" + index++;
metas.Add(meta);
}
importer.spritesheet = metas.ToArray();//精灵小图数组添加到父精灵图后；
Debug.Log($"{OrigonTxr.name}成功生成{metas.Count} 个子Sprites ! ");
}
}
// 1. Find top-most rectangle
// 2. Sweep it vertically to find out all rects from that "row"
// 3. goto 1.
// This will give us nicely sorted left->right top->down list of rectangles
// Works for most sprite sheets pretty nicely
private List<Rect> SortRects(List<Rect> rects, int width)
{
List<Rect> result = new List<Rect>();
while (rects.Count > 0)
{
// Because the slicing algorithm works from bottom-up, the topmost rect is the last one in the array
Rect r = rects[rects.Count - 1];
Rect sweepRect = new Rect(0, r.yMin, width, r.height);
List<Rect> rowRects = RectSweep(rects, sweepRect);
if (rowRects.Count > 0)
result.AddRange(rowRects);
else
{
// We didn't find any rects, just dump the remaining rects and continue
result.AddRange(rects);
break;
}
}
return result;
}
private List<Rect> RectSweep(List<Rect> rects, Rect sweepRect)
{
if (rects == null || rects.Count == 0)
return new List<Rect>();
List<Rect> containedRects = new List<Rect>();
foreach (Rect rect in rects)
{
if (rect.Overlaps(sweepRect))
containedRects.Add(rect);
}
// Remove found rects from original list
foreach (Rect rect in containedRects)
rects.Remove(rect);
// Sort found rects by x position
containedRects.Sort((a, b) => a.x.CompareTo(b.x));
return containedRects;
}
#endregion
#region 导出 png文件
// public Sprite spriteToExport;
// public Rect rectToExport;
private void ExportSpriteRectToPNG(Texture2D texture, Rect rectToExport, int index)
{
if (texture == null)
{
Debug.LogError("要导出的源Texture2D为空！");
return;
}
// 计算裁剪区域在Texture2D中的实际坐标
int x = (int)rectToExport.x;
int y = (int)rectToExport.y;
int width = (int)rectToExport.width;
int height = (int)rectToExport.height;
// 创建新的Texture2D对象，用于存储裁剪后的像素数据
Texture2D outputTexture = new Texture2D(width, height, TextureFormat.RGBA32, false);
Color[] pixels = texture.GetPixels(x, y, width, height);
outputTexture.SetPixels(pixels);
outputTexture.Apply();
// 编码为PNG格式
byte[] pngData = outputTexture.EncodeToPNG();
// 保存文件
if (pngData != null)
{
// string filenameNoExtension = Path.GetFileNameWithoutExtension('origonPath');
File.WriteAllBytes(savePath + "/" + texture.name + '_' + index + ".png", pngData);
}
else
{
Debug.LogError("无法将" + savePath + texture.name + '_' + index + ".png" + "编码为PNG文件！");
}
}
#endregion
}
#endif
