鸿蒙NEXT开发动画案例9

1.创建空白项目

2.Page文件夹下面新建Spin.ets文件，代码如下：

复制代码

interface GridItemConfig {
  translate:Translate
}

interface Translate {
    x?: number;
    y?: number;
}

/**
 * TODO SpinKit动画组件（重构版）
 * author: 鸿蒙布道师
 * since: 2025/05/15
 */
@ComponentV2
export struct SpinNine {
  @Require @Param spinSize: number = 36;
  @Require @Param spinColor: ResourceColor;

  // 动画相关状态
  @Local scaleSize: number = this.spinSize * 0.75;
  @Local tran1: number = 0;
  private oldSize: number = this.spinSize;

  aboutToAppear(): void {
    this.oldSize = this.spinSize;
    this.scaleSize = this.spinSize * 0.75;
  }

  build() {
    Stack() {
      Grid() {
        ForEach(this.getGridItems(), (item:GridItemConfig, index) => {
          GridItem() {
            Canvas()
              .chunkStyle()
          }
          .translate(item.translate)
        });
      }
      .rowsTemplate('1fr 1fr 1fr')
      .columnsTemplate('1fr 1fr 1fr')
      .width(this.scaleSize)
      .height(this.scaleSize)
    }
    .width(this.oldSize)
    .height(this.oldSize)
    .alignContent(Alignment.Center)
    .onAppear(() => {
      this.startAnimation();
    })
  }

  // 获取 GridItem 配置数据
  private getGridItems():GridItemConfig[] {
    return [
      { translate: { x: this.tran1 } },
      { translate: { x: this.tran1 } },
      { translate: { y: this.tran1 } },
      { translate: { y: -this.tran1 } },
      { translate: {} }, // 中心无位移
      { translate: { y: this.tran1 } },
      { translate: { y: -this.tran1 } },
      { translate: { x: -this.tran1 } },
      { translate: { x: -this.tran1 } },
    ];
  }

  // 启动动画
  private startAnimation() {
    this.getUIContext().keyframeAnimateTo({ iterations: -1, delay: 0 }, [
      {
        duration: 600,
        curve: Curve.EaseInOut,
        event: () => {
          this.tran1 = 0;
          this.scaleSize = this.oldSize * 1.1;
        }
      },
      {
        duration: 600,
        curve: Curve.EaseIn,
        event: () => {
          this.scaleSize = this.oldSize * 0.75;
          this.tran1 = 0;
        }
      }
    ]);
  }

  @Styles
  chunkStyle(){
    .width(this.oldSize * 0.25)
    .height(this.oldSize * 0.25)
    .backgroundColor(this.spinColor)
    .shadow(ShadowStyle.OUTER_DEFAULT_XS)
  }
}

复制代码

代码如下：

TypeScript 复制代码

interface GridItemConfig {
  translate:Translate
}

interface Translate {
    x?: number;
    y?: number;
}

/**
 * TODO SpinKit动画组件（重构版）
 * author: 鸿蒙布道师
 * since: 2025/05/15
 */
@ComponentV2
export struct SpinNine {
  @Require @Param spinSize: number = 36;
  @Require @Param spinColor: ResourceColor;

  // 动画相关状态
  @Local scaleSize: number = this.spinSize * 0.75;
  @Local tran1: number = 0;
  private oldSize: number = this.spinSize;

  aboutToAppear(): void {
    this.oldSize = this.spinSize;
    this.scaleSize = this.spinSize * 0.75;
  }

  build() {
    Stack() {
      Grid() {
        ForEach(this.getGridItems(), (item:GridItemConfig, index) => {
          GridItem() {
            Canvas()
              .chunkStyle()
          }
          .translate(item.translate)
        });
      }
      .rowsTemplate('1fr 1fr 1fr')
      .columnsTemplate('1fr 1fr 1fr')
      .width(this.scaleSize)
      .height(this.scaleSize)
    }
    .width(this.oldSize)
    .height(this.oldSize)
    .alignContent(Alignment.Center)
    .onAppear(() => {
      this.startAnimation();
    })
  }

  // 获取 GridItem 配置数据
  private getGridItems():GridItemConfig[] {
    return [
      { translate: { x: this.tran1 } },
      { translate: { x: this.tran1 } },
      { translate: { y: this.tran1 } },
      { translate: { y: -this.tran1 } },
      { translate: {} }, // 中心无位移
      { translate: { y: this.tran1 } },
      { translate: { y: -this.tran1 } },
      { translate: { x: -this.tran1 } },
      { translate: { x: -this.tran1 } },
    ];
  }

  // 启动动画
  private startAnimation() {
    this.getUIContext().keyframeAnimateTo({ iterations: -1, delay: 0 }, [
      {
        duration: 600,
        curve: Curve.EaseInOut,
        event: () => {
          this.tran1 = 0;
          this.scaleSize = this.oldSize * 1.1;
        }
      },
      {
        duration: 600,
        curve: Curve.EaseIn,
        event: () => {
          this.scaleSize = this.oldSize * 0.75;
          this.tran1 = 0;
        }
      }
    ]);
  }

  @Styles
  chunkStyle(){
    .width(this.oldSize * 0.25)
    .height(this.oldSize * 0.25)
    .backgroundColor(this.spinColor)
    .shadow(ShadowStyle.OUTER_DEFAULT_XS)
  }
}

3.修改Index.ets文件，代码如下：

复制代码

import { SpinEight } from './Spin';

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Column() {
      SpinNine({
        spinSize: 60,
        spinColor: '#FF0000'
      })
    }
    .alignItems(HorizontalAlign.Center)
    .justifyContent(FlexAlign.Center)
    .height('100%')
    .width('100%')
  }
}

复制代码

代码如下：

TypeScript 复制代码

import { SpinEight } from './Spin';

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Column() {
      SpinNine({
        spinSize: 60,
        spinColor: '#FF0000'
      })
    }
    .alignItems(HorizontalAlign.Center)
    .justifyContent(FlexAlign.Center)
    .height('100%')
    .width('100%')
  }
}

4.运行项目，登录华为账号，需进行签名

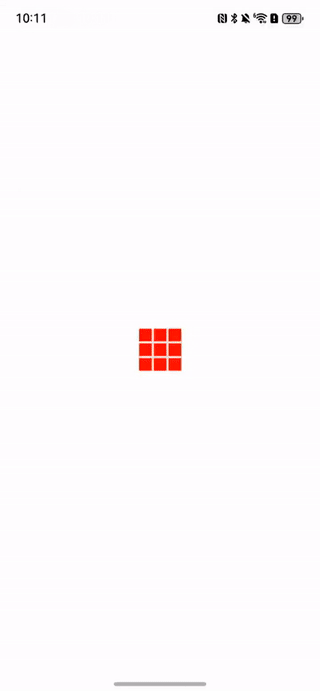

5.动画效果如下：
