1. 网络编程性能优化基础
1. 性能关键指标
|--------|-----------------|--------------|
| 指标 | 描述 | 优化目标 |
| 响应时间 | 从请求到响应的总时间 | 降低到毫秒级 |
| 吞吐量 | 单位时间内处理的请求数量 | 提高到每秒数千至数万请求 |
| 并发用户数 | 系统同时处理的用户数量 | 支持数千至数万并发连接 |
| 资源利用率 | CPU、内存、网络带宽的使用率 | 保持在合理水平避免瓶颈 |
2. 性能瓶颈分析

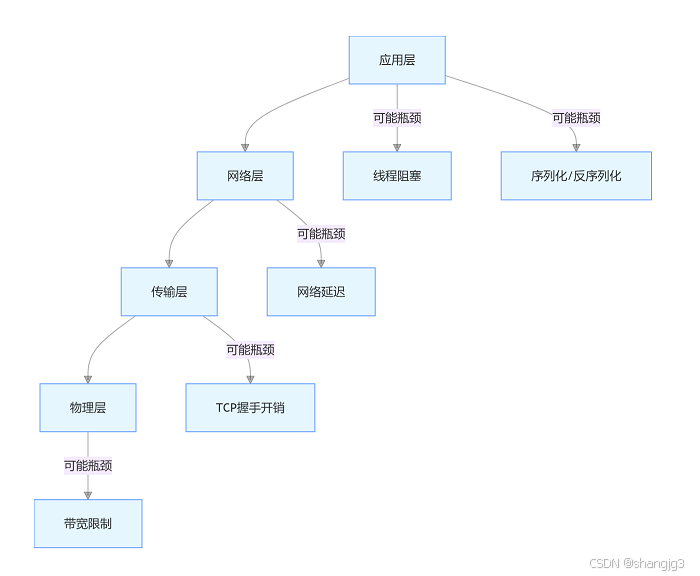

▶ 网络应用性能瓶颈层次
2. 连接池优化

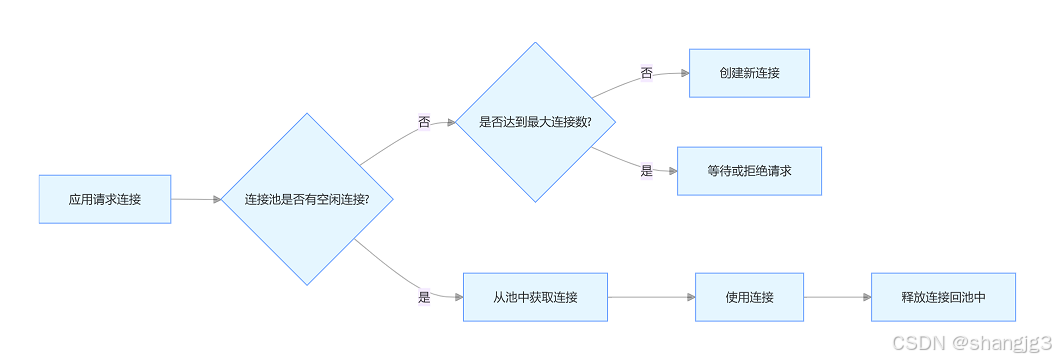

1. 连接池工作原理
2. HttpClient连接池示例
import` `org.apache.http.impl.client.CloseableHttpClient;`
`import` `org.apache.http.impl.client.HttpClients;`
`import` `org.apache.http.impl.conn.PoolingHttpClientConnectionManager;`
`public` `class` `HttpClientConnectionPoolExample` `{`
`private` `static` `CloseableHttpClient httpClient;`
`static` `{`
`// 创建连接池管理器`
`PoolingHttpClientConnectionManager cm =` `new` `PoolingHttpClientConnectionManager();`
`// 设置最大连接数`
` cm.setMaxTotal(200);`
`// 设置每个路由的默认连接数`
` cm.setDefaultMaxPerRoute(20);`
`// 创建HttpClient并配置连接池`
` httpClient =` `HttpClients.custom()`
`.setConnectionManager(cm)`
`.evictIdleConnections(30,` `TimeUnit.SECONDS)` `// 空闲连接超时时间`
`.build();`
`}`
`public` `static` `CloseableHttpResponse` `execute(HttpUriRequest request)` `throws` `IOException` `{`
`return httpClient.execute(request);`
`}`
`public` `static` `void` `main(String[] args)` `throws` `IOException` `{`
`HttpGet request =` `new` `HttpGet("https://example.com");`
`try` `(CloseableHttpResponse response =` `execute(request))` `{`
`System.out.println("Status code: "` `+ response.getStatusLine().getStatusCode());`
`}`
`}`
`}`
`3. 异步编程优化
1. 同步与异步对比

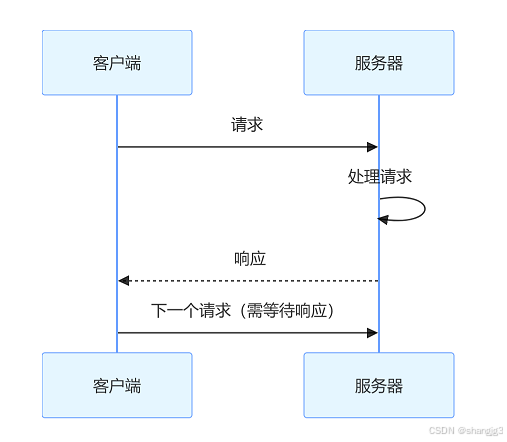

▶ 同步处理流程

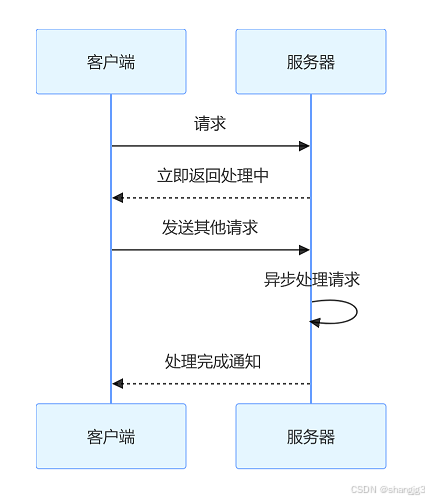

▶ 异步处理流程
2. CompletableFuture异步处理示例
import` `java.io.IOException;`
`import` `java.net.URI;`
`import` `java.net.http.HttpClient;`
`import` `java.net.http.HttpRequest;`
`import` `java.net.http.HttpResponse;`
`import` `java.util.concurrent.CompletableFuture;`
`import` `java.util.concurrent.ExecutorService;`
`import` `java.util.concurrent.Executors;`
`public` `class` `AsyncHttpClientExample` `{`
`private` `static` `final` `ExecutorService executor =` `Executors.newFixedThreadPool(10);`
`private` `static` `final` `HttpClient client =` `HttpClient.newBuilder()`
`.executor(executor)`
`.build();`
`public` `static` `CompletableFuture<String>` `fetchUrlAsync(String url)` `{`
`HttpRequest request =` `HttpRequest.newBuilder()`
`.uri(URI.create(url))`
`.build();`
`return client.sendAsync(request,` `HttpResponse.BodyHandlers.ofString())`
`.thenApply(response ->` `{`
`if` `(response.statusCode()` `==` `200)` `{`
`return response.body();`
`}` `else` `{`
`throw` `new` `RuntimeException("HTTP request failed: "` `+ response.statusCode());`
`}`
`})`
`.exceptionally(ex ->` `{`
`System.err.println("Error fetching URL: "` `+ ex.getMessage());`
`return` `null;`
`});`
`}`
`public` `static` `void` `main(String[] args)` `throws` `IOException,` `InterruptedException` `{`
`// 异步获取多个URL`
`CompletableFuture<String> future1 =` `fetchUrlAsync("https://example.com");`
`CompletableFuture<String> future2 =` `fetchUrlAsync("https://example.org");`
`// 所有任务完成后执行`
`CompletableFuture.allOf(future1, future2)`
`.thenRun(()` `->` `{`
`System.out.println("Both requests completed");`
`System.out.println("Length of response 1: "` `+` `(future1.join()` `!=` `null` `? future1.join().length()` `:` `0));`
`System.out.println("Length of response 2: "` `+` `(future2.join()` `!=` `null` `? future2.join().length()` `:` `0));`
` executor.shutdown();`
`});`
`// 主线程可以继续执行其他任务`
`System.out.println("Main thread continues...");`
`Thread.sleep(2000);`
`}`
`}`
`4. 数据缓存优化
1. 缓存策略与位置
▶ 多级缓存架构
2. Caffeine本地缓存示例
import` `com.github.benmanes.caffeine.cache.Cache;`
`import` `com.github.benmanes.caffeine.cache.Caffeine;`
`import` `java.util.concurrent.TimeUnit;`
`public` `class` `CaffeineCacheExample` `{`
`private` `static` `final` `Cache<String, String> cache =` `Caffeine.newBuilder()`
`.maximumSize(1000)` `// 最大缓存条目数`
`.expireAfterWrite(10,` `TimeUnit.MINUTES)` `// 写入后过期时间`
`.refreshAfterWrite(5,` `TimeUnit.MINUTES)` `// 写入后刷新时间`
`.build();`
`public` `static` `String` `getData(String key)` `{`
`// 尝试从缓存获取`
`String value = cache.getIfPresent(key);`
`if` `(value !=` `null)` `{`
`return value;`
`}`
`// 缓存未命中，从数据源获取`
` value =` `fetchFromDataSource(key);`
`if` `(value !=` `null)` `{`
` cache.put(key, value);`
`}`
`return value;`
`}`
`private` `static` `String` `fetchFromDataSource(String key)` `{`
`// 模拟从数据库或其他数据源获取数据`
`System.out.println("Fetching data from data source for key: "` `+ key);`
`return` `"Data for "` `+ key;`
`}`
`public` `static` `void` `main(String[] args)` `{`
`System.out.println(getData("key1"));` `// 第一次调用，从数据源获取`
`System.out.println(getData("key1"));` `// 第二次调用，从缓存获取`
`System.out.println(getData("key2"));` `// 新键，从数据源获取`
`}`
`}`
`5. 零拷贝技术
1. 传统数据传输流程
硬盘 --> 内核缓冲区 --> 用户缓冲区 --> 内核套接字缓冲区 --> 网络接口`
`2. 零拷贝数据传输流程
硬盘 --> 内核缓冲区 --> 网络接口`
`3. Java零拷贝示例
import` `java.io.FileInputStream;`
`import` `java.io.IOException;`
`import` `java.net.InetSocketAddress;`
`import` `java.nio.channels.FileChannel;`
`import` `java.nio.channels.SocketChannel;`
`public` `class` `ZeroCopyExample` `{`
`public` `static` `void` `main(String[] args)` `{`
`try` `(FileChannel fileChannel =` `new` `FileInputStream("large_file.dat").getChannel();`
`SocketChannel socketChannel =` `SocketChannel.open())` `{`
`// 连接到服务器`
` socketChannel.connect(new` `InetSocketAddress("example.com",` `8080));`
`// 使用transferTo实现零拷贝`
`long transferred =` `0;`
`long size = fileChannel.size();`
`while` `(transferred < size)` `{`
` transferred += fileChannel.transferTo(transferred, size - transferred, socketChannel);`
`}`
`System.out.println("文件传输完成，总字节数: "` `+ transferred);`
`}` `catch` `(IOException e)` `{`
` e.printStackTrace();`
`}`
`}`
`}`
`6. 性能监控与调优
1. 关键监控指标
|--------|---------------|-----------------------------|
| 类别 | 指标 | 工具 |
| 系统 | CPU 使用率、内存使用率 | top, htop, jstat |
| 网络 | 带宽利用率、连接数 | iftop, netstat, ss |
| JVM | GC 频率、堆内存使用 | jstat, jmap, VisualVM |
| 应用 | 请求响应时间、吞吐量 | JMeter, Gatling, Prometheus |
7. 综合优化示例
1. 优化后的HTTP服务器
import` `java.io.IOException;`
`import` `java.net.InetSocketAddress;`
`import` `java.nio.ByteBuffer;`
`import` `java.nio.channels.*;`
`import` `java.util.Iterator;`
`import` `java.util.concurrent.ExecutorService;`
`import` `java.util.concurrent.Executors;`
`public` `class` `OptimizedHttpServer` `{`
`private` `static` `final` `int PORT =` `8080;`
`private` `static` `final` `int BUFFER_SIZE =` `8192;`
`private` `static` `final` `int THREAD_POOL_SIZE =` `100;`
`private` `final` `Selector selector;`
`private` `final` `ServerSocketChannel serverChannel;`
`private` `final` `ExecutorService threadPool;`
`private` `final` `ByteBuffer buffer =` `ByteBuffer.allocateDirect(BUFFER_SIZE);` `// 直接内存缓冲区`
`public` `OptimizedHttpServer()` `throws` `IOException` `{`
` selector =` `Selector.open();`
` serverChannel =` `ServerSocketChannel.open();`
` serverChannel.configureBlocking(false);`
` serverChannel.socket().bind(new` `InetSocketAddress(PORT));`
` serverChannel.register(selector,` `SelectionKey.OP_ACCEPT);`
` threadPool =` `Executors.newFixedThreadPool(THREAD_POOL_SIZE);`
`System.out.println("服务器启动，监听端口: "` `+ PORT);`
`}`
`public` `void` `start()` `{`
`try` `{`
`while` `(true)` `{`
` selector.select();`
`Iterator<SelectionKey> keys = selector.selectedKeys().iterator();`
`while` `(keys.hasNext())` `{`
`SelectionKey key = keys.next();`
` keys.remove();`
`if` `(key.isAcceptable())` `{`
`handleAccept(key);`
`}` `else` `if` `(key.isReadable())` `{`
`handleRead(key);`
`}`
`}`
`}`
`}` `catch` `(IOException e)` `{`
` e.printStackTrace();`
`}` `finally` `{`
`try` `{`
` selector.close();`
` serverChannel.close();`
` threadPool.shutdown();`
`}` `catch` `(IOException e)` `{`
` e.printStackTrace();`
`}`
`}`
`}`
`private` `void` `handleAccept(SelectionKey key)` `throws` `IOException` `{`
`ServerSocketChannel server =` `(ServerSocketChannel) key.channel();`
`SocketChannel client = server.accept();`
` client.configureBlocking(false);`
` client.register(selector,` `SelectionKey.OP_READ);`
`}`
`private` `void` `handleRead(SelectionKey key)` `{`
`SocketChannel client =` `(SocketChannel) key.channel();`
` threadPool.submit(()` `->` `{`
`try` `{`
` buffer.clear();`
`int bytesRead = client.read(buffer);`
`if` `(bytesRead ==` `-1)` `{`
` client.close();`
`return;`
`}`
` buffer.flip();`
`// 处理HTTP请求（实际应用中应该解析请求并生成响应）`
`String response =` `"HTTP/1.1 200 OK\r\n"` `+`
`"Content-Type: text/plain\r\n"` `+`
`"Content-Length: 12\r\n"` `+`
`"\r\n"` `+`
`"Hello World!";`
`ByteBuffer responseBuffer =` `ByteBuffer.wrap(response.getBytes());`
`while` `(responseBuffer.hasRemaining())` `{`
` client.write(responseBuffer);`
`}`
`}` `catch` `(IOException e)` `{`
`try` `{`
` client.close();`
`}` `catch` `(IOException ex)` `{`
` ex.printStackTrace();`
`}`
`}`
`});`
`}`
`public` `static` `void` `main(String[] args)` `{`
`try` `{`
`OptimizedHttpServer server =` `new` `OptimizedHttpServer();`
` server.start();`
`}` `catch` `(IOException e)` `{`
` e.printStackTrace();`
`}`
`}`
`}`
`8. 优化总结
|--------|-----------------|--------------|
| 技术 | 适用场景 | 性能提升点 |
| 连接池 | 频繁创建和销毁连接的场景 | 减少连接创建开销 |
| 异步编程 | I/O 密集型应用 | 提高线程利用率 |
| 数据缓存 | 数据读取频繁且变化不频繁的场景 | 减少数据获取时间 |
| 零拷贝 | 大文件传输或数据复制场景 | 减少 CPU 和内存开销 |
| 直接内存 | 频繁进行内存分配和释放的场景 | 减少 GC 压力 |
通过合理组合使用这些优化技术，可以显著提高Java网络应用的响应速度和吞吐量，更好地应对高并发场景。
