SM3算法Python实现（无第三方库）

一、SM3算法介绍

SM3算法是中国国家密码管理局（OSCCA）于2010年发布的商用密码散列函数标准，属于我国自主设计的密码算法体系之一，标准文档下载地址为：SM3密码杂凑算法。SM3算法输出长度为256位（32字节），与SHA-256类似，但采用了更适合国内安全需求的优化结构。SM3基于Merkle-Damgård迭代结构，通过填充、消息分组、扩展和压缩等步骤处理输入数据，确保任意长度的消息都能生成固定长度的摘要。作为我国密码行业标准（GM/T 0004-2012），SM3在政务、金融、物联网等领域广泛应用，是我国信息安全国产化的重要支撑。

SM3算法的核心流程包括消息填充、消息扩展和压缩函数三部分。首先，输入数据会被填充至512位的整数倍，并附加长度信息。随后，消息分组通过扩展算法生成132个32位字，供压缩函数使用。压缩函数采用64轮非线性迭代运算，结合与、或、异或、模加法等操作，并引入多个常量进行混淆，确保雪崩效应（微小输入变化导致输出巨大差异）。SM3的设计在安全性和效率上取得平衡，能够有效抵抗碰撞攻击、长度扩展攻击等威胁。

二、Python代码实现

SM3算法的Python实现如下所示，大致可以分为三个部分：

1. 初始化与基础运算函数

SM3 类初始化时设定默认的初始向量 IV（8个32位常量）和字符编码方式（ASCII/UTF-8/GBK）。核心辅助函数包括：

cshift_left(x, l)：实现32位整数的循环左移，确保位移后仍为32位。
Tj(j)：根据轮数返回常量（前16轮为0x79cc4519，后48轮为0x7a879d8a）。
FFj 和 GGj：布尔函数，分别用于压缩函数中的非线性运算，前16轮使用异或逻辑，后48轮改用与/或逻辑增强扩散性。
P0 和 P1：置换函数，通过循环左移和异或操作打乱数据（P0用于压缩末步，P1用于消息扩展）。

2. 消息填充与分组处理

padding(msg) 方法将输入消息按SM3标准填充为512位的整数倍：

数据转换：支持字符串、整数或字节流输入，统一转为字节序列。
填充规则：末尾添加0x80，补零至长度满足 (消息长度 + 64) % 512 = 0，最后64位写入原始消息长度的二进制表示。
分组输出：返回16字（32位/字）的块列表，每块包含填充后的数据，用于后续压缩。

3. 压缩函数与摘要生成

CF(V, B)：压缩函数的核心，处理单个512位分组：

消息扩展：将16字的输入块B扩展为68字（W0）和64字（W1），通过P1置换增强非线性。
64轮迭代：每轮更新8个工作变量（A-H），结合SS1/SS2位移、TT1/TT2混合运算及P0置换，实现高强度混淆。

compression(msg)：驱动流程，调用padding分块后，逐块应用CF压缩，最终将8个状态变量拼接为256位哈希值，以字节形式输出。

python 复制代码

class SM3:
    def __init__(self, encoding='ascii'):  # encodine:ascii/utf-8/gbk
        self.IV = [0x7380166f, 0x4914b2b9, 0x172442d7, 0xda8a0600, 0xa96f30bc, 0x163138aa, 0xe38dee4d, 0xb0fb0e4e]
        self.encoding = encoding

    def cshift_left(self, x, l):
        while l >= 32:
            l -= 32
        x = x & 0xffffffff
        bin_x = '{:032b}'.format(x)
        bin_x = bin_x[l:] + bin_x[:l]
        return int(bin_x, 2)

    def Tj(self, j):
        if (j < 16):
            return 0x79cc4519
        else:
            return 0x7a879d8a

    def FFj(self, x, y, z, j):
        if j < 16:
            return x ^ y ^ z
        else:
            return (x & y) | (x & z) | (y & z)

    def GGj(self, x, y, z, j):
        if j < 16:
            return x ^ y ^ z
        else:
            return (x & y) | (~x & z)

    def P0(self, x):
        return x ^ self.cshift_left(x, 9) ^ self.cshift_left(x, 17)

    def P1(self, x):
        return x ^ self.cshift_left(x, 15) ^ self.cshift_left(x, 23)

    def padding(self, msg):
        msg_len = len(msg)
        msg_blen = msg_len << 3
        m, n = msg_len >> 2, msg_len & 3
        block = []
        one_block = []
        if type(msg) == type(''):
            bt_msg = msg.encode(encoding=self.encoding, errors='strict')
        elif type(msg) == type(0):
            bt_msg = msg.to_bytes((msg.bit_length() + 7) // 8, "big")
        else:
            bt_msg = msg
        for i in range(m):
            wd = bt_msg[0] << 24 | bt_msg[1] << 16 | bt_msg[2] << 8 | bt_msg[3]
            one_block.append(wd)
            bt_msg = bt_msg[4:]
            if i & 15 == 15:
                block.append(one_block.copy())
                one_block.clear()
        if n == 0:
            new_wd = 0x80 << 24
        elif n == 1:
            new_wd = bt_msg[0] << 24 | 0x80 << 16
        elif n == 2:
            new_wd = bt_msg[0] << 24 | bt_msg[1] << 16 | 0x80 << 8
        else:
            new_wd = bt_msg[0] << 24 | bt_msg[1] << 16 | bt_msg[2] << 8 | 0x80
        one_block.append(new_wd)
        ob_len = len(one_block)
        if ob_len <= 14:
            for i in range(14 - ob_len):
                one_block.append(0)
            one_block.append(msg_blen >> 32)
            one_block.append(msg_blen & 0xffffffff)
            block.append(one_block.copy())
        else:
            for i in range(16 - ob_len):
                one_block.append(0)
            block.append(one_block.copy())
            one_block = [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, msg_blen >> 32, msg_blen & 0xffffffff]
            block.append(one_block.copy())
        return block

    def CF(self, V, B):
        W0, W1 = B.copy(), []
        for i in range(16, 68):
            wd = self.P1(W0[i - 16] ^ W0[i - 9] ^ self.cshift_left(W0[i - 3], 15)) ^ self.cshift_left(W0[i - 13], 7) ^ \
                 W0[i - 6]
            W0.append(wd)
        for i in range(64):
            W1.append(W0[i] ^ W0[i + 4])
        A, B, C, D, E, F, G, H = V
        for i in range(64):
            SS1 = (self.cshift_left(self.cshift_left(A, 12) + E + self.cshift_left(self.Tj(i), i), 7)) & 0xffffffff
            SS2 = SS1 ^ self.cshift_left(A, 12)
            TT1 = (self.FFj(A, B, C, i) + D + SS2 + W1[i]) & 0xffffffff
            TT2 = (self.GGj(E, F, G, i) + H + SS1 + W0[i]) & 0xffffffff
            D = C
            C = self.cshift_left(B, 9)
            B = A
            A = TT1
            H = G
            G = self.cshift_left(F, 19)
            F = E
            E = self.P0(TT2)
        return A, B, C, D, E, F, G, H

    def compression(self, msg):
        block = self.padding(msg)
        V = self.IV
        for bi in block:
            res = self.CF(V, bi)
            for i in range(8):
                V[i] = V[i] ^ res[i]
        res = b''.join(v.to_bytes(4, "big") for v in V)
        return res

三、正确性验证

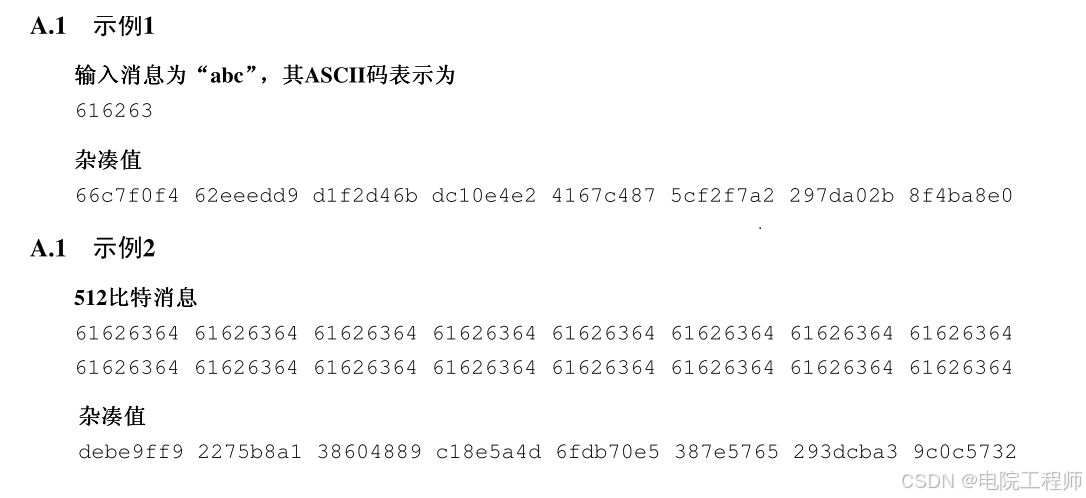

我们编写了下面的代码进行正确性验证，这是SM3标准文档中的两个测试向量：

python 复制代码

def test_case1():
    msg = "abc"
    expected_hash=0x66c7f0f462eeedd9d1f2d46bdc10e4e24167c4875cf2f7a2297da02b8f4ba8e0
    test_hash_bytes = SM3().compression(msg)
    test_hash=int.from_bytes(test_hash_bytes, 'big')
    if test_hash == expected_hash:
        print('测试用例1通过.')
    else:
        print('测试用例1失败')

def test_case2():
    msg = "abcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcd"
    expected_hash=0xdebe9ff92275b8a138604889c18e5a4d6fdb70e5387e5765293dcba39c0c5732
    test_hash_bytes = SM3().compression(msg)
    test_hash=int.from_bytes(test_hash_bytes, 'big')
    if test_hash == expected_hash:
        print('测试用例2通过.')
    else:
        print('测试用例2失败')

if __name__ == '__main__':
    test_case1()
    test_case2()

需要注意示例2中512比特消息为16进制数表示，我们的测试用例2中的字符"abcd"对应的ASCII码正是"0x61, 0x62, 0x63, 0x64"。运行代码后，输出如下图，我们的代码正确运行。

为了方便读者直接运行，我们的完整代码如下：

python 复制代码

class SM3:
    def __init__(self, encoding='ascii'):  # encodine:ascii/utf-8/gbk
        self.IV = [0x7380166f, 0x4914b2b9, 0x172442d7, 0xda8a0600, 0xa96f30bc, 0x163138aa, 0xe38dee4d, 0xb0fb0e4e]
        self.encoding = encoding

    def cshift_left(self, x, l):
        while l >= 32:
            l -= 32
        x = x & 0xffffffff
        bin_x = '{:032b}'.format(x)
        bin_x = bin_x[l:] + bin_x[:l]
        return int(bin_x, 2)

    def Tj(self, j):
        if (j < 16):
            return 0x79cc4519
        else:
            return 0x7a879d8a

    def FFj(self, x, y, z, j):
        if j < 16:
            return x ^ y ^ z
        else:
            return (x & y) | (x & z) | (y & z)

    def GGj(self, x, y, z, j):
        if j < 16:
            return x ^ y ^ z
        else:
            return (x & y) | (~x & z)

    def P0(self, x):
        return x ^ self.cshift_left(x, 9) ^ self.cshift_left(x, 17)

    def P1(self, x):
        return x ^ self.cshift_left(x, 15) ^ self.cshift_left(x, 23)

    def padding(self, msg):
        msg_len = len(msg)
        msg_blen = msg_len << 3
        m, n = msg_len >> 2, msg_len & 3
        block = []
        one_block = []
        if type(msg) == type(''):
            bt_msg = msg.encode(encoding=self.encoding, errors='strict')
        elif type(msg) == type(0):
            bt_msg = msg.to_bytes((msg.bit_length() + 7) // 8, "big")
        else:
            bt_msg = msg
        for i in range(m):
            wd = bt_msg[0] << 24 | bt_msg[1] << 16 | bt_msg[2] << 8 | bt_msg[3]
            one_block.append(wd)
            bt_msg = bt_msg[4:]
            if i & 15 == 15:
                block.append(one_block.copy())
                one_block.clear()
        if n == 0:
            new_wd = 0x80 << 24
        elif n == 1:
            new_wd = bt_msg[0] << 24 | 0x80 << 16
        elif n == 2:
            new_wd = bt_msg[0] << 24 | bt_msg[1] << 16 | 0x80 << 8
        else:
            new_wd = bt_msg[0] << 24 | bt_msg[1] << 16 | bt_msg[2] << 8 | 0x80
        one_block.append(new_wd)
        ob_len = len(one_block)
        if ob_len <= 14:
            for i in range(14 - ob_len):
                one_block.append(0)
            one_block.append(msg_blen >> 32)
            one_block.append(msg_blen & 0xffffffff)
            block.append(one_block.copy())
        else:
            for i in range(16 - ob_len):
                one_block.append(0)
            block.append(one_block.copy())
            one_block = [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, msg_blen >> 32, msg_blen & 0xffffffff]
            block.append(one_block.copy())
        return block

    def CF(self, V, B):
        W0, W1 = B.copy(), []
        for i in range(16, 68):
            wd = self.P1(W0[i - 16] ^ W0[i - 9] ^ self.cshift_left(W0[i - 3], 15)) ^ self.cshift_left(W0[i - 13], 7) ^ \
                 W0[i - 6]
            W0.append(wd)
        for i in range(64):
            W1.append(W0[i] ^ W0[i + 4])
        A, B, C, D, E, F, G, H = V
        for i in range(64):
            SS1 = (self.cshift_left(self.cshift_left(A, 12) + E + self.cshift_left(self.Tj(i), i), 7)) & 0xffffffff
            SS2 = SS1 ^ self.cshift_left(A, 12)
            TT1 = (self.FFj(A, B, C, i) + D + SS2 + W1[i]) & 0xffffffff
            TT2 = (self.GGj(E, F, G, i) + H + SS1 + W0[i]) & 0xffffffff
            D = C
            C = self.cshift_left(B, 9)
            B = A
            A = TT1
            H = G
            G = self.cshift_left(F, 19)
            F = E
            E = self.P0(TT2)
        return A, B, C, D, E, F, G, H

    def compression(self, msg):
        block = self.padding(msg)
        V = self.IV
        for bi in block:
            res = self.CF(V, bi)
            for i in range(8):
                V[i] = V[i] ^ res[i]
        res = b''.join(v.to_bytes(4, "big") for v in V)
        return res

def test_case1():
    msg = "abc"
    expected_hash=0x66c7f0f462eeedd9d1f2d46bdc10e4e24167c4875cf2f7a2297da02b8f4ba8e0
    test_hash_bytes = SM3().compression(msg)
    test_hash=int.from_bytes(test_hash_bytes, 'big')
    if test_hash == expected_hash:
        print('测试用例1通过.')
    else:
        print('测试用例1失败')

def test_case2():
    msg = "abcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcdabcd"
    expected_hash=0xdebe9ff92275b8a138604889c18e5a4d6fdb70e5387e5765293dcba39c0c5732
    test_hash_bytes = SM3().compression(msg)
    test_hash=int.from_bytes(test_hash_bytes, 'big')
    if test_hash == expected_hash:
        print('测试用例2通过.')
    else:
        print('测试用例2失败')

if __name__ == '__main__':
    test_case1()
    test_case2()
