gradle7.6.1+springboot3.2.4创建微服务工程

目录

一、创建主工程cloud-demo并删除src目录

二、创建子工程user-service/order-service

三、更改父工程build.gradle文件

四、子工程使用mybatis框架

五、子工程使用mybatis-plus框架

六、相关数据库创建

七、最终目录结构

---

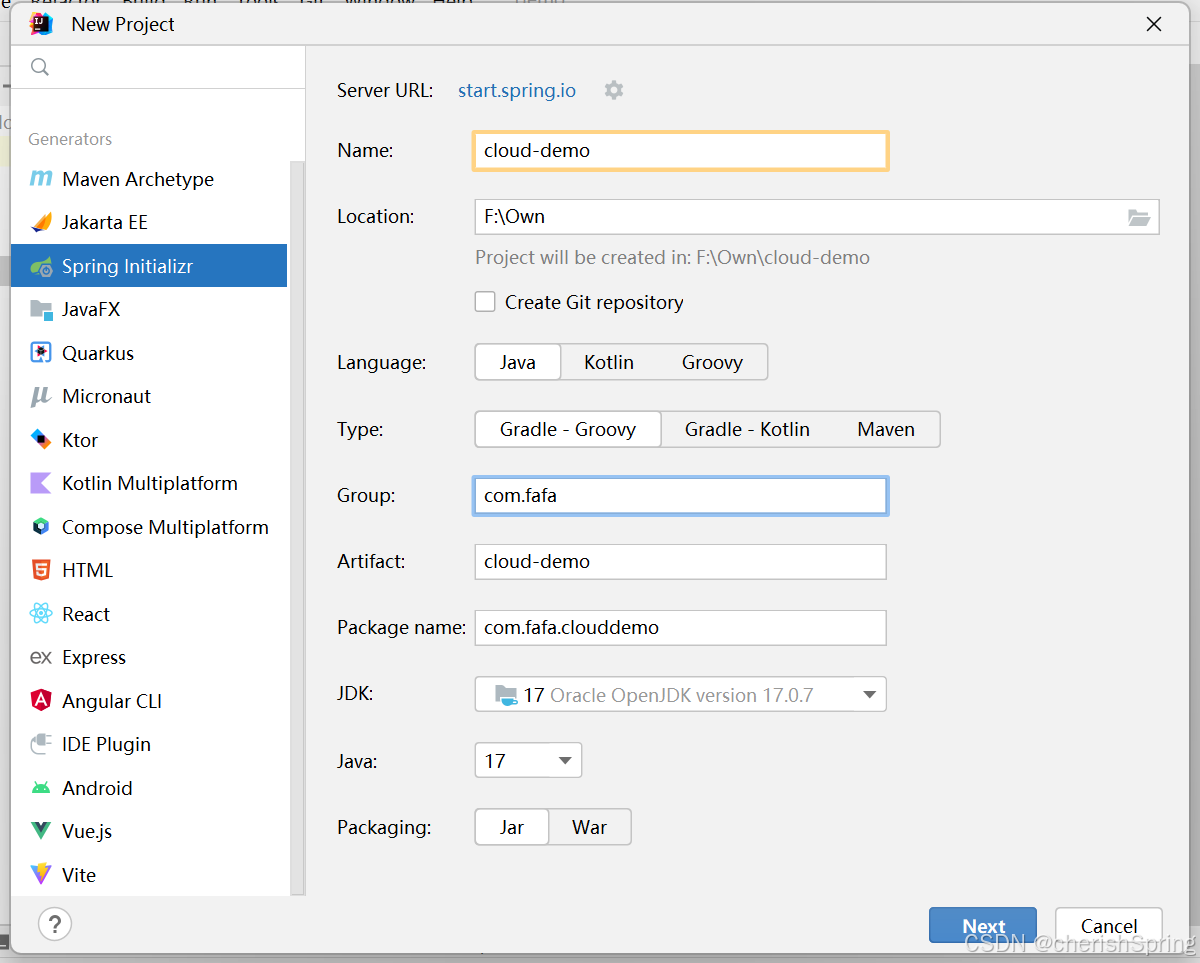

一、创建主工程cloud-demo并删除src目录

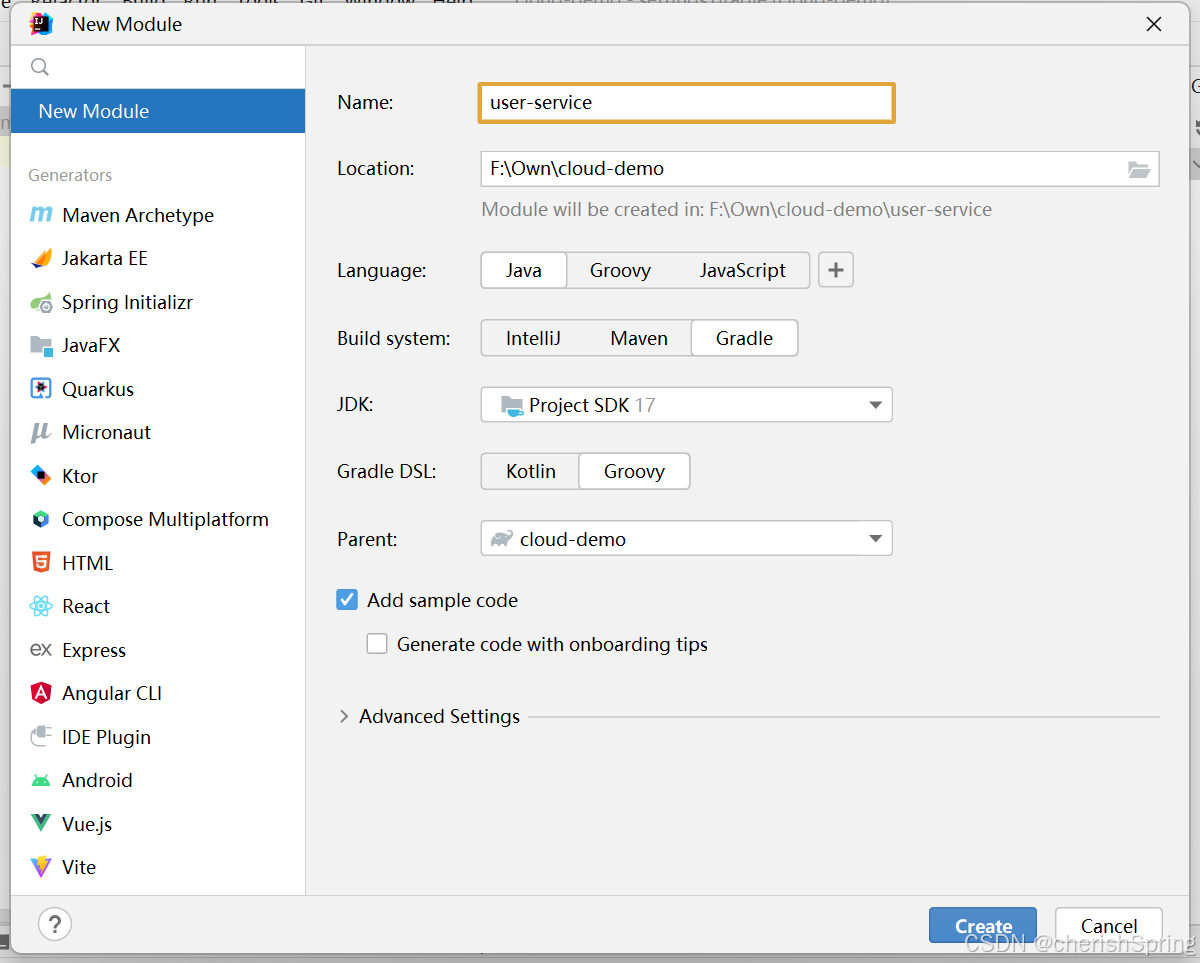

二、创建子工程user-service/order-service

三、更改父工程build.gradle文件

• ext内容需配合设置云效仓库参数到环境变量及gradle使用-CSDN博客使用

plugins {
	id 'org.springframework.boot' version '3.2.4'
	id 'io.spring.dependency-management' version '1.1.4'
}

group = 'com.fafa'

subprojects {
	apply plugin: 'org.springframework.boot'
	apply plugin: 'io.spring.dependency-management'
	apply plugin: 'java'

	sourceCompatibility = 17
	targetCompatibility = 17

	ext {
		MAVEN_REPO_RELEASE_URL = System.getenv('MAVEN_REPO_RELEASE_URL')
		MAVEN_REPO_SNAPSHOT_URL = System.getenv('MAVEN_REPO_SNAPSHOT_URL')
		MAVEN_DEPLOY_USER = System.getenv('MAVEN_DEPLOY_USER')
		MAVEN_DEPLOY_PASSWORD = System.getenv('MAVEN_DEPLOY_PASSWORD')
	}

	repositories {
		maven { url "https://maven.aliyun.com/nexus/content/groups/public/" }
		maven {
			url 'https://maven.aliyun.com/repository/public'
		}
		maven { url "https://repo.spring.io/milestone" }
		maven { url "https://plugins.gradle.org/m2/" }
		maven {
			credentials {
				username MAVEN_DEPLOY_USER
				password MAVEN_DEPLOY_PASSWORD
			}
			url MAVEN_REPO_RELEASE_URL
		}
		maven {
			credentials {
				username MAVEN_DEPLOY_USER
				password MAVEN_DEPLOY_PASSWORD
			}
			url MAVEN_REPO_SNAPSHOT_URL
		}
		mavenCentral()
	}

	dependencies {
		//Spring Boot Web 启动器
		implementation 'org.springframework.boot:spring-boot-starter-web'

		compileOnly 'org.projectlombok:lombok'
		runtimeOnly 'com.mysql:mysql-connector-j'
		annotationProcessor 'org.projectlombok:lombok'

		testImplementation 'org.springframework.boot:spring-boot-starter-test'
	}

	test {
		useJUnitPlatform()
	}

	sourceSets {
		main {
		resources {
			srcDirs = ['src/main/resources']
			}
		}
	}

	tasks.withType(JavaCompile) {
		options.encoding = "UTF-8"
		doLast {
			copy {
				from sourceSets.main.resources
				into "$buildDir/resources/main"
			}
		}
	}
}

四、子工程使用mybatis框架

• build.gradle

group = 'com.fafa.order'
version = '1.0'
description = "order-service"

apply plugin: 'application'

dependencies {
	implementation 'org.mybatis.spring.boot:mybatis-spring-boot-starter:3.0.3'
}

• application.yml

server:
	port: 8084

spring:
	datasource:
		url: jdbc:mysql://localhost:3306/db_order?useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
		username: root
		password: 123456
mybatis:
	mapper-locations: classpath:/mappers/**/*.xml
	type-aliases-package: com.fafa.order.entity

• OrderMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
	<mapper namespace="com.fafa.order.mapper.OrderMapper">
		<resultMap type="Order" id="orderResult">
		<result property="orderId" column="order_id"/>
		<result property="orderName" column="order_name"/>
		<result property="goodsId" column="goods_id"/>
		<result property="summary" column="summary"/>
	</resultMap>

	<sql id="selectOrderVo">
		select * from order_info
	</sql>

	<select id="getAll" parameterType="Order" resultMap="orderResult">
		<include refid="selectOrderVo"/>
		<where>
			<if test="orderName != null ">and order_name like concat('%', #{orderName}, '%')</if>
		</where>
		order by order_id desc
	</select>
</mapper>

• Order.java

package com.fafa.order.entity;
import lombok.Data;

@Data
public class Order {
	private int orderId;
	private String orderName;
	private int goodsId;
	private int summary;
}

• OrderMapper.java

package com.fafa.order.mapper;
import com.fafa.order.entity.Order;
import org.apache.ibatis.annotations.Mapper;
import java.util.List;

@Mapper
public interface OrderMapper {
	public List<Order> getAll(Order order);
}

• IOrderService.java

package com.fafa.order.service;
import com.fafa.order.entity.Order;
import java.util.List;

public interface IOrderService {
	List<Order> getAll(Order order);
}

• OrderService.java

package com.fafa.order.service;
import com.fafa.order.entity.Order;
import com.fafa.order.mapper.OrderMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;

@Service
public class OrderService implements IOrderService{
	@Autowired
	private OrderMapper orderMapper;

	@Override
	public List<Order> getAll(Order order) {
		return orderMapper.getAll(order);
	}
}

• OrderController.java

package com.fafa.order.controller;
import com.fafa.order.entity.Order;
import com.fafa.order.service.IOrderService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@RequestMapping("/order")
public class OrderController {
	@Autowired
	private IOrderService orderService;

	@GetMapping("/getAll")
	public List<Order> getAll(Order order) {
		return orderService.getAll(null);
	}
}

• OrderApplication.java

package com.fafa.order;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class OrderApplication {
	public static void main(String[] args) {
		SpringApplication.run(OrderApplication.class, args);
	}
}

• OrderApplicationTests.java

package com.fafa.order;
import com.fafa.order.entity.Order;
import com.fafa.order.service.IOrderService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.util.Assert;
import java.util.List;

@SpringBootTest
public class OrderApplicationTests {
	@Autowired
	private IOrderService orderService;

	@Test
	public void getAll(){
		List<Order> list=orderService.getAll(null);
		Assert.isTrue(list.isEmpty(),"有数据");
		list.forEach(System.out::println);
	}
}

• test.http

### getAll
GET http://localhost:8084/order/getAll
Accept: application/json

五、子工程使用mybatis-plus框架

参考文章：gradle7.6.1+springboot3.2.4+mybatis-plus搭建工程-CSDN博客

六、相关数据库创建

create database db_order;
use db_order;

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for order_info
-- ----------------------------
DROP TABLE IF EXISTS `order_info`;
CREATE TABLE `order_info` (
	`order_id` bigint NOT NULL AUTO_INCREMENT COMMENT '订单ID',
	`order_name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '订单名称',
	`goods_id` bigint NULL DEFAULT NULL COMMENT '商品ID',
	`summary` bigint NULL DEFAULT NULL COMMENT '总额',
	PRIMARY KEY (`order_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = '订单信息' ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

create database db_user;
use db_user;

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user_info
-- ----------------------------
DROP TABLE IF EXISTS `user_info`;
CREATE TABLE `user_info` (
	`user_id` bigint NOT NULL AUTO_INCREMENT COMMENT '用户ID',
	`user_name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT '' COMMENT '用户名',
	`sex` tinyint NULL DEFAULT 0 COMMENT '性别 0 未知 1女 2男',
	PRIMARY KEY (`user_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = '用户表' ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

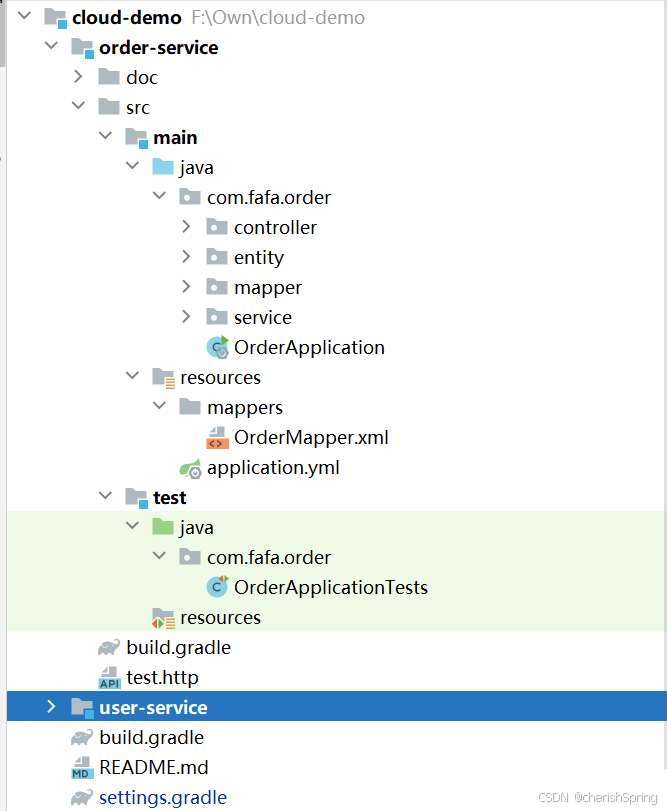

七、最终目录结构
