【RK3566】适用于萌新与小白的立创泰山派到手初体验速通教程

前言

本文目前只涉及到了立创泰山派到手后的速通验货过程，后面的虚拟机内的编译过程演示请等待后续更新······

一、以2G+16G版本的立创泰山派为例的速通验货过程

1.到手后拆开包装，仔细有没有因为检查运输导致出现的物理损坏与硬件是否齐全。

2.2G+16G版本的立创泰山派出厂时，就在EMMC里刷好了Android系统，利用已刷的Android系统进行初步验证。

（1）接入显示设备查看Android系统是否运行正常，如果有带HDMI接口的显示器设备的读者使用HDMI转miniHDMI的接口将其与显示器连接起来，然后再上电！但是，如果没有mini屏幕和显示器的读者，因为是安卓系统所以可以使用远程桌面访问工具进行验证。

显示器：

远程桌面：

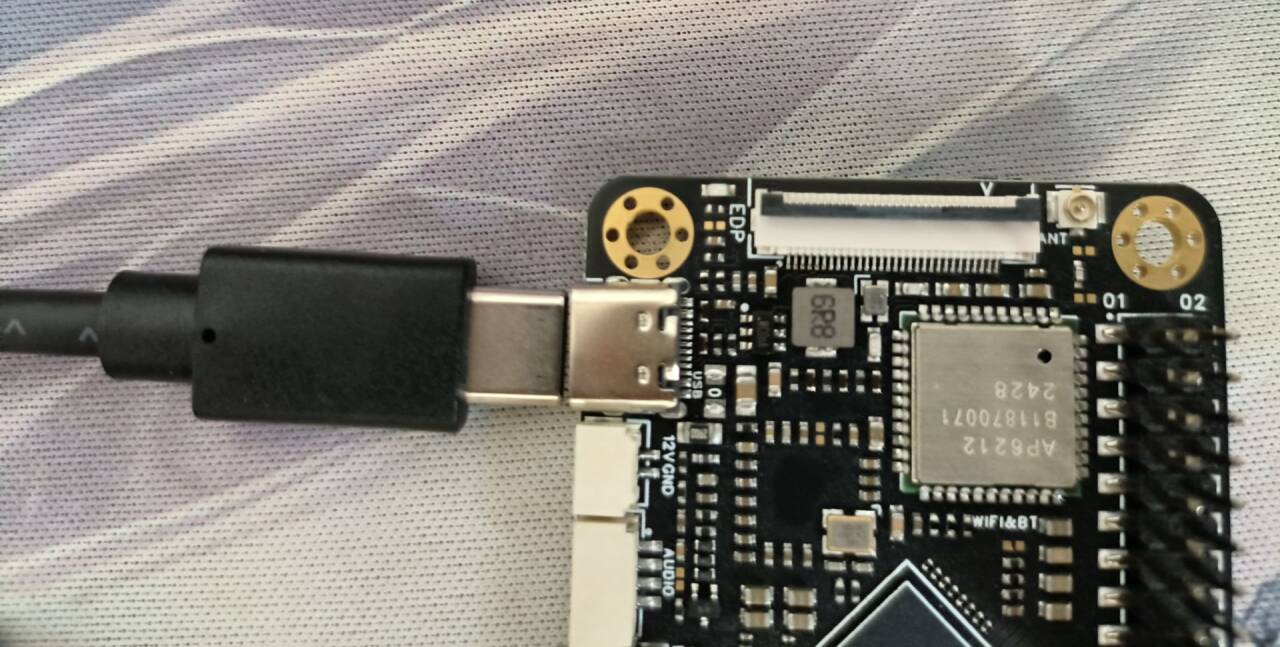

远程桌面访问就是ADB调试口，一定要用typeC-USB连接电脑。

查看是否接入成功。

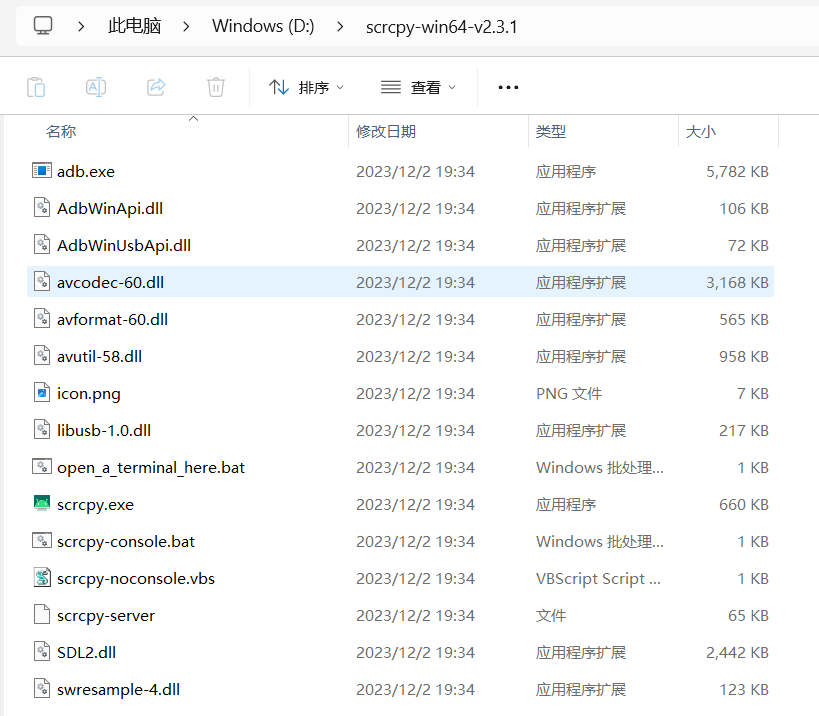

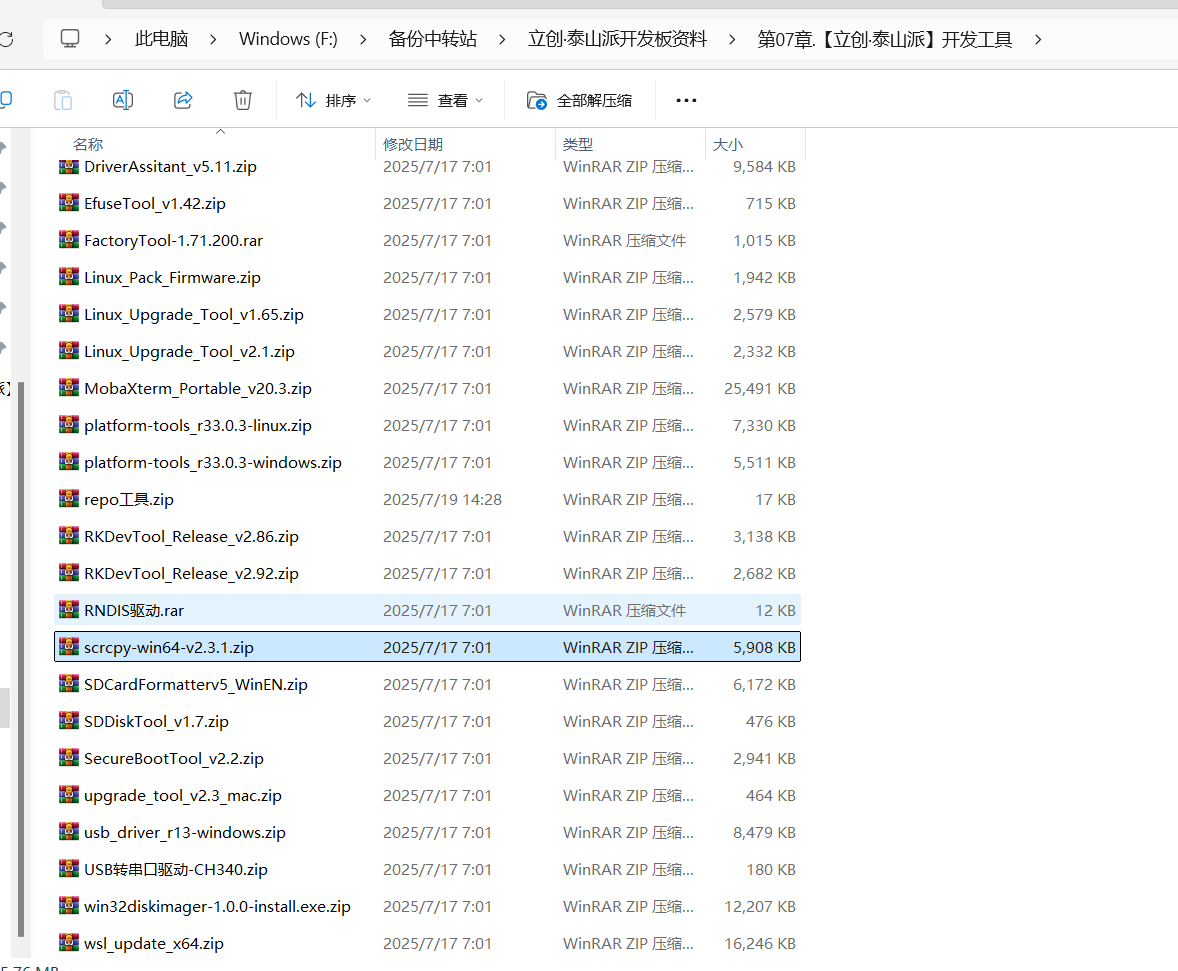

然后，去立创官方那里下载资料，在\立创·泰山派开发板资料\第07章.【立创·泰山派】开发工具的文件夹下，就使用scrcpy工具，直接点击scrcpy.exe运行就可以看到界面了，但是要注意查看开发板的RGB灯正常循环点亮才是系统正常运行。

（2）供电说明：将一根具有供电和数据传输的typeC数据线与开发板的typeC-USB口相连接，建议最好使用电源转接板进行稳定供电。注意：泰山派有两种供电方式分别是通过typec供电与外接电源座供电，如果使用typeC接电脑的情况下不建议再接外接电源座共同供电，避免意外造成电脑损伤，后果需自行承担。

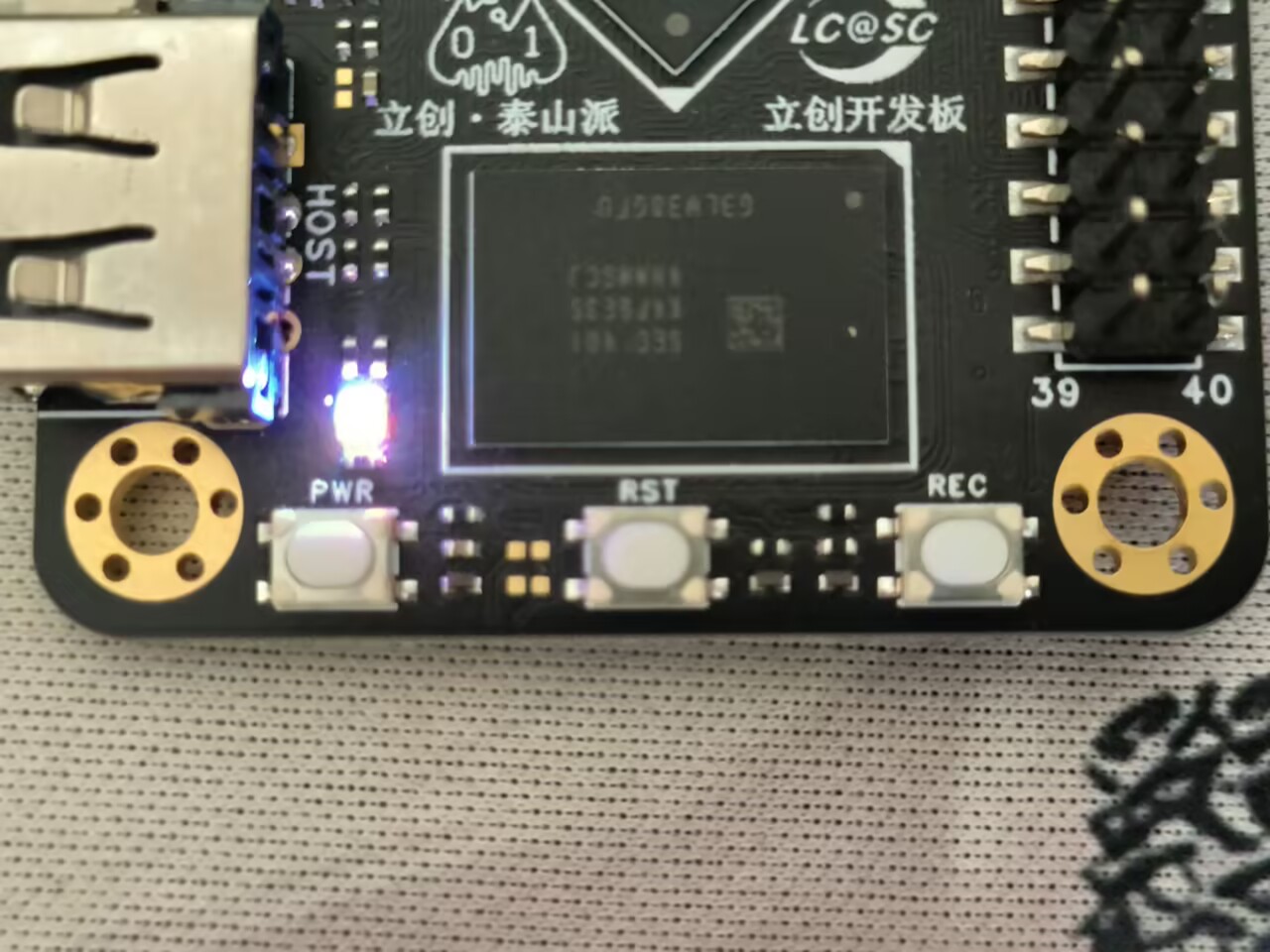

RGB循环点亮表示系统运行正常。

3.烧录Ubuntu系统镜像

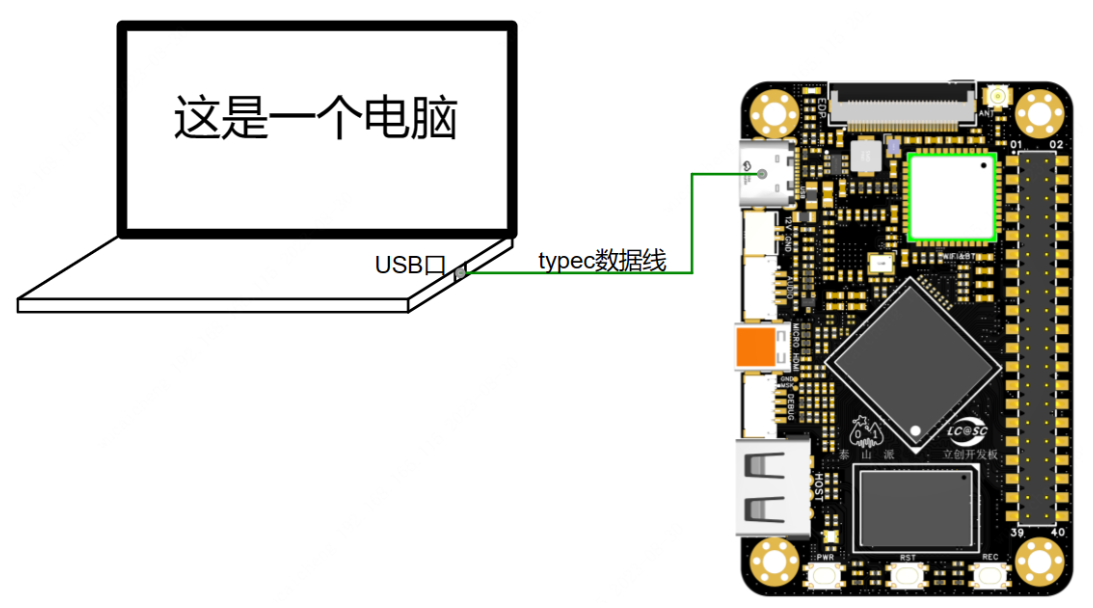

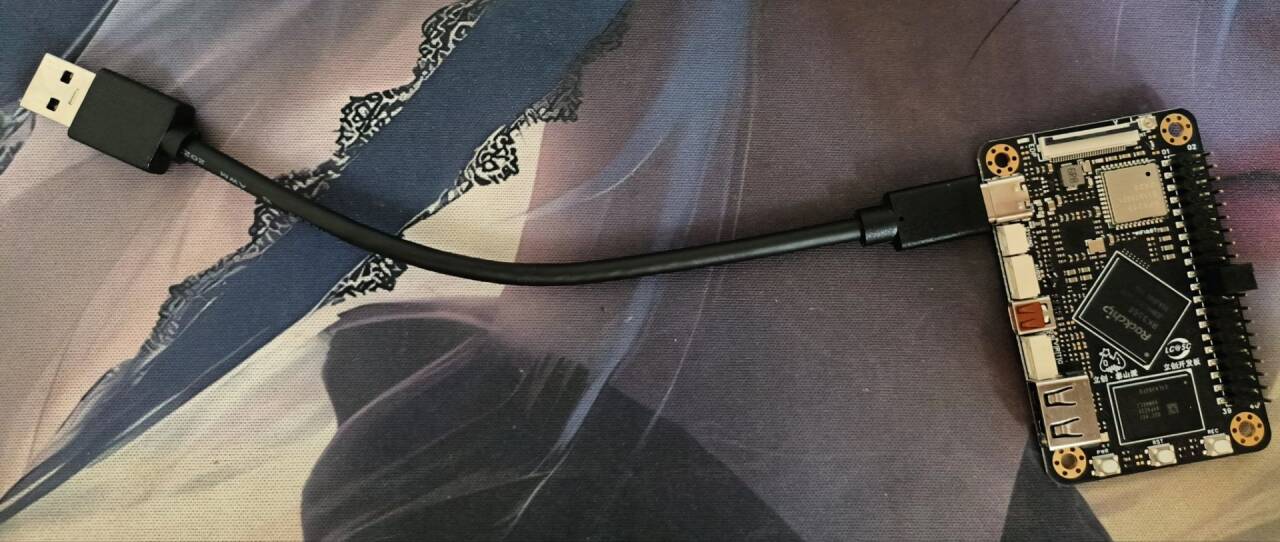

（一）将其与电脑连接起来

（二）打开烧录工具，并选择官方已编译好的镜像进行烧写下载

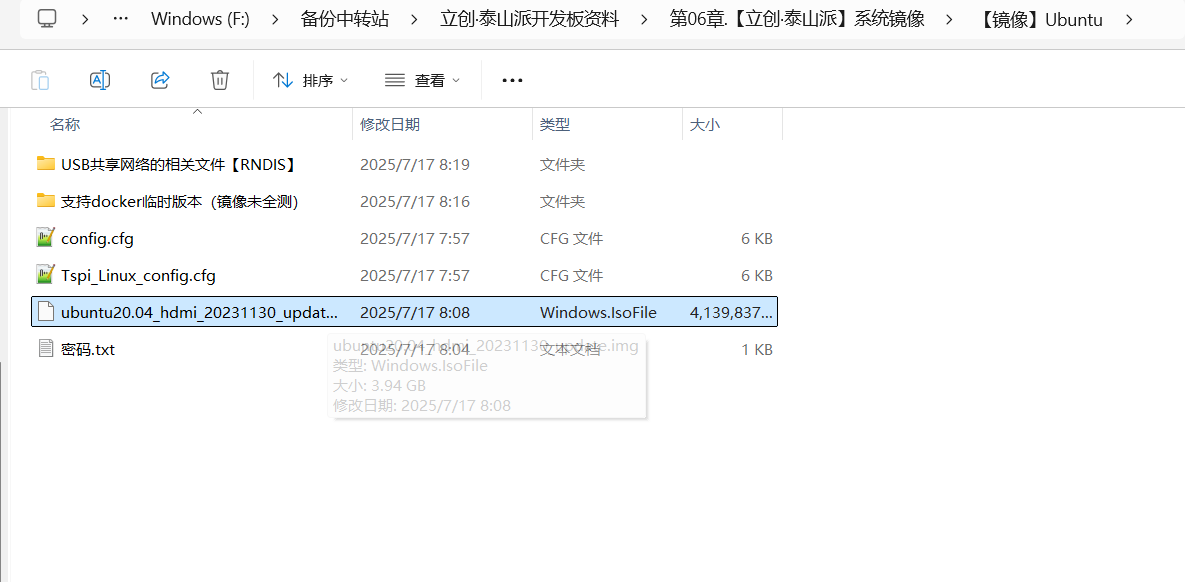

注：烧写官方的系统进入，如果需要用户名和密码，去\立创·泰山派开发板资料\第06章.【立创·泰山派】系统镜像里找对应的用户名和密码

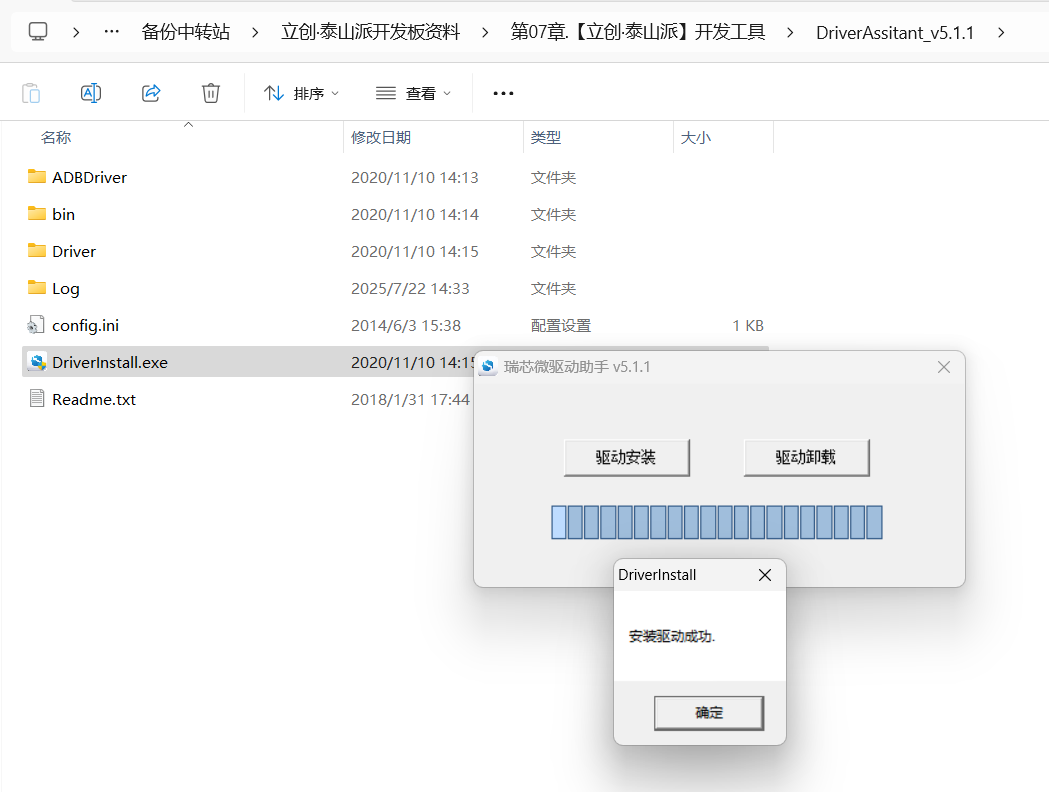

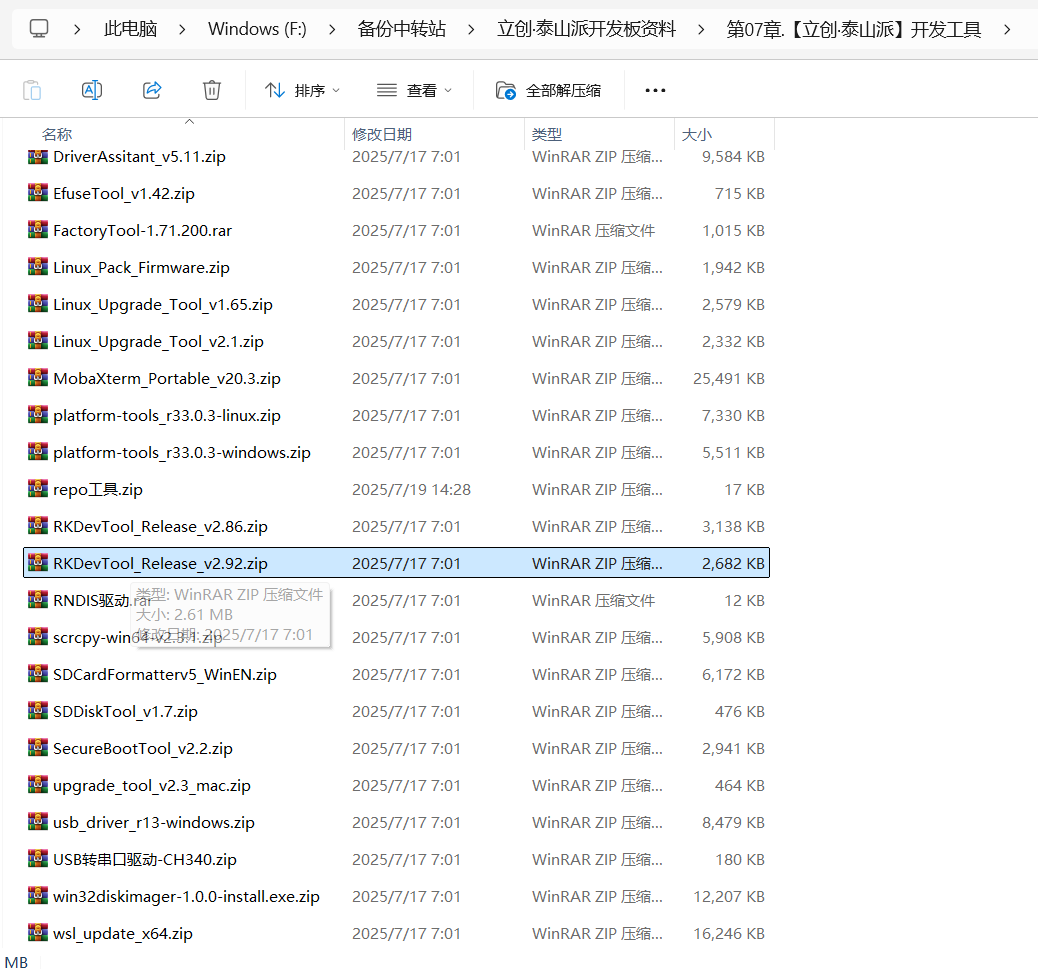

（1）下载相应的驱动，\立创·泰山派开发板资料\第07章.【立创·泰山派】开发工具的DriverAssitant_v5.1.1安装驱动

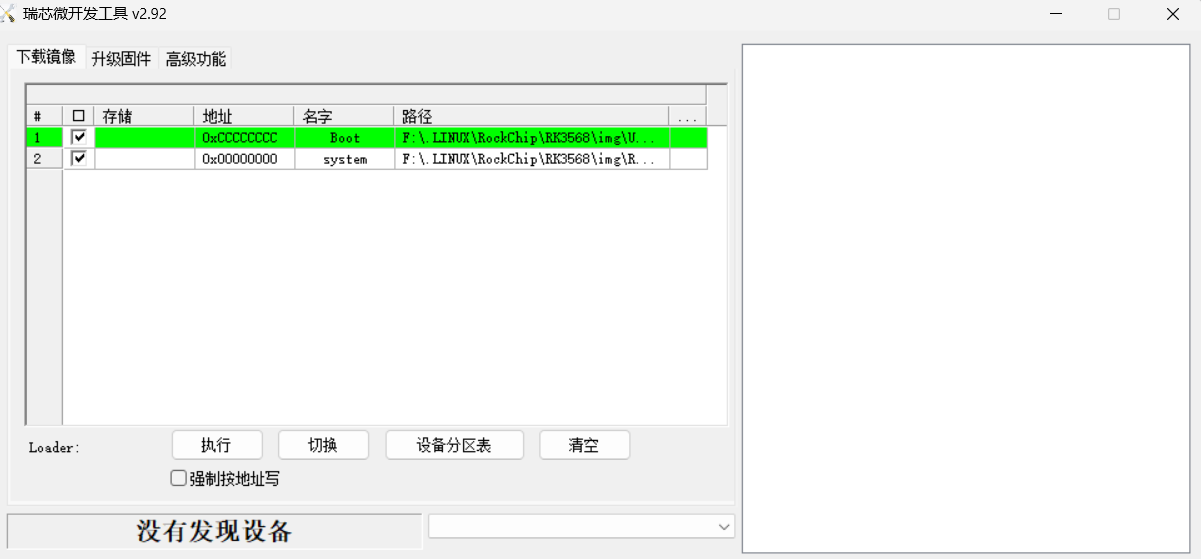

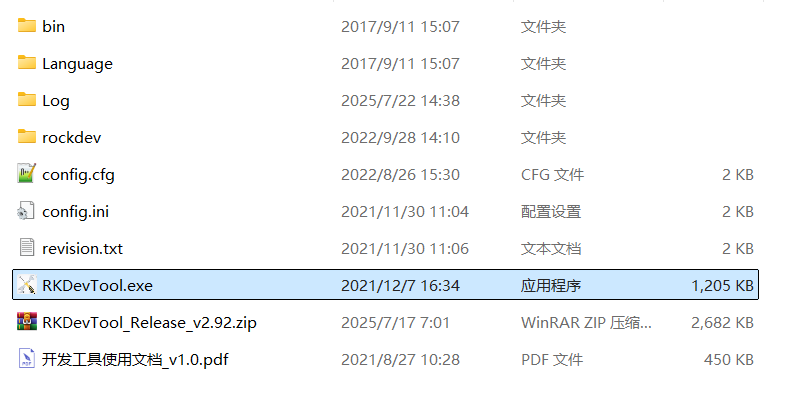

（2）\立创·泰山派开发板资料\第07章.【立创·泰山派】开发工具的RKDevTool_Release_v2.92

（3）先一直按着REC，再点按RST，然后松开REC，就会识别到Loader设备，选择升级固件

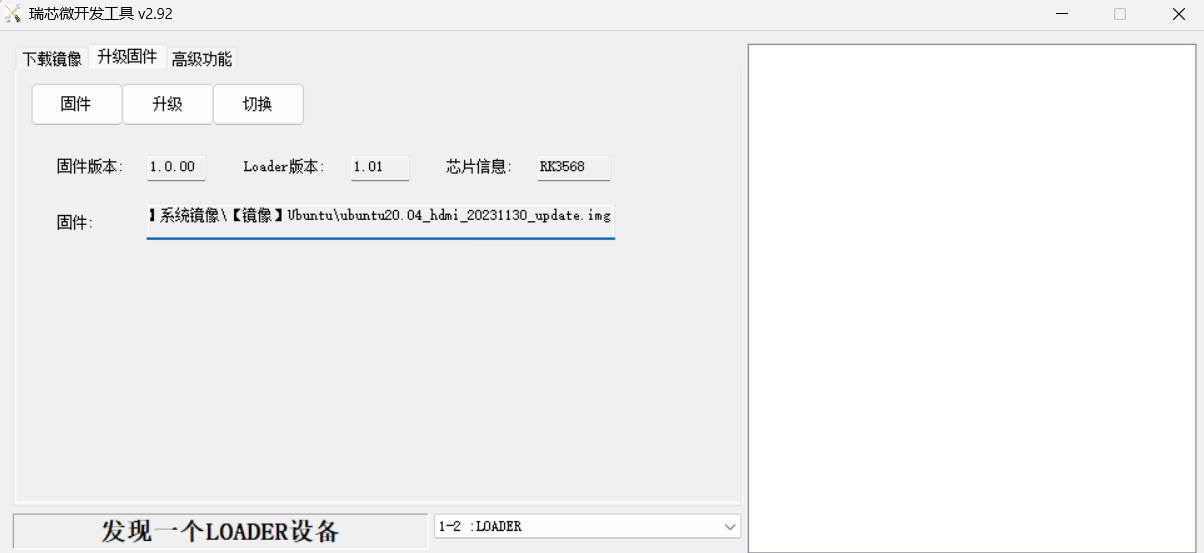

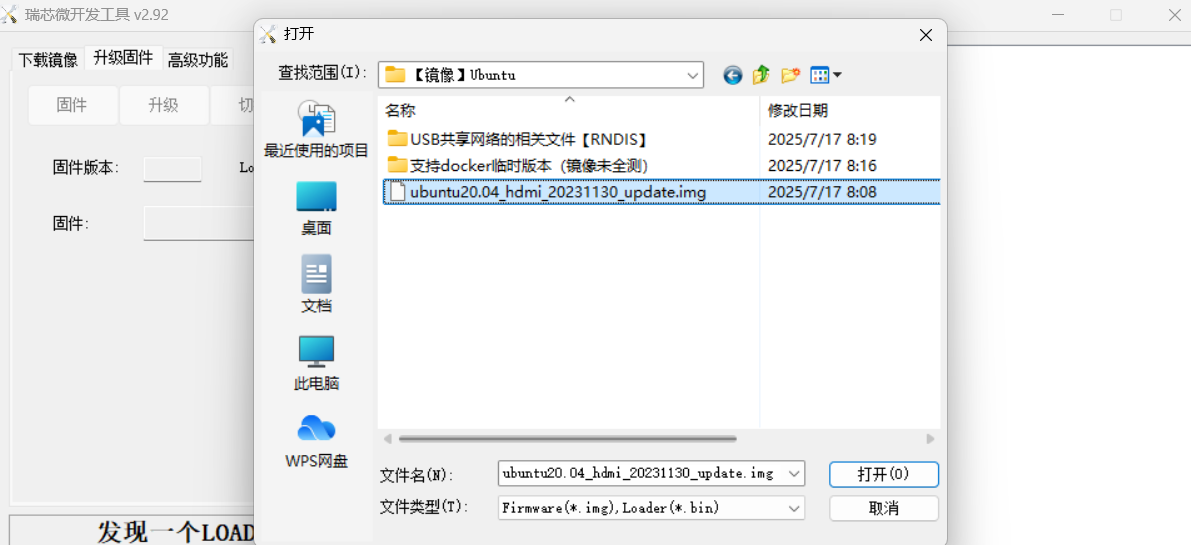

（4）点击"固件"按钮，接着选择镜像，点击打开

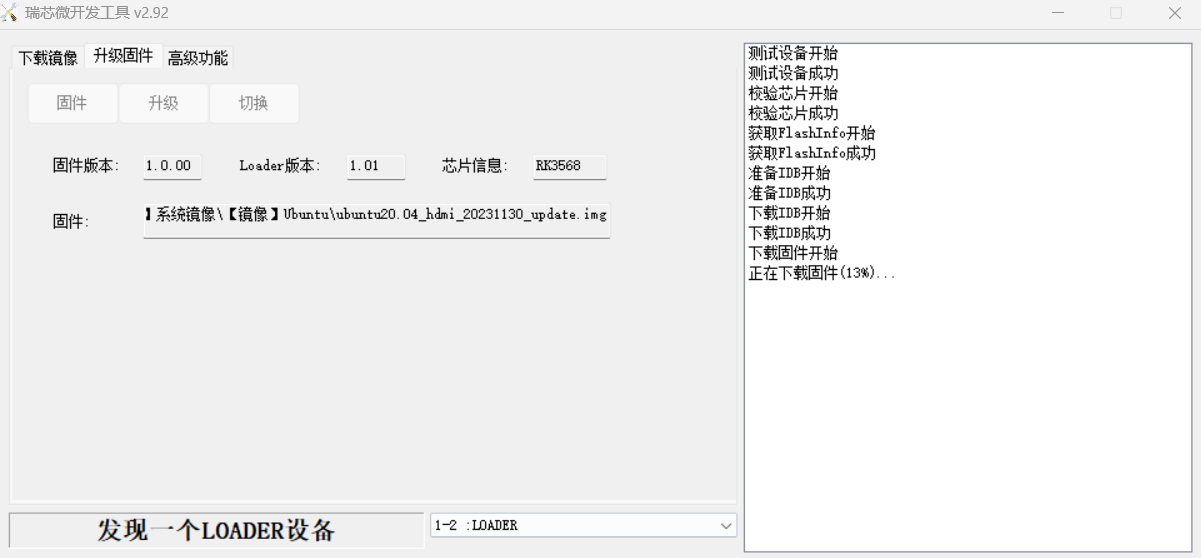

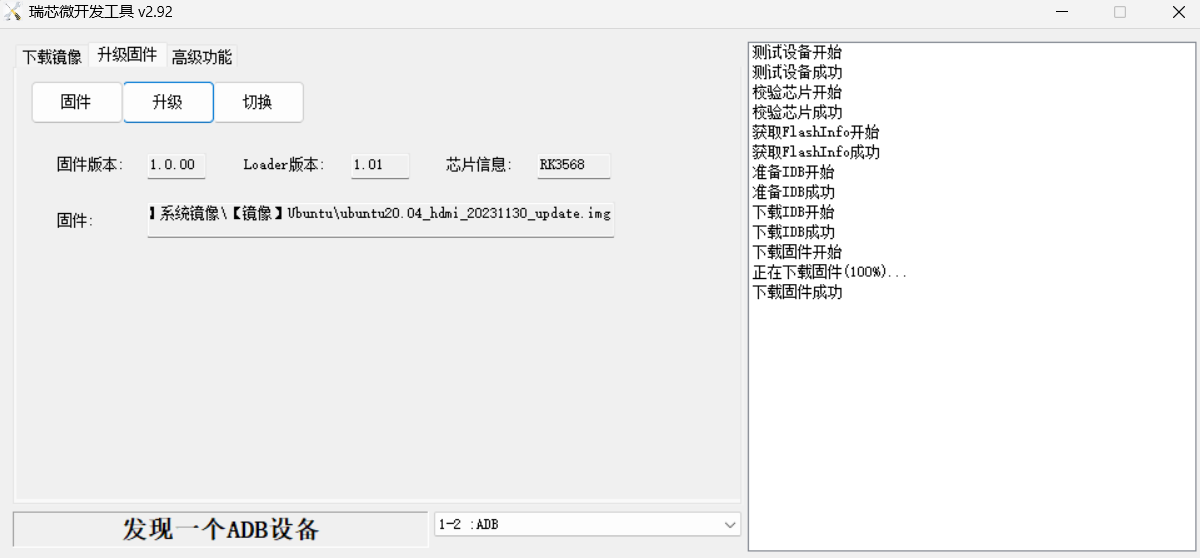

（5）点击升级按钮

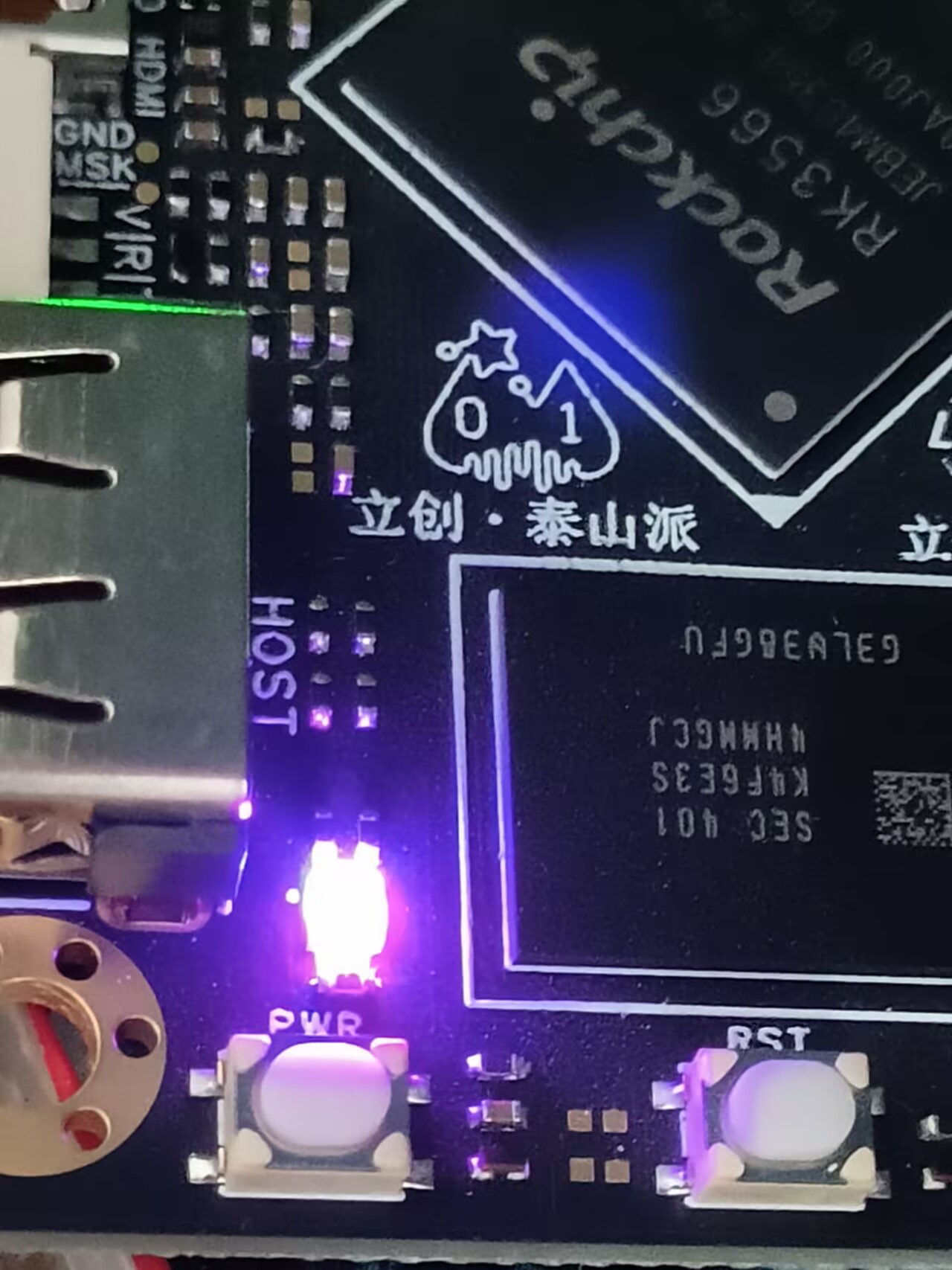

RGB灯光正常闪烁，下载成功：

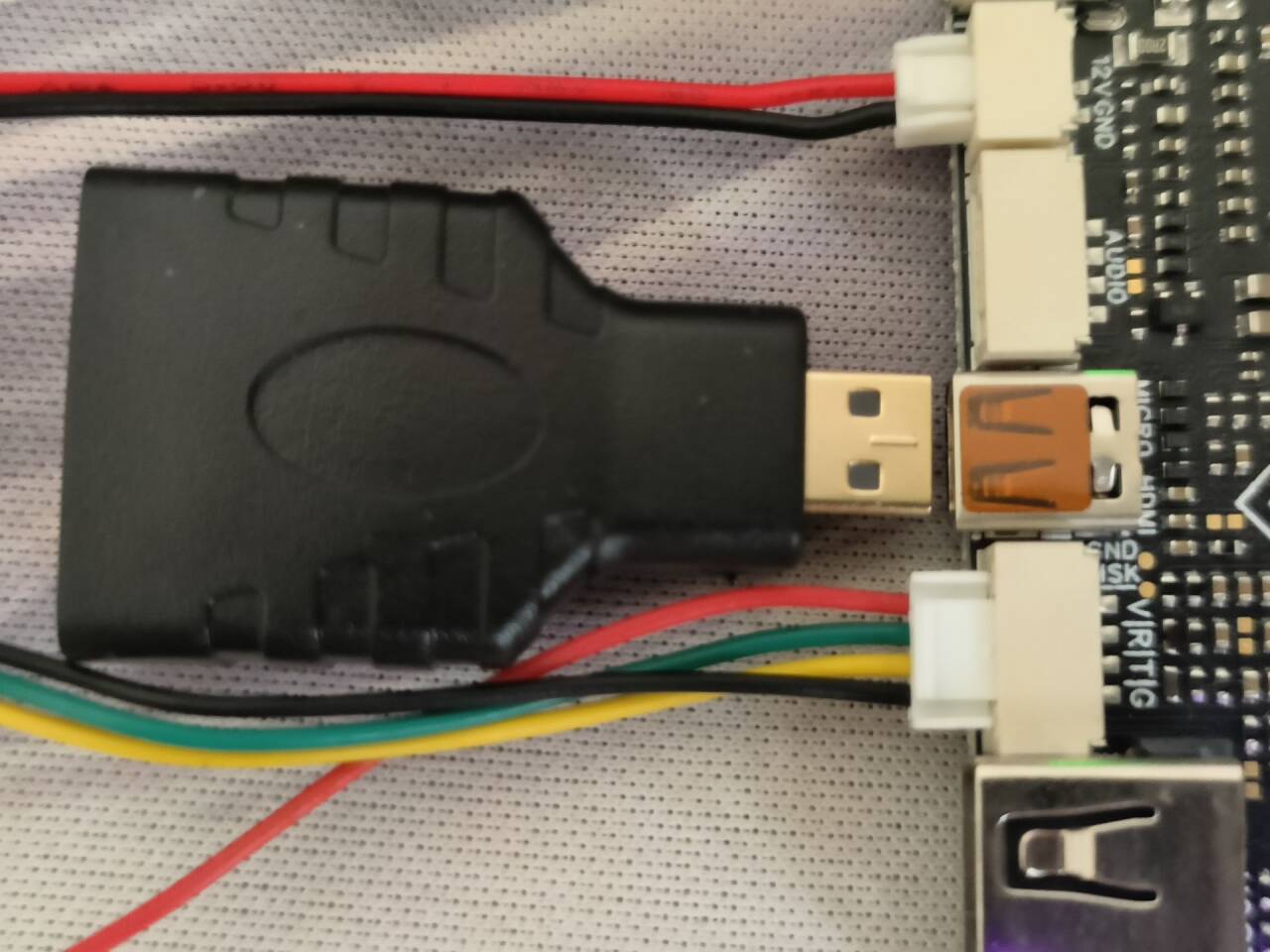

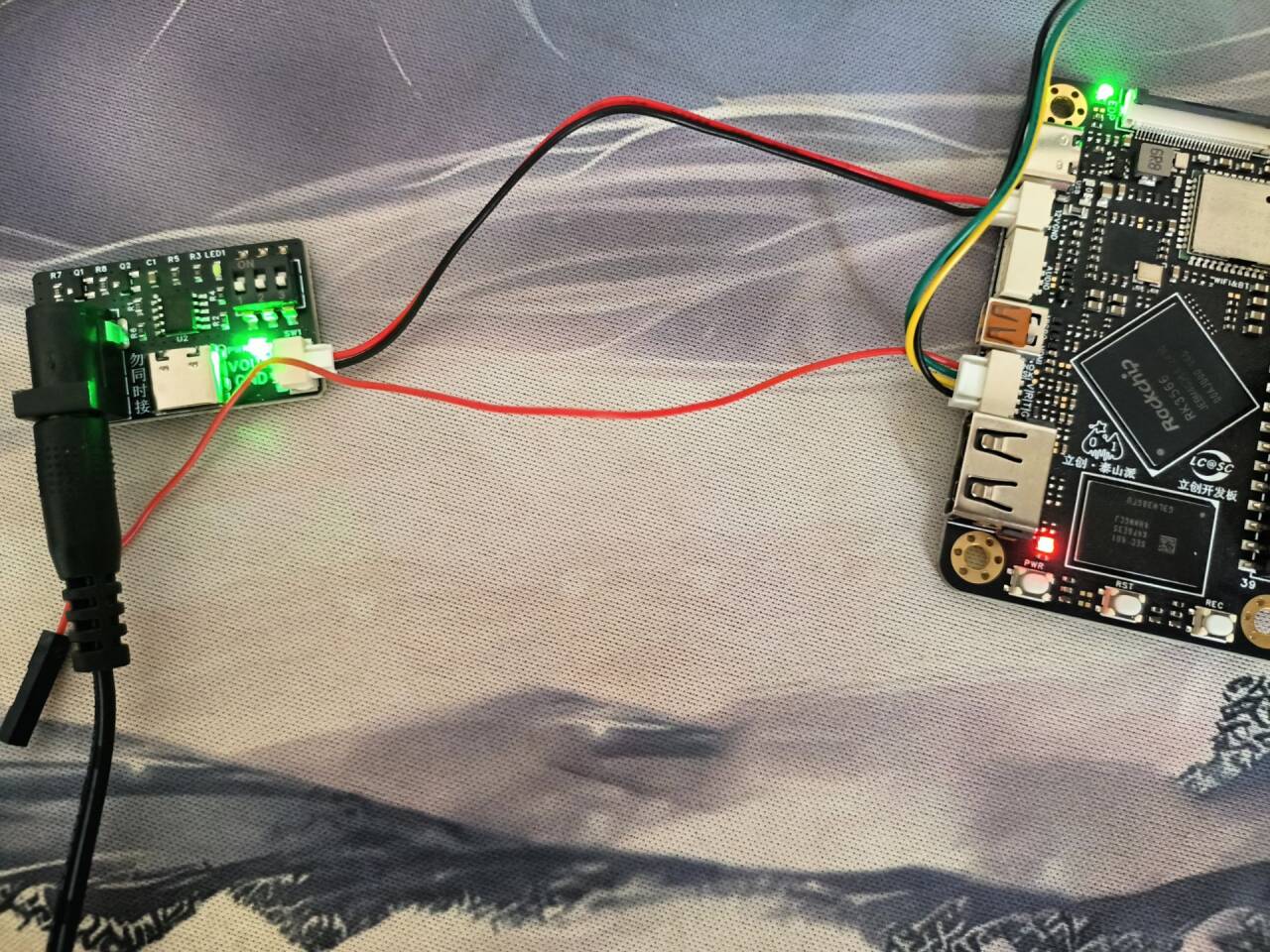

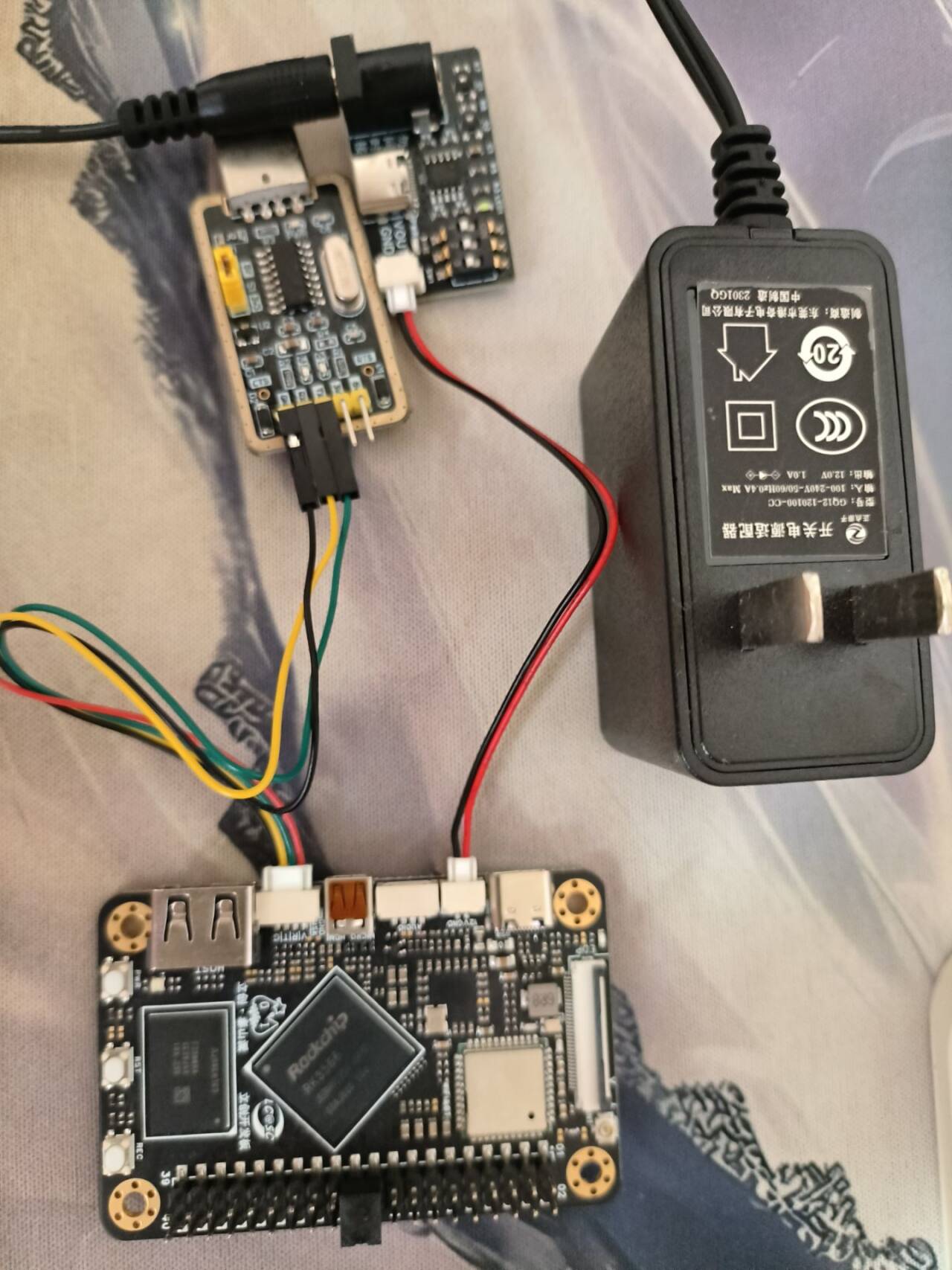

（6）串口连接，5v不连是因为立创在内部已经连接

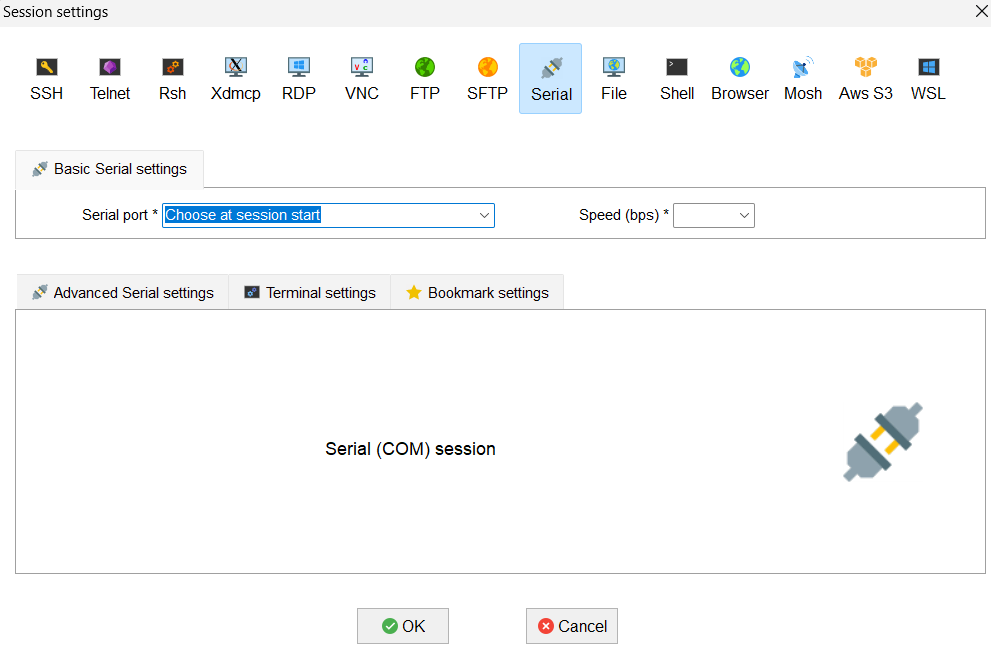

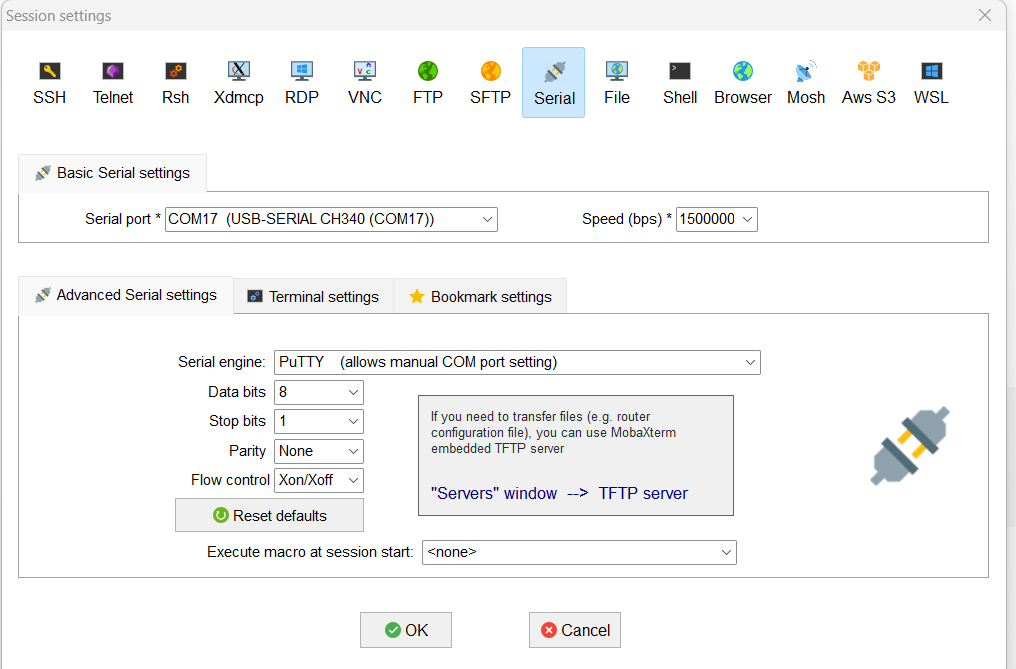

（7）使用MobaXterm，创建串口会话，注意：波特率一定是1500000

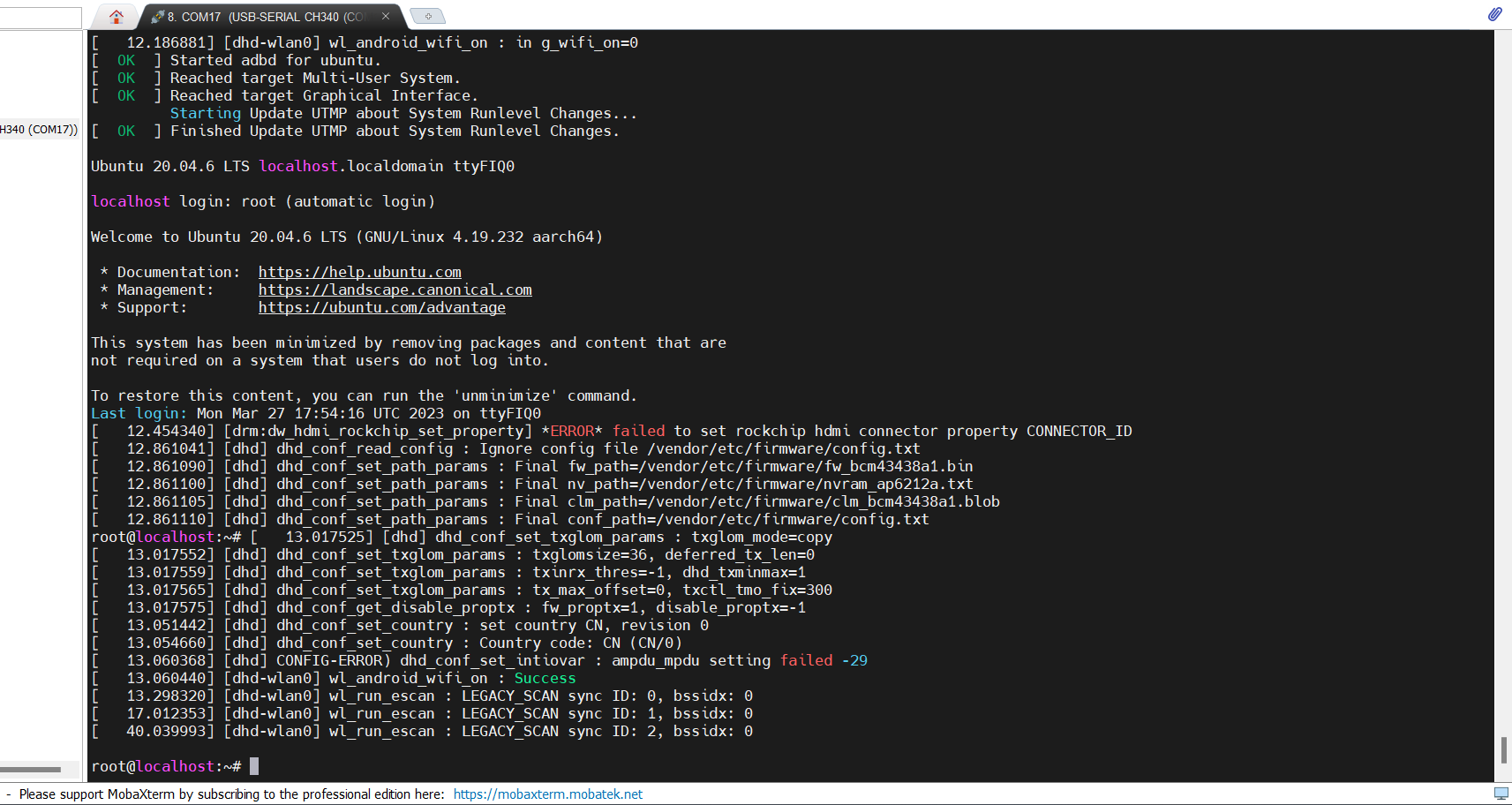

（8）命令测试

cpp 复制代码

root@localhost:~# id
uid=0(root) gid=0(root) groups=0(root)
root@localhost:~# ls -al
total 28
drwx------  3 root root 4096 Nov 30  2023 .
drwxr-xr-x 25 root root 4096 Jul 22  2025 ..
-rw-------  1 root root 5843 Nov 30  2023 .bash_history
-rw-r--r--  1 root root 3106 Dec  5  2019 .bashrc
drwx------  3 root root 4096 Jul 22  2025 .cache
-rw-r--r--  1 root root  161 Dec  5  2019 .profile
root@localhost:~# cd /[  116.056857] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 4, bssidx: 0

root@localhost:/# ls -al
\total 86
drwxr-xr-x  25 root  root   4096 Jul 22  2025 .
drwxr-xr-x  25 root  root   4096 Jul 22  2025 ..
lrwxrwxrwx   1 root  root      7 Feb 21  2022 bin -> usr/bin
drwxr-xr-x   2 root  root   4096 Nov 30  2023 boot
lrwxrwxrwx   1 root  root      8 Nov 30  2023 data -> userdata
drwxr-xr-x  13 root  root   4060 Mar 27 17:55 dev
drwxrwxr-x 128 lckfb lckfb  4096 Jul 22  2025 etc
drwxr-xr-x   3 root  root   4096 Nov 30  2023 home
lrwxrwxrwx   1 root  root      7 Feb 21  2022 lib -> usr/lib
drwx------   2 root  root  16384 Nov 30  2023 lost+found
drwxr-xr-x   2 root  root   4096 Feb 21  2022 media
drwxr-xr-x   4 root  root   4096 Nov 30  2023 mnt
drwxr-xr-x   3 root  root   1024 Nov 15  2023 oem
drwxr-xr-x   2 root  root   4096 Feb 21  2022 opt
drwxr-xr-x  24 root  root   4096 Nov 30  2023 packages
dr-xr-xr-x 230 root  root      0 Jan  1  1970 proc
drwxr-xr-x  17 root  root   4096 Nov 30  2023 rockchip-test
drwx------   3 root  root   4096 Nov 30  2023 root
drwxr-xr-x  19 root  root    600 Mar 27 17:55 run
lrwxrwxrwx   1 root  root      8 Feb 21  2022 sbin -> usr/sbin
lrwxrwxrwx   1 root  root     10 Nov 30  2023 sdcard -> mnt/sdcard
drwxr-xr-x   2 root  root   4096 Jul 22  2025 snap
drwxr-xr-x   2 root  root   4096 Feb 21  2022 srv
dr-xr-xr-x  15 root  root      0 Mar 27 17:55 sys
drwxr-xr-x   4 root  root   4096 Nov 30  2023 system
drwxrwxrwt  13 root  root    300 Mar 27 17:56 tmp
lrwxrwxrwx   1 root  root     10 Nov 30  2023 udisk -> media/usb0
drwxr-xr-x   4 root  root   1024 Jul 22  2025 userdata
drwxr-xr-x  11 lckfb lckfb  4096 Mar 27 17:55 usr
drwxr-xr-x  13 root  root   4096 Nov 30  2023 var
drwxr-xr-x   3 root  root   4096 Nov 30  2023 vendor
root@localhost:/#

（9）连接手机热点，最好把开发板的天线接上

命令：

cpp 复制代码

#检查网络设备状态
root@localhost:/# nmcli device status

#扫描可用 WiFi 网络
root@localhost:/# nmcli device wifi list

#连接到 WiFi
root@localhost:/# nmcli device wifi connect "你的WiFi名称" password "你的WiFi密码"

效果：

cpp 复制代码

root@localhost:/# nmcli device status
DEVICE         TYPE      STATE         CONNECTION
eth0           ethernet  disconnected  --
wlan0          wifi      disconnected  --
lo             loopback  unmanaged     --
p2p-dev-wlan0  wifi-p2p  unmanaged     --
root@localhost:/# nmcli device wifi list
[  356.551534] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 8, bssidx: 0
IN-USE  BSSID              SSID  MODE   CHAN  RATE        SIGNAL  BARS  SECURITY

        42:52:F5:57:DF:95  abc   Infra  1
 130 Mbit/s  55      ▂▄__  WPA2
        2C:C5:46:B1:C7:C9  --    Infra  1
 130 Mbit/s  7       ▂___  WPA2
        2C:C5:46:B1:C7:CD  --    Infra  1     1
30 Mbit/s  5       ____  WPA2
root@localhost:/# nmcli device wifi connect "abc" password "abc123456"
[  408.318086] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 9, bssidx: 0
[  409.451579] [dhd-wlan0] wl_cfg80211_connect : Connecting with 42:52:f5:57:df:95 ssid "abc", len (3), sec=wpa2psk/mfpc/516, channel=1
[  409.451579]
[  409.541313] [dhd-wlan0] wl_iw_event : Link UP with 42:52:f5:57:df:95
[  409.541423] [dhd-wlan0] wl_ext_iapsta_event : [S] Link UP with 42:52:f5:57:df:95
[  409.541556] [dhd-wlan0] wl_notify_connect_status : wl_bss_connect_done succeeded with 42:52:f5:57:df:95
[  409.557743] [dhd-wlan0] wl_notify_connect_status : wl_bss_connect_done succeeded with 42:52:f5:57:df:95 vndr_oui: 00-0C-E7
Device 'wlan0' successfully activated with 'bc7dbf68-1907-4f73-a0e9-5ea11dbdde8c'.

二、以2G+16G版本模拟1G+0G 的立创泰山派为例的烧写镜像到TF卡的速通验货过程

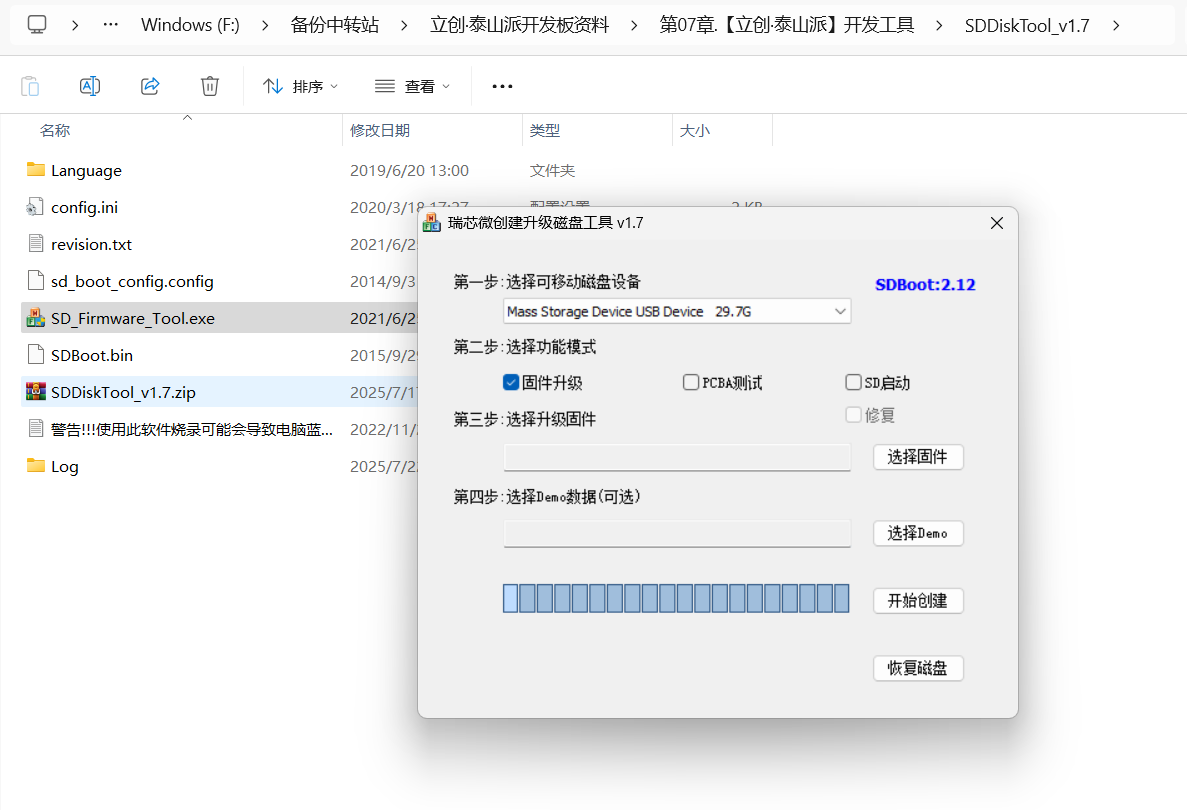

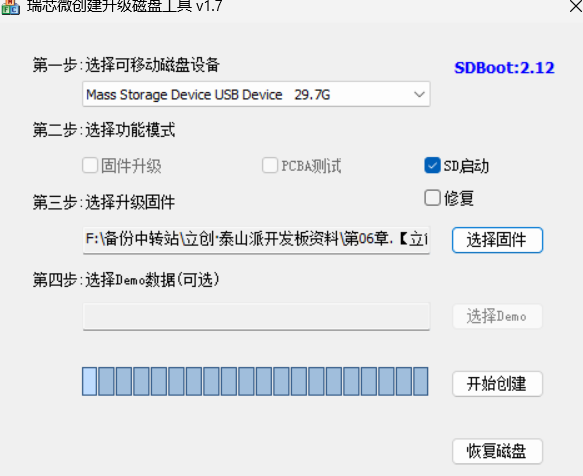

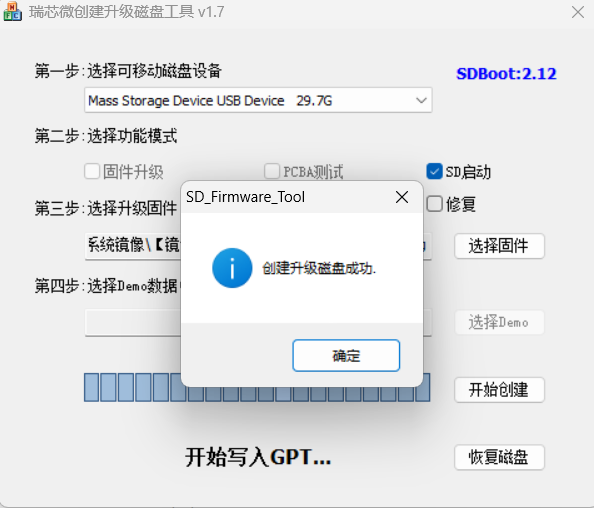

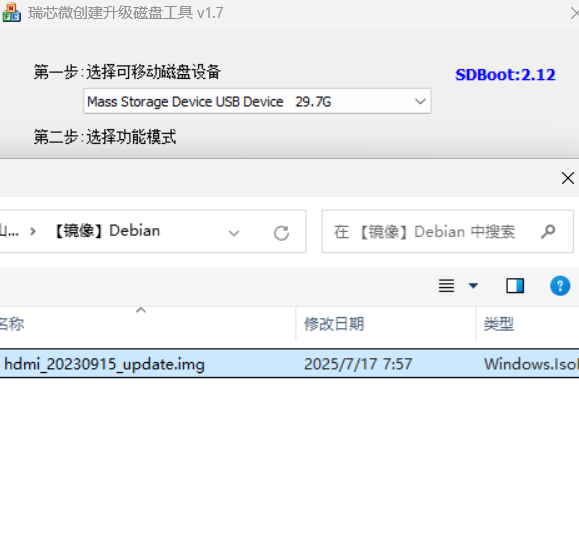

1.下载SDDiskTool_v1.7.zip，\立创·泰山派开发板资料\第07章.【立创·泰山派】开发工具\SDDiskTool_v1.7，找到SD_Firmware_Tool.exe可执行文件，以管理员运行SD_Firmware_Tool.exe可执行文件

2.烧写下载Debian

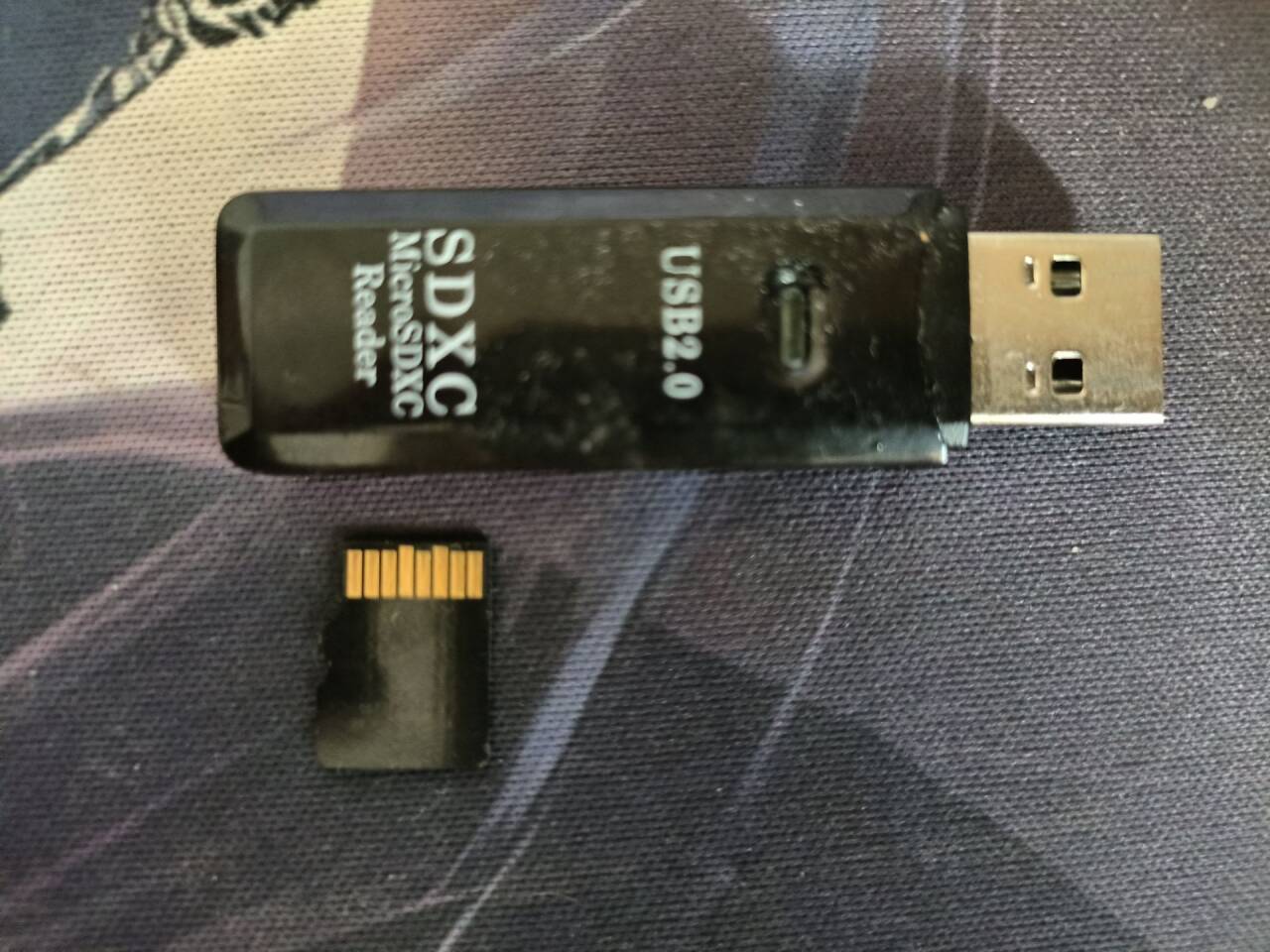

（3）插卡，由于之前EMMC里已经有系统了，所以还是Ubuntu系统，所以TF卡的系统就没有进入，但是如果是1G+0G应该是可以的

cpp 复制代码

This system has been minimized by removing packages and content that are
not required on a system that users do not log into.

To restore this content, you can run the 'unminimize' command.
Last login: Mon Mar 27 17:55:49 UTC 2023 on ttyFIQ0
[   13.088371] [dhd] dhd_conf_read_config : Ignore config file /vendor/etc/firmware/config.txt
[   13.088434] [dhd] dhd_conf_set_path_params : Final fw_path=/vendor/etc/firmware/fw_bcm43438a1.bin
[   13.088441] [dhd] dhd_conf_set_path_params : Final nv_path=/vendor/etc/firmware/nvram_ap6212a.txt
[   13.088448] [dhd] dhd_conf_set_path_params : Final clm_path=/vendor/etc/firmware/clm_bcm43438a1.blob
[   13.088454] [dhd] dhd_conf_set_path_params : Final conf_path=/vendor/etc/firmware/config.txt
[   13.279573] [dhd] dhd_conf_set_txglom_params : txglom_mode=copy
[   13.279601] [dhd] dhd_conf_set_txglom_params : txglomsize=36, deferred_tx_len=0
[   13.279607] [dhd] dhd_conf_set_txglom_params : txinrx_thres=-1, dhd_txminmax=1
[   13.279613] [dhd] dhd_conf_set_txglom_params : tx_max_offset=0, txctl_tmo_fix=300
[   13.279646] [dhd] dhd_conf_get_disable_proptx : fw_proptx=1, disable_proptx=-1
[   13.338250] [dhd] dhd_conf_set_country : set country CN, revision 0
[   13.346097] [dhd] dhd_conf_set_country : Country code: CN (CN/0)
[   13.363550] [dhd] CONFIG-ERROR) dhd_conf_set_intiovar : ampdu_mpdu setting failed -29
[   13.363595] [dhd-wlan0] wl_android_wifi_on : Success
[   13.555037] rk_gmac-dwmac fe010000.ethernet: Failed to reset the dma
[   13.555089] rk_gmac-dwmac fe010000.ethernet eth0: stmmac_hw_setup: DMA engine initialization failed
[   13.555098] rk_gmac-dwmac fe010000.ethernet eth0: stmmac_open: Hw setup failed
[   13.700918] rk_gmac-dwmac fe010000.ethernet: Failed to reset the dma
[   13.700960] rk_gmac-dwmac fe010000.ethernet eth0: stmmac_hw_setup: DMA engine initialization failed
[   13.700969] rk_gmac-dwmac fe010000.ethernet eth0: stmmac_open: Hw setup failed
root@localhost:~# [   13.843506] rk_gmac-dwmac fe010000.ethernet: Failed to reset the dma
[   13.843542] rk_gmac-dwmac fe010000.ethernet eth0: stmmac_hw_setup: DMA engine initialization failed
[   13.843550] rk_gmac-dwmac fe010000.ethernet eth0: stmmac_open: Hw setup failed
[   13.884053] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 0, bssidx: 0
[   15.075441] [dhd-wlan0] wl_cfg80211_connect : Connecting with 42:52:f5:57:df:95 ssid "abc", len (3), sec=wpa2psk/mfpc/516, channel=1
[   15.075441]
[   15.143934] [dhd-wlan0] wl_notify_connect_status : wl_bss_connect_done succeeded with 42:52:f5:57:df:95
[   15.144022] [dhd-wlan0] wl_iw_event : Link UP with 42:52:f5:57:df:95
[   15.144043] [dhd-wlan0] wl_ext_iapsta_event : [S] Link UP with 42:52:f5:57:df:95
[   15.203040] [dhd-wlan0] wl_notify_connect_status : wl_bss_connect_done succeeded with 42:52:f5:57:df:95 vndr_oui: 00-0C-E7
[   45.207263] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 1, bssidx: 0

root@localhost:~#
root@localhost:~#
root@localhost:~# [   76.046797] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 2, bssidx: 0
[   78.287713] [dhd-wlan0] wl_iw_event : Link Down with 42:52:f5:57:df:95, reason=1
[   78.287892] [dhd-wlan0] wl_ext_iapsta_event : [S] Link down with 42:52:f5:57:df:95, WLC_E_LINK(16), reason 1
[   78.288116] [dhd-wlan0] wl_notify_connect_status : link down if wlan0 may call cfg80211_disconnected. event : 16, reason=1 from 42:52:f5:57:df:95
[   78.292834] [dhd-wlan0] wl_iw_event : Link Down with 42:52:f5:57:df:95, reason=2
[   78.292997] [dhd-wlan0] wl_ext_iapsta_event : [S] Link down with 42:52:f5:57:df:95, WLC_E_LINK(16), reason 2
[   78.399189] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 3, bssidx: 0

root@localhost:~# [   84.503231] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 4, bssidx: 0

root@localhost:~#
root@localhost:~# [   90.629650] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 5, bssidx: 0
[   94.094140] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 6, bssidx: 0
[   96.772780] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 7, bssidx: 0

cpp 复制代码

root@localhost:~# cat /etc/os-release
NAME="Ubuntu"
VERSION="20.04.6 LTS (Focal Fossa)"
ID=ubuntu
ID_LIKE=debian
PRETTY_NAME="Ubuntu 20.04.6 LTS"
VERSION_ID="20.04"
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
VERSION_CODENAME=focal
UBUNTU_CODENAME=focal
BUILD_INFO="root@lckfb Thu 30 Nov 2023 07:52:00 PM CST"
root@localhost:~# [  441.069076] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 21, bssidx: 0

注：如有错误，可在评论区指出。
