Reactor 反应堆模式

熬夜苦读学习2025-08-24 11:18

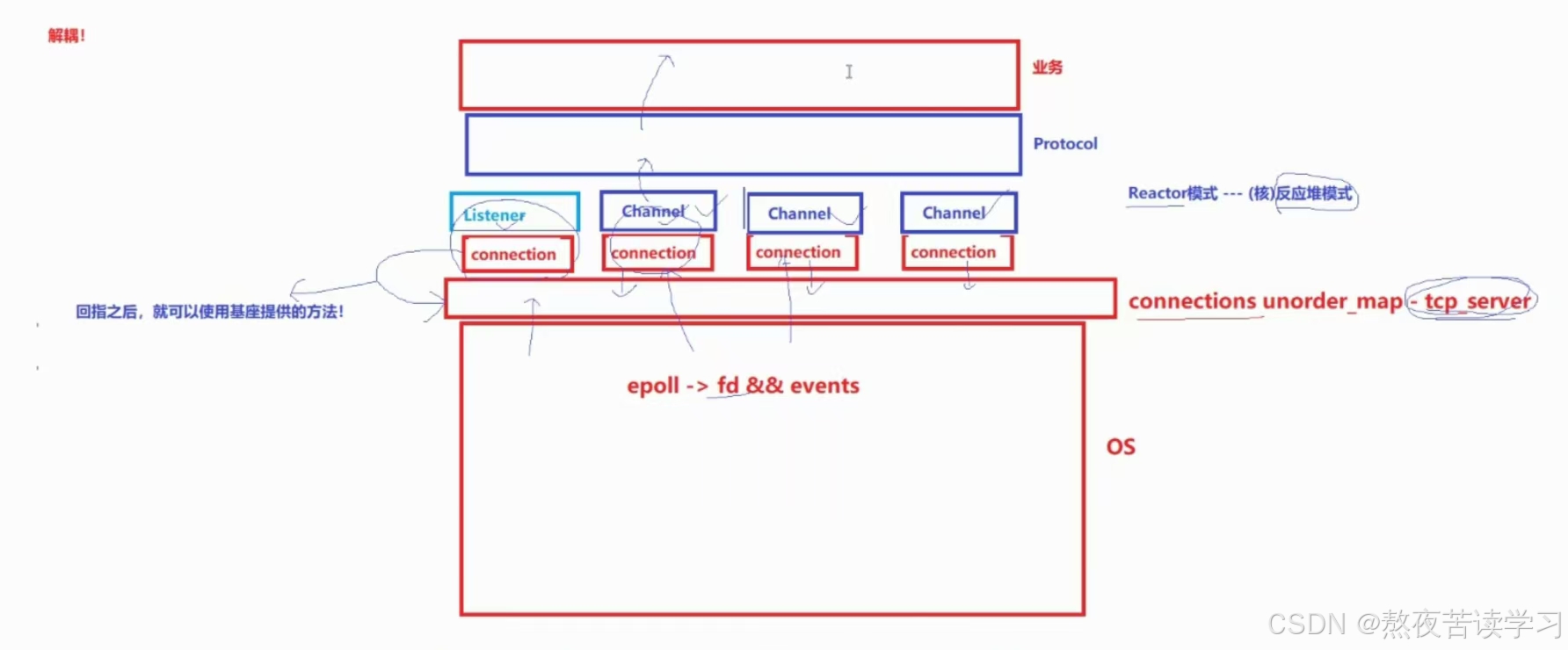

代码整体围绕 "Reactor 模式" 实现一个网络服务器（以计算器为例），各模块按职责可分为基础工具层 、网络通信层 、事件驱动层 、业务逻辑层四类，具体作用如下：

Listener实例化 → 创建TcpSocket（监听套接字） → 注册到Reactor的Epoller（监控新连接） → （新连接到来时） 创建Channel实例（封装客户端连接） → 注册到Reactor的Epoller（监控客户端I/O） → （客户端发数据） Reactor分发事件到Channel → Channel读取/处理/响应数据

Listener和Channel都继承于connection， Listener负责监听和接受新连接，Channel负责已建立连接的数据读写，在listener监听到有新连接到来时创建Channel，将业务cal绑定到protocol的回调事件上，用智能指针共有该匿名函数回调处理，并将fd给Rwactor，Rwactor然后将事件派发给map中事件就绪的channel I/O处理

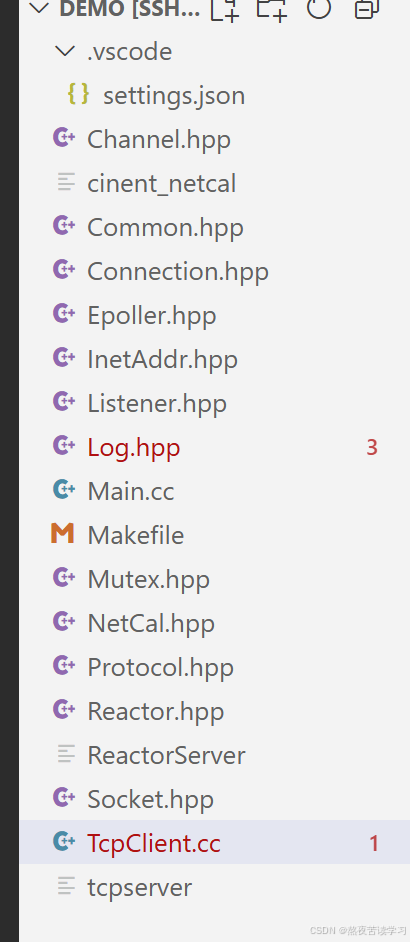

项目总览

Channel.hpp

cpp 复制代码
#pragma once

#include <iostream>
#include <string>
#include "Connection.hpp"
#include "Common.hpp"
#include "Log.hpp"
#include "InetAddr.hpp"
#include <sys/types.h>
#include <sys/socket.h>
#include<functional>
#include<memory>

using namespace LogModule;

#define SIZE  1024


// 普通sockfd的封装
class Channel : public Connection
{
public:
    Channel(int sockfd, const InetAddr &client)
        : _sockfd(sockfd), _client_addr(client)
    {
        SetNonBlock(sockfd);
    }
    ~Channel() {}
    int GetSockFd() override
    {
        return _sockfd;
    }

public:

    void Recver() override
    {   //1.while保证本轮数据读完，channel只解决读问题
        //2.保证完整报文，解决粘包问题 ---反序列化，引入协议

        // LOG(Loglevel::DEBUG) << "事件被派发到了channel模块";
        // 读到是字符串
        char buffer[SIZE];
        while (true)

        {
            buffer[0] = 0;//清空字符串
            ssize_t n = recv(_sockfd, &buffer, sizeof(buffer)-1, 0);
            if( n > 0)
            {
                //读成功
                buffer[n]= 0;
                _inbuffer+=buffer;//入队列
            }
            else if (n == 0)
            {   //  异常
                Excepter();
                return;
            }
            else
            {
                //可能本轮读完了
                if(errno ==EAGAIN || errno == EWOULDBLOCK)
                {
                    break;
                }
                else if(errno == EINTR)//被信号中断
                {
                    continue;
                }
                else
                {  //真的报错了
                    Excepter();
                    return;
                }
            }
        }
        LOG(Loglevel::DEBUG)<<"Channel :inbuffer:"<<_inbuffer;
        if(!_inbuffer.empty())
        {
          _outbuffer+=_handler(_inbuffer);
        }
        if (!_outbuffer.empty())
        {
            Sender(); // 最佳实践
            //GetOwner()->EnableReadWrite(_sockfd, true, true);
        }

    }
    void Sender() override
    {
        while (true)
        {
            ssize_t n = send(_sockfd, _outbuffer.c_str(), _outbuffer.size(), 0);
            if (n > 0)
            {
                _outbuffer.erase(0, n);
                if (_outbuffer.empty())
                    break;
            }
            else if (n == 0)
            {
                break;
            }
            else
            {
                if (errno == EAGAIN || errno == EWOULDBLOCK)
                    break;
                if (errno == EINTR)
                    continue;
                else
                {
                    Excepter();
                    return;
                }
            }
    }
}
    void Excepter() override
    {
    }
  std::string & Inbuffer()
  {
    return _inbuffer;
  }
  void AppendOutBuffer(const std::string &out)
  {
    _outbuffer+=out;
  }
private:
    int _sockfd;
    std::string _inbuffer; // 缓冲区
    std::string _outbuffer;

    // client info
    InetAddr _client_addr;

    //handler_t _handler;
};

Common.hpp

cpp 复制代码
#pragma once

#include <iostream>
#include<functional>
#include <string>
#include <cstring>
#include <memory>
#include<unistd.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <arpa/inet.h>
#include <netinet/in.h>
#include<fcntl.h>
#include"Log.hpp"
using namespace LogModule;
enum ExitCode
{

    OK = 0,
    USAGE_ERR,
    SOCKET_ERR,
    BIND_ERR,
    LISTEN_ERR,
    CONNECT_ERR,
    FORK_ERR,
    OPEN_ERR,
    EPOLL_CREATE_ERR,
    EPOLL_CTL_ERR
};

class NoCopy
{

public:
NoCopy(){}
~NoCopy(){}
NoCopy(const NoCopy&)=delete;
const NoCopy& operator= (const NoCopy &)=delete;
};

void SetNonBlock(int fd)
{
    int fl = fcntl(fd,F_GETFL);
    if(fl < 0)
    {
        LOG(Loglevel::DEBUG)<<"设置非阻塞失败";
        return;

    }
      fcntl(fd, F_SETFL,fl | O_NONBLOCK);
     LOG(Loglevel::DEBUG)<<"设置非阻塞成功";
}

int defaultport = 8080;
#define CONV(addr) ((struct sockaddr *)&addr)

Connection.hpp

cpp 复制代码
#pragma once
#include <iostream>
#include <string>
#include "InetAddr.hpp"
class Reactor;
class Connection;
using handler_t = std::function<std::string(std::string&)>;

// 封装fd, 保证给每一个fd一套缓冲
class Connection
{
public:
    Connection()
        : _events(0), _owner(nullptr)
    {
    }
    void RegisterHandler(handler_t handler)
    {
        _handler = handler;
    }
    virtual void Recver() = 0;
    virtual void Sender() = 0;
    virtual void Excepter() = 0;
    virtual int GetSockFd() = 0;
    void SetEvent(uint32_t events)
    {
        _events = events;
    }

    ~Connection() {}
    uint32_t GetEvent()
    {
        return _events;
    }
    void SetOwner(Reactor *owner)
    {
        _owner = owner;
    }
    Reactor *GetOwner()
    {
        return _owner;
    }

private:
    // 关心事件
    uint32_t _events;

    // 回指指针
    Reactor *_owner;

public:
    handler_t _handler;
};

Epoller.hpp

cpp 复制代码
#pragma once

#include <iostream>
#include <unistd.h>
#include <sys/epoll.h>
#include "Common.hpp"
#include "Log.hpp"

using namespace LogModule;
class Epoller
{

public:
    Epoller()
    :_epfd(-1)
    {
        _epfd = epoll_create(128);
        if(_epfd < 0 )
        {
            LOG(Loglevel::FATAL) << "epoll_create error!";
            exit(EPOLL_CREATE_ERR);
        }

    LOG(Loglevel::INIF) << "create epoll success!";
    }
     void AddEvent(int sockfd,uint32_t events)
     {
        struct epoll_event ev;
        ev.events=events;
        ev.data.fd=sockfd;

        int n = epoll_ctl(_epfd,EPOLL_CTL_ADD,sockfd,&ev);
        if( n < 0 )
        {
            LOG(Loglevel::ERROR)<<"epoll_ctl error!";
            return;
        }
       LOG(Loglevel::INIF)<<"epoll_ctl success!  epds:" << _epfd;

     }
     void DelEvent()
     {

     }
     void ModEvent()
     {

     }
     int WaitEvents(struct epoll_event revs[],int maxnum,int timeout)
     {

        int n = epoll_wait(_epfd,revs,maxnum,timeout);
        if(n < 0)
        {
            LOG(Loglevel::WARNING)<<"epoll_wait error";
        }
        else if(n ==0)
        {

        }

        return n;
     }
    ~Epoller()
    {
        if(_epfd >= 0)
        {
            close(_epfd);
        }
    }

private:
    int _epfd;


};

InetAddr.hpp

cpp 复制代码
#pragma once
#include "Common.hpp"

class InetAddr
{

public:
    InetAddr()
    {

    }
    InetAddr(struct sockaddr_in &addr)
    {
        SetAddr(addr);
    }
    InetAddr(const std::string &ip,uint16_t port)
        :_ip(ip)
        ,_port(port)
    {
        //主机转网络
       memset(&_addr,0,sizeof(_addr));
       _addr.sin_family=AF_INET;
       inet_pton(AF_INET,_ip.c_str(),&_addr.sin_addr);
       _addr.sin_port=htons(_port);

    }
    InetAddr(uint16_t port)
        :_port(port),_ip("0")
    {   //端口转
       memset(&_addr,0,sizeof(_addr));
       _addr.sin_family=AF_INET;
       _addr.sin_addr.s_addr=INADDR_ANY;
       _addr.sin_port = htons(_port);
    }


    uint16_t Port() { return _port; }

    std::string Ip() { return _ip; }

    void SetAddr(struct sockaddr_in &addr)
    {  //网络转主机
        _addr=addr;
        _port = ntohs(addr.sin_port);
        //_ip = inet_ntoa(addr.sin_addr);
        char ipbuffer[64];
        inet_ntop(AF_INET,&_addr.sin_addr,ipbuffer,sizeof(_addr));
        _ip=ipbuffer;
    }
    const struct sockaddr_in &NetAddr() { return _addr; }
    const struct sockaddr *NetAddrPtr() { return CONV(_addr); }

    socklen_t NetAddrLen() { return sizeof(_addr); }
    bool operator==(const InetAddr &addr)
    {
        return addr._ip == _ip && addr._port == _port;
    }
    std::string StringAddr()
    {
        return _ip + ":" + std::to_string(_port);
    }
    ~InetAddr() {}
private:
    struct sockaddr_in _addr;
    std::string _ip;
    uint16_t _port;
};

Listener.hpp

cpp 复制代码
#pragma once
#include <iostream>
#include <memory>
#include "Epoller.hpp"
#include "Socket.hpp"
#include "Common.hpp"
#include "Connection.hpp"
#include "Channel.hpp"

using namespace SocketModule;
// 专门用来获取新连接
class Listener : public Connection // 可以用基类指向派生类来处理

{
public:
    Listener(int port = defaultport)
        : _port(port),
          _listensock(std::make_unique<TcpSocket>())
    {
        _listensock->BUildTcpLIstenSocketMethod(_port);
        SetEvent(EPOLLIN | EPOLLET);
        SetNonBlock(_listensock->Fd());
    }

    ~Listener() {}
    int GetSockFd() override
    {
        return _listensock->Fd();
    }
    void Recver() override
    {

        InetAddr client;
        // 新连接就绪，可能有多个,一次性把所有的链接全部获取上来
        while (true)
        {
            int sockfd = _listensock->Accept(&client);
            if (sockfd == ACCEPT_ERR)
                break;
            else if (sockfd == ACCEPT_CONTINUE)
                continue;
            else if (sockfd == ACCEPT_DOWN)
                break;
            // 合法fd
            else
            {
                std::shared_ptr<Connection> conn = std::make_shared<Channel>(sockfd,client);
                conn->SetEvent(EPOLLIN | EPOLLET);
                if(_handler!=nullptr)
                conn->RegisterHandler(_handler);
                GetOwner()->AddConnection(conn);
            }
        }
    }

    void Sender() override
    {  }
    void Excepter() override
    { }

private:
    int _port;
    std::unique_ptr<Socket> _listensock;
};

Log.hpp

cpp 复制代码
#ifndef __LOG_HPP__
#define __LOG_HPP__

#include <iostream>
#include <string>
#include "Mutex.hpp"
#include <filesystem>
#include <fstream>
#include <memory>
#include <unistd.h>
#include <sstream>
#include<ctime>

namespace LogModule
{
    const std::string sep = "\r\n";
    using namespace  MutexModule ;

    // 2.刷新策略
    class LogStrategy
    {
    public:
        ~LogStrategy() = default;
        virtual void SyncLog(const std::string &message) = 0;
    };

    // 显示器刷新日志的策略
    class ConsoleLogStrategy : public LogStrategy
    {
    public:
        ConsoleLogStrategy() {}
        ~ConsoleLogStrategy() {}
        void SyncLog(const std::string &message) override
        {
            LockGuard lockguard(_mutex);
            std::cout << message << sep;
        }

    private:
        Mutex _mutex;
    };

    // 缺省文件路径以及文件本身
    const std::string defaultpath = "./log";
    const std::string defaultfile = "my.log";
    // 文件刷新日志的策略
    class FileLogStrategy : public LogStrategy
    {
    public:
        FileLogStrategy(const std::string &path = defaultpath, const std::string &file = defaultfile)
            : _path(path), _file(file)
        {
            LockGuard lockguard(_mutex);
            if (std::filesystem::exists(_path)) // 判断路径是否存在
            {
                return;
            }
            try
            {
                std::filesystem::create_directories(_path);
            }
            catch (const std::filesystem::filesystem_error &e)
            {
                std::cerr << e.what() << '\n';
            }
        }

        void SyncLog(const std::string &message) override
        {
            LockGuard lockguard(_mutex);
            std::string filename = _path + (_path.back() == '/' ? "" : "/") + _file;
            std::ofstream out(filename, std::ios::app); // 追加写入
            if (!out.is_open())
            {
                return;
            }
            out << message << sep;
            out.close();
        }
        ~FileLogStrategy() {}

    private:
        Mutex _mutex;
        std::string _path; // 日志文件的路径
        std::string _file; // 要打印的日志文件
    };

    // 形成日志等级
    enum class Loglevel
    {
        DEBUG,
        INIF,
        WARNING,
        ERROR,
        FATAL
    };
    std::string Level2Str(Loglevel level)
    {
        switch (level)
        {
        case Loglevel::DEBUG:
            return "DEBUG";
        case Loglevel::INIF:
            return "INIF";
        case Loglevel::WARNING:
            return "WARNING";
        case Loglevel::ERROR:
            return "ERROR";
        case Loglevel::FATAL:
            return "FATAL";
        default:
            return "UNKNOWN";
        }
    }

    std::string GetTimeStamp()
    {
       time_t cuur =time(nullptr);
       struct tm curr_tm;
       localtime_r(&cuur,&curr_tm);
       char buffer[128];
       snprintf(buffer,sizeof(buffer),"%4d-%02d-%02d %02d:%02d:%02d",
       curr_tm.tm_year+1900,
       curr_tm.tm_mon+1,
       curr_tm.tm_mday,
       curr_tm.tm_hour,
       curr_tm.tm_min,
       curr_tm.tm_sec
       );
       return buffer;
    }
    class Logger
    {
    public:
        Logger()
        {
            EnableConsoleLogStrategy();
        }
        // 选择某种策略
        // 1.文件
        void EnableFileLogStrategy()
        {
            _ffush_strategy = std::make_unique<FileLogStrategy>();
        }
        // 显示器
        void EnableConsoleLogStrategy()
        {
            _ffush_strategy = std::make_unique<ConsoleLogStrategy>();
        }


        // 表示的是未来的一条日志
        class LogMessage
        {
        public:
            LogMessage(Loglevel &level, std::string &src_name, int line_number, Logger &logger)
                : _curr_time(GetTimeStamp())
                , _level(level)
                , _pid(getpid())
                , _src_name(src_name)
                , _line_number(line_number)
                , _logger(logger)
            {
                // 合并左半部分
                std::stringstream ss;
                ss << "[" << _curr_time << "] "
                   << "[" << Level2Str(_level) << "] "
                   << "[" << _pid << "] "
                   << "[" << _src_name << "] "
                   << "[" << _line_number << "] "
                   << "- ";
                _loginfo = ss.str();
            }
            template <typename T>
            LogMessage &operator<<(const T &info)
            {
                // 右半部分，可变
                std::stringstream ss;
                ss << info;
                _loginfo += ss.str();
                return *this;
            }
            ~LogMessage()
            {
                if (_logger._ffush_strategy)
                {
                    _logger._ffush_strategy->SyncLog(_loginfo);
                }
            }


        private:
            std::string _curr_time; // 日志时间
            Loglevel _level;        // 日志状态
            pid_t _pid;             // 进程pid
            std::string _src_name;  // 文件名称
            int _line_number;       // 对应的行号
            std::string _loginfo;   // 合并之后的一条完整信息
            Logger &_logger;
        };
         LogMessage operator()(Loglevel level, std::string src_name, int line_number)
            {
                return LogMessage(level, src_name, line_number, *this);
            }
        ~Logger() {}

    private:
        std::unique_ptr<LogStrategy> _ffush_strategy;
    };
    //全局日志对象
    Logger logger;

    //使用宏，简化用户操作，获取文件名和行号
    // __FILE__  一个宏，替换完成后目标文件的文件名
    // __LINE__  一个宏，替换完成后目标文件对应的行号
    #define LOG(level) logger(level,__FILE__,__LINE__)
    #define Enable_Console_Log_Strategy() logger.EnableConsoleLogStrategy()
    #define Enable_File_Log_Strategy()    logger.EnableFileLogStrategy()

}

#endif

Main.cc

cpp 复制代码
#include <iostream>
#include <string>
#include "Reactor.hpp"
#include "Listener.hpp"
#include"Channel.hpp"
#include "Log.hpp"
#include "Common.hpp"
#include"Protocol.hpp"
#include"NetCal.hpp"

void Usage(std::string proc)
{
std::cerr<<"Usage: "<<proc<<"prot"<<std::endl;
}
// ./server port
int main(int argc,char * argv[])
{
    if(argc != 2)
    {
        Usage(argv[0]);
        exit(USAGE_ERR);
    }

    LogModule::ConsoleLogStrategy();

    uint16_t port = std::stoi(argv[1]);

    //1.构建业务模块
    std::shared_ptr<Cal> cal  = std::make_shared<Cal>();

    //2.构建协议对象
    std::shared_ptr<Protocol> protocol = std::make_shared<Protocol>([&cal](Request &req)->Response{
        LOG(Loglevel::DEBUG)<<"进入到了protocol";
        return cal->Execute(req);
    });

    //3.构建listener对象
    std::shared_ptr<Connection> conn = std::make_shared<Listener>(port);
    conn ->RegisterHandler([&protocol](std::string &inbuffer)->std::string{
        LOG(Loglevel::DEBUG)<<"进入到匿名函数";
        std::string response_str;
        while (true)
        {
            std::string package;
            if (!protocol->Decode(inbuffer, &package))
                break;
            // packge一定是一个完整的请求，是字节流的
            response_str += protocol->Execute(package);
        }
       LOG(Loglevel::DEBUG)<<"结束匿名函数...response_str:"<<response_str;
       return response_str;
    });

    //4.构建事件派发模块Reactor
    std::unique_ptr<Reactor> R = std::make_unique<Reactor>();

    R->AddConnection(conn);

    R->Loop();
    return 0;
}

Makefile

cpp 复制代码
ReactorServer:Main.cc
	g++ -o $@ $^  -lpthread  -ljsoncpp -std=c++17
.PHONY:clean
clean:
	rm -f ReactorServer

Mutex.hpp

cpp 复制代码
#pragma once
#include <pthread.h>
#include <iostream>
namespace MutexModule
{
    class Mutex
    {
    public:
        Mutex()
        {
            pthread_mutex_init(&_mutex, nullptr);
        }

        void Lock()
        {
            int n = pthread_mutex_lock(&_mutex);
            (void)n;
        }
        void Unlock()
        {
            int n = pthread_mutex_unlock(&_mutex);
            (void)n;
        }
        ~Mutex()
        {
            pthread_mutex_destroy(&_mutex);
        }
        pthread_mutex_t *get()
        {
            return &_mutex;
        }
    private:
        pthread_mutex_t _mutex;
    };
    class LockGuard
    {
        public:
        LockGuard(Mutex &mutex):_mutex(mutex)
        {
        _mutex.Lock();
        }
        ~LockGuard()
        {
            _mutex.Unlock();
        }
        private:
        Mutex &_mutex;
    };
}

NetCal.hpp

cpp 复制代码
#pragma once

#include "Protocol.hpp"
#include <iostream>

class Cal
{
public:
    Response Execute(Request &req)
    {
        Response resp(0, 0); // code 0正常 1 除零错误 2 mod零 3 非法错误
        switch (req.Oper())
        {
        case '+':
            resp.SetResult(req.X() + req.Y());
            break;
        case '-':
            resp.SetResult(req.X() - req.Y());
            break;
        case '*':
            resp.SetResult(req.X() * req.Y());
            break;
        case '/':
            if (req.Y() == 0)
            {
                resp.SetCode(1);
            }
            resp.SetResult(req.X() / req.Y());
            break;
        case '%':
            if (req.Y() == 0)
            {
                resp.SetCode(2);
            }
            resp.SetResult(req.X() % req.Y());
            break;
        default:
            resp.SetCode(3);
            break;
        }
        return resp;
    }

private:
};

Protocol.hpp

cpp 复制代码
#pragma once
#include <iostream>
#include <string>
#include <memory>
#include <jsoncpp/json/json.h>
#include "Socket.hpp"
#include <functional>

// 实现网络版本的计算器
using namespace LogModule;
using namespace SocketModule;

// client ->server

class Request
{
public:
    Request() {}
    Request(int x, int y, char oper)
        : _x(x), _y(y), _oper(oper)
    {
    }
    std::string Serialize()
    {
        // {
        //  "x" : _x
        //  "y"  : _y
        //  "oper" :_oper
        // }
        Json::Value root;
        root["x"] = _x;
        root["y"] = _y;
        root["oper"] = _oper;

        Json::FastWriter writer;
        std::string s = writer.write(root);
        return s;
    }
    bool Deserialize(std::string &in)
    {
        //{"x":10,"y":20,"oper":'+'}
        Json::Value root;
        Json::Reader reader;
        bool ok = reader.parse(in, root);
        if (ok)
        {
            _x = root["x"].asInt();
            _y = root["y"].asInt();
            _oper = root["oper"].asInt();
        }
        return ok;
    }
    ~Request() {}
    int X() { return _x; }
    int Y() { return _y; }
    char Oper() { return _oper; }

private:
    int _x;
    int _y;
    char _oper;
};

// server -> client
class Response
{
public:
    Response() {}
    Response(int result, int code)
        : _result(result), _code(code)
    {
    }
    void SetResult(int res)
    {
        _result = res;
    }
    void SetCode(int code)
    {
        _code = code;
    }
    std::string Serialize()
    {
        Json::Value root;
        root["result"] = _result;
        root["code"] = _code;

        Json::FastWriter writer;
        return writer.write(root);
    }
    bool Deserialize(std::string &in)
    {
        Json::Value root;
        Json::Reader reader;
        bool ok = reader.parse(in, root);
        if (ok)
        {
            _result = root["result"].asInt();
            _code = root["code"].asInt();
        }
        return ok;
    }
    ~Response() {}
    bool ShowResult()
    {
        std::cout << "结果是： " << _result << "[" << _code << "]" << std::endl;
        return true;
    }

private:
    int _result; // 运算结果
    int _code;   // 0 正常 1，2，3，4 不同的异常
};

const std::string ssep = "\r\n";

using func_t = std::function<Response(Request &req)>;

class Protocol
{
public:
    Protocol() : _func() {}
    Protocol(func_t func) : _func(func) {}
    std::string Encode(const std::string Jsonstr)
    {
        // 包装
        //  50\r\n{"x":10,"y":20,"oper":'+'}\r\n
        std::string len = std::to_string(Jsonstr.size());
        return len + ssep + Jsonstr + ssep; // 应用层封装报头
    }
    bool Decode(std::string &buffer, std::string *package)
    {
        LOG(Loglevel::DEBUG)<<"进入到了protocol中Decode";
        // 1.判断报文完整性
        ssize_t pos = buffer.find(ssep);
        if (pos == std::string::npos)
        {
            return false; // 让调用方出去继续读
        }

        // 2.提取至少一个报文请求并移除在回调提取下一个

        std::string packge_len_str = buffer.substr(0, pos);
        int package_len_int = std::stoi(packge_len_str);
        // buffer 有长度，但是不一定包含整个报文，得先判断
        int target_len = packge_len_str.size() + package_len_int + ssep.size() * 2;
        if (buffer.size() < target_len)
            return false;
        // 至少包含一个完整报文
        *package = buffer.substr(pos + ssep.size(), package_len_int);
        // 移除已读报文，并且传递给输出型参数，然后返回等待下次回调处理
        buffer.erase(0, target_len);
        return true;
    }
    std::string Execute(std::string &package)
    {
        LOG(Loglevel::DEBUG)<<"进入到了protocol中Execute";
        // 读取
        Request req;
        bool ok = req.Deserialize(package);
        if (!ok)
        {
            return std::string();
        }
        Response resp = _func(req);

        // 序列化
        std::string jion_str = resp.Serialize();

        // //根据自定义协议添加封装 size\r\n{...}\r\n
        std::string send_str = Encode(jion_str);
        // 返回运算结果
        return send_str;
    }

    std::string BuildRequsetString(int x, int y, char oper)
    {
        // 1.构建请求
        Request req(x, y, oper);
        // 2.序列化
        std::string json_req = req.Serialize();
        std::cout << json_req << std::endl;
        // 3.封装报头
        return Encode(json_req);
    }
    ~Protocol() {}

private:
    func_t _func;
};

Reactor.hpp

cpp 复制代码
#pragma once

#include<iostream>
#include<memory>
#include<unordered_map>
#include"Epoller.hpp"
#include"Connection.hpp"
#include"Log.hpp"
using namespace LogModule;
class Reactor
{
    static const int revs_num = 128;
private:
 bool IsConnectionExists(const std::shared_ptr<Connection> &conn)
 {
    return  IsConnectionExistsHelper( conn->GetSockFd());
 }
bool IsConnectionExistsHelper(int sockfd)
{
    auto iter = _connections.find(sockfd);
    if(iter ==_connections.end())
    {
        return false;
    }
    else
    {
        return true;
    }
}
bool IsConnectionExists(int sockfd)
{
    return IsConnectionExistsHelper(sockfd);
}
 bool IsConnectionEmpty()
 {
    return _connections.empty();
 }
public:
Reactor():_epoller_ptr(std::make_unique<Epoller>()),_isrunning(false)
{}

//事件派发器
void Dispatcher(int n)
{

 for(int i =0;i<n;i++)
        {
            int sockfd = _revs[i].data.fd;  //就绪fd
            uint32_t revents = _revs[i].events; //就绪事件
            //1.将所有的异常统一转化为IO错误
            //2.所有的IO异常处理全部转化为一个异常处理函数
          if(revents & EPOLLERR)    revents |=(EPOLLIN|EPOLLOUT); //异常处理
          if(revents & EPOLLHUP)    revents |=(EPOLLIN|EPOLLOUT); //处理关闭链接

          //走到这不用区分是否异常，因为多态也不用区分listenfd还是普通sockfd，
            if(revents &EPOLLIN)
            {

                //读时间就绪
           if (IsConnectionExists(sockfd))
                    _connections[sockfd]->Recver();

            }
            if(revents & EPOLLOUT)
            {
                //写事件就绪
                if (IsConnectionExists(sockfd))
                    _connections[sockfd]->Sender();
            }
        }
}

int LoopOnce(  int timeout)
{

     return  _epoller_ptr->WaitEvents(_revs,revs_num,timeout);
}

void Loop()
{
    if(IsConnectionEmpty())
    {
        return;
    }
     _isrunning = true;
    while(_isrunning)
    {
        int timeout = 1000;
        int n = LoopOnce(timeout);
        Dispatcher(n);
    }
    _isrunning = false;
}
void Stop()
{
    _isrunning = false;
}
//将新连接全部添加到_connections,并且添加到内核
void AddConnection(std::shared_ptr<Connection> & conn)
{
    //0.防止重复添加
    if(IsConnectionExists(conn))
    {
        LOG(Loglevel::WARNING)<<"conn is exists:"<<conn ->GetSockFd();
        return ;
    }
 //1.conn对应的fd和他关心的事件写入到内核
 uint32_t events = conn->GetEvent();
 int sockfd =conn->GetSockFd();
 _epoller_ptr->AddEvent(sockfd,events);

 //2.设置当前conn的拥有者回指指针
 conn->SetOwner(this);

 //3.将具体的connection添加到_connections;
 _connections[sockfd]=conn;
}

~Reactor(){}

private:
//1.epoll模型
std::unique_ptr<Epoller> _epoller_ptr;

//2.管理所有的connection，本质是管理未来所有我获取到的fd
//fd : Commection
std::unordered_map<int ,std::shared_ptr<Connection>> _connections;

//3.就绪的所有事件
struct epoll_event _revs[revs_num];

//是否启动
bool _isrunning;
};

Socket.hpp

cpp 复制代码
#pragma once
#include <iostream>
#include <string>
#include <sys/socket.h>
#include <sys/types.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <cstdlib>
#include <unistd.h>
#include "Log.hpp"
#include "Common.hpp"
#include "InetAddr.hpp"

namespace SocketModule
{
    using namespace LogModule;
    const static int gbacklog =16;
    const  static int defaultfd =-1;
    // 基类socket
    class Socket
    {
    public:
        virtual ~Socket() {}
        virtual void SocketOrDie() = 0;
        virtual void BindOrDie(uint16_t port) = 0;
        virtual void ListenOrDie(int backlog) = 0;
        virtual  int Accept(InetAddr * client)= 0;
        virtual void Close()=0;
        virtual int Recv(std::string * out) = 0;
        virtual int Send(std::string  &message) = 0;
        virtual int Connect(const std::string &server_ip ,uint16_t port) =0;
        virtual int Fd() = 0;
    public:
    void BuildTcpClientSocketMethod()
        {
            SocketOrDie();
        }
        void BUildTcpLIstenSocketMethod(uint16_t port,int backlog = gbacklog)
        {
            SocketOrDie();
            BindOrDie(port);
            ListenOrDie(backlog);
        }
        // void BUildUdpSocketMethod()
        // {
        //     SocketOrDie();
        //     BindOrDie();
        // }
    };

    class TcpSocket : public Socket
    {
    public:
       TcpSocket()
       :_sockfd(defaultfd)
       {}
       TcpSocket(int fd): _sockfd(fd) {}

        ~TcpSocket() {}
        void SocketOrDie() override
        {
            _sockfd = ::socket(AF_INET, SOCK_STREAM, 0);
            if (_sockfd < 0)
            {
                LOG(Loglevel::FATAL) << "创建套接字失败!";
                exit(SOCKET_ERR);
            }
            LOG(Loglevel::INIF) << "创建套接字成功!"<< _sockfd;
        }
        void BindOrDie(uint16_t port) override
        {
            InetAddr localaddr(port);
            int n = ::bind(_sockfd, localaddr.NetAddrPtr(), localaddr.NetAddrLen());
            if (n < 0)
            {
                LOG(Loglevel::FATAL) << "绑定失败!";
                exit(BIND_ERR);
            }
            LOG(Loglevel::INIF) << "绑定成功!";
        }
        void ListenOrDie(int backlog) override
        {
            int n = ::listen(_sockfd, backlog);
            if (n < 0)
            {
                LOG(Loglevel::FATAL) << "监听失败!";
                exit(LISTEN_ERR);
            }
            LOG(Loglevel::INIF) << "监听成功!";
        }

    #define ACCEPT_ERR -3
    #define ACCEPT_DOWN -1
    #define ACCEPT_CONTINUE -2

        int Accept(InetAddr * client) override
        {
            struct sockaddr_in peer;
            socklen_t len  = sizeof(peer);
            int fd =::accept(_sockfd,CONV(peer),&len);
            if (fd < 0)
            {
                if(errno == EAGAIN ||errno ==EWOULDBLOCK)
                {
                    return -1;//底层没有新连接
                }
                else if(errno == EINTR)
                {
                    return -2;//继续读
                }
                else
                {
                    LOG(Loglevel::WARNING)<<"连接失败！";
                    return -3; //连接失败
                }

            }
              LOG(Loglevel::WARNING)<<"连接成功！sockfd："<< _sockfd;
               client->SetAddr(peer);
               return  fd;
        }
        void Close() override
        {
            if(_sockfd >=0)
            {
                ::close(_sockfd);
            }
        }
         int Recv(std::string * out) override
         {
            //流式读取，不关心读到的是什么
            char buffer[4096*2];
            ssize_t n =::recv(_sockfd,buffer,sizeof(buffer)-1,0);
            if (n >0)
              {
                buffer[n]=0;
                *out+=buffer;
                return n;
              }
            return n;

         }
         int Send(std::string  &message) override
         {
           return send(_sockfd,message.c_str(),message.size(),0);
         }
         int Connect(const std::string &server_ip ,uint16_t port) override
         {
           InetAddr server(server_ip,port);
           return ::connect(_sockfd,server.NetAddrPtr(),server.NetAddrLen()) ;
         }
         int Fd()
        {
            return _sockfd;
        }
    private:
        int _sockfd; //
    };

    // class UdpSocket : public Socket
    // {

    // };
}

TcpClient.cc(部分)

cpp 复制代码
#include <iostream>
#include <memory>
#include "Socket.hpp"
#include <string>
#include "Protocol.hpp"

using namespace SocketModule;
void Usage(std::string proc)
{

    std::cerr << "Usage: " << proc << "prot" << std::endl;
}

void GetDataFromStdin(int *x, int *y, char *oper)
{
    std::cout << "Please Enter x: ";
    std::cin >> *x;
    std::cout << "Please Enter y: ";
    std::cin >> *y;
    std::cout << "Please Enter oper: ";
    std::cin >> *oper;
}
int main(int argc, char *argv[])
{

    if (argc != 3)
    {
        Usage(argv[0]);
        exit(USAGE_ERR);
    }
    //
    std::string server_ip = argv[1];
    uint16_t server_port = std::stoi(argv[2]);
    std::shared_ptr<Socket> client = std::make_shared<TcpSocket>();
    client->BuildTcpClientSocketMethod();

    if (client->Connect(server_ip, server_port) != 0)
    {
        // 失败
        std::cerr << "客户端连接失败" << std::endl;
        exit(CONNECT_ERR);
    }
    // 连接成功

    std::unique_ptr<Protocol> protocol = std::make_unique<Protocol>();
    std::string resp_buffer;
    while (true)
    {
        // 从标准输入中获取数据
        int x, y;
        char oper;
        GetDataFromStdin(&x, &y, &oper);

        // 构建一个请求 ->可以发送的字符串
        std::string req_str = protocol->BuildRequsetString(x, y, oper);
        std::cout << "--------req_str --------" << std::endl;
        std::cout << req_str << std::endl;
        std::cout << "------------------------" << std::endl;

        // 3.发送请求
        client->Send(req_str);

        // 4.获取应答
        Response resp;
        bool res = protocol->GetResponse(client, resp_buffer, &resp);
        if (res == false)
            break;
        // 显示结果
        resp.ShowResult();
    }
    client->Close();

    return 0;
}

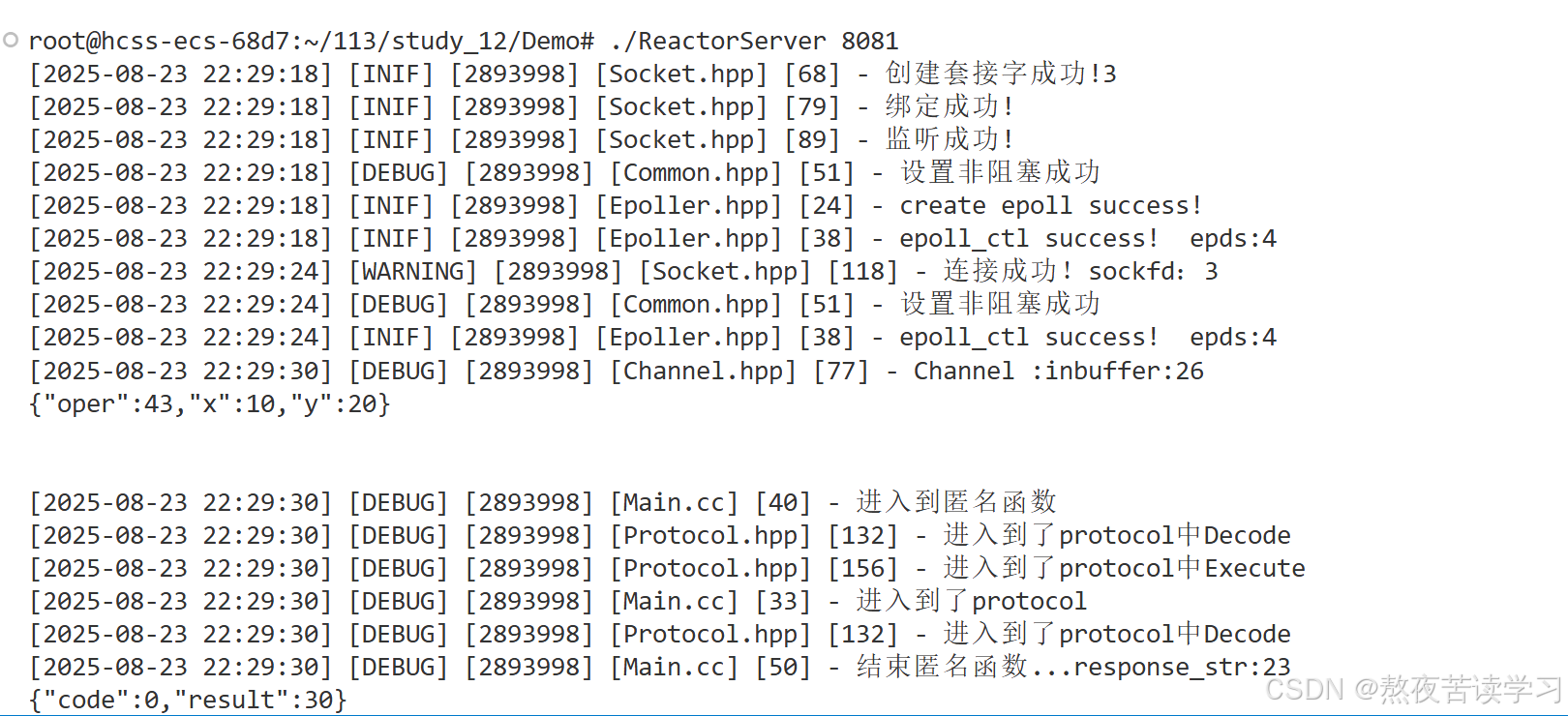

server

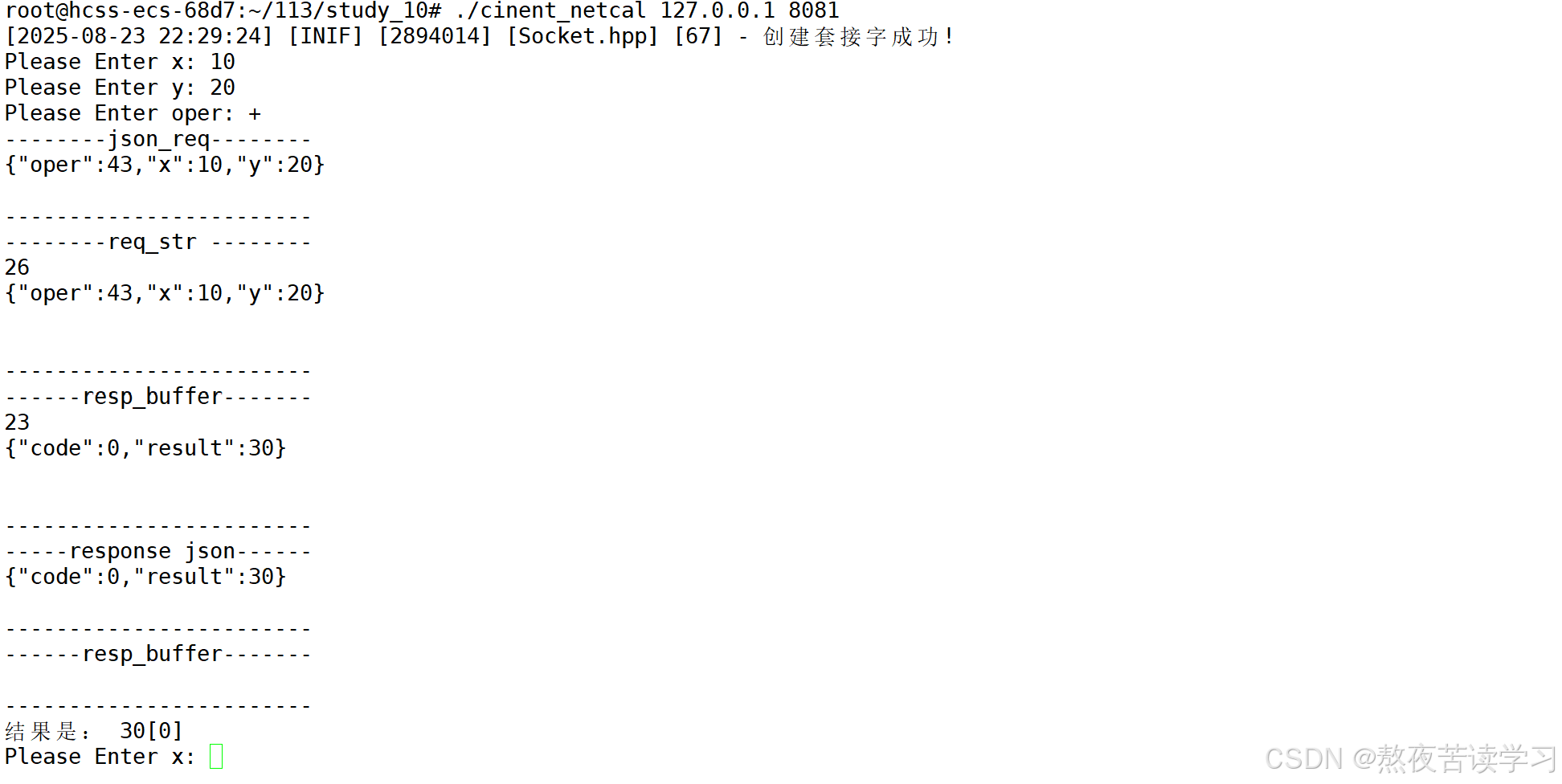

client

相关推荐
qq_364371721 小时前
Docker 常见命令
运维·docker·容器
张太行_1 小时前
网络SSL/TLS协议详解
网络·web安全·ssl
重启的码农1 小时前
NAT穿透技术：原理、实现与应用全景解析
网络协议
zhysunny1 小时前
Day22: Python涡轮增压计划：用C扩展榨干最后一丝性能！
c语言·网络·python
hhzz1 小时前
重温 K8s 基础概念知识系列八（ K8S 高级网络）
网络·容器·kubernetes
VVVVWeiYee4 小时前
TCP/UDP详解（一）
运维·网络·tcp/ip·udp·信息与通信
Xの哲學4 小时前
Linux PCI 子系统：工作原理与实现机制深度分析
linux·网络·算法·架构·边缘计算
谢尔登4 小时前
【计算机网络】 IPV4和IPV6区别
运维·服务器·计算机网络
@Demi4 小时前
vsCode或Cursor 使用remote-ssh插件链接远程终端
服务器·ide·vscode·ssh
努力努力再努力wz5 小时前
【c++进阶系列】：万字详解多态
java·linux·运维·开发语言·c++
热门推荐
01UV安装并设置国内源02KGG转MP3工具|非KGM文件|解密音频03【踩坑笔记】50系显卡适配的 PyTorch 安装04蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接05Qwen3-Coder 快速上手教程 | Qwen Code + Claude Code06Claude Code VSCode集成开发指南：AI编程助手完整配置07【2025.08.06最新版】Android Studio下载、安装及配置记录（自动下载sdk）082025最新国内服务器可用docker源仓库地址大全（2025年8月更新）0920个国内外主流AI绘画工具大汇总（最新免费可用~）10jdk21下载、安装（Windows、Linux、macOS）
