[C#]winform基于yolov8-seg实现的指甲分割实现源码

【测试环境】

vs2019

net framework4.7.2

onnxruntime==1.16.3

opencvsharp

注意源码运行在CPU上不支持GPU运行，由于net framework限制GPU会很慢因此没有GPU版本提供。

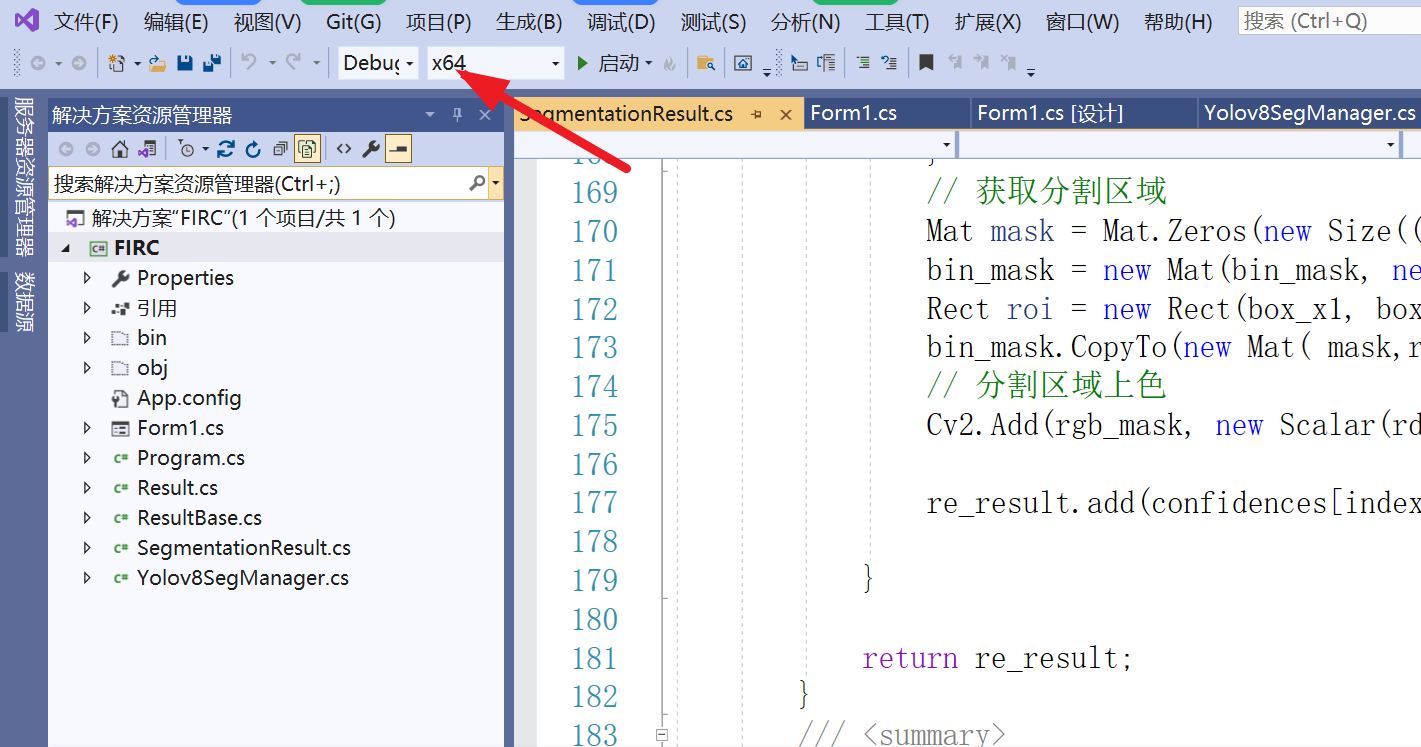

【运行步骤】

打开sln项目

选择x64 debug运行即可

如需要再x64 release运行可以将x64 debug文件夹里面所有文件复制到x64 release文件夹里面然后再vs2019切换到x64 release运行即可。

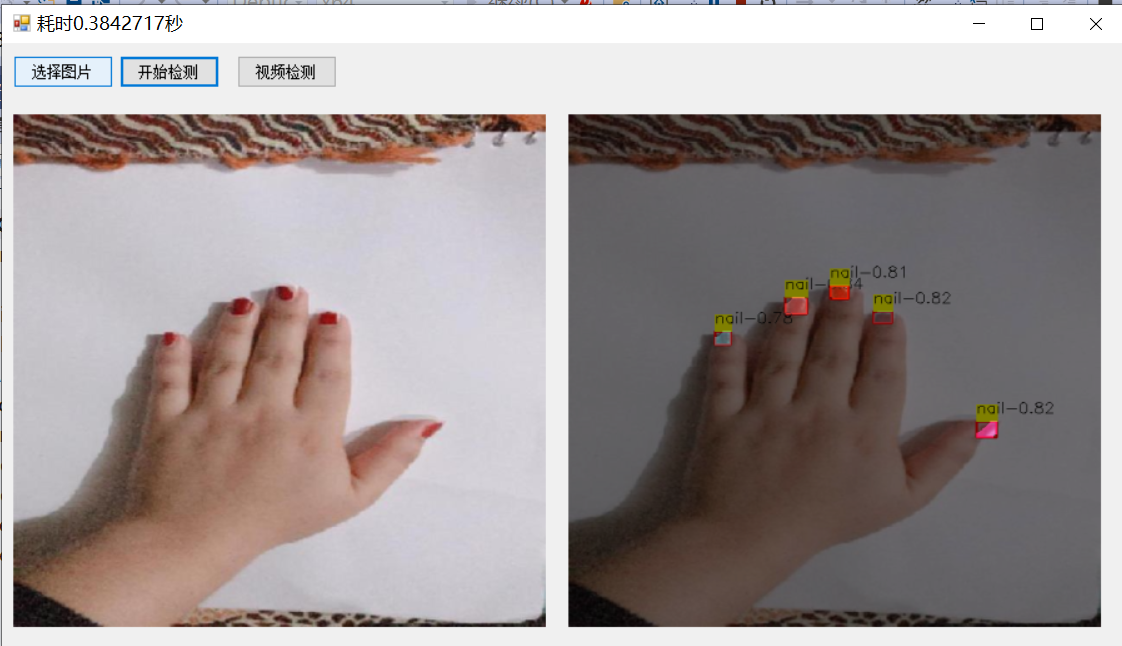

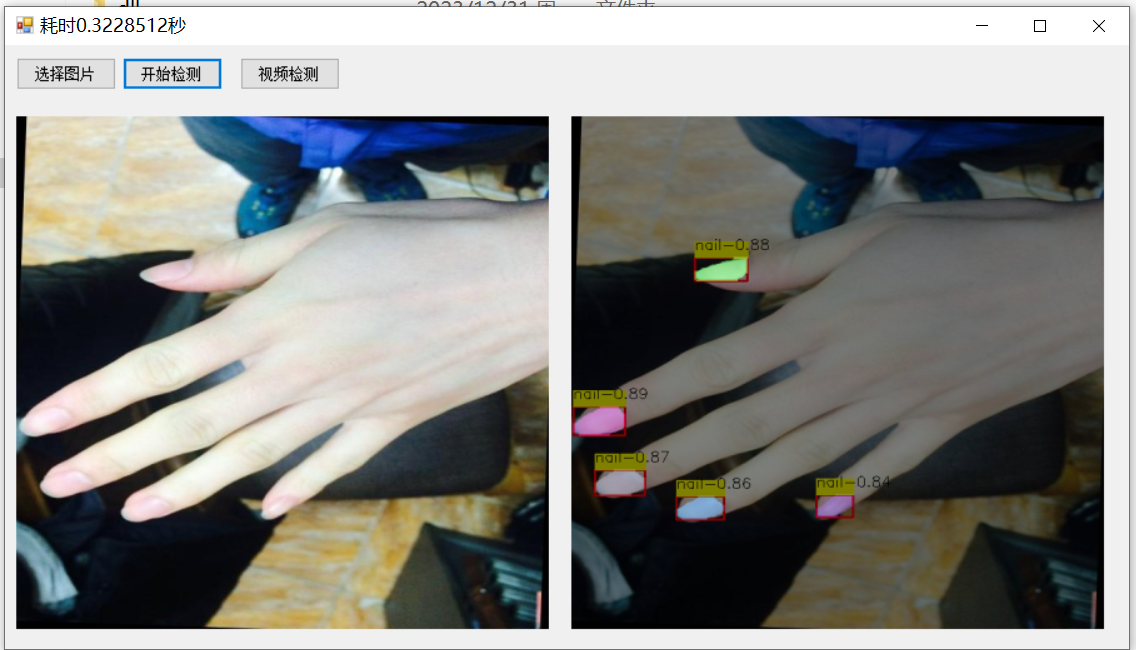

【效果展示】

【界面设计代码】

复制代码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using OpenCvSharp;

namespace FIRC
{
    public partial class Form1 : Form
    {
        Mat src = new Mat();
        Yolov8SegManager ym = new Yolov8SegManager();
        public Form1()
        {
            InitializeComponent();
        }

        private void button1_Click(object sender, EventArgs e)
        {
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.Filter = "图文件(*.*)|*.jpg;*.png;*.jpeg;*.bmp";
            openFileDialog.RestoreDirectory = true;
            openFileDialog.Multiselect = false;
            if (openFileDialog.ShowDialog() == DialogResult.OK)
            {

                src = Cv2.ImRead(openFileDialog.FileName);
                pictureBox1.Image = OpenCvSharp.Extensions.BitmapConverter.ToBitmap(src);


            }


        }

        private void button2_Click(object sender, EventArgs e)
        {
            if(pictureBox1.Image==null)
            {
                return;
            }
            Stopwatch sw = new Stopwatch();
            sw.Start();
            var result = ym.Inference(src);
            sw.Stop();
            this.Text = "耗时" + sw.Elapsed.TotalSeconds + "秒";
            var resultMat = ym.DrawImage(src,result);
            pictureBox2.Image= OpenCvSharp.Extensions.BitmapConverter.ToBitmap(resultMat); //Mat转Bitmap
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            ym.LoadWeights(Application.StartupPath+ "\\weights\\yolov8n-seg.onnx", Application.StartupPath + "\\weights\\labels.txt");

        }

        private void btn_video_Click(object sender, EventArgs e)
        {
            var detector = new Yolov8SegManager();
            detector.LoadWeights(Application.StartupPath + "\\weights\\yolov8n-seg.onnx", Application.StartupPath + "\\weights\\labels.txt");
            VideoCapture capture = new VideoCapture(0);
            if (!capture.IsOpened())
            {
                Console.WriteLine("video not open!");
                return;
            }
            Mat frame = new Mat();
            var sw = new Stopwatch();
            int fps = 0;
            while (true)
            {

                capture.Read(frame);
                if (frame.Empty())
                {
                    Console.WriteLine("data is empty!");
                    break;
                }
                sw.Start();
                var result = detector.Inference(frame);
                var resultImg = detector.DrawImage(frame,result);
                sw.Stop();
                fps = Convert.ToInt32(1 / sw.Elapsed.TotalSeconds);
                sw.Reset();
                Cv2.PutText(resultImg, "FPS=" + fps, new OpenCvSharp.Point(30, 30), HersheyFonts.HersheyComplex, 1.0, new Scalar(255, 0, 0), 3);
                //显示结果
                Cv2.ImShow("Result", resultImg);
                int key = Cv2.WaitKey(10);
                if (key == 27)
                    break;
            }

            capture.Release();

        }
    }
}
