前文:

嵌入式embedQtQt5.12+Opencv4.x+Cmake4.x_用Qt编译Windows-Opencv库
嵌入式embedQtQt5.12+Opencv4.x+Cmake4.x_测试Qt编译的opencv4.x的库

准备环境

ubuntu20.04

安装qt-opencv必备库

sudo apt install build-essential cmake libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev
sudo apt install openjdk-11-jdk python3 python3-pip

git-clone opencv库

git clone https://github.com/opencv/opencv

编译opencv库

其中/opt/opencv 就是我自定义放的位置

cd opencv
mkdir build && cd build

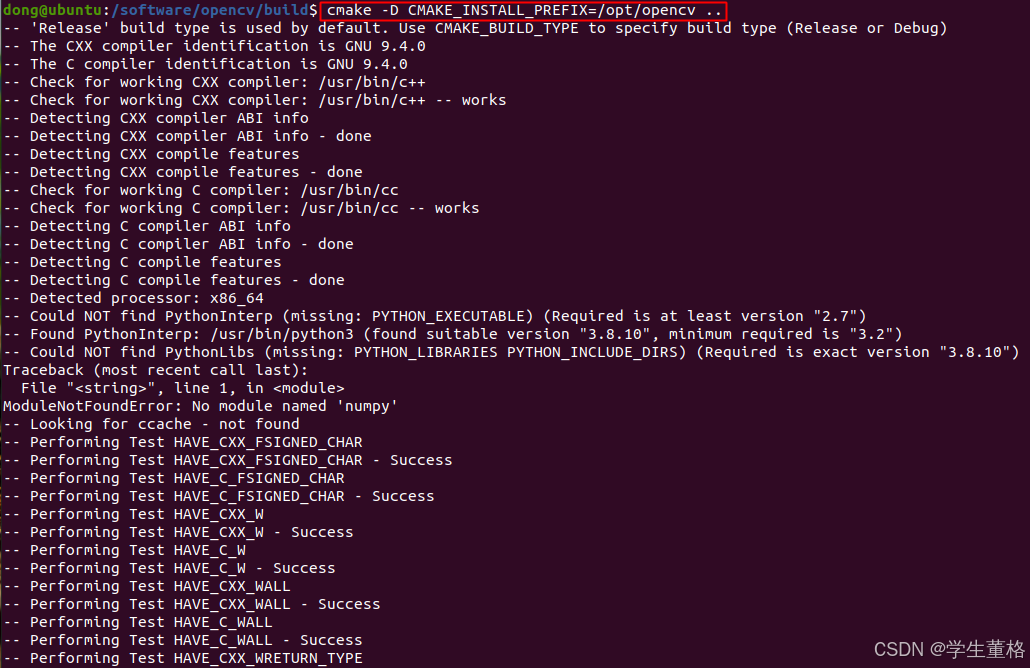

cmake -D CMAKE_INSTALL_PREFIX=/opt/opencv ..
make -j4
sudo make install

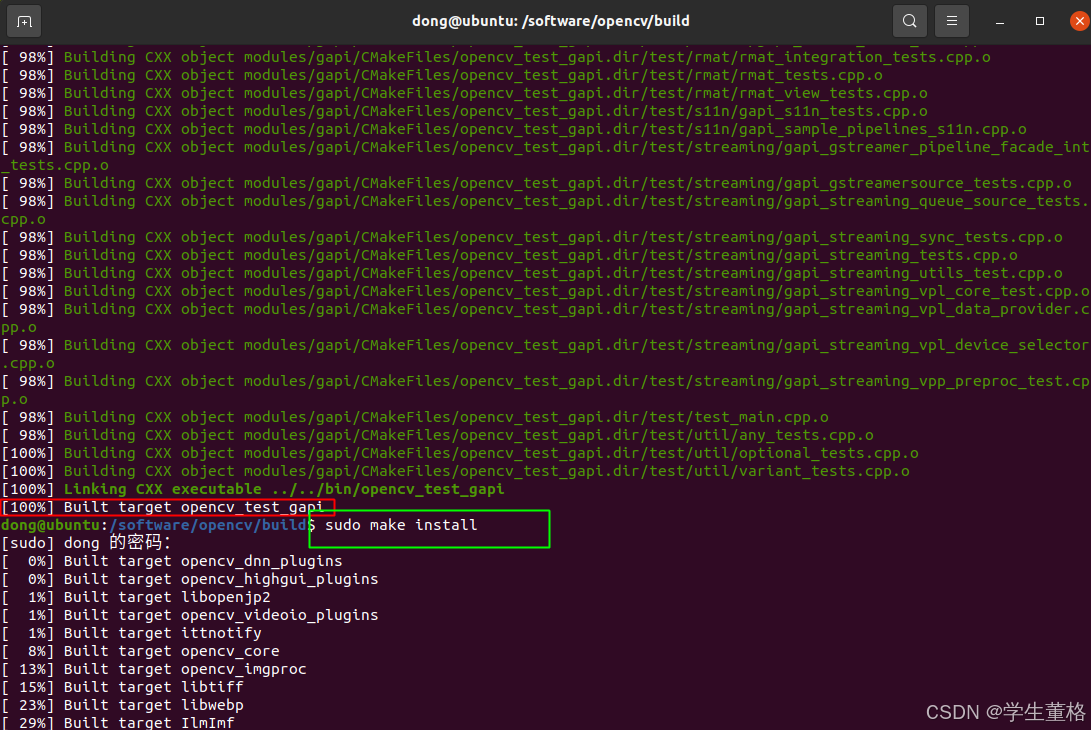

build成功,开始执行sudo make install

make install 成功

特殊:opencv编译的include,编译出来后多嵌套了一层文件夹,手工处理下改为include/opencv2

测试demo

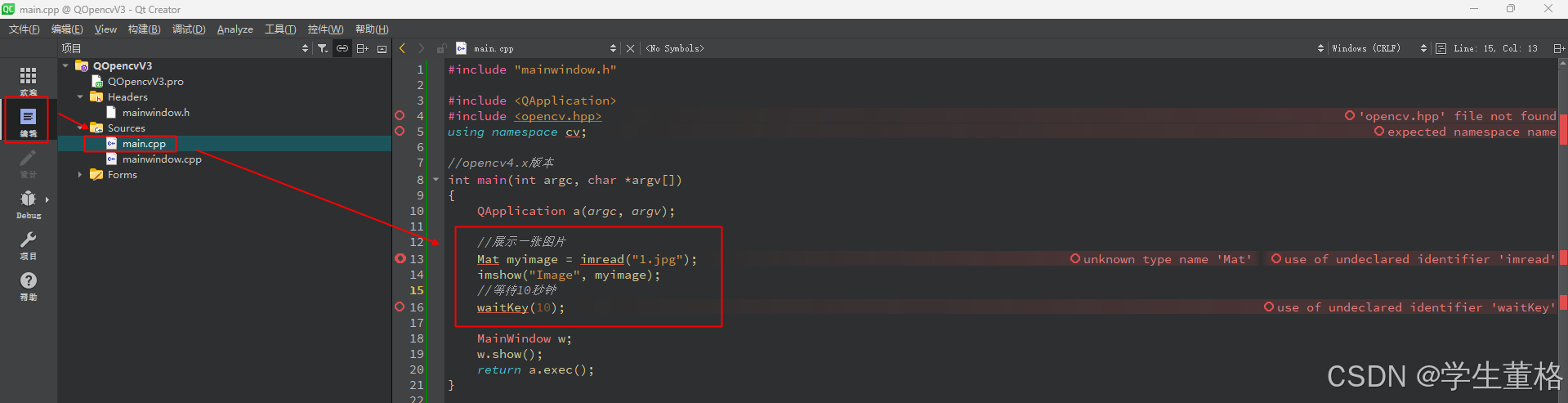

新建项目

用Qt编译Windows-Opencv库

QOpencv3.pro

QT       += core gui

greaterThan(QT_MAJOR_VERSION, 4): QT += widgets

CONFIG += c++11

# You can make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0

SOURCES += \
    main.cpp \
    mainwindow.cpp

HEADERS += \
    mainwindow.h

FORMS += \
    mainwindow.ui

# linux设置 OpenCV 路径
OPENCV_INSTALL_PATH = /opt/opencv

# linux包含头文件路径
INCLUDEPATH += $$OPENCV_INSTALL_PATH/include
INCLUDEPATH += $$OPENCV_INSTALL_PATH/include/opencv2

# linux添加 OpenCV 库文件路径
LIBS += -L$$OPENCV_INSTALL_PATH/lib

# linux链接需要的 OpenCV 库（根据项目实际使用的模块调整）
LIBS += -lopencv_core \
        -lopencv_imgproc \
        -lopencv_highgui \
        -lopencv_imgcodecs \
        -lopencv_videoio

# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += target

main.cpp

#include "mainwindow.h"

#include <QApplication>
#include <opencv.hpp>
using namespace cv;

//opencv4.x版本
int main(int argc, char *argv[])
{
    QApplication a(argc, argv);

    //展示一张图片
    Mat myimage = imread("1.jpg");
    imshow("Image", myimage);
    //等待10秒钟
    waitKey(10);

    MainWindow w;
    w.show();
    return a.exec();
}

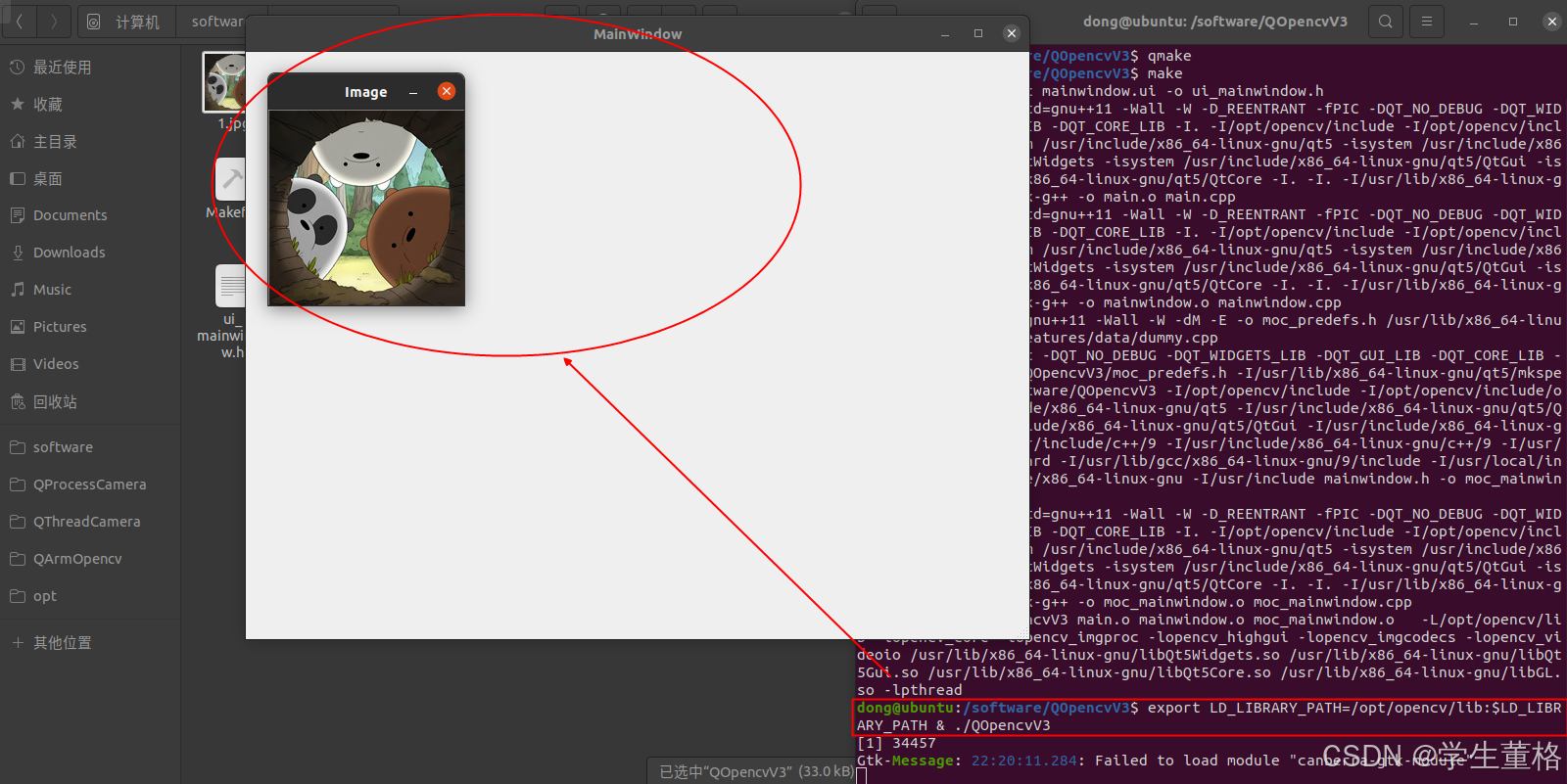

将项目复制到linux目录中:

qmake

make

export LD_LIBRARY_PATH=/opt/opencv/lib:$LD_LIBRARY_PATH & ./QOpencvV3

运行成功

百度云

Qt项目(linux)+环境安装包
