《C++二叉引擎:STL风格搜索树实现与算法优化》

前言**:**二叉搜索树(Binary Search Tree, BST)是计算机科学中最基础且强大的数据结构之一,它凭借 O(log n) 的平均查找、插入和删除效率,成为高效数据管理的关键工具。在C++中,BST不仅是标准模板库(STL)std::set 和 std::map 的底层实现基础,更是理解更高级数据结构(如AVL树、红黑树)的必经之路。

目录

一、二叉搜索树介绍

二、二叉搜索树的实现

结构创建

插入节点

​编辑

中序遍历

查找节点

删除节点

三、二叉树的应用

K模型

KV模型

KV代码实现


一、二叉搜索树介绍

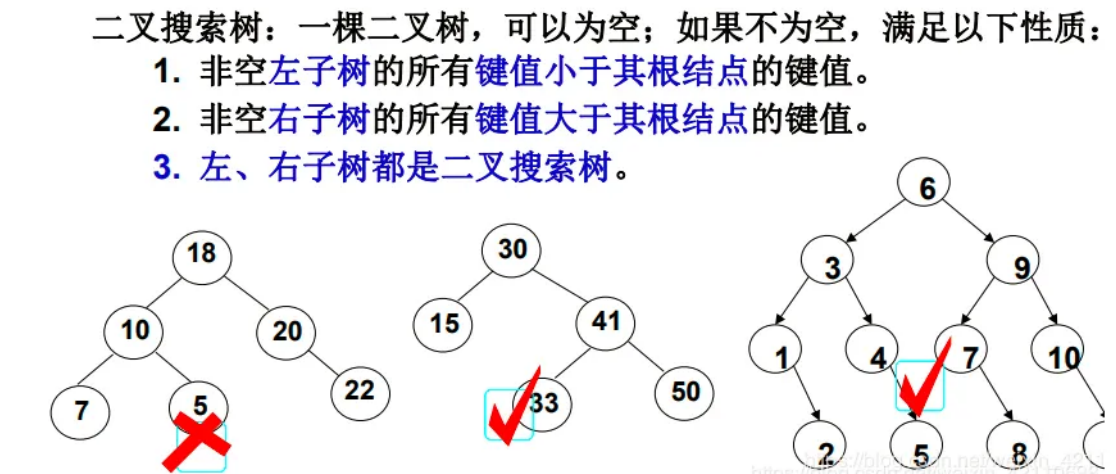

二叉搜索树又称二叉排序树,它或者是一棵空树,或者是具有以下性质的二叉树:

  • 若它的左子树不为空,则左子树上所有节点的值都小于根节点的值
  • 若它的右子树不为空,则右子树上所有节点的值都大于根节点的值
  • 它的左右子树也分别为二叉搜索树

二、二叉搜索树的实现

这个模块,我们会从结构构建到增删查改,一步步演示二叉搜索树的搭建过程。

结构创建

实现一棵二叉搜索树,我们需要一个节点结构、一个功能结构

其中节点结构里面有左右子节点(left,right)、一个数据存储变量(date):

cpp 复制代码
//节点结构
template<class T>
struct Tree_Node
{
	Tree_Node(const T _date)
		:left(nullptr)
		,right(nullptr)
		,date(_date)
	{ }
	Tree_Node<T>* left;
	Tree_Node<T>* right;
	T date;
};

功能结构用来实现二叉搜索树的功能:

cpp 复制代码
//功能结构
template<class T>
class BST
{
	typedef Tree_Node<T> Node;
public:
	//构造
	BST()
		:node(nullptr)
	{ }

	//功能实现

private:
	Node* node;
};

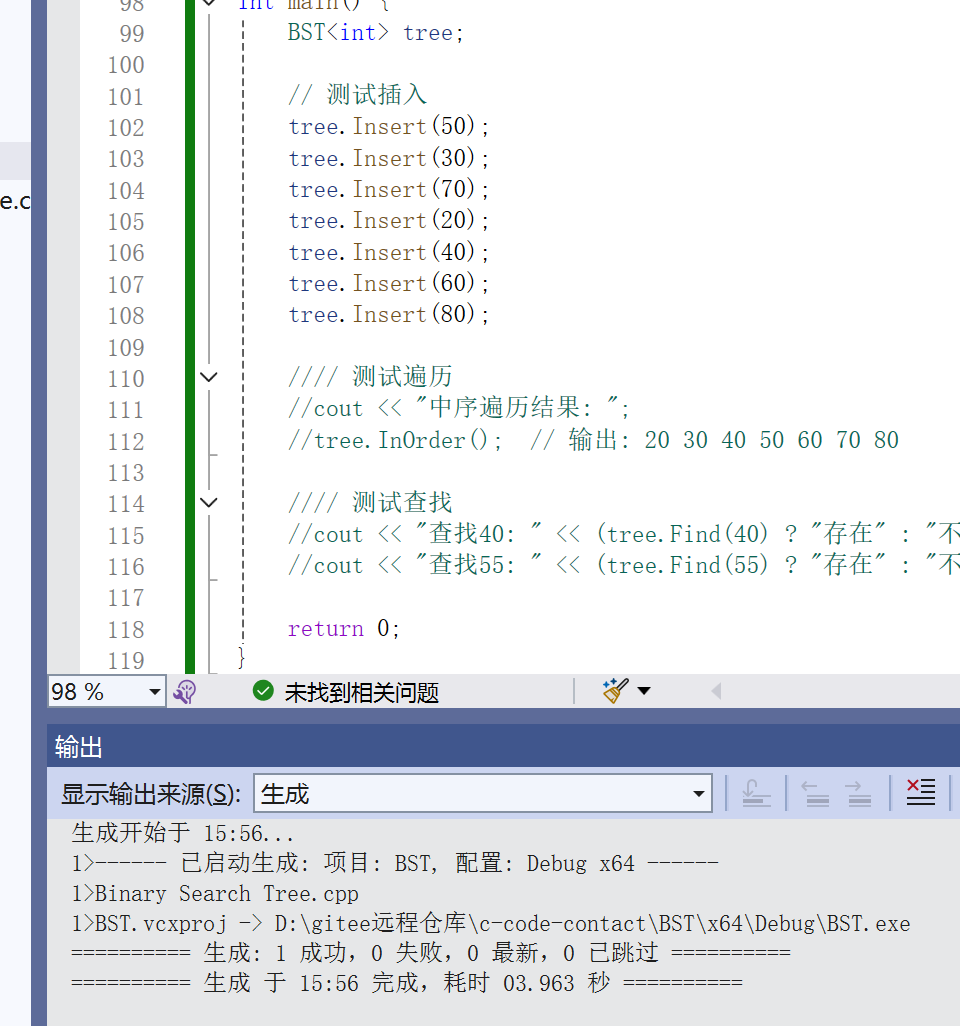

插入节点

插入操作的简述:

  1. 先从根节点开始搜索插入位置:
  2. 若目标值小于当前节点值,则向当前节点的左子树移动;若目标值大于当前节点值,则向当前节点的右子树移动
  3. 当到达叶子节点时,根据目标值与叶子节点值的大小关系,将新节点作为叶子节点的左子节点或右子节点插入

平均时间复杂度为 O(logn),最坏时间复杂度为O(n)

插入节点我们需要根据数据的大小来判断插在左右节点的 nullptr 位置,我们这里用循环来写更容易理解:

cpp 复制代码
 // 插入节点(非递归)
 void Insert(const T& date) {
     // 如果根节点为空
     if (root == nullptr) {
         root = new Node(date);
         return;
     }

     // 根据数据大小查找插入位置
     Node* parent = nullptr;
     Node* cur = root;
     while (cur) {
         parent = cur;  // 记录父节点
         if (date < cur->date) {
             cur = cur->left;   // 向左子树查找
         }
         else if (date > cur->date) {
             cur = cur->right;  // 向右子树查找
         }
         else {
             return;  // 数据已存在,直接返回
         }
     }

     // 创建新节点并插入
     if (date < parent->date) {
         parent->left = new Node(date);  // 插入左侧
     }
     else {
         parent->right = new Node(date); // 插入右侧
     }

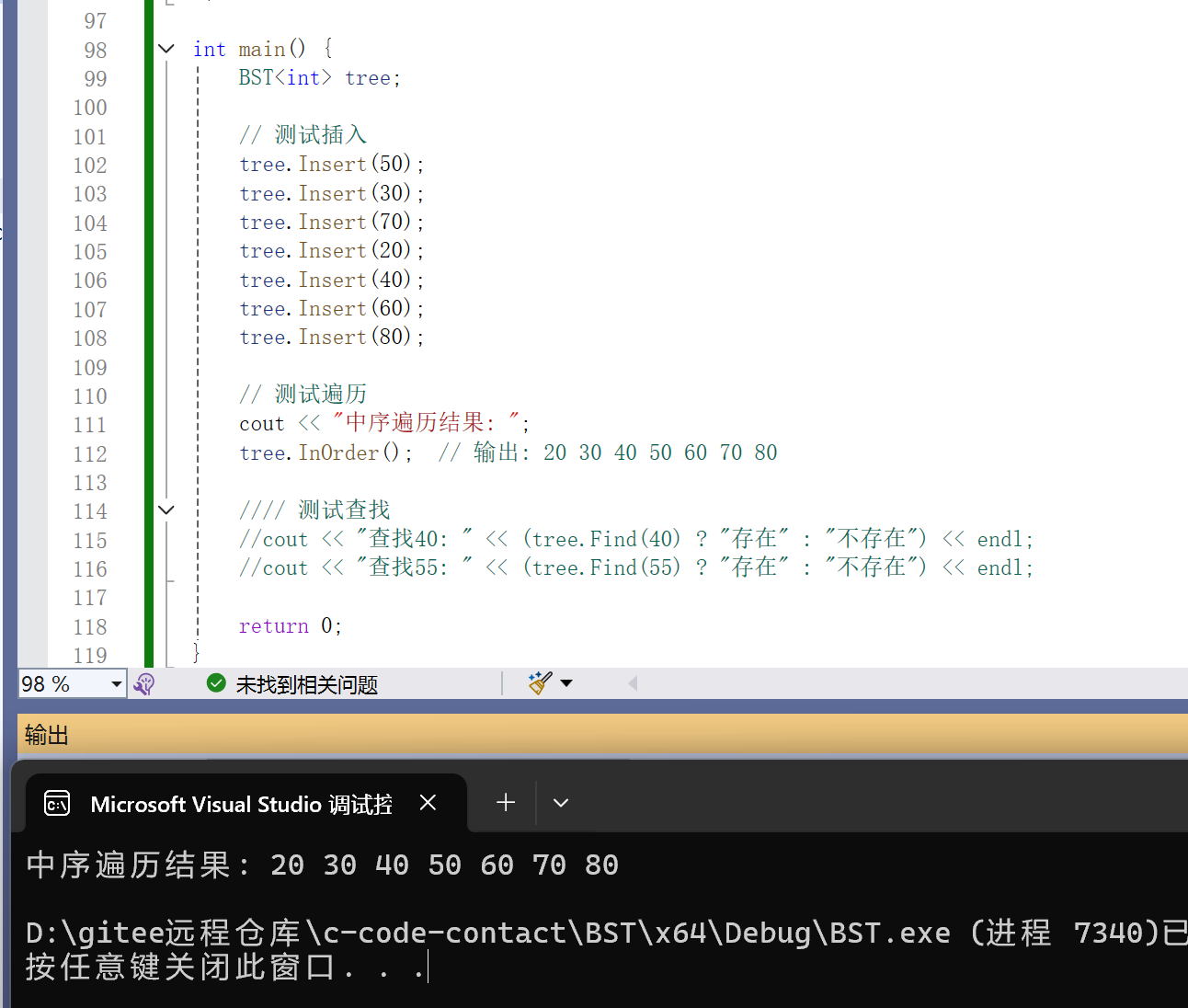

中序遍历

cpp 复制代码
//中序遍历
void Inorder()
{
	_Inorder(node);
}
 记得私有中序遍历辅助函数
void _Inorder(Node* ptr)
{
	//遇到空就返回
	if (ptr == nullptr)
	{
		return;
	}

	_Inorder(ptr->left);

	cout << ptr->date << " ";

	_Inorder(ptr->right);
}

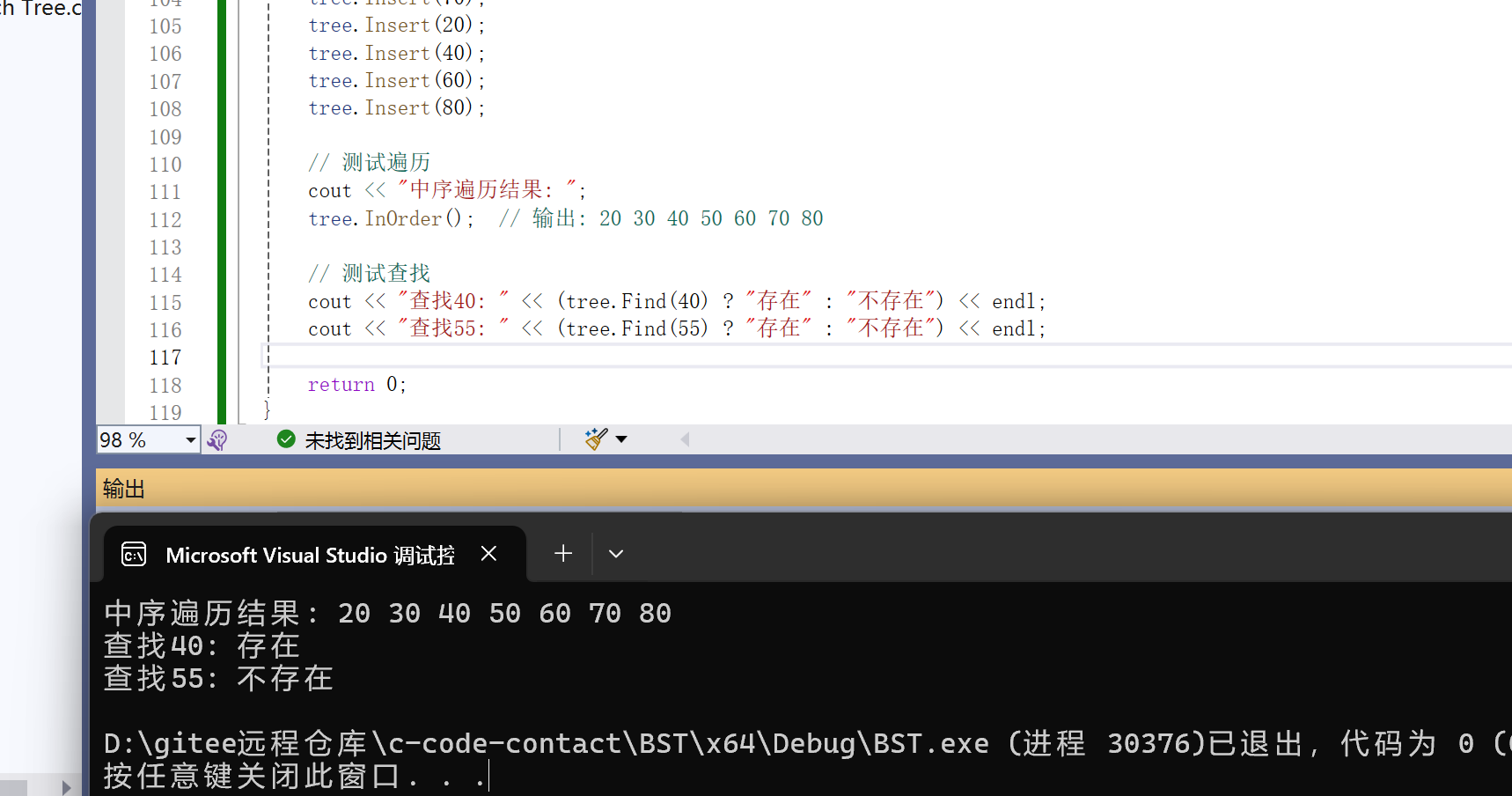

查找节点

cpp 复制代码
// 查找节点(非递归)
bool Find(const T& date) {
    Node* cur = root;
    while (cur) {
        if (date < cur->date) {
            cur = cur->left;   // 向左查找
        }
        else if (date > cur->date) {
            cur = cur->right;  // 向右查找
        }
        else {
            return true;  // 找到节点
        }
    }
    return false;  // 未找到
}

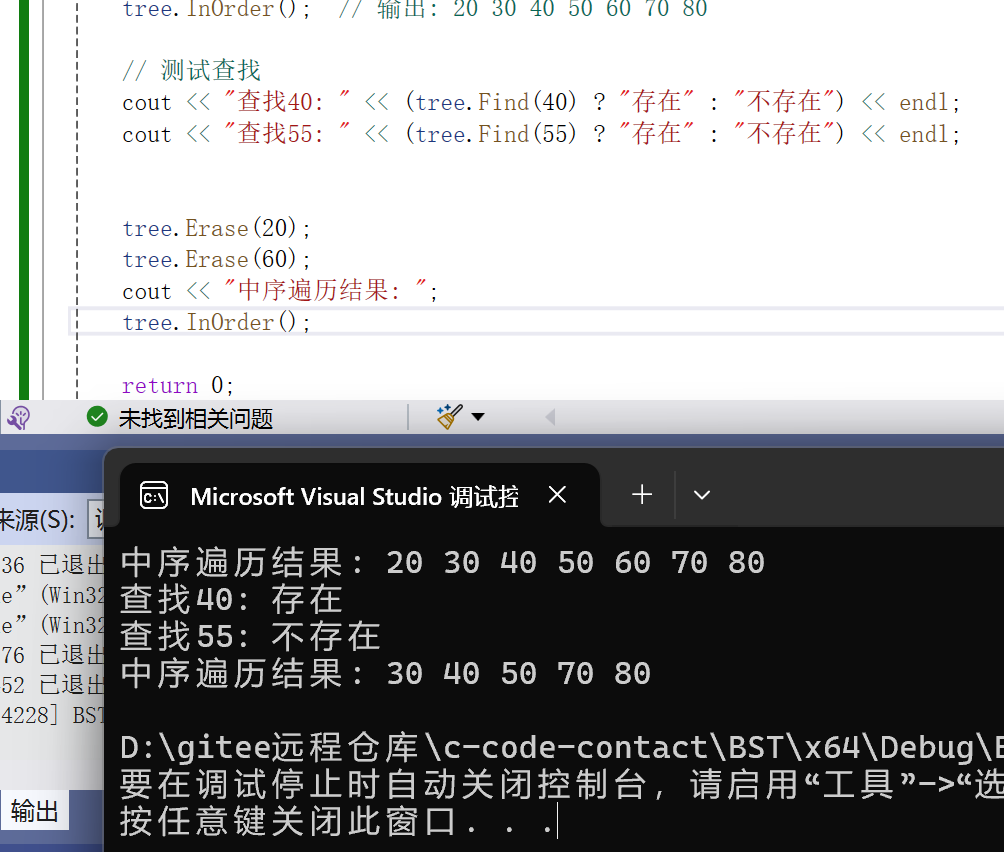

删除节点

首先查找元素是否在二叉搜索树中,如果不存在,则返回, 否则要删除的结点可能分下面四种情 况:

  • 要删除的结点无孩子结点
  • 要删除的结点只有左孩子结点
  • 要删除的结点只有右孩子结点
  • 要删除的结点有左、右孩子结点
    但是我们根据实际来看,这四种情况可以分为三种情况,简单来说
  1. 该节点无孩子节点:先删,然后置空
  2. 该节点有一个孩子节点:先连接再删
  3. 该节点有两个孩子节点:我们需要找一定大小的节点去替代它。

替代思路:让它的左子树最大值或者右子树最小值去替换,然后删除它(左子树max为例)
平均时间复杂度为O(logn),最坏情况为O(n)

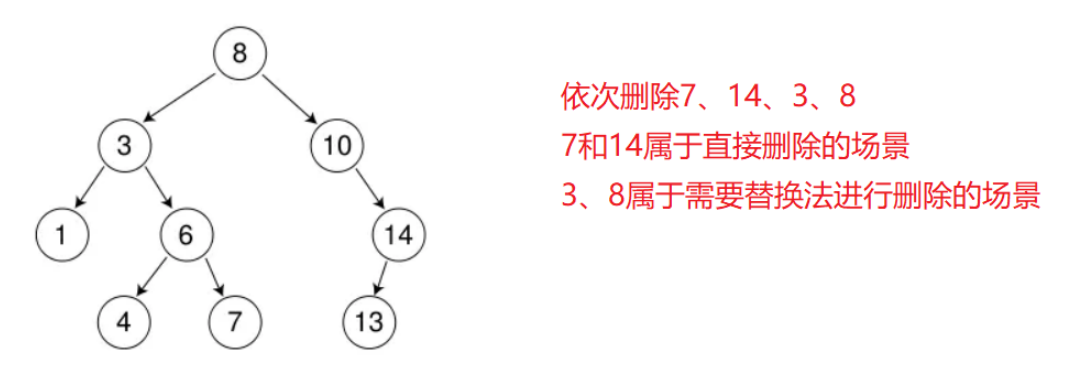

我们这里拿3举个例子:

  1. 先找到目标节点3,然后找目标节点左子树的最大值left_max
  2. 交换目标节点cur和最大值 left_max的数据 ,标记 left_max的父节点为 parent。
    找其左子树中的最大节点,即左子树中最右侧的节点,或者在其右子树中最小的节点,即右子树中最小的节点,替代节点找到后,将替代节点中的值交给待删除节点,转换成删除替代节点。
cpp 复制代码
// 删除节点(非递归)
    bool Erase(const T& date) {
        Node* parent = nullptr;
        Node* cur = root;

        // 查找要删除的节点及其父节点
        while (cur && cur->date != date) {
            parent = cur;
            if (date < cur->date) {
                cur = cur->left;
            }
            else {
                cur = cur->right;
            }
        }

        if (cur == nullptr) return false; // 未找到要删除的节点

        // 情况1:删除的节点有两个子节点
        if (cur->left && cur->right) {
            Node* minRight = cur->right;
            Node* minRightParent = cur;

            // 找到右子树中的最小节点
            while (minRight->left) {
                minRightParent = minRight;
                minRight = minRight->left;
            }

            // 用最小节点的值替换当前节点值
            cur->date = minRight->date;

            // 转换为删除minRight(此时minRight最多有一个右子节点)
            cur = minRight;
            parent = minRightParent;
        }

        // 情况2和3:删除的节点有0或1个子节点
        Node* child = cur->left ? cur->left : cur->right;

        if (parent == nullptr) { // 删除的是根节点
            root = child;
        }
        else if (parent->left == cur) {
            parent->left = child;
        }
        else {
            parent->right = child;
        }

        delete cur;
        return true;
    }

三、二叉树的应用

K模型

K模型:K模型即只有key作为关键码,结构中只需要存储Key即可,关键码即为需要搜索到
的值。

比如:给一个单词word,判断该单词是否拼写正确,具体方式如下:
以词库中所有单词集合中的每个单词作为key,构建一棵二叉搜索树
在二叉搜索树中检索该单词是否存在,存在则拼写正确,不存在则拼写错误。

KV模型

KV模型:每一个关键码key,都有与之对应的值Value,即<Key, Value>的键值对。该种方
式在现实生活中非常常见:

比如英汉词典就是英文与中文的对应关系,通过英文可以快速找到与其对应的中文,英 文单词与其对应的中文就构成一种键值对;

再比如统计单词次数,统计成功后,给定单词就可快速找到其出现的次数,单词与其出 现次数就是就构成一种键值对。

KV代码实现

cpp 复制代码
#include <iostream>
#include <string>
using namespace std;

template<class K, class V>
struct BSTNode {
    BSTNode(const K& key = K(), const V& value = V())
        : _pLeft(nullptr), _pRight(nullptr), _key(key), _value(value) {}

    BSTNode<K, V>* _pLeft;
    BSTNode<K, V>* _pRight;
    K _key;
    V _value;
};

template<class K, class V>
class BSTree {
    typedef BSTNode<K, V> Node;
    typedef Node* PNode;
public:
    BSTree() : _pRoot(nullptr) {}

    // 查找节点(非递归)
    PNode Find(const K& key) {
        PNode cur = _pRoot;
        while (cur) {
            if (key < cur->_key) {
                cur = cur->_pLeft;
            }
            else if (key > cur->_key) {
                cur = cur->_pRight;
            }
            else {
                return cur;
            }
        }
        return nullptr;
    }

    // 插入节点(非递归)
    bool Insert(const K& key, const V& value) {
        if (_pRoot == nullptr) {
            _pRoot = new Node(key, value);
            return true;
        }

        PNode parent = nullptr;
        PNode cur = _pRoot;
        while (cur) {
            parent = cur;
            if (key < cur->_key) {
                cur = cur->_pLeft;
            }
            else if (key > cur->_key) {
                cur = cur->_pRight;
            }
            else {
                return false; // 键已存在
            }
        }

        if (key < parent->_key) {
            parent->_pLeft = new Node(key, value);
        }
        else {
            parent->_pRight = new Node(key, value);
        }
        return true;
    }

    // 删除节点(非递归)
    bool Erase(const K& key) {
        PNode parent = nullptr;
        PNode cur = _pRoot;

        // 查找要删除的节点及其父节点
        while (cur && cur->_key != key) {
            parent = cur;
            if (key < cur->_key) {
                cur = cur->_pLeft;
            }
            else {
                cur = cur->_pRight;
            }
        }

        if (cur == nullptr) return false; // 未找到要删除的节点

        // 情况1:删除的节点有两个子节点
        if (cur->_pLeft && cur->_pRight) {
            PNode minRight = cur->_pRight;
            PNode minRightParent = cur;

            // 找到右子树中的最小节点
            while (minRight->_pLeft) {
                minRightParent = minRight;
                minRight = minRight->_pLeft;
            }

            // 用最小节点的值替换当前节点值
            cur->_key = minRight->_key;
            cur->_value = minRight->_value;

            // 转换为删除minRight(此时minRight最多有一个右子节点)
            cur = minRight;
            parent = minRightParent;
        }

        // 情况2和3:删除的节点有0或1个子节点
        PNode child = cur->_pLeft ? cur->_pLeft : cur->_pRight;

        if (parent == nullptr) { // 删除的是根节点
            _pRoot = child;
        }
        else if (parent->_pLeft == cur) {
            parent->_pLeft = child;
        }
        else {
            parent->_pRight = child;
        }

        delete cur;
        return true;
    }

    // 中序遍历(递归)
    void InOrder() {
        _InOrder(_pRoot);
        cout << endl;
    }

private:
    PNode _pRoot;

    void _InOrder(PNode node) {
        if (node) {
            _InOrder(node->_pLeft);
            cout << node->_key << ":" << node->_value << " ";
            _InOrder(node->_pRight);
        }
    }
};

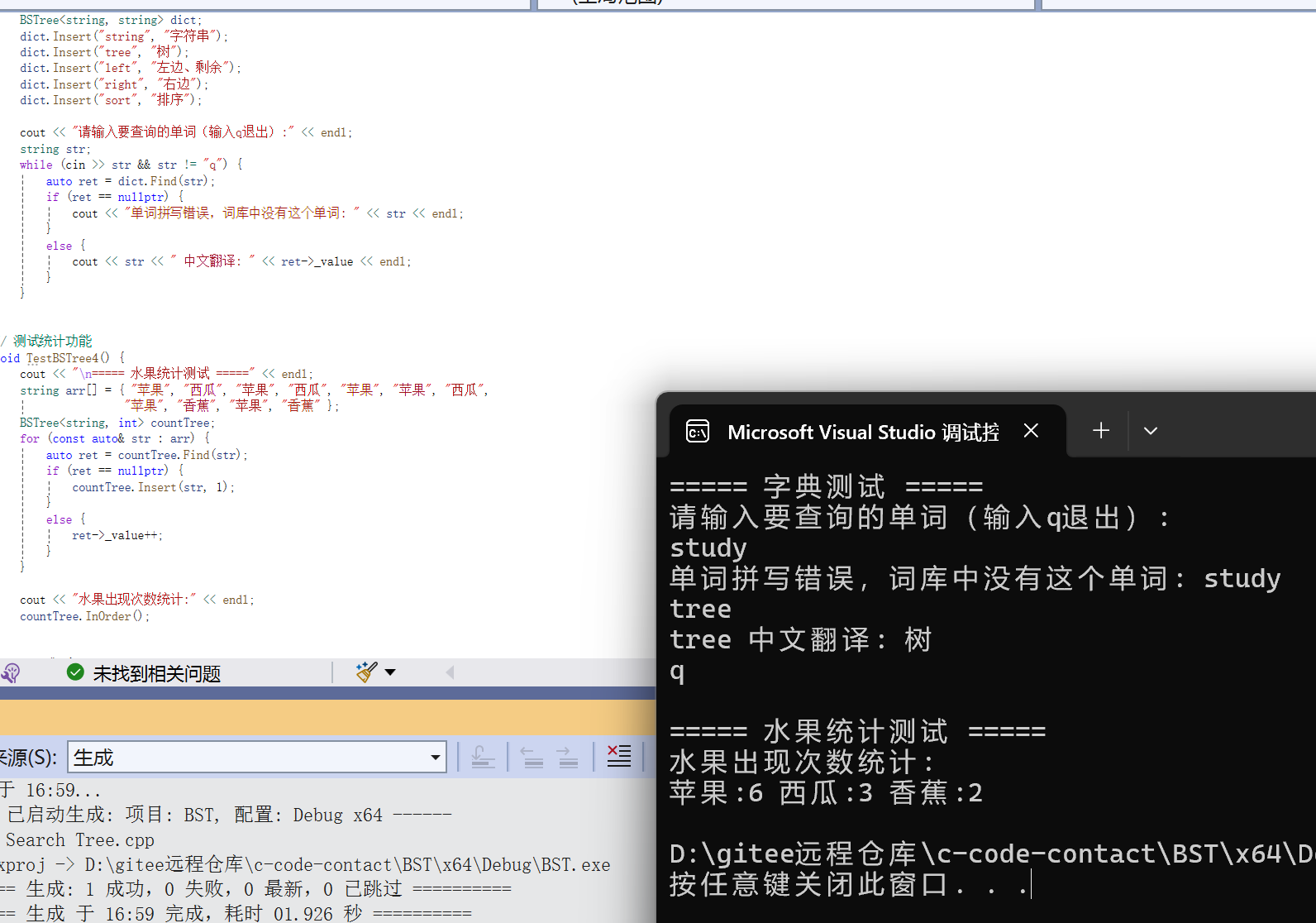

// 测试字典功能
void TestBSTree3() {
    cout << "===== 字典测试 =====" << endl;
    BSTree<string, string> dict;
    dict.Insert("string", "字符串");
    dict.Insert("tree", "树");
    dict.Insert("left", "左边、剩余");
    dict.Insert("right", "右边");
    dict.Insert("sort", "排序");

    cout << "请输入要查询的单词(输入q退出):" << endl;
    string str;
    while (cin >> str && str != "q") {
        auto ret = dict.Find(str);
        if (ret == nullptr) {
            cout << "单词拼写错误,词库中没有这个单词: " << str << endl;
        }
        else {
            cout << str << " 中文翻译: " << ret->_value << endl;
        }
    }
}

// 测试统计功能
void TestBSTree4() {
    cout << "\n===== 水果统计测试 =====" << endl;
    string arr[] = { "苹果", "西瓜", "苹果", "西瓜", "苹果", "苹果", "西瓜",
                    "苹果", "香蕉", "苹果", "香蕉" };
    BSTree<string, int> countTree;
    for (const auto& str : arr) {
        auto ret = countTree.Find(str);
        if (ret == nullptr) {
            countTree.Insert(str, 1);
        }
        else {
            ret->_value++;
        }
    }

    cout << "水果出现次数统计:" << endl;
    countTree.InOrder();
}

int main() {
    TestBSTree3();
    TestBSTree4();
    return 0;
}
