基于python+Java的二手车与奔驰销量数据可视化平台

战族狼魂2025-10-15 9:21

目录

1、数据采集

（1）二手⻋数据

​（2）奔驰上市新⻋数据

（3）⻋系⽉销榜数据

（4）⻋系⽉销售排⾏榜数据

（5）MySQL数据存储

2、数据仓库建模

（1）Spark开发环境搭建

1、创建maven项⽬；

2、添加pom.xml依赖；

3、配置scala环境；

4、创建测试连接hive⽂件；

5、创建数据仓库分层⽬录；

（1）ODS层建模

1、创建数据库；

2、编写DATAX脚本

①、编写合肥⼆⼿⻋数据脚本ods_hefei_er_shou_car_info.json

②、编写奔驰新⻋资讯数据脚本

③、编写奔驰近半年⻋型排⾏榜数据脚本

④、编写⽉度汽⻋销量排⾏榜数据脚本

（2）DWD层建模

1、创建数据库；

2、创建DWD层表；

3、数据清洗；

（3）DWS层建模

1、创建数据库；

2、创建表；

（4）ADS层建模

1、创建数据库；

2、创建表；

3、数据可视化

1、通过启动datax脚本将数据导⼊到mysql中

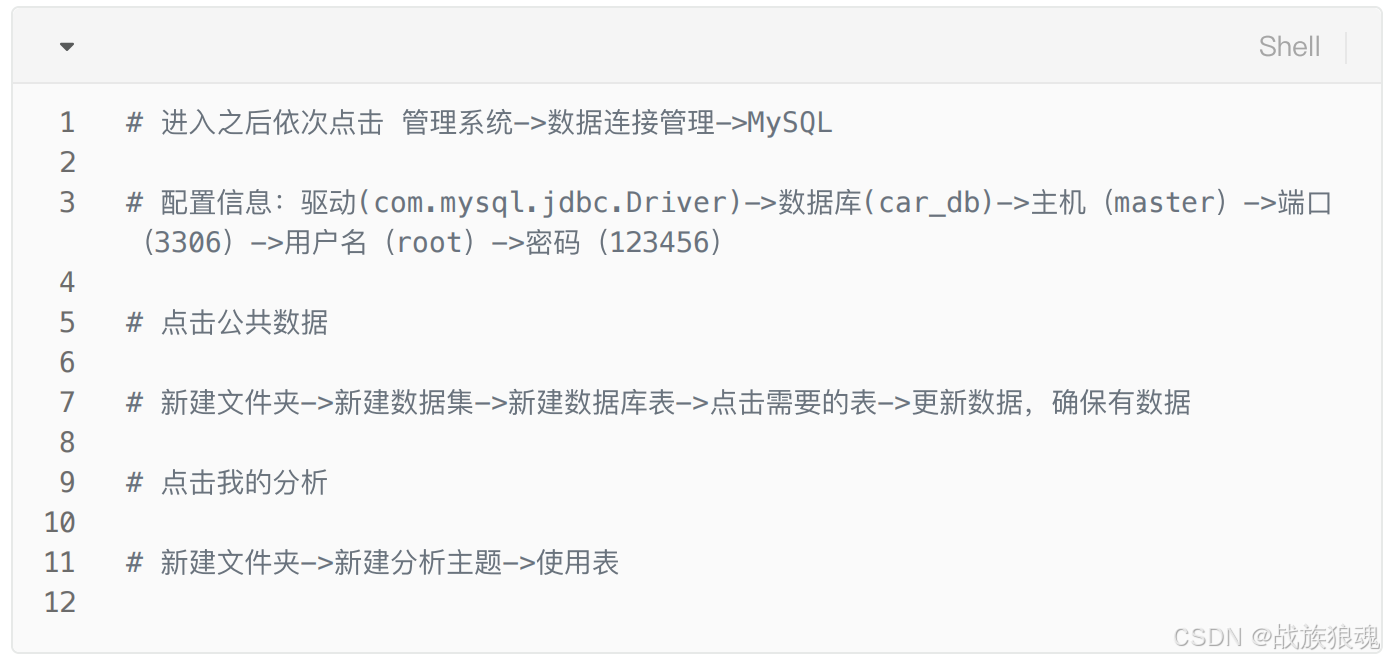

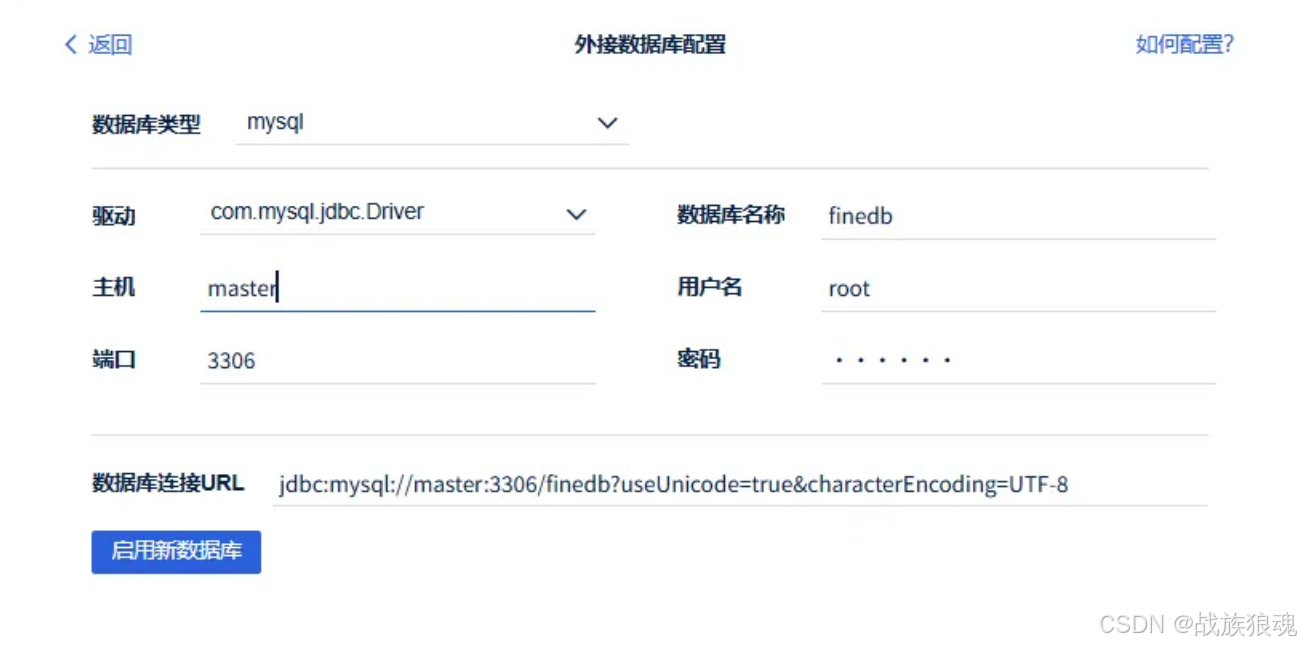

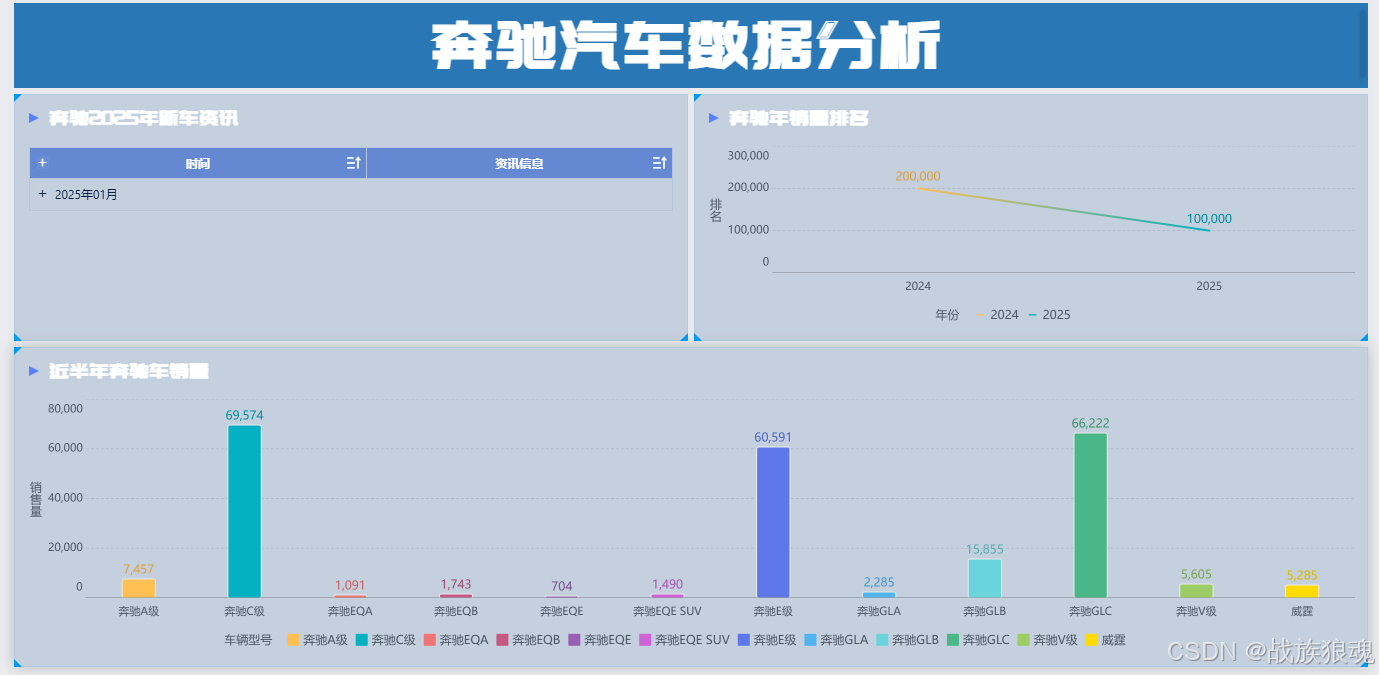

2、可视化

1、数据采集

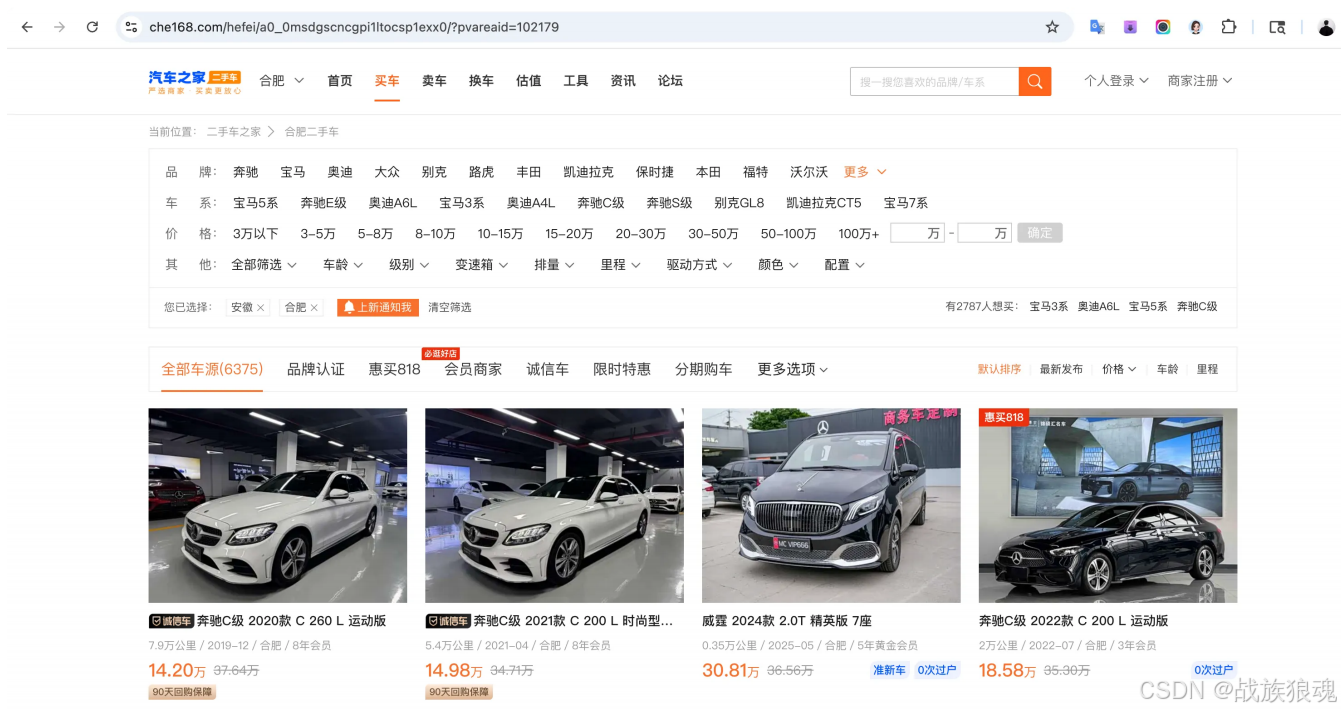

（1）二手⻋数据

bash 复制代码
https://www.che168.com/hefei/a0_0msdgscncgpi1ltocsp1exx0/?pvareaid=102179

https://www.che168.com/hefei/a0_0msdgscncgpi1ltocsp2exx0/?pvareaid=102179

抓取地址：

bash 复制代码
https://www.che168.com/hefei/a0_0msdgscncgpi1ltocsp3exx0/?pvareaid=102179#currengpostion

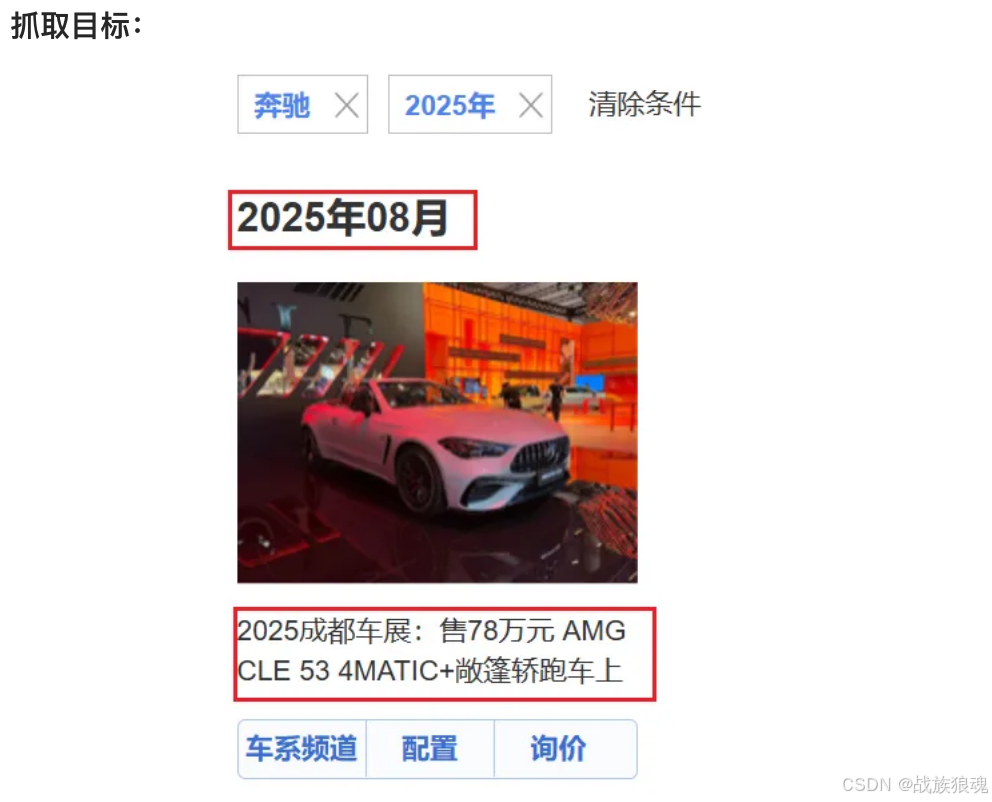

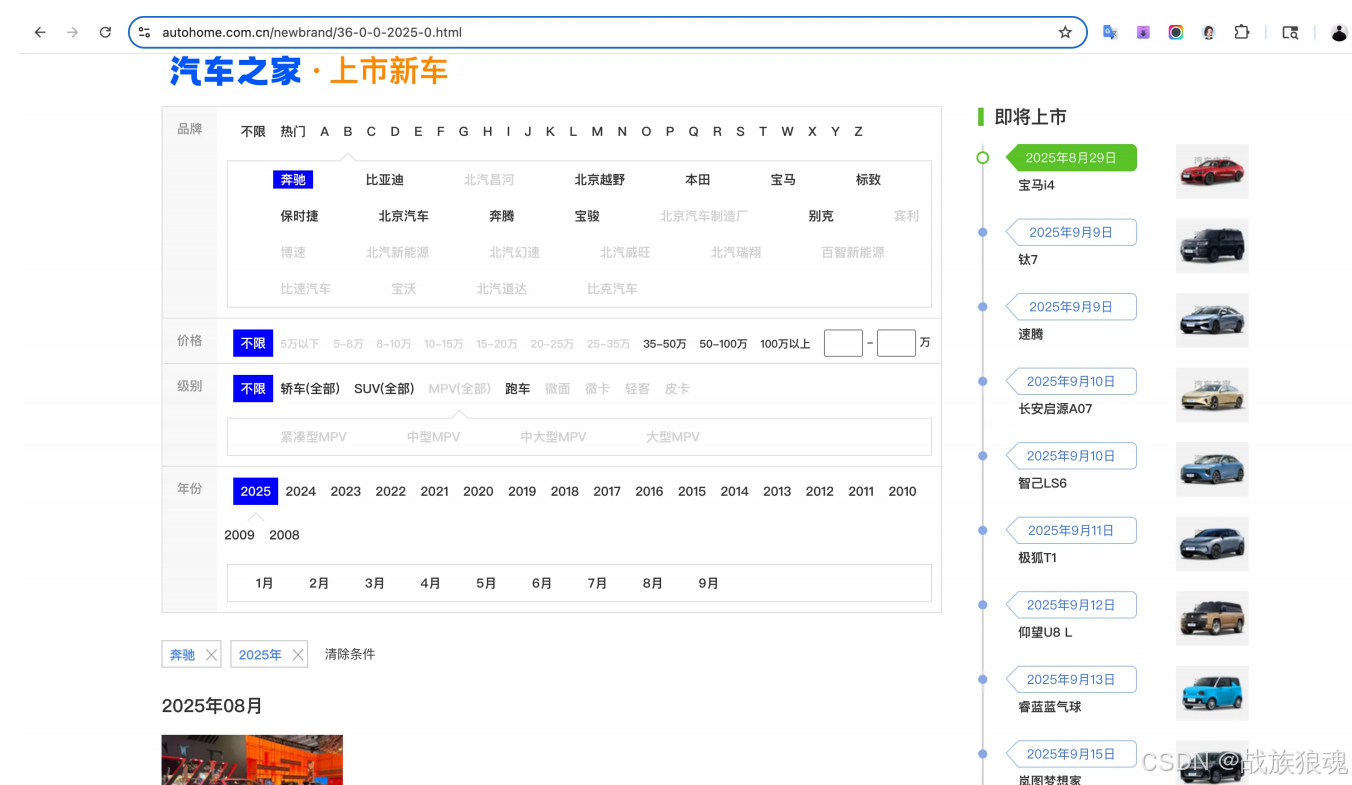

（2）奔驰上市新⻋数据

bash 复制代码
https://www.autohome.com.cn/newbrand/36-0-0-2025-0.html

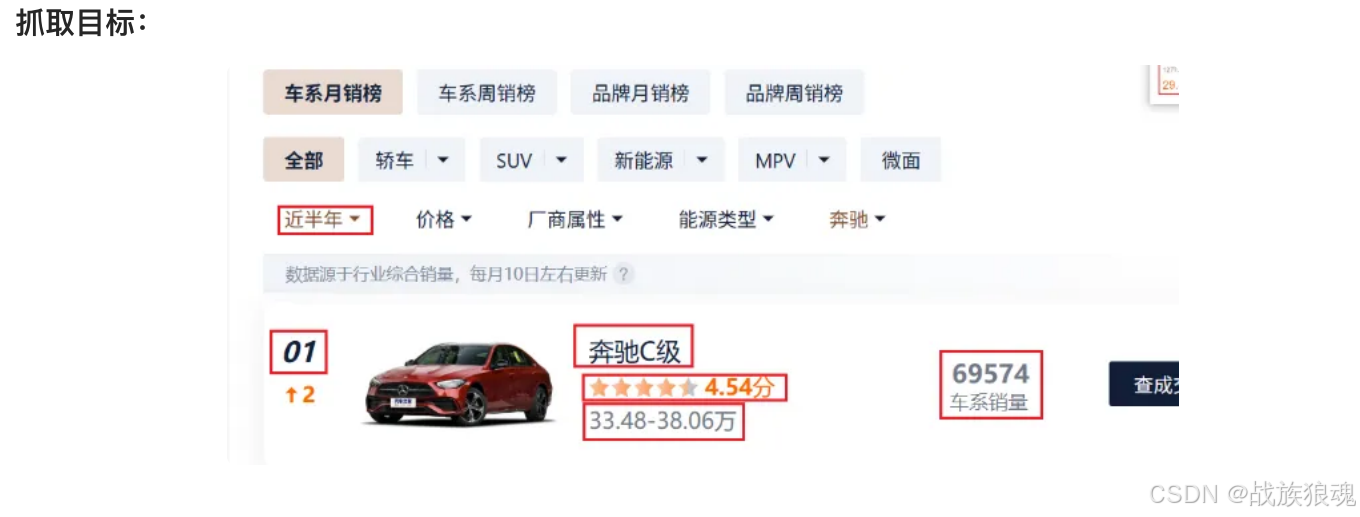

（3）⻋系⽉销榜数据

bash 复制代码
https://www.autohome.com.cn/rank/1-1-0-0_9000-x-x-36/2025-03_2025-08.html
https://www.autohome.com.cn/web-main/car/rank/getList?from=28&pm=2&pluginversion=11.75.8&model=1&channel=0&pageindex=1&pagesize=50&typeid=
1&subranktypeid=1&levelid=0&price=0-9000&brandid=36&date=2025-03_2025-08

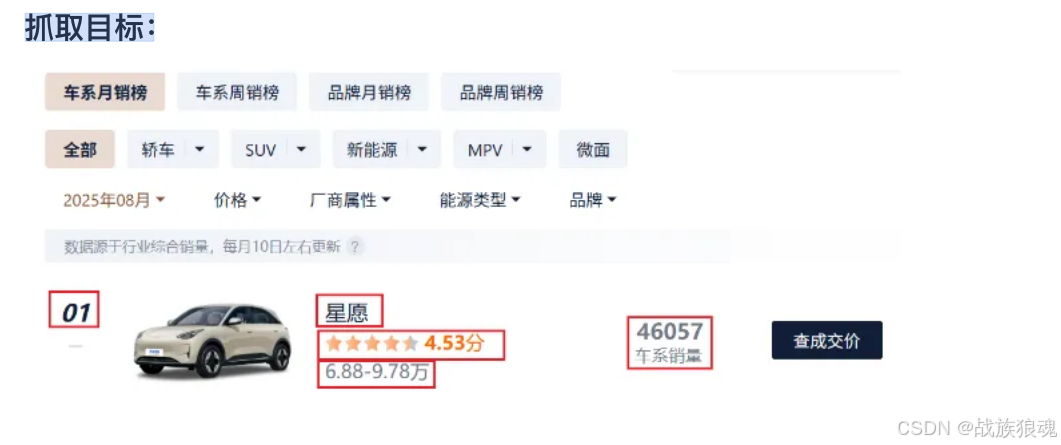

（4）⻋系⽉销售排⾏榜数据

bash 复制代码
https://www.autohome.com.cn/rank/1-1-0-0_9000-x-x-x/2025-08.html
https://www.autohome.com.cn/web-main/car/rank/getList?from=28&pm=2&pluginversion=11.75.8&model=1&channel=0&pageindex=1&pagesize=50&typeid=1&subranktypeid=1&levelid=0&price=0-9000&date=2025-08

（5）MySQL数据存储

①、创建数据库；

sql 复制代码
create database car_db;

②、hefei_er_shou_car_info表(合肥⼆⼿⻋数据表)

sql 复制代码
CREATE TABLE `hefei_er_shou_car_info` (
  `specId` varchar(255) DEFAULT NULL,
  `car_name` varchar(255) DEFAULT NULL,
  `kilometer` varchar(255) DEFAULT NULL,
  `car_time` varchar(255) DEFAULT NULL,
  `car_location` varchar(255) DEFAULT NULL,
  `sell_price` varchar(255) DEFAULT NULL,
  `true_price` varchar(255) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

③、benchi_new_car_info表(奔驰新⻋资讯数据表)

sql 复制代码
CREATE TABLE `benchi_new_car_info` (
  `car_time` varchar(255) DEFAULT NULL,
  `info` text
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

④、benchi_car_half_year表(奔驰近半年⻋型排⾏榜数据表)

sql 复制代码
CREATE TABLE `benchi_car_half_year` (
  `rank` int DEFAULT NULL,
  `seriesname` varchar(255) DEFAULT NULL,
  `priceinfo` varchar(255) DEFAULT NULL,
  `scorevalue` decimal(3,2) DEFAULT NULL,
  `salecount` int DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

⑤、month_car_top表(⽉度汽⻋销量排⾏榜数据表)

sql 复制代码
CREATE TABLE `month_car_top` (
  `rank` int DEFAULT NULL,
  `seriesname` varchar(255) DEFAULT NULL,
  `priceinfo` varchar(255) DEFAULT NULL,
  `scorevalue` decimal(3,2) DEFAULT NULL,
  `salecount` int DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

2、数据仓库建模

（1）Spark开发环境搭建

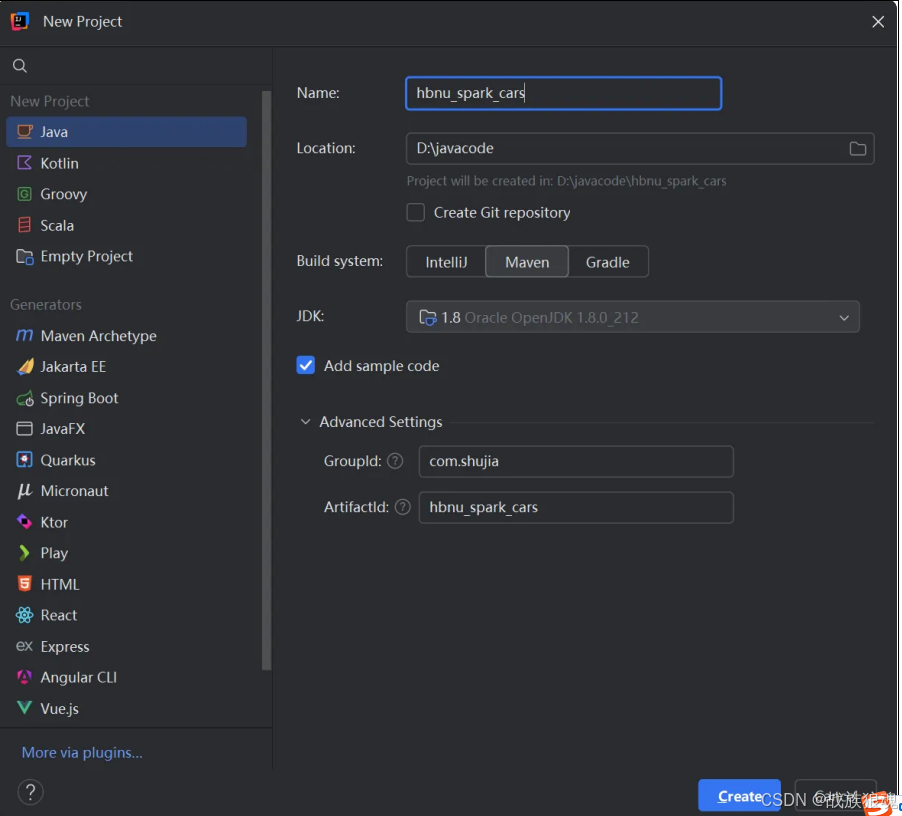

1、创建maven项⽬；

2、添加pom.xml依赖；

XML 复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 htt
p://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <groupId>com.shujia</groupId>
 <artifactId>hbuu_test</artifactId>
 <version>1.0-SNAPSHOT</version>
 <properties>
 <maven.compiler.source>8</maven.compiler.source>
 <maven.compiler.target>8</maven.compiler.target>
 <project.build.sourceEncoding>UTF-8</project.build.sourceEnc
oding>
 </properties>
 <dependencies>
 <!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-core -->
 <dependency>
 <groupId>org.apache.spark</groupId>
 <artifactId>spark-core_2.12</artifactId>
 <version>3.1.3</version>
 </dependency>
 <!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-sql -->
 <dependency>
 <groupId>org.apache.spark</groupId>
 <artifactId>spark-sql_2.12</artifactId>
 <version>3.1.3</version>
 </dependency>
 <!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-streaming -->
 <dependency>
 <groupId>org.apache.spark</groupId>
 <artifactId>spark-streaming_2.12</artifactId>
 <version>3.1.3</version>
 </dependency>
 <!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-mllib -->
 <dependency>
 <groupId>org.apache.spark</groupId>
 <artifactId>spark-mllib_2.12</artifactId>
 <version>3.1.3</version>
 </dependency>
 <!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-hive -->
 <dependency>
 <groupId>org.apache.spark</groupId>
 <artifactId>spark-hive_2.12</artifactId>
 <version>3.1.3</version>
 </dependency>
 <!-- https://mvnrepository.com/artifact/org.apache.hive/hive
-exec -->
 <dependency>
 <groupId>org.apache.hive</groupId>
 <artifactId>hive-exec</artifactId>
 <version>3.1.3</version>
 </dependency>
 <!-- https://mvnrepository.com/artifact/com.mysql/mysql-conn
ector-j -->
 <dependency>
 <groupId>com.mysql</groupId>
 <artifactId>mysql-connector-j</artifactId>
 <version>8.0.33</version>
 </dependency>
 <dependency>
 <groupId>com.fasterxml.jackson.core</groupId>
 <artifactId>jackson-databind</artifactId>
 <version>2.10.0</version>
 </dependency>
 <dependency>
 <groupId>com.fasterxml.jackson.core</groupId>
 <artifactId>jackson-core</artifactId>
 <version>2.10.0</version>
 </dependency>
 <dependency>
 <groupId>org.apache.logging.log4j</groupId>
 <artifactId>log4j-core</artifactId>
 <version>2.17.1</version>
 </dependency>
 <dependency>
 <groupId>org.apache.poi</groupId>
 <artifactId>poi</artifactId>
 <version>5.2.2</version>
 <exclusions>
 <exclusion>
 <groupId>org.apache.logging.log4j</groupId>
 <artifactId>log4j-api</artifactId>
 </exclusion>
 </exclusions>
 </dependency>
 <!-- https://mvnrepository.com/artifact/org.apache.hadoop/ha
doop-auth -->
 <dependency>
 <groupId>org.apache.hadoop</groupId>
 <artifactId>hadoop-auth</artifactId>
 <version>3.1.3</version>
 </dependency>
 </dependencies>
</project>

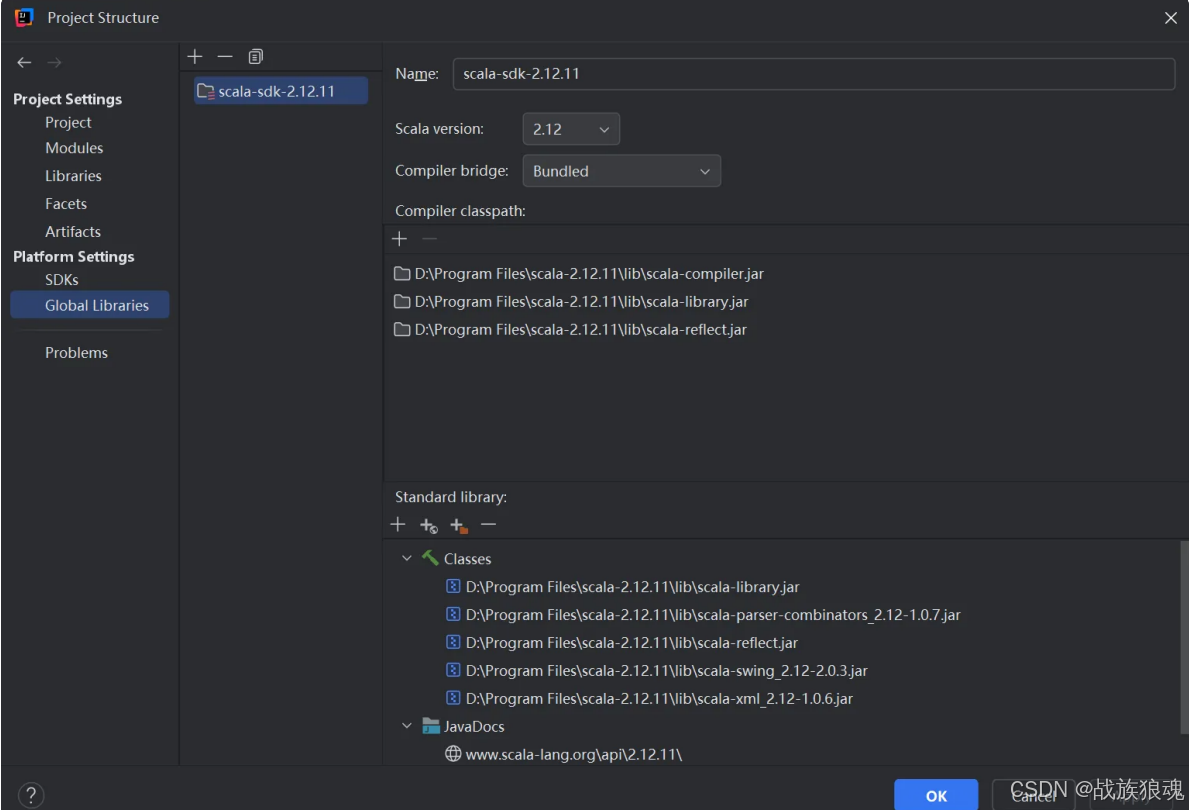

3、配置scala环境；

4、创建测试连接hive⽂件；

java 复制代码
import org.apache.spark.sql.SparkSession
object Demo01_test {
 def main(args: Array[String]): Unit = {
 val spark: SparkSession = SparkSession.builder()
 .appName("测试")
 .master("local[*]")
 .config("spark.sql.shuffle.partitions", "1")
 .enableHiveSupport()
 .getOrCreate()
 spark.sql(
 """
 |show databases
 |""".stripMargin).show()
 spark.stop()
 }
}

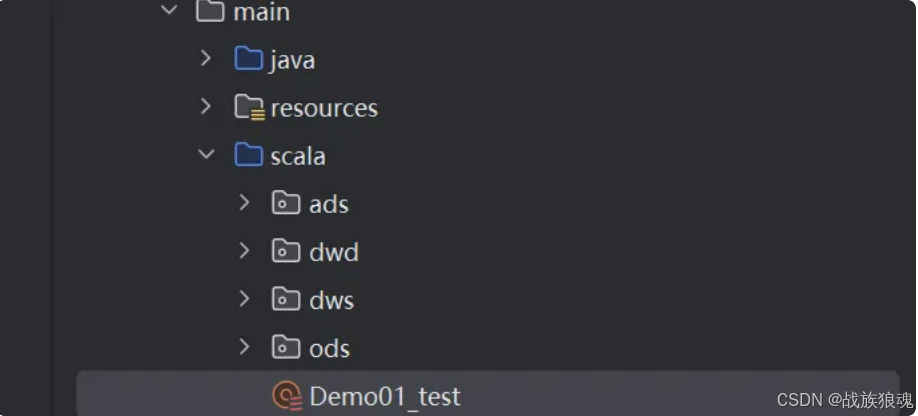

5、创建数据仓库分层⽬录；

（1）ODS层建模
1、创建数据库；
sql 复制代码
/*
 Navicat Premium Dump SQL

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80041 (8.0.41)
 Source Host           : localhost:3306
 Source Schema         : qiche_ods

 Target Server Type    : MySQL
 Target Server Version : 80041 (8.0.41)
 File Encoding         : 65001

 Date: 09/10/2025 20:56:18
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for ods_benchi_car_half_year
-- ----------------------------
DROP TABLE IF EXISTS `ods_benchi_car_half_year`;
CREATE TABLE `ods_benchi_car_half_year`  (
  `rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',
  `seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',
  `priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',
  `scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',
  `salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ods_benchi_car_half_year
-- ----------------------------

-- ----------------------------
-- Table structure for ods_benchi_new_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ods_benchi_new_car_info`;
CREATE TABLE `ods_benchi_new_car_info`  (
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯月份',
  `info` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ods_benchi_new_car_info
-- ----------------------------

-- ----------------------------
-- Table structure for ods_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ods_hefei_er_shou_car_info`;
CREATE TABLE `ods_hefei_er_shou_car_info`  (
  `specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型ID',
  `car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车辆名称',
  `kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '里程数',
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '购买年份',
  `car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '所在地区',
  `sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '售价',
  `true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '真实价格'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ods_hefei_er_shou_car_info
-- ----------------------------

-- ----------------------------
-- Table structure for ods_month_car_top
-- ----------------------------
DROP TABLE IF EXISTS `ods_month_car_top`;
CREATE TABLE `ods_month_car_top`  (
  `rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',
  `seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',
  `priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',
  `scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',
  `salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ods_month_car_top
-- ----------------------------

SET FOREIGN_KEY_CHECKS = 1;
2、编写DATAX脚本
①、编写合肥⼆⼿⻋数据脚本ods_hefei_er_shou_car_info.json
bash 复制代码
{
  "job": {
    "content": [
      {
        "reader": {
          "name": "mysqlreader",
          "parameter": {
            "column": [
              "specId",
              "car_name",
              "kilometer",
              "car_time",
              "car_location",
              "sell_price",
              "true_price"
            ],
            "connection": [
              {
                "jdbcUrl": [
                  "jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"
                ],
                "table": [
                  "hefei_er_shou_car_info"
                ]
              }
            ],
            "username": "root",
            "password": "root"
          }
        },
        "writer": {
          "name": "hdfswriter",
          "parameter": {
            "column": [
              {
                "name": "col1",
                "type": "STRING"
              },
              {
                "name": "col2",
                "type": "STRING"
              },
              {
                "name": "col3",
                "type": "STRING"
              },
              {
                "name": "col4",
                "type": "STRING"
              },
              {
                "name": "col5",
                "type": "STRING"
              },
              {
                "name": "col6",
                "type": "STRING"
              },
              {
                "name": "col7",
                "type": "STRING"
              }
            ],
            "defaultFS": "hdfs://localhost:9000",
            "fieldDelimiter": ",",
            "fileName": "hefei_er_shou_car_info",
            "fileType": "text",
            "path": "/data/qiche/ods/ods_hefei_er_shou_car_info",
            "writeMode": "append"
          }
        }
      }
    ],
    "setting": {
      "speed": {
        "channel": "1"
      }
    }
  }
}
②、编写奔驰新⻋资讯数据脚本
bash 复制代码
{
  "job": {
    "content": [
      {
        "reader": {
          "name": "mysqlreader",
          "parameter": {
            "column": [
              "`rank`",
              "seriesname",
              "priceinfo",
              "scorevalue",
              "salecount"
            ],
            "connection": [
              {
                "jdbcUrl": [
                  "jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"
                ],
                "table": [
                  "benchi_car_half_year"
                ]
              }
            ],
            "username": "root",
            "password": "root"
          }
        },
        "writer": {
          "name": "hdfswriter",
          "parameter": {
            "column": [
              {
                "name": "col1",
                "type": "STRING"
              },
              {
                "name": "col2",
                "type": "STRING"
              },
              {
                "name": "col3",
                "type": "STRING"
              },
              {
                "name": "col4",
                "type": "STRING"
              },
              {
                "name": "col5",
                "type": "STRING"
              }
            ],
            "defaultFS": "hdfs://localhost:9000",
            "fieldDelimiter": ",",
            "fileName": "benchi_car_half_year",
            "fileType": "text",
            "path": "/data/qiche/ods/ods_benchi_car_half_year",
            "writeMode": "append"
          }
        }
      }
    ],
    "setting": {
      "speed": {
        "channel": "1"
      }
    }
  }
}
③、编写奔驰近半年⻋型排⾏榜数据脚本
bash 复制代码
{
  "job": {
    "content": [
      {
        "reader": {
          "name": "mysqlreader",
          "parameter": {
            "column": [
              "`rank`",
              "seriesname",
              "priceinfo",
              "scorevalue",
              "salecount"
            ],
            "connection": [
              {
                "jdbcUrl": [
                  "jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"
                ],
                "table": [
                  "benchi_car_half_year"
                ]
              }
            ],
            "username": "root",
            "password": "root"
          }
        },
        "writer": {
          "name": "hdfswriter",
          "parameter": {
            "column": [
              {
                "name": "col1",
                "type": "STRING"
              },
              {
                "name": "col2",
                "type": "STRING"
              },
              {
                "name": "col3",
                "type": "STRING"
              },
              {
                "name": "col4",
                "type": "STRING"
              },
              {
                "name": "col5",
                "type": "STRING"
              }
            ],
            "defaultFS": "hdfs://localhost:9000",
            "fieldDelimiter": ",",
            "fileName": "benchi_car_half_year",
            "fileType": "text",
            "path": "/data/qiche/ods/ods_benchi_car_half_year",
            "writeMode": "append"
          }
        }
      }
    ],
    "setting": {
      "speed": {
        "channel": "1"
      }
    }
  }
}
④、编写⽉度汽⻋销量排⾏榜数据脚本
bash 复制代码
{
  "job": {
    "content": [
      {
        "reader": {
          "name": "mysqlreader",
          "parameter": {
            "column": [
              "`rank`",
              "seriesname",
              "priceinfo",
              "scorevalue",
              "salecount"
            ],
            "connection": [
              {
                "jdbcUrl": [
                  "jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"
                ],
                "table": [
                  "month_car_top"
                ]
              }
            ],
            "password": "root",
            "username": "root"
          }
        },
        "writer": {
          "name": "hdfswriter",
          "parameter": {
            "column": [
              {
                "name": "col1",
                "type": "STRING"
              },
              {
                "name": "col2",
                "type": "STRING"
              },
              {
                "name": "col3",
                "type": "STRING"
              },
              {
                "name": "col4",
                "type": "STRING"
              },
              {
                "name": "col5",
                "type": "STRING"
              }
            ],
            "defaultFS": "hdfs://localhost:9000",
            "fieldDelimiter": ",",
            "fileName": "month_car_top",
            "fileType": "text",
            "path": "/data/qiche/ods/ods_month_car_top",
            "writeMode": "append"
          }
        }
      }
    ],
    "setting": {
      "speed": {
        "channel": "1"
      }
    }
  }
}
（2）DWD层建模
1、创建数据库；
sql 复制代码
create database qiche_dwd location '/data/qiche/dwd';
2、创建DWD层表；
sql 复制代码
/*
 Navicat Premium Dump SQL

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80041 (8.0.41)
 Source Host           : localhost:3306
 Source Schema         : qiche_dwd

 Target Server Type    : MySQL
 Target Server Version : 80041 (8.0.41)
 File Encoding         : 65001

 Date: 09/10/2025 20:55:59
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for dwd_benchi_car_half_year
-- ----------------------------
DROP TABLE IF EXISTS `dwd_benchi_car_half_year`;
CREATE TABLE `dwd_benchi_car_half_year`  (
  `rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '排名',
  `seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车型名称',
  `priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '价格区间',
  `scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '评分',
  `salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dwd_benchi_car_half_year
-- ----------------------------

-- ----------------------------
-- Table structure for dwd_benchi_new_car_info
-- ----------------------------
DROP TABLE IF EXISTS `dwd_benchi_new_car_info`;
CREATE TABLE `dwd_benchi_new_car_info`  (
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '资讯月份',
  `info` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '资讯'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dwd_benchi_new_car_info
-- ----------------------------

-- ----------------------------
-- Table structure for dwd_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `dwd_hefei_er_shou_car_info`;
CREATE TABLE `dwd_hefei_er_shou_car_info`  (
  `specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车型ID',
  `car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车辆名称',
  `kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '里程数',
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '购买年份',
  `car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '所在地区',
  `sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '售价',
  `true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '真实价格'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dwd_hefei_er_shou_car_info
-- ----------------------------

-- ----------------------------
-- Table structure for dwd_month_car_top
-- ----------------------------
DROP TABLE IF EXISTS `dwd_month_car_top`;
CREATE TABLE `dwd_month_car_top`  (
  `rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '排名',
  `seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车型名称',
  `priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '价格区间',
  `scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '评分',
  `salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dwd_month_car_top
-- ----------------------------

SET FOREIGN_KEY_CHECKS = 1;
3、数据清洗；
（3）DWS层建模
1、创建数据库；
sql 复制代码
create database qiche_dws location '/data/qiche/dws';
2、创建表；
sql 复制代码
/*
 Navicat Premium Dump SQL

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80041 (8.0.41)
 Source Host           : localhost:3306
 Source Schema         : qiche_dws

 Target Server Type    : MySQL
 Target Server Version : 80041 (8.0.41)
 File Encoding         : 65001

 Date: 09/10/2025 20:56:09
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for dws_benchi_year_count
-- ----------------------------
DROP TABLE IF EXISTS `dws_benchi_year_count`;
CREATE TABLE `dws_benchi_year_count`  (
  `year_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `count` int NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dws_benchi_year_count
-- ----------------------------

-- ----------------------------
-- Table structure for dws_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `dws_hefei_er_shou_car_info`;
CREATE TABLE `dws_hefei_er_shou_car_info`  (
  `specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dws_hefei_er_shou_car_info
-- ----------------------------

SET FOREIGN_KEY_CHECKS = 1;
（4）ADS层建模
1、创建数据库；
sql 复制代码
create database qiche_ads location '/data/qiche/ads';
2、创建表；
sql 复制代码
/*
 Navicat Premium Dump SQL

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80041 (8.0.41)
 Source Host           : localhost:3306
 Source Schema         : qiche_ads

 Target Server Type    : MySQL
 Target Server Version : 80041 (8.0.41)
 File Encoding         : 65001

 Date: 09/10/2025 20:55:49
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for ads_benchi_car_half_year
-- ----------------------------
DROP TABLE IF EXISTS `ads_benchi_car_half_year`;
CREATE TABLE `ads_benchi_car_half_year`  (
  `rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',
  `seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',
  `priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',
  `scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',
  `salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ads_benchi_car_half_year
-- ----------------------------

-- ----------------------------
-- Table structure for ads_benchi_new_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ads_benchi_new_car_info`;
CREATE TABLE `ads_benchi_new_car_info`  (
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯月份',
  `info` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ads_benchi_new_car_info
-- ----------------------------

-- ----------------------------
-- Table structure for ads_benchi_year_count
-- ----------------------------
DROP TABLE IF EXISTS `ads_benchi_year_count`;
CREATE TABLE `ads_benchi_year_count`  (
  `year_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `count` int NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ads_benchi_year_count
-- ----------------------------

-- ----------------------------
-- Table structure for ads_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ads_hefei_er_shou_car_info`;
CREATE TABLE `ads_hefei_er_shou_car_info`  (
  `specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ads_hefei_er_shou_car_info
-- ----------------------------

-- ----------------------------
-- Table structure for ads_month_car_top
-- ----------------------------
DROP TABLE IF EXISTS `ads_month_car_top`;
CREATE TABLE `ads_month_car_top`  (
  `rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',
  `seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',
  `priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',
  `scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',
  `salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of ads_month_car_top
-- ----------------------------

SET FOREIGN_KEY_CHECKS = 1;

3、数据可视化

1、通过启动datax脚本将数据导⼊到mysql中

2、可视化

下载 finebi 安装包并上传服务器

下载地址： https://www.finebi.com/product/download

安装 linux_unix_FineBI6_1-CN.sh

bash linux_unix_FineBI6_1-CN.sh

遵循安装引导，⼀步步安装（注意中间会有⼀个修改安装位置，将位置切换为 /usr/local/sof

t/finebi ）

访问 finebiweb ⻚⾯

http://master:37799/webroot/decision

设置⽤户名和密码

⽤户名 root

密码 123456

选择外接数据库

需要在 mysql 中创建 finebi 数据库

MySQL 8.0.28 及之后版本，推荐设置数据库默认字符集为 utf8mb3 ，默认排序规则为 utf8mb3_bin 。


奔驰2025年新⻋资讯 近半年奔驰⻋销量 奔驰年销量排名

本博客仅供个人参考学习使用，禁止用于商用，如遇到法律纠纷，一概与本人无关，如有侵权，请联系删除！！！

相关推荐
Goboy3 小时前
【Python修仙笔记.3】Python函数作为秘技 - 封装你的仙法
后端·python
高洁013 小时前
大模型-去噪扩散概率模型（DDPM）采样算法详解
python·深度学习·神经网络·transformer·知识图谱
paj1234567893 小时前
elasticsearch-8.12.2集群部署
java·elasticsearch
Goboy3 小时前
【Python修仙笔记.4】数据结构法宝 - 存储你的仙器
后端·python
DemonAvenger4 小时前
深入Redis Zset：从原理到实践，10年经验带你解锁高效排序场景
数据库·redis·性能优化
1candobetter4 小时前
JAVA后端开发——软件分层架构中的“管道井”原则
java·开发语言·架构
Seven974 小时前
Spring 事务、循环依赖
java
聪明的笨猪猪4 小时前
Java Redis “核心应用” 面试清单（含超通俗生活案例与深度理解）
java·经验分享·笔记·面试
九皇叔叔4 小时前
深入理解 PostgreSQL 数据库的 MVCC：原理、优势与实践
数据库·postgresql
热门推荐
01两千字总结：Codex 国内如何安装和使用的教程，以及如何设置中文回答02BongoCat - 跨平台键盘猫动画工具03GitHub 镜像站点04UV安装并设置国内源05智能库存管理的需求预测模型：从业务痛点到落地代码的完整实践06Linux下V2Ray安装配置指南07GitLab 零基础入门指南：从安装到项目管理全流程082025羊城杯网络安全大赛 wp09Cursor Plan Mode：AI 终于知道先想后做了1046个Nano-banana 精选提示词，持续更新中
