FastDFS 介绍

FastDFS（Fast Distributed File System）是一种开源的分布式文件系统，具有高可靠性、高可扩展性、高性能等特点，被广泛应用于互联网领域的大规模文件存储和共享中。

作为一个分布式文件系统，其运行状态（如存储节点、Tracker 节点的健康状况、文件上传下载性能、存储容量变化等）对于业务稳定性至关重要。观测云作为一个统一的监控平台，可以帮你：

  • 集中收集和可视化展示 FastDFS 的各类指标（Metrics）、日志（Logs）等信息。
  • 提供开箱即用的仪表盘或支持自定义仪表盘，让你能直观地查看 FastDFS 集群的整体健康状况、性能趋势和存储使用情况，无需在多个系统间切换。
  • 通过配置告警规则，在 FastDFS 出现异常时及时通知你，以便快速响应。

观测云

观测云是一款专为 IT 工程师打造的全链路可观测产品，它集成了基础设施监控、应用程序性能监控和日志管理，为整个技术栈提供实时可观察性。这款产品能够帮助工程师全面了解端到端的用户体验追踪，了解应用内函数的每一次调用，以及全面监控云时代的基础设施。此外，观测云还具备快速发现系统安全风险的能力，为数字化时代提供安全保障。

部署 DataKit

DataKit 是一个开源的、跨平台的数据收集和监控工具，由观测云开发并维护。它旨在帮助用户收集、处理和分析各种数据源，如日志、指标和事件，以便进行有效的监控和故障排查。Datakit 支持多种数据输入和输出格式，可以轻松集成到现有的监控系统中。

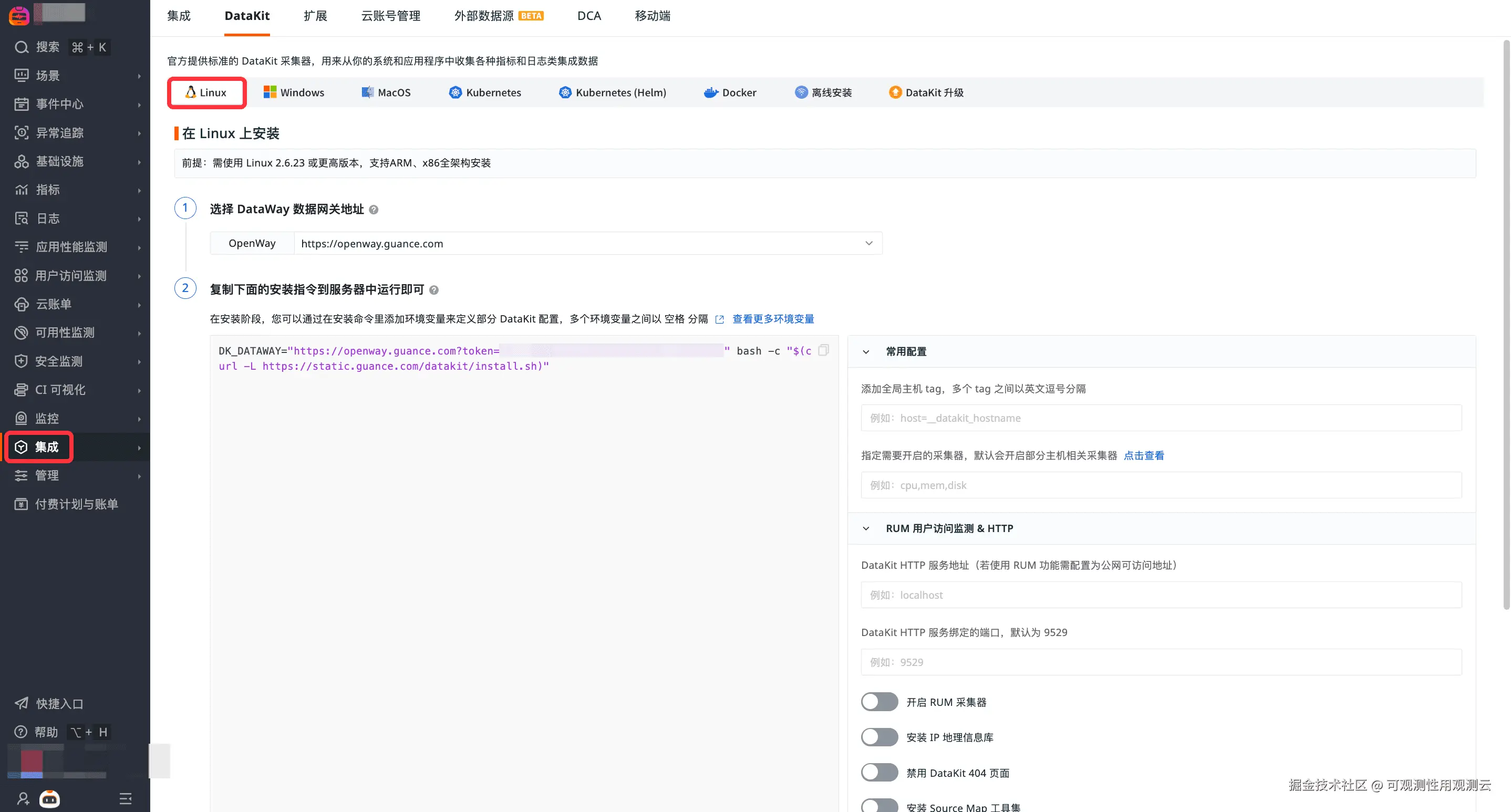

登录观测云控制台，在「集成」 - 「DataKit」选择对应安装方式，当前采用 Linux 主机部署 DataKit。

安装配置

前置条件

  • Python >= 3.10
  • Gunicorn = 23.0.0
  • Flask = 3.1.0
  • Prometheus_client = 0.21.1

Exporter 原理

go 复制代码
该库为FastDFS相关操作提供了Prometheus指标

收集的指标是基于FastDFS内置的`fdfs_monitor`命令

下载安装包

fastdfs-exporter 为官方研发的专用 Exporter，将 FastDFS 状态转换为 Prometheus 指标格式。

下载安装 Exporter：

ruby 复制代码
wget https://github.com/maxpasserby/fastdfs-exporter/archive/refs/tags/0.1.1.tar.gz

将 Exporter 目录移动到 /etc 目录下：

vbscript 复制代码
执行以下命令 运行exporter.main

python3 -u -m exporter.main

结果展示可以看到http://172.16.0.150:9036/ 为 prom指标：
Warning: The environment variable [TRACKER_SERVER] is empty, [TRACKER_SERVER] will be set to the default value of [127.0.0.1:22122]
 * Serving Flask app 'main' (lazy loading)
 * Environment: production
   WARNING: This is a development server. Do not use it in a production deployment.
   Use a production WSGI server instead.
 * Debug mode: off
 * Running on all addresses.
   WARNING: This is a development server. Do not use it in a production deployment.
 * Running on http://172.16.0.150:9036/ (Press CTRL+C to quit)

配置 Exporter 为后端运行：

bash 复制代码
nohup /usr/bin/python3.6 -u -m exporter.main &

访问指标

通过 curl 127.0.0.1:9036/metrics 访问指标。

ini 复制代码
[root@FHJ-TEST-TEMP ~]# curl 127.0.0.1:9036/metrics
# HELP fastdfs_group_count The total number of storage groups in FastDFS
# TYPE fastdfs_group_count gauge
fastdfs_group_count 1.0
# HELP fastdfs_group_storage_server_count The number of active storage servers in a FastDFS storage group
# TYPE fastdfs_group_storage_server_count gauge
fastdfs_group_storage_server_count{group="group1"} 1.0
# HELP fastdfs_group_active_storage_server_count The number of storage servers in a FastDFS storage group
# TYPE fastdfs_group_active_storage_server_count gauge
fastdfs_group_active_storage_server_count{group="group1"} 1.0
# HELP fastdfs_group_disk_total_space_bytes The total disk space of a FastDFS storage group in bytes
# TYPE fastdfs_group_disk_total_space_bytes gauge
fastdfs_group_disk_total_space_bytes{group="group1"} 2.0797456384e+010
# HELP fastdfs_group_disk_free_space_bytes The free disk space of a FastDFS storage group in bytes
# TYPE fastdfs_group_disk_free_space_bytes gauge
fastdfs_group_disk_free_space_bytes{group="group1"} 1.4593032192e+010
# HELP fastdfs_storage_server_info information about a fastdfs storage server(0:OFFLINE  1:ACTIVE  2:INIT  3:DELETED  4:WAIT_SYNC  5:SYNCING  6:ONLINE)
# TYPE fastdfs_storage_server_info gauge
fastdfs_storage_server_info{group="group1",ip="14.103.17.230",storage="storage1",version="6.07"} 1.0
# HELP fastdfs_storage_join_time_seconds the time when a storage server joined the fastdfs cluster in seconds since the epoch
# TYPE fastdfs_storage_join_time_seconds gauge
fastdfs_storage_join_time_seconds{group="group1",ip="14.103.17.230",storage="storage1"} 1.753076473e+09
# HELP fastdfs_storage_up_time_seconds the time when a storage server was last started (or restarted) in seconds since the epoch
# TYPE fastdfs_storage_up_time_seconds gauge
fastdfs_storage_up_time_seconds{group="group1",ip="14.103.17.230",storage="storage1"} 1.753076473e+09
# HELP fastdfs_storage_total_space_bytes the total disk space of a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_space_bytes gauge
fastdfs_storage_total_space_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 2.0797456384e+010
# HELP fastdfs_storage_free_space_bytes the free disk space of a fastdfs storage server in bytes
# TYPE fastdfs_storage_free_space_bytes gauge
fastdfs_storage_free_space_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 1.4593032192e+010
# HELP fastdfs_storage_connection_alloc_count the total number of connections allocated from the pool (since server startup) of a fastdfs storage server
# TYPE fastdfs_storage_connection_alloc_count gauge
fastdfs_storage_connection_alloc_count{group="group1",ip="14.103.17.230",storage="storage1"} 256.0
# HELP fastdfs_storage_connection_current_count the number of currently used connections of a fastdfs storage server
# TYPE fastdfs_storage_connection_current_count gauge
fastdfs_storage_connection_current_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_connection_max_count the maximum number of allowed connections of a fastdfs storage server
# TYPE fastdfs_storage_connection_max_count gauge
fastdfs_storage_connection_max_count{group="group1",ip="14.103.17.230",storage="storage1"} 1.0
# HELP fastdfs_storage_total_upload_count the total number of file upload operations on a fastdfs storage server
# TYPE fastdfs_storage_total_upload_count gauge
fastdfs_storage_total_upload_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_success_upload_count the number of successful file upload operations on a fastdfs storage server
# TYPE fastdfs_storage_success_upload_count gauge
fastdfs_storage_success_upload_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_total_delete_count the total number of file deletion operations on a fastdfs storage server
# TYPE fastdfs_storage_total_delete_count gauge
fastdfs_storage_total_delete_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_delete_count the number of successful file deletion operations on a fastdfs storage server
# TYPE fastdfs_storage_success_delete_count gauge
fastdfs_storage_success_delete_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_download_count the total number of file download operations on a fastdfs storage server
# TYPE fastdfs_storage_total_download_count gauge
fastdfs_storage_total_download_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_download_count the number of successful file download operations on a fastdfs storage server
# TYPE fastdfs_storage_success_download_count gauge
fastdfs_storage_success_download_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_modify_count the total number of file modification operations on a fastdfs storage server
# TYPE fastdfs_storage_total_modify_count gauge
fastdfs_storage_total_modify_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_modify_count the number of successful file modification operations on a fastdfs storage server
# TYPE fastdfs_storage_success_modify_count gauge
fastdfs_storage_success_modify_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_append_count the total number of file append operations on a fastdfs storage server
# TYPE fastdfs_storage_total_append_count gauge
fastdfs_storage_total_append_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_append_count the number of successful file append operations on a fastdfs storage server
# TYPE fastdfs_storage_success_append_count gauge
fastdfs_storage_success_append_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_upload_bytes the total size of files uploaded to a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_upload_bytes gauge
fastdfs_storage_total_upload_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 154.0
# HELP fastdfs_storage_success_upload_bytes the size of successfully uploaded files to a fastdfs storage server in bytes
# TYPE fastdfs_storage_success_upload_bytes gauge
fastdfs_storage_success_upload_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 154.0
# HELP fastdfs_storage_total_download_bytes the total size of files downloaded from a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_download_bytes gauge
fastdfs_storage_total_download_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_download_bytes the size of successfully downloaded files from a fastdfs storage server in bytes
# TYPE fastdfs_storage_success_download_bytes gauge
fastdfs_storage_success_download_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_append_bytes the total size of files appended to a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_append_bytes gauge
fastdfs_storage_total_append_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_append_bytes the size of successfully appended files to a fastdfs storage server in bytes
# TYPE fastdfs_storage_success_append_bytes gauge
fastdfs_storage_success_append_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_modify_bytes the total size of files modified on a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_modify_bytes gauge
fastdfs_storage_total_modify_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_modify_bytes the size of successfully modified files on a fastdfs storage server
# TYPE fastdfs_storage_success_modify_bytes gauge
fastdfs_storage_success_modify_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_file_open_count the total number of file open operations on a fastdfs storage
# TYPE fastdfs_storage_total_file_open_count gauge
fastdfs_storage_total_file_open_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_success_file_open_count the number of successful file open operations on a fastdfs storage server
# TYPE fastdfs_storage_success_file_open_count gauge
fastdfs_storage_success_file_open_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_total_file_read_count the total number of file read operations on a fastdfs storage server
# TYPE fastdfs_storage_total_file_read_count gauge
fastdfs_storage_total_file_read_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_file_read_count the number of successful file read operations on a fastdfs storage server
# TYPE fastdfs_storage_success_file_read_count gauge
fastdfs_storage_success_file_read_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_file_write_count the total number of file write operations on a fastdfs storage server
# TYPE fastdfs_storage_total_file_write_count gauge
fastdfs_storage_total_file_write_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_success_file_write_count the number of successful file write operations on a fastdfs storage server
# TYPE fastdfs_storage_success_file_write_count gauge
fastdfs_storage_success_file_write_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_last_heart_beat_time the time of the last heartbeat of a fastdfs storage server
# TYPE fastdfs_storage_last_heart_beat_time gauge
fastdfs_storage_last_heart_beat_time{group="group1",ip="14.103.17.230",storage="storage1"} 1.753084637e+09
# HELP fastdfs_storage_last_source_update the time of the last source file update on a fastdfs storage server
# TYPE fastdfs_storage_last_source_update gauge
fastdfs_storage_last_source_update{group="group1",ip="14.103.17.230",storage="storage1"} 1.753077421e+09
# HELP fastdfs_storage_last_sync_update the time of the last synchronization update on a fastdfs storage server
# TYPE fastdfs_storage_last_sync_update gauge
fastdfs_storage_last_sync_update{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_last_synced_timestamp the timestamp of the last synchronization on a fastdfs storage server
# TYPE fastdfs_storage_last_synced_timestamp gauge
fastdfs_storage_last_synced_timestamp{group="group1",ip="14.103.17.230",storage="storage1"} 0.0

采集器配置

新增 prom-fastdfs.conf 配置文件

在 /usr/local/datakit/conf.d/samples 目录下，复制 prom.conf.sample 为 prom-fastdfs.conf 。

bash 复制代码
cp prom.conf.sample prom-fastdfs.conf

主要参数说明：

  • url：fastdfs-exporter 指标地址
  • interval：采集频率
  • source：采集器别名
ini 复制代码
[[inputs.prom]]
  ## Exporter URLs.
  urls = ["http://127.0.0.1:9036/metrics"]

  ## Stream Size.
  ## The source stream segmentation size, (defaults to 1).
  ## 0 source stream undivided.
  # stream_size = 1

  ## Unix Domain Socket URL. Using socket to request data when not empty.
  uds_path = ""

  ## Ignore URL request errors.
  ignore_req_err = false

  ## Collector alias.
  source = "fastdfs"

重启 DataKit

复制代码
systemctl restart Datakit

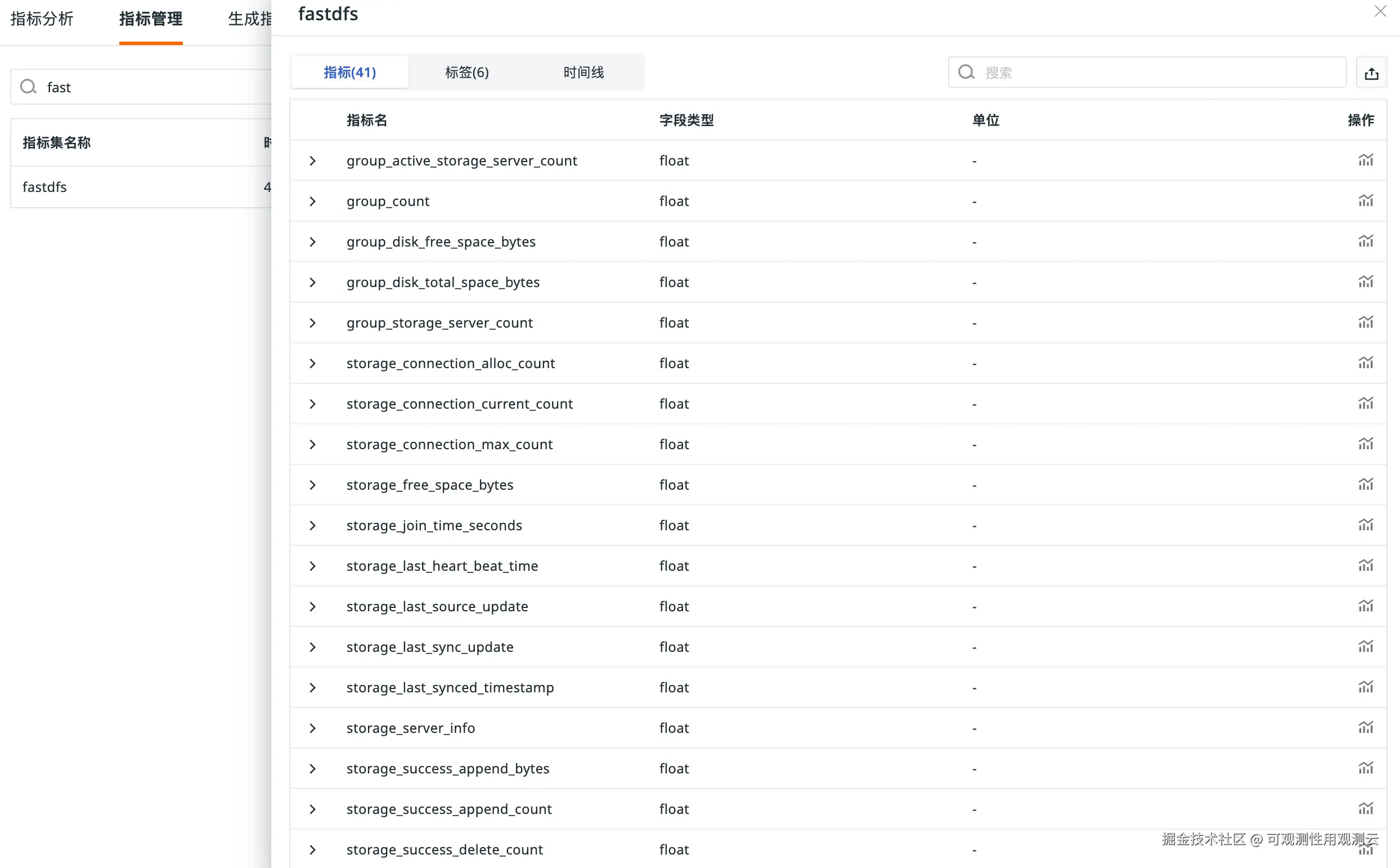

关键指标

序号 指标名称 描述 单位
1 storage_join_time_seconds 存储服务器加入集群的时间当此值为 true 时，命名空间将停止接受客户端写入 Int
2 storage_up_time_seconds 存储服务器上次启动时间（或最近一次重启时间） Int
3 storage_total_space_bytes 存储服务器总磁盘空间 Int
4 free_space_bytes 存储服务器可用磁盘空间 Int
5 storage_connection_alloc_count 累积已分配的连接数（自启动以来） Int
6 storage_connection_current_count 当前使用的连接数 Int
7 storage_connection_max_count 最大允许连接数 Int
8 storage_total_delete_count 总删除文件次数 Int
9 storage_success_download_count 成功下载文件次数 Int
10 storage_total_modify_count 总修改文件次数 Int
11 group_storage_server_count storage group 存储服务器数量 Int
12 group_active_storage_server_count storage group 运行的存储服务器数量 Int
13 group_disk_total_space_bytes storage group 总磁盘 Int
14 group_disk_free_space_bytes storage group 剩余磁盘 Int

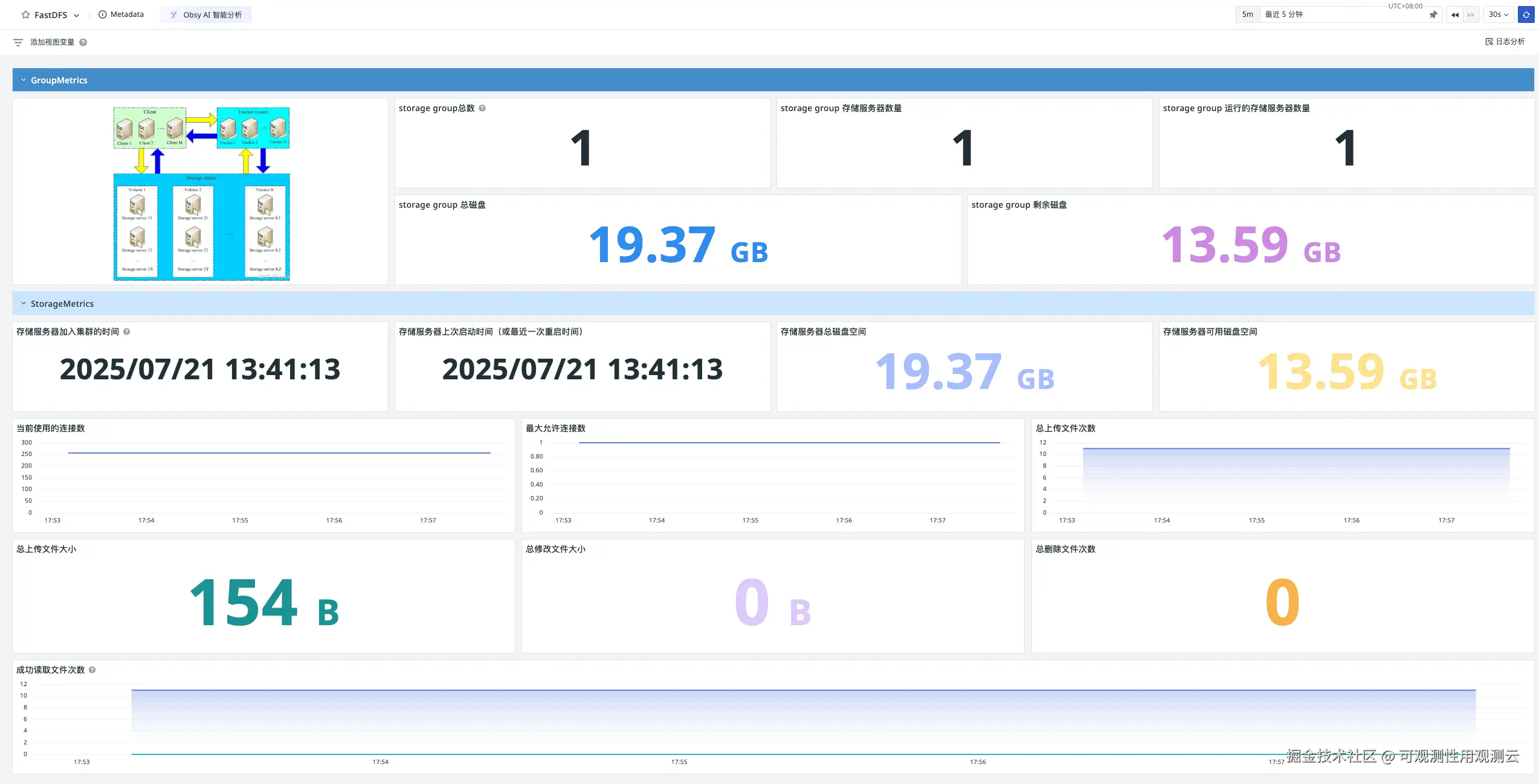

场景视图

登录观测云控制台，点击「场景」 -「新建仪表板」，输入 "FastDFS"， 选择 "FastDFS"，点击 "确定" 即可添加视图。

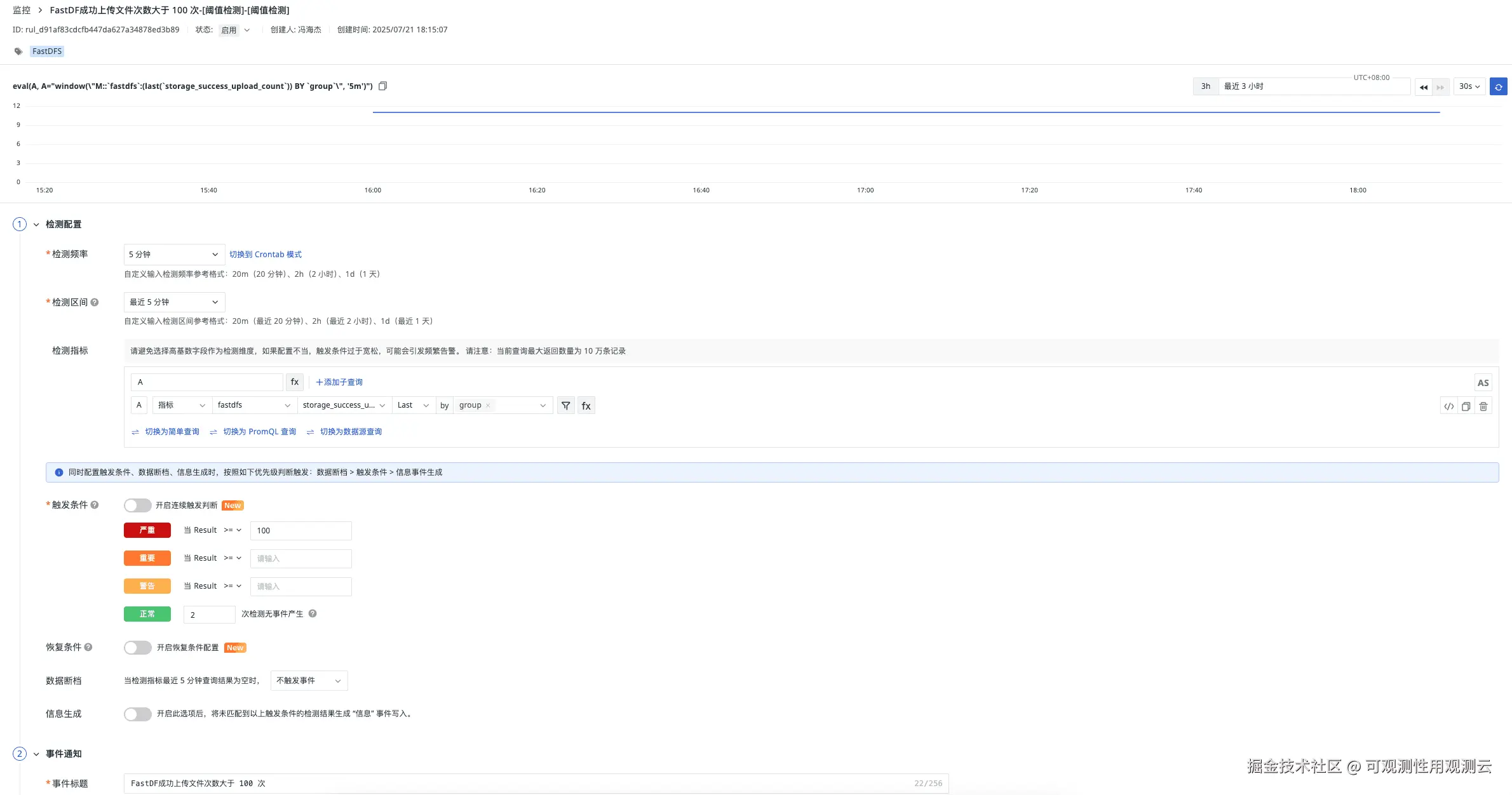

监控器（告警）

FastDF 成功上传文件次数大于 100 次

FastDFS 磁盘空间剩余 30% 告警

总结

FastDFS 监控系统通过实时状态感知、智能告警与数据可视化，将故障响应从小时级压缩至分钟级，接入观测云后监控后，运维效率提升 50% 以上，故障响应从小时级降至分钟级，资源利用率提升 30%，业务中断风险降低 90%。对于高并发文件服务（如电商图片、视频平台），让监控不仅是"保险绳"，更是性能优化和成本控制的决策引擎 。

相关推荐
会飞的小蛮猪5 天前
Prometheus运维之路(ES监控接入)
elasticsearch·监控·自动化运维
key_Go18 天前
07.容器监控
运维·网络·网络协议·docker·监控
颜如玉19 天前
Trace Sql：打通全链路日志最后一里路
后端·源码·监控
handsome1234525 天前
CentOS 8.5.2.111部署Zabbix6.0 手把手、保姆级
运维·mysql·centos·zabbix·监控·centos8·zabbix6·linux源
鼠鼠我捏，要死了捏1 个月前
Spring Boot Actuator自定义指标与监控实践指南
spring boot·监控·actuator
可观测性用观测云1 个月前
Openresty Tracing 最佳实践
监控
可观测性用观测云1 个月前
连锁门店可用性监测和进程监测最佳实践
监控
热门推荐
01两千字总结：Codex 国内如何安装和使用的教程，以及如何设置中文回答02BongoCat - 跨平台键盘猫动画工具03GitHub 镜像站点04UV安装并设置国内源05Linux下V2Ray安装配置指南06GitLab 零基础入门指南：从安装到项目管理全流程0746个Nano-banana 精选提示词，持续更新中08智能库存管理的需求预测模型：从业务痛点到落地代码的完整实践092025羊城杯网络安全大赛 wp10UV 工具安装与国内镜像源配置指南
