Rabbitmq扇形队列取消绑定交换机之后任然接收消息问题

伪代码

申明队列及绑定关系

java 复制代码

package com.cdn.mqprovider;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class FanoutRabbitProviderConfig {

        /**
         * 创建三个队列 ：fanout.A   fanout.B  fanout.C
         * 将三个队列都绑定在交换机 fanoutExchange 上
         * 因为是扇型交换机, 路由键无需配置,配置也不起作用
         */

        @Bean
        public Queue queueA() {
            return new Queue("fanout.A1");
        }

        @Bean
        public Queue queueB() {
            return new Queue("fanout.B1");
        }

        @Bean
        public Queue queueC() {
            return new Queue("fanout.C1");
        }

        @Bean
        FanoutExchange fanoutExchange() {
            return new FanoutExchange("fanoutExchange1");
        }

        @Bean
        Binding bindingExchangeA() {
            return BindingBuilder.bind(queueA()).to(fanoutExchange());
        }

        @Bean
        Binding bindingExchangeB() {
            return BindingBuilder.bind(queueB()).to(fanoutExchange());
        }

        @Bean
        Binding bindingExchangeC() {
            return BindingBuilder.bind(queueC()).to(fanoutExchange());
        }
    }

监听

java 复制代码

package com.cdn.mqprovider.api;

import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * 蔡定努
 * 2025/10/29 17:56
 */
@RestController
public class A {

    @Autowired
    RabbitTemplate rabbitTemplate;


    /**
     * @author 蔡定努
     */
    @GetMapping("send")
    public void send() {
        rabbitTemplate.convertAndSend("fanoutExchange1", "", "消息1");
    }





    // -------------------消费----------------------
    @RabbitListener(queues = "fanout.A1",ackMode = "AUTO")
    public void processm(String testMessage) {
        System.out.println("fanout.A1消费者收到消息  : " + testMessage);
    }

    @RabbitListener(queues = "fanout.B1",ackMode = "AUTO")
    public void processmb(String testMessage) {
        System.out.println("fanout.B1消费者收到消息  : " + testMessage);
    }

    @RabbitListener(queues = "fanout.C1",ackMode = "AUTO")
    public void processmc(String testMessage) {
        System.out.println("fanout.C1消费者收到消息  : " + testMessage);
    }

}

测试

调用send接口

复制代码

fanout.C1消费者收到消息  : 消息1
fanout.A1消费者收到消息  : 消息1
fanout.B1消费者收到消息  : 消息1

调整

此时我有一个需求，fanout.A1队列我业务中用不到了，那就把写的地方拿掉就好了，于是有了以下代码

申明队列及绑定关系

java 复制代码

package com.cdn.mqprovider;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class FanoutRabbitProviderConfig {

        /**
         * 创建三个队列 ：fanout.A   fanout.B  fanout.C
         * 将三个队列都绑定在交换机 fanoutExchange 上
         * 因为是扇型交换机, 路由键无需配置,配置也不起作用
         */

        // @Bean
        // public Queue queueA() {
        //     return new Queue("fanout.A1");
        // }

        @Bean
        public Queue queueB() {
            return new Queue("fanout.B1");
        }

        @Bean
        public Queue queueC() {
            return new Queue("fanout.C1");
        }

        @Bean
        FanoutExchange fanoutExchange() {
            return new FanoutExchange("fanoutExchange1");
        }

        // @Bean
        // Binding bindingExchangeA() {
        //     return BindingBuilder.bind(queueA()).to(fanoutExchange());
        // }

        @Bean
        Binding bindingExchangeB() {
            return BindingBuilder.bind(queueB()).to(fanoutExchange());
        }

        @Bean
        Binding bindingExchangeC() {
            return BindingBuilder.bind(queueC()).to(fanoutExchange());
        }
    }

监听消费

java 复制代码

package com.cdn.mqprovider.api;

import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * 蔡定努
 * 2025/10/29 17:56
 */
@RestController
public class A {

    @Autowired
    RabbitTemplate rabbitTemplate;


    /**
     * @author 蔡定努
     */
    @GetMapping("send")
    public void send() {
        rabbitTemplate.convertAndSend("fanoutExchange1", "", "消息1");
    }





    // -------------------消费----------------------
    @RabbitListener(queues = "fanout.A1",ackMode = "AUTO")
    public void processm(String testMessage) {
        System.out.println("fanout.A1消费者收到消息  : " + testMessage);
    }

    @RabbitListener(queues = "fanout.B1",ackMode = "AUTO")
    public void processmb(String testMessage) {
        System.out.println("fanout.B1消费者收到消息  : " + testMessage);
    }

    @RabbitListener(queues = "fanout.C1",ackMode = "AUTO")
    public void processmc(String testMessage) {
        System.out.println("fanout.C1消费者收到消息  : " + testMessage);
    }

}

测试

调用send接口

复制代码

fanout.C1消费者收到消息  : 消息1
fanout.A1消费者收到消息  : 消息1
fanout.B1消费者收到消息  : 消息1

为什么我取消绑定了，队列创建也注释了，还能消费呢？

于是我把消费也注释了

java 复制代码

package com.cdn.mqprovider.api;

import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * 蔡定努
 * 2025/10/29 17:56
 */
@RestController
public class A {

    @Autowired
    RabbitTemplate rabbitTemplate;


    /**
     * @author 蔡定努
     */
    @GetMapping("send")
    public void send() {
        rabbitTemplate.convertAndSend("fanoutExchange1", "", "消息1");
    }





    // -------------------消费----------------------
    // @RabbitListener(queues = "fanout.A1",ackMode = "AUTO")
    // public void processm(String testMessage) {
    //     System.out.println("fanout.A1消费者收到消息  : " + testMessage);
    // }

    @RabbitListener(queues = "fanout.B1",ackMode = "AUTO")
    public void processmb(String testMessage) {
        System.out.println("fanout.B1消费者收到消息  : " + testMessage);
    }

    @RabbitListener(queues = "fanout.C1",ackMode = "AUTO")
    public void processmc(String testMessage) {
        System.out.println("fanout.C1消费者收到消息  : " + testMessage);
    }

}

测试

调用send接口

复制代码

fanout.C1消费者收到消息  : 消息1
fanout.B1消费者收到消息  : 消息1

看似没有问题了，但是，问题就来了，随着业务的进行，mq报警了，消息堆积

原因

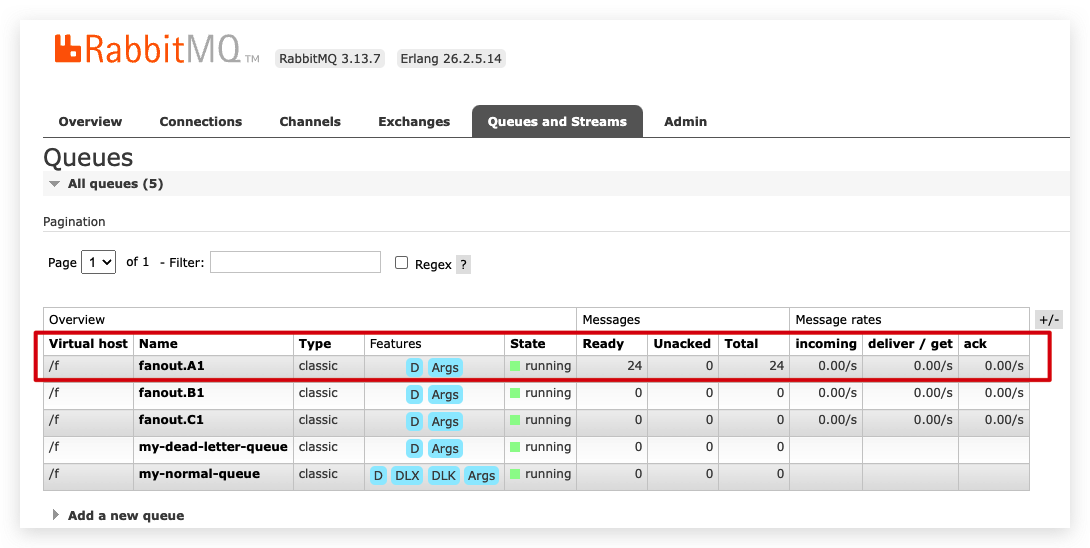

因为fanout.A1在之前就创建了，并且绑定关系也建立了，就算你代码中注释掉了队列申明和绑定关系，mq不会主动去删除对应的队列和绑定关系，但是消费者被注释了，所以就出现消息只进不出的情况，导致对接

解决办法

既然a队列都不要了，直接删除即可
