普罗米修斯监控系统学习实践报告

1.学习目标达成情况

复制代码

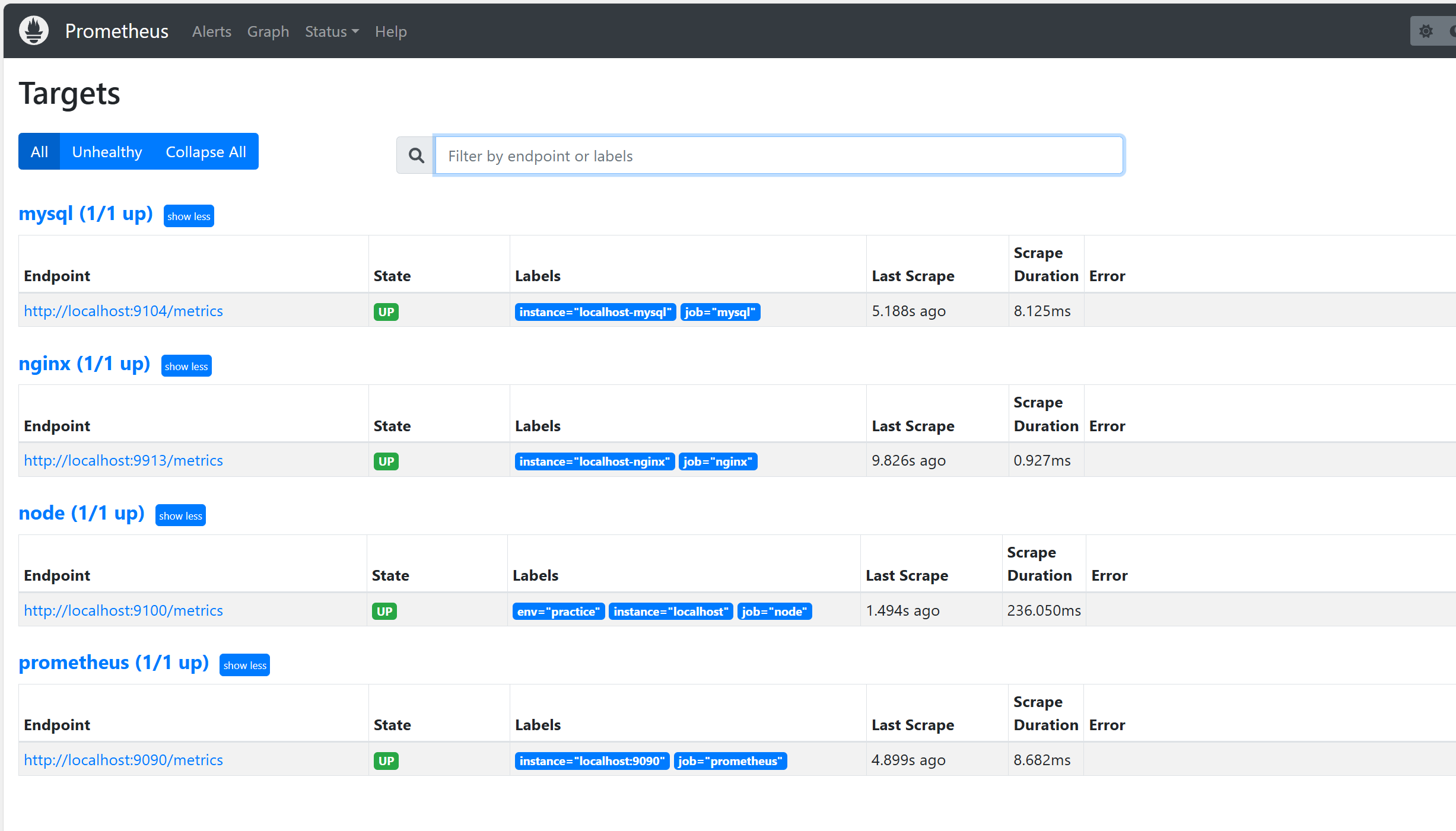

| 监控对象       | Exporter                     | 端口   | 状态 |
|----------------|------------------------------|--------|------|
| 主机系统       | node_exporter 1.3.1          | 9100   | UP   |
| Prometheus 自身| 自带                         | 9090   | UP   |
| MySQL          | mysqld_exporter 0.14.0       | 9104   | UP   |
| Nginx          | nginx-vts-exporter 0.10.3    | 9913   | UP   |
| Alertmanager   | alertmanager 0.27.0          | 9093   | UP   |
| 告警通道       | 钉钉自定义机器人 Webhook     | -      | 正在做 |

2.完整的部署过程

1.Prometheus 主程序部署（核心）

复制代码

cd /opt
tar xf prometheus-2.35.0.linux-amd64.tar.gz
mv prometheus-2.35.0.linux-amd64 /usr/local/prometheus

#配置文件（总的）
cat > /usr/local/prometheus/prometheus.yml <<'EOF'
global:
  scrape_interval: 15s
  evaluation_interval: 15s

scrape_configs:
  - job_name: prometheus
    static_configs:
      - targets: ["localhost:9090"]
        labels:
          instance: "prometheus-self"

  - job_name: node
    static_configs:
      - targets: ["localhost:9100"]
        labels:
          instance: "192.168.164.131"
          env: "practice"

  - job_name: mysql
    static_configs:
      - targets: ["localhost:9104"]

  - job_name: nginx
    static_configs:
      - targets: ["localhost:9913"]
EOF
# systemd 服务（关键参数全加上）
cat > /etc/systemd/system/prometheus.service <<'EOF'
[Unit]
Description=Prometheus
After=network.target
[Service]
Type=simple
ExecStart=/usr/local/prometheus/prometheus \
  --config.file=/usr/local/prometheus/prometheus.yml \
  --storage.tsdb.path=/data/prometheus \
  --web.listen-address=0.0.0.0:9090 \
  --web.enable-lifecycle
ExecReload=/bin/kill -HUP $MAINPID
Restart=on-failure
[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable --now prometheus

2.Exporter 快速部署（全本地包）

复制代码

# Node Exporter
tar xf node_exporter-1.3.1.linux-amd64.tar.gz
cp node_exporter-1.3.1.linux-amd64/node_exporter /usr/local/bin/
systemctl enable --now $(cat <<EOF
[Unit]
Description=Node Exporter
[Service]
ExecStart=/usr/local/bin/node_exporter
[Install]
WantedBy=multi-user.target
EOF
echo /etc/systemd/system/node_exporter.service)

# MySQL + mysqld_exporter
yum install -y mariadb-server
systemctl enable --now mariadb
mysql -e "ALTER USER 'root'@'localhost' IDENTIFIED BY '123456';"
mysql -uroot -p123456 -e "CREATE USER 'exporter'@'localhost' IDENTIFIED BY 'exporter123'; GRANT PROCESS,REPLICATION CLIENT,SELECT ON *.* TO 'exporter'@'localhost';"

tar xf mysqld_exporter-0.14.0.linux-amd64.tar.gz
cp mysqld_exporter-0.14.0.linux-amd64/mysqld_exporter /usr/local/bin/
cat > /etc/systemd/system/mysqld_exporter.service <<'EOF'
[Unit]
Description=MySQL Exporter
[Service]
Environment="DATA_SOURCE_NAME=exporter:exporter123@(127.0.0.1:3306)/"
ExecStart=/usr/local/bin/mysqld_exporter
[Install]
WantedBy=multi-user.target
EOF
systemctl enable --now mysqld_exporter

3.Alertmanager + 钉钉告警（30秒必达）

复制代码

Prometheus → Alertmanager → webhook-dingtalk → 钉钉机器人 → 30秒送达
group_wait: 1s        # 接收到第一个告警，1 秒就发，不等
group_interval: 10s   # 同组告警每10秒可再次发送
repeat_interval: 30s  # 告警未解决，30秒重发
https://oapi.dingtalk.com/robot/send?access_token=XXXX
创建 /opt/webhook-dingtalk/config.yml：

targets:
  dingding:
    url: "https://oapi.dingtalk.com/robot/send?access_token=你的token"
    secret: "你的加签secret"   # 如果开启加签，否则删除此行
    四、Systemd 服务（自动启动）

创建 /etc/systemd/system/webhook-dingtalk.service：

[Unit]
Description=Prometheus Webhook Dingtalk
After=network.target

[Service]
ExecStart=/opt/webhook-dingtalk/prometheus-webhook-dingtalk \
  --config.file=/opt/webhook-dingtalk/config.yml \
  --web.listen-address="0.0.0.0:8060"
Restart=always

[Install]
WantedBy=multi-user.target


启动：

systemctl daemon-reload
systemctl enable --now webhook-dingtalk


检查：

ss -lntp | grep 8060


看到 8060 LISTEN 表示正常。
五、Alertmanager 配置（30 秒必达关键点！）

编辑 /etc/alertmanager/alertmanager.yml 或你的安装路径：

global:
  resolve_timeout: 5s

route:
  receiver: "dingding"

  group_by: ['alertname']
  group_wait: 1s          # 1秒就发
  group_interval: 10s     # 同组告警间隔10秒
  repeat_interval: 30s    # 未解决则30秒重复

receivers:
  - name: "dingding"
    webhook_configs:
      - url: "http://127.0.0.1:8060/dingtalk/dingding/send"
        send_resolved: true


⚠ 如果你的 webhook-dingtalk 不在本机，把 127.0.0.1 改成实际 IP

重启 Alertmanager：

systemctl restart alertmanager

 六、Prometheus 告警规则（测试 30 秒必达）

编辑 /etc/prometheus/rules/test.yml：

groups:
- name: test-alert
  rules:
  - alert: InstanceDown
    expr: up == 0
    for: 2s
    labels:
      severity: critical
    annotations:
      summary: "【实例宕机】 {{ $labels.instance }}"
      description: "{{ $labels.instance }} 无响应 (状态=0)"


加载规则：

systemctl restart prometheus

七、测试告警是否 30 秒以内到达

你可以停止某个 Exporter，例如：

systemctl stop node_exporter

3.注意事项

热重载必须加 --web.enable-lifecycle + ExecReload

外部访问必须 --web.listen-address=0.0.0.0:9090

所有 Exporter 必须先 UP 才能被 Prometheus 抓到

systemctl reload prometheus 是生产标配

4.下一步计划

1.钉钉报警优化

2.学习Alertmanager 抑制/静默

3.Grafana 深度使用，自定义 2 个业务面板
