01-分布式基础-创建微服务项目

创建微服务项目

不推荐使用最新版本的springboot，springcloud Alibaba还未适配最新版

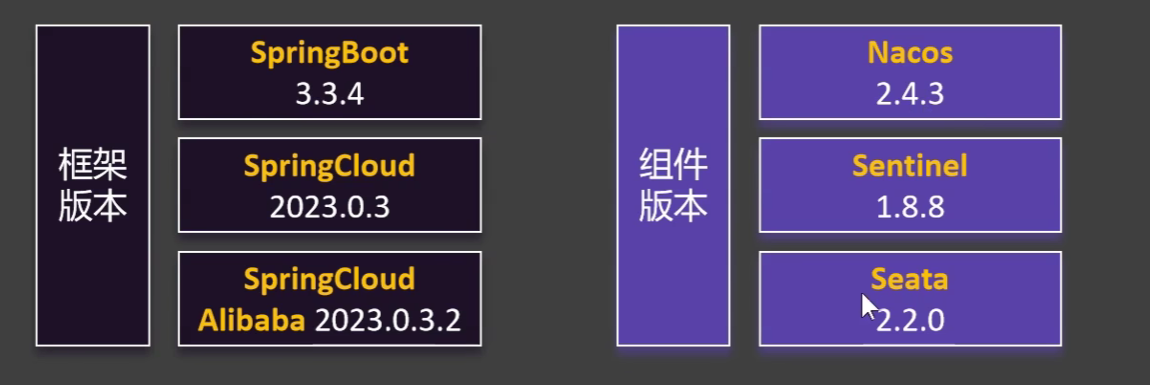

demo选用的版本：

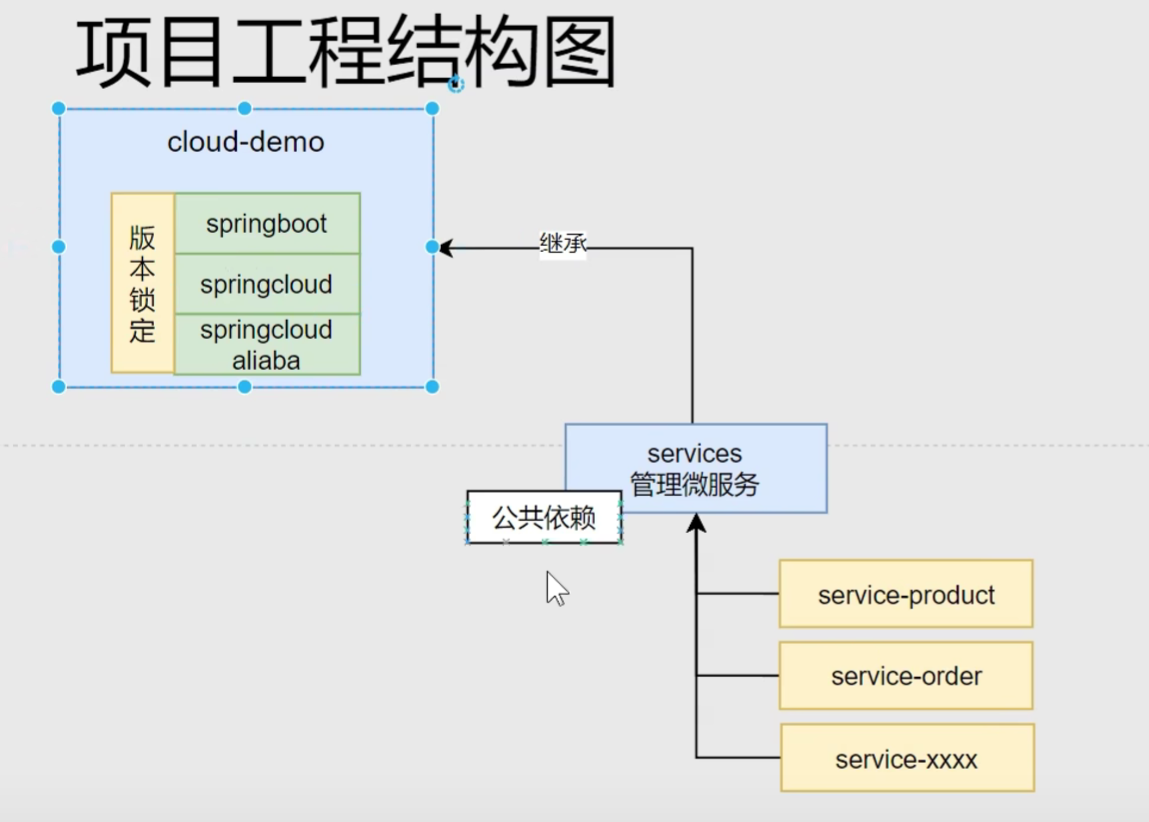

maven父子项目

在父工程中声明依赖，控制子模块的中间件版本

study-cloud 负责声明3大组件版本

cloud子模块service负责声明其他中间件版本：zk、nacos等

父项目

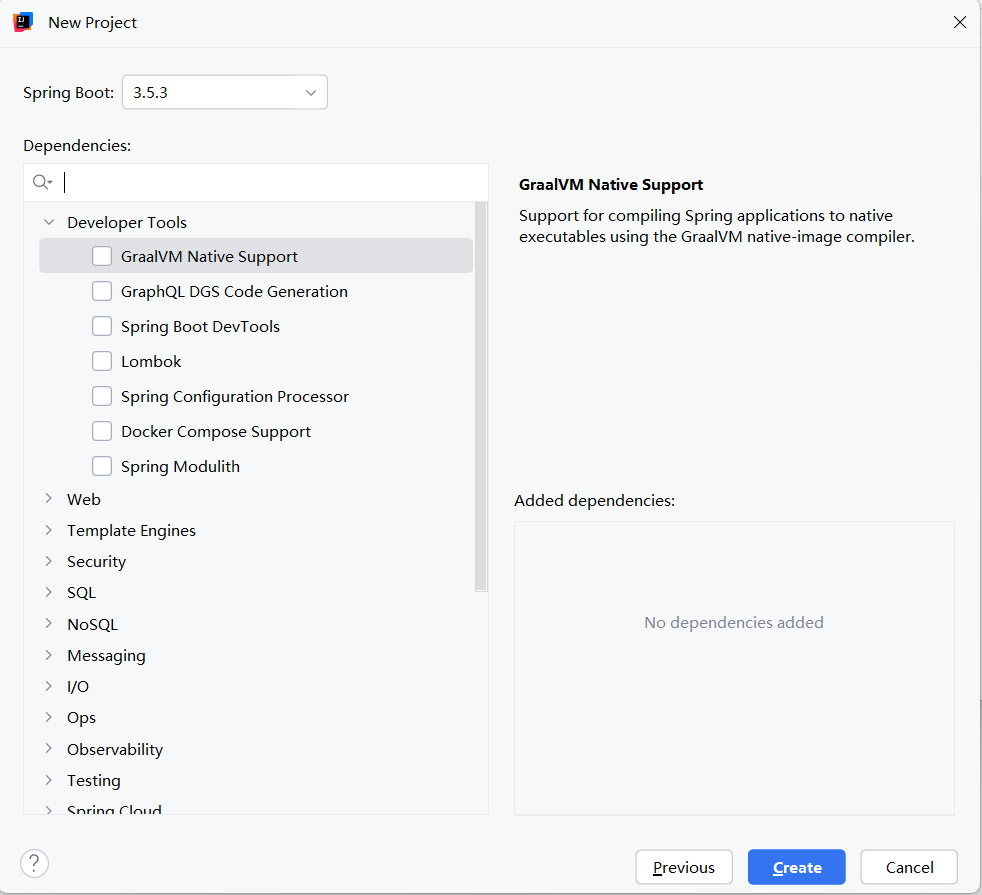

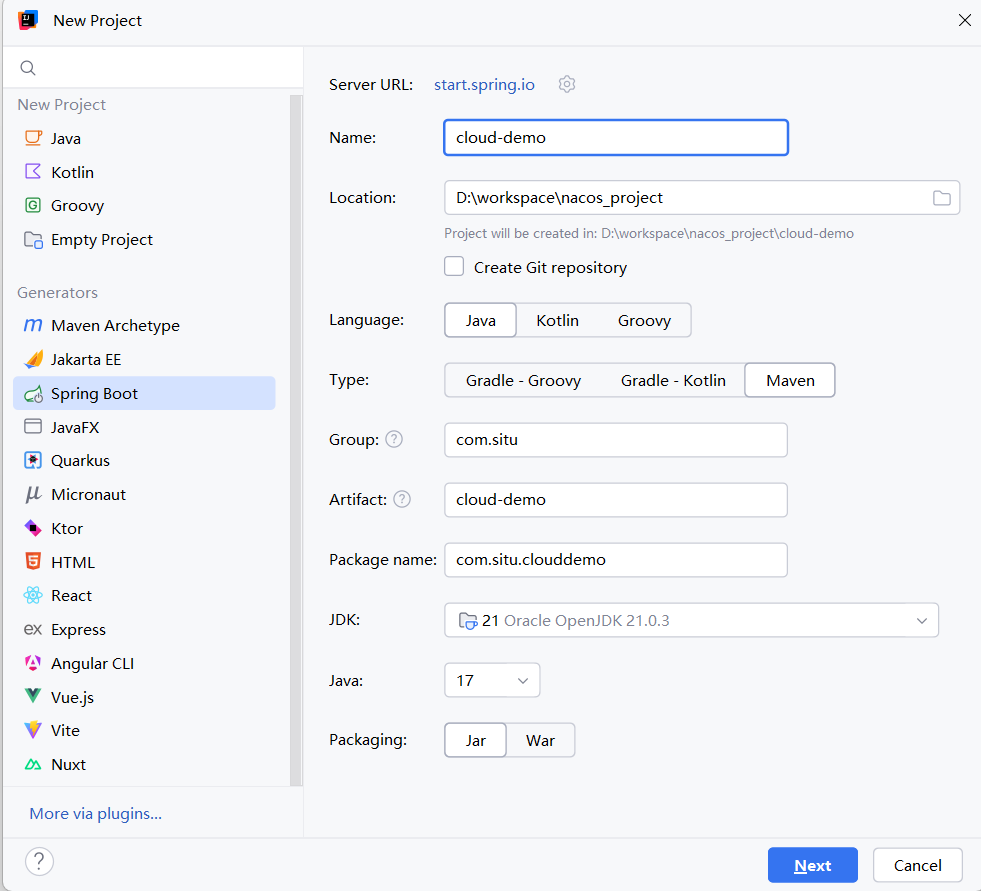

创建springboot项目，不需要添加任何依赖，后期自己手动添加

点击下一步：

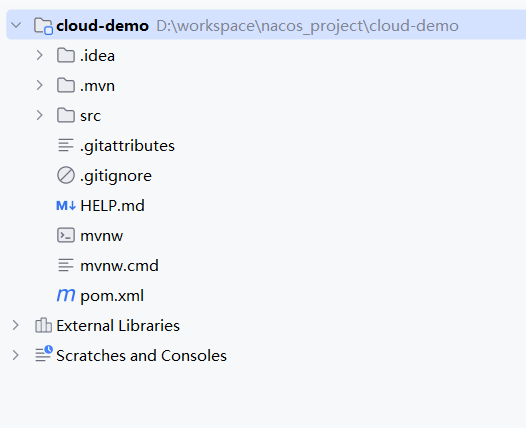

点击create创建项目如下：

修改项目结构

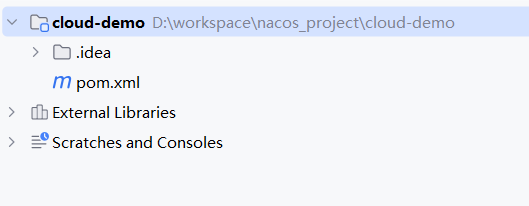

删除不需要的内容，只保留pom.xml文件和.idea文件

配置（pom.xml）

xml 复制代码

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.3.4</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <packaging>pom</packaging>
    <groupId>com.situ</groupId>
    <artifactId>cloud-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>cloud-demo</name>
    <description>cloud-demo</description>
    <properties>
        <java.version>17</java.version>
        <maven.compiler.source>21</maven.compiler.source>
        <maven.compiler.target>21</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring-cloud.version>2023.0.3</spring-cloud.version>
        <spring-cloud-alibaba.version>2023.0.3.2</spring-cloud-alibaba.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

创建service

创建module

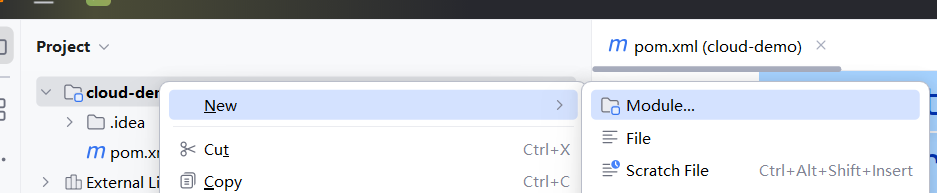

在父项（cloud-demo）上创建module

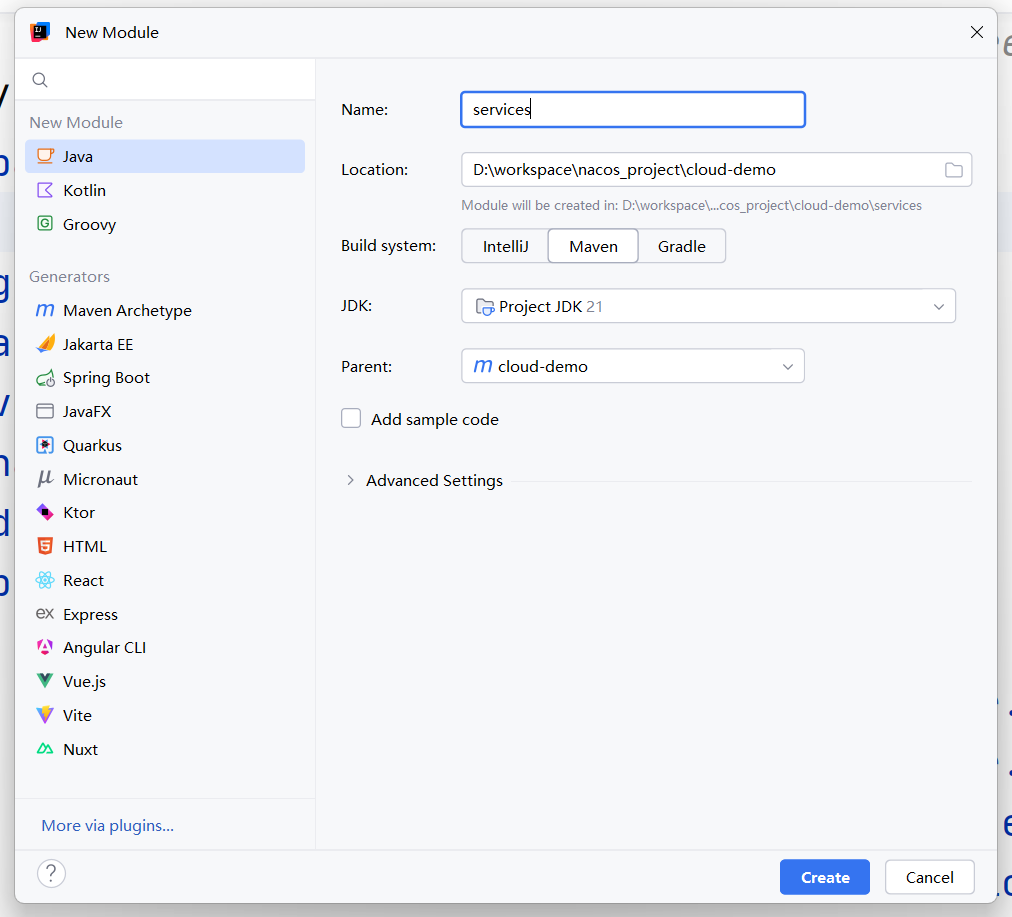

选择java项目

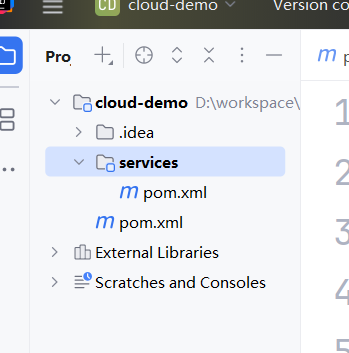

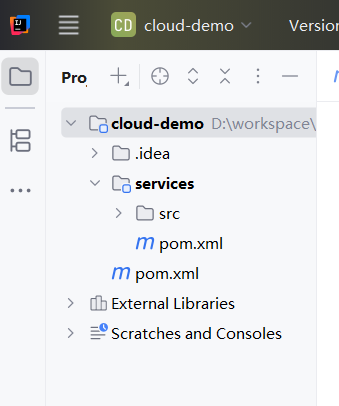

点击创建效果

修改配置

删除src

修改pom文件

xml 复制代码

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.situ</groupId>
        <artifactId>cloud-demo</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <packaging>pom</packaging>
    <artifactId>services</artifactId>

    <properties>
        <maven.compiler.source>21</maven.compiler.source>
        <maven.compiler.target>21</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

</project>

创建微服务

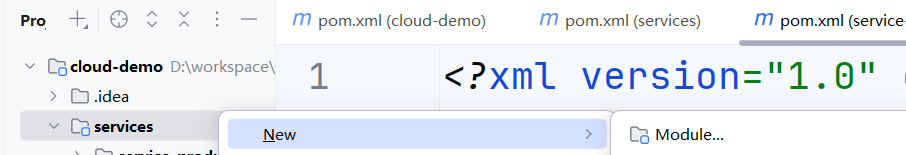

在services上面点击右键创建module

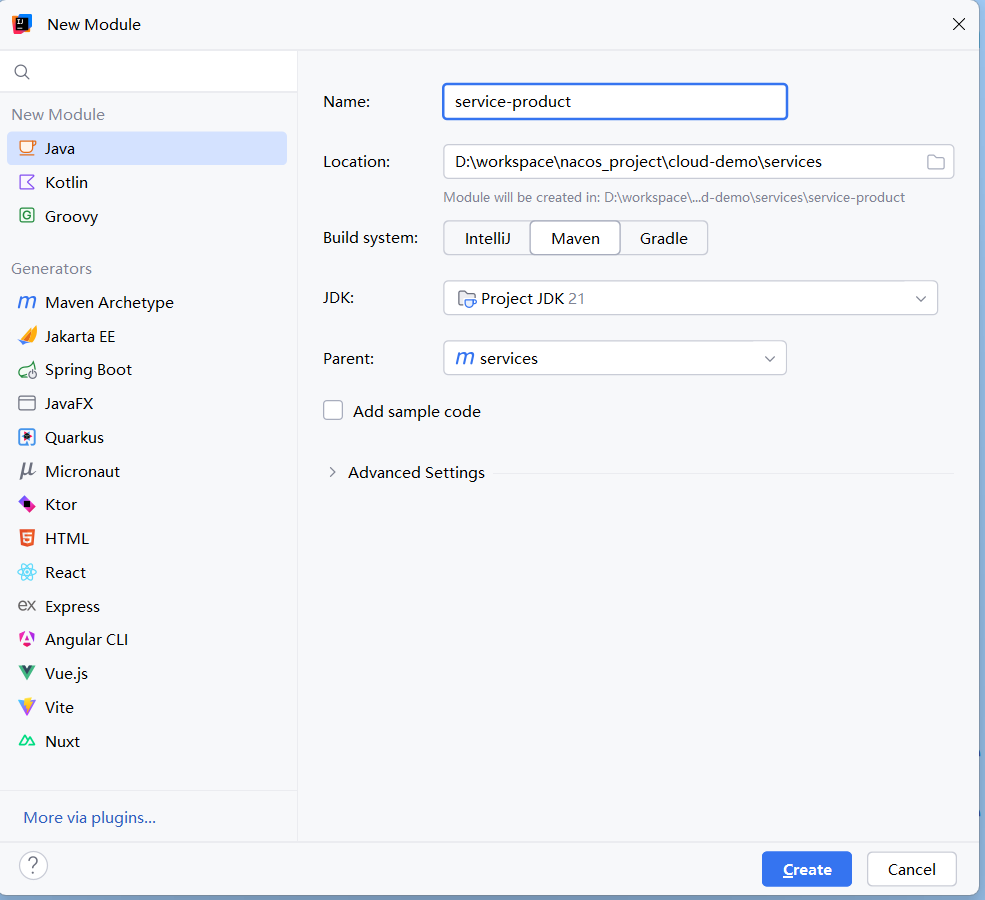

service-product

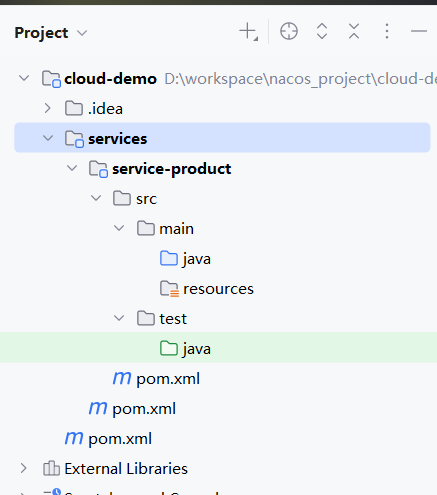

点击create

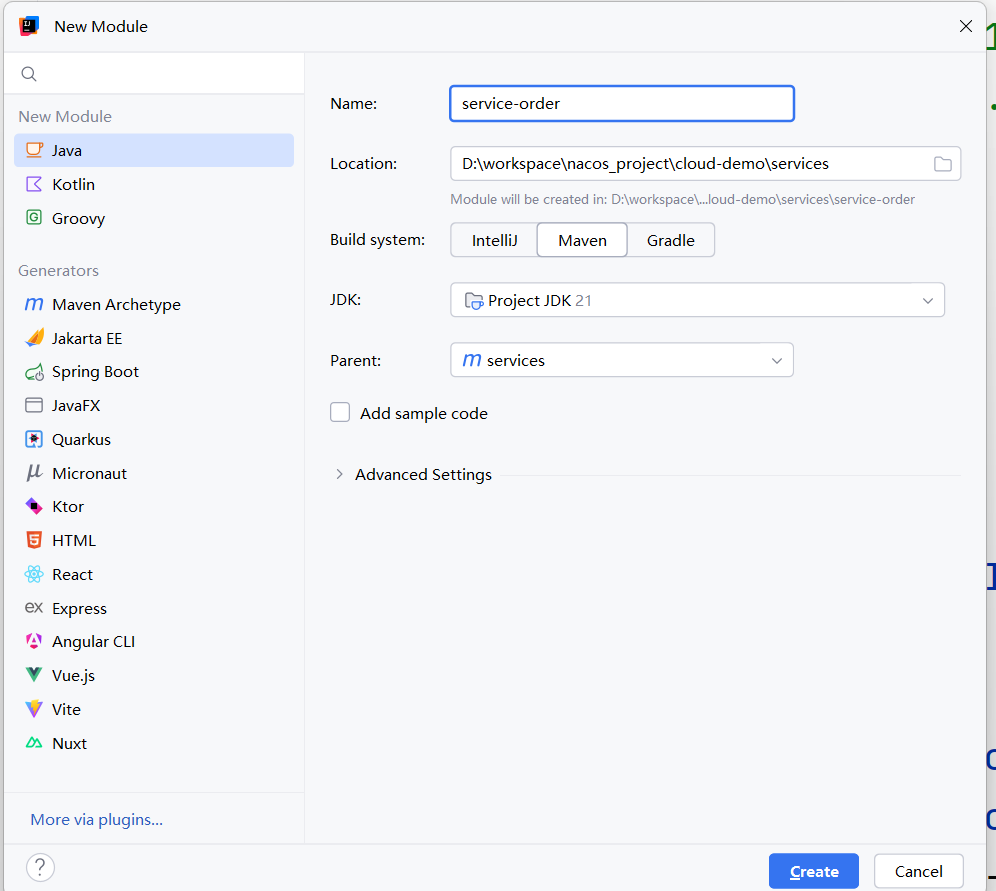

service-order

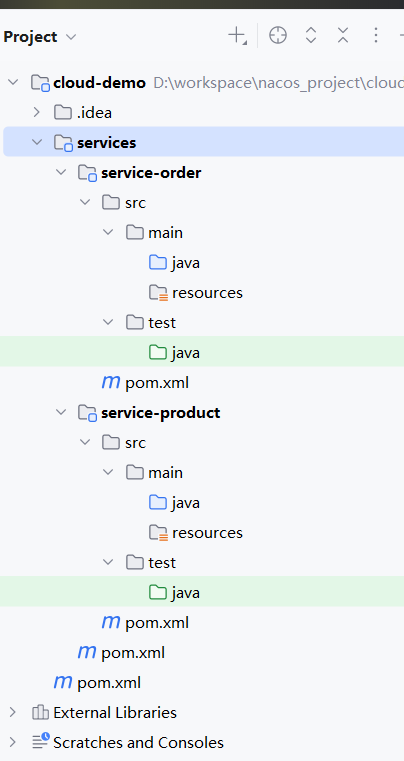

点击create

给services添加公共依赖

xml 复制代码

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.situ</groupId>
        <artifactId>cloud-demo</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <packaging>pom</packaging>
    <modules>
        <module>service-product</module>
        <module>service-order</module>
    </modules>
    <artifactId>services</artifactId>

    <properties>
        <maven.compiler.source>21</maven.compiler.source>
        <maven.compiler.target>21</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
    </dependencies>
</project>
