K8s 部署Doris 高可用集群

❀͜͡傀儡师2025-12-07 15:42

1.2 准备持久化存储

本实战环境使用 NFS 作为 K8s 集群的持久化存储，新集群可以参考👉探索 K8s 持久化存储之 NFS 终极实战指南 部署 NFS 存储。

1.3 命名空间

Doris 集群所有资源部署在命名空间 opsxlab内。

1.4 前提准备

准备 root 密码

编写 Python 脚本 hm.py，生成 2 阶段 SHA-1 加密的密码

python 复制代码
#!/bin/python

import hashlib

# 原始密码
original_password = "PleaseChangeMe"

# 第一次SHA-1哈希运算
first_hash = hashlib.sha1(original_password.encode('utf-8')).hexdigest()

# 第二次SHA-1哈希运算
first_hash_bytes = bytes.fromhex(first_hash)
second_hash = hashlib.sha1(first_hash_bytes).hexdigest()

# 输出两阶段加密后的密码
print("*" + second_hash)

生成密码，记录备用。

$ python3 hm.py

bash 复制代码
*aa7530f7c48740e92a4c0d2138324611e314d397
  1. 部署 Doris 集群
    2.1 创建 ConfigMap
    创建 Doris FE 配置文件
    请使用 vi 编辑器，创建资源清单文件 doris-cluster-fe-conf.yaml，并输入以下内容：
bash 复制代码
apiVersion: v1
kind: ConfigMap
metadata:
  name: doris-cluster-fe-conf
  labels:
    app.kubernetes.io/component: fe
data:
  fe.conf: |
    #####################################################################
    ## The uppercase properties are read and exported by bin/start_fe.sh.
    ## To see all Frontend configurations,
    ## see fe/src/org/apache/doris/common/Config.java
    #####################################################################

    CUR_DATE=`date +%Y%m%d-%H%M%S`

    # Log dir
    LOG_DIR = ${DORIS_HOME}/log

    # For jdk 8
    JAVA_OPTS="-Dfile.encoding=UTF-8 -Djavax.security.auth.useSubjectCredsOnly=false -Xss4m -Xmx8192m -XX:+UnlockExperimentalVMOptions -XX:+UseG1GC -XX:MaxGCPauseMillis=200 -XX:+PrintGCDateStamps -XX:+PrintGCDetails -Xloggc:$LOG_DIR/log/fe.gc.log.$CUR_DATE -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Dlog4j2.formatMsgNoLookups=true"

    # For jdk 17, this JAVA_OPTS will be used as default JVM options
    JAVA_OPTS_FOR_JDK_17="-Dfile.encoding=UTF-8 -Djavax.security.auth.useSubjectCredsOnly=false -Xmx8192m -Xms8192m -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=$LOG_DIR -Xlog:gc*:$LOG_DIR/fe.gc.log.$CUR_DATE:time,uptime:filecount=10,filesize=50M --add-opens=java.base/java.nio=ALL-UNNAMED --add-opens java.base/jdk.internal.ref=ALL-UNNAMED"

    # Set your own JAVA_HOME
    # JAVA_HOME=/path/to/jdk/

    ##
    ## the lowercase properties are read by main program.
    ##

    # store metadata, must be created before start FE.
    # Default value is ${DORIS_HOME}/doris-meta
    # meta_dir = ${DORIS_HOME}/doris-meta

    # Default dirs to put jdbc drivers,default value is ${DORIS_HOME}/jdbc_drivers
    # jdbc_drivers_dir = ${DORIS_HOME}/jdbc_drivers

    http_port = 8030
    rpc_port = 9020
    query_port = 9030
    edit_log_port = 9010
    arrow_flight_sql_port = -1

    # Choose one if there are more than one ip except loopback address.
    # Note that there should at most one ip match this list.
    # If no ip match this rule, will choose one randomly.
    # use CIDR format, e.g. 10.10.10.0/24 or IP format, e.g. 10.10.10.1
    # Default value is empty.
    # priority_networks = 10.10.10.0/24;192.168.0.0/16

    # Advanced configurations
    # log_roll_size_mb = 1024
    # INFO, WARN, ERROR, FATAL
    sys_log_level = INFO
    # NORMAL, BRIEF, ASYNC
    sys_log_mode = ASYNC
    # sys_log_roll_num = 10
    # sys_log_verbose_modules = org.apache.doris
    # audit_log_dir = $LOG_DIR
    # audit_log_modules = slow_query, query
    # audit_log_roll_num = 10
    # meta_delay_toleration_second = 10
    # qe_max_connection = 1024
    # qe_query_timeout_second = 300
    # qe_slow_log_ms = 5000
    enable_fqdn_mode = true
    initial_root_password = *aa7530f7c48740e92a4c0d2138324611e314d397

说明： 配置文件在 FE 默认配置基础上，增加了 initial_root_password 配置项，值是前面用 Python 生成的 2 段加密的密码，生产环境请根据需要调整。

创建 Doris BE 配置文件

请使用 vi 编辑器，创建资源清单文件 doris-cluster-be-conf.yaml，并输入以下内容：

bash 复制代码
kind: ConfigMap
apiVersion: v1
metadata:
  name: doris-cluster-be-conf
  labels:
    app.kubernetes.io/component: be
data:
  be.conf: >
    CUR_DATE=`date +%Y%m%d-%H%M%S`

    # Log dir
    LOG_DIR="${DORIS_HOME}/log/"

    # For jdk 8
    JAVA_OPTS="-Dfile.encoding=UTF-8 -Xmx2048m -DlogPath=$LOG_DIR/jni.log -Xloggc:$LOG_DIR/be.gc.log.$CUR_DATE -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Djavax.security.auth.useSubjectCredsOnly=false -Dsun.security.krb5.debug=true -Dsun.java.command=DorisBE -XX:-CriticalJNINatives"

    # For jdk 17, this JAVA_OPTS will be used as default JVM options
    JAVA_OPTS_FOR_JDK_17="-Dfile.encoding=UTF-8 -Xmx2048m -DlogPath=$LOG_DIR/jni.log -Xlog:gc*:$LOG_DIR/be.gc.log.$CUR_DATE:time,uptime:filecount=10,filesize=50M -Djavax.security.auth.useSubjectCredsOnly=false -Dsun.security.krb5.debug=true -Dsun.java.command=DorisBE -XX:-CriticalJNINatives -XX:+IgnoreUnrecognizedVMOptions --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.lang.invoke=ALL-UNNAMED --add-opens=java.base/java.lang.reflect=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.base/java.net=ALL-UNNAMED --add-opens=java.base/java.nio=ALL-UNNAMED --add-opens=java.base/java.util=ALL-UNNAMED --add-opens=java.base/java.util.concurrent=ALL-UNNAMED --add-opens=java.base/java.util.concurrent.atomic=ALL-UNNAMED --add-opens=java.base/sun.nio.ch=ALL-UNNAMED --add-opens=java.base/sun.nio.cs=ALL-UNNAMED --add-opens=java.base/sun.security.action=ALL-UNNAMED --add-opens=java.base/sun.util.calendar=ALL-UNNAMED --add-opens=java.security.jgss/sun.security.krb5=ALL-UNNAMED --add-opens=java.management/sun.management=ALL-UNNAMED"

    # Set your own JAVA_HOME
    # JAVA_HOME=/path/to/jdk/

    # https://github.com/apache/doris/blob/master/docs/zh-CN/community/developer-guide/debug-tool.md#jemalloc-heap-profile
    # https://jemalloc.net/jemalloc.3.html
    JEMALLOC_CONF="percpu_arena:percpu,background_thread:true,metadata_thp:auto,muzzy_decay_ms:15000,dirty_decay_ms:15000,oversize_threshold:0,prof:false,lg_prof_interval:32,lg_prof_sample:19,prof_gdump:false,prof_accum:false,prof_leak:false,prof_final:false"
    JEMALLOC_PROF_PRFIX=""

    # ports for admin, web, heartbeat service
    be_port = 9060
    webserver_port = 8040
    heartbeat_service_port = 9050
    brpc_port = 8060
    arrow_flight_sql_port = -1

    # HTTPS configures
    enable_https = false
    # path of certificate in PEM format.
    ssl_certificate_path = "$DORIS_HOME/conf/cert.pem"
    # path of private key in PEM format.
    ssl_private_key_path = "$DORIS_HOME/conf/key.pem"

    # Choose one if there are more than one ip except loopback address.
    # Note that there should at most one ip match this list.
    # If no ip match this rule, will choose one randomly.
    # use CIDR format, e.g. 10.10.10.0/24 or IP format, e.g. 10.10.10.1
    # Default value is empty.
    # priority_networks = 10.10.10.0/24;192.168.0.0/16

    # data root path, separate by ';'
    # You can specify the storage type for each root path, HDD (cold data) or SSD (hot data)
    # eg:
    # storage_root_path = /home/disk1/doris;/home/disk2/doris;/home/disk2/doris
    # storage_root_path = /home/disk1/doris,medium:SSD;/home/disk2/doris,medium:SSD;/home/disk2/doris,medium:HDD
    # /home/disk2/doris,medium:HDD(default)
    #
    # you also can specify the properties by setting '<property>:<value>', separate by ','
    # property 'medium' has a higher priority than the extension of path
    #
    # Default value is ${DORIS_HOME}/storage, you should create it by hand.
    # storage_root_path = ${DORIS_HOME}/storage

    # Default dirs to put jdbc drivers,default value is ${DORIS_HOME}/jdbc_drivers
    # jdbc_drivers_dir = ${DORIS_HOME}/jdbc_drivers

    # Advanced configurations
    # INFO, WARNING, ERROR, FATAL
    sys_log_level = INFO
    # sys_log_roll_mode = SIZE-MB-1024
    # sys_log_roll_num = 10
    # sys_log_verbose_modules = *
    # log_buffer_level = -1

    # aws sdk log level
    #    Off = 0,
    #    Fatal = 1,
    #    Error = 2,
    #    Warn = 3,
    #    Info = 4,
    #    Debug = 5,
    #    Trace = 6
    # Default to turn off aws sdk log, because aws sdk errors that need to be cared will be output through Doris logs
    aws_log_level=0
    ## If you are not running in aws cloud, you can disable EC2 metadata
    AWS_EC2_METADATA_DISABLED=true

明： 配置文件使用了 BE 的默认配置，生产环境请根据需要调整。

创建资源

执行下面的命令，创建资源。

bash 复制代码
kubectl apply -f doris-cluster-fe-conf.yaml -n opsxlab
kubectl apply -f doris-cluster-be-conf.yaml -n opsxlab

2.2 创建 Secret

创建管理 Doris 集群节点所需的用户名、密码的保密字典

请使用 vi 编辑器，创建资源清单文件 doris-cluster-secret.yaml，并输入以下内容：

bash 复制代码
kind: Secret
apiVersion: v1
metadata:
  name: doris-cluster-secret
stringData:
  username: root
  password: PleaseChangeMe
type: kubernetes.io/basic-auth

提示：密码使用明文 PleaseChangeMe，生产环境请务必替换

创建资源

执行下面的命令，创建资源。

bash 复制代码
kubectl apply -f doris-cluster-secret.yaml -n opsxlab

2.3 创建服务

我们采用 NodePort 方式在 K8s 集群外发布 Doris 服务。

FE 服务

请使用 vi 编辑器，创建资源清单文件 doris-cluster-fe-service.yaml，并输入以下内容：

bash 复制代码
kind: Service
apiVersion: v1
metadata:
  name: doris-cluster-fe-service
  labels:
    app.kubernetes.io/component: doris-cluster-fe
spec:
  ports:
    - name: http-port
      protocol: TCP
      port: 8030
      targetPort: 8030
      nodePort: 31620
    - name: rpc-port
      protocol: TCP
      port: 9020
      targetPort: 9020
      nodePort: 31621
    - name: query-port
      protocol: TCP
      port: 9030
      targetPort: 9030
      nodePort: 31622
    - name: edit-log-port
      protocol: TCP
      port: 9010
      targetPort: 9010
      nodePort: 31623
  selector:
    app.kubernetes.io/component: doris-cluster-fe
  type: NodePort

BE 服务

请使用 vi 编辑器，创建资源清单文件 doris-cluster-be-service.yaml，并输入以下内容：

bash 复制代码
kind: Service
apiVersion: v1
metadata:
  name: doris-cluster-be-service
  labels:
    app.kubernetes.io/component: doris-cluster-be
spec:
  ports:
    - name: be-port
      protocol: TCP
      port: 9060
      targetPort: 9060
      nodePort: 32189
    - name: webserver-port
      protocol: TCP
      port: 8040
      targetPort: 8040
      nodePort: 31624
    - name: heartbeat-port
      protocol: TCP
      port: 9050
      targetPort: 9050
      nodePort: 31625
    - name: brpc-port
      protocol: TCP
      port: 8060
      targetPort: 8060
      nodePort: 31627
  selector:
    app.kubernetes.io/component: doris-cluster-be
  type: NodePort

创建资源

执行下面的命令，创建资源。

bash 复制代码
kubectl apply -f doris-cluster-fe-service.yaml -n opsxlab
kubectl apply -f doris-cluster-be-service.yaml -n opsxlab

2.4 创建 Doris FE

使用 StatefulSet 部署 Doris FE 服务，需要创建 StatefulSet 和 HeadLess 两种资源。

创建资源清单

请使用 vi 编辑器，创建资源清单文件 doris-cluster-fe-sts.yaml，并输入以下内容：

bash 复制代码
kind: StatefulSet
apiVersion: apps/v1
metadata:
  name: doris-cluster-fe
  labels:
    app.kubernetes.io/component: doris-cluster-fe
spec:
  replicas: 3
  selector:
    matchLabels:
      app.kubernetes.io/component: doris-cluster-fe
  template:
    metadata:
      name: doris-cluster-fe
      labels:
        app.kubernetes.io/component: doris-cluster-fe
    spec:
      volumes:
        - name: meta
          persistentVolumeClaim:
            claimName: meta
        - name: podinfo
          downwardAPI:
            items:
              - path: labels
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.labels
              - path: annotations
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.annotations
            defaultMode: 420
        - name: basic-auth
          secret:
            secretName: doris-cluster-secret
            defaultMode: 420
        - name: doris-cluster-fe-conf
          configMap:
            name: doris-cluster-fe-conf
            defaultMode: 420
      containers:
        - name: doris-cluster-fe
          image: 'selectdb/doris.fe-ubuntu:3.0.2'
          command:
            - /opt/apache-doris/fe_entrypoint.sh
          args:
            - $(ENV_FE_ADDR)
          ports:
            - name: http-port
              containerPort: 8030
              protocol: TCP
            - name: rpc-port
              containerPort: 9020
              protocol: TCP
            - name: query-port
              containerPort: 9030
              protocol: TCP
            - name: edit-log-port
              containerPort: 9010
              protocol: TCP
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: POD_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.podIP
            - name: HOST_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.hostIP
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: CONFIGMAP_MOUNT_PATH
              value: /etc/doris
            - name: USER
              value: root
            - name: DORIS_ROOT
              value: /opt/apache-doris
            - name: ENV_FE_ADDR
              value: doris-cluster-fe-service
            - name: FE_QUERY_PORT
              value: '9030'
            - name: ELECT_NUMBER
              value: '3'
          resources:
            limits:
              cpu: '8'
              memory: 16Gi
            requests:
              cpu: '1'
              memory: 1Gi
          volumeMounts:
            - name: podinfo
              mountPath: /etc/podinfo
            - name: log
              mountPath: /opt/apache-doris/fe/log
            - name: meta
              mountPath: /opt/apache-doris/fe/doris-meta
            - name: doris-cluster-fe-conf
              mountPath: /etc/doris
            - name: basic-auth
              mountPath: /etc/basic_auth
          livenessProbe:
            tcpSocket:
              port: 9030
            initialDelaySeconds: 80
            timeoutSeconds: 180
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          readinessProbe:
            httpGet:
              path: /api/health
              port: 8030
              scheme: HTTP
            timeoutSeconds: 1
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          startupProbe:
            tcpSocket:
              port: 9030
            timeoutSeconds: 1
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 60
          lifecycle:
            preStop:
              exec:
                command:
                  - /opt/apache-doris/fe_prestop.sh
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: IfNotPresent
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      dnsPolicy: ClusterFirst
      securityContext: {}
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              podAffinityTerm:
                labelSelector:
                  matchExpressions:
                    - key: app.kubernetes.io/component
                      operator: In
                      values:
                        - doris-cluster-fe
                topologyKey: kubernetes.io/hostname
      schedulerName: default-scheduler
  volumeClaimTemplates:
    - kind: PersistentVolumeClaim
      apiVersion: v1
      metadata:
        name: meta
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 10G
        storageClassName: nfs-sc
        volumeMode: Filesystem
    - kind: PersistentVolumeClaim
      apiVersion: v1
      metadata:
        name: log
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: '10'
        storageClassName: nfs-sc
        volumeMode: Filesystem
  serviceName: doris-cluster-fe-internal
  podManagementPolicy: Parallel

---
kind: Service
apiVersion: v1
metadata:
  name: doris-cluster-fe-internal
  labels:
    app.kubernetes.io/component: doris-cluster-fe
spec:
  ports:
    - name: query-port
      protocol: TCP
      port: 9030
      targetPort: 9030
  selector:
    app.kubernetes.io/component: doris-cluster-fe
  clusterIP: None
  type: ClusterIP

创建资源

执行下面的命令，创建资源。

bash 复制代码
kubectl apply -f doris-cluster-fe-sts.yaml -n opsxlab

2.5 创建 Doris BE

使用 StatefulSet 部署 Doris BE 服务，需要创建 StatefulSet 和 HeadLess 两种资源。

创建资源清单

请使用 vi 编辑器，创建资源清单文件 doris-cluster-be-sts.yaml，并输入以下内容：

bash 复制代码
kind: StatefulSet
apiVersion: apps/v1
metadata:
  name: doris-cluster-be
  labels:
    app.kubernetes.io/component: doris-cluster-be
spec:
  replicas: 3
  selector:
    matchLabels:
      app.kubernetes.io/component: doris-cluster-be
  template:
    metadata:
      name: doris-cluster-be
      labels:
        app.kubernetes.io/component: doris-cluster-be
    spec:
      volumes:
        - name: podinfo
          downwardAPI:
            items:
              - path: labels
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.labels
              - path: annotations
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.annotations
            defaultMode: 420
        - name: basic-auth
          secret:
            secretName: doris-cluster-secret
            defaultMode: 420
        - name: doris-cluster-be-conf
          configMap:
            name: doris-cluster-be-conf
            defaultMode: 420
      initContainers:
        - name: default-init
          image: 'selectdb/alpine:latest'
          command:
            - /bin/sh
          args:
            - '-c'
            - sysctl -w vm.max_map_count=2000000 && swapoff -a
          resources: {}
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: IfNotPresent
          securityContext:
            privileged: true
      containers:
        - name: be
          image: 'selectdb/doris.be-ubuntu:3.0.2'
          command:
            - /opt/apache-doris/be_entrypoint.sh
          args:
            - $(ENV_FE_ADDR)
          ports:
            - name: be-port
              containerPort: 9060
              protocol: TCP
            - name: webserver-port
              containerPort: 8040
              protocol: TCP
            - name: heartbeat-port
              containerPort: 9050
              protocol: TCP
            - name: brpc-port
              containerPort: 8060
              protocol: TCP
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: POD_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.podIP
            - name: HOST_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.hostIP
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: CONFIGMAP_MOUNT_PATH
              value: /etc/doris
            - name: USER
              value: root
            - name: DORIS_ROOT
              value: /opt/apache-doris
            - name: ENV_FE_ADDR
              value: doris-cluster-fe-service
            - name: FE_QUERY_PORT
              value: '9030'
          resources:
            limits:
              cpu: '8'
              memory: 16Gi
            requests:
              cpu: '1'
              memory: 1Gi
          volumeMounts:
            - name: podinfo
              mountPath: /etc/podinfo
            - name: be-storage
              mountPath: /opt/apache-doris/be/storage
            - name: be-log
              mountPath: /opt/apache-doris/be/log
            - name: doris-cluster-be-conf
              mountPath: /etc/doris
            - name: basic-auth
              mountPath: /etc/basic_auth
          livenessProbe:
            tcpSocket:
              port: 9050
            initialDelaySeconds: 80
            timeoutSeconds: 180
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          readinessProbe:
            httpGet:
              path: /api/health
              port: 8040
              scheme: HTTP
            timeoutSeconds: 1
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          startupProbe:
            tcpSocket:
              port: 9050
            timeoutSeconds: 1
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 60
          lifecycle:
            preStop:
              exec:
                command:
                  - /opt/apache-doris/be_prestop.sh
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: IfNotPresent
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      dnsPolicy: ClusterFirst
      securityContext: {}
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              podAffinityTerm:
                labelSelector:
                  matchExpressions:
                    - key: app.kubernetes.io/component
                      operator: In
                      values:
                        - doris-cluster-be
                topologyKey: kubernetes.io/hostname
      schedulerName: default-scheduler
  volumeClaimTemplates:
    - kind: PersistentVolumeClaim
      apiVersion: v1
      metadata:
        name: be-storage
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: '10'
        storageClassName: nfs-sc
        volumeMode: Filesystem
    - kind: PersistentVolumeClaim
      apiVersion: v1
      metadata:
        name: be-log
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: '10'
        storageClassName: nfs-sc
        volumeMode: Filesystem
  serviceName: doris-cluster-be-internal
  podManagementPolicy: Parallel

---
kind: Service
apiVersion: v1
metadata:
  name: doris-cluster-be-internal
  labels:
    app.kubernetes.io/component: doris-cluster-be-internal
spec:
  ports:
    - name: heartbeat-port
      protocol: TCP
      port: 9050
      targetPort: 9050
  selector:
    app.kubernetes.io/component: doris-cluster-be
  clusterIP: None
  type: ClusterIP

创建资源

执行下面的命令，创建资源。

bash 复制代码
kubectl apply -f doris-cluster-be-sts.yaml -n opsxlab
  1. 认证管理
    登录 Doris 查看用户信息并设置密码。

执行下面的命令，进入 Pod doris-fe-0 的终端，连接 Doris 服务。

bash 复制代码
kubectl exec -n opsxlab -it doris-cluster-fe-0 -- /bin/bash
bash 复制代码
root@doris-cluster-fe-0:/opt/apache-doris# mysql -uadmin -P31622 -h172.16.17.91

请立即为管理员（admin）账户设置密码。
SET PASSWORD FOR 'admin'@'%' = PASSWORD('PleaseChangeMe');
  1. Doris 图形化功能概览
    Doris FE 内置 Web UI。用户无须安装 MySQL 客户端，即可通过内置的 Web UI 进行 SQL 查询和其它相关信息的查看。

使用浏览器，打开 FE 服务 http-port 端口 8030 对应的 NodePort 31620，例如 http://172.16.17.91:31620，打开 Doris 内置的 Web 控制台。

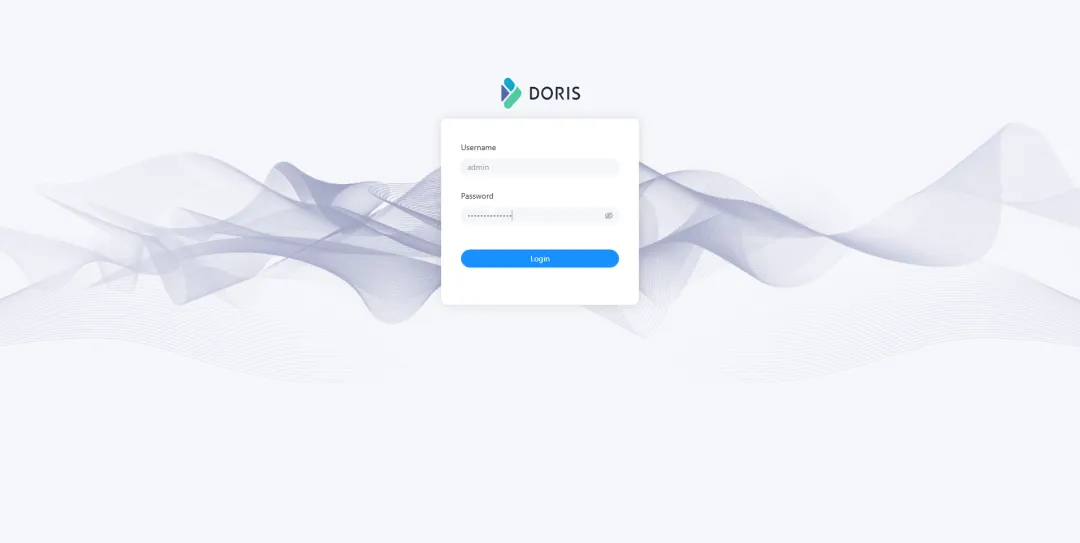

登录页面

输入用户名 admin 及密码，点击「Login」登录系统。

相关推荐
星哥说事7 小时前
服务网格：Istio / Linkerd 流量管理与监控解析*
云原生·istio
月亮！7 小时前
移动端测试重磅升级：跨平台自动化测试框架深度对比
运维·网络·人工智能·测试工具·容器·自动化·测试用例
java_logo8 小时前
MILVUS Docker 容器化部署指南
运维·人工智能·docker·容器·prometheus·milvus
櫻花8 小时前
微服务各大组件总结
微服务·云原生·架构
-大头.8 小时前
微服务架构深度演进与实践指南
微服务·云原生·架构
Henry Zhu1239 小时前
VPP中FIB（转发信息库）和VRF（虚拟路由转发）详解：从设计理念到实际应用
网络·计算机网络·云原生·云计算·智能路由器
GOTXX11 小时前
openEuler AI与云原生 构建高效智能的数字基础设施底座
人工智能·云原生
0wioiw012 小时前
Docker（基础指令）
运维·docker·容器
Yeliang Wu12 小时前
K8s部署SGLang：原理到实践（基于Ubuntu 22.04）
kubernetes·sglang
热门推荐
01GitHub 镜像站点02【超详细教程】手把手教你从微软官网免费下载Windows 10官方原版ISO镜像（2025最新版）03安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）04智能库存管理的需求预测模型：从业务痛点到落地代码的完整实践05UV安装并设置国内源06BongoCat - 跨平台键盘猫动画工具07React CVE-2025-55182漏洞排查与修复指南08Linux下V2Ray安装配置指南09打造高效订单处理！ZKmall开源商城的统一履约中心架构解析10本地部署阿里最新开源的Z-Image
