go
const ng=g+1;
this.shangx=qidianx;
this.shangy=qidiany-1;
this.zuox=qidianx-1;
this.zuoy=qidiany;
this.youx=qidianx+1;
this.youy=qidiany;
this.xiax=qidianx;
this.xiay=qidiany+1; 都用ng是因为不用算起点的g 所以就算是第一次传过来的是起点g=0 还是得加1是正确的还是啥
好问题！你的理解非常关键！
答案是：✅ 完全正确！必须用ng！
让我解释为什么：
起点G值的正确计算流程：
你的正确理解：
TEXT
第0步：站在起点(3,8)，传入g=0 // g=起点自己的累计G值(0)
ng = g + 1 = 0 + 1 = 1 // 走到邻居的代价
邻居格子G值计算：
上(3,7): G = 1 (从起点走一步的代价)
左(2,8): G = 1
右(4,8): G = 1
下(3,9): G = 1
这才是正确的A！* 因为：
当前格子自己的G值 = 已走的总代价
邻居格子的G值 = 当前G + 走到邻居的代价(1)
相比上次的没多大变化 在角色脚本
h
uoqushangxiazuoyou(qidianx:number,qidiany:number,g:number){这个函数加三个形参 const ng=g+1;创建ng变量 作为走几步的g
this.huoqushangxiazuoyou(this.juesex,this.juesey,0); 初次调用是格子将数组地图传给角色脚本 所以g是0
在这个函数最后做个判断
go
if(zuixiaof>0&&(zuixiaofangxiangx!==this.mubiaox||zuixiaofangxiangy!==this.mubiaoy)){
this.huoqushangxiazuoyou(zuixiaofangxiangx,zuixiaofangxiangy,ng);
}如果最小f不是0 证明还没到目的地 如果最小格子xy 也就是下一步的xy不是目的地格子的xy 开始递归 调用自己
将ng传给自己
虾片开始做障碍寻路跟 寻路时对数组地图边界处理
go
import { _decorator, Collider2D, Component, Contact2DType, director, IPhysics2DContact, math, Node } from 'cc';
const { ccclass, property,executeInEditMode } = _decorator;
@ccclass('xiaobing')
@executeInEditMode
export class xiaobing extends Component {
juesex:number=null;
juesey:number=null;
mubiaox:number=null;
mubiaoy:number=null;
shangf:number=0;
shangg:number=0;
shangh:number=0;
zuof:number=0;
zuoh:number=0;
zuog:number=0;
youf:number=0;
youh:number=0;
youg:number=0;
xiaf:number=0;
xiah:number=0;
xiag:number=0;
shangx:number=0;
shangy:number=0;
zuox:number=0;
zuoy:number=0;
youx:number=0;
youy:number=0;
xiax:number=0;
xiay:number=0;
nextx:number=0;
nexty:number=0;
nextg:number=0;
onLoad(){
// 监听碰撞事件
const collider = this.getComponent(Collider2D);
if (collider) {
collider.on(Contact2DType.BEGIN_CONTACT, this.onBeginContact, this);
}
director.on('gezi_ditu_xiaobing', this.huoquditu, this);
}
// 碰撞回调
onBeginContact(selfCollider: Collider2D, otherCollider: Collider2D, contact: IPhysics2DContact | null) {
if(otherCollider.node.name.includes("shantou")){
this.scheduleOnce(()=>{
selfCollider.node.destroy();
},0.7);
}
}
start() {
director.emit('xiaobing_position_gezi', this.node.worldPosition);
}
update(deltaTime: number) {
}
huoquditu(ditu:[][]){
let len=ditu.length;
console.log(len+"=");
for(let y=0;y<len;y++){
for(let x=0;x<ditu[y].length;x++){
console.log(ditu[y][x]);
if(ditu[y][x]==1){
this.mubiaox=x;
this.mubiaoy=y;
console.log("/"+this.mubiaox,this.mubiaoy)
}else if(ditu[y][x]==7){
this.juesex=x;
this.juesey=y;
console.log("/"+this.juesex,this.juesey);
}
}
}
//this.jisuanf(this.juesex,this.juesey);
this.huoqushangxiazuoyou(this.juesex,this.juesey,0);
}
jisuannext(x:number,y:number,f:number,g:number){
if(f>0){
//g=g+1;
this.huoqushangxiazuoyou(x,y,(g+1));
}
}
huoqushangxiazuoyou(qidianx:number,qidiany:number,g:number){
this.shangx=qidianx;
this.shangy=qidiany-1;
this.zuox=qidianx-1;
this.zuoy=qidiany;
this.youx=qidianx+1;
this.youy=qidiany;
this.xiax=qidianx;
this.xiay=qidiany+1;
this.shangg=ng;
this.shangh=Math.abs(this.shangx-this.mubiaox)+Math.abs(this.shangy-this.mubiaoy);
this.shangf=this.shangg+this.shangh;
const ng=g+1;
this.zuog=ng;
this.zuoh=Math.abs(this.zuox-this.mubiaox)+Math.abs(this.zuoy-this.mubiaoy);
this.zuof=this.zuog+this.zuoh;
this.youg=ng;
this.youh=Math.abs(this.youx-this.mubiaox)+Math.abs(this.youy-this.mubiaoy);
this.youf=this.youg+this.youh;
this.xiag=ng;
this.xiah=Math.abs(this.xiax-this.mubiaox)+Math.abs(this.xiay-this.mubiaoy);
this.xiaf=this.xiag+this.xiah;
const suoyouf=[this.shangf,this.zuof,this.youf,this.xiaf];
let zuixiaof=suoyouf[0];
let fangxiang=0; // 0/shang 1/zuo 2/you 3/xia
let zuixiaog=0;
for(let i=1;i<suoyouf.length;i++){
if(suoyouf[i]<zuixiaof){
zuixiaof=suoyouf[i];
fangxiang=i;
}
}
let zuixiaofangxiangx=0;
let zuixiaofangxiangy=0;
if(fangxiang==0){
zuixiaofangxiangx=this.shangx;
zuixiaofangxiangy=this.shangy;
}else if(fangxiang==1){
zuixiaofangxiangx=this.zuox;
zuixiaofangxiangy=this.zuoy;
}else if(fangxiang==2){
zuixiaofangxiangx=this.youx;
zuixiaofangxiangy=this.youy;
}else if(fangxiang==3){
zuixiaofangxiangx=this.xiax;
zuixiaofangxiangy=this.xiay;
}
const directionData = {
shangf: this.shangf, // 上方向状态或坐标x
xiaf: this.xiaf, // 下
zuof: this.zuof, // 左
youf: this.youf, // 右
shangx: this.shangx, // 上方向x坐标
shangy: this.shangy, // 上方向y坐标
zuox: this.zuox, // 左方向x坐标
zuoy: this.zuoy, // 左方向y坐标
youx: this.youx, // 右方向x坐标
youy: this.youy, // 右方向y坐标（如果有）
xiax: this.xiax, // 下方向x坐标（如果有）
xiay: this.xiay, // 下方向y坐标（如果有）
zuixiaof:zuixiaof,
zuixiaofangxiangx:zuixiaofangxiangx,
zuixiaofangxiangy:zuixiaofangxiangy,
mubiaox:this.mubiaox,
mubiaoy:this.mubiaoy,
juesex:this.juesex,
juesey:this.juesey
};
console.log("s"+this.shangf+"z"+this.zuof+"y"+this.youf+"x"+this.xiaf+"f"+zuixiaof+"fang"+fangxiang);
director.emit('xiaobing_sxzy_gezi', directionData);
//this.nextx=zuixiaofangxiangx;
//this.nexty=zuixiaofangxiangy;
if(zuixiaof>0&&(zuixiaofangxiangx!==this.mubiaox||zuixiaofangxiangy!==this.mubiaoy)){
this.huoqushangxiazuoyou(zuixiaofangxiangx,zuixiaofangxiangy,ng);
}
}

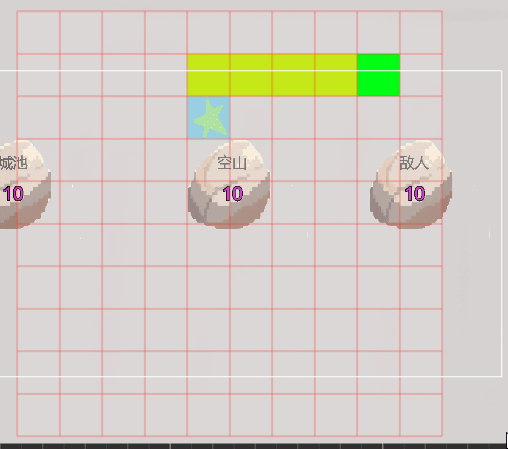

}格子脚本分成数组地图 存储角色起点跟目的地 显示路径数组 用来显示路径
go
import { _decorator, Color, Component, director, Graphics, Node, Vec3 } from 'cc';
const { ccclass, property,executeInEditMode} = _decorator;
@ccclass('gezi')
@executeInEditMode
export class gezi extends Component {
@property
gridWidth: number = 10; // 水平格子数
@property
gridHeight: number = 10; // 垂直格子数
@property
cellSize: number = 100; // 每个格子的大小（像素）
@property
lineWidth: number = 2; // 线宽
@property
lineColor: Color = Color.GRAY; // 线颜色
@property
targetColor: Color = new Color(1, 27, 3); // 线颜色
@property
jueseColor: Color = new Color(1, 27, 3); // 线颜色
@property
fillColor: Color = new Color(240, 240, 240); // 填充颜色（浅灰）
@property
xiaColor: Color = new Color(240, 240, 240); // 填充颜色（浅灰）
@property
zuixiaoColor: Color = new Color(240, 240, 240); // 填充颜色（浅灰）
@property
zhangaiColor: Color = new Color(240, 240, 240); // 填充颜色（浅灰）
@property(Node)
xiaobing:Node=null;
private graphics: Graphics | null = null;
gezi=[[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,1,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,11,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
];
shangx:number=0;
shangy:number=0;
shangf:number=0;
xianshigezi=[[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,1,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,11,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0],
];
onLoad() {
director.on('xiaobing_sxzy_gezi', this.huasxzy, this);
// 1. 创建并获取 Graphics 组件
this.graphics = this.node.getComponent(Graphics);
if (!this.graphics) {
this.graphics = this.node.addComponent(Graphics);
}
// 2. 绘制网格
director.on('xiaobing_position_gezi', this.xiaobingposition, this);
// 获取角色位置并标记
const worldPos = this.xiaobing.getWorldPosition();
const gridPos = this.worldPositionToGrid(worldPos);
console.log("转换结果：", gridPos);
// 关键修正：检查边界并更新数组
if (this.isInGrid(gridPos.x, gridPos.y)) {
// 注意：你的数组是 gezi[y][x] 结构！所以要 [gridPos.y][gridPos.x]
this.gezi[gridPos.y][gridPos.x] = 7;
this.xianshigezi[gridPos.y][gridPos.x] = 7;
} else {
console.warn("角色在网格外！位置：", gridPos);
}
this.drawGrid(this.gezi);
director.emit('gezi_ditu_xiaobing', this.gezi);
}
// 添加边界检查方法
private isInGrid(x: number, y: number): boolean {
return x >= 0 && x < this.gridWidth && y >= 0 && y < this.gridHeight;
}
// 在gezi.ts中添加一个**可靠的**坐标转换方法
public worldPositionToGrid(worldPos: Vec3): { x: number, y: number } {
const gridWorldPos = this.node.getWorldPosition();
const offsetX = worldPos.x - gridWorldPos.x;
const offsetY = worldPos.y - gridWorldPos.y;
// DEBUG: 打印调试信息
//console.log("=== 坐标转换调试 ===");
//console.log("1. 网格中心：", gridWorldPos);
//console.log("2. 角色位置：", worldPos);
//console.log("3. 偏移量 offsetX=", offsetX, "offsetY=", offsetY);
// 网格半宽/半高 (注意：这里有坐标轴方向问题)
const halfWidth = (this.gridWidth * this.cellSize) / 2;
const halfHeight = (this.gridHeight * this.cellSize) / 2;
// Cocos Y轴向上为正，但数组通常是左下角为(0,0)
// 所以需要调整Y轴方向
const gridX = Math.floor((offsetX + halfWidth) / this.cellSize);
const gridY = Math.floor((offsetY + halfHeight) / this.cellSize);
// Y轴翻转（因为屏幕上方是正Y，但数组从上到下索引）
const flippedY = (this.gridHeight - 1) - gridY;
//console.log(`4. 计算：gridX=${gridX} (${offsetX}+${halfWidth})/${this.cellSize}`);
//console.log(`5. 计算：gridY=${gridY} (${offsetY}+${halfHeight})/${this.cellSize}`);
//console.log(`6. 翻转后：gridX=${gridX}, flippedY=${flippedY}`);
//console.log(`7. 结果：[${this.gezi[flippedY][gridX]}]`);
// 使用 flippedY 因为数组是从上到下存储
return { x: gridX, y: flippedY };
}
huoquditu(){
return this.gezi;
}
huasxzy(data:any){
//console.log("....");
//console.log("/"+data.shangf+"z"+data.zuof+"y"+data.youf+"x"+data.xiaf);
let xiaof=0;
//this.hua(data.shangx,data.shangy);
//this.hua(data.zuox,data.zuoy);
//this.hua(data.youx,data.youy);
//this.hua(data.xiax,data.xiay);
this.huazuixiaof(data.zuixiaofangxiangx,data.zuixiaofangxiangy,data.mubiaox,data.mubiaoy,data.juesex,data.juesey);
this.drawGrid(this.xianshigezi);
}
hua(x:number,y:number){
this.xianshigezi[y][x]=4;
}
huazuixiaof(x:number,y:number,mubiaox:number,mubiaoy:number,juesex:number,juesey:number){
//let mubiaox=0;
//let mubiaoy=0;
if(this.gezi[y][x]==11){
console.log("no");
return;
}
// 判断是否是目标点
const isTargetPoint = (x === mubiaox && y === mubiaoy);
if(isTargetPoint) {
console.log(`⭐ 这是目标点[${x},${y}]，保持为1`);
// 保持目标标记不变，或者标记为其他区分色
this.xianshigezi[y][x] = 1; // 保持原目标值
} else {
// 普通路径点
console.log(`📝 标记路径点[${x},${y}]为9`);
this.xianshigezi[y][x] = 9;
}
}
public gridToWorldPosition(gridX: number, gridY: number): Vec3 {
const gridWorldPos = this.node.getWorldPosition();
// 计算世界坐标（格子中心点）
const worldX = gridWorldPos.x + (gridX - this.gridWidth / 2 + 0.5) * this.cellSize;
const worldY = gridWorldPos.y +
(gridY - this.gridHeight / 2 + 0.5) * this.cellSize;
return new Vec3(worldX, worldY, 0);
}
xiaobingposition(position:Vec3){
console.log("xiaobing",position);
}
drawGrid(g:number[][]) {
if (!this.graphics) return;
// 清空之前的绘制
this.graphics.clear();
// 设置线条样式
this.graphics.lineWidth = this.lineWidth;
this.graphics.strokeColor = this.lineColor;
// 首先填充背景色
this.graphics.fillColor = this.fillColor;
// 计算网格的总宽高（用于居中显示）
const totalWidth = this.gridWidth * this.cellSize;
const totalHeight = this.gridHeight * this.cellSize;
// 设置绘制原点在节点中心（Cocos默认）
// 也可以从左上角开始画，看个人习惯
// 绘制每个格子的填充背景
for (let x = 0; x < this.gridWidth; x++) {
for (let y = 0; y < this.gridHeight; y++) {
let huoqugezi=g[y][x];
// 然后反转Y坐标，让第一行显示在最上面
const screenY = this.gridHeight - 1 - y;
const posX = (x - this.gridWidth/2) * this.cellSize;
//const posY = (y - this.gridWidth/2) * this.cellSize;
const posY = (screenY - this.gridHeight/2) * this.cellSize;
if(huoqugezi==1){
this.graphics.fillColor = this.targetColor;
//this.graphics.rect(posX, posY, this.cellSize, this.cellSize);
//console.log(huoqugezi+"shi");
}else if(huoqugezi==7){
this.graphics.fillColor = this.jueseColor;
//this.graphics.rect(posX, posY, this.cellSize, this.cellSize);
//console.log(huoqugezi+"shi");
}else if(huoqugezi==4){
this.graphics.fillColor = this.xiaColor;
}else if(huoqugezi==9){
this.graphics.fillColor = this.zuixiaoColor;
}
else if(huoqugezi==11){
this.graphics.fillColor = this.zhangaiColor;
}
else{
this.graphics.fillColor = this.fillColor;
}
this.graphics.rect(posX, posY, this.cellSize, this.cellSize);
//console.log(huoqugezi);
this.graphics.fill();
}
}
// 绘制垂直线
for (let x = 0; x <= this.gridWidth; x++) {
const lineX = (x - this.gridWidth/2) * this.cellSize;
const startY = (-this.gridHeight/2) * this.cellSize;
const endY = (this.gridHeight/2) * this.cellSize;
this.graphics.moveTo(lineX, startY);
this.graphics.lineTo(lineX, endY);
}
// 绘制水平线
for (let y = 0; y <= this.gridHeight; y++) {
const lineY = (y - this.gridHeight/2) * this.cellSize;
const startX = (-this.gridWidth/2) * this.cellSize;
const endX = (this.gridWidth/2) * this.cellSize;
this.graphics.moveTo(startX, lineY);
this.graphics.lineTo(endX, lineY);
}
// 描边完成绘制
this.graphics.stroke();
// 可选：绘制坐标标签（调试用）
this.drawCoordinates();
}
// 绘制坐标标签（可选，调试用）
private drawCoordinates() {
const font = '14px Arial';
for (let x = 0; x < this.gridWidth; x++) {
for (let y = 0; y < this.gridHeight; y++) {
const centerX = (x - this.gridWidth/2) * this.cellSize + this.cellSize/2;
const centerY = (y - this.gridHeight/2) * this.cellSize + this.cellSize/2;
// Graphics 不支持文字，可以用Label或另想办法
// 这里先注释，下文有改进方法
}
}
}
// 获取格子中心的世界坐标（有用！）
public getCellCenterPosition(gridX: number, gridY: number): { x: number, y: number } {
const worldX = this.node.position.x +
(gridX - this.gridWidth/2) * this.cellSize +
this.cellSize/2;
const worldY = this.node.position.y +
(gridY - this.gridHeight/2) * this.cellSize +
this.cellSize/2;
return { x: worldX, y: worldY };
}
// 世界坐标转格子坐标（有用！）
public worldToGrid(worldX: number, worldY: number): { x: number, y: number } {
const localX = worldX - this.node.position.x;
const localY = worldY - this.node.position.y;
const gridX = Math.floor((localX + this.gridWidth * this.cellSize / 2) / this.cellSize);
const gridY = Math.floor((localY + this.gridHeight * this.cellSize / 2) / this.cellSize);
return { x: gridX, y: gridY };
}
// 绘制带颜色的格子（用于标记障碍、起点、终点等）
public drawColoredCell(gridX: number, gridY: number, color: Color) {
if (!this.graphics) return;
const posX = (gridX - this.gridWidth/2) * this.cellSize;
const posY = (gridY - this.gridHeight/2) * this.cellSize;
this.graphics.fillColor = color;
this.graphics.rect(posX, posY, this.cellSize, this.cellSize);
this.graphics.fill();
}
}
