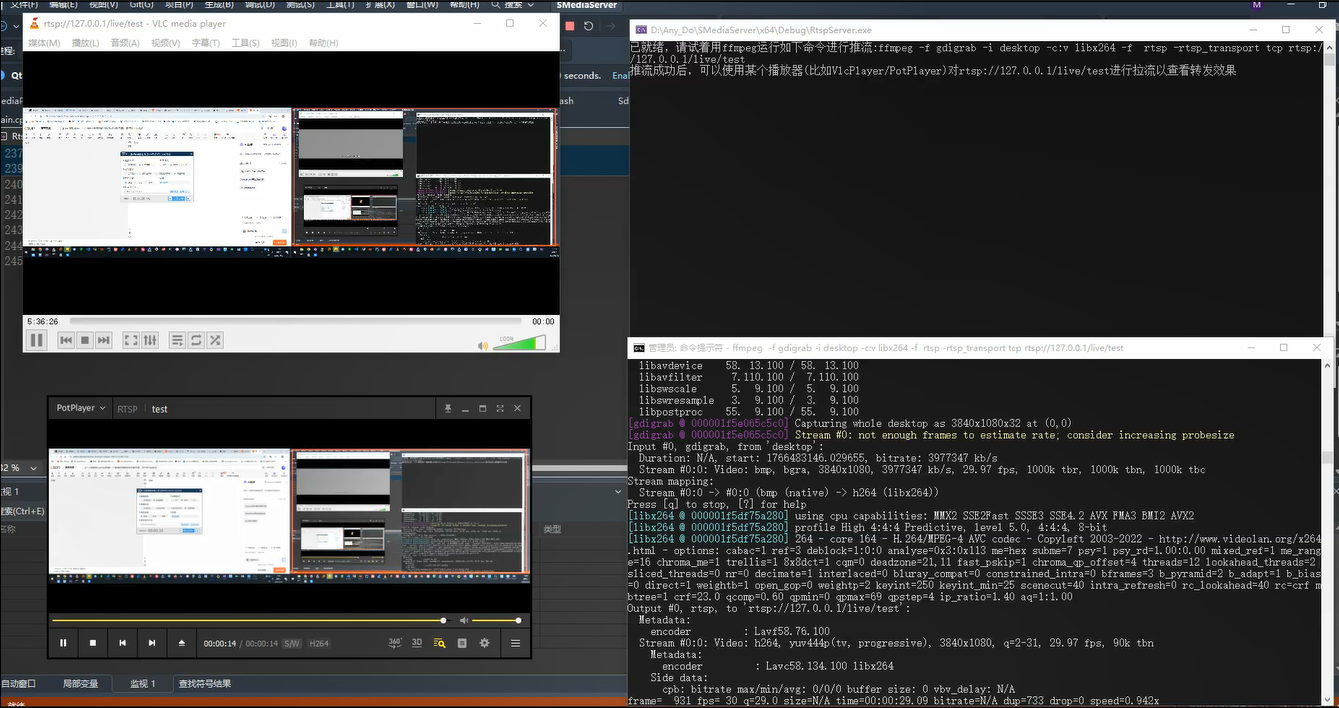

使用效果举例:
运行程序代码后，打开cmd，执行以下代码进行桌面推流:
ffmpeg -f gdigrab -i desktop -c:v libx264 -f rtsp -rtsp_transport tcp rtsp://127.0.0.1/live/test
这会将流推送给流媒体，创建了一条流媒体的转发流rtsp://127.0.0.1/live/test。
随后使用potplayer或者vlcplayer拉取rtsp://127.0.0.1/live/test这条流，即可成功播放转发流。
注意，这个流媒体是简单的rtsp流媒体转发程序，不做rtp和rtcp包的分析和重构处理，仅原封不动地将发送至流媒体的rtsp流转发出去。
开篇:
作为流媒体，他的并发能力很重要，因此从搭建之初我就引入了wepoll库（很小，就两个文件），以其为核心做开发。
最初项目结构为
cpp
main.cpp 主程序
wepoll.h 三方库
wepoll.c 三方库随后开始扩展
过程:
过程1:对wepoll进行封装，做套接字的并发处理，从而产生一个新类EventPoller。
过程2:建立RtspServer类，接入EventPoller的并发循环，开始accpet客户端。
过程3:得到推流到RtspServer的客户端连接，将其命名为RtspSession类使用。
过程4:新建SdpParser类来解析推流的SDP交互报文，确定流的通道参数，给RtspSession分析流通道的数据。
过程5:得到向RtspServer申请拉流的客户端连接，同样是RtspSession类实例。
过程6:新建MediaPusherManager类，用于追踪管理和区分推/拉流的RtspSession。
总项目结构完成，5个类完成一个简单的流媒体转发服务器。
cpp
main.cpp
wepoll.h
wepoll.c
EventPoller.h
EventPoller.cpp
RtspServer.h
RtspServer.cpp
RtspSession.h
RtspSession.cpp
SdpParser.h
SdpParser.cpp
MediaPusherManager.h
MediaPusherManager.cpp代码:
具体的代码这里暂不展开讲解，已上传至git可供下载，支持直接编译运行
git项目:https://github.com/MingTianDay9/RtspServer
如果无法登录git进行克隆，那么下面是可以直接复制学习的代码文件
(没有wepoll，这拥有两个文件的库需自行搜索，git是https://github.com/piscisaureus/wepoll)
1.main.cpp
cpp
#define _WINSOCK_DEPRECATED_NO_WARNINGS
#include <winsock2.h>
#include <ws2tcpip.h>
#include <iphlpapi.h>
#pragma comment (lib, "Ws2_32.lib")
#pragma comment(lib,"Iphlpapi.lib")
#include <string>
#include <map>
#include <vector>
#include <iostream>
#include "EventPoller.h"
#include "RtspServer.h"
int main()
{
bool isRet;
//检查网络WSA是否可用，不可用则退出
WORD wVersionRequested = MAKEWORD(2, 2);
WSADATA wsaData;
isRet = (0 == WSAStartup(wVersionRequested, &wsaData));
if(false == isRet)
return 1;
EventPoller eventPoller;
auto rtspServer = std::make_shared<RtspServer>(&eventPoller);
if (rtspServer->Start("127.0.0.1", 554)) {
std::cout << "已就绪，请试着用ffmpeg运行如下命令进行推流:ffmpeg -f gdigrab -i desktop -c:v libx264 -f rtsp -rtsp_transport tcp rtsp://127.0.0.1/live/test\n";
std::cout << "推流成功后，可以使用某个播放器(比如VlcPlayer/PotPlayer)对rtsp://127.0.0.1/live/test进行拉流以查看转发效果\n";
eventPoller.Exec();
rtspServer->Stop();
}
rtspServer.reset();
WSACleanup();
return 0;
}2.EventPoller.h
cpp
#pragma once
#include <string>
#include <functional>
#include <mutex>
typedef void* HANDLE;
/// <summary>
/// epoll处理线程:这是对epoll三方库的进一步封装，它为网络套接字服务，负责单线程内处理千万级以上的套接字连接
/// 每个类实例都封装了一条线程用于接收并处理套接字的相关业务
/// </summary>
class EventPoller {
public:
using PollEventCB = std::function<void(int event)>; //套接字的监听回调
//提供给wepoll的监听事件类型
typedef enum {
Event_Read = 1 << 0, // 读事件，对标wepoll.h的EPOLLIN
Event_Write = 1 << 2, // 写事件，对标wepoll.h的EPOLLOUT
Event_Error = 1 << 3, // 错误事件，对标wepoll.h的EPOLLERR
} Poll_Event;
/// <summary>
/// 构造
/// </summary>
EventPoller();
~EventPoller();
/// <summary>
/// 添加事件监听
/// </summary>
/// <param name="fd">监听的套接字</param>
/// <param name="event">事件类型，例如 Event_Read | Event_Write</param>
/// <param name="cb">事件回调functional</param>
/// <returns>是否成功</returns>
bool AddEvent(int fd, int event, PollEventCB cb);
/// <summary>
/// 删除事件监听
/// </summary>
/// <param name="fd">监听的套接字</param>
/// <returns>是否成功</returns>
bool DelEvent(int fd);
/// <summary>
/// 执行事件轮询死循环
/// </summary>
void Exec();
/// <summary>
/// 获取当前线程下所有socket共享的读缓存
/// </summary>
/// <returns></returns>
std::vector<char>& GetSharedBuffer();
private:
bool m_isRun = false; //处理线程是否正在执行
HANDLE m_hEpoll = NULL; //本例中管控socket的epoll的fd
std::unordered_map<int, std::shared_ptr<PollEventCB>> m_mapEventCB; //监听的套接字和他的处理回调 <套接字，处理回调>
std::vector<char> m_vecSharedBuffer; //当前线程下所有socket共享的读缓存
};3.EventPoller.cpp
cpp
#include "EventPoller.h"
#include "wepoll.h"
#include "Windows.h"
//可管理的最大套接字数量，对标select的最大管理数量，但其实这个值并没有用，传进epoll_create里会被忽略
#define EPOLL_SIZE 1024
EventPoller::EventPoller()
{
m_vecSharedBuffer.resize(32 * 4 * 1024);//128k共享缓存
//给本例创建对应的epoll
m_hEpoll = epoll_create(EPOLL_SIZE);
}
EventPoller::~EventPoller()
{
}
bool EventPoller::AddEvent(int fd, int event, PollEventCB cb)
{
//如果是当前线程进行的事件添加则直接放进map里
struct epoll_event ev = { 0 };
ev.events = event;
ev.data.fd = fd;
const int iRet = epoll_ctl(m_hEpoll, EPOLL_CTL_ADD, fd, &ev);
if (-1 == iRet) {
return false;
}
//记录要监听的套接字和其对应的处理回调
m_mapEventCB.emplace(fd, std::make_shared<PollEventCB>(std::move(cb)));
return true;
}
bool EventPoller::DelEvent(int fd) {
int iRet = -1;
//仅删除监听中的fd，如果没删除成功则意味着对应的fd在逻辑上已不受监听而无需DEL。
//如果后续发现在监听回调里出现了不在监听中的fd，则在监听回调里再进行DEL，同时忽略那次的监听执行。
if (m_mapEventCB.erase(fd)) {
iRet = epoll_ctl(m_hEpoll, EPOLL_CTL_DEL, fd, nullptr);
}
return -1 != iRet;
}
void EventPoller::Exec()
{
m_isRun = true;
int iMinDelay = 5000;//等待事件的超时毫秒数
struct epoll_event *events = new struct epoll_event[EPOLL_SIZE];
while (m_isRun) {
int ret = epoll_wait(m_hEpoll, events, EPOLL_SIZE, iMinDelay);
if (ret <= 0)
continue;
for (int i = 0; i < ret; ++i) {
struct epoll_event& ev = events[i];
int fd = ev.data.fd;
//找找要被监听的事件map里有没有这个fd，没有就移除掉这个残留的监听
auto it = m_mapEventCB.find(fd);
if (it == m_mapEventCB.end()) {
epoll_ctl(m_hEpoll, EPOLL_CTL_DEL, fd, nullptr);
continue;
}
(*(it->second))(ev.events);
}
}
delete[] events;
}
std::vector<char>& EventPoller::GetSharedBuffer()
{
return m_vecSharedBuffer;
}4.RtspServer.h
cpp
#pragma once
#include <memory>
#include <mutex>
#include <unordered_map>
class EventPoller;
class RtspSession;
class RtspServer : public std::enable_shared_from_this<RtspServer> {
public:
explicit RtspServer(EventPoller* pEventPoller);
/// <summary>
/// 启动服务器
/// </summary>
/// <param name="szHost">主机</param>
/// <param name="uPort">端口</param>
/// <returns></returns>
bool Start(const std::string& szHost, uint16_t uPort);
//停止服务器运行
void Stop();
//关闭指定的session连接
void CloseSession(int fd);
private:
EventPoller* m_pEventPoller = nullptr; //监听事件的实例
std::string m_szHost; //服务器监听ip
uint16_t m_uPort = 0; //服务器端口
int m_fd = -1; //服务器套接字
std::unordered_map<int, std::shared_ptr<RtspSession>> m_mapSession; //保存所有的连接session
std::mutex m_mtxSession; //保护session容器的互斥量
};5.RtspServer.cpp
cpp
#pragma once
#include "RtspServer.h"
#define _WINSOCK_DEPRECATED_NO_WARNINGS
#include <winsock2.h>
#include <ws2tcpip.h>
#include <iphlpapi.h>
#pragma comment (lib, "Ws2_32.lib")
#pragma comment(lib,"Iphlpapi.lib")
#include <string>
#include <map>
#include <vector>
#include <thread>
#include "EventPoller.h"
#include "RtspSession.h"
using namespace std;
RtspServer::RtspServer(EventPoller* pEventPoller)
{
m_pEventPoller = pEventPoller;
}
bool RtspServer::Start(const std::string& szHost, uint16_t uPort)
{
m_szHost = szHost;
m_uPort = uPort;
m_fd = (int)socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
int opt = 1;
//设置套接字属性，此处处理服务器快速重启后的以前使用的套接字还在TIME_WAIT的问题，配置后可以直接接着使用
setsockopt(m_fd, SOL_SOCKET, SO_REUSEADDR, (char*)&opt, static_cast<socklen_t>(sizeof(opt)));
unsigned long ul = 1; //设置为非阻塞模式
ioctlsocket(m_fd, FIONBIO, &ul);
struct sockaddr_in addr;
ZeroMemory(&addr, sizeof(addr));
addr.sin_family = AF_INET;
addr.sin_port = htons(uPort);
addr.sin_addr.s_addr = INADDR_ANY;
if (::bind(m_fd, (struct sockaddr*)&addr, sizeof(addr)) == -1) {
DebugBreak();
}
if (::listen(m_fd, 1024) == -1) {
DebugBreak();
}
//weak_self的存在是为了防止发生回调时，本类的实例已经析构的情况
//这是因为m_pEventPoller->DelEvent只是停止监听新事件，但队列里的事件仍然有可能在实例析构后仍触发该回调
//此时必须忽略该回调，否则会访问野指针
std::weak_ptr<RtspServer> weak_self = shared_from_this();
//这个事件处理主要用于accpet新的套接字
bool isRet = m_pEventPoller->AddEvent(m_fd, EventPoller::Event_Read | EventPoller::Event_Error, [weak_self](int event) {
auto strong_self = weak_self.lock();
if (nullptr == strong_self)
return;
const int fdServer = strong_self->m_fd;
int fd;
struct sockaddr_storage peer_addr;
socklen_t addr_len = sizeof(peer_addr);
//这个while主要是用来尝试一次获取多个accpet新连接
while (true) {
if (event & EventPoller::Event_Read) {
fd = (int)accept(fdServer, (struct sockaddr*)&peer_addr, &addr_len);
if (fd == -1) {// accept失败
int iRet = WSAGetLastError();
if (iRet == WSAEWOULDBLOCK) {
//没有新的连接accept进来了
return;
}
DebugBreak();
return;
}
auto session = std::make_shared<RtspSession>(strong_self, strong_self->m_pEventPoller, fd);
if (session->StartSession()) {
strong_self->m_mtxSession.lock();
strong_self->m_mapSession[fd] = session;
strong_self->m_mtxSession.unlock();
}
}
if (event & EventPoller::Event_Error) {
return;
}
}
});
//没附加事件处理成功就直接停止服务器运行
if (false == isRet)
Stop();
return isRet;
}
void RtspServer::Stop()
{
if (-1 != m_fd) {
m_pEventPoller->DelEvent(m_fd);
closesocket(m_fd);
m_fd = -1;
}
}
void RtspServer::CloseSession(int fd)
{
thread task([this,fd]() {
m_mtxSession.lock();
m_mapSession.erase(fd);
m_mtxSession.unlock();
});
task.detach();
}6.RtspSession.h
cpp
#pragma once
#include <vector>
#include <string>
#include <unordered_map>
#include <memory>
#include "SdpParser.h"
#pragma once
class EventPoller;
class RtspServer;
/// <summary>
/// 对于发往RtspServer的每一个连接，都会对应一个RtspSession实例，用于保存该连接的状态信息
/// </summary>
class RtspSession : public std::enable_shared_from_this<RtspSession> {
public:
RtspSession(std::weak_ptr<RtspServer> pServer, EventPoller* pEventPoller, int fd);
virtual ~RtspSession();
//附加事件监听从而启动该session的处理
bool StartSession();
//向服务器通知关闭该session
void CloseSession();
//发送数据给该session对应的fd
bool SendData(const char* buffer, size_t uSize);
protected:
//处理给定的套接字的读取请求，尽可能地获取数据后交给onRecv进一步处理
size_t onRead(std::vector<char>& buffer);
//接收并处理fd对应的数据
void onRecv(char* buffer, size_t uSize);
private:
//解析请求头
bool parseHeader();
//处理一次完整的请求
void handleReq();
//处理rtp包
void handleRtpPacket();
private:
// 处理options方法,获取服务器能力
void handleReq_Options(const std::unordered_map<std::string, std::string>& parser);
// 处理describe方法，请求服务器rtsp sdp信息
void handleReq_Describe(const std::unordered_map<std::string, std::string>& parser);
// 处理ANNOUNCE方法，请求推流，附带sdp
void handleReq_ANNOUNCE(const std::unordered_map<std::string, std::string>& parser);
// 处理record方法，开始推流
void handleReq_RECORD(const std::unordered_map<std::string, std::string>& parser);
// 处理setup方法，播放和推流协商rtp传输方式用
void handleReq_SETUP(const std::unordered_map<std::string, std::string>& parser);
// 处理play方法，开始或恢复播放
void handleReq_PLAY(const std::unordered_map<std::string, std::string>& parser);
// 处理teardown方法，结束播放
void handleReq_TEARDOWN(const std::unordered_map<std::string, std::string>& parser);
// 处理SET_PARAMETER、GET_PARAMETER方法，一般用于心跳保活
void handleReq_SET_PARAMETER(const std::unordered_map<std::string, std::string>& parser);
// 回复客户端
bool sendRtspResponse(const std::string& res_code, std::multimap<std::string, std::string> header = {}, const std::string& sdp = "", const char* protocol = "RTSP/1.0");
// 获取track下标
size_t getTrackIndexByControlUrl(const std::string& control_url);
private:
std::weak_ptr<RtspServer> m_pServer; //session所属的服务器
EventPoller* m_pEventPoller = nullptr; //监听事件的实例
int m_fd = -1; //连接所对应的套接字
std::vector<char> m_vecRecv; //接收缓冲
std::vector<char> m_vecHeader; //接收结果:请求头
std::vector<char> m_vecContent; //接收结果:请求内容
bool m_isHeader = true; //当前是否仍在接收请求头
int m_iContentLength = 0; //附带的内容长度
size_t m_uRtpPacketLength = 0; //正在接收的rtp包长度
std::unordered_map<std::string, std::string> m_mapHeader; //请求头的map
// 收到的seq，回复时一致
int m_iCseq = 0;
// Session号
std::string m_szSessionId;
// 解析sdp的实例
SdpParser* m_pSdpParser = nullptr;
// sdp里面有效的track,包含音频或视频(每样最多一个)
std::vector<SdpTrack*> m_vecSdpTrack;
//完整链接（含后面参数）
std::string m_szFullUrl;
//该链接是否是推流方
bool m_isPusher = false;
Rtsp::ERtpType m_eRtpType = Rtsp::ERtpType::INVALID;
//////////////////拉流时的session使用变量
RtspSession* m_pPusherRtspSession = nullptr; //在拉取谁的推流
};7.RtspSession.cpp
cpp
#include "RtspSession.h"
#define _WINSOCK_DEPRECATED_NO_WARNINGS
#include <winsock2.h>
#include <ws2tcpip.h>
#pragma comment (lib, "Ws2_32.lib")
#include <string>
#include <map>
#include <vector>
#include <random>
#include <iomanip>
#include <unordered_map>
#include <sstream>
#include "EventPoller.h"
#include "MediaPusherManager.h"
#include "RtspServer.h"
using namespace std;
std::string makeRandStr(size_t uLen)
{
static constexpr char CCH[] = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ";
static constexpr size_t CCH_LEN = sizeof(CCH) - 1; // 预计算长度，避免重复计算
string ret;
ret.resize(uLen);
thread_local std::mt19937 rng(std::random_device{}());
for (size_t i = 0; i < uLen; ++i) {
ret[i] = CCH[rng() % (sizeof(CCH) - 1)];
}
return ret;
}
//获取当前时间的字符串
static string dateStr() {
char buf[64];
time_t tt = time(NULL);
tm t;
gmtime_s(&t, &tt);
strftime(buf, sizeof buf, "%a, %b %d %Y %H:%M:%S GMT", &t);
return buf;
}
RtspSession::RtspSession(std::weak_ptr<RtspServer> pServer, EventPoller* pEventPoller, int fd)
:m_pServer(pServer)
, m_pEventPoller(pEventPoller)
, m_fd(fd)
{
unsigned long ul = 1; //设置为非阻塞模式
ioctlsocket(fd, FIONBIO, &ul);
int opt = 1;
setsockopt(fd, IPPROTO_TCP, TCP_NODELAY, (char*)&opt, static_cast<socklen_t>(sizeof(opt)));
int size = 262144;
setsockopt(fd, SOL_SOCKET, SO_SNDBUF, (char*)&size, sizeof(size));
setsockopt(fd, SOL_SOCKET, SO_RCVBUF, (char*)&size, sizeof(size));
linger m_sLinger;
//在调用closesocket()时还有数据未发送完，允许等待
// 若m_sLinger.l_onoff=0;则调用closesocket()后强制关闭
m_sLinger.l_onoff = false;
m_sLinger.l_linger = 0; //设置等待时间为x秒
setsockopt(fd, SOL_SOCKET, SO_LINGER, (char*)&m_sLinger, sizeof(linger));
}
RtspSession::~RtspSession()
{
if (m_isPusher)MediaPusherManager::Instance().DelPusher(m_szFullUrl);
else MediaPusherManager::Instance().DelRecvier(m_szFullUrl, this);
}
bool RtspSession::StartSession()
{
//给客户端套接字接入监听
std::weak_ptr<RtspSession> weak_self = shared_from_this();
bool isRet = m_pEventPoller->AddEvent(m_fd, EventPoller::Event_Read | EventPoller::Event_Error
, [weak_self](int event) {
auto strong_self = weak_self.lock();
if (!strong_self) {
//来到这里，意味着客户端本身已经析构，这次回调只是队列残留，忽略即可
return;
}
if (event & EventPoller::Event_Read) {
strong_self->onRead(strong_self->m_pEventPoller->GetSharedBuffer());
}
if (event & EventPoller::Event_Error) {
strong_self->CloseSession();
}
});
return isRet;
}
void RtspSession::CloseSession()
{
m_pEventPoller->DelEvent(m_fd);
auto pServer = m_pServer.lock();
if (nullptr == pServer)
return;
//通知服务器把自己关了
pServer->CloseSession(m_fd);
}
bool RtspSession::SendData(const char* buffer, size_t uSize)
{
const int iSendRet = ::send(m_fd, buffer, uSize, 0);
return iSendRet > 0;
}
size_t RtspSession::onRead(std::vector<char>& buffer)
{
size_t uReadSizeAll = 0, uReadSize = 0, count = 0;
while (true) {
uReadSize = (size_t)recv(m_fd, buffer.data(), buffer.size() - 1, 0);
if (uReadSize == 0) {
//来到这里意味着套接字已被对方关闭，正常关闭回收就行
CloseSession();
return uReadSizeAll;
}
if (uReadSize == -1) {
int iRetWSA = WSAGetLastError();
if (iRetWSA != WSAEWOULDBLOCK) {
CloseSession();
}
return uReadSizeAll;
}
buffer[uReadSize] = '\0';
uReadSizeAll += uReadSize;
//交给子类实现具体处理这些数据
onRecv(buffer.data(), uReadSize);
}
}
void RtspSession::onRecv(char* buffer, size_t uSize)
{
size_t uIndex = 0;
//进入后续处理前，至少有4个缓存字节用于判断
if (m_vecRecv.size() < 4) {
size_t uLen = min(4 - m_vecRecv.size(), uSize);
m_vecRecv.insert(m_vecRecv.end(), buffer, buffer + uLen);
if (m_vecRecv.size() < 4)
return;//给定的数据不足，则记录已有的后就直接返回
uSize -= uLen;
buffer += uLen;
}
//检查是否是要处理rtp包
if (m_vecRecv[0] == '$') {
char* data = m_vecRecv.data();
size_t uDataLen = m_vecRecv.size();
//确定rtp包的接收大小
if (0 == m_uRtpPacketLength) {
m_uRtpPacketLength = ((((uint8_t*)data)[2] << 8) | ((uint8_t*)data)[3]) + 4;
}
size_t uLen = min(m_uRtpPacketLength - uDataLen, uSize);
m_vecRecv.insert(m_vecRecv.end(), buffer, buffer + uLen);
uSize -= uLen;
buffer += uLen;
//是否已经足够一个rtp包可以开始处理了
if (m_vecRecv.size() == m_uRtpPacketLength) {
handleRtpPacket();
if (uSize > 0)//把剩下的数据也处理掉
onRecv(buffer, uSize);
}
return;
}
//处理请求，而非rtp包
if (m_isHeader) {
while (uIndex < uSize) {
m_vecRecv.push_back(buffer[uIndex]);
if (buffer[uIndex] == '\n') {
//检查是否以rnrn结尾
const size_t vec_size = m_vecRecv.size();
if (m_vecRecv[vec_size - 1] == '\n'
&& m_vecRecv[vec_size - 2] == '\r'
&& m_vecRecv[vec_size - 3] == '\n'
&& m_vecRecv[vec_size - 4] == '\r') {
m_vecRecv.push_back('\0');
m_vecHeader.swap(m_vecRecv);
m_vecRecv.clear();
++uIndex;
//解析请求头
if (parseHeader()) {
//如果有附带内容，则继续解析
if (m_iContentLength > 0) {
m_isHeader = false;
}
else {//否则直接使用该请求头进行请求处理
handleReq();
}
}
else {
m_vecHeader.clear();
}
break;//请求头获取结束
}
}
++uIndex;
}
}
if (false == m_isHeader) {
while (uIndex < uSize) {
m_vecRecv.push_back(buffer[uIndex]);
//如果已经接收到了足够的内容
if (m_vecRecv.size() == m_iContentLength) {
m_vecRecv.push_back('\0');
m_vecContent.swap(m_vecRecv);
m_vecRecv.clear();
m_mapHeader["reqContent"] = m_vecContent.data();
m_isHeader = true;
++uIndex;
handleReq();
break;//请求体获取结束
}
++uIndex;
}
}
//如果发现还有数据则进行递归处理
if (uSize - uIndex != 0)
onRecv(buffer + uIndex, uSize - uIndex);
}
bool RtspSession::parseHeader()
{
/*
OPTIONS rtsp://192.168.114.114:554/live/test RTSP/1.0
CSeq: 1
User-Agent: Lavf58.76.100
*/
m_mapHeader.clear();
std::istringstream stream(m_vecHeader.data());
stream >> m_mapHeader["reqMethod"];
stream >> m_mapHeader["reqUrl"];
stream >> m_mapHeader["reqProtocol"];
std::string szUrl = m_mapHeader.at("reqUrl");
size_t uSplitIndex = szUrl.find('?');
if (std::string::npos != uSplitIndex) {
m_mapHeader["reqUrl_Short"] = szUrl.substr(0, uSplitIndex);
m_mapHeader["reqUrl_Args"] = szUrl.substr(uSplitIndex + 1);
}
else {
m_mapHeader["reqUrl_Short"] = szUrl;
}
#define RM_R(STR) STR = STR.substr(0, STR.size() - 1)
std::string line;
while (std::getline(stream, line)) {
size_t pos = line.find(':');
if (pos != std::string::npos) {
std::string key = line.substr(0, pos);
std::string value = line.substr(pos + 1);
// 去掉首尾空格
key.erase(0, key.find_first_not_of(" \t"));
key.erase(key.find_last_not_of(" \t") + 1);
value.erase(0, value.find_first_not_of(" \t"));
value.erase(value.find_last_not_of(" \t") + 1);
RM_R(value);
m_mapHeader[key] = value;
}
}
#undef RM_R
if (0 == m_mapHeader.size()) {
return false;
}
m_iContentLength = atoi(m_mapHeader["Content-Length"].c_str());
return true;
}
void RtspSession::handleReq()
{
auto method = m_mapHeader["reqMethod"];
m_iCseq = atoi(m_mapHeader["CSeq"].data());
if (m_szFullUrl.empty()) {
m_szFullUrl = m_mapHeader.at("reqUrl");
}
using rtsp_request_handler = void (RtspSession::*)(const std::unordered_map<std::string, std::string>& parser);
static unordered_map<string, rtsp_request_handler> s_cmd_functions{
{"OPTIONS", &RtspSession::handleReq_Options},//拉流推流都会用到
{"DESCRIBE", &RtspSession::handleReq_Describe},//拉流会用到
{"ANNOUNCE", &RtspSession::handleReq_ANNOUNCE},//推流会用到
{"RECORD", &RtspSession::handleReq_RECORD},//推流会用到
{"SETUP", &RtspSession::handleReq_SETUP},//拉流推流都会用到
{"PLAY", &RtspSession::handleReq_PLAY},
{"TEARDOWN", &RtspSession::handleReq_TEARDOWN},//拉流推流都会用到
{"GET_PARAMETER", &RtspSession::handleReq_SET_PARAMETER},//保活
};
auto it = s_cmd_functions.find(method);
if (it == s_cmd_functions.end()) {
sendRtspResponse("403 Forbidden");
}
else {
(this->*(it->second))(m_mapHeader);
}
m_vecHeader.clear();
m_vecContent.clear();
m_iContentLength = 0;
}
void RtspSession::handleRtpPacket()
{
////("{}字节rtp包到达", m_vecRecv.size());
char* data = m_vecRecv.data();
size_t uDataLen = m_vecRecv.size();
//直接转发
MediaPusherManager::Instance().SendDataToRecvier(m_szFullUrl, data, uDataLen);
m_vecRecv.clear();
m_uRtpPacketLength = 0;
}
void RtspSession::handleReq_Options(const std::unordered_map<std::string, std::string>& parser) {
/*
21444][2025-12-12 10:38:06.986][13696][RtspSession.cpp:21, onRecv][I] OPTIONS rtsp://192.168.114.114:554/live/test RTSP/1.0
CSeq: 1
User-Agent: Lavf58.76.100
*/
//支持这些命令
std::multimap<std::string, std::string> header;
header.emplace("Public", "OPTIONS, DESCRIBE, SETUP, TEARDOWN, PLAY, PAUSE, ANNOUNCE, RECORD, SET_PARAMETER, GET_PARAMETER");
sendRtspResponse("200 OK", header);
}
void RtspSession::handleReq_Describe(const std::unordered_map<std::string, std::string>& parser) {
m_pPusherRtspSession = dynamic_cast<RtspSession*>(MediaPusherManager::Instance().AddRecvier(m_szFullUrl, this));
if (nullptr == m_pPusherRtspSession) {
static constexpr auto err = "该流在服务器上不存在";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("406 Not Acceptable", header, err);
//("{}:{}", err, m_szFullUrl);
return;
}
m_isPusher = false;
//("观看流拉流成功:{}", m_szFullUrl);
//找到了相应的rtsp流
m_pSdpParser = new SdpParser(m_pPusherRtspSession->m_pSdpParser->GetSdp());
m_vecSdpTrack = m_pSdpParser->GetAvailableTrack();
if (m_vecSdpTrack.empty()) {
//该流无效
static constexpr auto err = "sdp中无有效track，该流无效";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("406 Not Acceptable", header, err);
//("{}:{}", err, m_szFullUrl);
return;
}
m_szSessionId = makeRandStr(12);
std::multimap<std::string, std::string> header;
header.emplace("Content-Base", m_szFullUrl + "/");
header.emplace("x-Accept-Retransmit", "our-retransmit");
header.emplace("x-Accept-Dynamic-Rate", "1");
sendRtspResponse("200 OK", header, m_pSdpParser->GetSdp());
}
void RtspSession::handleReq_ANNOUNCE(const std::unordered_map<std::string, std::string>& parser)
{
/*
[21444][2025-12-12 10:38:10.129][13696][RtspSession.cpp:21, onRecv][I] ANNOUNCE rtsp://192.168.114.114:554/live/test RTSP/1.0
Content-Type: application/sdp
CSeq: 2
User-Agent: Lavf58.76.100
Content-Length: 296
v=0
o=- 0 0 IN IP4 127.0.0.1
s=No Name
c=IN IP4 192.168.114.114
t=0 0
a=tool:libavformat 58.76.100
m=video 0 RTP/AVP 96
a=rtpmap:96 H264/90000
a=fmtp:96 packetization-mode=1; sprop-parameter-sets=Z/QAMpGbKAeAET8TCAAAH0gAB1MAeMGMsA==,aOvjxEhE; profile-level-id=F40032
a=control:streamid=0
*/
m_szFullUrl = parser.at("reqUrl");
if (false == MediaPusherManager::Instance().AddPusher(m_szFullUrl, this)) {
static constexpr auto err = "该流在服务器上已存在";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("406 Not Acceptable", header, err);
//("{}:{}", err, m_szFullUrl);
return;
}
m_isPusher = true;
//("流添加成功:{}", m_szFullUrl);
m_pSdpParser = new SdpParser(parser.at("reqContent"));
m_szSessionId = makeRandStr(12);
m_vecSdpTrack = m_pSdpParser->GetAvailableTrack();
if (m_vecSdpTrack.empty()) {
static constexpr auto err = "sdp中无有效track";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("403 Forbidden", header, err);
//("{}:{}", err, m_szFullUrl);
return;
}
sendRtspResponse("200 OK");
}
void RtspSession::handleReq_RECORD(const std::unordered_map<std::string, std::string>& parser)
{
if (m_vecSdpTrack.empty() || parser.at("Session") != m_szSessionId) {
std::multimap<std::string, std::string> header;
header.emplace("Connection", "Close");
sendRtspResponse("454 Session Not Found", header);
//("{}:{}", "454 Session Not Found", m_szFullUrl);
return;
}
stringstream rtp_info;
for (auto& track : m_vecSdpTrack) {
if (track->isInited == false) {
//还有track没有setup
static constexpr auto err = "track not setuped";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("403 Forbidden", header, err);
//("{}:{}", err, m_szFullUrl);
return;
}
rtp_info << "url=" << track->GetControlUrl(m_szFullUrl) << ",";
}
auto rtpStr = rtp_info.str();
rtpStr.pop_back();
std::multimap<std::string, std::string> header;
header.emplace("RTP-Info", rtpStr);
sendRtspResponse("200 OK", header);
}
void RtspSession::handleReq_SETUP(const std::unordered_map<std::string, std::string>& parser)
{
/*
SETUP rtsp://192.168.114.114:554/live/test/streamid=0 RTSP/1.0
Transport: RTP/AVP/TCP;unicast;interleaved=0-1;mode=record
CSeq: 3
User-Agent: Lavf58.76.100
Session: uMPQjlcMcI7J
*/
//处理setup命令，该函数可能进入多次m_szFullUrl
int trackIdx = getTrackIndexByControlUrl(parser.at("reqUrl"));
SdpTrack* trackRef = m_vecSdpTrack[trackIdx];
if (trackRef->isInited) {
//已经初始化过该Track
static constexpr auto err = "不允许对同一个track进行两次setup";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("403 Forbidden", header, err);
//("{}:{}", err, m_mediaTuple.ShortUrl());
return;
}
static auto getRtpTypeStr = [](const Rtsp::ERtpType type) {
switch (type)
{
case Rtsp::ERtpType::TCP:
return "TCP";
case Rtsp::ERtpType::UDP:
return "UDP";
case Rtsp::ERtpType::MULTICAST:
return "MULTICAST";
default:
return "Invalid";
}
};
if (m_eRtpType == Rtsp::ERtpType::INVALID) {
auto& strTransport = parser.at("Transport");
auto rtpType = Rtsp::ERtpType::INVALID;
if (strTransport.find("TCP") != string::npos) {
rtpType = Rtsp::ERtpType::TCP;
}
else if (strTransport.find("multicast") != string::npos) {
//rtpType = Rtsp::ERtpType::MULTICAST;
}
else {
//rtpType = Rtsp::ERtpType::UDP;
}
if (Rtsp::ERtpType::INVALID == rtpType) {
sendRtspResponse("461 Unsupported transport");
return;
}
m_eRtpType = rtpType;
}
trackRef->isInited = true; //现在初始化
{
// rtsp推流时，interleaved由推流者决定
auto key_values = SdpParser::ParseArgs(parser.at("Transport"), ";", "=");
int interleaved_rtp = -1, interleaved_rtcp = -1;
if (2 == sscanf_s(key_values["interleaved"].data(), "%d-%d", &interleaved_rtp, &interleaved_rtcp)) {
trackRef->uInterleaved = interleaved_rtp;
}
else {
static constexpr auto err = "can not find interleaved when setup of rtp over tcp";
std::multimap<std::string, std::string> header;
header.emplace("Content-Type", "text/plain");
sendRtspResponse("403 Forbidden", header, err);
//("{}:{}", err, m_mediaTuple.ShortUrl());
return;
}
stringstream sdpResponse;
sdpResponse << "RTP/AVP/TCP;unicast;"
<< "interleaved=" << (int)trackRef->uInterleaved << "-"
<< (int)trackRef->uInterleaved + 1 << ";"
<< "ssrc=00000000";
std::multimap<std::string, std::string> header;
header.emplace("Transport", sdpResponse.str());
header.emplace("x-Transport-Options", "late-tolerance=1.400000");
header.emplace("x-Dynamic-Rate", "1");
sendRtspResponse("200 OK", header);
}
}
void RtspSession::handleReq_PLAY(const std::unordered_map<std::string, std::string>& parser) {
if (m_vecSdpTrack.empty() || parser.at("Session") != m_szSessionId) {
std::multimap<std::string, std::string> header;
header.emplace("Connection", "Close");
sendRtspResponse("454 Session Not Found", header);
//("{}:{}", "454 Session Not Found", m_szFullUrl);
return;
}
std::multimap<std::string, std::string> res_header;
vector<ETrackType> inited_tracks;
stringstream rtp_info;
for (auto& track : m_vecSdpTrack) {
if (track->isInited == false) {
//为支持播放器播放单一track, 不校验没有发setup的track
continue;
}
inited_tracks.emplace_back(track->type);
rtp_info << "url=" << track->GetControlUrl(m_szFullUrl) << ";"
<< "seq=0;"
<< "rtptime=0" << ",";
}
auto rtpStr = rtp_info.str();
rtpStr.pop_back();
res_header.emplace("RTP-Info", rtpStr);
//已存在Range时不覆盖
stringstream szPlayRange;
szPlayRange << "npt=" << setiosflags(ios::fixed) << setprecision(2) << 0;
res_header.emplace("Range", szPlayRange.str());
sendRtspResponse("200 OK", res_header);
}
void RtspSession::handleReq_TEARDOWN(const std::unordered_map<std::string, std::string>& parser)
{
sendRtspResponse("200 OK");
CloseSession();
}
void RtspSession::handleReq_SET_PARAMETER(const std::unordered_map<std::string, std::string>& parser)
{
sendRtspResponse("200 OK");
}
bool RtspSession::sendRtspResponse(const std::string& res_code, std::multimap<std::string, std::string> header, const std::string& sdp, const char* protocol)
{
header.emplace("CSeq", to_string(m_iCseq));
if (!m_szSessionId.empty()) {
header.emplace("Session", m_szSessionId);
}
header.emplace("Server", "服务器名字");
header.emplace("Date", dateStr());
if (!sdp.empty()) {
header.emplace("Content-Length", to_string(sdp.size()));
header.emplace("Content-Type", "application/sdp");
}
stringstream printer;
printer << protocol << " " << res_code << "\r\n";
for (auto& pr : header) {
printer << pr.first << ": " << pr.second << "\r\n";
}
printer << "\r\n";
if (!sdp.empty()) {
printer << sdp;
}
const int iSendRet = ::send(m_fd, printer.str().data(), printer.str().size(), 0);
return iSendRet > 0;
}
size_t RtspSession::getTrackIndexByControlUrl(const std::string& control_url)
{
for (size_t i = 0; i < m_vecSdpTrack.size(); ++i) {
if (control_url.find(m_vecSdpTrack[i]->GetControlUrl(m_szFullUrl)) == 0) {
return i;
}
}
if (m_vecSdpTrack.size() == 1) {
return 0;
}
DebugBreak();
}8.SdpParser.h
cpp
#pragma once
#include <string>
#include <vector>
#include <map>
//通道类型
enum class ETrackType {
INVALID = -1, //无效通道
VIDEO = 0, //视频通道
AUDIO, //音频通道
TITLE, //原始通道
MIN = INVALID,
MAX = TITLE,
};
namespace Rtsp {
//RTSP的RTP类型
enum class ERtpType {
INVALID = -1,
TCP = 0,
UDP = 1,
MULTICAST = 2,
};
};
//一个通道的具体属性
struct SdpTrack {
std::multimap<std::string, std::string> map_attr; //通道属性
ETrackType type = ETrackType::INVALID; //这个track的类型
std::string szControl;//媒体流的控制属性。当存在属性control时可用
uint8_t uInterleaved = 0; //rtp的通道号
bool isInited = false; //该通道是否已经被setup过
std::string GetControlUrl(const std::string& szUrl) const;
};
class SdpParser {
public:
SdpParser(const std::string& szSdp);
~SdpParser();
//获取第一个指定类型的通道
SdpTrack* GetTrack(ETrackType type) const;
//取第一个有效的视频通道和音频通道，最多两个元素
std::vector<SdpTrack*> GetAvailableTrack() const;
//获取sdp的解析原文
const std::string GetSdp() const { return m_szSdp; }
//解析参数为map
static std::map<std::string, std::string> ParseArgs(const std::string& str, const char* pair_delim, const char* key_delim);
private:
std::string m_szSdp;
std::vector<SdpTrack*> m_vecTrack;
};9.SdpParser.cpp
cpp
#include "SdpParser.h"
#include <algorithm>
using namespace std;
static int GetClockRate(int pt)
{
switch (pt) {
case 0: return 8000; // PCMU
case 3: return 8000; // GSM
case 4: return 8000; // G723
case 5: return 8000; // DVI4_8000
case 6: return 16000; // DVI4_16000
case 7: return 8000; // LPC
case 8: return 8000; // PCMA
case 9: return 16000; // G722
case 10: return 44100; // L16_Stereo
case 11: return 44100; // L16_Mono
case 12: return 8000; // QCELP
case 13: return 8000; // CN
case 14: return 44100; // MP3
case 15: return 8000; // G728
case 16: return 11025; // DVI4_11025
case 17: return 22050; // DVI4_22050
case 18: return 8000; // G729
case 25: return 90000; // CelB (视频)
case 26: return 90000; // JPEG (视频)
case 28: return 90000; // nv (视频)
case 31: return 90000; // H261 (视频)
case 32: return 90000; // MPV (视频)
case 33: return 90000; // MP2T (视频)
case 34: return 90000; // H263 (视频)
default: return 90000; // 默认返回90000（视频默认采样率/时钟频率）
}
}
static vector<string> split(const string& s, const char* delim) {
vector<string> ret;
size_t last = 0;
auto index = s.find(delim, last);
while (index != string::npos) {
if (index - last > 0) {
ret.push_back(s.substr(last, index - last));
}
last = index + strlen(delim);
index = s.find(delim, last);
}
if (!s.size() || s.size() - last > 0) {
ret.push_back(s.substr(last));
}
return ret;
}
//去除前后的空格、回车符、制表符
static string& trim(string& s, const string& chars = " \r\n\t") {
string map(0xFF, '\0');
for (auto& ch : chars) {
map[(unsigned char&)ch] = '\1';
}
while (s.size() && map.at((unsigned char&)s.back())) s.pop_back();
while (s.size() && map.at((unsigned char&)s.front())) s.erase(0, 1);
return s;
}
static string findSubString(const char* buf, const char* start, const char* end, size_t buf_size = 0) {
if (buf_size <= 0) {
buf_size = strlen(buf);
}
auto msg_start = buf;
auto msg_end = buf + buf_size;
size_t len = 0;
if (start != NULL) {
len = strlen(start);
msg_start = strstr(buf, start);
}
if (msg_start == NULL) {
return "";
}
msg_start += len;
if (end != NULL) {
msg_end = strstr(msg_start, end);
if (msg_end == NULL) {
return "";
}
}
return string(msg_start, msg_end);
}
static ETrackType toTrackType(const string& str) {
if (str == "") {
return ETrackType::TITLE;
}
if (str == "video") {
return ETrackType::VIDEO;
}
if (str == "audio") {
return ETrackType::AUDIO;
}
return ETrackType::INVALID;
}
SdpParser::SdpParser(const std::string& szSdp)
:m_szSdp(szSdp)
{
/*****
v=0 #SDP 的版本号，目前固定为 0，是唯一的有效值。
o=- 0 0 IN IP4 127.0.0.1 #o=<用户名:匿名> <会话ID:默认> <版本号:默认> <网络类型:互联网（IN）> <地址类型: IPv4> <地址:本地回环>
s=No Name # 会话的名称
c=IN IP4 192.168.114.114 #媒体流的传输地址
t=0 0 #表示会话永久有效
a=tool:libavformat 58.76.100 #生成这份 SDP 的工具是libavformat（FFmpeg 的核心格式处理库），版本号为 58.76.100
m=video 0 RTP/AVP 96 #m=<媒体类型> <端口> <传输协议> <编码载荷类型:1-95 为标准载荷，96 + 为自定义>
a=rtpmap:96 H264/90000 #关联载荷类型和具体编码格式
a=fmtp:96 packetization-mode=1; sprop-parameter-sets=Z/QAMpGbKAeAET8TCAAAH0gAB1MAeMGMsA==,aOvjxEhE; profile-level-id=F40032
a=control:streamid=0
*****/
SdpTrack* track = new SdpTrack;
track->type = ETrackType::TITLE;
m_vecTrack.emplace_back(track);
auto lines = split(m_szSdp, "\n");
for (auto& line : lines) {
trim(line);
if (line.size() < 2 || line[1] != '=') {
continue;
}
char opt = line[0];
string opt_val = line.substr(2);
switch (opt) {
case 'm': {
track = new SdpTrack;
m_vecTrack.emplace_back(track);
int pt, port, port_count;
char rtp[16] = { 0 }, type[16] = { 0 };
if (4 == sscanf_s(opt_val.data(), " %15[^ ] %d %15[^ ] %d", type, (unsigned)_countof(type), &port, rtp, (unsigned)_countof(rtp), &pt) ||
5 == sscanf_s(opt_val.data(), " %15[^ ] %d/%d %15[^ ] %d", type, (unsigned)_countof(type), &port, &port_count, rtp, (unsigned)_countof(rtp), &pt)) {
track->type = toTrackType(type);
}
break;
}
case 'a': {
string attr = findSubString(opt_val.data(), nullptr, ":");
if (attr.empty()) {
track->map_attr.emplace(opt_val, "");
}
else {
track->map_attr.emplace(attr, findSubString(opt_val.data(), ":", nullptr));
}
break;
}
}
}
for (auto& track_ptr : m_vecTrack) {
auto& track = *track_ptr;
auto it = track.map_attr.find("control");
if (it != track.map_attr.end()) {
track.szControl = it->second;
}
}
}
SdpParser::~SdpParser()
{
for (auto one : m_vecTrack)
delete one;
m_vecTrack.clear();
}
SdpTrack* SdpParser::GetTrack(ETrackType type) const
{
for (auto& track : m_vecTrack) {
if (track->type == type) {
return track;
}
}
return nullptr;
}
std::vector<SdpTrack*> SdpParser::GetAvailableTrack() const
{
vector<SdpTrack*> ret;
bool audio_added = false;
bool video_added = false;
for (auto& track : m_vecTrack) {
if (track->type == ETrackType::AUDIO) {
if (!audio_added) {
ret.emplace_back(track);
audio_added = true;
}
continue;
}
if (track->type == ETrackType::VIDEO) {
if (!video_added) {
ret.emplace_back(track);
video_added = true;
}
continue;
}
}
return ret;
}
std::map<std::string, std::string> SdpParser::ParseArgs(const string& str, const char* pair_delim, const char* key_delim)
{
map<string, string> ret;
auto arg_vec = split(str, pair_delim);
for (auto& key_val : arg_vec) {
if (key_val.empty()) {
// 忽略
continue;
}
auto pos = key_val.find(key_delim);
if (pos != string::npos) {
std::string key(key_val, 0, pos);
std::string val(key_val.substr(pos + strlen(key_delim)));
trim(key);
trim(val);
ret.emplace(std::move(key), std::move(val));
}
else {
trim(key_val);
if (!key_val.empty()) {
ret.emplace(std::move(key_val), "");
}
}
}
return ret;
}
std::string SdpTrack::GetControlUrl(const std::string& szUrl) const
{
if (szControl.find("://") != string::npos) {
// 以rtsp://开头
return szControl;
}
return szUrl + "/" + szControl;
}10.MediaPusherManager.h
cpp
#pragma once
#include <string>
#include <map>
#include <list>
#include <mutex>
class RtspSession;
//具体推流类
class MediaPusher {
public:
MediaPusher(const std::string& szUrl, RtspSession* pRtspSession);
~MediaPusher();
//添加一个接收端
void AddRecvier(RtspSession* pRtspSession);
//删除一个接收端
void DelRecvier(RtspSession* pRtspSession);
//发送数据给所有接收端
bool SendDataToRecvier(const char* pData, size_t uSize);
//提供给拉流实例，用于获取推流对应的tcp连接中存储的各项信息，比如sdp
RtspSession* GetRtspSession() const { return m_pRtspSession; }
private:
std::string m_szUrl; //推流地址
RtspSession* m_pRtspSession = nullptr; //推流对应的tcp连接
std::list<RtspSession*> m_listRtspSession;
};
//全局媒体推流管理类
class MediaPusherManager {
public:
static MediaPusherManager& Instance() {
static MediaPusherManager instance;
return instance;
}
//添加一个推流地址，返回是否添加成功
bool AddPusher(const std::string& szUrl, RtspSession* pRtspSession);
//删除一个推流地址，返回是否删除成功
bool DelPusher(const std::string& szUrl);
//判断推流地址是否存在
bool IsExist(const std::string& szUrl);
//添加一个接收端，返回对应的tcp连接session，失败返回nullptr
RtspSession* AddRecvier(const std::string& szUrl, RtspSession* pRtspSession);
//删除一个接收端，返回是否删除成功
bool DelRecvier(const std::string& szUrl, RtspSession* pRtspSession);
//发送数据给所有接收端
bool SendDataToRecvier(const std::string& szUrl, const char* pData, size_t uSize);
private:
std::map<const std::string, MediaPusher*> m_mapMediaPusher;
std::mutex m_mtxMediaPusher;
};11.MediaPusherManager.cpp
cpp
#include "MediaPusherManager.h"
#include "RtspSession.h"
bool MediaPusherManager::AddPusher(const std::string& szUrl, RtspSession* pRtspSession)
{
{
std::lock_guard lck(m_mtxMediaPusher);
if (m_mapMediaPusher.find(szUrl) == m_mapMediaPusher.end()) {
m_mapMediaPusher[szUrl] = new MediaPusher(szUrl, pRtspSession);
return true;
}
}
return false;
}
bool MediaPusherManager::DelPusher(const std::string& szUrl)
{
{
std::lock_guard lck(m_mtxMediaPusher);
if (m_mapMediaPusher.find(szUrl) != m_mapMediaPusher.end()) {
delete m_mapMediaPusher.at(szUrl);
m_mapMediaPusher.erase(szUrl);
return true;
}
}
return false;
}
bool MediaPusherManager::IsExist(const std::string& szUrl)
{
std::lock_guard lck(m_mtxMediaPusher);
return m_mapMediaPusher.find(szUrl) != m_mapMediaPusher.end();
}
RtspSession* MediaPusherManager::AddRecvier(const std::string& szUrl, RtspSession* pRtspSession)
{
{
std::lock_guard lck(m_mtxMediaPusher);
if (m_mapMediaPusher.find(szUrl) != m_mapMediaPusher.end()) {
auto pusher = m_mapMediaPusher.at(szUrl);
pusher->AddRecvier(pRtspSession);
return pusher->GetRtspSession();
}
}
return nullptr;
}
bool MediaPusherManager::DelRecvier(const std::string& szUrl, RtspSession* pRtspSession)
{
{
std::lock_guard lck(m_mtxMediaPusher);
if (m_mapMediaPusher.find(szUrl) != m_mapMediaPusher.end()) {
m_mapMediaPusher.at(szUrl)->DelRecvier(pRtspSession);
return true;
}
}
return false;
}
bool MediaPusherManager::SendDataToRecvier(const std::string& szUrl, const char* pData, size_t uSize)
{
{
std::lock_guard lck(m_mtxMediaPusher);
if (m_mapMediaPusher.find(szUrl) != m_mapMediaPusher.end()) {
m_mapMediaPusher.at(szUrl)->SendDataToRecvier(pData, uSize);
return true;
}
}
return false;
}
MediaPusher::MediaPusher(const std::string& szUrl, RtspSession* pRtspSession)
:m_szUrl(szUrl)
, m_pRtspSession(pRtspSession)
{
}
MediaPusher::~MediaPusher()
{
}
void MediaPusher::AddRecvier(RtspSession* pRtspSession)
{
m_listRtspSession.push_back(pRtspSession);
}
void MediaPusher::DelRecvier(RtspSession* pRtspSession)
{
m_listRtspSession.remove(pRtspSession);
}
bool MediaPusher::SendDataToRecvier(const char* pData, size_t uSize)
{
decltype(m_listRtspSession) removeList;
for (auto one : m_listRtspSession) {
if (false == one->SendData(pData, uSize)) {
removeList.push_back(one);
}
}
for (auto one : removeList) {
this->DelRecvier(one);
one->CloseSession();
}
return true;
}五个类，并不多，文章至此记录结束。
