1 Overview of Common Basic Instructions
1.1 Load Instructions
Execute data transfer from memory to register. The following instructions (mnemonics) are provided.
1.1.1 LD Instructions
− LD.B: Load byte
− LD.BU: Load byte unsigned
− LD.DW: Load double word
− LD.H: Load halfword
− LD.HU: Load halfword unsigned
− LD.W: Load word
1.1.2 SLD instructions
− SLD.B: Short format load byte
− SLD.BU: Short format load byte unsigned
− SLD.H: Short format load halfword
− SLD.HU: Short format load halfword unsigned
− SLD.W: Short format load word
1.2 Store Instructions
Execute data transfer from register to memory. The following instructions (mnemonics) are provided.
1.2.1 ST Instructions
− ST.B: Store byte
− ST.DW: Store double word
− ST.H: Store halfword
− ST.W: Store word
1.2.2 SST instructions
− SST.B: Short format store byte
− SST.H: Short format store halfword
− SST.W: Short format store word
1.3 Arithmetic Instructions
Add, subtract, transfer, or compare data between registers. The following instructions (mnemonics) are provided.
● ADD: Add
● ADDI: Add immediate
● CMP: Compare
● MOV: Move
● MOVEA: Move effective address
● SUB: Subtract
1.4 Logical Instructions
Include logical operation instructions. The following instructions (mnemonics) are provided.
● AND: AND
● ANDI: AND immediate
● NOT: NOT
● OR: OR
● ORI: OR immediate
2 Basic Instruction Set
2.1 Conventions of Instruction Format
| Symbol | Meaning |
|---|---|
| reg1 | General-purpose register (as source register) |
| reg2 | General-purpose register (primarily as destination register with some as source registers) |
| reg3 | General-purpose register (primarily used to store the remainder of a division result and/or the higher 32 bits of a multiplication result) |
| imm × | ×-bit immediate data |
| disp × | ×-bit displacement data |
| regID | System register number |
| selID | System register selection ID |
| cond | Condition code |
| cccc | 4-bit data to specify condition code |
| sp | Stack pointer (r3) |
| ep | Element pointer (r30) |
| list12 | Lists of registers |
| rh-rt | Indicates multiple general-purpose registers, from the general-purpose register indicated by rh to the generalpurpose register indicated by rt. |
| eh-et | Indicates multiple system registers of MPU entry (MPLA, MPUA, MPAT), from the entry number indicated by eh to the entry number indicated by et. |
2.2 Conventions of Operation
| Symbol | Meaning |
|---|---|
| ← | Assignment |
| GR [a] | Value stored in general-purpose register a |
| SR [a, b] | Value stored in system register (RegID = a, SelID = b) |
| (n:m) | Bit selection. Select from bit n to bit m. |
| CheckException(a) | Checks the conditions for generating the exception "a" and, if one is detected, suspends the instruction execution and performs exception processing |
| zero-extend (n) | Zero-extends "n" to word |
| sign-extend (n) | Sign-extends "n" to word |
| load-memory (a, b) | Reads data of size b from address a |
| store-memory (a, b, c) | Writes data b of size c to address a |
| result | Outputs results on flag |
| Byte | Byte (8 bits) |
| Half word | Halfword (16 bits) |
| Word | Word (32 bits) |
| R | 1-bit data of code specifying reg1 or regID |
| r | 1-bit data of code specifying reg2 |
| w | 1-bit data of code specifying reg3 |
| D | 1-bit data of displacement (indicates higher bits of displacement) |
| d | 1-bit data of displacement |
| I | 1-bit data of immediate (indicates higher bits of immediate) |
| i | 1-bit data of immediate |
| cccc | 4-bit data for condition code specification |
| L | 1-bit data of code specifying general-purpose register in register list |
| S | 1-bit data of code specifying EIPC/FEPC, EIPSW/FEPSW in register list |
| P | 1-bit data of code specifying PSW in register list |

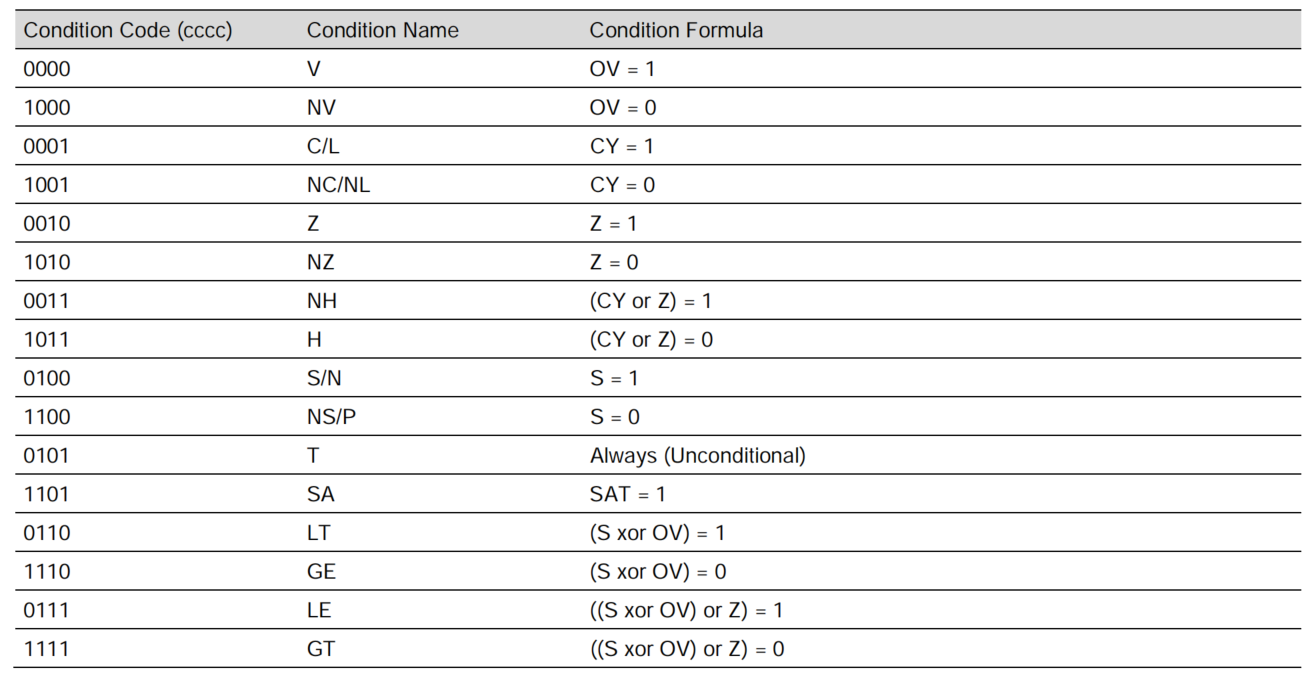

3 Condition Codes
