1 Arithmetic Instructions

1.1 Overview of Arithmetic Instructions

Add, subtract, transfer, or compare data between registers. The following instructions (mnemonics) are provided.

● ADD: Add

● ADDI: Add immediate

● CMP: Compare

● MOV: Move

● MOVEA: Move effective address

● MOVHI: Move high halfword

● SUB: Subtract

2 Arithmetic Instructions

2.1 ADD

2.1.1 ADD Instruction format and Operation

[Instruction format]
(1) ADD reg1, reg2
	GR[reg2] ← GR[reg2] + GR[reg1]

(2) ADD imm5, reg2
	GR[reg2] ← GR[reg2] + sign-extend (imm5)

2.1.2 ADD Instruction Opcode

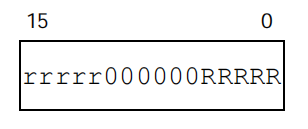

(1) ADD reg1, reg2

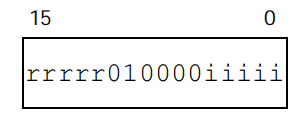

(2) ADD imm5, reg2

2.2 ADDI

2.2.1 ADDI Instruction format and Operation

[Instruction format]
ADDI imm16, reg1, reg2

[Operation]
GR [reg2] ← GR [reg1] + sign-extend (imm16)

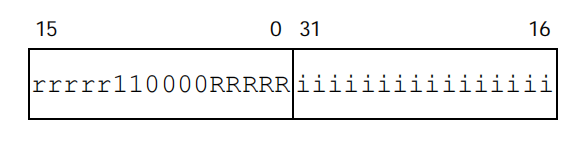

2.2.2 ADDI Instruction Opcode

2.3 CMP

2.3.1 CMP Instruction format and Operation

[Instruction format]
(1) CMP reg1, reg2
	result ← GR[reg2] − GR[reg1]

(2) CMP imm5, reg2
	result ← GR[reg2] − sign-extend (imm5)


2.3.2 CMP Instruction Opcode

(1) CMP reg1, reg2

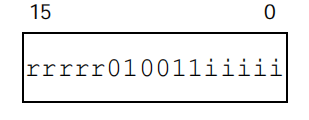

(2) CMP imm5, reg2

2.3.3 CMP Instruction Flags

 CY "1" if a borrow occurs from MSB; otherwise, "0".
 OV "1" if overflow occurs; otherwise, "0".
 S "1" if the operation result is negative; otherwise, "0".
 Z "1" if the operation result is "0"; otherwise, "0".

2.4 MOV

2.4.1 MOV Instruction format and Operation

[Instruction format]
(1) MOV reg1, reg2
	GR[reg2] ← GR[reg1]

(2) MOV imm5, reg2
	GR[reg2] ← sign-extend (imm5)

(3) MOV imm32, reg1
	GR[reg1] ← imm32


2.4.2 MOV Instruction Opcode

(1) MOV reg1, reg2

rrrrr ≠ 00000 (Do not specify r0 for reg2.)

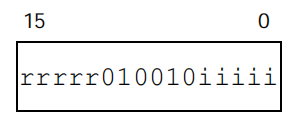

(2) MOV imm5, reg2

rrrrr ≠ 00000 (Do not specify r0 for reg2.)

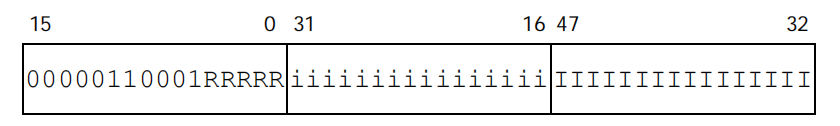

(3) MOV imm32, reg1

i (bits 31 to 16) refers to the lower 16 bits of 32-bit immediate data.
I (bits 47 to 32) refers to the higher 16 bits of 32-bit immediate data.

2.5 MOVEA

2.5.1 MOVEA Instruction format and Operation

[Instruction format]
MOVEA imm16, reg1, reg2

[Operation]
GR[reg2] ← GR[reg1] + sign-extend (imm16)

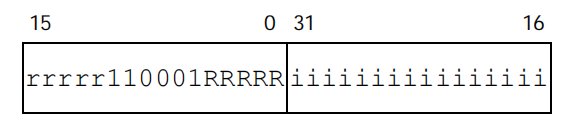

2.5.2 MOVEA Instruction Opcode

rrrrr ≠ 00000 (Do not specify r0 for reg2.)

2.6 SUB

2.6.1 SUB Instruction format and Operation

[Instruction format]
SUB reg1, reg2

[Operation]
GR[reg2] ← GR[reg2] − GR[reg1]

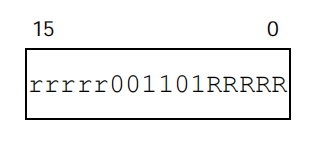

2.6.2 SUB Instruction Opcode

2.6.3 SUB Instruction Flags

 CY "1" if a borrow occurs from MSB; otherwise, "0".
 OV "1" if overflow occurs; otherwise, "0".
 S "1" if the operation result is negative; otherwise, "0".
 Z "1" if the operation result is "0"; otherwise, "0".
 SAT ---
