进程间通信介绍
++问题1:进程间通信是什么?++
两个或者多个进程实现数据层面的交互。由于进程独立性的存在,导致进程通信的成本比较高。
++问题2:进程间通信的原因?++
- 发送基本数据
- 发生命令,用一个进程控制另外一个进程
- 实现某种协同工作
- 通知事件
- ...
进程间通信的目的
- 数据传输:一个进程需要将它的数据发生给另外一个进程
- 资源共享:多个进程之间共享同样的资源
- 通知事件:一个进程需要向另一个或者一组进程发生消息,通知发生了某种事件(如进程终止时需要通知父进程)
- 进程控制:有些进程希望完全控制另一个进程的执行,此时控制进程希望能够拦截另一个进程的所有陷入和异常,并能够及时指定其状态改变。
进程之间是相互独立的,而进程间通信是有成本的。
++问题3:如何进行进程间通信?++
- 进程间通信的本质:必须让不同进程看到用一份"资源"
- "资源"是指特定形式的内存空间
- 这个"资源"一般是由操作系统提供,而不是其中一个进程(破坏进程的独立性)提供。
- 进程访问这块空间进程通信,本质就是访问操作系统。进程代表的就是用户,"资源"从创建------使用------释放,都是使用系统调用接口。
一般操作系统,会有一个独立的通信模块,隶属于文件系统,在系统中称为IPC通信模块。进程间通信是
进程间通信发展
- 管道
- System V进程间通信
- POSIX进程间通信
进程间通信分类
管道:
- 匿名管道pipe
- 命名管道
System V IPC
- System V 消息队列
- System V 共享内存
- System V 信号量
POSIX IPC
- 消息队列
- 共享内存
- 信号量
- 互斥量
- 条件变量
- 读写锁
基于文件级别通信的方式------管道

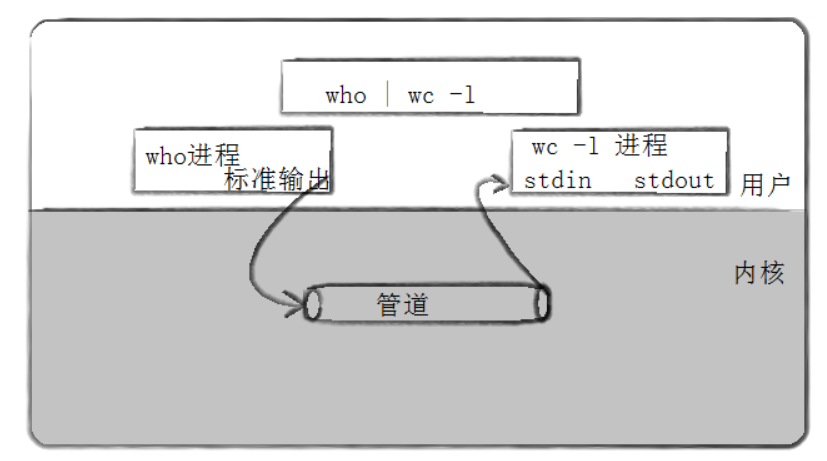

管道是Unix中最古老的进程间通信的形式,将从一个进程连接到另一个进程的一个数据流称为一个管道。

管道原理

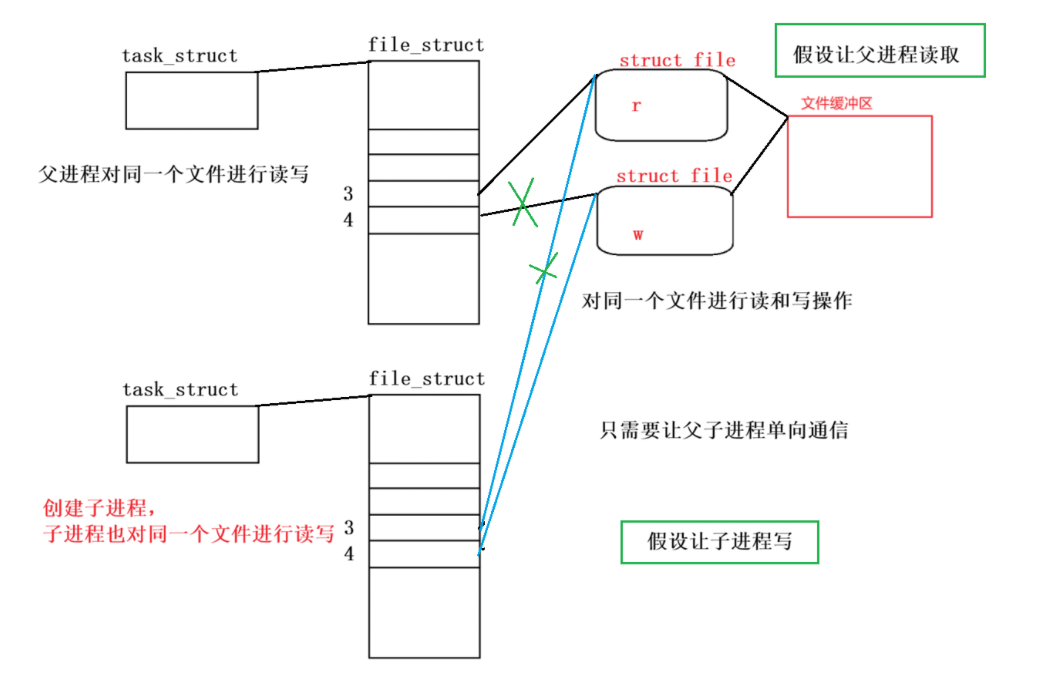

进程通信的本质前提是先让不同的进程看到同一份资源,即管道就是文件。在strcut file结构体中存在引用计数,父子进程存在相同的指针指向同一个文件时,引用计数会增加。
当父进程以读或者写的方式,打开一个文件的时候,子进程也会以同样的方式,以读或者写方式打开一个文件,此时就无法进行父进程写入,子进程写入的进程读取,所以需要通过下面的方式来进行通信:

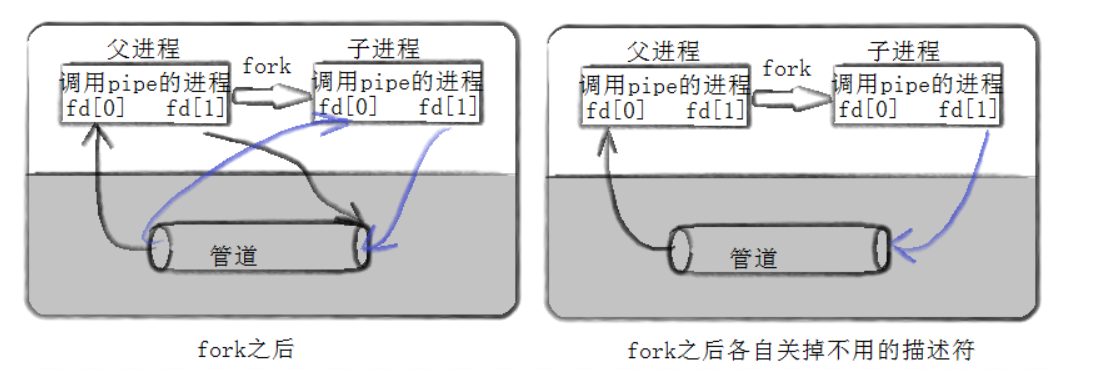

站在文件的角度:

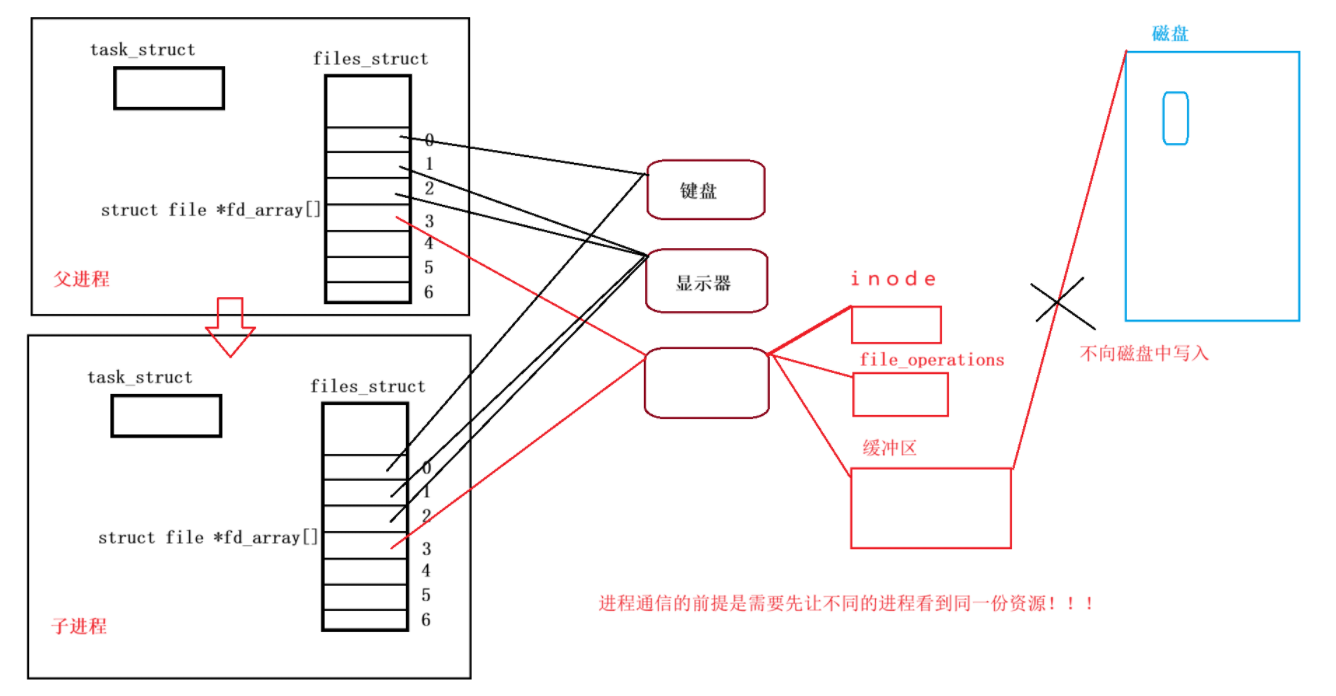

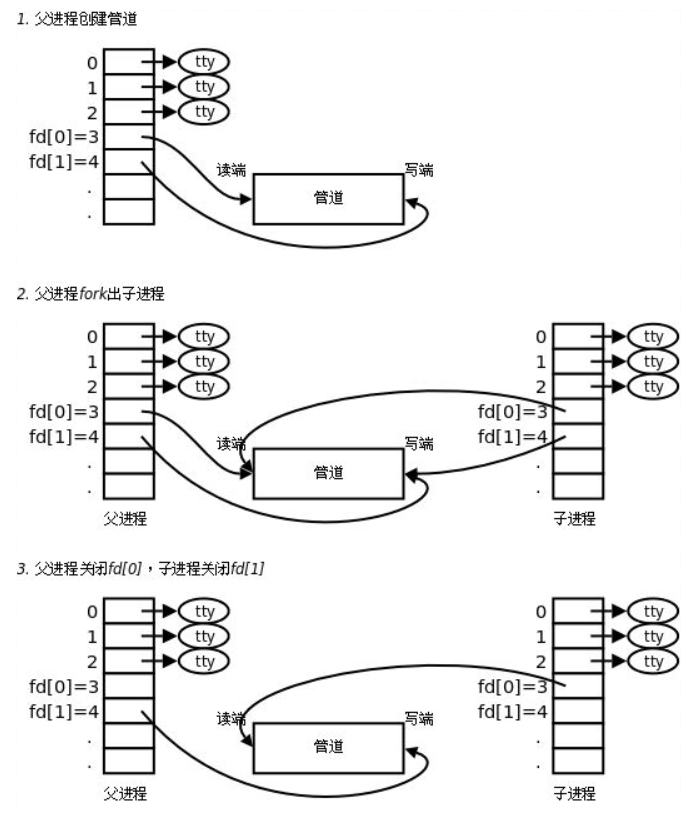

在内核角度分析:

这种基于文件级别通信的方式只能进行单向通信,也就是管道通信的原理。

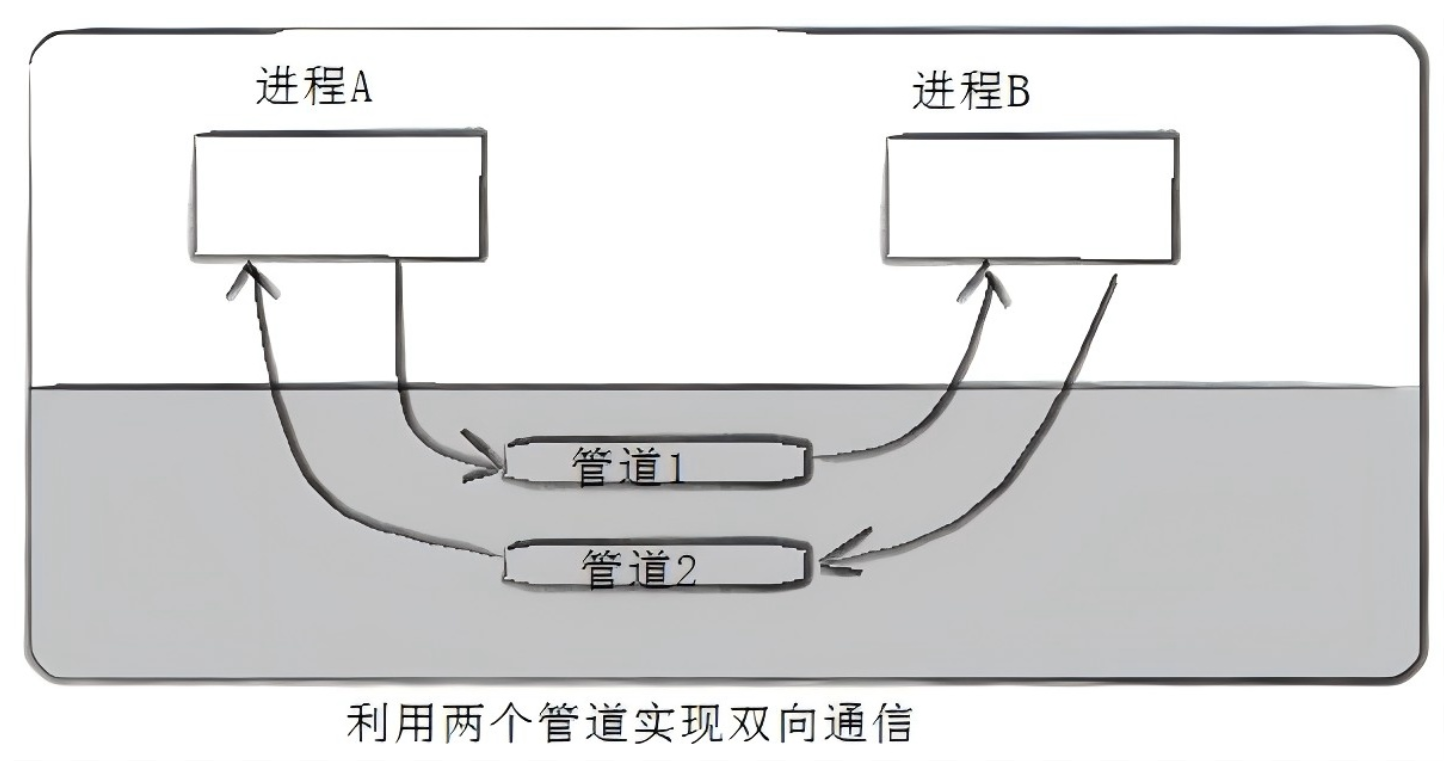

问题:如果需要使用管道进行双向通信------>可以使用多个管道。
【注意】如果两个进程之间没有任何关系,是不能通过管道的方式进行通信的,也就是说只有血缘关系之间可以进行通信的,常用于父子进程之间。
上面没有设置名字的管道称之为匿名管道。这里没有进行通信,只是建立了通信信道。
接口

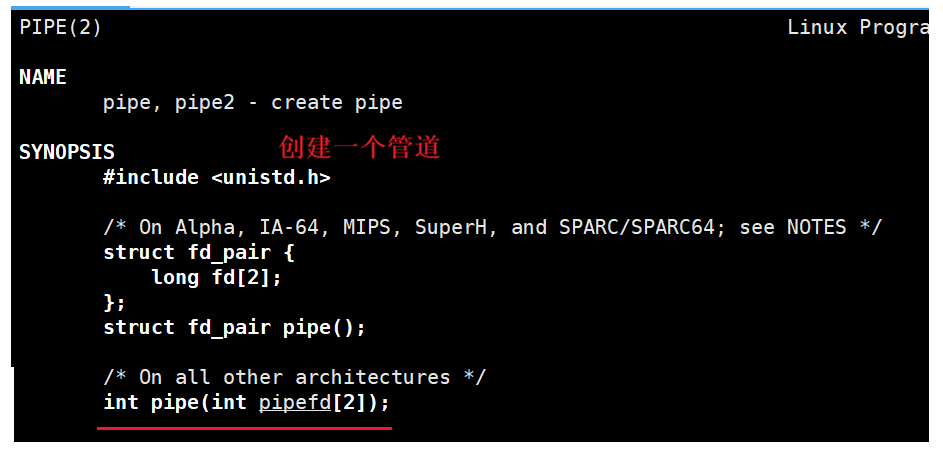

int pipe(int pipefd[2]);
- pipefd 是一个输出型参数,作用是分别以读取和写入的方式打开的文件描述符数字带出,让用户使用,pipefd[0]读下标,pipefd[1]写下标。
【功能】pipe函数在内核级创建文件
编码实现
cpp
#include<iostream>
#include<unistd.h>
using namespace std;
#define N 2
int main()
{
int pipefd[2] = {0};
int n = pipe(pipefd);
if(n < 0) return 1;
cout << "pipefd[0]: " << pipefd[0] << " ; " << "pipefd[1]: " << pipefd[1] << endl;
return 0;
}

完成第一步工作,父进程创建管道。
cpp
pid_t id = fork();
if(id < 0) return 2;
if(id == 0)
{
// child
}
// father
完成第二步工作,父进程创建子进程
cpp
int main()
{
int pipefd[2] = {0};
int n = pipe(pipefd);
if(n < 0) return 1;
// cout << "pipefd[0]: " << pipefd[0] << " ; " << "pipefd[1]: " << pipefd[1] << endl;
// child->w, father->r
pid_t id = fork();
if(id < 0) return 2;
if(id == 0)
{
// child
close(pipefd[0]);
// use pipe
// close pipe
close(pipefd[1]);
exit(0);
}
// father
close(pipefd[1]);
// use pipe
// close pipe
close(pipefd[0]);
return 0;
}
第三步,关闭子进程管道的读端,关闭父进程管道的写端。
cpp
#include<iostream>
#include<unistd.h>
#include<cstring>
#include<cstdlib>
#include<string>
#include<stdio.h>
#include<sys/types.h>
#include<sys/wait.h>
using namespace std;
#define N 2
#define NUM 1024
// child
void Writer(int wfd)
{
string s = "hello, I am child";
pid_t self = getpid();
int number = 0;
char buffer[NUM];
while(true)
{
// create the sending string
buffer[0] = 0; // clear string, reminder user for the array as the string
snprintf(buffer, sizeof(buffer), "%s-%d-%d", s.c_str(), self, number);
// cout << buffer << endl; // verification
// send to the father process
write(wfd, buffer, strlen(buffer));
number++;
sleep(1);
}
}
// father
void Reader(int rfd)
{
char buffer[NUM];
while(true)
{
buffer[0] = 0;
// receive child information
ssize_t n = read(rfd, buffer, sizeof(buffer)); // sizeof != strlen
if(n > 0)
{
buffer[n] = '\0'; // or buffer[n] = 0; as the string
cout << "father get a message[" << getpid() << "]#" << buffer << endl;
}
}
}
int main()
{
int pipefd[2] = {0};
int n = pipe(pipefd);
if(n < 0) return 1;
// cout << "pipefd[0]: " << pipefd[0] << " ; " << "pipefd[1]: " << pipefd[1] << endl;
// child->w, father->r
pid_t id = fork();
if(id < 0) return 2;
if(id == 0)
{
// child
close(pipefd[0]);
// use pipe
Writer(pipefd[1]);
// close pipe
close(pipefd[1]);
exit(0);
}
// father
close(pipefd[1]);
// use pipe
Reader(pipefd[0]);
pid_t rid = waitpid(id, nullptr, 0);
if(rid < 0) return 3; // fail
// close pipe
close(pipefd[0]);
return 0;
}

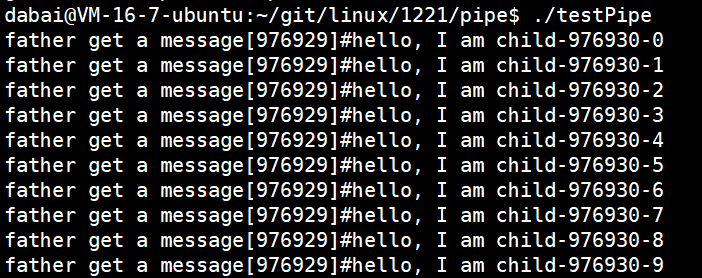

第四步,子进程向文件内写入数据,父进程向文件读取数据
管道的特征:
- 管道通信只能是具有血缘关系的进程进行进程间通信
- 管道只能单向通信
- 父子进程是会进行协同的,父子进程会对管道进行同步与互斥的,主要是为了保护管道文件的数据安全的(多线程)
- 管道是面向字节流(网络)
- 管道是基于文件的,而文件的生命周期随进程的。
管道是有固定大小的(64kb)
指令:ulimit -a
【指令】查看操作系统对于资源的限制

管道中的4种情况:
- 读写端正常,管道如果为空,读端就要阻塞;
- 读写端正常,管道如果为满,写端就要阻塞
- 写端关闭,读端就会读到0,表明读到了文件(pipe)结尾,不会被阻塞。
- 写端正常,但是读端关闭,操作系统就要杀掉正在写入的进程,使用的方式是通过信号杀掉,这个信号是13号信号(SIGPIPE)
【注意】让子进程写入,父进程读取的原因就是因为当父进程读端关闭,操作系统就会杀掉正在写入的进程,也就是子进程。
操作系统是不会做低效、浪费等类似的工作的。
管道的应用场景

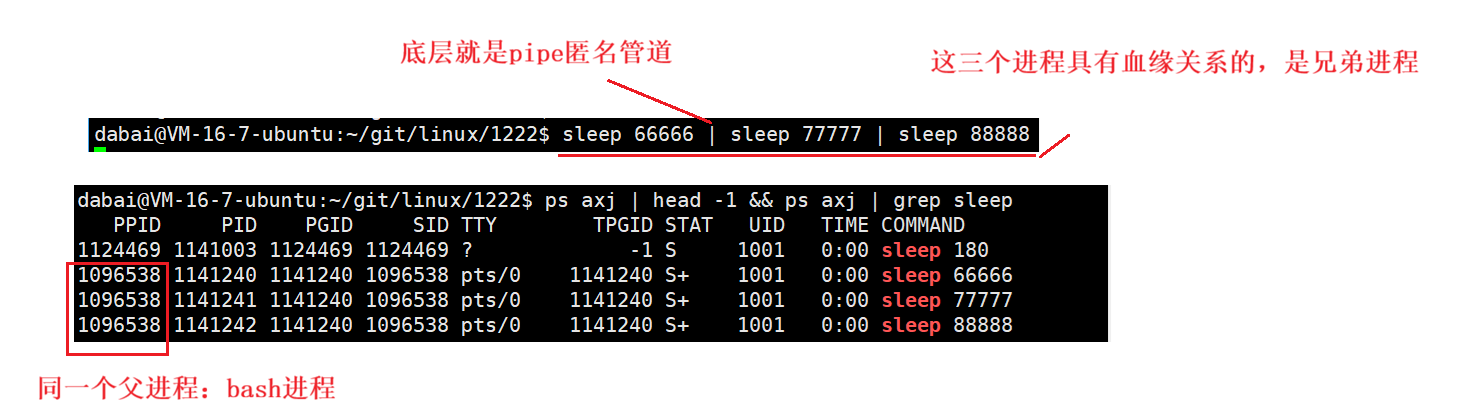

(1)指令中存在 | ,例如cat test.txt | head -10 | tail -5。

(2)自定义shell中管道应用
- 分析输入的命令行字符串,获取有多少个 | ,将命令分为多个子命令字符串
- malloc申请空间,pipe先申请多个管道。
- 循环fork创建多个子进程,每一个子进程的重定向情况:(1)最开始的进程进行输出重定向(dup2),将1->指定的一个管道写端。(2)中间的进程进行输入输出重定向,0标准输入重定向到上一个管道的读端,1标准输出重定向到下一个管道的写端。(3)最后的进程,进行输入重定向,将0标准输入重定向到最后一个管道的读端。
- 分别让不同的子进程执行不同的命令------底层是exec*------程序替换不会影响该进程曾经打开的文件,不会影响预先设置好的管道重定向。

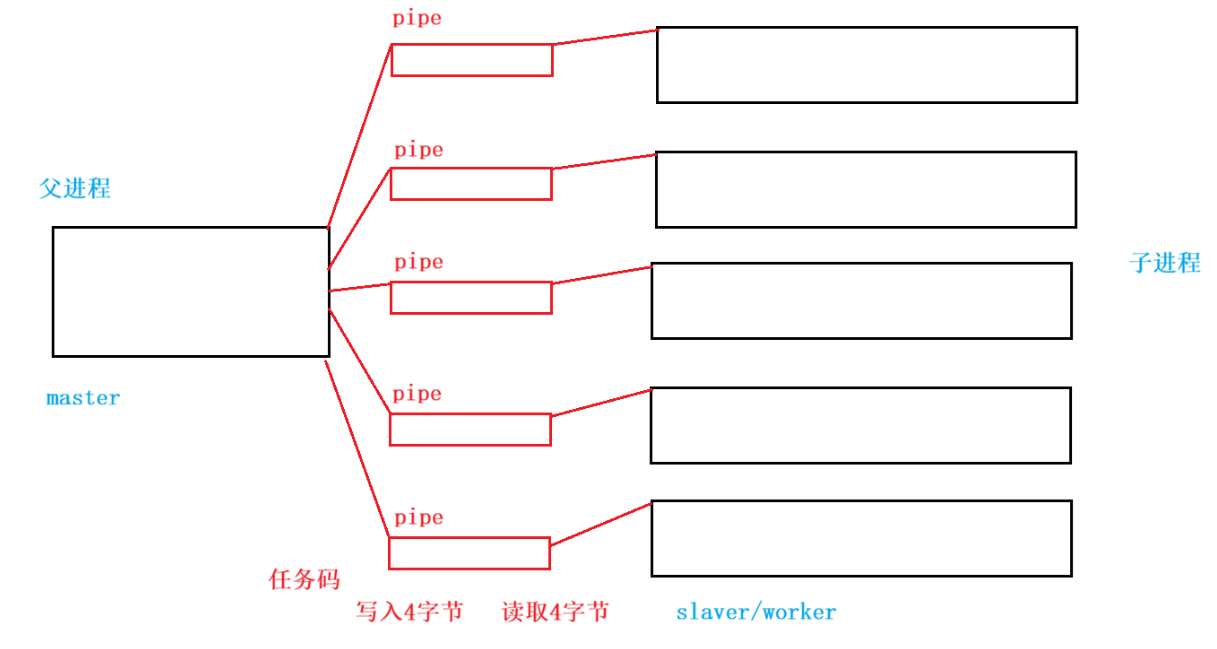

(3)使用管道实现一个简易版本的进程池
系统调用是有成本的,可以先创建一大批进程并储存好,当需要使用进程的时候,再使用已经创建好的进程,可以提供调用的效率,这种方式称为进程池。

ProcessPool.cc文件代码
cpp
#include "Task.hpp"
#include <string>
#include <vector>
#include <unistd.h>
#include <cstdlib>
#include <cassert>
#include <ctime>
#include <sys/types.h>
#include <sys/wait.h>
// process numbers
const int processnum = 5;
std::vector<task_t> tasks;
// pipe channel
class channel
{
public:
channel(int cmdfd, int slaverid, const std::string& processname)
:_cmdfd(cmdfd)
,_slaverid(slaverid)
,_processname(processname)
{}
public:
int _cmdfd; // The file descriptor for sending the task
pid_t _slaverid; // The pid of the child process
std::string _processname; // The name of the child process >>> Facilitate the printing of logs
};
// void slaver(int rfd)
// {
// while(true)
// {
// std::cout << getpid() << "--" << "read fd is : " << rfd << std::endl;
// sleep(1);
// }
// }
void slaver()
{
while(true)
{
int cmdcode = 0;
int n = read(0, &cmdcode, sizeof(int));
if(n == sizeof(int))
{
// Execute the task list corresponding to the cmdcode
std::cout << "slaver say@ get a command: " << getpid() << " : cmdcode : " << cmdcode << std::endl;
if(cmdcode >= 0 && cmdcode < tasks.size()) tasks[cmdcode]();
}
if(n == 0)
{
break;
}
}
}
// 传参的三种方式(建议)
// 输入:const &
// 输出:*
// 输入输出:&
void InitProcessPool(std::vector<channel>* channels)
{
std::vector<int> oldfds;
for(int i = 0; i < processnum; ++i)
{
int pipefd[2] = {0}; // Temporary space
int n = pipe(pipefd);
assert(!n);
(void)n;
pid_t id = fork();
if(id == 0)
{
for(auto fd : oldfds) close(fd);
// child process(r)
close(pipefd[1]);
dup2(pipefd[0], 0);
close(pipefd[0]);
slaver();
std::cout << "process : " << getpid() << " quit" << std::endl;
// slaver(pipefd[0]);
exit(0);
}
// father process(w)
close(pipefd[0]);
// Add the channel field
std::string name = "process-" + std::to_string(i);
channels->push_back(channel(pipefd[1], id, name));
oldfds.push_back(pipefd[1]);
}
}
void Debug(const std::vector<channel>& channels)
{
// test code
for(const auto &c : channels)
{
std::cout << c._cmdfd << " " << c._slaverid << " " << c._processname << std::endl;
}
}
void Menu()
{
std::cout << "##########################" << std::endl;
std::cout << "##########################" << std::endl;
std::cout << "# 1. task1 2.task2 #" << std::endl;
std::cout << "# 3. task3 4.task4 #" << std::endl;
std::cout << "# 0. quit #" << std::endl;
std::cout << "##########################" << std::endl;
std::cout << "##########################" << std::endl;
}
void ctrlSlaver(const std::vector<channel>& channels)
{
int which = 0;
// for(int i = 1; i <= 100; ++i)
//int cnt = 10;
//while(cnt--)
while(true)
{
Menu();
std::cout << "Please Enter@ ";
int select = 0;
std::cin >> select;
if(select <= 0 || select >= 5) break;
// 1.select a task
// int cmdcode = rand() % tasks.size();
int cmdcode = select - 1;
// 2.select a process(load balancing)
// (1)random method
// int processpos = rand() % channels.size();
// (2)Rotation method - use which
std::cout << "father say : " << "cmdcode: " << cmdcode << " " <<"already send to " << channels[which]._slaverid
<< "process name : " << channels[which]._processname << std::endl;
// 3.send a task
write(channels[which]._cmdfd, &cmdcode, sizeof(cmdcode));
// (2)which
which++;
which %= channels.size();
// sleep(1);
}
}
void quitProcess(const std::vector<channel>& channels)
{
for(const auto &c : channels) close(c._cmdfd);
// sleep(10);
for(const auto &c : channels) waitpid(c._slaverid, nullptr, 0);
// sleep(10);
}
int main()
{
LoadTask(&tasks);
srand(time(nullptr) ^ getpid() ^ 1023);
std::vector<channel> channels;
// 1.initialize
InitProcessPool(&channels);
Debug(channels);
// 2.start controlling the process child
ctrlSlaver(channels);
// 3.cleaning up and finalizing
quitProcess(channels);
sleep(1);
return 0;
}
Task.hpp文件
cpp
#pragma once
#include <iostream>
#include <vector>
typedef void (*task_t)();
void task1()
{
std::cout << "task1" << std::endl;
}
void task2()
{
std::cout << "task2" << std::endl;
}
void task3()
{
std::cout << "task3" << std::endl;
}
void task4()
{
std::cout << "task4" << std::endl;
}
void LoadTask(std::vector<task_t> *tasks)
{
tasks->push_back(task1);
tasks->push_back(task2);
tasks->push_back(task3);
tasks->push_back(task4);
}
管道特点
- 只能用于具有共同祖先的进程(具有亲缘关系的进程)之间进行通信;通常一个管道由一个进程创建,然后该进程调用fork,此后父子进程之间就可以应用该管道。
- 管道提供流式服务
- 一般而言,进程退出,管道释放,所以管道的生命周期随进程
- 一般而言,内核会对管道操作进程同步与互斥。
- 管道是半双工的,数据只能向一个方向流动;需要双向通信的时候,需要建立起两个管道。

命名管道
- 管道应用的一个限制就是只能在具有共同祖先(具有亲缘关系)的进程间通信。
- 如果我们想在不相关的进程之间交换数据,可以使用FIFO文件来做这件事情,它经常被称为命令管道。
- 命名管道是一种特殊类型的文件。
如果毫不相干的进程进行进程间通信,可以使用命名管道。
创建一个命名管道

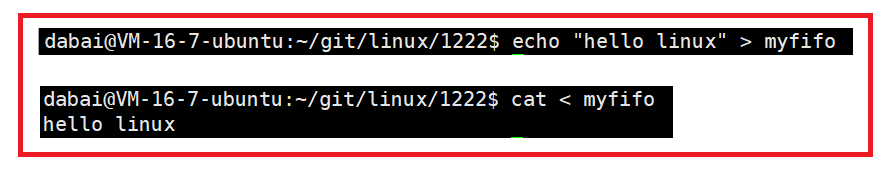

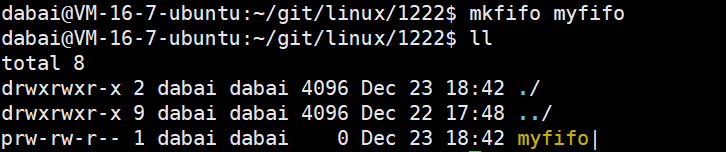

指令:mkfifo [filename]
【功能】创建一个命名管道

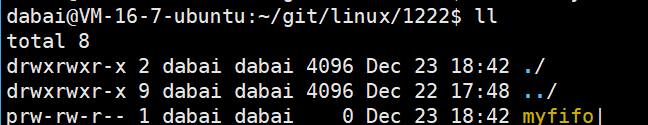

myfifo文件的大小始终为0.
理解命名管道
++问题1:如果两个不同的进程,打开同一个文件的时候,在内核中操作系统会打开几个文件?++
【答】操作系统会与打开匿名管道一样,在内核级打开一个命名管道。系统会单独创建一个管道文件,这个文件打开的时候不需要刷盘(不会保存在磁盘中),也就是说管道文件只是一个内存级文件。
进程间通信的前提,先让不同进程看到同一份资源。
++问题2:为什么确定两个进程打开的是同一个文件?++
【答】只需要让两个进程看到同一个路径下的同一个文件名,就会打开同一个文件,这种文件称为命名管道。
路径 + 文件名称 = 同一个文件,路径+文件名具有唯一性
使用命名管道进行编码
- int mkfifo(const char* filename, mode_t mode);
【功能】在程序中创建命名管道

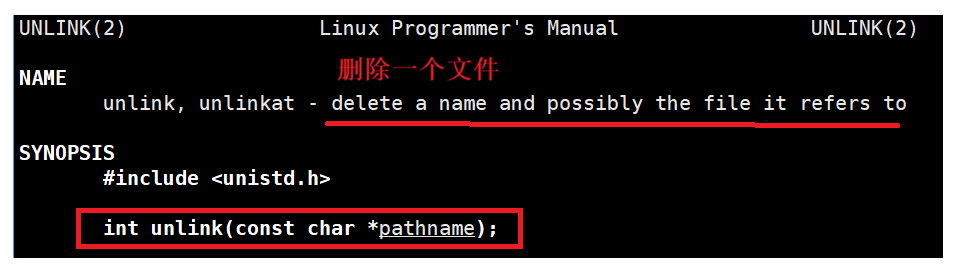

- int unlink(const char* pathname);
【功能】删除文件

server.cc服务端
cpp
#include"comm.hpp"
using namespace std;
// Manage pipe files
int main()
{
Init init;
// Open the channel
int fd= open(FIFO_FILE, O_RDONLY);
if(fd < 0)
{
perror("open");
exit(FIFO_OPEN_ERR);
}
cout << "server open file done" << endl;
// Start communication
while(true)
{
char buffer[1024] = {0};
int x = read(fd, buffer, sizeof(buffer));
if(x > 0)
{
buffer[x] = 0;
cout << "client say# " << buffer << endl;
}
else if(x == 0)
{
cout << "client quit, me too" << endl;
break;
}
else break;
}
close(fd);
return 0;
}
client.cc客户端
cpp
#include"comm.hpp"
using namespace std;
int main()
{
int fd = open(FIFO_FILE, O_WRONLY);
if(fd <= 0)
{
perror("open");
exit(FIFO_OPEN_ERR);
}
cout << "client open file done" << endl;
string line;
while(true)
{
cout << "Please Enter@: ";
getline(cin, line);
write(fd, line.c_str(), line.size());
}
close(fd);
return 0;
}
comm.hpp
cpp
#pragma once
#include <sys/types.h>
#include <sys/stat.h>
#include <iostream>
#include <cerrno>
#include <cstring>
#include <cstdlib>
#include <unistd.h>
#include <fcntl.h>
#include <string>
#define FIFO_FILE "./myfifo"
#define MODE 0664
enum
{
FIFO_CREATE_ERR = 1,
FIFO_DELETE_ERR,
FIFO_OPEN_ERR
};
class Init
{
public:
Init()
{
// Create a channel
int n = mkfifo(FIFO_FILE, MODE);
if (n == -1)
{
perror("mkfifo");
exit(FIFO_CREATE_ERR);
}
}
~Init()
{
int m = unlink(FIFO_FILE);
if (m == -1)
{
perror("unlink");
exit(FIFO_DELETE_ERR);
}
}
};
makefile
cpp
.PHONY:all
all:server client
server:server.cc
g++ -o $@ $^ -g -std=c++11
client:client.cc
g++ -o $@ $^ -g -std=c++11
.PHONY:clean
clean:
rm -f server client
穿插概念------日志
一般的日志信息,日志时间,日志的等级,日志的内容,文件的名称和行号
常见的日志等级有
- info:常规消息
- warning:报警信息
- Error:比较严重,可能需要立即处理
- Fatal:致命的问题
- Debug:调试
下面实现一个简单的日志函数
cpp
#pragma once
#include <iostream>
#include <stdarg.h>
#include <time.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
#include <stdlib.h>
#define SIZE 1024
#define Info 0
#define Debug 1
#define Warning 2
#define Error 3
#define Fatal 4
#define Screen 1
#define Onefile 2
#define Classfile 3
#define logFile "log.txt"
class Log
{
public:
Log()
{
printMethod = Screen;
path = "./log/";
}
void Enable(int method)
{
printMethod = method;
}
std::string levelToString(int level)
{
switch (level)
{
case Info:
return "Info";
case Debug:
return "Debug";
case Warning:
return "Warning";
case Error:
return "Error";
case Fatal:
return "Fatal";
default:
return "None";
}
}
// void logmessage(int level, const char *format, ...)
// {
// time_t t = time(nullptr);
// struct tm *ctime = localtime(&t);
// char leftbuffer[SIZE];
// snprintf(leftbuffer, sizeof(leftbuffer), "[%s][%d-%d-%d %d:%d:%d]", levelToString(level).c_str(),
// ctime->tm_year + 1900, ctime->tm_mon + 1, ctime->tm_mday, ctime->tm_hour, ctime->tm_min, ctime->tm_sec);
// char rightbuffer[SIZE * 2];
// va_list s;
// va_start(s, format);
// vsnprintf(rightbuffer, sizeof(rightbuffer), format, s);
// va_end(s);
// // 格式:默认部分+自定义部分
// char logtxt[SIZE * 4];
// snprintf(logtxt, sizeof(logtxt), "%s %s\n", leftbuffer, rightbuffer);
// // printf("%s", logtxt); // 打印
// printLog(level, logtxt);
// }
void printLog(const int level, const std::string& logtxt)
{
switch(printMethod)
{
case Screen :
std::cout << logtxt << std::endl;
break;
case Onefile:
printOneFile(logFile, logtxt);
break;
case Classfile:
printClassFile(level, logtxt);
break;
default: break;
}
}
void printOneFile(const std::string &logname, const std::string& logtxt)
{
std::string _logname = path + logname;
int fd = open(_logname.c_str(), O_WRONLY | O_CREAT | O_APPEND, 0666);
if(fd < 0) return;
write(fd, logtxt.c_str(), logtxt.size());
close(fd);
}
void printClassFile(const int level, const std::string& logtxt)
{
std::string filename = logFile;
filename += ".";
filename += levelToString(level);
printOneFile(filename, logtxt);
}
~Log()
{}
void operator()(int level, const char *format, ...)
{
time_t t = time(nullptr);
struct tm *ctime = localtime(&t);
char leftbuffer[SIZE];
snprintf(leftbuffer, sizeof(leftbuffer), "[%s][%d-%d-%d %d:%d:%d]", levelToString(level).c_str(),
ctime->tm_year + 1900, ctime->tm_mon + 1, ctime->tm_mday, ctime->tm_hour, ctime->tm_min, ctime->tm_sec);
char rightbuffer[SIZE * 2];
va_list s;
va_start(s, format);
vsnprintf(rightbuffer, sizeof(rightbuffer), format, s);
va_end(s);
// 格式:默认部分+自定义部分
char logtxt[SIZE * 4];
snprintf(logtxt, sizeof(logtxt), "%s %s\n", leftbuffer, rightbuffer);
// printf("%s", logtxt); // 打印
printLog(level, logtxt);
}
private:
int printMethod;
std::string path;
};
穿插日志功能的命名管道代码
server.cc服务端
cpp
#include"comm.hpp"
#include "log.hpp"
using namespace std;
// Manage pipe files
int main()
{
Init init;
Log log;
log.Enable(Onefile);
// Open the channel
int fd= open(FIFO_FILE, O_RDONLY);
if(fd < 0)
{
// log.logmessage(Fatal, "error string: %s, error code: %d", strerror(errno), errno);
log(Fatal, "error string: %s, error code: %d", strerror(errno), errno);
exit(FIFO_OPEN_ERR);
}
cout << "server open file done" << endl;
// log.logmessage(Info, "server open file done, error string: %s, error code : %d", strerror(errno), errno);
log(Info, "server open file done, error string: %s, error code : %d", strerror(errno), errno);
// Start communication
while(true)
{
char buffer[1024] = {0};
int x = read(fd, buffer, sizeof(buffer));
if(x > 0)
{
buffer[x] = 0;
cout << "client say# " << buffer << endl;
}
else if(x == 0)
{
log(Debug, "client quit, me too, error string: %s, error code : %d", strerror(errno), errno);
break;
}
else break;
}
close(fd);
return 0;
}
client.cc客户端
cpp
#include"comm.hpp"
using namespace std;
int main()
{
int fd = open(FIFO_FILE, O_WRONLY);
if(fd <= 0)
{
perror("open");
exit(FIFO_OPEN_ERR);
}
cout << "client open file done" << endl;
string line;
while(true)
{
cout << "Please Enter@: ";
getline(cin, line);
write(fd, line.c_str(), line.size());
}
close(fd);
return 0;
}
comm.hpp
cpp
#pragma once
#include <sys/types.h>
#include <sys/stat.h>
#include <iostream>
#include <cerrno>
#include <cstring>
#include <cstdlib>
#include <unistd.h>
#include <fcntl.h>
#include <string>
#define FIFO_FILE "./myfifo"
#define MODE 0664
enum
{
FIFO_CREATE_ERR = 1,
FIFO_DELETE_ERR,
FIFO_OPEN_ERR
};
class Init
{
public:
Init()
{
// Create a channel
int n = mkfifo(FIFO_FILE, MODE);
if (n == -1)
{
perror("mkfifo");
exit(FIFO_CREATE_ERR);
}
}
~Init()
{
int m = unlink(FIFO_FILE);
if (m == -1)
{
perror("unlink");
exit(FIFO_DELETE_ERR);
}
}
};
