问题主要是 得手动回原点 每个Episode都得停一下回原点

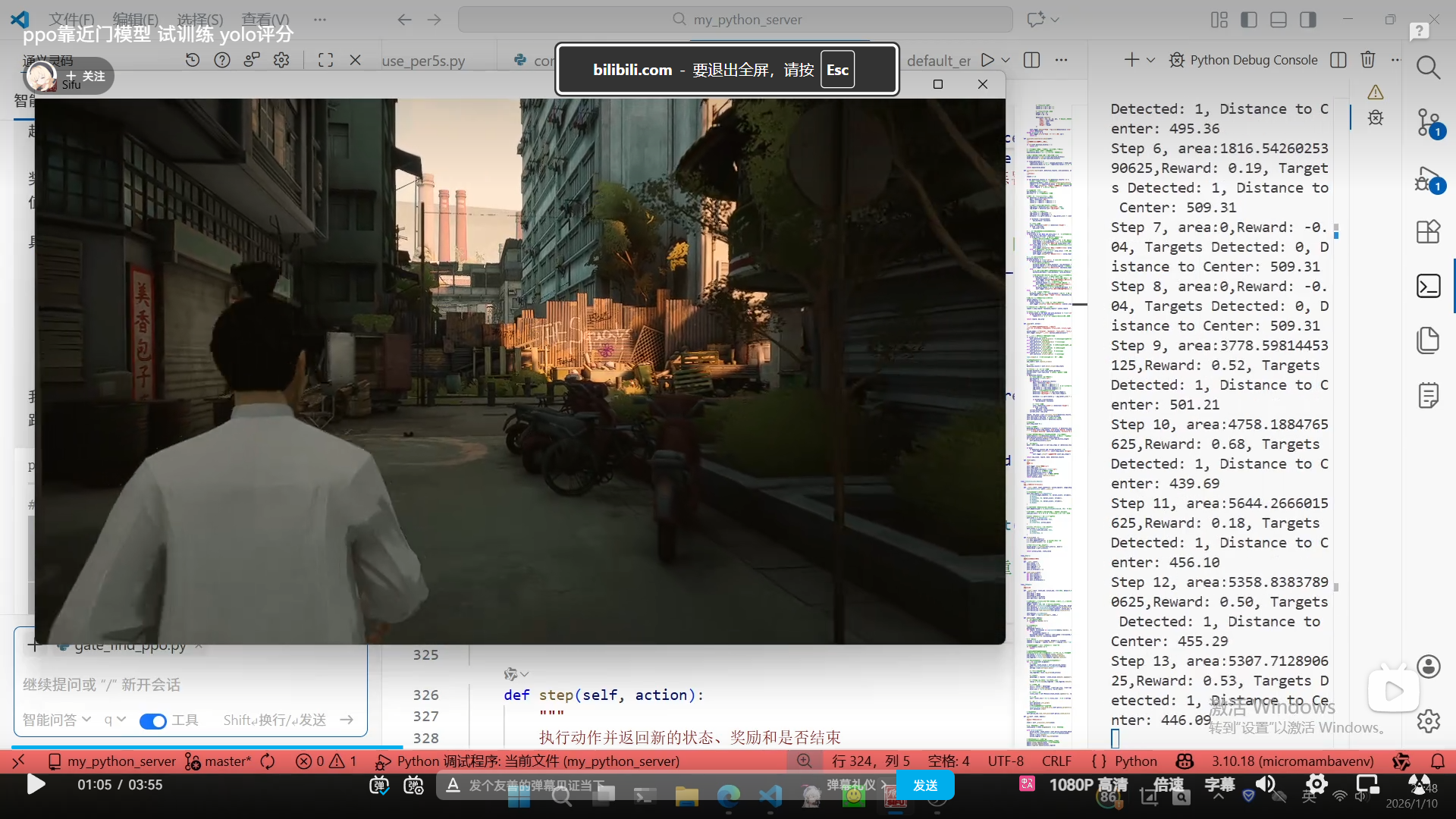

https://www.bilibili.com/video/BV1HR6UB3E71
python
=== 开始训练门搜索智能体 (20轮，模型将保存到model文 件夹) ===
2026-01-10 23:01:24,095 - INFO - 开始训练门搜索PPO智能体，目标: gate
2026-01-10 23:01:24,095 - INFO - 正在预热检测模型， 确保模型已加载...
2026-01-10 23:01:24,263 - WARNING - 模型预热过程中出现错误: 'TargetSearchEnvironment' object has no attribute 'yolo_model'
2026-01-10 23:01:24,353 - INFO - 成功加载YOLO模型: E:\code\my_python_server\models\find_gate.pt
Step 1, area:0,Reward: -0.10, Targets Detected: 0, Distance to Center: inf
Step 2, area:3439.10595703125,Reward: -0.06, Targets Detected: 1, Distance to Center: 505.45
Step 3, area:1858.8148193359375,Reward: 0.19, Targets Detected: 1, Distance to Center: 512.72
Step 4, area:3054.990478515625,Reward: 0.52, Targets Detected: 1, Distance to Center: 507.28
Step 5, area:1223.118896484375,Reward: 0.20, Targets Detected: 2, Distance to Center: 508.25
Step 6, area:2979.83837890625,Reward: 0.50, Targets Detected: 1, Distance to Center: 507.62
Step 7, area:5209.86474609375,Reward: 0.53, Targets Detected: 1, Distance to Center: 496.42
Step 8, area:3872.627197265625,Reward: 0.19, Targets Detected: 1, Distance to Center: 503.86
Step 9, area:3812.591064453125,Reward: 0.20, Targets Detected: 1, Distance to Center: 504.84
Step 10, area:0,Reward: -0.03, Targets Detected: 0, Distance to Center: 504.84
Step 11, area:7366.72900390625,Reward: 0.17, Targets Detected: 1, Distance to Center: 539.01
Step 12, area:4925.31689453125,Reward: 0.61, Targets Detected: 1, Distance to Center: 501.01
Step 13, area:3188.295654296875,Reward: 0.19, Targets Detected: 1, Distance to Center: 507.28
Step 14, area:3111.00244140625,Reward: 0.50, Targets Detected: 1, Distance to Center: 507.15
Step 15, area:4366.16455078125,Reward: 0.51, Targets Detected: 1, Distance to Center: 502.34
Step 16, area:2729.95458984375,Reward: 0.19, Targets Detected: 1, Distance to Center: 509.35
Step 17, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 509.35
Step 18, area:1904.7899169921875,Reward: 0.20, Targets Detected: 1, Distance to Center: 513.21
Step 19, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 20, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 21, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 22, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 23, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 24, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 25, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 26, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 27, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 28, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 29, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 30, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 31, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 32, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 33, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 34, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 35, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 36, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 37, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 38, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 39, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 40, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 41, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 42, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 43, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 44, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 45, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 46, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 47, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 48, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 49, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
Step 50, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 513.21
2026-01-10 23:01:52,825 - INFO - 达到最大步数 50
2026-01-10 23:01:52,826 - INFO - Episode: 0, Score: 50, Total Reward: 3.08
Episode: 1/20, Score: 50, Total Reward: 3.08
Step 1, area:8773.01953125,Reward: 0.29, Targets Detected: 1, Distance to Center: 365.33
Step 2, area:0,Reward: -0.10, Targets Detected: 0, Distance to Center: 365.33
Step 3, area:0,Reward: 0.00, Targets Detected: 0, Distance to Center: 365.33
Step 4, area:0,Reward: -0.02, Targets Detected: 0, Distance to Center: 365.33
Step 5, area:0,Reward: -0.02, Targets Detected: 0, Distance to Center: 365.33
Step 6, area:0,Reward: -0.03, Targets Detected: 0, Distance to Center: 365.33
Step 7, area:8149.0791015625,Reward: 0.13, Targets Detected: 1, Distance to Center: 414.49
Step 8, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 414.49
Step 9, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 414.49
Step 10, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 414.49
Step 11, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 414.49
Step 12, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 414.49
Step 13, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 414.49
Step 14, area:32964.23828125,Reward: 0.77, Targets Detected: 1, Distance to Center: 340.91
Step 15, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 16, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 17, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 18, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 19, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 20, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 21, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 22, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 23, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 24, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 25, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 26, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 27, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 28, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 29, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 340.91
Step 30, area:834.4164428710938,Reward: -0.11, Targets Detected: 1, Distance to Center: 550.70
Step 31, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 550.70
Step 32, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 550.70
Step 33, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 550.70
Step 34, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 550.70
Step 35, area:4985.8603515625,Reward: 0.64, Targets Detected: 1, Distance to Center: 500.89
Step 36, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 500.89
Step 37, area:0,Reward: -0.04, Targets Detected: 0, Distance to Center: 500.89
python
"""
门搜索PPO实现
使用PPO算法在虚拟环境中搜索目标
"""
import os
import sys
import time
import random
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
from torch.distributions import Categorical
import cv2
from PIL import Image
import base64
from collections import deque
import logging
from pathlib import Path
from ultralytics import YOLO
# 添加当前目录到Python路径，确保能正确导入同目录下的模块
sys.path.append(os.path.dirname(os.path.abspath(__file__)))
# 导入现有的移动控制器
from control_api_tool import ImprovedMovementController
# 添加项目根目录到路径，以便导入其他模块
sys.path.append(os.path.join(os.path.dirname(os.path.dirname(os.path.abspath(__file__)))))
# 配置日志
def setup_logging():
"""设置日志配置"""
log_dir = os.path.join(os.path.dirname(os.path.abspath(__file__)), "logs")
if not os.path.exists(log_dir):
os.makedirs(log_dir)
log_filename = os.path.join(log_dir, f"gate_find_ppo_{time.strftime('%Y%m%d_%H%M%S')}.log")
logging.basicConfig(
level=logging.INFO,
format='%(asctime)s - %(levelname)s - %(message)s',
handlers=[
logging.FileHandler(log_filename, encoding='utf-8'),
logging.StreamHandler() # 同时输出到控制台
]
)
return logging.getLogger(__name__)
class TargetSearchEnvironment:
"""
目标搜索环境
"""
def __init__(self, target_description="gate"):
self.controller = ImprovedMovementController()
self.target_description = target_description
self.step_count = 0
self.max_steps = 50 # 增加最大步数，给更多探索机会
self.last_detection_result = None
self.last_center_distance = float('inf')
self.last_area = 0 # 新增：跟踪上一帧目标区域
self.logger = logging.getLogger(__name__)
# 记录探索历史，帮助判断是否在原地打转
self.position_history = []
self.max_history_length = 10
# 预先初始化检测模型，确保在执行任何动作前模型已加载
self._warm_up_detection_model()
# 加载YOLO模型
self.yolo_model = self._load_yolo_model()
def _load_yolo_model(self):
"""
加载YOLO模型
"""
# 获取项目根目录
current_dir = Path(__file__).parent
model_path = current_dir.parent / "models" / "find_gate.pt"
if not model_path.exists():
self.logger.error(f"YOLO模型文件不存在: {model_path}")
return None
try:
model = YOLO(str(model_path))
self.logger.info(f"成功加载YOLO模型: {model_path}")
return model
except Exception as e:
self.logger.error(f"加载YOLO模型失败: {e}")
return None
def _warm_up_detection_model(self):
"""
预热检测模型，确保在训练开始前模型已加载到内存
"""
self.logger.info("正在预热检测模型，确保模型已加载...")
try:
# 在环境初始化时立即加载模型
dummy_image = self.capture_screen()
if dummy_image is not None and dummy_image.size > 0:
# 对当前屏幕截图进行检测，触发模型加载
dummy_result = self.detect_target(dummy_image)
self.logger.info("检测模型已预热完成")
else:
self.logger.warning("无法获取初始截图进行模型预热")
except Exception as e:
self.logger.warning(f"模型预热过程中出现错误: {e}")
def capture_screen(self):
"""
截取当前屏幕画面
"""
# 使用现有的浏览器截图功能，修改为截取名称包含"sifu"的窗口
try:
from computer_server.prtsc import capture_window_by_title
# 截取标题包含"sifu"的窗口
result = capture_window_by_title("sifu", "sifu_window_capture.png")
if result:
# 读取保存的图片
from PIL import Image
screenshot = Image.open("sifu_window_capture.png")
# 转换为numpy数组
import numpy as np
screenshot = np.array(screenshot)
# 由于PIL读取的图像格式是RGB，而OpenCV使用BGR，所以需要转换
screenshot = cv2.cvtColor(screenshot, cv2.COLOR_RGB2BGR)
return screenshot
else:
self.logger.warning("未找到包含 'sifu' 的窗口，使用全屏截图")
import pyautogui
screenshot = pyautogui.screenshot()
screenshot = np.array(screenshot)
screenshot = cv2.cvtColor(screenshot, cv2.COLOR_RGB2BGR)
return screenshot
except ImportError:
# 如果没有截图功能，模拟返回一张图片
self.logger.warning("截图功能不可用，使用模拟图片")
return np.zeros((480, 640, 3), dtype=np.uint8_)
def detect_target(self, image):
"""
使用YOLO检测目标
"""
if self.yolo_model is None:
self.logger.error("YOLO模型未加载，无法进行检测")
return []
try:
# 进行预测 - 降低置信度阈值以增加检测敏感性
results = self.yolo_model.predict(
source=image,
conf=0.1, # 从0.2降低到0.1，提高检测敏感性
save=False,
verbose=False
)
# 获取检测结果
detections = []
result = results[0] # 获取第一个结果
if result.boxes is not None:
boxes = result.boxes.xyxy.cpu().numpy() # 获取边界框坐标 [x1, y1, x2, y2]
confs = result.boxes.conf.cpu().numpy() # 获取置信度
cls_ids = result.boxes.cls.cpu().numpy() # 获取类别ID
# 获取类别名称（如果模型有类别名称）
names = result.names if hasattr(result, 'names') else {}
for i in range(len(boxes)):
x1, y1, x2, y2 = boxes[i]
conf = confs[i]
cls_id = int(cls_ids[i])
class_name = names.get(cls_id, f"Class_{cls_id}")
# 计算边界框中心坐标
center_x = (x1 + x2) / 2
center_y = (y1 + y2) / 2
# 计算边界框宽度和高度
width = x2 - x1
height = y2 - y1
detections.append({
'bbox': [x1, y1, x2, y2], # 左上角和右下角坐标
'label': class_name,
'score': conf,
'width': width,
'height': height
})
self.logger.debug(f"YOLO检测到 {len(detections)} 个目标")
return detections
except Exception as e:
self.logger.error(f"YOLO检测过程中出错: {e}")
return []
def calculate_exploration_bonus(self):
"""
计算探索奖励，避免在原地打转
"""
if len(self.position_history) < 2:
return 0.0
# 计算与最近位置的差异（这里简单用步数差异表示）
# 实际应用中可以加入坐标位置的记录
exploration_bonus = 0.1 # 每步都给一点探索奖励
# 如果位置历史中有很多重复位置，则降低奖励
unique_positions = len(set(self.position_history))
total_positions = len(self.position_history)
if total_positions > 0:
repetition_factor = 1.0 - (unique_positions / total_positions)
exploration_bonus *= (1.0 - repetition_factor * 0.5) # 重复越多，奖励越低
return exploration_bonus
def calculate_reward(self, detection_results, prev_distance, action_taken=None, prev_area=None):
"""
计算奖励值
"""
reward = 0.0
if not detection_results or len(detection_results) == 0:
# 没有检测到目标，给予基于探索的奖励
exploration_bonus = self.calculate_exploration_bonus()
reward = -0.1 + exploration_bonus # 减少负奖励，鼓励探索
self.logger.debug(f"未检测到目标，探索奖励: {reward:.2f}")
return reward, 0 # 返回当前面积为0
# 找到最近的检测框
min_distance = float('inf')
max_area = 0 # 计算最大的目标区域
# 遍历所有检测结果，计算距离和面积
for detection in detection_results:
bbox = detection['bbox']
center_x = (bbox[0] + bbox[2]) / 2
center_y = (bbox[1] + bbox[3]) / 2
# 获取图像尺寸，如果没有则使用默认值
img_width = detection.get('img_width', 640)
img_height = detection.get('img_height', 480)
# 计算到图像中心的距离
img_center_x = img_width / 2
img_center_y = img_height / 2
distance = np.sqrt((center_x - img_center_x)**2 + (center_y - img_center_y)**2)
if distance < min_distance:
min_distance = distance
# 计算目标区域
area = detection['width'] * detection['height']
if area > max_area:
max_area = area
# 基于目标面积变化的奖励（优先级更高）
area_reward = 0.0
if prev_area is not None and prev_area > 0: # 修改条件，确保prev_area > 0
area_ratio = max_area / prev_area
if area_ratio > 1.05: # 如果目标变大超过5%
# 面积增大奖励，与面积增长率成正比
area_bonus = 5.0 * (area_ratio - 1.0) # 降低面积奖励权重，避免过大
area_reward = max(area_bonus, 0.5) # 确保至少有最小正奖励
self.logger.debug(f"目标面积增大 {area_ratio:.2f}倍，额外奖励: {area_reward:.2f}")
elif area_ratio >= 0.95: # 面积变化在5%以内，给予小奖励
area_reward = 0.2
self.logger.debug(f"目标面积基本不变，小奖励: {area_reward:.2f}")
else: # 面积减少超过5%，给予惩罚
area_penalty = -1.0 * (1.0 - area_ratio) # 降低面积减少的惩罚
area_reward = area_penalty
self.logger.debug(f"目标面积减小，惩罚: {area_reward:.2f}")
# 基于距离的奖励（次要）
distance_reward = 0.0
if prev_distance != float('inf'): # 只有在之前有有效距离的情况下才比较
if min_distance < prev_distance:
# 距离变近，给予正奖励
distance_improve = (prev_distance - min_distance) / prev_distance # 归一化改进比例
distance_reward = 1.5 * distance_improve # 调整距离改善奖励权重
self.logger.debug(f"距离变近，奖励: {distance_reward:.2f}")
else:
# 距离变远，但在面积增大的情况下，减少惩罚或给予小奖励
distance_decrease = (min_distance - prev_distance) / prev_distance # 归一化距离恶化程度
# 如果面积显著增大，即使距离变远也给予小奖励或零奖励
if area_ratio > 1.2: # 面积增大超过20%
distance_reward = 0.1 # 小奖励，因为面积增加表明朝正确的方向移动
self.logger.debug(f"面积显著增大但距离变远，小奖励: {distance_reward:.2f}")
elif area_ratio > 1.05: # 面积略有增大
distance_reward = 0 # 不惩罚，因为面积有所增加
self.logger.debug(f"面积增大但距离变远，不惩罚: {distance_reward:.2f}")
else: # 面积无明显变化或减小，给予负奖励
distance_reward = -0.5 * distance_decrease # 减少距离变远的惩罚
self.logger.debug(f"距离变远且面积无改善，惩罚: {distance_reward:.2f}")
else:
# 第一次检测到目标时的奖励
distance_reward = 1.0 - (min_distance / 400.0) # 降低首次检测到目标时的奖励
self.logger.debug(f"首次检测到目标，奖励: {distance_reward:.2f}")
# 如果目标在中心附近，给予额外奖励
center_reward = 0.0
if min_distance < 50:
center_reward = 3.0 # 降低目标接近中心的奖励
self.logger.info(f"目标接近中心，额外奖励: {center_reward:.2f}")
# 综合奖励计算 - 面积奖励占主导地位
reward = area_reward + distance_reward + center_reward
# 鼓励连续朝着目标方向移动
if action_taken is not None and prev_distance != float('inf'):
if min_distance < prev_distance:
reward += 0.3 # 朝着目标方向移动的奖励，降低权重
return reward, max_area
def step(self, action):
"""
执行动作并返回新的状态、奖励和是否结束
动作空间: 0-forward, 1-backward, 2-turn_left, 3-turn_right, 4-strafe_left, 5-strafe_right
"""
action_names = ["forward", "backward", "turn_left", "turn_right", "strafe_left", "strafe_right"]
self.logger.debug(f"执行动作: {action_names[action]}")
# 执行动作 - 调整移动参数以提高精确度
if action == 0: # forward
self.controller.move_forward(2) # 从3减少到2，提高精确度
elif action == 1: # backward
self.controller.move_backward(1) # 从2减少到1
elif action == 2: # turn_left
self.controller.turn_left(30) # 从60减少到30，提高转向精度
elif action == 3: # turn_right
self.controller.turn_right(30) # 从60减少到30
elif action == 4: # strafe_left
self.controller.strafe_left(1) # 从2减少到1
elif action == 5: # strafe_right
self.controller.strafe_right(1) # 从2减少到1
time.sleep(0.2) # 从0.3减少到0.2，加快执行速度
# 获取新状态（截图）
new_state = self.capture_screen()
# 检测目标
detection_results = self.detect_target(new_state)
# 计算奖励 - 添加当前目标区域
current_distance = self.last_center_distance
current_area = self.last_area # 获取上一帧的目标区域
area=0
if detection_results:
# 计算当前最近目标到中心的距离
min_distance = float('inf')
max_area = 0
for detection in detection_results:
bbox = detection['bbox']
center_x = (bbox[0] + bbox[2]) / 2
center_y = (bbox[1] + bbox[3]) / 2 # 修复：应该是bbox[3]而不是bbox[2]
img_center_x = new_state.shape[1] / 2
img_center_y = new_state.shape[0] / 2
# 添加检测信息到detection字典
detection['img_width'] = new_state.shape[1]
detection['img_height'] = new_state.shape[0]
distance = np.sqrt((center_x - img_center_x)**2 + (center_y - img_center_y)**2)
if distance < min_distance:
min_distance = distance
# 计算目标区域
area = detection['width'] * detection['height']
if area > max_area:
max_area = area
current_distance = min_distance
current_area = max_area
reward, new_area = self.calculate_reward(detection_results, self.last_center_distance, action, current_area)
self.last_center_distance = current_distance
self.last_area = new_area # 保存当前目标区域
self.last_detection_result = detection_results
# 更新步数
self.step_count += 1
# 输出每步得分
detected_targets = len(detection_results) if detection_results else 0
print(f"Step {self.step_count}, area:{area},Reward: {reward:.2f}, "
f"Targets Detected: {detected_targets}, Distance to Center: {current_distance:.2f}")
# 更新位置历史，记录当前状态的特征（如检测结果数量）
state_feature = len(detection_results) # 这里用检测到的对象数量作为状态特征
self.position_history.append(state_feature)
if len(self.position_history) > self.max_history_length:
self.position_history.pop(0)
# 检查是否结束
done = self.step_count >= self.max_steps or (detection_results and current_distance < 50)
if done:
if detection_results and current_distance < 50:
self.logger.info(f"在第 {self.step_count} 步找到目标")
else:
self.logger.info(f"达到最大步数 {self.max_steps}")
return new_state, reward, done, detection_results
def reset(self):
"""
重置环境
"""
self.logger.debug("重置环境")
self.step_count = 0
self.last_center_distance = float('inf')
self.last_area = 0 # 重置目标区域
self.last_detection_result = None
self.position_history = [] # 重置位置历史
initial_state = self.capture_screen()
return initial_state
class ActorCritic(nn.Module):
"""
PPO使用的Actor-Critic网络
"""
def __init__(self, input_channels=3, action_space=6, image_height=480, image_width=640):
super(ActorCritic, self).__init__()
# 卷积层处理图像输入
self.conv_layers = nn.Sequential(
nn.Conv2d(input_channels, 32, kernel_size=8, stride=4),
nn.ReLU(),
nn.Conv2d(32, 64, kernel_size=4, stride=2),
nn.ReLU(),
nn.Conv2d(64, 64, kernel_size=3, stride=1),
nn.ReLU()
)
# 自适应平均池化层，确保输出固定大小
self.adaptive_pool = nn.AdaptiveAvgPool2d((10, 10)) # 固定输出为10x10
# 全连接层 - 输入大小是固定的，因为池化层输出固定尺寸
conv_out_size = 64 * 10 * 10 # 64个通道 * 10 * 10 = 6400
# Actor (策略网络) - 输出动作概率分布
self.actor = nn.Sequential(
nn.Linear(conv_out_size, 512),
nn.ReLU(),
nn.Linear(512, action_space)
)
# Critic (价值网络) - 输出状态价值
self.critic = nn.Sequential(
nn.Linear(conv_out_size, 512),
nn.ReLU(),
nn.Linear(512, 1)
)
def forward(self, x):
x = self.conv_layers(x)
x = self.adaptive_pool(x) # 确保输出尺寸一致
x = x.view(x.size(0), -1) # 展平
# 分别计算动作概率和状态价值
action_probs = F.softmax(self.actor(x), dim=-1)
state_value = self.critic(x)
return action_probs, state_value
class Memory:
"""
存储智能体的经验数据
"""
def __init__(self):
self.states = []
self.actions = []
self.logprobs = []
self.rewards = []
self.is_terminals = []
def clear_memory(self):
del self.states[:]
del self.actions[:]
del self.logprobs[:]
del self.rewards[:]
del self.is_terminals[:]
class PPOAgent:
"""
PPO智能体
"""
def __init__(self, state_dim, action_dim, lr=0.0003, betas=(0.9, 0.999), gamma=0.99, K_epochs=40, eps_clip=0.1):
self.lr = lr
self.betas = betas
self.gamma = gamma
self.K_epochs = K_epochs
self.eps_clip = eps_clip
# 修正：不再使用state_dim参数中的高度和宽度，而是使用固定尺寸
input_channels = 3
height, width = 480, 640 # 固定网络输入尺寸
self.policy = ActorCritic(input_channels, action_dim, height, width)
self.optimizer = torch.optim.Adam(self.policy.parameters(), lr=lr, betas=betas)
self.policy_old = ActorCritic(input_channels, action_dim, height, width)
self.policy_old.load_state_dict(self.policy.state_dict())
self.MseLoss = nn.MSELoss()
self.logger = logging.getLogger(__name__)
def update(self, memory):
# 检查是否有经验数据
if len(memory.rewards) == 0:
return
# 计算折扣奖励
rewards = []
discounted_reward = 0
for reward, is_terminal in zip(reversed(memory.rewards), reversed(memory.is_terminals)):
if is_terminal:
discounted_reward = 0
discounted_reward = reward + (self.gamma * discounted_reward)
rewards.insert(0, discounted_reward)
# 归一化奖励
rewards = torch.tensor(rewards, dtype=torch.float32)
rewards = (rewards - rewards.mean()) / (rewards.std() + 1e-5)
# 处理状态张量 - 确保所有状态都是一致的形状
if len(memory.states) == 0:
return
# 将状态列表堆叠成批量张量
# memory.states中的每个元素应该是一个形状为(C, H, W)的张量
old_states = torch.stack(memory.states).detach()
old_actions = torch.stack(memory.actions).detach()
old_logprobs = torch.stack(memory.logprobs).detach()
# K epochs更新策略 - 减少K_epochs以提高稳定性
for _ in range(self.K_epochs):
# 计算优势
logprobs, state_values = self.policy(old_states)
dist = torch.distributions.Categorical(logprobs)
entropy = dist.entropy().mean()
# 计算动作的对数概率
new_logprobs = dist.log_prob(old_actions)
# 计算优势
advantages = rewards - state_values.detach().squeeze(-1)
# 计算比率 (pi_theta / pi_theta__old)
ratios = torch.exp(new_logprobs - old_logprobs.detach())
# 计算PPO损失
surr1 = ratios * advantages
surr2 = torch.clamp(ratios, 1-self.eps_clip, 1+self.eps_clip) * advantages
actor_loss = -torch.min(surr1, surr2).mean()
# 计算价值损失
critic_loss = self.MseLoss(state_values.squeeze(-1), rewards)
# 总损失
loss = actor_loss + 0.5 * critic_loss - 0.01 * entropy # 保持熵权重不变
# 反向传播
self.optimizer.zero_grad()
loss.backward()
# 限制梯度范数以防止梯度爆炸
torch.nn.utils.clip_grad_norm_(self.policy.parameters(), max_norm=0.5)
self.optimizer.step()
# 更新旧策略
self.policy_old.load_state_dict(self.policy.state_dict())
def act(self, state, memory):
"""
根据当前策略选择动作
"""
state = self._preprocess_state(state)
# 添加批次维度进行推理
state_batch = state.unsqueeze(0) # 添加批次维度
with torch.no_grad():
action_probs, state_value = self.policy_old(state_batch)
dist = torch.distributions.Categorical(action_probs)
action = dist.sample()
action_logprob = dist.log_prob(action)
# 存储状态、动作和对数概率
# 不要存储带批次维度的状态，只存储原始状态
memory.states.append(state) # 不带批次维度
memory.actions.append(action)
memory.logprobs.append(action_logprob)
return action.item()
def evaluate(self, state):
"""
评估状态-动作对的价值
"""
action_probs, state_value = self.policy(state)
dist = torch.distributions.Categorical(action_probs)
return dist, state_value.squeeze(-1)
def _preprocess_state(self, state):
"""
预处理状态（图像）
"""
# 将BGR转为RGB
if len(state.shape) == 3:
state_rgb = cv2.cvtColor(state, cv2.COLOR_BGR2RGB)
else:
state_rgb = state
# 转换为tensor并归一化
state_tensor = torch.FloatTensor(state_rgb).permute(2, 0, 1) / 255.0
# 统一调整图像尺寸为网络期望的大小
import torch.nn.functional as F
state_tensor = F.interpolate(
state_tensor.unsqueeze(0), # 添加批次维度
size=(480, 640), # 目标尺寸
mode='bilinear',
align_corners=False
).squeeze(0) # 移除批次维度
return state_tensor
def train_gate_search_ppo_agent(episodes=200, model_path="gate_search_ppo_model.pth", target_description="gate"):
"""
训练门搜索PPO智能体
"""
logger = logging.getLogger(__name__)
logger.info(f"开始训练门搜索PPO智能体，目标: {target_description}")
# 确保模型保存目录存在
model_dir = os.path.dirname(model_path)
if model_dir and not os.path.exists(model_dir):
os.makedirs(model_dir)
logger.info(f"创建模型保存目录: {model_dir}")
# 初始化环境和智能体
env = TargetSearchEnvironment(target_description)
# 定义状态和动作维度 - 这里我们只需要动作维度，因为网络使用固定尺寸
action_dim = 6 # 6种动作类型
ppo_agent = PPOAgent((3, 480, 640), action_dim) # 状态维度是固定的
memory = Memory()
scores = deque(maxlen=100)
total_rewards = deque(maxlen=100)
for episode in range(episodes):
state = env.reset()
total_reward = 0
step_count = 0
done = False
while not done:
# 选择动作
action = ppo_agent.act(state, memory)
# 执行动作
next_state, reward, done, detection_results = env.step(action)
# 存储奖励和终止标志
memory.rewards.append(reward)
memory.is_terminals.append(done)
state = next_state
total_reward += reward
step_count += 1
if done:
logger.info(f"Episode: {episode}, Score: {step_count}, Total Reward: {total_reward:.2f}")
print(f"Episode: {episode+1}/{episodes}, Score: {step_count}, Total Reward: {total_reward:.2f}")
scores.append(step_count)
total_rewards.append(total_reward)
break
# 每个episode结束后都更新策略
print(f"Updating PPO policy for episode {episode+1} (this may take a moment)...")
update_start_time = time.time()
ppo_agent.update(memory)
update_end_time = time.time()
print(f"Policy updated in {update_end_time - update_start_time:.2f} seconds.")
# 清空记忆
memory.clear_memory()
# 每5个episode保存一次模型
if (episode + 1) % 5 == 0:
checkpoint_path = model_path.replace('.pth', f'_checkpoint_ep_{episode+1}.pth')
torch.save(ppo_agent.policy.state_dict(), checkpoint_path)
logger.info(f"Checkpoint saved at episode {episode+1}: {checkpoint_path}")
# 每50轮打印一次平均分数
if episode % 50 == 0 and episode > 0:
avg_score = np.mean(scores)
avg_total_reward = np.mean(total_rewards)
logger.info(f"Episode {episode}, Average Score: {avg_score:.2f}, Average Total Reward: {avg_total_reward:.2f}")
logger.info("PPO训练完成！")
# 保存最终模型
torch.save(ppo_agent.policy.state_dict(), model_path)
logger.info(f"PPO模型已保存为 {model_path}")
return ppo_agent
def evaluate_trained_ppo_agent(model_path="gate_search_ppo_model.pth", episodes=10, target_description="gate"):
"""
评估已训练好的PPO模型性能
"""
logger = logging.getLogger(__name__)
logger.info(f"开始评估PPO模型: {model_path}")
# 定义状态和动作维度
action_dim = 6
# 创建PPO智能体
ppo_agent = PPOAgent((3, 480, 640), action_dim)
# 加载已保存的模型
if os.path.exists(model_path):
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
ppo_agent.policy.load_state_dict(torch.load(model_path, map_location=device))
ppo_agent.policy.eval() # 设置为评估模式
logger.info(f"PPO模型已从 {model_path} 加载")
else:
logger.warning(f"模型文件 {model_path} 不存在，使用随机模型")
evaluation_results = []
for episode in range(episodes):
# 初始化环境
env = TargetSearchEnvironment(target_description)
state = env.reset()
memory = Memory() # 创建空的记忆对象，仅用于act函数
total_reward = 0
step_count = 0
success = False
done = False
while not done and step_count < 50:
action = ppo_agent.act(state, memory)
# 清空临时记忆中的数据，因为我们只是在评估
memory.clear_memory()
# 打印动作
action_names = ["forward", "backward", "turn_left", "turn_right", "strafe_left", "strafe_right"]
logger.info(f"Episode {episode+1}, Step {step_count}: Taking action - {action_names[action]}")
state, reward, done, detection_results = env.step(action)
total_reward += reward
step_count += 1
if detection_results:
logger.info(f"Episode {episode+1}: Detected {len(detection_results)} instances of {target_description}")
if detection_results and env.last_center_distance < 50:
success = True
logger.info(f"Episode {episode+1}: 成功找到目标！")
result = {
'episode': episode + 1,
'steps': step_count,
'total_reward': total_reward,
'success': success
}
evaluation_results.append(result)
logger.info(f"Episode {episode+1} 完成 - Steps: {step_count}, Total Reward: {total_reward}, Success: {success}")
# 计算总体统计信息
successful_episodes = sum(1 for r in evaluation_results if r['success'])
avg_steps = np.mean([r['steps'] for r in evaluation_results])
avg_reward = np.mean([r['total_reward'] for r in evaluation_results])
stats = {
'total_episodes': episodes,
'successful_episodes': successful_episodes,
'success_rate': successful_episodes / episodes if episodes > 0 else 0,
'avg_steps': avg_steps,
'avg_reward': avg_reward,
'details': evaluation_results
}
logger.info(f"PPO评估完成 - 总体成功率: {stats['success_rate']*100:.2f}% ({successful_episodes}/{episodes})")
logger.info(f"平均步数: {avg_steps:.2f}, 平均奖励: {avg_reward:.2f}")
return stats
def load_and_test_ppo_agent(model_path="gate_search_ppo_model.pth", target_description="gate"):
"""
加载已训练的PPO模型并进行测试
"""
logger = logging.getLogger(__name__)
logger.info(f"加载PPO模型并测试: {model_path}")
# 定义动作维度
action_dim = 6
# 创建PPO智能体
ppo_agent = PPOAgent((3, 480, 640), action_dim)
# 加载已保存的模型
if os.path.exists(model_path):
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
ppo_agent.policy.load_state_dict(torch.load(model_path, map_location=device))
ppo_agent.policy.eval() # 设置为评估模式
logger.info(f"PPO模型已从 {model_path} 加载")
else:
logger.error(f"模型文件 {model_path} 不存在")
return {"status": "error", "message": f"模型文件 {model_path} 不存在"}
# 初始化环境
env = TargetSearchEnvironment(target_description)
state = env.reset()
memory = Memory() # 创建空的记忆对象，仅用于act函数
total_reward = 0
step_count = 0
done = False
logger.info("开始测试PPO智能体...")
while not done and step_count < 50:
action = ppo_agent.act(state, memory)
# 清空临时记忆中的数据，因为我们只是在评估
memory.clear_memory()
# 打印动作
action_names = ["forward", "backward", "turn_left", "turn_right", "strafe_left", "strafe_right"]
logger.info(f"Step {step_count}: Taking action - {action_names[action]}")
state, reward, done, detection_results = env.step(action)
total_reward += reward
step_count += 1
if detection_results:
logger.info(f"Detected {len(detection_results)} instances of {target_description}")
if done:
if detection_results and env.last_center_distance < 50:
logger.info("成功找到目标！")
return {"status": "success", "result": f"成功找到{target_description}！", "steps": step_count, "total_reward": total_reward}
else:
logger.info("未能找到目标")
return {"status": "partial_success", "result": f"未能找到{target_description}", "steps": step_count, "total_reward": total_reward}
result = {"status": "timeout", "result": f"测试完成但未找到目标 - Steps: {step_count}, Total Reward: {total_reward}"}
logger.info(result["result"])
return result
def find_gate_with_ppo(target_description="gate"):
"""
使用PPO算法寻找门（训练+测试流程）
"""
logger = logging.getLogger(__name__)
logger.info(f"开始训练并使用PPO寻找目标: {target_description}")
# 确保模型保存目录存在
model_path = "./model/gate_search_ppo_model.pth"
model_dir = os.path.dirname(model_path)
if model_dir and not os.path.exists(model_dir):
os.makedirs(model_dir)
logger.info(f"创建模型保存目录: {model_dir}")
# 训练PPO智能体
trained_agent = train_gate_search_ppo_agent(target_description=target_description, model_path=model_path)
# 初始化环境
env = TargetSearchEnvironment(target_description)
state = env.reset()
memory = Memory() # 创建空的记忆对象，仅用于act函数
total_reward = 0
step_count = 0
done = False
logger.info("开始测试PPO智能体...")
while not done and step_count < 50:
action = trained_agent.act(state, memory)
# 清空临时记忆中的数据，因为我们只是在评估
memory.clear_memory()
# 打印动作
action_names = ["forward", "backward", "turn_left", "turn_right", "strafe_left", "strafe_right"]
logger.info(f"Step {step_count}: Taking action - {action_names[action]}")
state, reward, done, detection_results = env.step(action)
total_reward += reward
step_count += 1
if detection_results:
logger.info(f"Detected {len(detection_results)} instances of {target_description}")
if done:
if detection_results and env.last_center_distance < 50:
logger.info("成功找到目标！")
return "成功找到目标！"
else:
logger.info("未能找到目标")
return "未能找到目标"
result = f"测试完成 - Steps: {step_count}, Total Reward: {total_reward}"
logger.info(result)
return result
def execute_ppo_tool(tool_name, *args):
"""
根据工具名称执行对应的PPO操作
Args:
tool_name (str): 工具名称
*args: 工具参数
Returns:
dict: API响应结果
"""
logger = logging.getLogger(__name__)
tool_functions = {
"find_gate_with_ppo": find_gate_with_ppo,
"train_gate_search_ppo_agent": train_gate_search_ppo_agent,
"evaluate_trained_ppo_agent": evaluate_trained_ppo_agent,
"load_and_test_ppo_agent": load_and_test_ppo_agent
}
if tool_name in tool_functions:
try:
# 特殊处理带参数的函数
if tool_name == "train_gate_search_ppo_agent":
episodes = int(args[0]) if args else 200
model_path = args[1] if len(args) > 1 else "gate_search_ppo_model.pth"
target_desc = args[2] if len(args) > 2 else "gate"
result = tool_functions[tool_name](episodes, model_path, target_desc)
elif tool_name == "evaluate_trained_ppo_agent":
model_path = args[0] if args else "gate_search_ppo_model.pth"
episodes = int(args[1]) if len(args) > 1 else 10
target_desc = args[2] if len(args) > 2 else "gate"
result = tool_functions[tool_name](model_path, episodes, target_desc)
elif tool_name == "load_and_test_ppo_agent":
model_path = args[0] if args else "gate_search_ppo_model.pth"
target_desc = args[1] if len(args) > 1 else "gate"
result = tool_functions[tool_name](model_path, target_desc)
elif tool_name == "find_gate_with_ppo":
target_desc = args[0] if args else "gate"
result = tool_functions[tool_name](target_desc)
else:
result = tool_functions[tool_name]()
logger.info(f"PPO工具执行成功: {tool_name}")
return {"status": "success", "result": str(result)}
except Exception as e:
logger.error(f"执行PPO工具时出错: {str(e)}")
import traceback
traceback.print_exc() # 添加详细的错误追踪
return {"status": "error", "message": f"执行PPO工具时出错: {str(e)}"}
else:
logger.error(f"错误: 未知的PPO工具 '{tool_name}'")
print(f"错误: 未知的PPO工具 '{tool_name}'")
return {"status": "error", "message": f"未知的PPO工具 '{tool_name}'"}
def main():
"""
主函数，用于直接运行此脚本
"""
# 设置日志
logger = setup_logging()
if len(sys.argv) < 2:
print("导入成功！")
print("\n可用的功能:")
print("1. 训练门搜索智能体: train_gate_search_ppo_agent")
print("2. 寻找门（包含训练）: find_gate_with_ppo")
print("3. 评估已训练模型: evaluate_trained_ppo_agent")
print("4. 加载并测试模型: load_and_test_ppo_agent")
# 首先执行完整的训练过程，将模型保存到model文件夹
print("\n=== 开始训练门搜索智能体 (20轮，模型将保存到model文件夹) ===")
result = execute_ppo_tool("train_gate_search_ppo_agent", "20", "./model/gate_search_ppo_model.pth", "gate")
print(f"\n训练结果: {result}")
print("\n=== 使用训练好的模型进行测试 ===")
test_result = execute_ppo_tool("load_and_test_ppo_agent", "./model/gate_search_ppo_model.pth", "gate")
print(f"\n测试结果: {test_result}")
return
tool_name = sys.argv[1]
args = sys.argv[2:]
# 执行对应的工具
response = execute_ppo_tool(tool_name, *args)
print(response)
if __name__ == "__main__":
main()不知道训练出来效果怎么样
