Spring Cloud Gateway 启动流程源码分析

以下分析以 spring-cloud-starter-gateway 4.1.0 源码为分析样本

配置和启动类

如果我们要使用 Spring Cloud Gateway，需要在pom里引入如下依赖：

		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-gateway</artifactId>
			<version>4.1.0</version>
		</dependency>

spring-cloud-starter-gateway里的依赖如下：

<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-gateway-server</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-webflux</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-loadbalancer</artifactId>
			<optional>true</optional>
		</dependency>
	</dependencies>

看上面引入了 spring-boot-starter-webflux，为后面分析做铺垫；

除了引入依赖，我们还需要有一个启动类，如下：

import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@Slf4j
@SpringBootApplication
public class XXGatewayApp {

    public static void main(String[] args) {
        SpringApplication.run(XXGatewayApp.class, args);
        log.info("XX网关启动成功！");
    }
}

启动 nettyserver

在主类启动后，是如何启动一个nettyserver的，我们来分析一下；跟踪启动类代码来到如下方法：

org.springframework.boot.SpringApplication#run(java.lang.String...)

public ConfigurableApplicationContext run(String... args) {
        Startup startup = SpringApplication.Startup.create();
        if (this.registerShutdownHook) {
            shutdownHook.enableShutdownHookAddition();
        }

        ... 省略代码...

        try {
            ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
            ConfigurableEnvironment environment = this.prepareEnvironment(listeners, bootstrapContext, applicationArguments);
            Banner printedBanner = this.printBanner(environment);
            // @A1 创建 ConfigurableApplicationContext
            context = this.createApplicationContext();
            context.setApplicationStartup(this.applicationStartup);
            this.prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
            // @A2 触发创建server
            this.refreshContext(context);

            ... 省略代码...
        } catch (Throwable ex) {
            if (ex instanceof AbandonedRunException) {
                throw ex;
            }
            this.handleRunFailure(context, ex, listeners);
            throw new IllegalStateException(ex);
        }
        try {
            if (context.isRunning()) {
                listeners.ready(context, startup.ready());
            }
            return context;
        } catch (Throwable ex) {
            if (ex instanceof AbandonedRunException) {
                throw ex;
            } else {
                this.handleRunFailure(context, ex, (SpringApplicationRunListeners)null);
                throw new IllegalStateException(ex);
            }
        }
    }

@A1：这个方法会执行以下逻辑

org.springframework.boot.WebApplicationType#deduceFromClasspath

计算web容器类型，而最上面的pom依赖引入了 spring-boot-starter-webflux

    static WebApplicationType deduceFromClasspath() {
        if (ClassUtils.isPresent("org.springframework.web.reactive.DispatcherHandler", (ClassLoader)null) && !ClassUtils.isPresent("org.springframework.web.servlet.DispatcherServlet", (ClassLoader)null) && !ClassUtils.isPresent("org.glassfish.jersey.servlet.ServletContainer", (ClassLoader)null)) {
            return REACTIVE;
        } else {
            for(String className : SERVLET_INDICATOR_CLASSES) {
                if (!ClassUtils.isPresent(className, (ClassLoader)null)) {
                    return NONE;
                }
            }
            return SERVLET;
        }
    }

上面代码根据类路径中加入的依赖，返回REACTIVE，最终返回 org.springframework.boot.web.reactive.context.AnnotationConfigReactiveWebServerApplicationContext 对象

创建websever

接上面 @A2方法，会触发AnnotationConfigReactiveWebServerApplicationContext如下调用：

注：AnnotationConfigReactiveWebServerApplicationContext父类是

ReactiveWebServerApplicationContext#createWebServer

    private void createWebServer() {
        WebServerManager serverManager = this.serverManager;
        if (serverManager == null) {
            StartupStep createWebServer = this.getApplicationStartup().start("spring.boot.webserver.create");
            String webServerFactoryBeanName = this.getWebServerFactoryBeanName();

//@B1 创建ReactiveWebServerFactory ，创建server的核心点
            ReactiveWebServerFactory webServerFactory = this.getWebServerFactory(webServerFactoryBeanName);
            createWebServer.tag("factory", webServerFactory.getClass().toString());
            boolean lazyInit = this.getBeanFactory().getBeanDefinition(webServerFactoryBeanName).isLazyInit();

//@B2 WebServerManager构造方法创建server
            this.serverManager = new WebServerManager(this, webServerFactory, this::getHttpHandler, lazyInit);
            this.getBeanFactory().registerSingleton("webServerGracefulShutdown", new WebServerGracefulShutdownLifecycle(this.serverManager.getWebServer()));

//@B3 很绝的方法
            this.getBeanFactory().registerSingleton("webServerStartStop", new WebServerStartStopLifecycle(this.serverManager));
            createWebServer.end();
        }
        this.initPropertySources();
    }

@B1 方法很绕，会从ReactiveWebServerFactoryConfiguration里去获得NettyReactiveWebServerFactory的bean定义，而这个bean定义依赖 ReactorResourceFactory ，代码如下：

        @Bean
        NettyReactiveWebServerFactory nettyReactiveWebServerFactory(ReactorResourceFactory resourceFactory, ObjectProvider<NettyRouteProvider> routes, ObjectProvider<NettyServerCustomizer> serverCustomizers) {
            NettyReactiveWebServerFactory serverFactory = new NettyReactiveWebServerFactory();
            serverFactory.setResourceFactory(resourceFactory);
            Stream var10000 = routes.orderedStream();
            Objects.requireNonNull(serverFactory);
            var10000.forEach((xva$0) -> serverFactory.addRouteProviders(new NettyRouteProvider[]{xva$0}));
            serverFactory.getServerCustomizers().addAll(serverCustomizers.orderedStream().toList());
            return serverFactory;
        }

也就是说在容器返回NettyReactiveWebServerFactory 对象前会把ReactorResourceFactory 对象初始化完毕；ReactorResourceFactory 这个类实现了InitializingBean，我们看看afterPropertiesSet方法初始化内容：

    public void start() {
        synchronized(this.lifecycleMonitor) {
            if (!this.isRunning()) {
                if (!this.useGlobalResources) {
                    if (this.loopResources == null) {
                        this.manageLoopResources = true;
                        this.loopResources = (LoopResources)this.loopResourcesSupplier.get();
                    }

                    if (this.connectionProvider == null) {
                        this.manageConnectionProvider = true;
                        this.connectionProvider = (ConnectionProvider)this.connectionProviderSupplier.get();
                    }
                } else {
                    Assert.isTrue(this.loopResources == null && this.connectionProvider == null, "'useGlobalResources' is mutually exclusive with explicitly configured resources");
// @C1
                    HttpResources httpResources = HttpResources.get();
                    if (this.globalResourcesConsumer != null) {
                        this.globalResourcesConsumer.accept(httpResources);
                    }

                    this.connectionProvider = httpResources;
                    this.loopResources = httpResources;
                }

                this.running = true;
            }

        }
    }

@C1方法最终执行的是 reactor.netty.resources.LoopResources#create(java.lang.String)

    static LoopResources create(String prefix) {
        if (((String)Objects.requireNonNull(prefix, "prefix")).isEmpty()) {
            throw new IllegalArgumentException("Cannot use empty prefix");
        } else {
            return new DefaultLoopResources(prefix, DEFAULT_IO_SELECT_COUNT, DEFAULT_IO_WORKER_COUNT, true);
        }
    }

是不是很熟悉了，是创建的reactor.netty.resources.DefaultLoopResources 对象

todo~~

@B2 方法会调用到如下方法：

org.springframework.boot.web.embedded.netty.NettyReactiveWebServerFactory#getWebServer

    public WebServer getWebServer(HttpHandler httpHandler) {
// @D1 创建 HttpServer
        HttpServer httpServer = this.createHttpServer();
        ReactorHttpHandlerAdapter handlerAdapter = new ReactorHttpHandlerAdapter(httpHandler);
        NettyWebServer webServer = this.createNettyWebServer(httpServer, handlerAdapter, this.lifecycleTimeout, this.getShutdown());
        webServer.setRouteProviders(this.routeProviders);
        return webServer;
    }

@D1 方法会执行到如下方法： org.springframework.boot.web.embedded.netty.NettyReactiveWebServerFactory#createHttpServer

    private HttpServer createHttpServer() {
        HttpServer server = HttpServer.create().bindAddress(this::getListenAddress);
        if (Ssl.isEnabled(this.getSsl())) {
            server = this.customizeSslConfiguration(server);
        }

        if (this.getCompression() != null && this.getCompression().getEnabled()) {
            CompressionCustomizer compressionCustomizer = new CompressionCustomizer(this.getCompression());
            server = compressionCustomizer.apply(server);
        }

        server = server.protocol(this.listProtocols()).forwarded(this.useForwardHeaders);
        return this.applyCustomizers(server);
    }

继续分析上面：@B3
这个地方太绝了，向容器中注入了一个 WebServerStartStopLifecycle，这种类型的类会被框架中触发start方法，触发一些列的start方法，最终执行的是 reactor.netty.http.server.HttpServerBind父类 ----> HttpServer 父类 -----> reactor.netty.transport.ServerTransport的 bindNow方法 ----> bind方法。

重要方法 reactor.netty.transport.ServerTransport#bind

    public Mono<? extends DisposableServer> bind() {
        CONF config = (CONF)(this.configuration());
        Objects.requireNonNull(config.bindAddress(), "bindAddress");
        Mono<? extends DisposableServer> mono = Mono.create((sink) -> {
            SocketAddress local = (SocketAddress)Objects.requireNonNull((SocketAddress)config.bindAddress().get(), "Bind Address supplier returned null");
            if (local instanceof InetSocketAddress) {
                InetSocketAddress localInet = (InetSocketAddress)local;
                if (localInet.isUnresolved()) {
                    local = AddressUtils.createResolved(localInet.getHostName(), localInet.getPort());
                }
            }
            boolean isDomainSocket = false;
            DisposableBind disposableServer;
            if (local instanceof DomainSocketAddress) {
                isDomainSocket = true;
                disposableServer = new UdsDisposableBind(sink, config, local);
            } else {
                disposableServer = new InetDisposableBind(sink, config, local);
            }
            ConnectionObserver childObs = new ChildObserver(config.defaultChildObserver().then(config.childObserver()));
// @E1
            Acceptor acceptor = new Acceptor(config.childEventLoopGroup(), config.channelInitializer(childObs, (SocketAddress)null, true), config.childOptions, config.childAttrs, isDomainSocket);
// @E2
            TransportConnector.bind(config, new AcceptorInitializer(acceptor), local, isDomainSocket).subscribe(disposableServer);
        });
        if (config.doOnBind() != null) {
            mono = mono.doOnSubscribe((s) -> config.doOnBind().accept(config));
        }
        return mono;
    }

@E1：最终调用 reactor.netty.resources.DefaultLoopResources#cacheNioServerLoops 获得work线程池

@E2：最终调用 reactor.netty.resources.DefaultLoopResources#cacheNioSelectLoops 获得boss线程池

问题来了：看reactor.netty.resources.LoopResources源码，如果系统参数里没有配置reactor.netty.ioSelectCount，则boss线程会和work线程池的AtomicReference在cacheNioSelectLoops 方法中返回同一对象；这是不是会造成线程池共用？

可以参看 https://blog.csdn.net/qq_42651904/article/details/134561804 这篇文章理解；

那么你们生产环境会单独设置 reactor.netty.ioSelectCount 参数吗？

jvisualvm监控验证

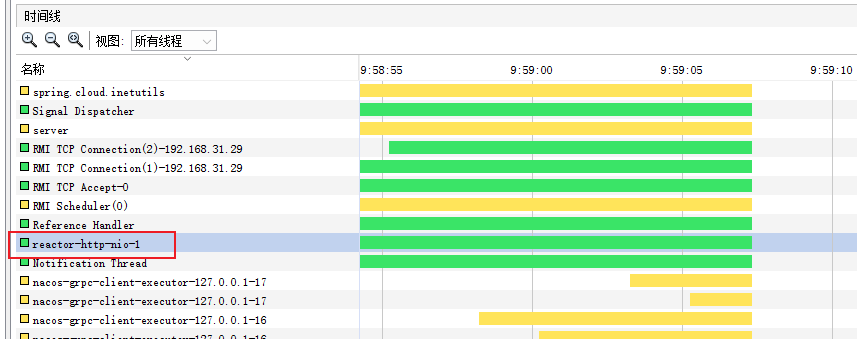

• 如果不设置reactor.netty.ioSelectCount 这个启动参数，通过监控网关启动后线程名称是 reactor-http-nio-xx

• 如果在启动的时候设置这个参数为1，启动的线程不一样 reactor-http-select-xx

    public static void main(String[] args) {
        System.setProperty("reactor.netty.ioSelectCount", "1");
        SpringApplication.run(XXXGatewayApp.class, args);
        log.info("XXX网关启动成功！");
    }

设想一下，如果代码写得不好在GlobalFilter有阻塞写法，比如数据查询、redis查询，加上高并发请求，那么是不是会影响boss线程"接客"？

后面再通过压测的方式论证一下。
