nl2sql技术实现自动sql生成之langchain4j SqlDatabaseContentRetriever

一、前言

在上一节nl2sql技术实现自动sql生成之Spring AI Alibaba Nl2sql已经通过spring ai alibaba的技术栈实现了一个简单的nl2sql的组件，下面我将通过langchain4j ai开发框架实现chatbi的功能（既能生成sql，并且基于sql去查询对应库查出结果，由大模型基于问题和查询结果生成最终回答）。

二、环境要求

jdk:17+

langchain4j：1.10.0

h2：2.3+

三、maven依赖

<dependency>

<groupId>dev.langchain4j</groupId>

<artifactId>langchain4j</artifactId>

<version>1.10.0</version>

</dependency>

<dependency>

<groupId>dev.langchain4j</groupId>

<artifactId>langchain4j-community-dashscope</artifactId>

<version>1.10.0-beta18</version>

</dependency>

<dependency>

<groupId>dev.langchain4j</groupId>

<artifactId>langchain4j-experimental-sql</artifactId>

<version>1.10.0-beta18</version>

</dependency>

<dependency>

<groupId>com.h2database</groupId>

<artifactId>h2</artifactId>

<version>2.3.232</version>

</dependency>

说明：

1）langchain4j：langchain核心组件

2）langchain4j-community-dashscope：langchain4j集成dashscope相关模型api

3）langchain4j-experimental-sql：构建表结构和根据用户问题生成sql并执行，得出结果提供给大模型

四、具体实现思路

1、测试数据准备

需要准备2个文件，在resources目录下建立一个sql文件夹，并将文件create_tables.sql和prefill_tables.sql至于该文件中。

1）文件1：create_tables.sql

复制代码

CREATE TABLE customers
(
    customer_id INT PRIMARY KEY,
    first_name  VARCHAR(50),
    last_name   VARCHAR(50),
    email       VARCHAR(100)
);

CREATE TABLE products
(
    product_id   INT PRIMARY KEY,
    product_name VARCHAR(100),
    price        DECIMAL(10, 2)
);

CREATE TABLE orders
(
    order_id    INT PRIMARY KEY,
    customer_id INT,
    product_id  INT,
    quantity    INT,
    order_date  DATE,
    FOREIGN KEY (customer_id) REFERENCES customers (customer_id),
    FOREIGN KEY (product_id) REFERENCES products (product_id)
);

2）文件2：prefill_tables.sql

INSERT INTO customers (customer_id, first_name, last_name, email) VALUES (1, 'John', 'Doe', 'john.doe@example.com'), (2, 'Jane', 'Smith', 'jane.smith@example.com'), (3, 'Alice', 'Johnson', 'alice.johnson@example.com'), (4, 'Bob', 'Williams', 'bob.williams@example.com'), (5, 'Carol', 'Brown', 'carol.brown@example.com'); INSERT INTO products (product_id, product_name, price) VALUES (10, 'Notebook', 12.99), (20, 'Pen', 1.50), (30, 'Desk Lamp', 23.99), (40, 'Backpack', 49.99), (50, 'Stapler', 7.99); INSERT INTO orders (order_id, customer_id, product_id, quantity, order_date) VALUES (100, 1, 10, 2, '2024-04-20'), (200, 2, 20, 5, '2024-04-21'), (300, 3, 10, 1, '2024-04-22'), (400, 4, 30, 1, '2024-04-23'), (500, 5, 40, 1, '2024-04-24'), (600, 1, 50, 3, '2024-04-25'), (700, 2, 10, 2, '2024-04-26'), (800, 3, 40, 1, '2024-04-27'), (900, 4, 20, 10, '2024-04-28'), (10000, 5, 30, 2, '2024-04-29');

2、代码实现

2.1、创建H2数据源，并执行上面那2个文件中的sql，初始化数据

java 复制代码

    private static DataSource createDataSource() {

        JdbcDataSource dataSource = new JdbcDataSource();
        dataSource.setURL("jdbc:h2:mem:test;DB_CLOSE_DELAY=-1");
        dataSource.setUser("sa");
        dataSource.setPassword("sa");

        String createTablesScript = read("sql/create_tables.sql");
        execute(createTablesScript, dataSource);

        String prefillTablesScript = read("sql/prefill_tables.sql");
        execute(prefillTablesScript, dataSource);

        return dataSource;
    }

    private static String read(String path) {
        try {
            return new String(Files.readAllBytes(toPath(path)));
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }

    private static void execute(String sql, DataSource dataSource) {
        try (Connection connection = dataSource.getConnection(); Statement statement = connection.createStatement()) {
            for (String sqlStatement : sql.split(";")) {
                statement.execute(sqlStatement.trim());
            }
        } catch (SQLException e) {
            throw new RuntimeException(e);
        }
    }

2.2、创建一个nl2sql的ai助手，使用阿里通义千问作为大模型进行内容生成，通过SqlDatabaseContentRetriever连接数据库，根据用户问题生成sql并执行sql，大模型根据返回结果生成内容。

java 复制代码

    private static Assistant createAssistant() {

        DataSource dataSource = createDataSource();

        ChatModel chatModel = QwenChatModel.builder()
                .apiKey("your-api-key")
                .modelName("qwen-flash")
                .build();

        ContentRetriever contentRetriever = SqlDatabaseContentRetriever.builder()
                .dataSource(dataSource)
                .chatModel(chatModel)
                .build();

        return AiServices.builder(Assistant.class)
                .chatModel(chatModel)
                .contentRetriever(contentRetriever)
                .chatMemory(MessageWindowChatMemory.withMaxMessages(10))
                .build();
    }

2.3、写一个main程序测试程序

java 复制代码

    public static void main(String[] args) {

        Assistant assistant = createAssistant();
        startConversationWith(assistant);
    }

    public static void startConversationWith(Assistant assistant) {
        Logger log = LoggerFactory.getLogger(Assistant.class);
        try (Scanner scanner = new Scanner(System.in)) {
            while (true) {
                log.info("==================================================");
                log.info("User: ");
                String userQuery = scanner.nextLine();
                log.info("==================================================");

                if ("exit".equalsIgnoreCase(userQuery)) {
                    break;
                }

                String agentAnswer = assistant.answer(userQuery);
                log.info("==================================================");
                log.info("Assistant: " + agentAnswer);
            }
        }
    }

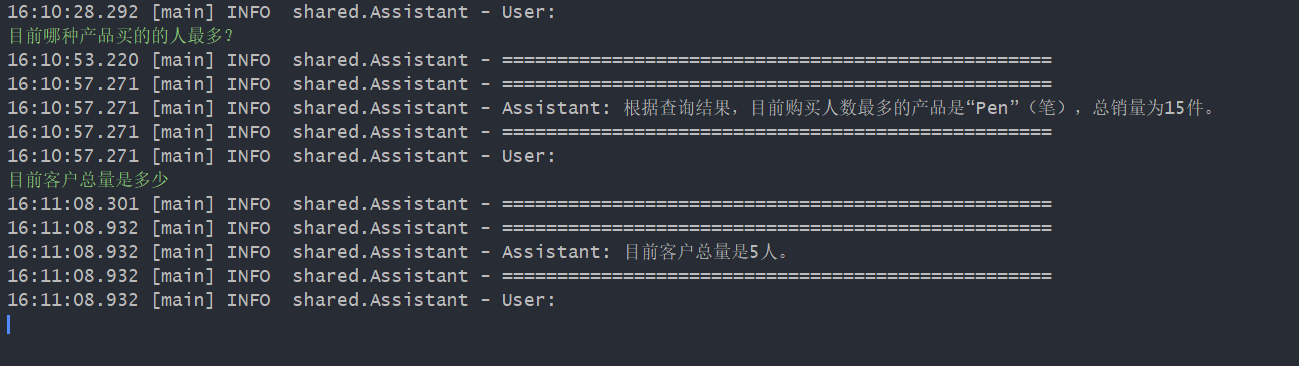

测试验证结果截图如下：
