LVS企业实战

FJW0208142026-01-21 11:35

NAT模式

环境设置

网络配置

LVS主机

bash 复制代码
#自制脚本设置网络与域名
[root@vsnode ~]# vmset.sh eth0 172.25.254.100 vsnode

#开启内核路由功能
[root@vsnode ~]# sysctl -a | grep ip_forward
net.ipv4.ip_forward = 0
net.ipv4.ip_forward_update_priority = 1
net.ipv4.ip_forward_use_pmtu = 0
[root@vsnode ~]# echo net.ipv4.ip_forward = 1 >> /etc/sysctl.conf
[root@vsnode ~]# sysctl -p
net.ipv4.ip_forward = 1

RS1

bash 复制代码
[root@RS1 ~]# vmset.sh eth0 192.168.0.10 RS1
[root@RS1 ~]# nmcli connection modify eth0 ipv4.gateway 192.168.0.100
[root@RS1 ~]# nmcli connection reload
[root@RS1 ~]# nmcli connection up eth0

RS2

bash 复制代码
[root@RS2 ~]# vmset.sh eth0 192.168.0.20 RS2
[root@RS2 ~]# nmcli connection modify eth0 ipv4.gateway 192.168.0.100
[root@RS2 ~]# nmcli connection reload
[root@RS2 ~]# nmcli connection up eth0

RS部署业务

bash 复制代码
[root@RS1 ~]# dnf install httpd -y
[root@RS1 ~]# echo RS1 - 192.168.0.10 > /var/www/html/index.html
[root@RS1 ~]# systemctl enable --now httpd

#测试
[root@RS1 ~]# curl 192.168.0.10
RS1 - 192.168.0.10

[root@RS2 ~]# dnf install httpd -y
[root@RS2 ~]# echo RS2 - 192.168.0.20 > /var/www/html/index.html
[root@RS2 ~]# systemctl enable --now httpd

#测试
[root@RS2 ~]# curl 192.168.0.20
RS2 - 192.168.0.20

部署LVS

安装LVS

bash 复制代码
[root@vsnode ~]# dnf install ipvsadm -y

添加规则

bash 复制代码
[root@vsnode ~]# ipvsadm -A -t 172.25.254.100:80 -s rr
[root@vsnode ~]# ipvsadm -E -t 172.25.254.100:80 -s wrr
#-m 是nat模式
[root@vsnode ~]# ipvsadm -a -t 172.25.254.100:80 -r 192.168.0.10:80 -m -w 1
[root@vsnode ~]# ipvsadm -a -t 172.25.254.100:80 -r 192.168.0.20:80 -m -w 1

[root@vsnode ~]# for i in {1..10};do curl 172.25.254.100;done
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS2 - 192.168.0.20
RS1 - 192.168.0.10

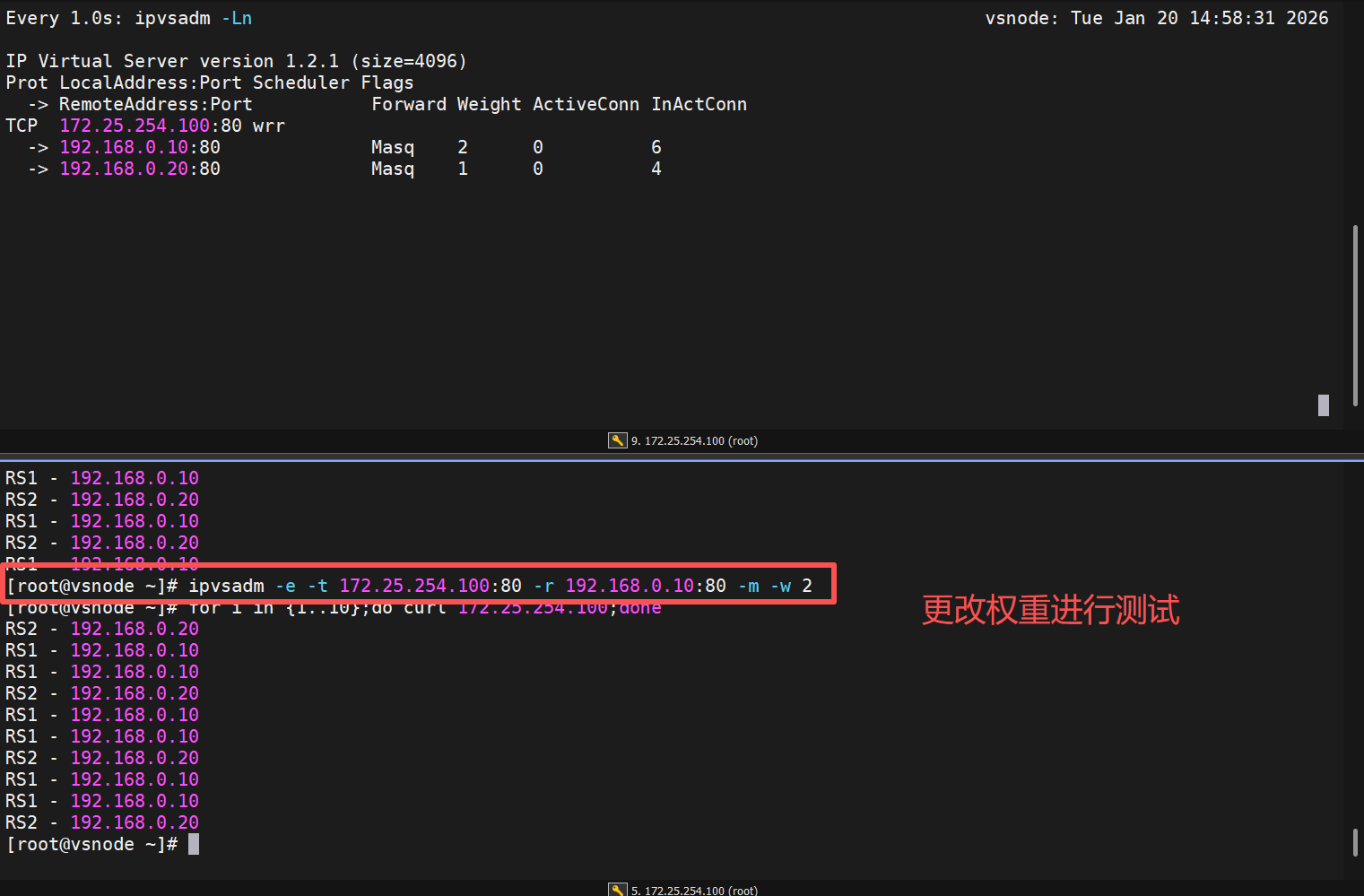

[root@vsnode ~]# ipvsadm -e -t 172.25.254.100:80 -r 192.168.0.10:80 -m -w 2
[root@vsnode ~]# for i in {1..10};do curl 172.25.254.100;done
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS1 - 192.168.0.10
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS1 - 192.168.0.10
RS2 - 192.168.0.20
RS1 - 192.168.0.10
RS1 - 192.168.0.10
RS2 - 192.168.0.20

规则持久化

将规则保存在自定义的文件中

bash 复制代码

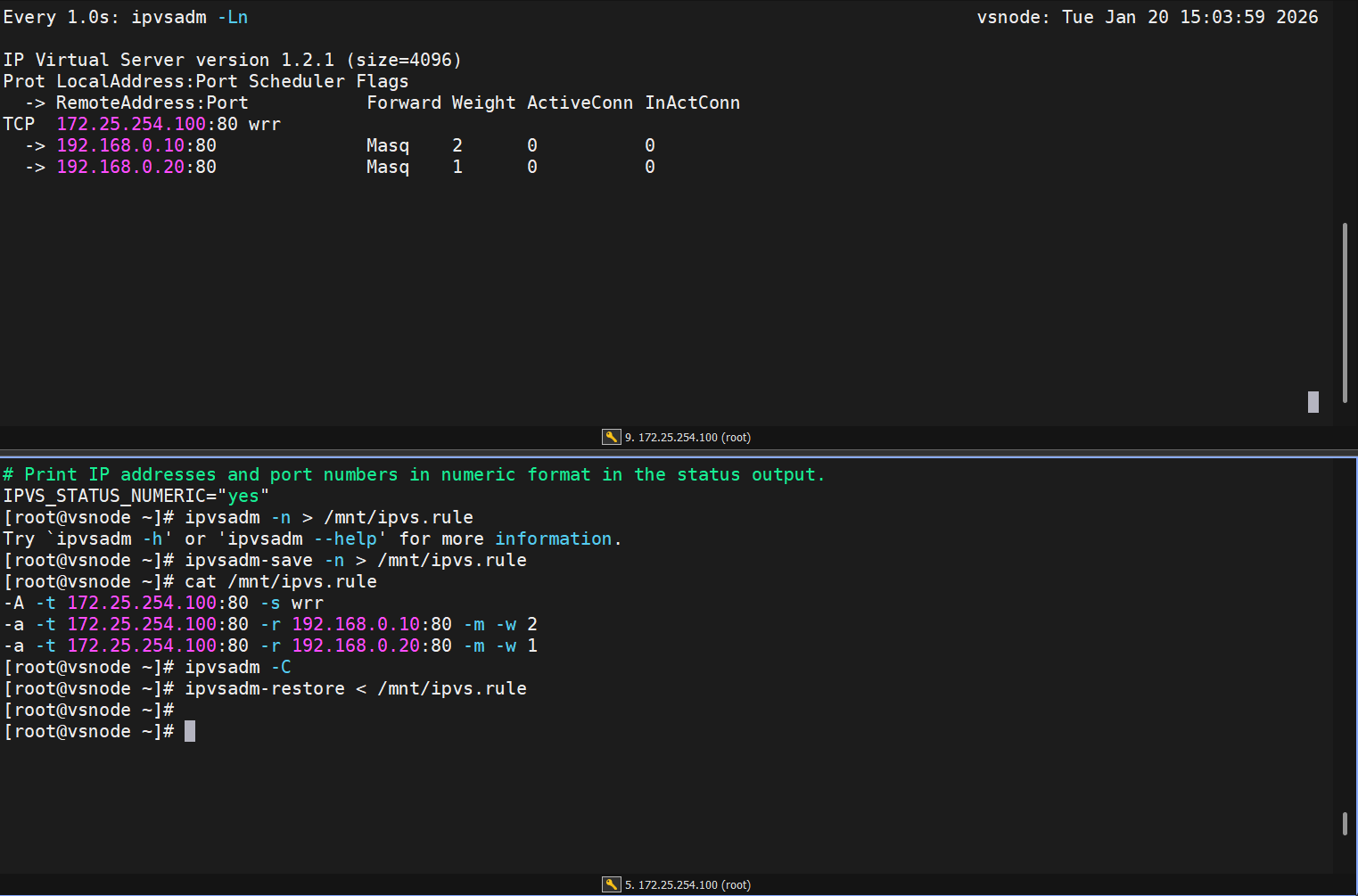

[root@vsnode ~]# ipvsadm-save -n > /mnt/ipvs.rule
[root@vsnode ~]# cat /mnt/ipvs.rule
-A -t 172.25.254.100:80 -s wrr
-a -t 172.25.254.100:80 -r 192.168.0.10:80 -m -w 2
-a -t 172.25.254.100:80 -r 192.168.0.20:80 -m -w 1
[root@vsnode ~]# ipvsadm -C		#清空规则
[root@vsnode ~]# ipvsadm-restore < /mnt/ipvs.rule	#从文件中重载规则

#可以再开启一个shell使用watch命令来监控更直观查看效果
[root@vsnode ~]# watch -n1 "ipvsadm -Ln"

利用守护进程进行规则持久化

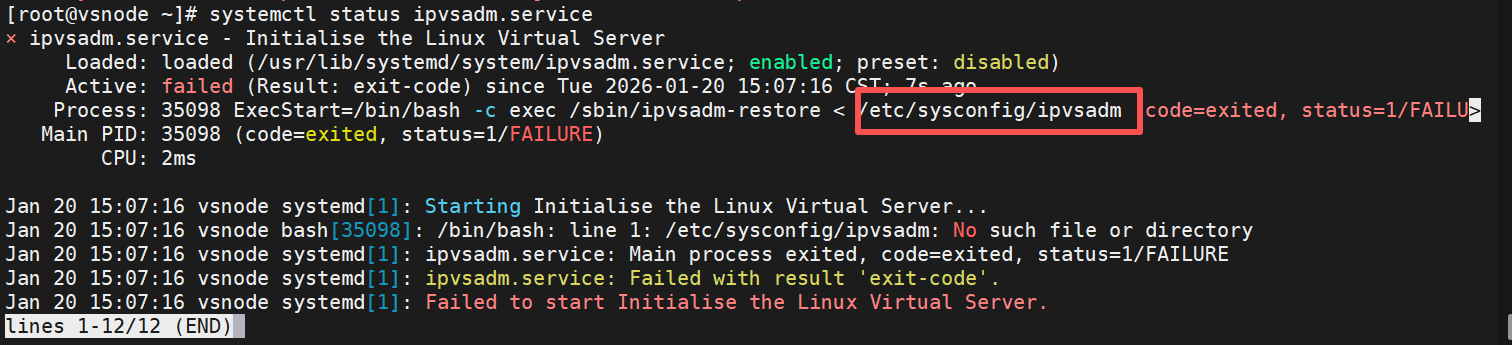

要想规则重启后还要存在不手动导入，就需要将规则保存在/etc/sysconfig/ipvsadm

bash 复制代码
[root@vsnode ~]# ipvsadm-save -n > /etc/sysconfig/ipvsadm
[root@vsnode ~]# ipvsadm -C
[root@vsnode ~]# systemctl enable --now ipvsadm
#开启守护进程后重启后会根据/etc/sysconfig/ipvsadm的规则自动导入

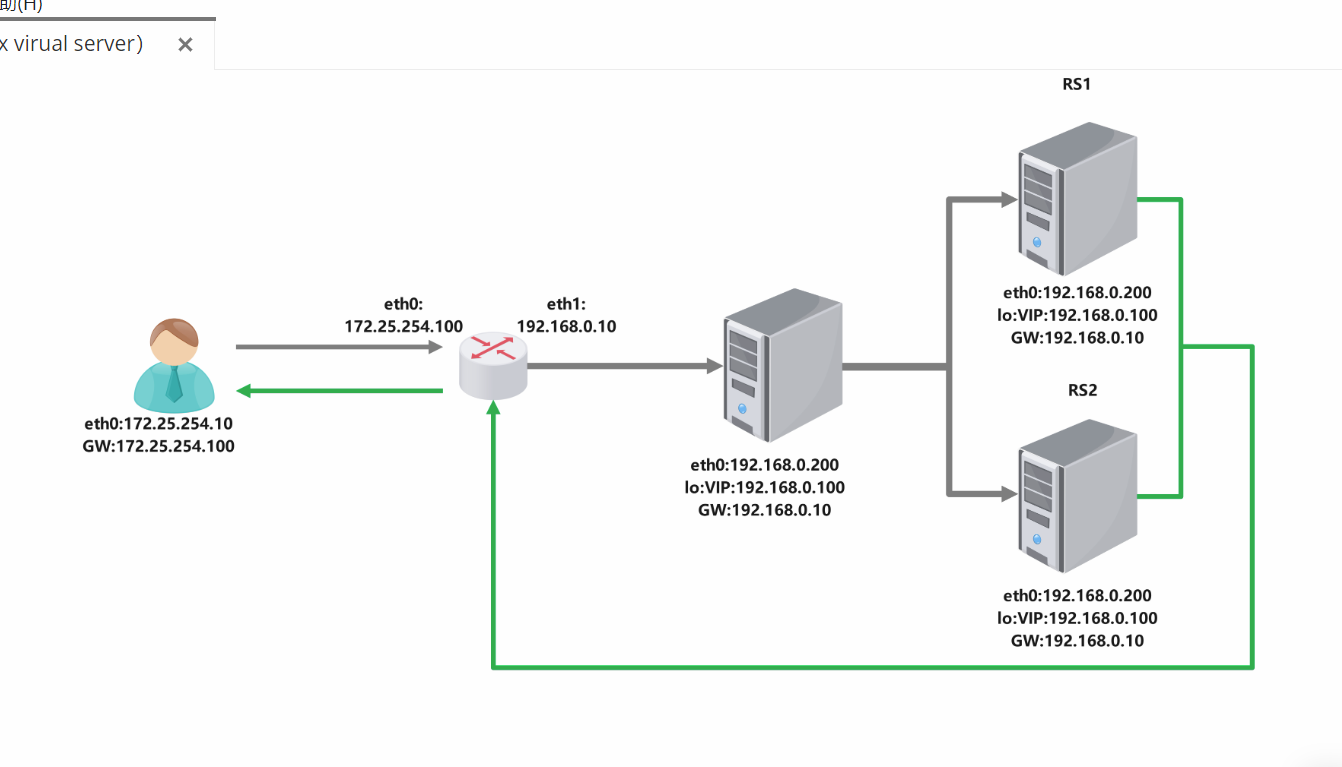

DR模式

环境设置与部署

bash 复制代码
#在路由器中
[root@router ~]# systemctl disable --now ipvsadm.service
Removed "/etc/systemd/system/multi-user.target.wants/ipvsadm.service".
[root@router ~]# ipvsadm -C

#在路由器中
[root@router ~]# vmset.sh eth0 172.25.254.100 vsnode
[root@router ~]# vmset.sh eth1 192.168.0.100 vsnode noroute、

#设定内核路由功能
[root@router ~]# echo net.ipv4.ip_forward=1 >> /etc/sysctl.conf
[root@router ~]# sysctl  -p
net.ipv4.ip_forward = 1

#数据转发策略
[root@router ~]# iptables -t nat -A POSTROUTING -o eth1 -j SNAT --to-source 192.168.0.100
[root@vsnode ~]# iptables -t nat -A POSTROUTING -o eth0 -j SNAT --to-source 172.25.254.100
复制代码
#vsnode 调度器
[root@vsnode ~]# vmset.sh  eth0 192.168.0.200 vsnode noroute
[root@vsnode ~]# vim /etc/NetworkManager/system-connections/eth0.nmconnection
[connection]
id=eth0
type=ethernet
interface-name=eth0


[ipv4]
method=manual
address1=192.168.0.200/24,192.168.0.100
address2=192.168.0.50/24

#检测
root@vsnode system-connections]# route  -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.100   0.0.0.0         UG    100    0        0 eth0
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eth0
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eth0
[root@vsnode system-connections]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:41:e5:8b brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    altname ens160
    inet 192.168.0.200/24 brd 192.168.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet 192.168.0.50/24 brd 192.168.0.255 scope global secondary noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::e40:8975:6b9:fea8/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
bash 复制代码
#客户端
[root@client ~]# vmset.sh  eth0 172.25.254.99 client
连接已成功激活（D-Bus 活动路径：/org/freedesktop/NetworkManager/ActiveConnection/4）
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:e5:75:af brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    altname ens160
    inet 172.25.254.99/24 brd 172.25.254.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fee5:75af/64 scope link tentative noprefixroute
       valid_lft forever preferred_lft forever
client


#检测
[root@client ~]# ping 192.168.0.200
PING 192.168.0.200 (192.168.0.200) 56(84) 比特的数据。
64 比特，来自 192.168.0.200: icmp_seq=1 ttl=128 时间=1.08 毫秒
bash 复制代码
#RS1
[root@RS1 ~]# vmset.sh eth0 192.168.0.10 RS1 noroute
[root@RS1 ~]# nmcli connection modify eth0 ipv4.gateway 192.168.0.100
[root@RS1 ~]# nmcli connection reload
[root@RS1 ~]# nmcli connection up eth0
[root@RS1 ~]# route  -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.100   0.0.0.0         UG    100    0        0 eth0
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eth0

#在lo上设定vip
[root@RS1 ~]# cd /etc/NetworkManager/system-connections/
[root@RS1 system-connections]# cp -p eth0.nmconnection lo.nmconnection
[root@RS1 system-connections]# vim lo.nmconnection
[connection]
id=lo
type=loopback
interface-name=lo

[ethernet]

[ipv4]
address1=127.0.0.1/8
address2=192.168.0.200/32
method=manual

[root@RS1 system-connections]# nmcli connection reload
[root@RS1 system-connections]# nmcli connection up lo
连接已成功激活（D-Bus 活动路径：/org/freedesktop/NetworkManager/ActiveConnection/6）
[root@RS1 system-connections]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet 192.168.0.200/32 scope global lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever

 #arp禁止响应
[root@rs1 ~]# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@rs1 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@rs1 ~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
[root@rs1 ~]# echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
bash 复制代码
#RS2
[root@RS2 ~]# vmset.sh eth0 192.168.0.20 RS2 noroute
[root@RS2 ~]# nmcli connection modify eth0 ipv4.gateway 192.168.0.100
[root@RS2 ~]# nmcli connection reload
[root@RS2 ~]# nmcli connection up eth0
[root@RS2 ~]# route  -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.100   0.0.0.0         UG    100    0        0 eth0
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eth0

#在lo上设定vip
[root@RS2 ~]# cd /etc/NetworkManager/system-connections/
[root@RS2 system-connections]# cp -p eth0.nmconnection lo.nmconnection
[root@RS2 system-connections]# vim lo.nmconnection
[connection]
id=lo
type=loopback
interface-name=lo

[ethernet]

[ipv4]
address1=127.0.0.1/8
address2=192.168.0.200/32
method=manual

[root@RS2 system-connections]# nmcli connection reload
[root@RS2 system-connections]# nmcli connection up lo
连接已成功激活（D-Bus 活动路径：/org/freedesktop/NetworkManager/ActiveConnection/6）
[root@RS2 system-connections]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet 192.168.0.200/32 scope global lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever

#arp禁止响应
[root@rs2 ~]# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@rs2 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@rs2 ~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
[root@rs2 ~]# echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
