从“可用”到“好用”：金仓时序数据库开发者体验深度测评与二次开发生态搭建指南

1 、引言：开发者需要怎样的时序数据库？

在物联网、工业互联网和智能运维领域，数据洪流已成为常态。作为一名长期奋战在一线的技术开发者，我亲历了从早期用关系型数据库硬扛时序数据，到尝试各类专用时序数据库的完整周期。每当开启新项目，面对时序数据库选型时，几个核心痛点总是反复浮现：

学习成本：是否需要为团队引入一门新的查询语言（如InfluxQL或Flux）？现有开发人员能否快速上手？

系统集成：时序数据库如何与现有的业务系统、监控告警、数据中台顺畅对接？是否需要为数据同步和转换编写大量胶水代码？

运维复杂度：企业是否要为时序数据单独维护一套新的基础设施？增加了多少运维负担？

长期成本：当业务需要跨时序、关系和空间数据关联分析时，是选择性能折衷还是架构复杂化？

这些痛点背后，是开发者对数据库产品从单纯"技术可用"到"开发好用"的深切期待。正是在这样的背景下，金仓时序数据库进入了我们的视野，它提出的"多模融合"理念，似乎直指这些痛点。本文将从一个资深开发者的实战视角出发，深入测评金仓时序数据库到底能否兑现"好用"的承诺，并手把手展示如何围绕它构建高效的二次开发生态。

2、市场格局下的开发者选择困境

2.1 主流方案的"体验短板"

当前的时序数据库市场看似繁荣，但深入使用后，开发者会发现每种方案都有其明显的"体验短板"：

开源方案的"专业墙"：以InfluxDB为代表的专业时序数据库，其专用查询语言和存储模型虽然为时序场景高度优化，但也筑起了一道专业壁垒。团队需要专门培养或招聘熟悉该技术栈的人员，当需要与业务系统深度集成时，常常需要复杂的应用层转换逻辑。

云原生方案的"锁定风险"：各大云厂商推出的时序数据库服务虽然开箱即用，但深度绑定特定云生态。一旦业务需要多云或混合云部署，迁移成本和架构复杂度急剧上升。

传统扩展方案的"性能焦虑"：基于PostgreSQL等关系数据库的时序扩展（如TimescaleDB），虽然提供了熟悉的SQL接口，但在超大规模（千万级设备、万亿级数据点）场景下，开发者常常需要面对复杂的性能调优挑战。

2.2 金仓的差异化定位：为开发者减负

金仓时序数据库的核心理念是"不增加开发者额外负担"，这一理念体现在三个层面：

技术栈统一：基于成熟的KingbaseES内核，提供完全兼容的标准SQL接口。这意味着开发团队无需学习新语言，可以复用现有的SQL技能、工具链（如SQL客户端、ORM框架）和开发模式。

架构简化："多模融合"设计允许在同一数据库中直接处理时序、关系和空间数据。开发者不再需要为不同类型的数据维护多套系统，也避免了复杂的数据同步和一致性保障问题。

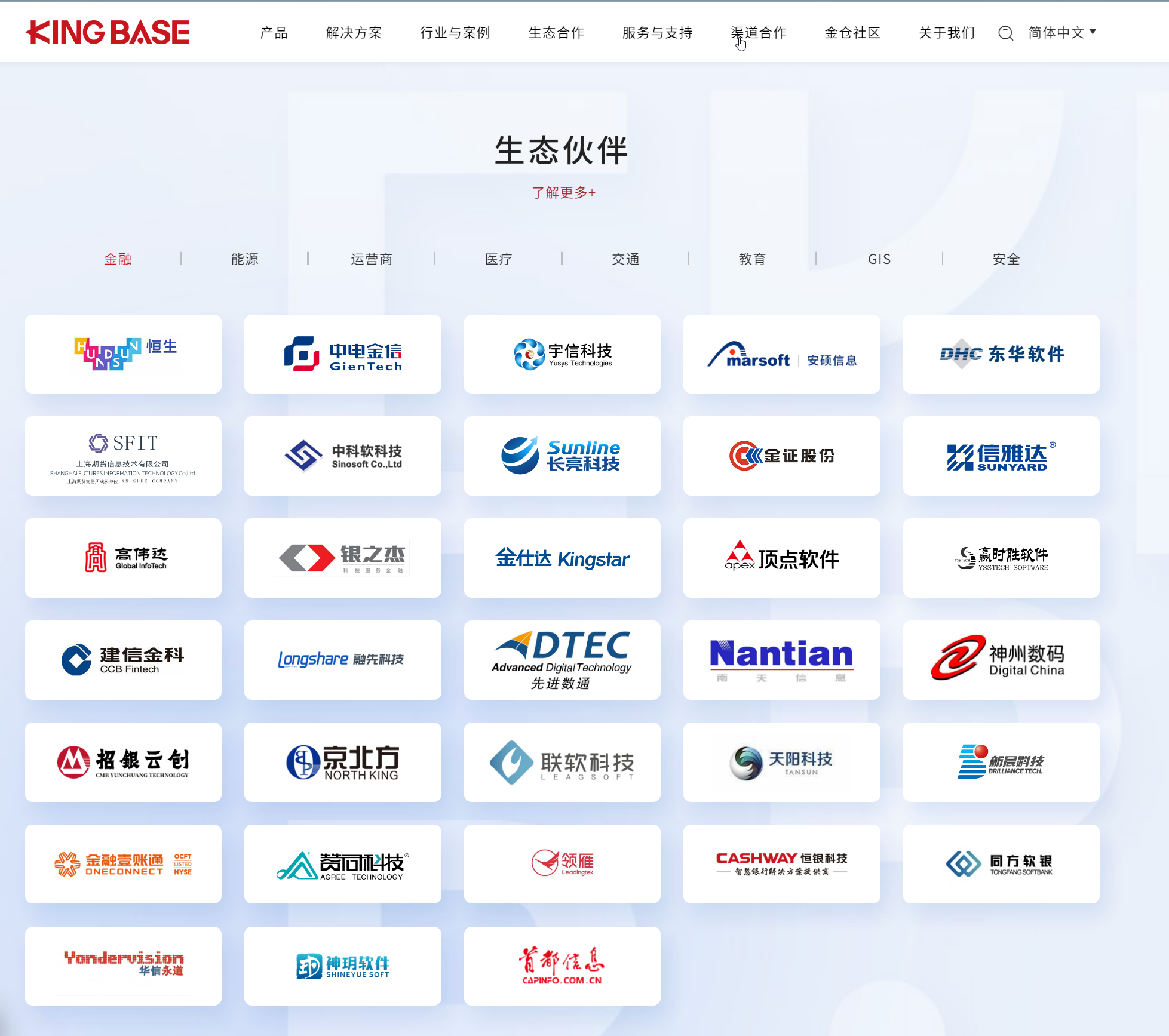

生态开放：提供标准的JDBC/ODBC接口、丰富的API和扩展机制，能与企业现有技术栈无缝集成。无论是传统的Java EE应用，还是现代的微服务和云原生架构，都能找到合适的集成路径。

3 、核心功能体验深度对比

3.1 写操作体验：从简单插入到高性能批处理

对于时序场景，高效的写入是基础。金仓提供了从简单到高级的多层次写入接口，满足不同场景需求。

基础写入：极简的SQL体验

复制代码

-- 最基本的单条插入，与任何关系型数据库无异
INSERT INTO sensor_data (ts, device_id, temperature, humidity)
VALUES ('2026-01-20 10:00:00', 'device_001', 23.5, 65.2);

-- 使用COPY命令进行批量高速导入，这是处理海量时序数据的推荐方式
COPY sensor_data (ts, device_id, temperature, humidity)
FROM STDIN WITH (FORMAT binary);
-- 随后通过标准输入流发送二进制数据块

实战技巧：智能批量提交

在实际开发中，我们经常需要从消息队列或数据管道中持续写入数据。以下是一个兼顾性能和可靠性的实用模式：

复制代码

class SmartBatchInserter:
    def __init__(self, connection_params, table_name, max_batch_size=5000, max_wait_seconds=1):
        self.conn = psycopg2.connect(**connection_params)
        self.table_name = table_name
        self.batch = []
        self.batch_size = 0
        self.max_batch_size = max_batch_size
        self.max_wait_seconds = max_wait_seconds
        self.last_flush = time.time()

    def add_data_point(self, ts, device_id, **metrics):
        """添加一个数据点"""
        # 构建插入值
        values = [ts, device_id]
        placeholders = ['%s', '%s']
        metric_names = []
        metric_values = []

        for name, value in metrics.items():
            metric_names.append(name)
            metric_values.append(value)
            placeholders.append('%s')

        self.batch.append((values + metric_values, metric_names))
        self.batch_size += 1

        # 触发批量写入的条件：达到批量大小或超时
        if (self.batch_size >= self.max_batch_size or
            time.time() - self.last_flush >= self.max_wait_seconds):
            self.flush()

    def flush(self):
        """执行批量写入"""
        if not self.batch:
            return

        try:
            # 动态构建INSERT语句，适应不同的指标组合
            # 这是金仓SQL灵活性的体现
            sample_values, sample_metrics = self.batch[0]
            columns = ['ts', 'device_id'] + sample_metrics
            col_list = ', '.join(columns)
            placeholders = ', '.join(['%s'] * len(columns))

            sql = f"INSERT INTO {self.table_name} ({col_list}) VALUES ({placeholders})"

            with self.conn.cursor() as cursor:
                # 提取所有值
                all_values = [values for values, _ in self.batch]
                cursor.executemany(sql, all_values)

            self.conn.commit()

            # 重置状态
            self.batch.clear()
            self.batch_size = 0
            self.last_flush = time.time()

            print(f"批量写入 {len(all_values)} 条记录成功")

        except Exception as e:
            self.conn.rollback()
            print(f"批量写入失败: {e}")
            # 在实际应用中，这里应该实现重试或死信队列机制

    def __del__(self):
        """析构时确保所有数据都被写入"""
        if self.batch:
            self.flush()
        if self.conn:
            self.conn.close()

# 使用示例
inserter = SmartBatchInserter(
    connection_params={'host':'localhost', 'database':'timeseries', 'user':'dev'},
    table_name='sensor_data',
    max_batch_size=2000
)

# 模拟持续数据流
for i in range(10000):
    ts = datetime.now() - timedelta(seconds=random.randint(0, 3600))
    device_id = f"device_{random.randint(1, 100)}"

    # 不同的设备可能有不同的指标集
    if device_id.startswith('device_temp'):
        metrics = {'temperature': random.uniform(15.0, 35.0)}
    else:
        metrics = {
            'temperature': random.uniform(15.0, 35.0),
            'humidity': random.uniform(30.0, 90.0),
            'pressure': random.uniform(98.0, 102.0)
        }

    inserter.add_data_point(ts, device_id, **metrics)

金仓的SQL兼容性在这里展现出巨大优势：我们可以使用动态SQL构建适应不同数据模式的插入语句，这是许多专用时序数据库难以提供的灵活性。

3.2 查询体验：从简单检索到复杂分析

查询是开发者与数据库互动最频繁的部分。金仓的SQL完整性让时序数据查询变得直观而强大。

基础查询：时间窗口聚合

复制代码

-- 查询最近24小时内，每台设备每5分钟的平均温度
SELECT
    device_id,
    time_bucket('5 minutes', ts) AS time_window,
    AVG(temperature) AS avg_temp,
    COUNT(*) AS readings_count
FROM sensor_data
WHERE ts >= NOW() - INTERVAL '24 hours'
    AND temperature IS NOT NULL
GROUP BY device_id, time_window
ORDER BY device_id, time_window DESC;

-- 查询每台设备的最后读数（Last点查询）
-- 这是时序分析中的高频需求
SELECT DISTINCT ON (device_id)
    device_id,
    ts AS last_seen,
    temperature,
    humidity
FROM sensor_data
WHERE device_id IN ('device_001', 'device_002', 'device_003')
ORDER BY device_id, ts DESC;

进阶分析：多维度关联查询

金仓真正的威力在于处理复杂关联查询。以下是一个智能工厂的实际案例：

复制代码

-- 场景：找出过去24小时内，温度异常且所在生产线同时有设备告警的区域
WITH temperature_anomalies AS (
    -- 步骤1：识别温度异常设备
    SELECT
        sensor_id,
        device_id,
        area_id,
        ts,
        temperature,
        -- 使用窗口函数计算移动平均
        AVG(temperature) OVER (
            PARTITION BY device_id
            ORDER BY ts
            ROWS BETWEEN 6 PRECEDING AND CURRENT ROW
        ) AS moving_avg,
        -- 计算与移动平均的偏差
        ABS(temperature - AVG(temperature) OVER (
            PARTITION BY device_id
            ORDER BY ts
            ROWS BETWEEN 6 PRECEDING AND CURRENT ROW
        )) AS deviation
    FROM sensor_data
    WHERE ts >= NOW() - INTERVAL '24 hours'
        AND metric = 'temperature'
),
anomaly_summary AS (
    -- 步骤2：汇总异常情况
    SELECT
        area_id,
        device_id,
        COUNT(*) AS anomaly_count,
        MAX(deviation) AS max_deviation,
        ARRAY_AGG(DISTINCT sensor_id) AS affected_sensors
    FROM temperature_anomalies
    WHERE deviation > 2.0  -- 偏差超过2度视为异常
    GROUP BY area_id, device_id
    HAVING COUNT(*) >= 3  -- 至少3次异常
),
equipment_alerts AS (
    -- 步骤3：获取同一区域的设备告警信息
    SELECT
        area_id,
        COUNT(DISTINCT equipment_id) AS alerting_equipments,
        ARRAY_AGG(DISTINCT alert_type) AS alert_types
    FROM equipment_status
    WHERE status_time >= NOW() - INTERVAL '24 hours'
        AND alert_level IN ('WARNING', 'CRITICAL')
    GROUP BY area_id
),
production_lines AS (
    -- 步骤4：获取生产线信息（关系数据）
    SELECT
        pl.line_id,
        pl.line_name,
        pl.area_id,
        d.department_name
    FROM production_line pl
    JOIN department d ON pl.department_id = d.department_id
    WHERE pl.status = 'ACTIVE'
)
-- 最终关联：找出需要重点关注的生产线
SELECT
    pl.line_id,
    pl.line_name,
    pl.department_name,
    COALESCE(a.anomaly_count, 0) AS temp_anomaly_count,
    COALESCE(ea.alerting_equipments, 0) AS equipment_alert_count,
    CASE
        WHEN a.anomaly_count > 0 AND ea.alerting_equipments > 0 THEN '高风险'
        WHEN a.anomaly_count > 0 OR ea.alerting_equipments > 0 THEN '中风险'
        ELSE '正常'
    END AS risk_level,
    a.affected_sensors,
    ea.alert_types
FROM production_lines pl
LEFT JOIN anomaly_summary a ON pl.area_id = a.area_id
LEFT JOIN equipment_alerts ea ON pl.area_id = ea.area_id
WHERE (a.anomaly_count > 0 OR ea.alerting_equipments > 0)
ORDER BY risk_level DESC, temp_anomaly_count DESC;

这种复杂程度的关联分析，在传统架构中通常需要在应用层拼接多个系统的查询结果，既复杂又低效。金仓让开发者可以用一条SQL完成，大幅提升了开发效率和查询性能。

3.3 管理体验：从日常运维到性能调优

好的开发体验也包含便捷的管理工具。金仓提供了从命令行到图形化的完整工具链。

日常运维命令示例：

复制代码

# 查看数据库状态
kb_status --instance localhost:54321 --detail

# 检查时序表状态
kb_ts_status --table sensor_data --show-partitions

# 手动执行数据压缩（金仓支持后台自动压缩，也可手动触发）
kb_ts_maintenance --compress --table sensor_data --older-than '7 days'

# 调整分区策略
kb_ts_admin --repartition --table sensor_data --partition-by 'month'

# 性能诊断
kb_diag --collect --output /tmp/diagnostic_report.tar.gz

实战：基于监控数据的自动调优

金仓提供了丰富的性能监控指标，开发者可以基于这些数据实现智能调优：

复制代码

class AutoTuningAdvisor:
    """基于监控数据的自动调优建议器"""

    def analyze_performance(self, metrics_data):
        """分析性能指标并给出调优建议"""
        recommendations = []

        # 分析查询性能
        if metrics_data.get('slow_query_count', 0) > 10:
            rec = self._analyze_slow_queries(metrics_data['slow_queries'])
            recommendations.extend(rec)

        # 分析写入性能
        if metrics_data.get('write_latency_p95', 0) > 100:  # 95分位延迟超过100ms
            rec = self._optimize_write_performance(metrics_data)
            recommendations.extend(rec)

        # 分析存储使用
        storage_info = metrics_data.get('storage_usage', {})
        if storage_info.get('compression_ratio', 1.0) < 2.0:
            recommendations.append({
                'type': 'STORAGE',
                'priority': 'MEDIUM',
                'action': '启用或优化数据压缩',
                'details': '当前压缩比偏低，建议检查压缩配置',
                'command': "ALTER TABLE sensor_data SET (timescaledb.compress=true);"
            })

        return recommendations

    def _analyze_slow_queries(self, slow_queries):
        """分析慢查询模式"""
        recommendations = []

        # 按模式分组
        from collections import defaultdict
        pattern_counts = defaultdict(int)

        for query in slow_queries:
            # 简化的模式识别：基于关键操作
            pattern = self._identify_query_pattern(query['query'])
            pattern_counts[pattern] += 1

        # 针对高频慢查询模式给出建议
        for pattern, count in pattern_counts.items():
            if count >= 3:  # 同一模式出现3次以上
                if pattern == 'RANGE_SCAN_WITHOUT_INDEX':
                    recommendations.append({
                        'type': 'INDEX',
                        'priority': 'HIGH',
                        'action': '为时间范围查询添加索引',
                        'details': f'发现{count}次时间范围扫描缺少索引',
                        'command': "CREATE INDEX idx_sensor_data_ts ON sensor_data(ts DESC);"
                    })
                elif pattern == 'CROSS_PARTITION_JOIN':
                    recommendations.append({
                        'type': 'SCHEMA',
                        'priority': 'MEDIUM',
                        'action': '优化分区键设计',
                        'details': f'发现{count}次跨分区连接查询',
                        'command': "请考虑调整分区策略或添加全局索引"
                    })

        return recommendations

    def _optimize_write_performance(self, metrics):
        """优化写入性能建议"""
        rec = []

        # 检查批量写入大小
        avg_batch_size = metrics.get('avg_batch_size', 1)
        if avg_batch_size < 100:
            rec.append({
                'type': 'WRITE',
                'priority': 'HIGH',
                'action': '增大批量写入大小',
                'details': f'当前平均批量大小为{avg_batch_size}，建议增加到1000以上',
                'command': "调整应用层批量提交参数"
            })

        # 检查连接池配置
        active_connections = metrics.get('active_connections', 0)
        max_connections = metrics.get('max_connections', 100)
        if active_connections > max_connections * 0.8:
            rec.append({
                'type': 'CONNECTION',
                'priority': 'MEDIUM',
                'action': '优化连接池配置',
                'details': f'活跃连接数({active_connections})接近上限({max_connections})',
                'command': "考虑增大max_connections参数或使用连接池"
            })

        return rec

    def _identify_query_pattern(self, query_text):
        """识别查询模式（简化实现）"""
        query_lower = query_text.lower()

        if 'between' in query_lower and 'ts' in query_lower:
            return 'RANGE_SCAN_WITHOUT_INDEX'
        elif 'join' in query_lower and 'partition' in query_lower:
            return 'CROSS_PARTITION_JOIN'
        elif 'order by' in query_lower and 'limit' in query_lower:
            return 'TOP_N_SORT'
        else:
            return 'OTHER'

这种基于实际监控数据的智能建议，可以帮助开发团队持续优化数据库性能，形成"开发-监控-调优"的良性循环。

4 、二次开发生态搭建实战指南

4.1 扩展开发：从自定义函数到完整插件

金仓的扩展机制是构建个性化数据处理能力的核心。以下通过一个完整的工业质检案例，展示如何构建领域专用的扩展生态。

4.1.1 质量检测算法库开发

在智能制造场景中，产品质量检测会产生大量时序数据（如传感器读数、图像特征值等）。我们可以将这些检测算法封装为数据库函数，实现"算法下推"，大幅提升处理效率。

复制代码

-- 创建工业质检算法扩展包
CREATE SCHEMA IF NOT EXISTS qc_algorithms;

-- 1. 基本统计过程控制(SPC)函数
CREATE OR REPLACE FUNCTION qc_algorithms.calculate_cpk(
    values FLOAT[],
    usl FLOAT,  -- 规格上限
    lsl FLOAT,  -- 规格下限
    OUT cpk_value FLOAT,
    OUT process_capability VARCHAR(20),
    OUT recommendation TEXT
)
LANGUAGE plpgsql
IMMUTABLE
AS $$
DECLARE
    avg_val FLOAT;
    stddev_val FLOAT;
    cpu FLOAT;
    cpl FLOAT;
BEGIN
    -- 计算均值和标准差
    SELECT AVG(v), STDDEV_SAMP(v) INTO avg_val, stddev_val
    FROM unnest(values) AS t(v);

    IF stddev_val = 0 THEN
        cpk_value := NULL;
        process_capability := 'INVALID';
        recommendation := '标准差为0，无法计算CPK';
        RETURN;
    END IF;

    -- 计算CPK
    cpu := (usl - avg_val) / (3 * stddev_val);
    cpl := (avg_val - lsl) / (3 * stddev_val);
    cpk_value := LEAST(cpu, cpl);

    -- 判断过程能力
    IF cpk_value >= 1.67 THEN
        process_capability := 'EXCELLENT';
        recommendation := '过程能力优秀，可考虑放宽控制界限降低成本';
    ELSIF cpk_value >= 1.33 THEN
        process_capability := 'ADEQUATE';
        recommendation := '过程能力充足';
    ELSIF cpk_value >= 1.0 THEN
        process_capability := 'MARGINAL';
        recommendation := '过程能力勉强，需要密切监控';
    ELSE
        process_capability := 'INADEQUATE';
        recommendation := '过程能力不足，需要过程改进';
    END IF;
END;
$$;

-- 2. 趋势检测函数（基于CUSUM算法）
CREATE OR REPLACE FUNCTION qc_algorithms.detect_trend_cusum(
    timestamps TIMESTAMP[],
    values FLOAT[],
    target FLOAT,
    allowance FLOAT DEFAULT 0.5,
    OUT change_points TIMESTAMP[],
    OUT trend_directions TEXT[],
    OUT confidence_scores FLOAT[]
)
LANGUAGE plpgsql
AS $$
DECLARE
    i INT;
    n INT;
    c_plus FLOAT := 0;
    c_minus FLOAT := 0;
    deviation FLOAT;
    current_trend TEXT := 'STABLE';
    trend_start_idx INT := 1;
BEGIN
    n := array_length(values, 1);
    change_points := '{}';
    trend_directions := '{}';
    confidence_scores := '{}';

    FOR i IN 1..n LOOP
        deviation := values[i] - target;

        -- CUSUM计算
        c_plus := GREATEST(0, c_plus + deviation - allowance);
        c_minus := GREATEST(0, c_minus - deviation - allowance);

        -- 检测趋势变化
        IF current_trend = 'STABLE' AND (c_plus > 4 * allowance OR c_minus > 4 * allowance) THEN
            -- 检测到趋势开始
            IF c_plus > c_minus THEN
                current_trend := 'UPWARD';
            ELSE
                current_trend := 'DOWNWARD';
            END IF;
            trend_start_idx := i;

        ELSIF current_trend != 'STABLE' AND c_plus <= allowance AND c_minus <= allowance THEN
            -- 趋势结束
            change_points := array_append(change_points, timestamps[trend_start_idx]);
            trend_directions := array_append(trend_directions, current_trend);
            confidence_scores := array_append(confidence_scores,
                CASE current_trend
                    WHEN 'UPWARD' THEN c_plus / (4 * allowance)
                    ELSE c_minus / (4 * allowance)
                END);

            current_trend := 'STABLE';
            c_plus := 0;
            c_minus := 0;
        END IF;
    END LOOP;
END;
$$;

-- 3. 模式匹配函数（检测周期性异常）
CREATE OR REPLACE FUNCTION qc_algorithms.match_pattern(
    signal_values FLOAT[],
    pattern_values FLOAT[],
    similarity_threshold FLOAT DEFAULT 0.8,
    OUT match_positions INT[],
    OUT similarity_scores FLOAT[]
)
LANGUAGE plpgsql
AS $$
DECLARE
    signal_len INT;
    pattern_len INT;
    i INT;
    j INT;
    similarity FLOAT;
    normalized_signal FLOAT[];
    normalized_pattern FLOAT[];
BEGIN
    signal_len := array_length(signal_values, 1);
    pattern_len := array_length(pattern_values, 1);
    match_positions := '{}';
    similarity_scores := '{}';

    -- 归一化处理
    normalized_signal := qc_algorithms.normalize_array(signal_values);
    normalized_pattern := qc_algorithms.normalize_array(pattern_values);

    -- 滑动窗口匹配
    FOR i IN 1..(signal_len - pattern_len + 1) LOOP
        similarity := 0;

        -- 计算余弦相似度
        FOR j IN 1..pattern_len LOOP
            similarity := similarity +
                normalized_signal[i + j - 1] * normalized_pattern[j];
        END LOOP;

        -- 归一化相似度
        similarity := similarity / pattern_len;

        IF similarity >= similarity_threshold THEN
            match_positions := array_append(match_positions, i);
            similarity_scores := array_append(similarity_scores, similarity);
        END IF;
    END LOOP;
END;
$$;

-- 使用示例：在生产线上实时检测质量问题
WITH production_data AS (
    SELECT
        line_id,
        time_bucket('1 minute', ts) as time_window,
        ARRAY_AGG(temperature ORDER BY ts) as temp_readings,
        ARRAY_AGG(ts ORDER BY ts) as reading_times
    FROM production_sensors
    WHERE ts >= NOW() - INTERVAL '1 hour'
        AND line_id = 'L001'
    GROUP BY line_id, time_window
),
quality_analysis AS (
    SELECT
        line_id,
        time_window,
        -- 计算过程能力指数
        (qc_algorithms.calculate_cpk(
            temp_readings,
            25.0,  -- 规格上限
            15.0   -- 规格下限
        )).*,
        -- 检测趋势变化
        qc_algorithms.detect_trend_cusum(
            reading_times,
            temp_readings,
            20.0  -- 目标值
        ) as trend_info
    FROM production_data
)
SELECT
    line_id,
    time_window,
    cpk_value,
    process_capability,
    trend_info.change_points as trend_changes,
    trend_info.trend_directions as trend_directions
FROM quality_analysis
WHERE cpk_value < 1.33  -- 过程能力不足
    OR array_length(trend_info.change_points, 1) > 0  -- 有趋势变化
ORDER BY time_window DESC;

通过将这些质量检测算法封装为数据库函数，我们实现了几个重要优势：

性能提升：数据在数据库内部处理，避免了网络传输开销
一致性保障：所有应用使用相同的算法逻辑
简化开发：应用层只需调用函数，无需实现复杂算法
易于维护：算法更新只需修改数据库函数，无需重新部署应用

4.1.2 构建完整的扩展包

对于更复杂的扩展需求，金仓支持打包为完整的扩展模块：

复制代码

-- 创建扩展包控制文件
-- qc_algorithms.control
comment = 'Industrial Quality Control Algorithms'
default_version = '1.0'
module_pathname = '$libdir/qc_algorithms'
relocatable = true
superuser = false

-- 创建安装脚本
-- qc_algorithms--1.0.sql
CREATE SCHEMA IF NOT EXISTS qc_algorithms;

-- 导入所有函数定义
\i functions/spc_functions.sql
\i functions/trend_detection.sql
\i functions/pattern_matching.sql

-- 创建必要的类型和操作符
CREATE TYPE qc_algorithms.control_chart_result AS (
    point_number INT,
    measurement FLOAT,
    ucl FLOAT,
    lcl FLOAT,
    cl FLOAT,
    is_out_of_control BOOLEAN
);

-- 注册扩展
COMMENT ON EXTENSION qc_algorithms IS
    'Industrial quality control algorithms for time series data';

4.2 外部系统集成：现代数据栈的无缝对接

现代企业数据架构通常是多系统组成的生态系统。金仓通过标准接口和适配器模式，实现了与主流数据栈的无缝集成。

4.2.1 与流处理平台深度集成

以下是金仓与Apache Flink集成的完整示例，实现实时数据处理管道：

复制代码

/**
 * Flink到金仓的实时数据同步作业
 * 支持：数据转换、质量检查、异常处理
 */
public class FlinkToKingbaseJob {

    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(4);

        // 1. 从Kafka读取传感器数据
        DataStream<SensorEvent> sensorStream = env
            .addSource(new FlinkKafkaConsumer<>(
                "sensor-events",
                new SensorEventSchema(),
                getKafkaProperties()))
            .name("kafka-source")
            .uid("kafka-source");

        // 2. 数据清洗和转换
        DataStream<CleanedSensorData> cleanedStream = sensorStream
            .filter(event -> event.getQuality() >= 0.8)
            .map(event -> new CleanedSensorData(
                event.getDeviceId(),
                event.getTimestamp(),
                event.getMetric(),
                normalizeValue(event.getValue(), event.getMetric()),
                event.getLocation()
            ))
            .name("data-cleaner")
            .uid("data-cleaner");

        // 3. 分批写入金仓（优化写入性能）
        DataStream<List<CleanedSensorData>> batchedStream = cleanedStream
            .keyBy(CleanedSensorData::getDeviceId)
            .process(new BatchProcessor(1000, 5000))  // 每批1000条或5秒
            .name("batch-processor")
            .uid("batch-processor");

        // 4. 写入金仓时序数据库
        batchedStream.addSink(new KingbaseTimeseriesSink())
            .name("kingbase-sink")
            .uid("kingbase-sink")
            .setParallelism(2);

        env.execute("Real-time Sensor Data Pipeline");
    }

    /**
     * 金仓时序数据库Sink实现
     */
    public static class KingbaseTimeseriesSink
            extends RichSinkFunction<List<CleanedSensorData>> {

        private transient Connection connection;
        private transient PreparedStatement insertStatement;
        private transient Counter successCounter;
        private transient Counter errorCounter;

        @Override
        public void open(Configuration parameters) throws Exception {
            // 初始化数据库连接池
            HikariConfig config = new HikariConfig();
            config.setJdbcUrl("jdbc:kingbase://timeseries-db:54321/iot_data");
            config.setUsername("flink_user");
            config.setPassword(System.getenv("DB_PASSWORD"));
            config.setMaximumPoolSize(10);
            config.setConnectionTimeout(30000);

            HikariDataSource dataSource = new HikariDataSource(config);
            this.connection = dataSource.getConnection();

            // 准备批量插入语句
            String sql = "INSERT INTO sensor_readings " +
                        "(device_id, ts, metric, value, location) " +
                        "VALUES (?, ?, ?, ?, ST_GeomFromText(?, 4326)) " +
                        "ON CONFLICT (device_id, ts, metric) DO UPDATE " +
                        "SET value = EXCLUDED.value, location = EXCLUDED.location";
            this.insertStatement = connection.prepareStatement(sql);

            // 初始化指标
            this.successCounter = getRuntimeContext()
                .getMetricGroup()
                .counter("records_success");
            this.errorCounter = getRuntimeContext()
                .getMetricGroup()
                .counter("records_error");
        }

        @Override
        public void invoke(List<CleanedSensorData> batch, Context context) {
            if (batch.isEmpty()) {
                return;
            }

            try {
                connection.setAutoCommit(false);

                for (CleanedSensorData data : batch) {
                    insertStatement.setString(1, data.getDeviceId());
                    insertStatement.setTimestamp(2,
                        Timestamp.valueOf(data.getTimestamp()));
                    insertStatement.setString(3, data.getMetric());
                    insertStatement.setDouble(4, data.getValue());

                    if (data.getLocation() != null) {
                        insertStatement.setString(5,
                            String.format("POINT(%f %f)",
                                data.getLocation().getLongitude(),
                                data.getLocation().getLatitude()));
                    } else {
                        insertStatement.setNull(5, Types.VARCHAR);
                    }

                    insertStatement.addBatch();
                }

                int[] results = insertStatement.executeBatch();
                connection.commit();

                // 统计成功数量
                int successCount = (int) Arrays.stream(results)
                    .filter(r -> r >= 0 || r == Statement.SUCCESS_NO_INFO)
                    .count();
                successCounter.inc(successCount);

                LOG.info("成功写入 {} 条记录", successCount);

            } catch (SQLException e) {
                errorCounter.inc(batch.size());
                LOG.error("批量写入失败，尝试逐条写入", e);

                // 降级处理：尝试逐条写入
                fallbackInsert(batch);

            } finally {
                try {
                    insertStatement.clearBatch();
                } catch (SQLException e) {
                    LOG.warn("清理批处理语句失败", e);
                }
            }
        }

        private void fallbackInsert(List<CleanedSensorData> batch) {
            for (CleanedSensorData data : batch) {
                try {
                    // 使用单独的连接，避免事务影响
                    try (Connection singleConn = DriverManager.getConnection(
                            "jdbc:kingbase://timeseries-db:54321/iot_data",
                            "flink_user",
                            System.getenv("DB_PASSWORD"))) {

                        String sql = "INSERT INTO sensor_readings_fallback " +
                                    "(device_id, ts, metric, value) " +
                                    "VALUES (?, ?, ?, ?)";

                        try (PreparedStatement stmt = singleConn.prepareStatement(sql)) {
                            stmt.setString(1, data.getDeviceId());
                            stmt.setTimestamp(2,
                                Timestamp.valueOf(data.getTimestamp()));
                            stmt.setString(3, data.getMetric());
                            stmt.setDouble(4, data.getValue());
                            stmt.executeUpdate();

                            successCounter.inc();
                        }
                    }
                } catch (SQLException ex) {
                    LOG.error("单条记录写入失败: {}", data, ex);
                }
            }
        }

        @Override
        public void close() throws Exception {
            if (insertStatement != null) {
                insertStatement.close();
            }
            if (connection != null && !connection.isClosed()) {
                connection.close();
            }
        }
    }

    /**
     * 批处理器：将数据流转换为批次
     */
    public static class BatchProcessor
            extends KeyedProcessFunction<String, CleanedSensorData,
                                        List<CleanedSensorData>> {

        private final int maxBatchSize;
        private final long maxBatchInterval;

        private transient List<CleanedSensorData> currentBatch;
        private transient long lastEmitTime;

        public BatchProcessor(int maxBatchSize, long maxBatchIntervalMs) {
            this.maxBatchSize = maxBatchSize;
            this.maxBatchInterval = maxBatchIntervalMs;
        }

        @Override
        public void open(Configuration parameters) throws Exception {
            currentBatch = new ArrayList<>(maxBatchSize);
            lastEmitTime = System.currentTimeMillis();
        }

        @Override
        public void processElement(
                CleanedSensorData value,
                Context ctx,
                Collector<List<CleanedSensorData>> out) throws Exception {

            currentBatch.add(value);

            // 检查是否达到批量大小
            if (currentBatch.size() >= maxBatchSize) {
                emitBatch(out);
            }

            // 注册定时器，确保及时发出小批量数据
            long currentTime = System.currentTimeMillis();
            if (currentTime - lastEmitTime >= maxBatchInterval) {
                ctx.timerService().registerProcessingTimeTimer(currentTime + 100);
            }
        }

        @Override
        public void onTimer(long timestamp,
                           OnTimerContext ctx,
                           Collector<List<CleanedSensorData>> out) {
            if (!currentBatch.isEmpty()) {
                emitBatch(out);
            }
        }

        private void emitBatch(Collector<List<CleanedSensorData>> out) {
            if (!currentBatch.isEmpty()) {
                out.collect(new ArrayList<>(currentBatch));
                currentBatch.clear();
                lastEmitTime = System.currentTimeMillis();
            }
        }
    }
}

这种集成模式提供了企业级的关键特性：

Exactly-Once语义：通过事务保证数据一致性
弹性容错：支持降级处理和错误恢复
性能优化：批量写入和连接池管理
完整监控：集成Flink的指标系统

4.2.2 与数据湖/仓的协同架构

在现代数据架构中，时序数据库常常与数据湖、数据仓库协同工作。金仓通过多种方式支持这种协同：

复制代码

# 金仓与Delta Lake的数据双向同步
from delta.tables import DeltaTable
from pyspark.sql import SparkSession
import psycopg2

class TimeSeriesDataOrchestrator:
    """时序数据编排器：协调金仓、Delta Lake和数据仓库"""

    def __init__(self):
        self.spark = SparkSession.builder \
            .appName("TS-Data-Orchestrator") \
            .config("spark.sql.extensions", "io.delta.sql.DeltaSparkSessionExtension") \
            .config("spark.sql.catalog.spark_catalog",
                   "org.apache.spark.sql.delta.catalog.DeltaCatalog") \
            .getOrCreate()

        self.kingbase_conn = psycopg2.connect(
            host="timeseries-db",
            database="iot_data",
            user="orchestrator",
            password=os.getenv("DB_PASSWORD")
        )

    def sync_to_data_lake(self, table_name, sync_mode='incremental'):
        """将金仓时序数据同步到Delta Lake"""

        if sync_mode == 'full':
            # 全量同步
            df = self._read_full_table(table_name)
            self._write_to_delta_lake(df, table_name, mode='overwrite')

        elif sync_mode == 'incremental':
            # 增量同步：基于CDC或时间戳
            last_sync = self._get_last_sync_time(table_name)

            if last_sync:
                # 增量查询
                df = self._read_incremental_data(table_name, last_sync)
            else:
                # 首次同步
                df = self._read_full_table(table_name)

            if df.count() > 0:
                self._write_to_delta_lake(df, table_name, mode='append')
                self._update_last_sync_time(table_name)

    def _read_incremental_data(self, table_name, last_sync_time):
        """读取增量数据"""
        query = f"""
        SELECT * FROM {table_name}
        WHERE ts > '{last_sync_time}'
        ORDER BY ts
        """

        return self.spark.read \
            .format("jdbc") \
            .option("url", "jdbc:kingbase://timeseries-db:54321/iot_data") \
            .option("dbtable", f"({query}) as incremental_data") \
            .option("user", "spark_user") \
            .option("password", os.getenv("DB_PASSWORD")) \
            .option("fetchsize", "10000") \
            .load()

    def _write_to_delta_lake(self, df, table_name, mode='append'):
        """写入Delta Lake"""
        delta_path = f"/delta-lake/ts-data/{table_name}"

        if mode == 'overwrite':
            df.write \
                .format("delta") \
                .mode("overwrite") \
                .option("overwriteSchema", "true") \
                .save(delta_path)
        else:
            df.write \
                .format("delta") \
                .mode("append") \
                .save(delta_path)

        # 优化Delta表
        delta_table = DeltaTable.forPath(self.spark, delta_path)
        delta_table.optimize().executeCompaction()

        # 创建Z-Order索引（如果数据量大）
        if df.count() > 1000000:
            delta_table.optimize().executeZOrderBy("device_id", "ts")

    def create_materialized_aggregations(self):
        """在数据湖中创建物化聚合，供分析使用"""

        # 从Delta Lake读取数据
        sensor_df = self.spark.read \
            .format("delta") \
            .load("/delta-lake/ts-data/sensor_readings")

        # 创建不同粒度的聚合
        aggregations = {
            "hourly": self._create_hourly_aggregation(sensor_df),
            "daily": self._create_daily_aggregation(sensor_df),
            "device_summary": self._create_device_summary(sensor_df)
        }

        # 写回金仓，供实时查询使用
        for name, df in aggregations.items():
            self._write_to_kingbase(df, f"analytics_{name}")

    def _create_hourly_aggregation(self, df):
        """创建小时级聚合"""
        from pyspark.sql.functions import window, avg, max, min, count

        return df.groupBy(
            "device_id",
            window("ts", "1 hour").alias("hour_window")
        ).agg(
            avg("value").alias("avg_value"),
            max("value").alias("max_value"),
            min("value").alias("min_value"),
            count("*").alias("reading_count")
        ).select(
            "device_id",
            "hour_window.start".alias("hour_start"),
            "avg_value",
            "max_value",
            "min_value",
            "reading_count"
        )

    def _write_to_kingbase(self, df, table_name):
        """将数据写回金仓"""
        df.write \
            .format("jdbc") \
            .option("url", "jdbc:kingbase://timeseries-db:54321/iot_data") \
            .option("dbtable", table_name) \
            .option("user", "spark_user") \
            .option("password", os.getenv("DB_PASSWORD")) \
            .option("batchsize", "10000") \
            .mode("overwrite") \
            .save()

# 使用编排器
orchestrator = TimeSeriesDataOrchestrator()

# 每日凌晨同步数据到数据湖
orchestrator.sync_to_data_lake("sensor_readings", sync_mode='incremental')

# 创建聚合视图
orchestrator.create_materialized_aggregations()

# 清理过期数据
orchestrator.cleanup_old_data(retention_days=365)

这种协同架构实现了数据的层次化管理和价值最大化：

金仓：处理实时数据和低延迟查询
Delta Lake：存储全量历史数据，支持复杂分析
数据仓库：提供业务友好的聚合视图

5、企业级部署与运维实践

5.1 生产环境部署策略

生产环境部署需要综合考虑性能、可用性和可维护性。以下是一个典型的高可用部署架构：

复制代码

# kubernetes部署配置（values.yaml）
global:
  clusterDomain: cluster.local

kingbase:
  mode: cluster  # 集群模式

  # 存储配置
  storage:
    size: 1Ti
    storageClass: fast-ssd
    persistentVolumeReclaimPolicy: Retain

  # 资源限制
  resources:
    requests:
      memory: 8Gi
      cpu: 2
    limits:
      memory: 16Gi
      cpu: 4

  # 高可用配置
  highAvailability:
    enabled: true
    replicaCount: 3
    autoFailover: true
    maxUnavailable: 1

  # 备份配置
  backup:
    enabled: true
    schedule: "0 2 * * *"  # 每天凌晨2点
    retentionDays: 30
    s3Endpoint: "https://s3.amazonaws.com"
    s3Bucket: "kingbase-backups"

  # 监控配置
  monitoring:
    enabled: true
    prometheus:
      enabled: true
    grafana:
      enabled: true
      dashboard: "kingbase-timeseries"

  # 时序数据库特定配置
  timeseries:
    compression:
      enabled: true
      algorithm: "zstd"
      level: 3

    partitioning:
      enabled: true
      by: "time"
      interval: "1 month"

    retention:
      enabled: true
      policy: "age"
      days: 365

    continuousAggregates:
      enabled: true
      refreshInterval: "1 hour"

5.2 性能调优实战指南

根据实际生产经验，以下是金仓时序数据库的关键性能调优参数：

复制代码

-- 1. 内存优化配置
ALTER SYSTEM SET shared_buffers = '8GB';  -- 通常设为总内存的25%
ALTER SYSTEM SET work_mem = '64MB';      -- 每个查询操作的内存
ALTER SYSTEM SET maintenance_work_mem = '1GB';  -- 维护操作内存
ALTER SYSTEM SET effective_cache_size = '24GB';  -- 优化器假设的缓存大小

-- 2. 时序特定优化
ALTER SYSTEM SET timescaledb.max_background_workers = 8;
ALTER SYSTEM SET timescaledb.last_touched = '1GB';

-- 3. 查询优化器配置
ALTER SYSTEM SET random_page_cost = 1.1;  -- SSD环境
ALTER SYSTEM SET effective_io_concurrency = 200;  -- 高IO并发
ALTER SYSTEM SET parallel_setup_cost = 100;
ALTER SYSTEM SET parallel_tuple_cost = 0.1;

-- 4. WAL和检查点优化（针对写入密集型）
ALTER SYSTEM SET wal_level = 'logical';
ALTER SYSTEM SET max_wal_size = '4GB';
ALTER SYSTEM SET min_wal_size = '1GB';
ALTER SYSTEM SET checkpoint_completion_target = 0.9;
ALTER SYSTEM SET wal_compression = on;

-- 应用配置
SELECT pg_reload_conf();

-- 创建性能监控视图
CREATE VIEW ts_performance_monitor AS
SELECT
    hypertable_name,
    pg_size_pretty(hypertable_size) as table_size,
    pg_size_pretty(chunk_size) as avg_chunk_size,
    compression_status,
    compression_ratio,
    approximate_row_count,
    chunks_total,
    chunks_compressed
FROM timescaledb_information.hypertables
JOIN timescaledb_information.compression_settings
    USING (hypertable_name);

5.3 监控与告警体系

建立全面的监控体系是保障生产系统稳定运行的关键：

复制代码

# 综合监控与告警系统
import schedule
import time
from datetime import datetime
import smtplib
from email.mime.text import MIMEText
import requests

class KingbaseMonitor:
    def __init__(self, config):
        self.config = config
        self.alert_history = {}

    def run_monitoring(self):
        """运行监控任务"""
        # 注册监控任务
        schedule.every(5).minutes.do(self.check_health)
        schedule.every(15).minutes.do(self.check_performance)
        schedule.every(1).hour.do(self.check_storage)
        schedule.every(1).day.at("02:00").do(self.run_maintenance)

        while True:
            schedule.run_pending()
            time.sleep(60)

    def check_health(self):
        """检查数据库健康状态"""
        metrics = {
            'connections': self._get_connection_count(),
            'replication_lag': self._get_replication_lag(),
            'query_queue': self._get_query_queue_length(),
            'last_backup': self._get_last_backup_time()
        }

        alerts = []

        # 连接数检查
        if metrics['connections'] > self.config['max_connections'] * 0.8:
            alerts.append({
                'level': 'WARNING',
                'type': 'CONNECTION',
                'message': f"连接数接近上限: {metrics['connections']}",
                'suggestion': '考虑增加max_connections或优化连接池'
            })

        # 复制延迟检查
        if metrics.get('replication_lag', 0) > 60:  # 超过60秒
            alerts.append({
                'level': 'CRITICAL',
                'type': 'REPLICATION',
                'message': f"复制延迟过高: {metrics['replication_lag']}秒",
                'suggestion': '检查网络和备库负载'
            })

        # 处理告警
        self._process_alerts(alerts, 'health_check')

        return metrics

    def check_performance(self):
        """检查性能指标"""
        metrics = {
            'slow_queries': self._get_slow_queries(),
            'cache_hit_ratio': self._get_cache_hit_ratio(),
            'index_hit_ratio': self._get_index_hit_ratio(),
            'dead_tuples': self._get_dead_tuples()
        }

        alerts = []

        # 缓存命中率
        if metrics['cache_hit_ratio'] < 0.9:
            alerts.append({
                'level': 'WARNING',
                'type': 'PERFORMANCE',
                'message': f"缓存命中率偏低: {metrics['cache_hit_ratio']:.2%}",
                'suggestion': '考虑增加shared_buffers'
            })

        # 索引命中率
        if metrics['index_hit_ratio'] < 0.95:
            alerts.append({
                'level': 'WARNING',
                'type': 'PERFORMANCE',
                'message': f"索引命中率偏低: {metrics['index_hit_ratio']:.2%}",
                'suggestion': '检查查询计划和索引使用'
            })

        # 处理告警
        self._process_alerts(alerts, 'performance_check')

        return metrics

    def check_storage(self):
        """检查存储状态"""
        metrics = {
            'disk_usage': self._get_disk_usage(),
            'table_growth': self._get_table_growth(),
            'compression_ratio': self._get_compression_ratio(),
            'old_chunks': self._get_old_chunks()
        }

        alerts = []

        # 磁盘使用率
        if metrics['disk_usage'] > 0.8:
            alerts.append({
                'level': 'CRITICAL',
                'type': 'STORAGE',
                'message': f"磁盘使用率过高: {metrics['disk_usage']:.1%}",
                'suggestion': '清理旧数据或扩容存储'
            })

        # 压缩率检查
        if metrics.get('compression_ratio', 1.0) < 2.0:
            alerts.append({
                'level': 'INFO',
                'type': 'STORAGE',
                'message': f"压缩率偏低: {metrics['compression_ratio']:.1f}",
                'suggestion': '检查压缩配置或数据类型'
            })

        self._process_alerts(alerts, 'storage_check')

        return metrics

    def run_maintenance(self):
        """运行维护任务"""
        tasks = [
            self._run_vacuum,
            self._update_statistics,
            self._cleanup_old_backups,
            self._check_index_fragmentation
        ]

        results = {}
        for task in tasks:
            try:
                result = task()
                results[task.__name__] = {'status': 'SUCCESS', 'result': result}
            except Exception as e:
                results[task.__name__] = {'status': 'FAILED', 'error': str(e)}

        # 发送维护报告
        self._send_maintenance_report(results)

        return results

    def _process_alerts(self, alerts, check_type):
        """处理告警（去重、升级、通知）"""
        current_time = datetime.now()

        for alert in alerts:
            alert_key = f"{check_type}:{alert['type']}"

            # 检查是否重复告警
            last_alert = self.alert_history.get(alert_key)
            if last_alert:
                time_since_last = (current_time - last_alert['time']).total_seconds()

                # 相同告警在10分钟内不重复发送
                if time_since_last < 600 and alert['level'] == last_alert['level']:
                    continue

                # 告警升级逻辑
                if (alert['level'] == 'WARNING' and
                    last_alert['level'] == 'WARNING' and
                    time_since_last < 3600):  # 1小时内重复告警升级
                    alert['level'] = 'CRITICAL'

            # 发送告警通知
            self._send_alert_notification(alert)

            # 记录告警历史
            self.alert_history[alert_key] = {
                'time': current_time,
                'level': alert['level'],
                'message': alert['message']
            }

    def _send_alert_notification(self, alert):
        """发送告警通知"""
        # 邮件通知
        if self.config['email_notifications']:
            self._send_email_alert(alert)

        # 企业微信/钉钉通知
        if self.config['chat_notifications']:
            self._send_chat_alert(alert)

        # 短信通知（仅关键告警）
        if alert['level'] == 'CRITICAL' and self.config['sms_notifications']:
            self._send_sms_alert(alert)

    def _send_maintenance_report(self, results):
        """发送维护报告"""
        report_lines = ["数据库维护报告", "=" * 40, f"时间: {datetime.now()}"]

        for task_name, result in results.items():
            status = result['status']
            if status == 'SUCCESS':
                report_lines.append(f"✓ {task_name}: 成功")
                if 'result' in result:
                    report_lines.append(f"   结果: {result['result']}")
            else:
                report_lines.append(f"✗ {task_name}: 失败")
                report_lines.append(f"   错误: {result['error']}")

        report = "\n".join(report_lines)

        # 发送报告邮件
        msg = MIMEText(report, 'plain', 'utf-8')
        msg['Subject'] = '金仓时序数据库维护报告'
        msg['From'] = self.config['email_from']
        msg['To'] = ', '.join(self.config['email_to'])

        with smtplib.SMTP(self.config['smtp_server']) as server:
            server.send_message(msg)

    # 以下为具体监控方法的实现（简化版）
    def _get_connection_count(self):
        """获取当前连接数"""
        with self.config['db_connection'].cursor() as cur:
            cur.execute("SELECT count(*) FROM pg_stat_activity")
            return cur.fetchone()[0]

    def _get_cache_hit_ratio(self):
        """获取缓存命中率"""
        with self.config['db_connection'].cursor() as cur:
            cur.execute("""
                SELECT sum(heap_blks_hit) / (sum(heap_blks_hit) + sum(heap_blks_read))
                FROM pg_statio_user_tables
            """)
            return cur.fetchone()[0] or 0.0

# 启动监控
config = {
    'max_connections': 100,
    'email_notifications': True,
    'email_from': 'monitor@example.com',
    'email_to': ['dba@example.com', 'devops@example.com'],
    'smtp_server': 'smtp.example.com',
    'chat_notifications': True,
    'sms_notifications': True,
    'db_connection': db_conn  # 已初始化的数据库连接
}

monitor = KingbaseMonitor(config)
monitor.run_monitoring()
