使用ros2来跑通mid360的驱动包

mid360的驱动已经适配ros2了接下来是详细的跑通步骤

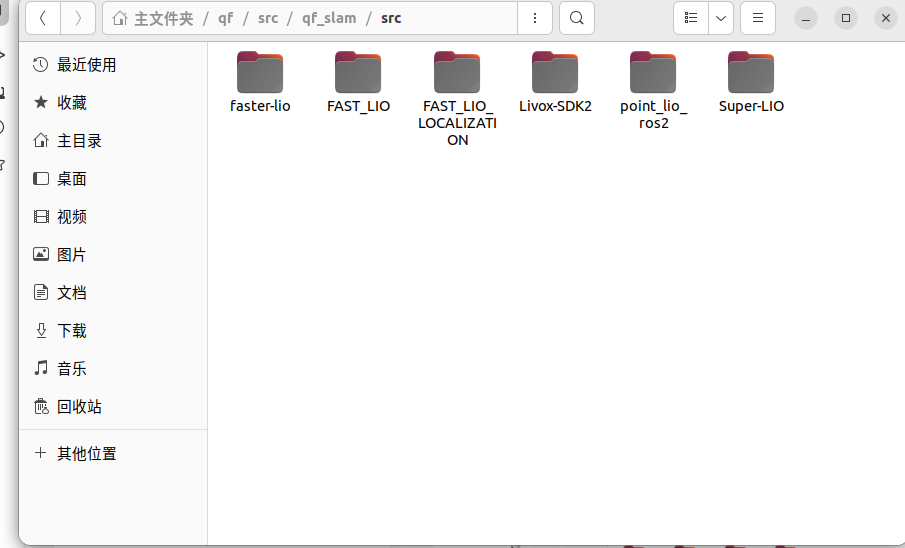

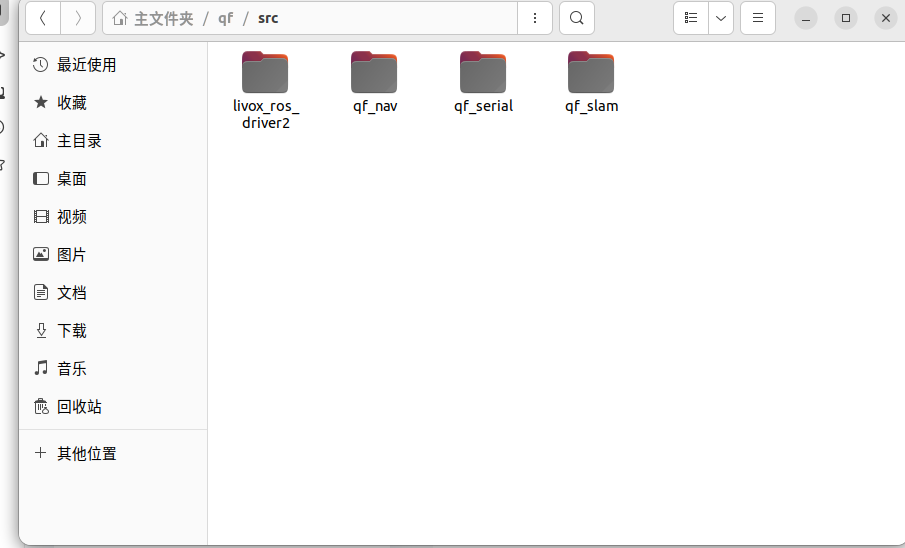

目录结构：

这个是对应的目录结构

1.跑通livox_sdk

复制代码

git clone https://github.com/Livox-SDK/Livox-SDK2.git

cd ./Livox-SDK2/

mkdir build

cd build

cmake .. && make -j4

sudo make install

2.跑通livox_ros2_driver

修改

需要把pcakage_ROS2.xml修改成package.xml这样才能被ros2识别

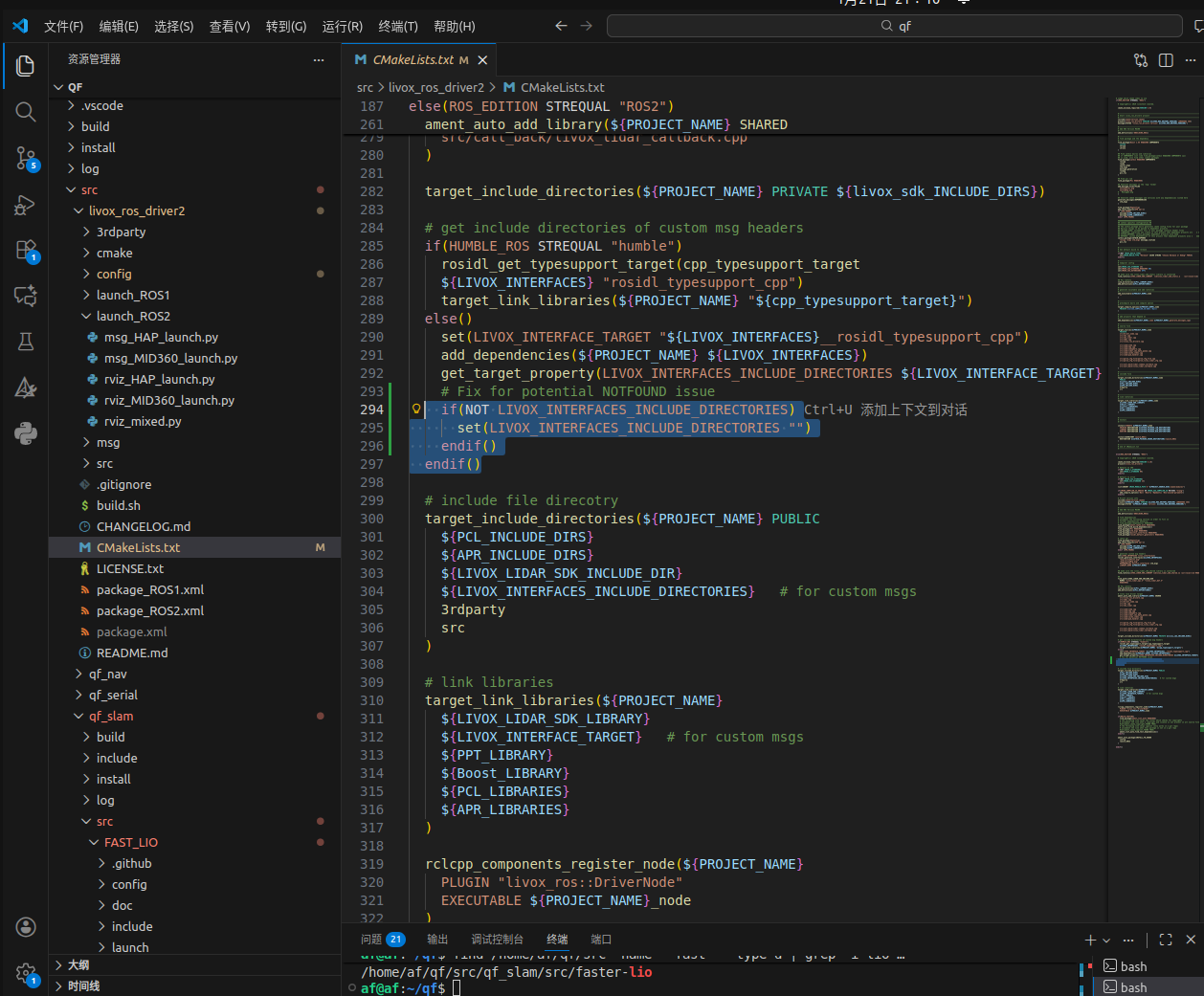

在294到296行添加几行代码

复制代码

   if(NOT LIVOX_INTERFACES_INCLUDE_DIRECTORIES)
      set(LIVOX_INTERFACES_INCLUDE_DIRECTORIES "")
    endif()

修改mid360_config.json

复制代码

{
  "lidar_summary_info" : {
    "lidar_type": 8
  },
  "MID360": {
    "lidar_net_info" : {
      "cmd_data_port": 56100,
      "push_msg_port": 56200,
      "point_data_port": 56300,
      "imu_data_port": 56400,
      "log_data_port": 56500
    },
    "host_net_info" : {
      "cmd_data_ip" : "192.168.1.50",
      "cmd_data_port": 56101,
      "push_msg_ip": "192.168.1.50",
      "push_msg_port": 56201,
      "point_data_ip": "192.168.1.50",
      "point_data_port": 56301,
      "imu_data_ip" : "192.168.1.50",
      "imu_data_port": 56401,
      "log_data_ip" : "",
      "log_data_port": 56501
    }
  },
  "lidar_configs" : [
    {
      "ip" : "192.168.1.188",//最后俩位改成自己雷达的sn吗
      "pcl_data_type" : 1,
      "pattern_mode" : 0,
      "extrinsic_parameter" : {
        "roll": 0.0,
        "pitch": 0.0,
        "yaw": 0.0,
        "x": 0,
        "y": 0,
        "z": 0
      }
    }
  ]
}

编译指令

复制代码

cd ~/test2
colcon build --packages-select livox_ros_driver2

参考文章：https://blog.csdn.net/2301_79618994/article/details/146067579?spm=1001.2014.3001.5501

运行指令

复制代码

cd /home/af/qf
source install/setup.bash
LD_LIBRARY_PATH=/usr/local/lib:$LD_LIBRARY_PATH
ros2 launch livox_ros_driver2 rviz_MID360_launch.py

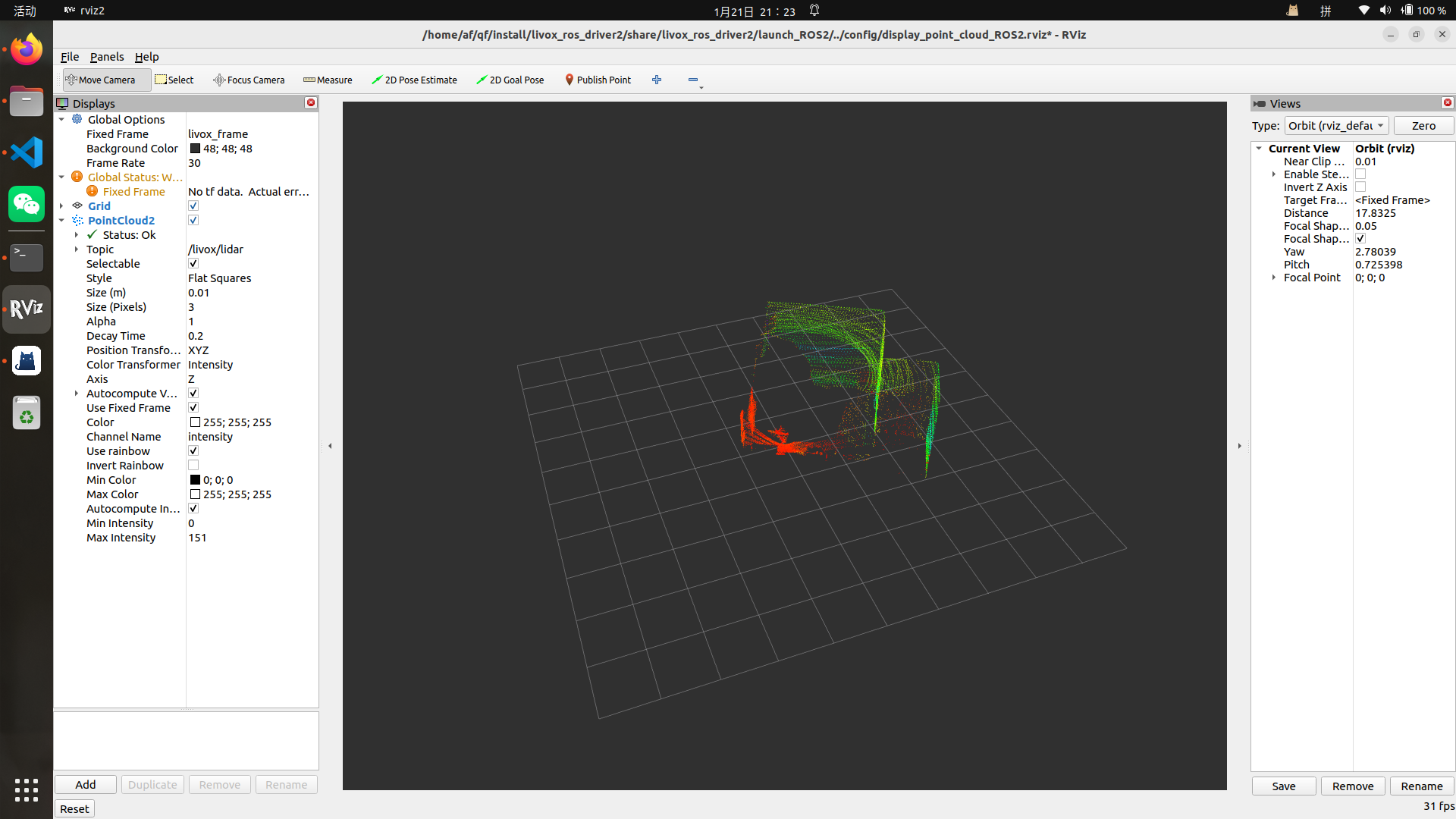

运行之后就可以实现获取到点云数据了

遇到的问题：qt冲突

主要是，我使用的海康相机的驱动MVS里面自带qt5的库和rviz的冲突了

解决办法：

复制代码

#!/bin/bash
# 使用LD_PRELOAD强制加载正确的Qt库来启动RViz
export QT_PLUGIN_PATH=""
export QML2_IMPORT_PATH=""

# 找到系统Qt库的位置
SYSTEM_QTCORE=$(ldconfig -p | grep -m1 libQt5Core.so.5 | awk '{print $NF}')
SYSTEM_QTWIDGETS=$(ldconfig -p | grep -m1 libQt5Widgets.so.5 | awk '{print $NF}')
SYSTEM_QTGUI=$(ldconfig -p | grep -m1 libQt5Gui.so.5 | awk '{print $NF}')

echo "Using system Qt libraries:"
echo "Qt5Core: $SYSTEM_QTCORE"
echo "Qt5Widgets: $SYSTEM_QTWIDGETS"
echo "Qt5Gui: $SYSTEM_QTGUI"

cd /home/af/qf && source /opt/ros/humble/setup.bash

# 设置LD_PRELOAD来强制使用系统Qt库
LD_PRELOAD="$SYSTEM_QTCORE:$SYSTEM_QTWIDGETS:$SYSTEM_QTGUI" \
/opt/ros/humble/lib/rviz2/rviz2 "$@"

改成自己的路径，然后放到.sh文件之后，开始运行，原理就是强制使用系统的qt5的库
