1. wifi模块(esp8266)
1.1 介绍

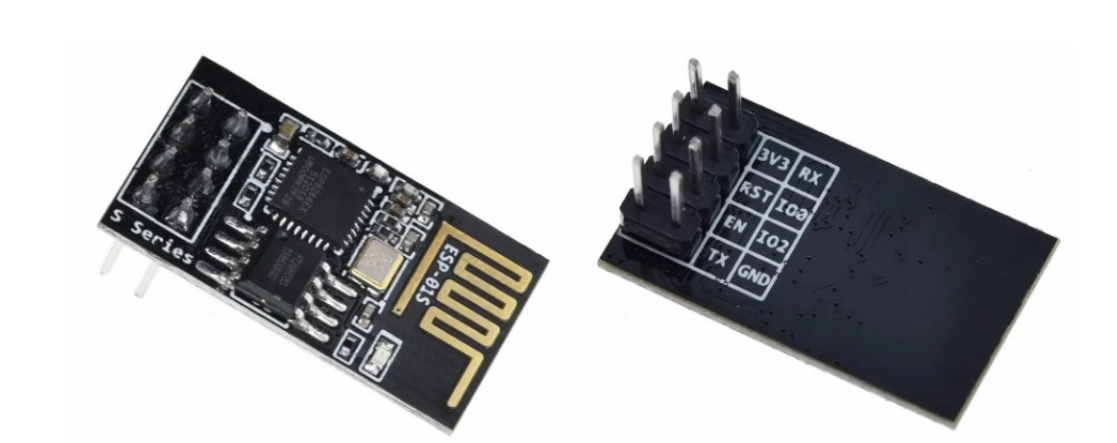

• ESP8266 是一款高性能的 WIFI 串口 模块，可以实现透明传输，可以利用串口与单片机进行通讯，从而编程实现控制 ESP8266。如图:
1.2 常见AT指令
• 上电后发送AT指令测试通信及模块功能是否正常，如图:
• 通过一下命令配置成9600波特率，如图:
• 设置工作模式，如图:
• 以设备模式接入家中路由器配置，发送指令AT+CWJAP="这是wifi名","这是密码" 如果成功接入wifi返回如下图:
• 连接TCP Server:
• 打开网络助手，设立TCP服务器。
• 在网络助手，设置协议为TCP服务器，写入本地IP和对应端口。
• 连接服务器，发送指令AT+CIPSTART="TCP","服务器IP","端口"，成功如下图:

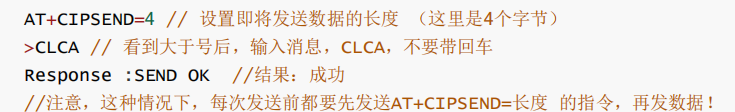

• 发送数据，如图:
• 透传模式，如图:
• 退出透传模式，如图:
2. 实操
2.1 ESP8266连接TCP服务器
• 在esp8266.c
cpp
#include "esp8266.h"
#include "stdio.h"
#include "string.h"
#include "delay.h"
#include "stdarg.h"
UART_HandleTypeDef esp8266_handle = {0};//串口的句柄
uint8_t esp8266_rx_buf[ESP8266_RX_BUF_SIZE];//定义接收的数据存放位置
uint16_t esp8266_cnt = 0;//计数器，表示接收了多少个数
uint16_t esp8266_cntPre = 0;//保存接收前一个数是第几个数
uint8_t esp8266_tx_buf[ESP8266_TX_BUF_SIZE];
//串口初始化
void esp8266_uart_init(uint32_t baudrate){
esp8266_handle.Instance = USART2;//选择串口1
esp8266_handle.Init.BaudRate = baudrate;
esp8266_handle.Init.Mode = UART_MODE_TX_RX;
esp8266_handle.Init.Parity = UART_PARITY_NONE;//不打开检验位
esp8266_handle.Init.StopBits = UART_STOPBITS_1;//1个停止位
esp8266_handle.Init.WordLength = UART_WORDLENGTH_8B;//传输字长为8位
esp8266_handle.Init.HwFlowCtl = UART_HWCONTROL_NONE;//硬件流不打开
HAL_UART_Init(&esp8266_handle);
}
uint8_t esp8266_wait_receive(){
if(esp8266_cnt == 0)
return ESP8266_ERROR;
if(esp8266_cnt == esp8266_cntPre){
esp8266_cnt = 0;
return ESP8266_EOK;
}
esp8266_cntPre = esp8266_cnt;
return ESP8266_ERROR;
}
void esp8266_clear(){
memset(esp8266_rx_buf,0,sizeof(esp8266_rx_buf));
esp8266_cnt = 0;
}
void esp8266_reveice_data(){//接收数据
if(esp8266_wait_receive() == ESP8266_EOK){
printf("esp8266 recv: %s\r\n",esp8266_rx_buf);
esp8266_clear();
}
}
void esp8266_send_data(char * fmt,...){//发数据给服务器
va_list ap;
va_start(ap,fmt);
vsprintf((char *)esp8266_tx_buf,fmt,ap);
va_end(ap);
HAL_UART_Transmit(&esp8266_handle,esp8266_tx_buf,strlen((char *)esp8266_tx_buf),100);
}
uint8_t esp8266_send_cmd(char* cmd,char* res){//重点。cmd是发的什么类型的AT指令，res是返回的结果
esp8266_clear();//发送之前，清空一下接收缓冲区。
uint8_t timeout = 250;
HAL_UART_Transmit(&esp8266_handle,(uint8_t *)cmd,strlen(cmd),100);//发给wifi模块。
while(timeout--){//等待2.5s，等待返回
if(esp8266_wait_receive() == ESP8266_EOK){
if(strstr((char *)esp8266_rx_buf,res) != NULL){
return ESP8266_EOK;
}
}
delay_ms(10);
}
return ESP8266_ERROR;
}
void esp8266_test(){
esp8266_send_data("this is from esp8266\r\n");
esp8266_reveice_data();//接收数据
}
uint8_t esp8266_set_mode(uint8_t mode){
switch(mode){
case ESP8266_STA_MODE:
return esp8266_send_cmd("AT+CWMODE=1\r\n","OK");
case ESP8266_AP_MODE:
return esp8266_send_cmd("AT+CWMODE=2\r\n","OK");
case ESP8266_STA_AP_MODE:
return esp8266_send_cmd("AT+CWMODE=3\r\n","OK");
default:
return ESP8266_EINVET;
}
}
uint8_t esp8266_join_ap(char* ssid,char* pwd){
char cmd[64];
sprintf(cmd,"AT+CWJAP=\"%s\",\"%s\"\r\n",ssid,pwd);
return esp8266_send_cmd(cmd,"WIFI GOT IP");
}
uint8_t esp8266_single_connect(uint8_t mode){
char cmd[64];
sprintf(cmd,"AT+CIPMUX=%d\r\n",mode);
return esp8266_send_cmd(cmd,"OK");
}
uint8_t esp8266_at_test(){
return esp8266_send_cmd("AT\r\n","OK");
}
uint8_t esp8266_connect_tcp_sever(char* sever_id,char* sever_potr){
char cmd[64];
sprintf(cmd,"AT+CIPSTART=\"TCP\",\"%s\",%s\r\n",sever_id,sever_potr);
return esp8266_send_cmd(cmd,"CONNECT");
}
uint8_t esp8266_send_unvarnished(){
uint8_t ret ;
ret = esp8266_send_cmd("AT+CIPMODE=1\r\n","OK");
ret += esp8266_send_cmd("AT+CIPSEND\r\n",">");
if(ret == ESP8266_EOK)
return ESP8266_EOK;
else
return ESP8266_ERROR;
}
void esp8266_init(uint32_t baudrate){
printf("esp8266初始化开始...\r\n");
esp8266_uart_init(baudrate);
//下面还有一些初始化
printf("1. 测试esp8266是否存在...\r\n");
while(esp8266_at_test())
delay_ms(500);
printf("2. 设置工作模式为STA...\r\n");
while(esp8266_set_mode(ESP8266_STA_MODE))
delay_ms(500);
printf("3. 设置单路链接模式...\r\n");
while(esp8266_single_connect(ESP8266_SINGLE_MODE))
delay_ms(500);
printf("4. 连接wifi，SSID: %s, PWD: %s\r\n", WIFI_SSID, WIFI_PWD);
while(esp8266_join_ap(WIFI_SSID,WIFI_PWD))
delay_ms(1500);
printf("5. 连接TCP服务器，server_ip:%s, server_port:%s\r\n", TCP_SERVER_IP, TCP_SERVER_PORT);
while(esp8266_connect_tcp_sever(TCP_SERVER_IP,TCP_SERVER_PORT))
delay_ms(500);
printf("6. 进入到透传模式...\r\n");
while(esp8266_send_unvarnished())
delay_ms(500);
printf("ESP8266已连接上TCP服务器并进入透传模式\r\n");
printf("ESP8266初始化完成！\r\n");
}
void USART2_IRQHandler(){
uint8_t receive_data = 0;
if(__HAL_UART_GET_FLAG(&esp8266_handle,UART_FLAG_RXNE) != RESET){//看是不是被置1了
if(esp8266_cnt >= sizeof(esp8266_rx_buf))
esp8266_cnt = 0;//接收前需要判断一下，，esp8266_cnt是否超出总长度esp8266_RX_BUF_SIZE
HAL_UART_Receive(&esp8266_handle,&receive_data,1,1000);//接收数据
esp8266_rx_buf[esp8266_cnt++] = receive_data;//把接收到的数据放进数组
//HAL_UART_Transmit(&esp8266_handle,&receive_data,1,1000);
}
}• 头文件
cpp
#ifndef __ESP8266_H__
#define __ESP8266_H__
#include "stdio.h"
#include "sys.h"
#define ESP8266_RX_BUF_SIZE 128
#define ESP8266_TX_BUF_SIZE 64
#define ESP8266_EOK 0
#define ESP8266_ERROR 1
#define ESP8266_ETIMEOUT 2
#define ESP8266_EINVET 3
#define ESP8266_STA_MODE 1
#define ESP8266_AP_MODE 2
#define ESP8266_STA_AP_MODE 3
#define ESP8266_SINGLE_MODE 0
#define ESP8266_MULTI_MODE 1
#define WIFI_SSID "iphone"
#define WIFI_PWD "12345678"
#define TCP_SERVER_IP "172.20.10.4"
#define TCP_SERVER_PORT "8080"
void esp8266_init(uint32_t baudrate);
void esp8266_reveice_data();
#endif• uart1.c
cpp
#include "sys.h"
#include "uart1.h"
#include "string.h"
UART_HandleTypeDef uart1_handle; /* UART1句柄 */
uint8_t uart1_rx_buf[UART1_RX_BUF_SIZE]; /* UART1接收缓冲区 */
uint16_t uart1_rx_len = 0; /* UART1接收字符长度 */
/**
* @brief 重定义fputc函数
* @note printf函数最终会通过调用fputc输出字符串到串口
*/
int fputc(int ch, FILE *f)
{
while ((USART1->SR & 0X40) == 0); /* 等待上一个字符发送完成 */
USART1->DR = (uint8_t)ch; /* 将要发送的字符 ch 写入到DR寄存器 */
return ch;
}
/**
* @brief 串口1初始化函数
* @param baudrate: 波特率, 根据自己需要设置波特率值
* @retval 无
*/
void uart1_init(uint32_t baudrate)
{
/*UART1 初始化设置*/
uart1_handle.Instance = USART1; /* USART1 */
uart1_handle.Init.BaudRate = baudrate; /* 波特率 */
uart1_handle.Init.WordLength = UART_WORDLENGTH_8B; /* 字长为8位数据格式 */
uart1_handle.Init.StopBits = UART_STOPBITS_1; /* 一个停止位 */
uart1_handle.Init.Parity = UART_PARITY_NONE; /* 无奇偶校验位 */
uart1_handle.Init.HwFlowCtl = UART_HWCONTROL_NONE; /* 无硬件流控 */
uart1_handle.Init.Mode = UART_MODE_TX_RX; /* 收发模式 */
HAL_UART_Init(&uart1_handle); /* HAL_UART_Init()会使能UART1 */
}
/**
* @brief UART底层初始化函数
* @param huart: UART句柄类型指针
* @note 此函数会被HAL_UART_Init()调用
* 完成时钟使能，引脚配置，中断配置
* @retval 无
*/
void HAL_UART_MspInit(UART_HandleTypeDef *huart)
{
GPIO_InitTypeDef gpio_init_struct;
if (huart->Instance == USART1) /* 如果是串口1，进行串口1 MSP初始化 */
{
__HAL_RCC_GPIOA_CLK_ENABLE(); /* 使能串口TX脚时钟 */
__HAL_RCC_USART1_CLK_ENABLE(); /* 使能串口时钟 */
gpio_init_struct.Pin = GPIO_PIN_9; /* 串口发送引脚号 */
gpio_init_struct.Mode = GPIO_MODE_AF_PP; /* 复用推挽输出 */
gpio_init_struct.Pull = GPIO_PULLUP; /* 上拉 */
gpio_init_struct.Speed = GPIO_SPEED_FREQ_HIGH; /* IO速度设置为高速 */
HAL_GPIO_Init(GPIOA, &gpio_init_struct);
gpio_init_struct.Pin = GPIO_PIN_10; /* 串口RX脚 模式设置 */
gpio_init_struct.Mode = GPIO_MODE_AF_INPUT;
HAL_GPIO_Init(GPIOA, &gpio_init_struct); /* 串口RX脚 必须设置成输入模式 */
HAL_NVIC_EnableIRQ(USART1_IRQn); /* 使能USART1中断通道 */
HAL_NVIC_SetPriority(USART1_IRQn, 3, 3); /* 组2，最低优先级:抢占优先级3，子优先级3 */
__HAL_UART_ENABLE_IT(huart, UART_IT_RXNE); /* 使能UART1接收中断 */
__HAL_UART_ENABLE_IT(huart, UART_IT_IDLE); /* 使能UART1总线空闲中断 */
}else if(huart->Instance == USART2){
GPIO_InitTypeDef gpio_init = {0};
__HAL_RCC_GPIOA_CLK_ENABLE();//使能GPIO时钟
__HAL_RCC_USART2_CLK_ENABLE();
gpio_init.Mode = GPIO_MODE_AF_PP;//TX线是看GPIO外设配置为复用推挽
gpio_init.Pin = GPIO_PIN_2;
gpio_init.Pull = GPIO_PULLUP;//默认上拉
gpio_init.Speed = GPIO_SPEED_FREQ_HIGH;
HAL_GPIO_Init(GPIOA,&gpio_init);//初始化gpio
gpio_init.Mode = GPIO_MODE_INPUT;//RX线是看GPIO外设配置为上拉输入
gpio_init.Pin = GPIO_PIN_3;
HAL_GPIO_Init(GPIOA,&gpio_init);//初始化gpio
HAL_NVIC_SetPriority(USART2_IRQn,3,3);
HAL_NVIC_EnableIRQ(USART2_IRQn);
__HAL_UART_ENABLE_IT(huart,UART_IT_RXNE);//使能RXNE中断
//__HAL_UART_ENABLE_IT(huart,UART_IT_IDLE);//使能空闲中断
}
}
/**
* @brief UART1接收缓冲区清除
* @param 无
* @retval 无
*/
void uart1_rx_clear(void)
{
memset(uart1_rx_buf, 0, sizeof(uart1_rx_buf)); /* 清空接收缓冲区 */
uart1_rx_len = 0; /* 接收计数器清零 */
}
/**
* @brief 串口1中断服务函数
* @note 在此使用接收中断及空闲中断，实现不定长数据收发
* @param 无
* @retval 无
*/
void USART1_IRQHandler(void)
{
uint8_t receive_data = 0;
if(__HAL_UART_GET_FLAG(&uart1_handle, UART_FLAG_RXNE) != RESET){ /* 获取接收RXNE标志位是否被置位 */
if(uart1_rx_len >= sizeof(uart1_rx_buf)) /* 如果接收的字符数大于接收缓冲区大小， */
uart1_rx_len = 0; /* 则将接收计数器清零 */
HAL_UART_Receive(&uart1_handle, &receive_data, 1, 1000); /* 接收一个字符 */
uart1_rx_buf[uart1_rx_len++] = receive_data; /* 将接收到的字符保存在接收缓冲区 */
}
if (__HAL_UART_GET_FLAG(&uart1_handle, UART_FLAG_IDLE) != RESET) /* 获取接收空闲中断标志位是否被置位 */
{
printf("recv: %s\r\n", uart1_rx_buf); /* 将接收到的数据打印出来 */
uart1_rx_clear();
__HAL_UART_CLEAR_IDLEFLAG(&uart1_handle); /* 清除UART总线空闲中断 */
}
}• main.c
cpp
#include "sys.h"
#include "uart1.h"
#include "delay.h"
#include "led.h"
#include "esp8266.h"
int main(void)
{
HAL_Init(); /* 初始化HAL库 */
stm32_clock_init(RCC_PLL_MUL9); /* 设置时钟, 72Mhz */
led_init(); /* LED初始化 */
uart1_init(115200);
esp8266_init(9600);
printf("hello world\r\n");
while(1)
{
esp8266_test();
delay_ms(500);
}
}2.2 实战ESP8266作为服务器
• esp8266.c
cpp
#include "esp8266.h"
#include "stdio.h"
#include "string.h"
#include "delay.h"
#include "stdarg.h"
UART_HandleTypeDef esp8266_handle = {0};//串口的句柄
uint8_t esp8266_rx_buf[ESP8266_RX_BUF_SIZE];//定义接收的数据存放位置
uint16_t esp8266_cnt = 0;//计数器，表示接收了多少个数
uint16_t esp8266_cntPre = 0;//保存接收前一个数是第几个数
//uint8_t esp8266_tx_buf[ESP8266_TX_BUF_SIZE];
//串口初始化
void esp8266_uart_init(uint32_t baudrate){
esp8266_handle.Instance = USART2;//选择串口1
esp8266_handle.Init.BaudRate = baudrate;
esp8266_handle.Init.Mode = UART_MODE_TX_RX;
esp8266_handle.Init.Parity = UART_PARITY_NONE;//不打开检验位
esp8266_handle.Init.StopBits = UART_STOPBITS_1;//1个停止位
esp8266_handle.Init.WordLength = UART_WORDLENGTH_8B;//传输字长为8位
esp8266_handle.Init.HwFlowCtl = UART_HWCONTROL_NONE;//硬件流不打开
HAL_UART_Init(&esp8266_handle);
}
uint8_t esp8266_wait_receive(){
if(esp8266_cnt == 0)
return ESP8266_ERROR;
if(esp8266_cnt == esp8266_cntPre){
esp8266_cnt = 0;
return ESP8266_EOK;
}
esp8266_cntPre = esp8266_cnt;
return ESP8266_ERROR;
}
void esp8266_clear(){
memset(esp8266_rx_buf,0,sizeof(esp8266_rx_buf));
esp8266_cnt = 0;
}
void esp8266_reveice_data(){
if(esp8266_wait_receive() == ESP8266_EOK){
printf("esp8266 recv: %s\r\n",esp8266_rx_buf);//接收客户端发来的数据
esp8266_clear();
}
}
//void esp8266_send_data(char * fmt,...){
//
// va_list ap;
// va_start(ap,fmt);
// vsprintf((char *)esp8266_tx_buf,fmt,ap);
// va_end(ap);
//
// HAL_UART_Transmit(&esp8266_handle,esp8266_tx_buf,strlen((char *)esp8266_tx_buf),100);
//}
uint8_t esp8266_send_cmd(char* cmd,char* res){
esp8266_clear();//发送之前，清空一下接收缓冲区。
uint8_t timeout = 250;
HAL_UART_Transmit(&esp8266_handle,(uint8_t *)cmd,strlen(cmd),100);
while(timeout--){
if(esp8266_wait_receive() == ESP8266_EOK){
if(strstr((char *)esp8266_rx_buf,res) != NULL){
return ESP8266_EOK;
}
}
delay_ms(10);
}
return ESP8266_ERROR;
}
//void esp8266_test(){
// esp8266_send_cmd("AT+CIPSEND=0,6\r\n",">");
// esp8266_send_data("abcd\r\n");
//
//
//}
uint8_t esp8266_set_mode(uint8_t mode){
switch(mode){
case ESP8266_STA_MODE:
return esp8266_send_cmd("AT+CWM0ODE=1\r\n","OK");
case ESP8266_AP_MODE:
return esp8266_send_cmd("AT+CWMODE=2\r\n","OK");
case ESP8266_STA_AP_MODE:
return esp8266_send_cmd("AT+CWMODE=3\r\n","OK");
default:
return ESP8266_EINVET;
}
}
uint8_t esp8266_multp_connect(uint8_t mode){
char cmd[64];
sprintf(cmd,"AT+CIPMUX=%d\r\n",mode);
return esp8266_send_cmd(cmd,"OK");
}
uint8_t esp8266_at_test(){
return esp8266_send_cmd("AT\r\n","OK");
}
uint8_t esp8266_build_tcp_Server(){
return esp8266_send_cmd("AT+CIPSERVER=1\r\n","OK");
}
void esp8266_init(uint32_t baudrate){
printf("esp8266初始化开始...\r\n");
esp8266_uart_init(baudrate);
//下面还有一些初始化
printf("1. 测试esp8266是否存在...\r\n");
while(esp8266_at_test())
delay_ms(500);
printf("2. 设置工作模式为AP...\r\n");
while(esp8266_set_mode(ESP8266_AP_MODE))
delay_ms(500);
printf("3. 使能多链接...\r\n");
while(esp8266_multp_connect(ESP8266_MULTI_MODE))
delay_ms(500);
printf("4. 建立TCPServer\r\n");
while(esp8266_build_tcp_Server())
delay_ms(1500);
printf("ESP8266初始化完成！\r\n");
}
void USART2_IRQHandler(){
uint8_t receive_data = 0;
if(__HAL_UART_GET_FLAG(&esp8266_handle,UART_FLAG_RXNE) != RESET){//看是不是被置1了
if(esp8266_cnt >= sizeof(esp8266_rx_buf))
esp8266_cnt = 0;//接收前需要判断一下，，esp8266_cnt是否超出总长度esp8266_RX_BUF_SIZE
HAL_UART_Receive(&esp8266_handle,&receive_data,1,1000);//接收数据
esp8266_rx_buf[esp8266_cnt++] = receive_data;//把接收到的数据放进数组
//HAL_UART_Transmit(&esp8266_handle,&receive_data,1,1000);
}
}• 在esp8266.h
cpp
#ifndef __ESP8266_H__
#define __ESP8266_H__
#include "stdio.h"
#include "sys.h"
#define ESP8266_RX_BUF_SIZE 128
#define ESP8266_TX_BUF_SIZE 64
#define ESP8266_EOK 0
#define ESP8266_ERROR 1
#define ESP8266_ETIMEOUT 2
#define ESP8266_EINVET 3
#define ESP8266_STA_MODE 1
#define ESP8266_AP_MODE 2
#define ESP8266_STA_AP_MODE 3
#define ESP8266_SINGLE_MODE 0
#define ESP8266_MULTI_MODE 1
#define WIFI_SSID "iphone"
#define WIFI_PWD "12345678"
#define TCP_SERVER_IP "172.20.10.4"
#define TCP_SERVER_PORT "8080"
void esp8266_init(uint32_t baudrate);
void esp8266_reveice_data();
#endif• 在和uart1.c上面第一个实操一样
• main.c
cpp
#include "sys.h"
#include "uart1.h"
#include "delay.h"
#include "led.h"
#include "esp8266.h"
int main(void)
{
HAL_Init(); /* 初始化HAL库 */
stm32_clock_init(RCC_PLL_MUL9); /* 设置时钟, 72Mhz */
led_init(); /* LED初始化 */
uart1_init(115200);
esp8266_init(9600);
printf("hello world\r\n");
while(1)
{
//esp8266_test();
esp8266_reveice_data();
delay_ms(10);
}
}3.3 wifi控制风扇
• 在uart1.c和实操1一样的。
• 在esp8266.c
cpp
#include "esp8266.h"
#include "stdio.h"
#include "string.h"
#include "delay.h"
#include "stdarg.h"
#include "fan.h"
UART_HandleTypeDef esp8266_handle = {0};//串口的句柄
uint8_t esp8266_rx_buf[ESP8266_RX_BUF_SIZE];//定义接收的数据存放位置
uint16_t esp8266_cnt = 0;//计数器，表示接收了多少个数
uint16_t esp8266_cntPre = 0;//保存接收前一个数是第几个数
uint8_t esp8266_tx_buf[ESP8266_TX_BUF_SIZE];
//串口初始化
void esp8266_uart_init(uint32_t baudrate){
esp8266_handle.Instance = USART2;//选择串口2
esp8266_handle.Init.BaudRate = baudrate;
esp8266_handle.Init.Mode = UART_MODE_TX_RX;
esp8266_handle.Init.Parity = UART_PARITY_NONE;//不打开检验位
esp8266_handle.Init.StopBits = UART_STOPBITS_1;//1个停止位
esp8266_handle.Init.WordLength = UART_WORDLENGTH_8B;//传输字长为8位
esp8266_handle.Init.HwFlowCtl = UART_HWCONTROL_NONE;//硬件流不打开
HAL_UART_Init(&esp8266_handle);
}
uint8_t esp8266_wait_receive(){
if(esp8266_cnt == 0)
return ESP8266_ERROR;
if(esp8266_cnt == esp8266_cntPre){
esp8266_cnt = 0;
return ESP8266_EOK;
}
esp8266_cntPre = esp8266_cnt;
return ESP8266_ERROR;
}
void esp8266_clear(){
memset(esp8266_rx_buf,0,sizeof(esp8266_rx_buf));
esp8266_cnt = 0;
}
uint16_t esp8266_reveice_data(char * recv_data){
if(esp8266_wait_receive() == ESP8266_EOK){
printf("esp8266 recv: %s\r\n",esp8266_rx_buf);
memcpy(recv_data,esp8266_rx_buf,strlen((char *)esp8266_rx_buf));//把接收区的数据拷贝出去
esp8266_clear();
return strlen(recv_data);
}
return 0;
}
//void esp8266_send_data(char * fmt,...){
//
// va_list ap;
// va_start(ap,fmt);
// vsprintf((char *)esp8266_tx_buf,fmt,ap);
// va_end(ap);
//
// HAL_UART_Transmit(&esp8266_handle,esp8266_tx_buf,strlen((char *)esp8266_tx_buf),100);
//}
uint8_t esp8266_send_cmd(char* cmd,char* res){
esp8266_clear();//发送之前，清空一下接收缓冲区。
uint8_t timeout = 250;
HAL_UART_Transmit(&esp8266_handle,(uint8_t *)cmd,strlen(cmd),100);
while(timeout--){
if(esp8266_wait_receive() == ESP8266_EOK){
if(strstr((char *)esp8266_rx_buf,res) != NULL){
return ESP8266_EOK;
}
}
delay_ms(10);
}
return ESP8266_ERROR;
}
//void esp8266_test(){
// esp8266_send_data("this is from esp8266\r\n");
//
// esp8266_reveice_data();
//}
uint8_t esp8266_set_mode(uint8_t mode){
switch(mode){
case ESP8266_STA_MODE:
return esp8266_send_cmd("AT+CWMODE=1\r\n","OK");
case ESP8266_AP_MODE:
return esp8266_send_cmd("AT+CWMODE=2\r\n","OK");
case ESP8266_STA_AP_MODE:
return esp8266_send_cmd("AT+CWMODE=3\r\n","OK");
default:
return ESP8266_EINVET;
}
}
uint8_t esp8266_join_ap(char* ssid,char* pwd){
char cmd[64];
sprintf(cmd,"AT+CWJAP=\"%s\",\"%s\"\r\n",ssid,pwd);
return esp8266_send_cmd(cmd,"WIFI GOT IP");
}
uint8_t esp8266_single_connect(uint8_t mode){
char cmd[64];
sprintf(cmd,"AT+CIPMUX=%d\r\n",mode);
return esp8266_send_cmd(cmd,"OK");
}
uint8_t esp8266_at_test(){
return esp8266_send_cmd("AT\r\n","OK");
}
uint8_t esp8266_connect_tcp_sever(char* sever_id,char* sever_potr){
char cmd[64];
sprintf(cmd,"AT+CIPSTART=\"TCP\",\"%s\",%s\r\n",sever_id,sever_potr);
return esp8266_send_cmd(cmd,"CONNECT");
}
uint8_t esp8266_send_unvarnished(){
uint8_t ret ;
ret = esp8266_send_cmd("AT+CIPMODE=1\r\n","OK");
ret += esp8266_send_cmd("AT+CIPSEND\r\n",">");
if(ret == ESP8266_EOK)
return ESP8266_EOK;
else
return ESP8266_ERROR;
}
void esp8266_init(uint32_t baudrate){
printf("esp8266初始化开始...\r\n");
esp8266_uart_init(baudrate);
//下面还有一些初始化
printf("1. 测试esp8266是否存在...\r\n");
while(esp8266_at_test())
delay_ms(500);
printf("2. 设置工作模式为STA...\r\n");
while(esp8266_set_mode(ESP8266_STA_MODE))
delay_ms(500);
printf("3. 设置单路链接模式...\r\n");
while(esp8266_single_connect(ESP8266_SINGLE_MODE))
delay_ms(500);
printf("4. 连接wifi，SSID: %s, PWD: %s\r\n", WIFI_SSID, WIFI_PWD);
while(esp8266_join_ap(WIFI_SSID,WIFI_PWD))
delay_ms(1500);
printf("5. 连接TCP服务器，server_ip:%s, server_port:%s\r\n", TCP_SERVER_IP, TCP_SERVER_PORT);
while(esp8266_connect_tcp_sever(TCP_SERVER_IP,TCP_SERVER_PORT))
delay_ms(500);
printf("6. 进入到透传模式...\r\n");
while(esp8266_send_unvarnished())
delay_ms(500);
printf("ESP8266已连接上TCP服务器并进入透传模式\r\n");
printf("ESP8266初始化完成！\r\n");
}
void USART2_IRQHandler(){
uint8_t receive_data = 0;
if(__HAL_UART_GET_FLAG(&esp8266_handle,UART_FLAG_RXNE) != RESET){//看是不是被置1了
if(esp8266_cnt >= sizeof(esp8266_rx_buf))
esp8266_cnt = 0;//接收前需要判断一下，，esp8266_cnt是否超出总长度esp8266_RX_BUF_SIZE
HAL_UART_Receive(&esp8266_handle,&receive_data,1,1000);//接收数据
esp8266_rx_buf[esp8266_cnt++] = receive_data;//把接收到的数据放进数组
//esp8266_clear();
//HAL_UART_Transmit(&esp8266_handle,&receive_data,1,1000);
}
}• main.c
cpp
#include "sys.h"
#include "uart1.h"
#include "delay.h"
#include "led.h"
#include "esp8266.h"
#include "fan.h"
#include "string.h"
int main(void)
{
HAL_Init(); /* 初始化HAL库 */
stm32_clock_init(RCC_PLL_MUL9); /* 设置时钟, 72Mhz */
led_init(); /* LED初始化 */
uart1_init(115200);
esp8266_init(9600);
fan_init();
printf("hello world\r\n");
char recv_data[ESP8266_RX_BUF_SIZE];
while(1)
{
esp8266_reveice_data(recv_data);
if(strstr(recv_data,"ON") != NULL)
fan_on();
else if(strstr(recv_data,"OFF") != NULL)
fan_off();
delay_ms(10);
}
}• 在fan.c
cpp
#include "fan.h"
void fan_init(){//继电器可以看作成一个开关，开关连接着负载，这里的负载是个喇叭
GPIO_InitTypeDef gpio_init = {0};
__HAL_RCC_GPIOB_CLK_ENABLE();//使能GPIO时钟
gpio_init.Mode = GPIO_MODE_OUTPUT_PP;
gpio_init.Pin = GPIO_PIN_6;//推挽输出
gpio_init.Pull = GPIO_PULLUP;//默认上拉
gpio_init.Speed = GPIO_SPEED_FREQ_HIGH;
HAL_GPIO_Init(GPIOB,&gpio_init);//初始化gpio
fan_off();//关灯
}
void fan_on(){
HAL_GPIO_WritePin(GPIOB,GPIO_PIN_6,GPIO_PIN_RESET);
}
void fan_off(){
HAL_GPIO_WritePin(GPIOB,GPIO_PIN_6,GPIO_PIN_SET);
}
uint8_t get_fan_staut(){
return (uint8_t) HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_6);
}•
