兰伯特和半兰伯特光照模型

ysn111112026-01-30 10:41

1、兰伯特光照模型

核心思想 ：模拟理想的漫反射表面。光线照射到粗糙表面后，会均匀地向各个方向散射。因此，其亮度只取决于光线方向与表面法线的夹角，与观察者的位置无关。

计算公式 ： diffuse = LightColor * Albedo * max(0, dot(N, L))

  • N: 归一化的表面法线向量
  • L: 归一化的指向光源的方向向量
  • max(0, ...): 将点积结果钳制在 [0, 1] 之间。这意味着当光线与法线夹角大于90度（即从背面照射）时，漫反射贡献为0。

ShaderLab代码（逐顶点）：

html 复制代码
Shader "MyCustom/Lambert"
{
    Properties
    {
        //材质的漫反射颜色
        _Color("Base Color", color) = (1.0, 1.0, 1.0, 1.0)
        //漫反射系数
        _kD("kD", Range(0, 1)) = 1
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION; //顶点位置
                float3 normal : NORMAL;   //法线
            };

            //顶点着色器输出
            struct v2f
            {
                float4 vertex : SV_POSITION;
                float4 col : COLOR;
            };

            float4 _Color;
            float _kD;
            //表示这个变量的初始值来自于外部的其他环境
            uniform float4 _LightColor0;

            v2f vert (appdata v)
            {
                v2f o;

                //Unity内置 模型 * 世界 * 投影矩阵 UNITY_MATRIX_MVP，把顶点位置从模型空间转换到裁剪空间中
                o.vertex = UnityObjectToClipPos(v.vertex);
                //将模型空间的法线转到世界空间;
                float3 worldNormal = normalize(UnityObjectToWorldNormal(v.normal));

                //float3 worldNormal = normalize(mul(float4(v.normal, 0.0), unity_WorldToObject).xyz);

                //获取光源方向(假设场景中只有一个光源且该光源的类型是平行光)
                float3 worldLight = normalize(_WorldSpaceLightPos0.xyz);

                //当法线和光线之间夹角大于90时，光线是在照射物体的背面，此时光照强度为0
                float lambert = max(dot(worldNormal, worldLight), 0.0);
                //也可以使用saturate函数把参数截取到[0, 1]的范围内，防止负值
                // float lambert = saturate(dot(worldNormal, worldLight));

                float3 diffuse = _kD * lambert * _Color.rgb * _LightColor0.rgb;

                //环境光
                float3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
                float3 finalColor = diffuse + ambient;
                o.col = float4(finalColor, 1.0);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                return i.col;
            }
            ENDCG
        }
    }
}

2、半兰伯特光照模型

核心思想 ：由Valve公司在开发《半条命》时提出的一种非物理的、风格化的技术 。它的目的是解决兰伯特模型中背光面过黑的问题，通过一个简单的数学变换将光照范围从 [0, 1] 重新映射到 [0.5, 1]（或其他范围），从而让背光面也能产生一定的渐变亮度。

计算公式 ： diffuse = LightColor * Albedo * (dot(N, L) * 0.5 + 0.5)

  • 这个公式通常会被概括为：diffuse = LightColor * Albedo * (α * dot(N, L) + β)
    • 其中 α 是缩放系数，β 是偏移系数，通常都设为0.5，使得结果从 [-1, 1] 映射到 [0, 1]。
  • 更通用的形式允许你控制明暗对比度：diffuse = LightColor * Albedo * pow(α * dot(N, L) + β, gamma)

ShaderLab代码（逐顶点）：

cs 复制代码
Shader "MyCustom/HalfLambert"
{
    Properties
    {
        //材质的漫反射颜色
        _Color("Base Color", color) = (1.0, 1.0, 1.0, 1.0)
        //漫反射系数
        _kD("kD", Range(0, 1)) = 1
    }
    SubShader
    {
        Tags
        {
            "RenderType"="Opaque"
        }
        LOD 100

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION; //顶点位置
                float3 normal : NORMAL; //法线
            };

            //顶点着色器输出
            struct v2f
            {
                float4 vertex : SV_POSITION;
                float4 col : COLOR;
            };

            float4 _Color;
            float _kD;
            //表示这个变量的初始值来自于外部的其他环境
            uniform float4 _LightColor0;

            v2f vert(appdata v)
            {
                v2f o;

                //Unity内置 模型 * 世界 * 投影矩阵 UNITY_MATRIX_MVP，把顶点位置从模型空间转换到裁剪空间中
                o.vertex = UnityObjectToClipPos(v.vertex);
                //将模型空间的法线转到世界空间;
                float3 worldNormal = normalize(UnityObjectToWorldNormal(v.normal));

                //float3 worldNormal = normalize(mul(float4(v.normal, 0.0), unity_WorldToObject).xyz);

                //获取光源方向(假设场景中只有一个光源且该光源的类型是平行光)
                float3 worldLight = normalize(_WorldSpaceLightPos0.xyz);

                // half lambert = light * diffuse * (0.5 * (n * l) + 0.5)
                float lambert = 0.5 * dot(worldNormal, worldLight) + 0.5;

                float3 diffuse = _kD * lambert * _Color.rgb * _LightColor0.rgb;

                //环境光
                float3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
                float3 finalColor = diffuse + ambient;
                o.col = float4(finalColor, 1.0);
                return o;
            }

            fixed4 frag(v2f i) : SV_Target
            {
                return i.col;
            }
            ENDCG
        }


    }
}

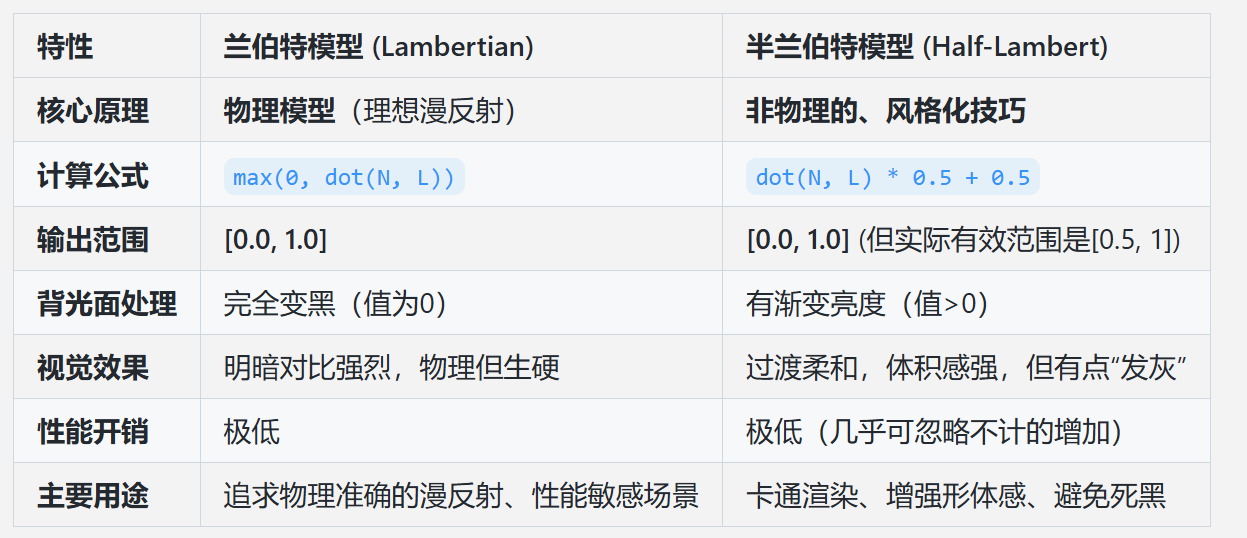

3、两种光照模型对比

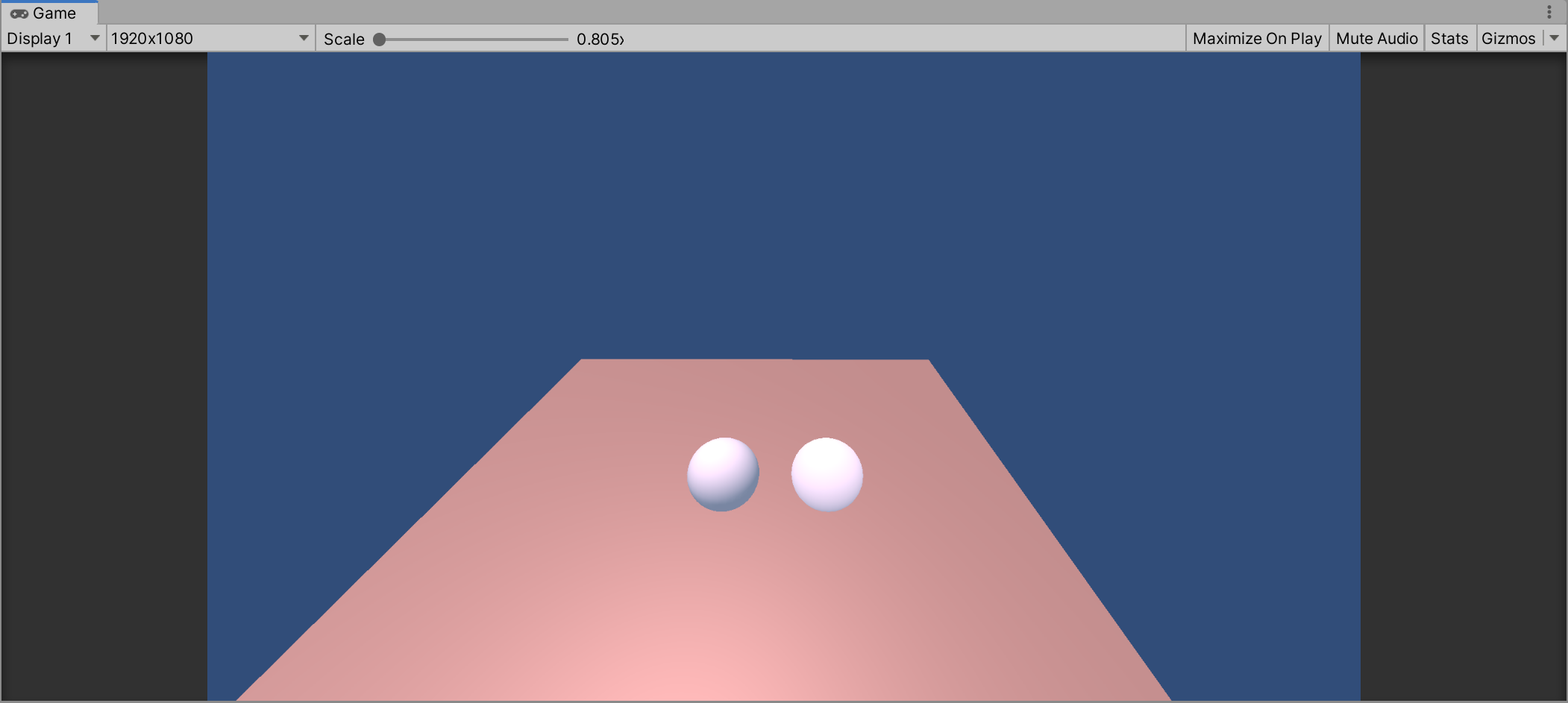

Unity中效果对比:

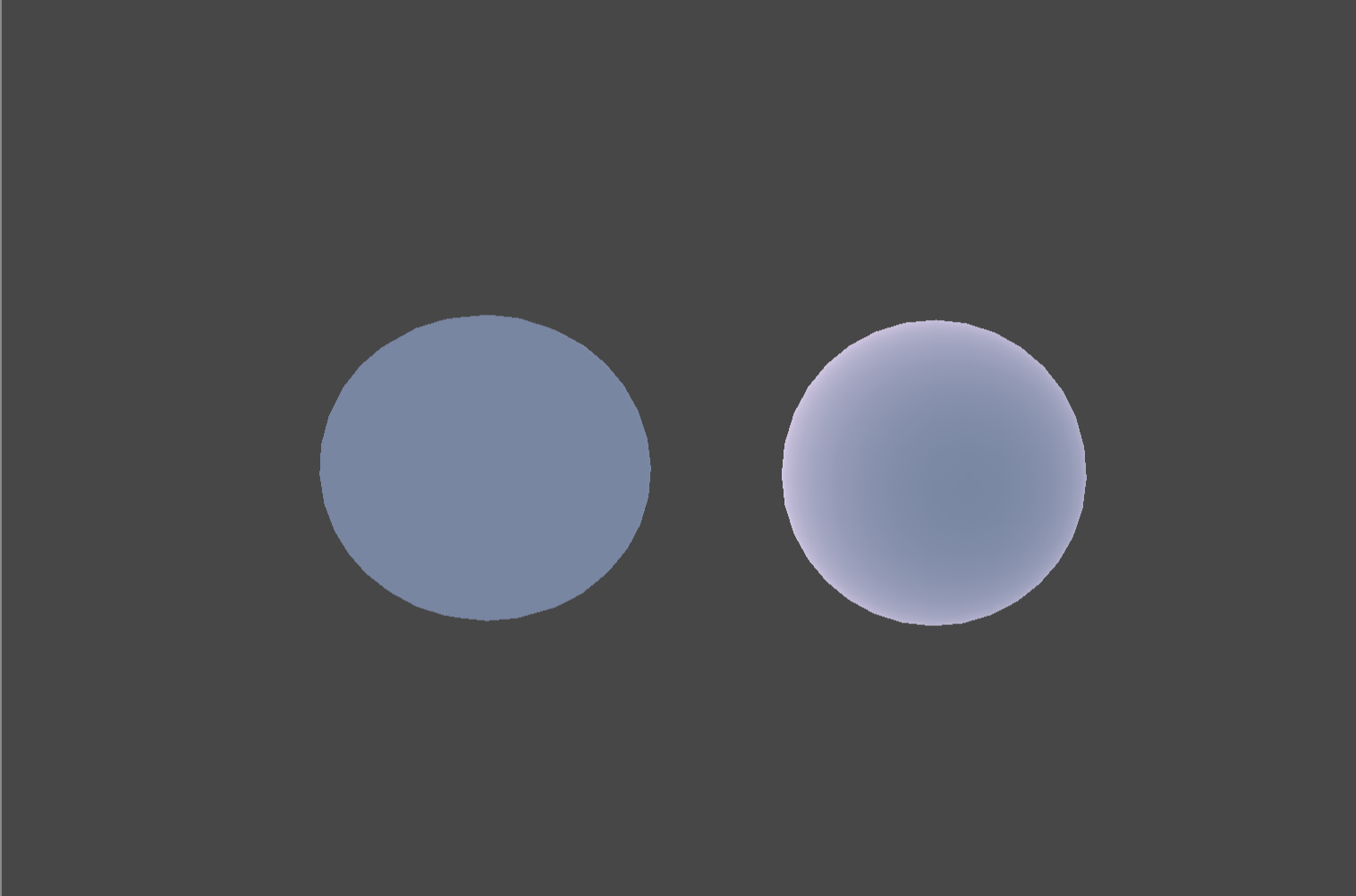

背面效果对比

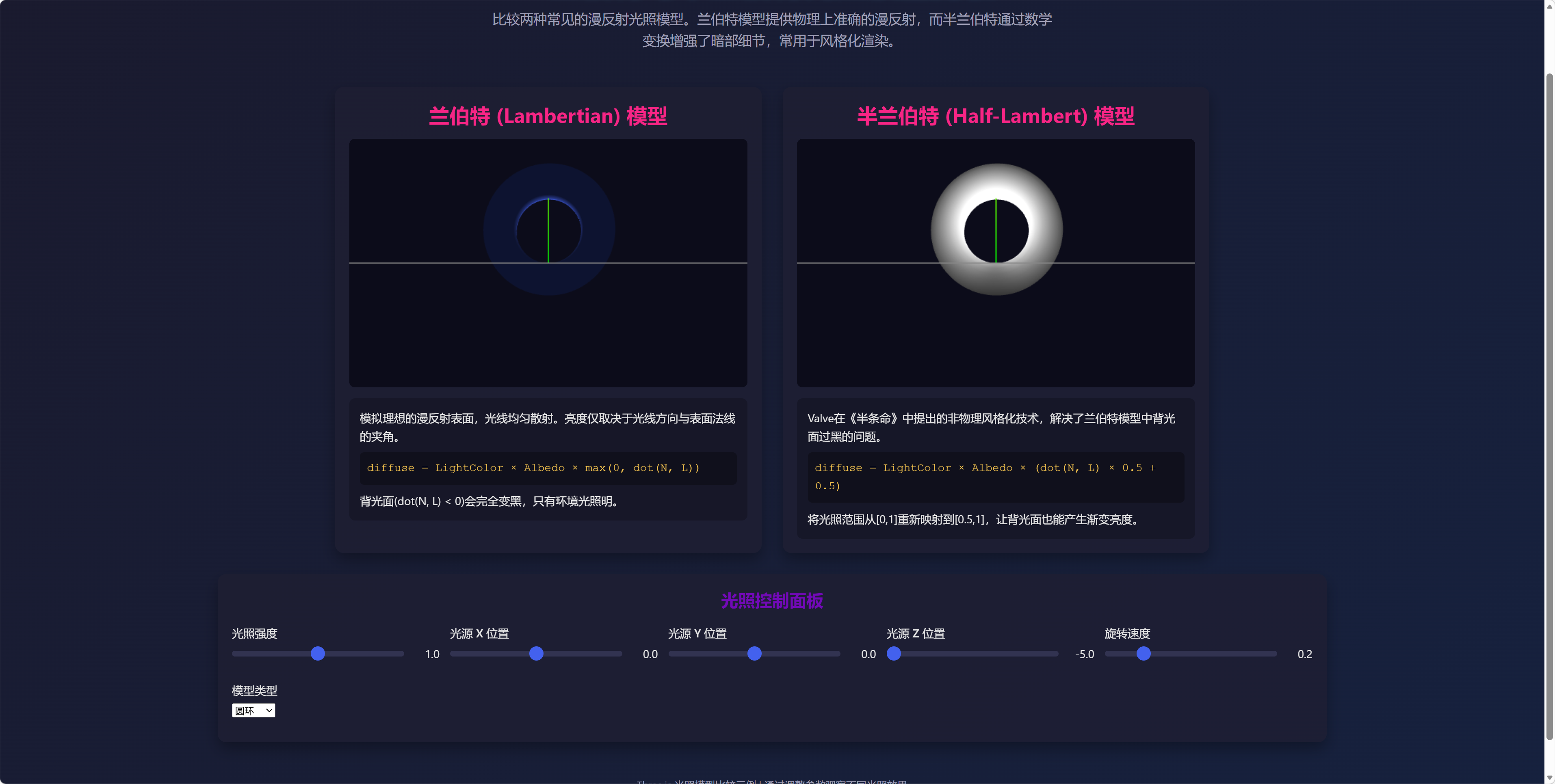

用AI写了个对比光照模型的的html，可供观看实际效果
