【VisionFive 2 Lite 单板计算机】物联网环境监测终端

本文介绍了昉·星光 VisionFive2 Lite 单板计算机结合盛思锐 SEN66 传感器套件实现环境气体监测，并通过 MQTT 协议上传至 Home Assistant 智能家居平台，实现物联网环境监测终端的项目设计。

项目介绍

准备工作：硬件连接、软件包安装、Docker部署、EMQX和HomeAssistant平台部署；

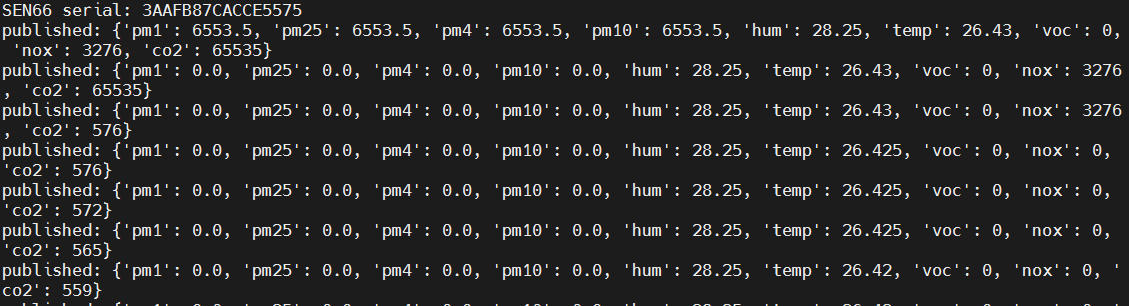

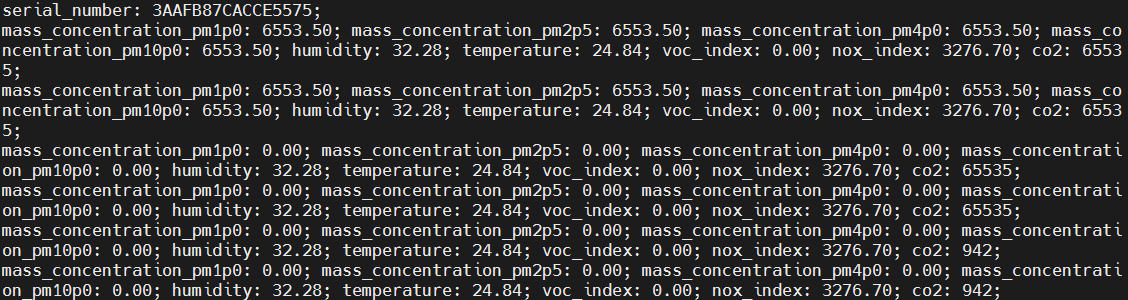

工程测试：加载官方 Demo 例程，实现 SEN66 传感器数据终端打印；

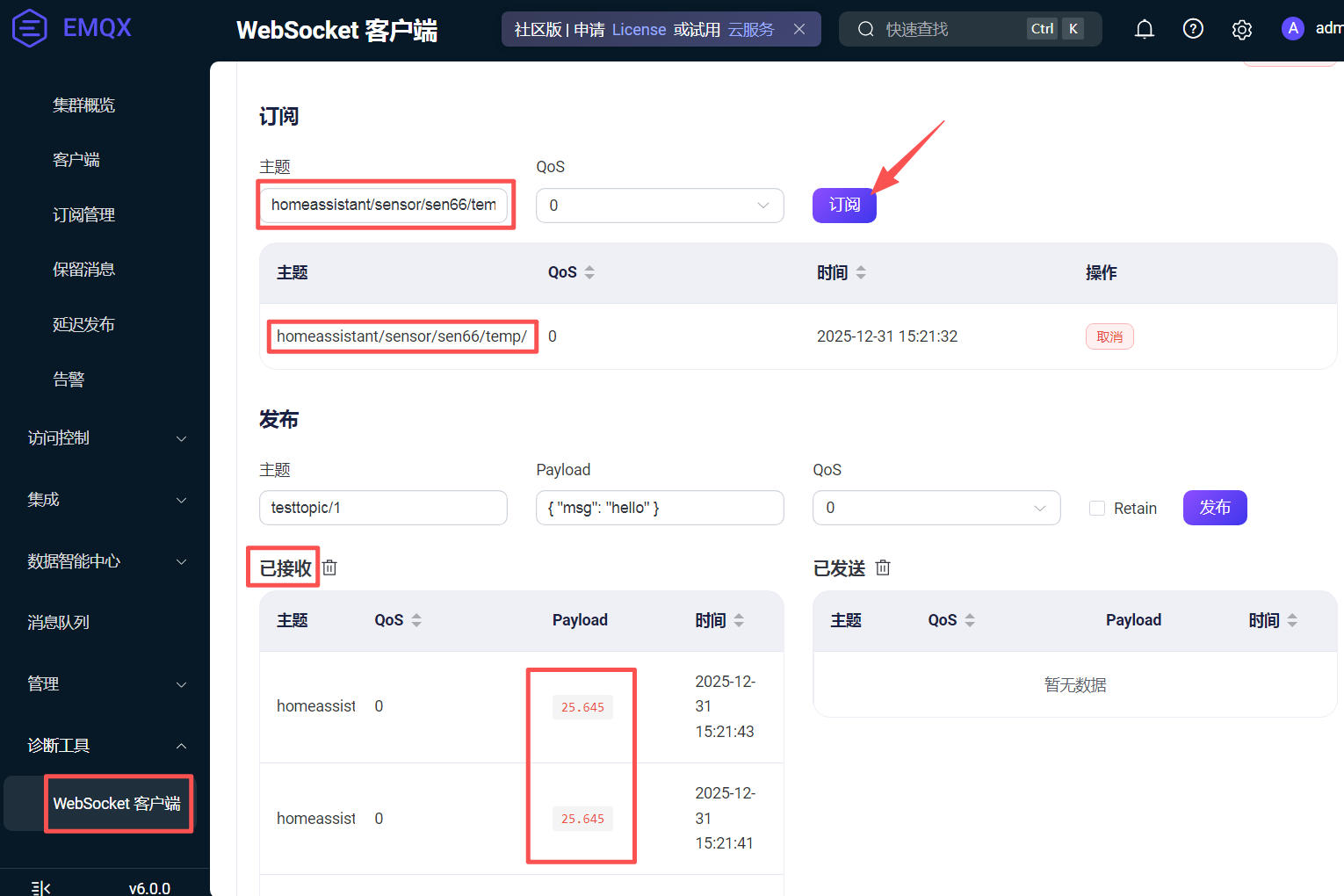

MQTT：结合 MQTT 协议，实现传感器数据上传至 EMQX 服务器平台，并远程读取；

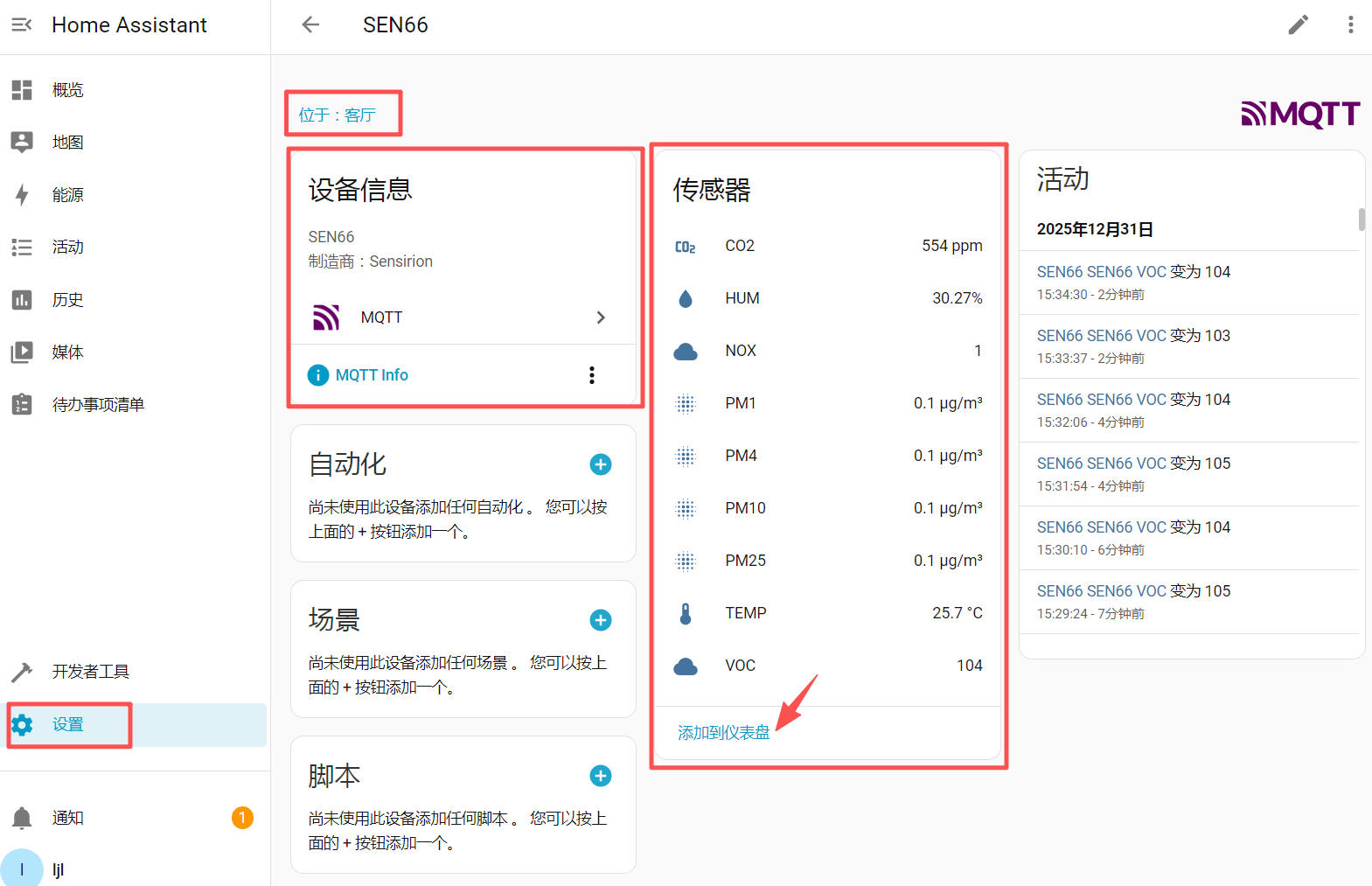

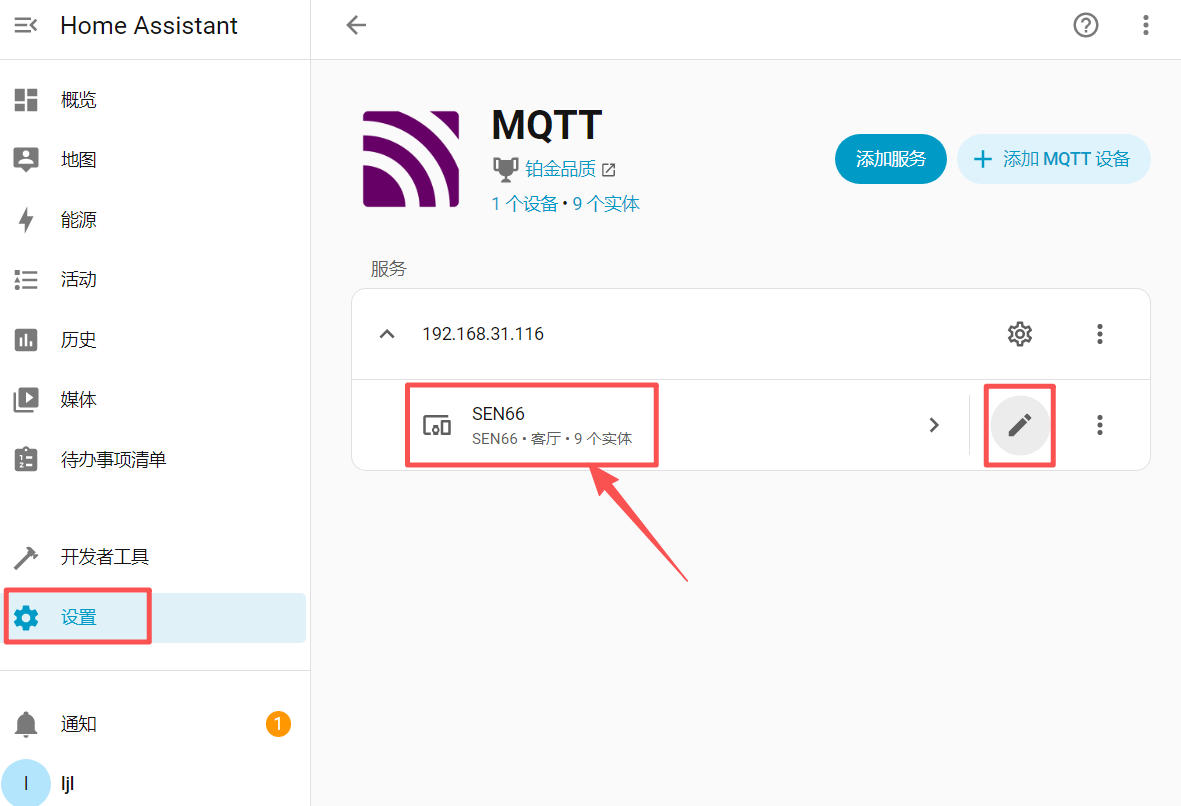

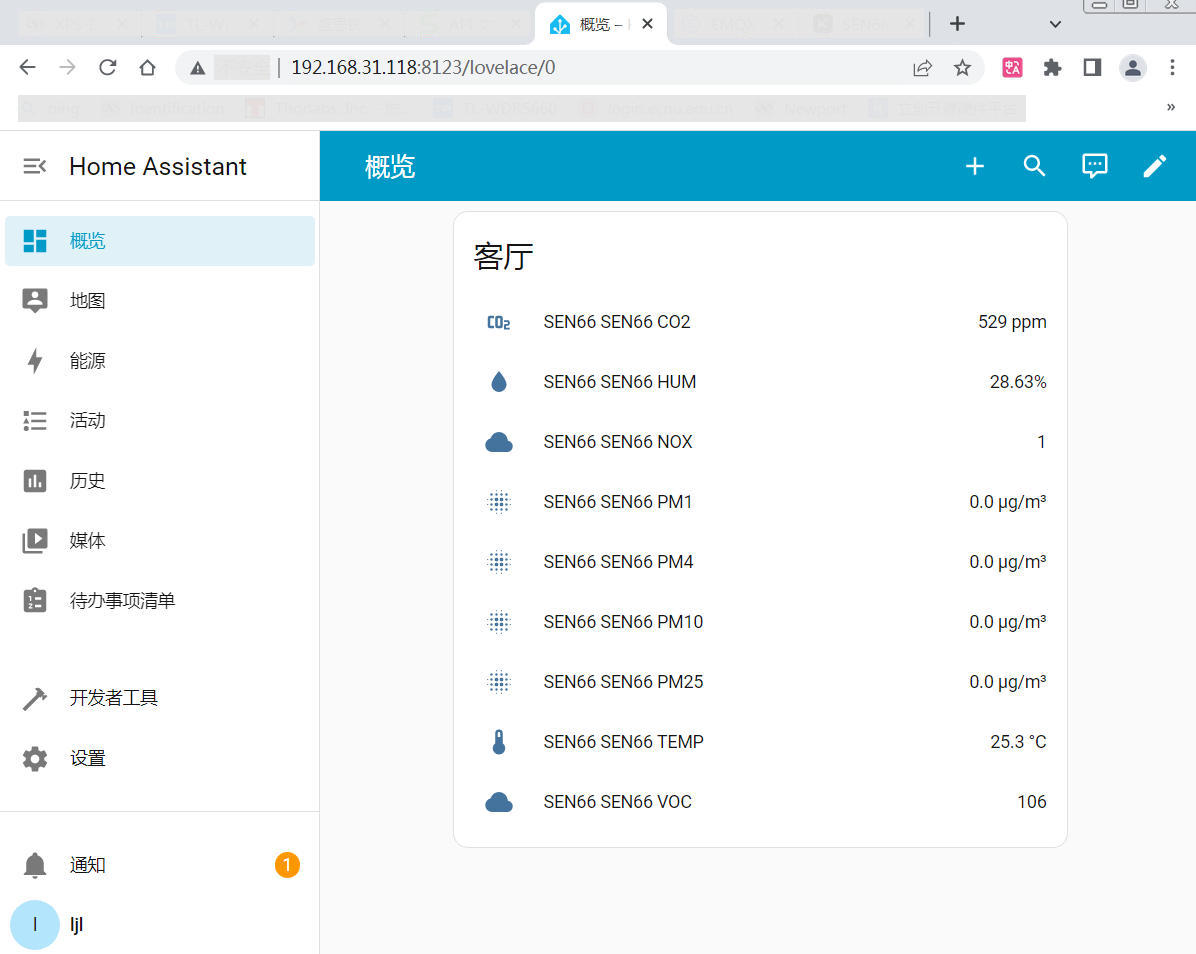

Home Assistant：通过 MQTT 集成，实现 SEN66 传感器数据卡片自动获取，实现物联网环境气体监测。

准备工作

包括硬件连接、软件包安装、Home Assistant 平台搭建等。

硬件连接

默认情况下，SEN66 示例程序设定传感器已连接到端口 /dev/i2c-1 ；

SEN66	VisionFive 2 Lite	Note
SDA (green)	SDA (3)	Serial Data
SCL (yellow)	SCL (5)	Serial Clock
GND (black)	GND (6)	Ground
VCC (red)	3.3V (1)	Power

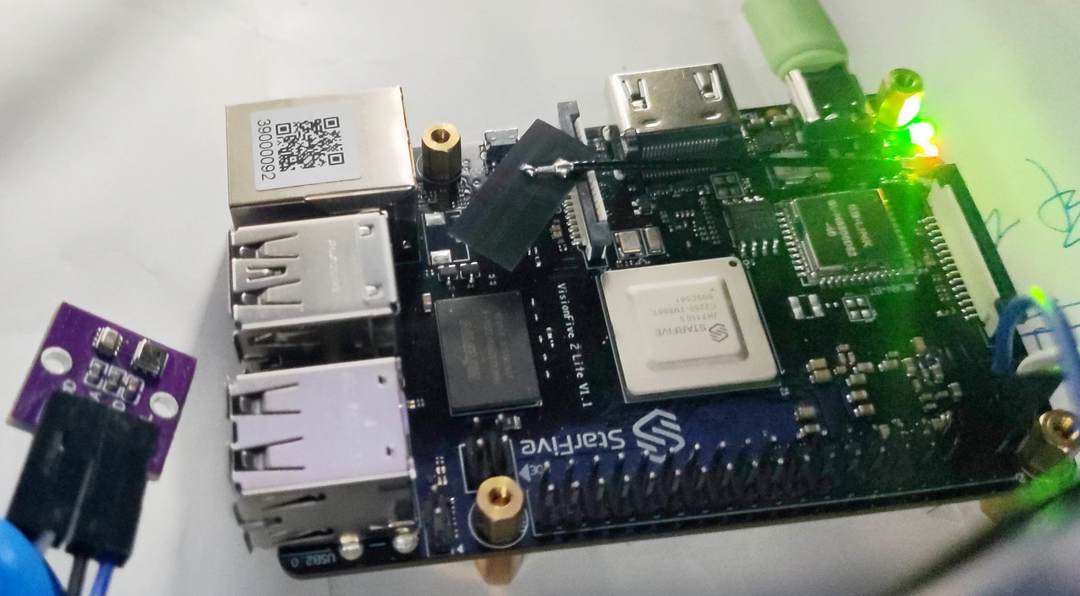

实物图

VisionFive2 Lite 40-Pin 接口定义

SEN66 引脚

引脚定义及描述

Pin	Color	Name	Description	Comments
1	red	VDD	Supply Voltage	3.3V ±5%
2	black	GND	Ground
3	green	SDA	I2C: Serial data input / output	TTL 5V compatible
4	yellow	SCL	I2C: Serial clock input	TTL 5V compatible
5		NC	Do not connect	Ground (Pins 2 and 5 are connected internally)
6		NC	Do not connect	Supply voltage (Pins 1 and 6 are connected internally)

详见：https://github.com/Sensirion/raspberry-pi-i2c-sen66/

软件包安装

终端执行如下指令，安装 Sensirion Sen66 库

bash 复制代码

sudo pip3 install sensirion_i2c_sen66 --break-system-packages
sudo apt install python3-paho-mqtt

详见：https://sensirion.github.io/python-i2c-sen66/index.html

搭建 Home Assistant 平台

电脑主机安装 Docker 软件；

bash 复制代码

sudo apt-get update && sudo apt-get upgrade
curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker.sh
docker version

拉取 EMQX 和 Home Assistant 最新镜像；

bash 复制代码

sudo docker pull emqx/emqx:latest
sudo docker pull homeassistant/home-assistant:latest

启动 EMQX 和 HA 容器；

bash 复制代码

docker run -d --name emqx -p 1883:1883 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 emqx/emqx:latest

docker run -d --restart always --name homeassistant -v /data/homeassistant/config:/config -e TZ=Asia/Shanghai -p 8123:8123 homeassistant/home-assistant:latest

MQTT 客户端

EMQX 创建 MQTT 客户端

进入 EMQX 主页，如 http://192.168.31.116:18083；
依次打开 访问控制 - 客户端认证 - 创建 - Password-Based - 内置数据库 - （默认配置）- 创建 ；

创建用户

用户管理 - 新建用户 - 自定义用户名和密码 - 保存.

HA 配置

浏览器输入网址 http://<IP>:8123，如 192.168.1.107:8123
进入 HA 主界面（首次打开需进行注册），输入用户名、密码等信息；
配置完成后进入 HA 概览 标签页；

工程测试

包括 AHT10和BMP280模块IIC通信测试、SEN66模块驱动测试等。

AHT10 & BMP280

终端执行指令 touch aht20_bmp280_print.py 新建程序文件并添加如下代码

python 复制代码

from aht10 import AHT10
from bmp280 import BMP280
import time

while True:
    sensor = AHT10(bus=0, address=0x38)
    temp, hum = sensor.read()
    bmp280 = BMP280(bus=0, address=0x77)
    temperature, pressure = bmp280.get_temperature_and_pressure()
    print("Temperature: {:.2f} °C  Humidity: {:.2f} %RH  Pressure: {:.3f} kPa".format(temp, hum, pressure/1000))
    time.sleep(2)

AHT10 驱动

python 复制代码

"""
AHT10温湿度传感器驱动
"""

import smbus2
import time

class AHT10:
    def __init__(self, bus=1, address=0x38):
        self.bus = smbus2.SMBus(bus)
        self.addr = address
        self._initialize()
        time.sleep(0.5)  # 延长初始化等待时间

    def _initialize(self):
        """初始化AHT10，发送0xE10800命令"""
        try:
            self.bus.write_i2c_block_data(self.addr, 0xE1, [0x08, 0x00])
            return True
        except:
            return False

    def read(self):
        """读取一次温湿度测量"""
        # 触发测量 0xAC3300
        self.bus.write_i2c_block_data(self.addr, 0xAC, [0x33, 0x00])
        time.sleep(0.08)  # 等待测量完成

        # 读取6字节数据
        data = self.bus.read_i2c_block_data(self.addr, 0x00, 6)

        # 解析数据
        hum_raw = ((data[1] << 12) | (data[2] << 4) | (data[3] >> 4))
        temp_raw = (((data[3] & 0x0F) << 16) | (data[4] << 8) | data[5])

        humidity = hum_raw * 100 / (1 << 20)  # 2^20 = 1048576
        temperature = temp_raw * 200 / (1 << 20) - 50

        return round(temperature, 1), round(humidity, 1)

# 使用示例
def demo(interval=1):
    """连续打印温湿度，interval：采样间隔（秒）"""
    sensor = AHT10(bus=0, address=0x38)
    while True:
        temp, hum = sensor.read()
        print(f"Temperature: {temp}°C, Humidity: {hum}%RH")
        time.sleep(interval)

BMP280 驱动

python 复制代码

import time
import smbus

# BMP280 iic address.
BMP280_I2C_ADDRESS = 0x77        # SDO = 0

# Registers value
BMP280_ID_Value = 0x58           # BMP280 ID
BMP280_RESET_VALUE = 0xB6

# BMP280 Registers definition
BMP280_TEMP_XLSB_REG = 0xFC      # Temperature XLSB Register
BMP280_TEMP_LSB_REG = 0xFB       # Temperature LSB Register
BMP280_TEMP_MSB_REG = 0xFA       # Temperature LSB Register
BMP280_PRESS_XLSB_REG = 0xF9     # Pressure XLSB  Register
BMP280_PRESS_LSB_REG = 0xF8      # Pressure LSB Register
BMP280_PRESS_MSB_REG = 0xF7      # Pressure MSB Register
BMP280_CONFIG_REG = 0xF5         # Configuration Register
BMP280_CTRL_MEAS_REG = 0xF4      # Ctrl Measure Register
BMP280_STATUS_REG = 0xF3         # Status Register
BMP280_RESET_REG = 0xE0          # Softreset Register
BMP280_ID_REG = 0xD0             # Chip ID Register

# calibration parameters
BMP280_DIG_T1_LSB_REG = 0x88
BMP280_DIG_T1_MSB_REG = 0x89
BMP280_DIG_T2_LSB_REG = 0x8A
BMP280_DIG_T2_MSB_REG = 0x8B
BMP280_DIG_T3_LSB_REG = 0x8C
BMP280_DIG_T3_MSB_REG = 0x8D
BMP280_DIG_P1_LSB_REG = 0x8E
BMP280_DIG_P1_MSB_REG = 0x8F
BMP280_DIG_P2_LSB_REG = 0x90
BMP280_DIG_P2_MSB_REG = 0x91
BMP280_DIG_P3_LSB_REG = 0x92
BMP280_DIG_P3_MSB_REG = 0x93
BMP280_DIG_P4_LSB_REG = 0x94
BMP280_DIG_P4_MSB_REG = 0x95
BMP280_DIG_P5_LSB_REG = 0x96
BMP280_DIG_P5_MSB_REG = 0x97
BMP280_DIG_P6_LSB_REG = 0x98
BMP280_DIG_P6_MSB_REG = 0x99
BMP280_DIG_P7_LSB_REG = 0x9A
BMP280_DIG_P7_MSB_REG = 0x9B
BMP280_DIG_P8_LSB_REG = 0x9C
BMP280_DIG_P8_MSB_REG = 0x9D
BMP280_DIG_P9_LSB_REG = 0x9E
BMP280_DIG_P9_MSB_REG = 0x9F


class BMP280(object):
    def __init__(self, bus=1, address=BMP280_I2C_ADDRESS):
        self._address = address
        self._bus = smbus.SMBus(bus)    # 1: iic编号为1（根据自己的硬件接口选择对应的编号）
        # Load calibration values.
        if self._read_byte(BMP280_ID_REG) == BMP280_ID_Value: # read bmp280 id
            self._load_calibration()                          # load calibration data
            # BMP280_T_MODE_1 << 5 | BMP280_P_MODE_1 << 2 | BMP280_SLEEP_MODE;
            # 修复：使用正常的测量模式而不是 0xFF（0xFF 会使传感器进入强制模式但可能不稳定）
            # 0x27 表示：温度过采样x1，压力过采样x1，正常模式
            ctrlmeas = 0x27
            # BMP280_T_SB1 << 5 | BMP280_FILTER_MODE_1 << 2;
            config = 0x14
            self._write_byte(BMP280_CTRL_MEAS_REG, ctrlmeas)  # write bmp280 config
            # sets the data acquisition options
            self._write_byte(BMP280_CONFIG_REG, config)
            # 等待传感器稳定
            time.sleep(0.01)
        else:
            print("Read BMP280 id error!\r\n")

    def _read_byte(self, cmd):
        return self._bus.read_byte_data(self._address, cmd)

    def _read_u16(self, cmd):
        LSB = self._bus.read_byte_data(self._address, cmd)
        MSB = self._bus.read_byte_data(self._address, cmd+1)
        return (MSB << 8) + LSB

    def _read_s16(self, cmd):
        result = self._read_u16(cmd)
        if result > 32767:
            result -= 65536
        return result

    def _write_byte(self, cmd, val):
        self._bus.write_byte_data(self._address, cmd, val)

    def _load_calibration(self):                           # load calibration data
        "load calibration"

        """ read the temperature calibration parameters """
        self.dig_T1 = self._read_u16(BMP280_DIG_T1_LSB_REG)
        self.dig_T2 = self._read_s16(BMP280_DIG_T2_LSB_REG)
        self.dig_T3 = self._read_s16(BMP280_DIG_T3_LSB_REG)
        """ read the pressure calibration parameters """
        self.dig_P1 = self._read_u16(BMP280_DIG_P1_LSB_REG)
        self.dig_P2 = self._read_s16(BMP280_DIG_P2_LSB_REG)
        self.dig_P3 = self._read_s16(BMP280_DIG_P3_LSB_REG)
        self.dig_P4 = self._read_s16(BMP280_DIG_P4_LSB_REG)
        self.dig_P5 = self._read_s16(BMP280_DIG_P5_LSB_REG)
        self.dig_P6 = self._read_s16(BMP280_DIG_P6_LSB_REG)
        self.dig_P7 = self._read_s16(BMP280_DIG_P7_LSB_REG)
        self.dig_P8 = self._read_s16(BMP280_DIG_P8_LSB_REG)
        self.dig_P9 = self._read_s16(BMP280_DIG_P9_LSB_REG)

        # print(self.dig_T1)
        # print(self.dig_T2)
        # print(self.dig_T3)
        # print(self.dig_P1)
        # print(self.dig_P2)
        # print(self.dig_P3)
        # print(self.dig_P4)
        # print(self.dig_P5)
        # print(self.dig_P6)
        # print(self.dig_P7)
        # print(self.dig_P8)
        # print(self.dig_P9)

    def compensate_temperature(self, adc_T):
        """Returns temperature in DegC, double precision. Output value of "1.23"equals 51.23 DegC."""
        var1 = ((adc_T) / 16384.0 - (self.dig_T1) / 1024.0) * (self.dig_T2)
        var2 = (((adc_T) / 131072.0 - (self.dig_T1) / 8192.0) *
                ((adc_T) / 131072.0 - (self.dig_T1) / 8192.0)) * (self.dig_T3)
        self.t_fine = var1 + var2
        temperature = (var1 + var2) / 5120.0
        return temperature

    def compensate_pressure(self, adc_P):
        """Returns pressure in Pa as double. Output value of "6386.2"equals 96386.2 Pa = 963.862 hPa."""
        var1 = (self.t_fine / 2.0) - 64000.0
        var2 = var1 * var1 * (self.dig_P6) / 32768.0
        var2 = var2 + var1 * (self.dig_P5) * 2.0
        var2 = (var2 / 4.0) + ((self.dig_P4) * 65536.0)
        var1 = ((self.dig_P3) * var1 * var1 / 524288.0 +
                (self.dig_P2) * var1) / 524288.0
        var1 = (1.0 + var1 / 32768.0) * (self.dig_P1)

        if var1 == 0.0:
            return 0  # avoid exception caused by division by zero

        pressure = 1048576.0 - adc_P
        pressure = (pressure - (var2 / 4096.0)) * 6250.0 / var1
        var1 = (self.dig_P9) * pressure * pressure / 2147483648.0
        var2 = pressure * (self.dig_P8) / 32768.0
        pressure = pressure + (var1 + var2 + (self.dig_P7)) / 16.0

        return pressure

    def get_temperature_and_pressure(self):
        """Returns pressure in Pa as double. Output value of "6386.2"equals 96386.2 Pa = 963.862 hPa."""
        xlsb = self._read_byte(BMP280_TEMP_XLSB_REG)
        lsb = self._read_byte(BMP280_TEMP_LSB_REG)
        msb = self._read_byte(BMP280_TEMP_MSB_REG)

        adc_T = (msb << 12) | (lsb << 4) | (
            xlsb >> 4)      # temperature registers data
        temperature = self.compensate_temperature(
            adc_T)    # temperature compensate

        xlsb = self._read_byte(BMP280_PRESS_XLSB_REG)
        lsb = self._read_byte(BMP280_PRESS_LSB_REG)
        msb = self._read_byte(BMP280_PRESS_MSB_REG)

        adc_P = (msb << 12) | (lsb << 4) | (
            xlsb >> 4)      # pressure registers data
        pressure = self.compensate_pressure(
            adc_P)          # pressure compensate
        return temperature, pressure

def demo(interval=1):
    """连续打印温度压强，interval：采样间隔（秒）"""
    bmp280 = BMP280(bus=4, address=0x77)
    while True:
        time.sleep(1)
        temperature, pressure = bmp280.get_temperature_and_pressure()
        print('Temperature = %.2f C Pressure = %.3f kPa' %
              (temperature, pressure/1000))

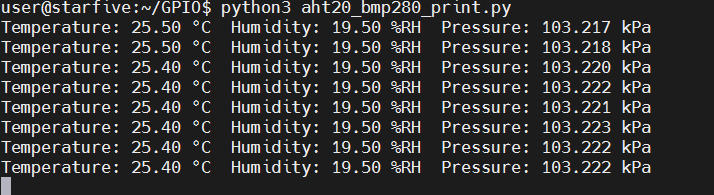

终端执行指令 python3 aht20_bmp280_print.py 运行程序；
连续打印温湿度和气压数据；

MQTT 上传

python 复制代码

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
温湿度 + 气压 → MQTT → Home Assistant
传感器：AHT10 + BMP280（I²C 总线 0）
"""

import json
import time
from aht10 import AHT10
from bmp280 import BMP280
import paho.mqtt.client as mqtt

# =============== 参数 ==============
MQTT_BROKER = "192.168.1.107"   # EMQX IP
MQTT_PORT   = 1883
MQTT_USER   = "xxx"
MQTT_PASS   = "xxx"
NODE_ID     = "bosch"          # 设备节点 ID
IIC_BUS     = 0                # i2c bus 0
# ===================================

# HA 自动发现主题模板
DISCOVERY_PREFIX = "homeassistant"

# 传感器配置
SENSORS = {
    "temp": {"name": "Temperature", "unit": "°C",   "dev_cla": "temperature", "ic": "mdi:thermometer"},
    "hum":  {"name": "Humidity", "unit": "%",    "dev_cla": "humidity",    "ic": "mdi:water-percent"},
    "pres": {"name": "Pressure", "unit": "hPa",  "dev_cla": "pressure",    "ic": "mdi:gauge"},
}

def publish_discovery(client):
    """向 HA 发送自动发现配置，只需一次即可"""
    for key, cfg in SENSORS.items():
        topic = f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/{key}/config"
        payload = {
            "name": cfg["name"],
            "unit_of_measurement": cfg["unit"],
            "device_class": cfg["dev_cla"],
            "icon": cfg["ic"],
            "state_topic": f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/{key}/state",
            "unique_id": f"{NODE_ID}_{key}",
            "device": {
                "identifiers": [NODE_ID],
                "name": "Sensors",
                "model": "AHT20_BMP280",
                "manufacturer": "Bosch",
            },
        }
        client.publish(topic, json.dumps(payload), retain=True)

def main():
    client = mqtt.Client()
    client.username_pw_set(MQTT_USER, MQTT_PASS)
    client.connect(MQTT_BROKER, MQTT_PORT, 60)
    client.loop_start()

    # 上电后先发送一次发现配置
    publish_discovery(client)

    # 传感器初始化
    aht  = AHT10(bus=IIC_BUS, address=0x38)
    bmp  = BMP280(bus=IIC_BUS, address=0x77)

    while True:
        try:
            temp, hum   = aht.read()
            _, pressure = bmp.get_temperature_and_pressure()  # 温度 AHT10 采集
            pressure_hpa = pressure * 10                      # kPa → hPa
            print(f"Temp: {temp:.2f} °C  Hum: {hum:.2f} %  Pres: {pressure_hpa:.2f} hPa")

            client.publish(f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/temp/state", f"{temp:.2f}")
            client.publish(f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/hum/state",  f"{hum:.2f}")
            client.publish(f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/pres/state", f"{pressure_hpa:.2f}")
        except Exception as e:
            print("读取/发送失败:", e)
        time.sleep(2)  # 2 s 上报一次

if __name__ == "__main__":
    main()

保存代码；

SEN66

包括 Sen66 传感器 python 驱动代码、终端打印 PM 、CO2、NOx 浓度数据等。

介绍

SEN66 是 Sensirion 盛思锐公司推出的 PM, RH/T, VOC, Nox 和 CO2 测量传感器平台，可实现空气质量传感数据采集。

外形紧凑、集成多个传感器、可测量 9 种环境参数 (PM1, PM2.5, PM4, PM10, T, RH, VOC指数，NOx指数，CO2) ；
核心组件是 SPS6x ------ 小型化的、基于 mems 技术的颗粒物传感器；
适配于需要符合不同室内空气质量标准的应用，如RESET®，WELL建筑标准™和California Title 24建筑能效标准。

Python 代码

终端执行 touch sen66.py 新建文件并添加如下代码

python 复制代码

#!/usr/bin/env python
# -*- coding: utf-8 -*-
#
# (c) Copyright 2025 Sensirion AG, Switzerland
#
#     THIS FILE IS AUTOMATICALLY GENERATED!
#
# Generator:     sensirion-driver-generator 1.1.2
# Product:       sen66
# Model-Version: 1.6.0
#

import argparse
import time
from sensirion_i2c_driver import LinuxI2cTransceiver, I2cConnection, CrcCalculator
from sensirion_driver_adapters.i2c_adapter.i2c_channel import I2cChannel
from sensirion_i2c_sen66.device import Sen66Device

parser = argparse.ArgumentParser()
parser.add_argument('--i2c-port', '-p', default='/dev/i2c-1')
args = parser.parse_args()

with LinuxI2cTransceiver(args.i2c_port) as i2c_transceiver:
    channel = I2cChannel(I2cConnection(i2c_transceiver),
                         slave_address=0x6B,
                         crc=CrcCalculator(8, 0x31, 0xff, 0x0))
    sensor = Sen66Device(channel)
    sensor.device_reset()
    time.sleep(1.2)
    serial_number = sensor.get_serial_number()
    print(f"serial_number: {serial_number}; "
          )
    sensor.start_continuous_measurement()
    for i in range(100):
        try:
            time.sleep(1.0)
            (mass_concentration_pm1p0, mass_concentration_pm2p5, mass_concentration_pm4p0, mass_concentration_pm10p0, humidity,
             temperature, voc_index, nox_index, co2
             ) = sensor.read_measured_values()
            print(f"mass_concentration_pm1p0: {mass_concentration_pm1p0}; "
                  f"mass_concentration_pm2p5: {mass_concentration_pm2p5}; "
                  f"mass_concentration_pm4p0: {mass_concentration_pm4p0}; "
                  f"mass_concentration_pm10p0: {mass_concentration_pm10p0}; "
                  f"humidity: {humidity}; "
                  f"temperature: {temperature}; "
                  f"voc_index: {voc_index}; "
                  f"nox_index: {nox_index}; "
                  f"co2: {co2}; "
                  )
        except BaseException:
            continue
    sensor.stop_measurement()

保存代码。

详见：https://github.com/Sensirion/python-i2c-sen66

效果

终端执行 python sen66.py 运行程序；

打印设备序列号、环境参数（PM1.0、PM2.5、PM4.0、PM10.0、湿度、温度、VOC指数、NOx指数、二氧化碳浓度）

关键函数

read_measured_values ( )

返回测量值。

返回 mass_concentration_pm1p0：

PM1.0 [µg/m³]
返回 mass_concentration_pm2p5：

PM2.5 [µg/m³]
返回 mass_concentration_pm4p0：

PM4.0 [µg/m³]
返回 mass_concentration_pm10p0：

PM10.0 [µg/m³]
返回环境湿度：

RH [%]
返回环境温度：

T [°C]
返回 voc_index：

VOC 指数
返回 nox_index：

NOx 指数
返回二氧化碳：

二氧化碳浓度 [ppm]

详见：https://sensirion.github.io/python-i2c-sen66/index.html

MQTT

通过 MQTT 协议实现传感器数据上传，并使用 EMQX 的 WebSocket 工具接收 JSON 报文。

流程图

异常
Ctrl-C
开始
初始化
扫描IIC设备
复位 SEN66
启动连续测量
连接MQTT
发布HA配置
主循环
读取9个参量
提取数据
封装JSON

发布
打印日志
停止测量

断开MQTT
退出

代码

终端执行 touch sen66_mqtt_ha.py 指令新建程序文件，并添加如下代码

python 复制代码

#!/usr/bin/env python3
"""

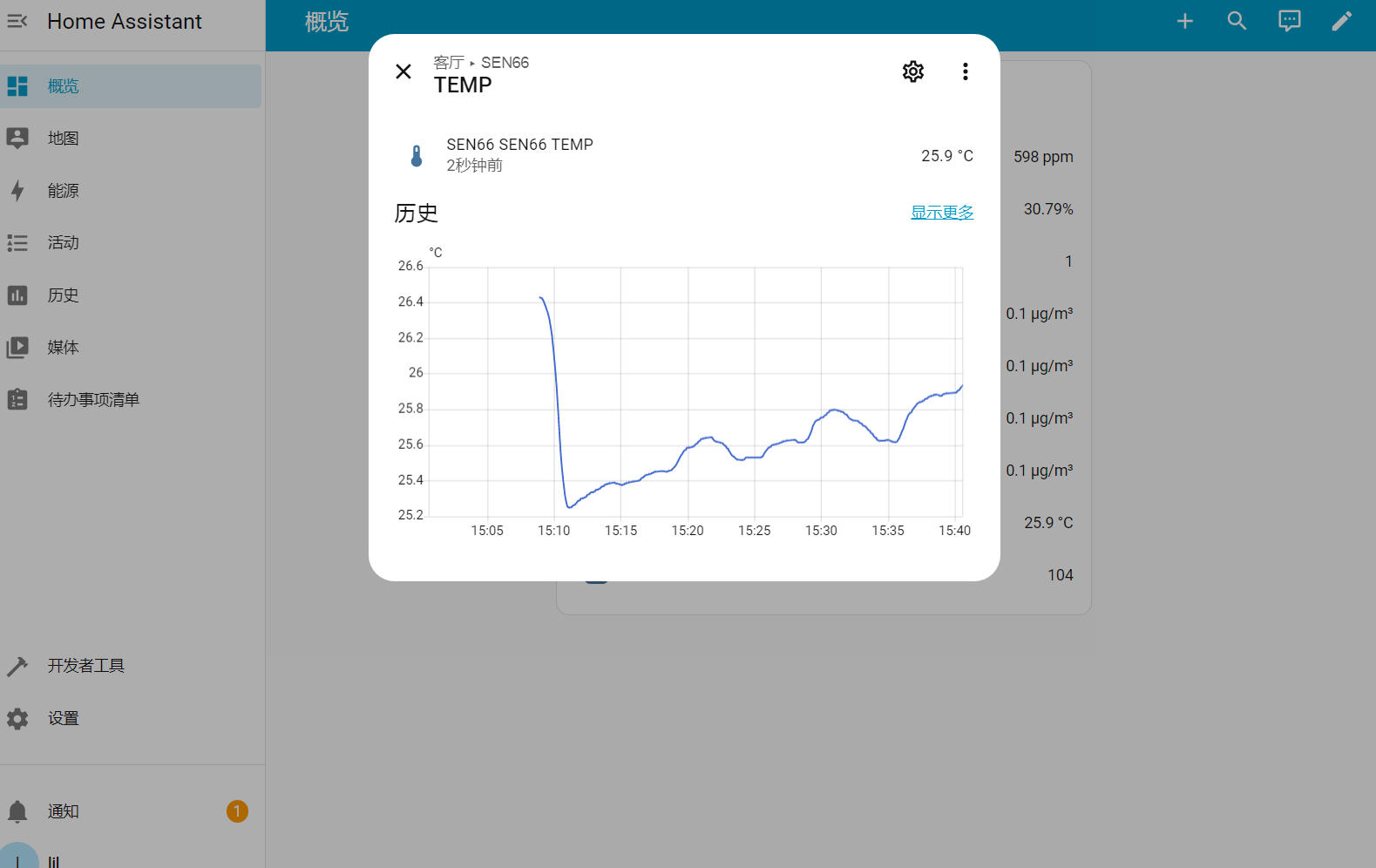

SEN66 → MQTT → Home Assistant
"""

import argparse
import time
import json
import socket
import paho.mqtt.client as mqtt
from sensirion_i2c_driver import LinuxI2cTransceiver, I2cConnection, CrcCalculator
from sensirion_driver_adapters.i2c_adapter.i2c_channel import I2cChannel
from sensirion_i2c_sen66.device import Sen66Device

# ---------- 参数 ----------
I2C_PORT         = '/dev/i2c-1'
MQTT_BROKER      = '192.168.31.117'   # MQTT Broker IP
MQTT_PORT        = 1883
MQTT_USER        = 'xxx'
MQTT_PASS        = 'xxx'
MQTT_CLIENT_ID   = f'sen66_{socket.gethostname()}'
BASE_TOPIC       = 'homeassistant/sensor/sen66'
DEVICE_NAME      = 'SEN66'
DEVICE_ID        = 'sen66_01'
# -----------------------------

# HA 自动发现的通用设备段
DEVICE_INFO = {
    "name": DEVICE_NAME,
    "ids": [DEVICE_ID],
    "mdl": "SEN66",
    "mf": "Sensirion"
}

# 上传 9 个参量：topic_suffix, unit, icon, class
QUANTITIES = [
    ("pm1",   "μg/m³", "mdi:blur",  "pm1"),
    ("pm25",  "μg/m³", "mdi:blur",  "pm25"),
    ("pm4",   "μg/m³", "mdi:blur",  "pm25"),
    ("pm10",  "μg/m³", "mdi:blur",  "pm10"),
    ("hum",   "%",     "mdi:water", "humidity"),
    ("temp",  "°C",    "mdi:thermometer", "temperature"),
    ("voc",   " ",     "mdi:cloud", None),
    ("nox",   " ",     "mdi:cloud", None),
    ("co2",   "ppm",   "mdi:molecule-co2", "carbon_dioxide"),
]

def publish_discovery(client):
    """向 HA 发送自动发现配置，只需一次即可持久化"""
    for qty, unit, icon, dev_cla in QUANTITIES:
        topic = f"{BASE_TOPIC}/{qty}/config"
        payload = {
            "name": f"{DEVICE_NAME} {qty.upper()}",
            "state_topic": f"{BASE_TOPIC}/{qty}/state",
            "unit_of_measurement": unit,
            "icon": icon,
            "device": DEVICE_INFO,
            "unique_id": f"{DEVICE_ID}_{qty}",
        }
        if dev_cla:
            payload["device_class"] = dev_cla
        client.publish(topic, json.dumps(payload), retain=True)

def main():
    parser = argparse.ArgumentParser()
    parser.add_argument('--i2c-port', '-p', default=I2C_PORT)
    args = parser.parse_args()

    # 连接 MQTT
    client = mqtt.Client(client_id=MQTT_CLIENT_ID)
    client.username_pw_set(MQTT_USER, MQTT_PASS)
    client.connect(MQTT_BROKER, MQTT_PORT, keepalive=60)
    client.loop_start()

    with LinuxI2cTransceiver(args.i2c_port) as i2c_transceiver:
        channel = I2cChannel(I2cConnection(i2c_transceiver),
                             slave_address=0x6B,
                             crc=CrcCalculator(8, 0x31, 0xff, 0x0))
        sensor = Sen66Device(channel)
        sensor.device_reset()
        time.sleep(1.2)
        print("SEN66 serial:", sensor.get_serial_number())
        sensor.start_continuous_measurement()

        # 发送一次自动发现配置
        publish_discovery(client)

        try:
            while True:
                time.sleep(2)          # 2 s 上报一次
                try:
                    vals = sensor.read_measured_values()
                    # vals 顺序与官方 demo 一致
                    pm1  = vals[0].value
                    pm25 = vals[1].value
                    pm4  = vals[2].value
                    pm10 = vals[3].value
                    hum  = vals[4].value
                    temp = vals[5].value
                    voc  = int(vals[6].value)
                    nox  = int(vals[7].value)
                    co2  = int(vals[8].value)
                    #----------------------------------
                    data = {
                        "pm1":  float(pm1),
                        "pm25": float(pm25),
                        "pm4":  float(pm4),
                        "pm10": float(pm10),
                        "hum":  float(hum),
                        "temp": float(temp),
                        "voc":  int(voc),
                        "nox":  int(nox),
                        "co2":  int(co2),
                    }
                    # 分开发，方便 HA 各自解析
                    for qty, val in data.items():
                        client.publish(f"{BASE_TOPIC}/{qty}/state", val)
                    print("published:", data)
                except Exception as e:
                    print("read error:", e)
                    continue
        except KeyboardInterrupt:
            print("Ctrl-C 退出")
        finally:
            sensor.stop_measurement()
            client.loop_stop()
            client.disconnect()

if __name__ == '__main__':
    main()
