Jenkins动态Salve调度其他集群Docker in Docker

野猪佩挤2026-02-05 10:52

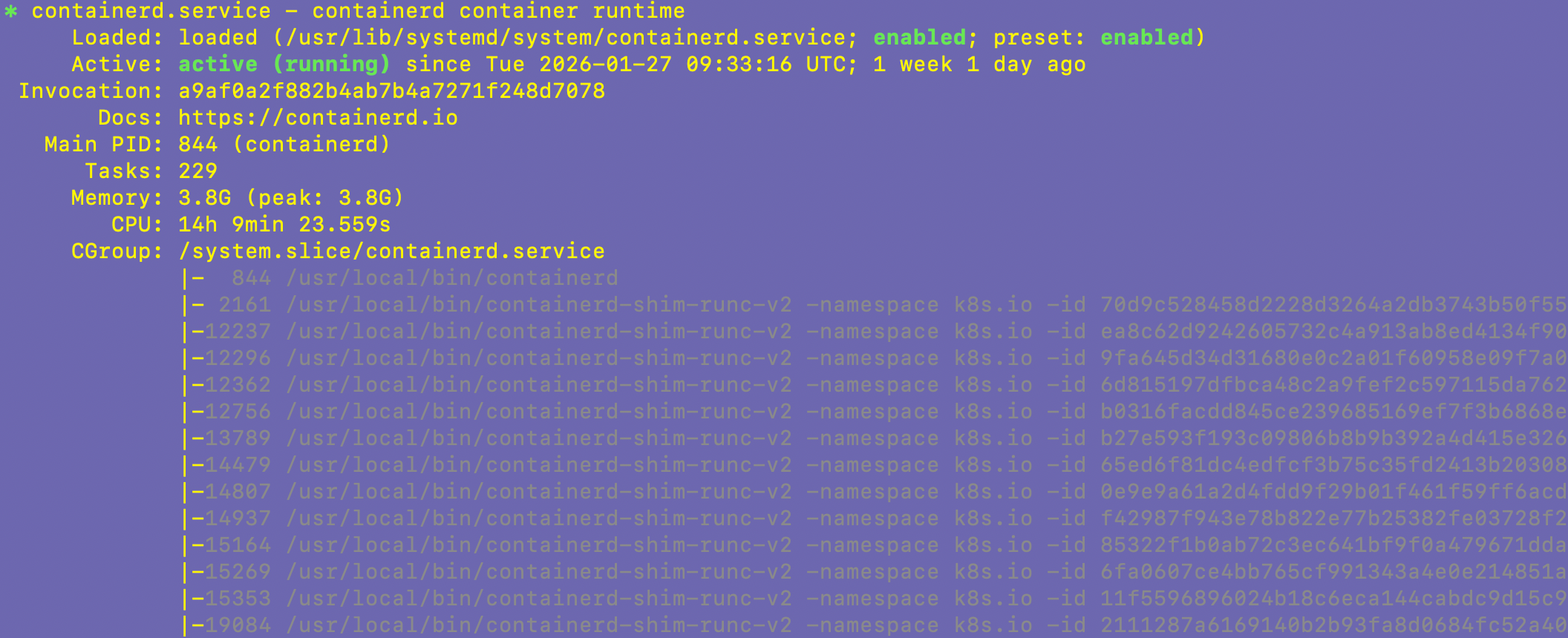

集群使用containerd 作为运行时

调度到test k8s集群构建

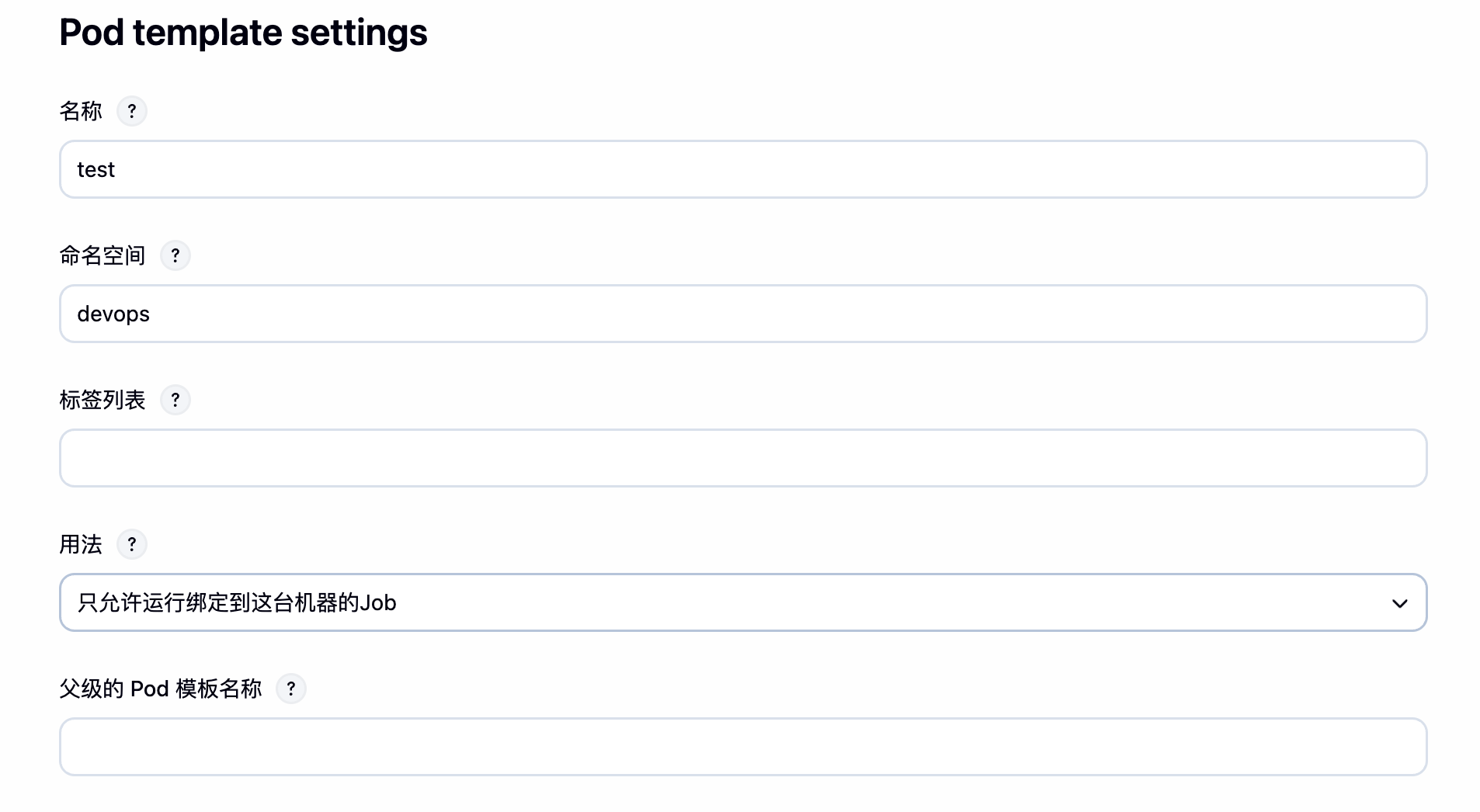

test k8s 集群必须要存在这个devops命名空间

docker in docker 模版

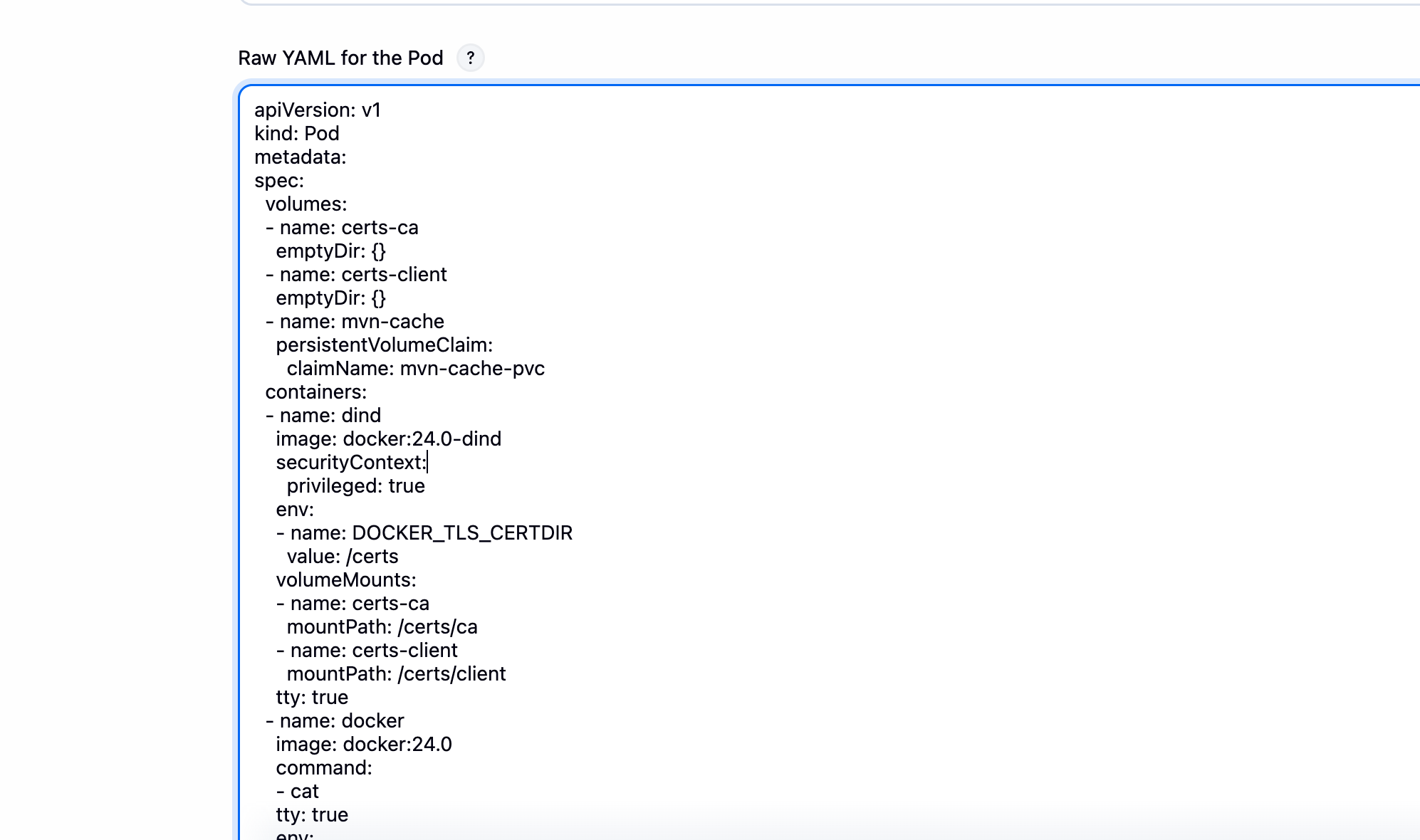

pods 模版

yaml 复制代码

apiVersion: v1
kind: Pod
metadata:
spec:
  volumes:
  - name: certs-ca
    emptyDir: {}
  - name: certs-client
    emptyDir: {}
  - name: mvn-cache
    persistentVolumeClaim:
      claimName: mvn-cache-pvc
  containers:
  - name: dind
    image: docker:24.0-dind
    securityContext:
      privileged: true
    env:
    - name: DOCKER_TLS_CERTDIR
      value: /certs
    volumeMounts:
    - name: certs-ca
      mountPath: /certs/ca
    - name: certs-client
      mountPath: /certs/client
    tty: true
  - name: docker
    image: docker:24.0
    command:
    - cat
    tty: true
    env:
    - name: DOCKER_TLS_CERTDIR
      value: /certs
    - name: DOCKER_HOST
      value: tcp://localhost:2376
    - name: DOCKER_TLS_VERIFY
      value: "1"
    - name: DOCKER_CERT_PATH
      value: /certs/client
    volumeMounts:
    - name: certs-client
      mountPath: /certs/client
      readOnly: true

最后写jenkinsfile进行构建

c 复制代码

pipeline {
options{
    timestamps ()
    disableConcurrentBuilds()
    buildDiscarder(logRotator(numToKeepStr: '10'))
}

    environment {
    image ="docker.com/xxx/$JOB_NAME:$BUILD_ID"
    }
        agent {
     kubernetes {
       cloud 'test-k8s'
       inheritFrom 'test'
     	 }
   			 }
   parameters {
   string(name: 'BRANCH', defaultValue: 'v10.1.3', description: 'Enter the branch name')
 }


   stages {
      stage('Get Code ') {
         steps {
               script {
             def branch = params.BRANCH
          sh("ls -al ${env.WORKSPACE}")
          deleteDir()
          sh("ls -al ${env.WORKSPACE}")

         checkout scmGit(branches: [[name: '*/${branch}']], extensions: [], userRemoteConfigs: [[credentialsId: 'git', url: 'http://dockert-boot.git']])


         }
      }
}
stage ('Maven Buid') {
  steps {
       container('mvn') {
           sh 'mvn clean install -DskipTests'
         }
             }
                 }


        stage('Docker Build and Push') {
            steps {
                container('docker') {
                    withDockerRegistry(credentialsId: 'hub', url: 'https://hub.docker.com') {
                        script {
                           def builtImage = docker.build("${image}", ".")
                            builtImage.push()
                            sh "docker rmi ${image}"

                        }
                    }
                }
            }
        }

        stage('Connect K8s and TEST') {
            steps {
            container('kubectl') {
                withKubeConfig(credentialsId: 'test-k8s') {
                   sh 'kubectl -n XX set image deployment/boot  boot=${image}'

                }
                 }
            }
        }
    }
}

注意

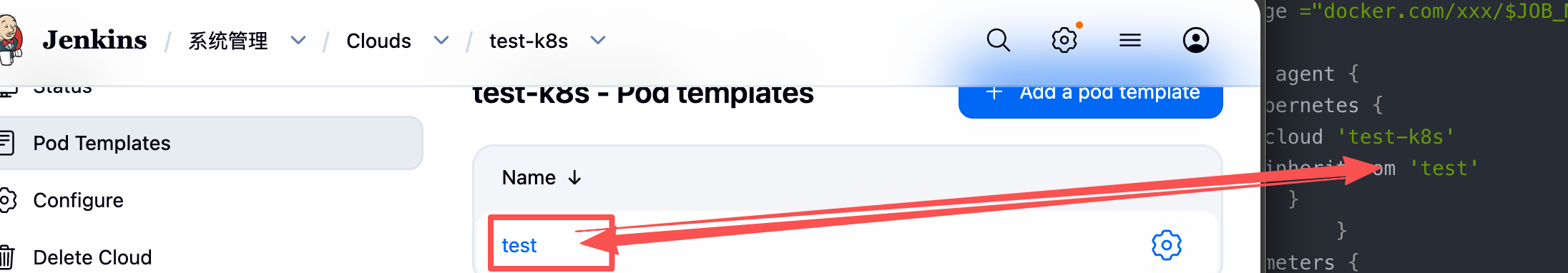

模版也是

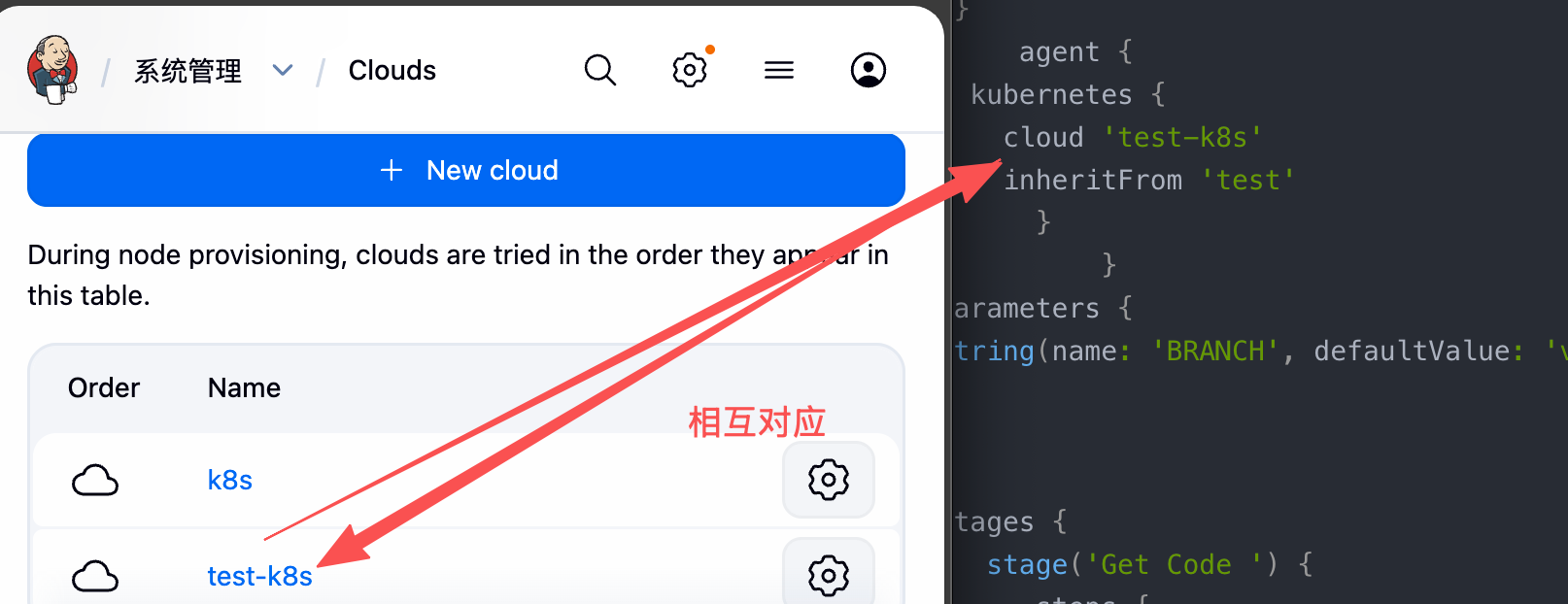

关键点否则无法调度test 集群，jenkins添加多集群管理不在讲了，之前有讲过

js 复制代码

    environment {
    image ="docker.com/xxx/$JOB_NAME:$BUILD_ID"
    }
        agent {
     kubernetes {
       cloud 'test-k8s'
       inheritFrom 'test'
     	 }
   			 }
