【Hue】Ambari开启 Kerberos 后，Hue 使用 Spark SQL出现凭证不统一问题处理

一、问题现象

开启 Kerberos 后，Hue 使用 Spark SQL（Spark Thrift Server）访问出现：

Thrift exception; retrying: Bad status: 3 (b'GSS initiate failed')
页面侧表现为 Spark SQL 连接失败/执行失败

bash 复制代码

[root@dev1 hue]# tail -f runcpserver.log
[23/Jan/2026 14:42:52 +0800] api          WARNING  Oozie application is not enabled: Model class oozie.models.Job doesn't declare an explicit app_label and isn't in an application in INSTALLED_APPS.
[23/Jan/2026 14:42:52 +0800] settings     INFO     Welcome to Hue 4.11.0
[23/Jan/2026 14:42:54 +0800] apps         INFO     AXES: BEGIN LOG
[23/Jan/2026 14:42:54 +0800] apps         INFO     AXES: Using django-axes version 5.13.0
[23/Jan/2026 14:42:54 +0800] apps         INFO     AXES: blocking by IP only.
[23/Jan/2026 14:42:55 +0800] api          WARNING  Oozie application is not enabled: Model class oozie.models.Job doesn't declare an explicit app_label and isn't in an application in INSTALLED_APPS.
[23/Jan/2026 14:42:55 +0800] middleware   INFO     Unloading MimeTypeJSFileFixStreamingMiddleware
[23/Jan/2026 14:42:55 +0800] middleware   INFO     Unloading HueRemoteUserMiddleware
[23/Jan/2026 14:42:55 +0800] middleware   INFO     Unloading SpnegoMiddleware
[23/Jan/2026 14:42:55 +0800] middleware   INFO     Unloading ProxyMiddleware
[23/Jan/2026 14:43:00 +0800] backend      INFO     Augmenting users with class: <class 'desktop.auth.backend.DefaultUserAugmentor'>
[23/Jan/2026 14:43:00 +0800] access       INFO     192.168.3.2 admin - "POST /jobbrowser/jobs/ HTTP/1.1" returned in 14ms 200 12
[23/Jan/2026 14:43:04 +0800] oozie_batch  WARNING  Oozie application is not enabled: Model class oozie.models.Job doesn't declare an explicit app_label and isn't in an application in INSTALLED_APPS.
[23/Jan/2026 14:43:04 +0800] hive_server2_lib INFO     sparksql: server_host=dev3, use_sasl=True, mechanism=GSSAPI, kerberos_principal_short_name=hive, impersonation_enabled=True, auth_username=hue
[23/Jan/2026 14:43:04 +0800] hive_server2_lib INFO     Opening sparksql thrift session for user admin
[23/Jan/2026 14:43:04 +0800] thrift_util  INFO     Thrift exception; retrying: Bad status: 3 (b'GSS initiate failed')
[23/Jan/2026 14:43:04 +0800] thrift_util  INFO     Thrift exception; retrying: Bad status: 3 (b'GSS initiate failed')
[23/Jan/2026 14:43:04 +0800] thrift_util  INFO     Thrift saw a transport exception: Bad status: 3 (b'GSS initiate failed')
[23/Jan/2026 14:43:04 +0800] access       INFO     192.168.3.2 admin - "POST /api/editor/autocomplete/ HTTP/1.1" returned in 72ms 200 167
[23/Jan/2026 14:43:08 +0800] models       INFO     Sample user found with username "hue" and User ID: 1100713
[23/Jan/2026 14:43:08 +0800] models       INFO     Home directory already exists for user: hue
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /hue/editor/ HTTP/1.1" returned in 899ms 200 240424
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/css/roboto.895233d7bf84.css HTTP/1.1" returned in 16ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/ext/css/cui/bootstrap-responsive2.e47b2a557fdc.css HTTP/1.1" returned in 17ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/ext/css/font-awesome.min.bf0c425cdb73.css HTTP/1.1" returned in 13ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/ext/css/cui/cui.5bfb0d381388.css HTTP/1.1" returned in 11ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/ext/css/cui/bootstrap2.f77764366b1f.css HTTP/1.1" returned in 19ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/css/hue.ffaca3f0bc26.css HTTP/1.1" returned in 5ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/css/jquery-ui.1929861c8e8d.css HTTP/1.1" returned in 16ms 200 -
[23/Jan/2026 14:43:08 +0800] access       INFO     192.168.3.2 admin - "GET /static/desktop/css/home.9208eafcb331.css HTTP/1.1" returned

现象关键点

Spark SQL 的目标端是 dev3:10016，但 Hue 发起 GSSAPI 的身份仍是 hive/...，这类组合通常会直>接导致 GSS initiate failed。

二、配置层面的两种尝试

一开始的方向是"让 Hue 访问 Hive 用 Hive principal，访问 Spark SQL 用 Spark principal"，但配置层面怎么做都不生效。

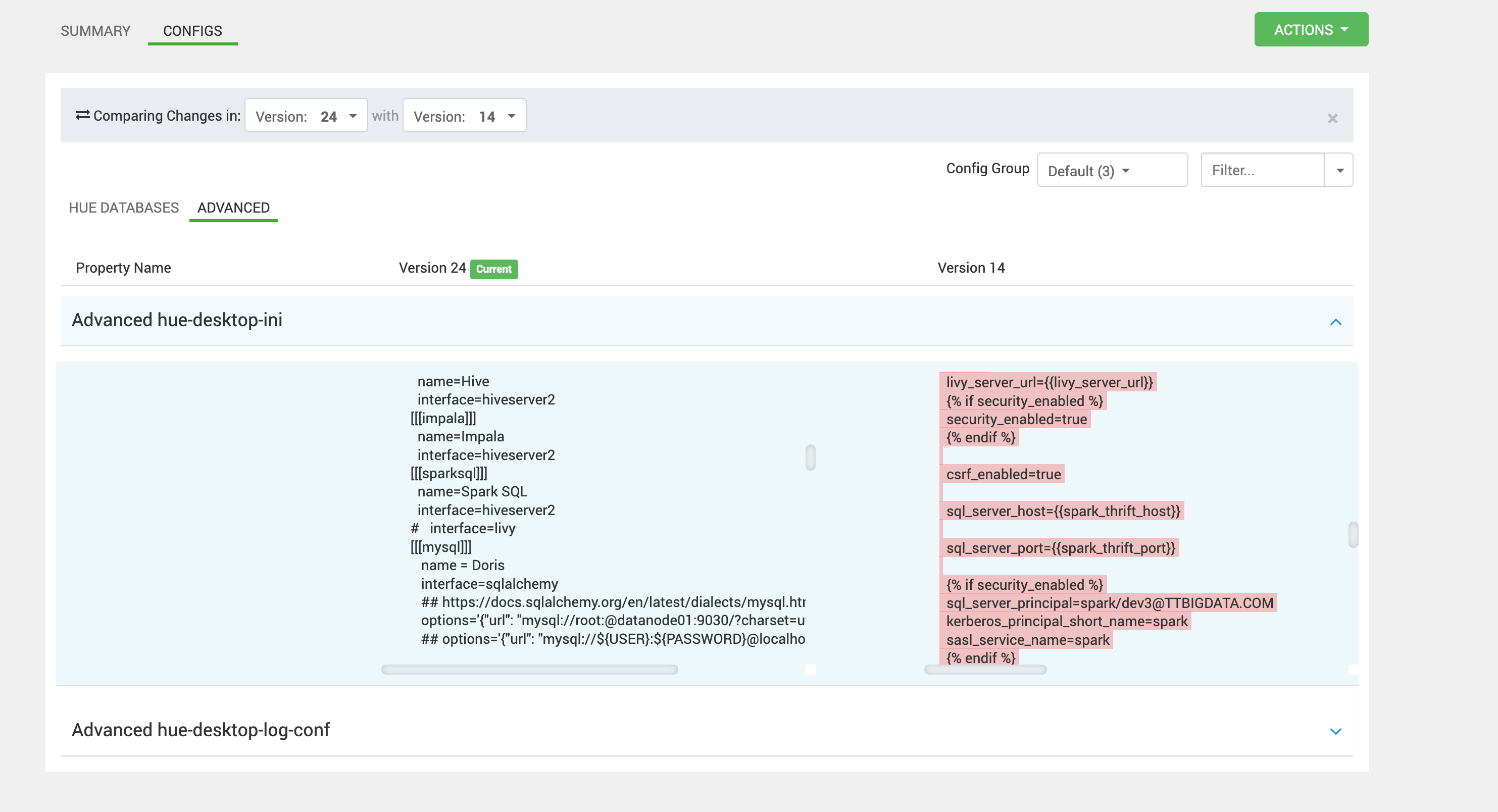

1、方案一：在 [spark] 强行指定 spark principal/短名

bash 复制代码

[spark]
  livy_server_url={{livy_server_url}}
  {% if security_enabled %}
  security_enabled=true
  {% endif %}

  csrf_enabled=true

  sql_server_host={{spark_thrift_host}}
  sql_server_port={{spark_thrift_port}}

  {% if security_enabled %}
  sql_server_principal=spark/dev3@TTBIGDATA.COM
  kerberos_principal_short_name=spark
  sasl_service_name=spark
  {% endif %}
  use_sasl=true

结果：重启 Hue 后依旧不生效。

2、方案二：Notebook interpreters options 强行覆盖

bash 复制代码

[notebook]
  [[interpreters]]
    [[[hive]]]
      name=Hive
      interface=hiveserver2
    [[[impala]]]
      name=Impala
      interface=hiveserver2
    [[[sparksql]]]
      name=Spark SQL
      interface=hiveserver2
      options='{"server_host":"dev3","server_port":"10016","use_sasl":true,"mechanism":"GSSAPI","transportMode":"binary","sasl_service_name":"spark","kerberos_principal_short_name":"spark","principal":"spark/dev3@TTBIGDATA.COM"}'

结果：同样不行。

为什么"配置看起来正确，但就是不生效"

从 Hue 的实现逻辑来看，Spark SQL（sparksql）并不是完全独立的一套 HS2 配置，它是复用 HiveServer2 的连接参数，然后在 dbms.py

中做二次覆写。

如果覆写逻辑只覆盖了 host/port/use_sasl，但没有覆盖 principal，最终进入 Thrift SASL/GSSAPI 的身份仍会沿用 Hive 的

principal。

三、打开 DEBUG 并定位到源码

为确认"最终生效"的 Query Server 参数来源，先把 Hue 日志调成 DEBUG：

bash 复制代码

[root@dev1 conf]# cat log.conf

##########################################
# To change the log leve, edit the `level' field.
# Choices are: DEBUG, INFO, WARNING, ERROR, CRITICAL
#
# The logrotation limit is set at 5MB per file for a total of 5 copies.
# I.e. 25MB for each set of logs.
##########################################
[handler_logfile]
level=DEBUG
class=handlers.RotatingFileHandler
formatter=default
args=('%LOG_DIR%/%PROC_NAME%.log', 'a', 5000000, 5)

##########################################
# Please do not change the settings below
##########################################

[logger_root]
handlers=logfile,errorlog

[logger_access]
handlers=accesslog
qualname=access

[logger_django_auth_ldap]
handlers=accesslog
qualname=django_auth_ldap

[logger_kazoo_client]
level=INFO
handlers=errorlog
qualname=kazoo.client

[logger_djangosaml2]
level=INFO
handlers=errorlog
qualname=djangosaml2

[logger_django_db]
level=DEBUG
handlers=errorlog
qualname=django.db.backends

[logger_boto]
level=ERROR
handlers=errorlog
qualname=boto

[logger_hive_server2_lib]
level=DEBUG
handlers=logfile,errorlog
qualname=hive_server2_lib
propagate=0

[logger_beeswax]
level=DEBUG
handlers=logfile,errorlog
qualname=beeswax
propagate=0

[logger_desktop_lib_thrift_util]
level=DEBUG
handlers=logfile,errorlog
qualname=desktop.lib.thrift_util
propagate=0

[logger_desktop_lib_thrift_sasl]
level=DEBUG
handlers=logfile,errorlog
qualname=desktop.lib.thrift_sasl
propagate=0

[logger_thrift_util]
level=DEBUG
handlers=logfile,errorlog
qualname=thrift_util
propagate=0


# The logrotation limit is set at 5MB per file for a total of 5 copies.
# I.e. 25MB for each set of logs.
[handler_accesslog]
class=handlers.RotatingFileHandler
level=DEBUG
propagate=True
formatter=access
args=('%LOG_DIR%/access.log', 'a', 5000000, 5)

# All errors go into error.log
[handler_errorlog]
class=handlers.RotatingFileHandler
level=ERROR
formatter=default
args=('%LOG_DIR%/error.log', 'a', 5000000, 5)

[formatter_default]
class=desktop.log.formatter.Formatter
format=[%(asctime)s] %(module)-12s %(levelname)-8s %(message)s
datefmt=%d/%b/%Y %H:%M:%S %z

[formatter_access]
class=desktop.log.formatter.Formatter
format=[%(asctime)s] %(levelname)-8s %(message)s
datefmt=%d/%b/%Y %H:%M:%S %z

[loggers]
keys=root,access,django_auth_ldap,kazoo_client,djangosaml2,django_db,boto,hive_server2_lib,beeswax,desktop_lib_thrift_util,desktop_lib_thrift_sasl,thrift_util

[handlers]
keys=logfile,accesslog,errorlog

[formatters]
keys=default,access

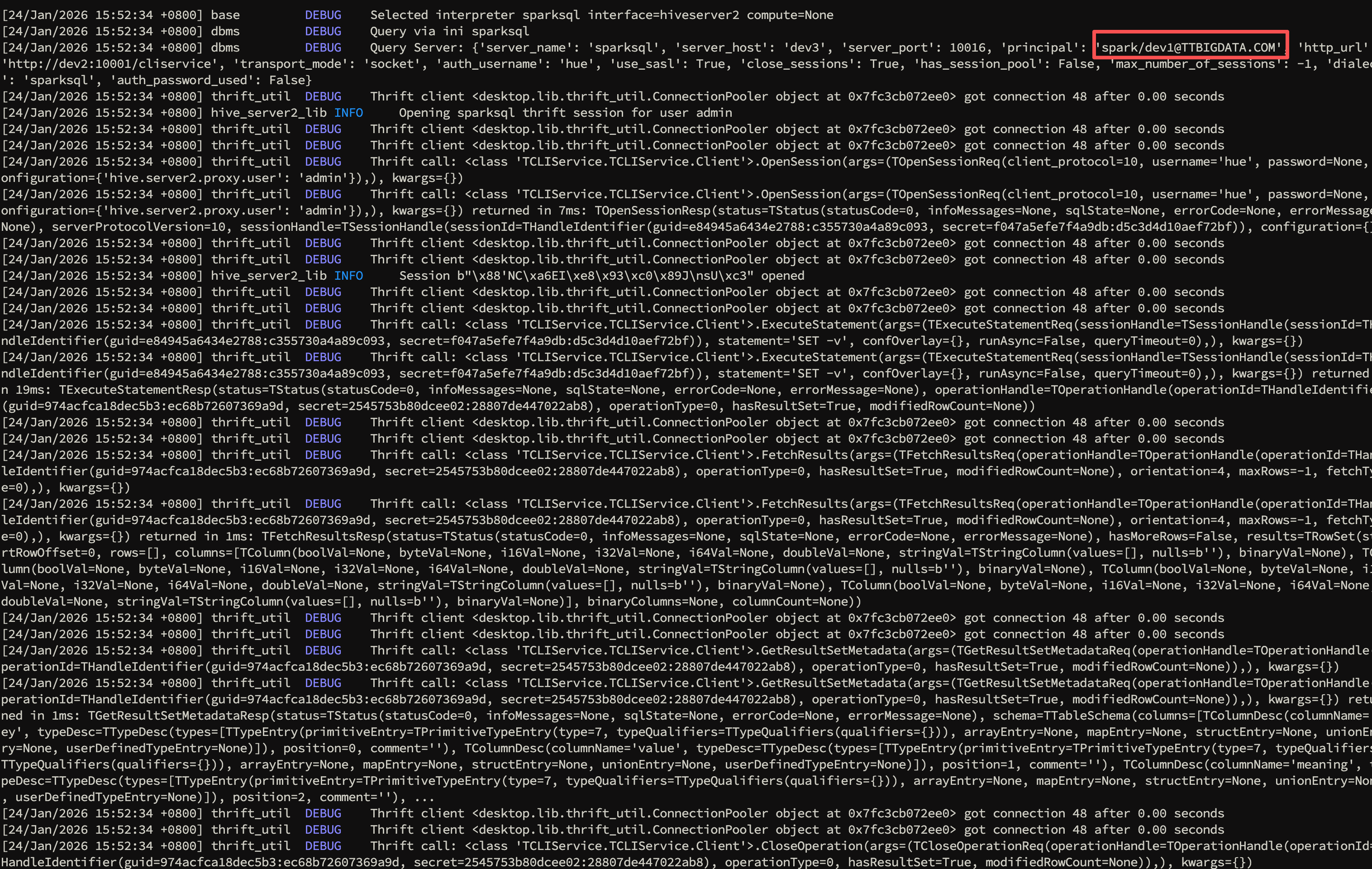

然后在日志中抓到了关键输出：Query via ini sparksql 后，Query Server 的 principal 仍为 Hive。

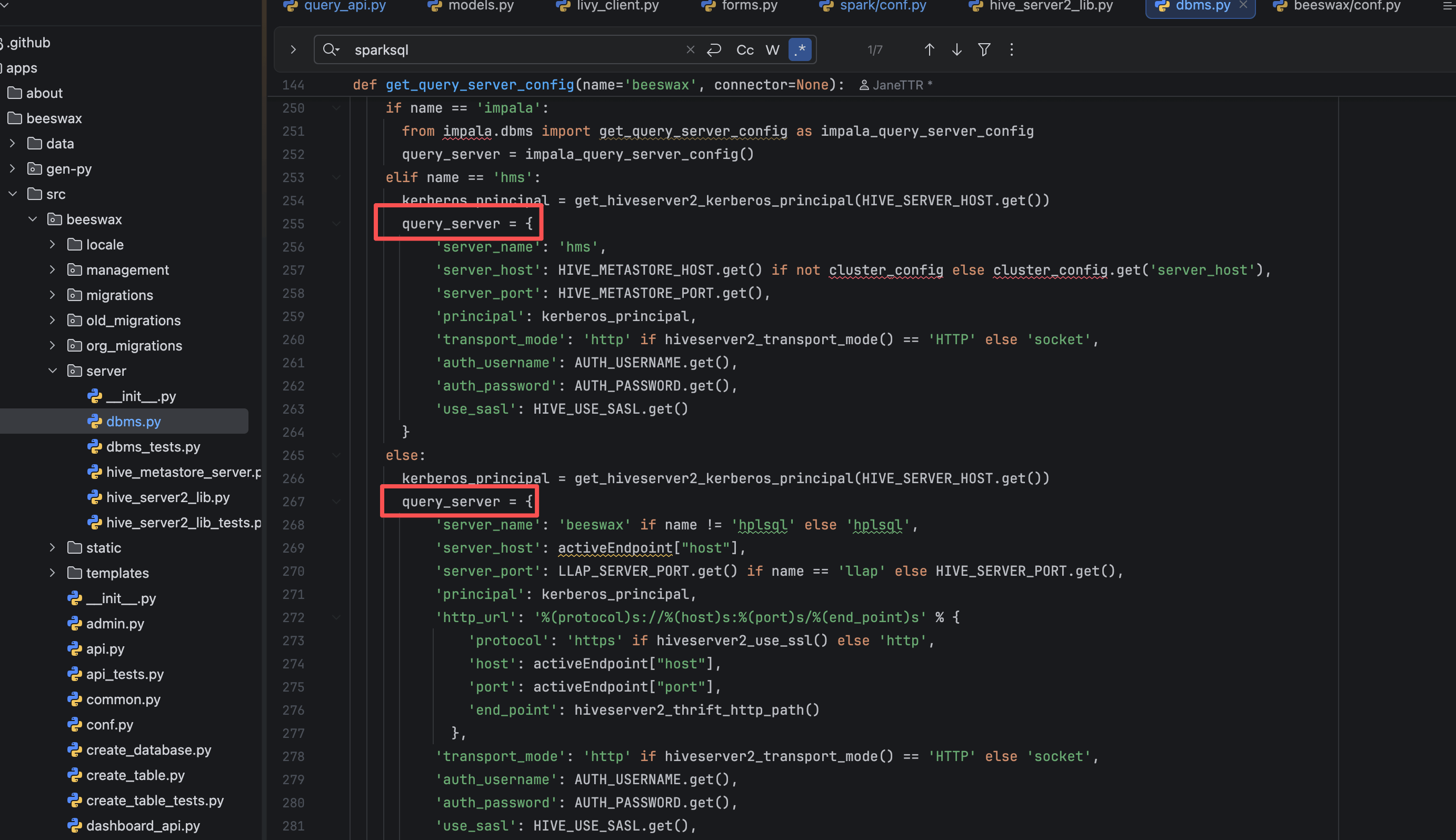

最终在 dbms.py 里找到了组装 Query Server 的逻辑：

python 复制代码

def get_query_server_config(name='beeswax', connector=None):
  if connector and has_connectors(): # TODO: Give empty connector when no connector in use
    LOG.debug("Query via connector %s" % name)
    query_server = get_query_server_config_via_connector(connector)
  else:
    LOG.debug("Query via ini %s" % name)
    if name == "llap":
      activeEndpoint = cache.get('llap')
      if activeEndpoint is None:
        if HIVE_DISCOVERY_LLAP.get():
          LOG.debug("Checking zookeeper for discovering Hive LLAP server endpoint")
          zk = KazooClient(hosts=libzookeeper_conf.ENSEMBLE.get(), read_only=True)
          zk.start()
          if HIVE_DISCOVERY_LLAP_HA.get():
            znode = "{0}/instances".format(HIVE_DISCOVERY_LLAP_ZNODE.get())
            LOG.debug("Setting up Hive LLAP HA with the following node {0}".format(znode))
            if zk.exists(znode):
              hiveservers = zk.get_children(znode)
              if not hiveservers:
                raise PopupException(_('There is no running Hive LLAP server available'))
              LOG.info("Available Hive LLAP servers: {0}".format(hiveservers))
              for server in hiveservers:
                llap_servers = json.loads(zk.get("{0}/{1}".format(znode, server))[0])["internal"][0]
                if llap_servers["api"] == "activeEndpoint":
                  LOG.info("Selecting Hive LLAP server: {0}".format(llap_servers))
                  cache.set(
                    "llap",
                    json.dumps({
                        "host": llap_servers["addresses"][0]["host"],
                        "port": llap_servers["addresses"][0]["port"]
                      }),
                      CACHE_TIMEOUT.get()
                  )
            else:
              LOG.error("Hive LLAP endpoint not found, reverting to config values")
              cache.set("llap", json.dumps({"host": HIVE_SERVER_HOST.get(), "port": HIVE_HTTP_THRIFT_PORT.get()}), CACHE_TIMEOUT.get())
          else:
            znode = "{0}".format(HIVE_DISCOVERY_LLAP_ZNODE.get())
            LOG.debug("Setting up Hive LLAP with the following node {0}".format(znode))
            if zk.exists(znode):
              hiveservers = zk.get_children(znode)
              for server in hiveservers:
                cache.set(
                  "llap",
                  json.dumps({
                    "host": server.split(';')[0].split('=')[1].split(":")[0],
                    "port": server.split(';')[0].split('=')[1].split(":")[1]
                  })
                )
          zk.stop()
        else:
          LOG.debug("Zookeeper discovery not enabled, reverting to config values")
          cache.set("llap", json.dumps({"host": LLAP_SERVER_HOST.get(), "port": LLAP_SERVER_THRIFT_PORT.get()}), CACHE_TIMEOUT.get())

      activeEndpoint = json.loads(cache.get("llap"))

    elif name != 'hms' and name != 'impala':
      activeEndpoint = cache.get("hiveserver2")
      if activeEndpoint is None:
        if HIVE_DISCOVERY_HS2.get():
          hiveservers = get_zk_hs2()
          LOG.debug("Available Hive Servers: {0}".format(hiveservers))
          if not hiveservers:
            LOG.error('There are no running Hive server available')
            raise PopupException(_('There are no running Hive server available'))
          server_to_use = 0
          LOG.debug("Selected Hive server {0}: {1}".format(server_to_use, hiveservers[server_to_use]))
          cache.set(
            "hiveserver2",
            json.dumps({
              "host": hiveservers[server_to_use].split(";")[0].split("=")[1].split(":")[0],
              "port": hiveservers[server_to_use].split(";")[0].split("=")[1].split(":")[1]
            })
          )
        else:
          cache.set("hiveserver2", json.dumps({"host": HIVE_SERVER_HOST.get(), "port": HIVE_HTTP_THRIFT_PORT.get()}))
      else:
        # Setting hs2 cache in-case there is no HS2 discovery
        cache.set("hiveserver2", json.dumps({"host": HIVE_SERVER_HOST.get(), "port": HIVE_HTTP_THRIFT_PORT.get()}))
        if HIVE_DISCOVERY_HS2.get():
          # Replace ActiveEndpoint if the current HS2 is down
          hiveservers = get_zk_hs2()
          if hiveservers:
            server_to_use = 0
            hs2_host_name = hiveservers[server_to_use].split(";")[0].split("=")[1].split(":")[0]
            hs2_in_active_endpoint = hs2_host_name in activeEndpoint
            LOG.debug("Is the current HS2 active {0}".format(hs2_in_active_endpoint))
            if not hs2_in_active_endpoint:
              LOG.error(
                'Current HiveServer is down, working to connect with the next available HiveServer from Zookeeper')
              reset_ha()
              server_to_use = 0
              LOG.debug("Selected HiveServer {0}: {1}".format(server_to_use, hiveservers[server_to_use]))
              cache.set(
                "hiveserver2",
                json.dumps({
                  "host": hiveservers[server_to_use].split(";")[0].split("=")[1].split(":")[0],
                  "port": hiveservers[server_to_use].split(";")[0].split("=")[1].split(":")[1]
                })
              )
          else:
            LOG.error('Currently there are no HiveServer2 running')
            raise PopupException(_('Currently there are no HiveServer2 running'))

      activeEndpoint = json.loads(cache.get("hiveserver2"))

    if name == 'impala':
      from impala.dbms import get_query_server_config as impala_query_server_config
      query_server = impala_query_server_config()
    elif name == 'hms':
      kerberos_principal = get_hiveserver2_kerberos_principal(HIVE_SERVER_HOST.get())
      query_server = {
          'server_name': 'hms',
          'server_host': HIVE_METASTORE_HOST.get() if not cluster_config else cluster_config.get('server_host'),
          'server_port': HIVE_METASTORE_PORT.get(),
          'principal': kerberos_principal,
          'transport_mode': 'http' if hiveserver2_transport_mode() == 'HTTP' else 'socket',
          'auth_username': AUTH_USERNAME.get(),
          'auth_password': AUTH_PASSWORD.get(),
          'use_sasl': HIVE_USE_SASL.get()
      }
    else:
      kerberos_principal = get_hiveserver2_kerberos_principal(HIVE_SERVER_HOST.get())
      query_server = {
          'server_name': 'beeswax' if name != 'hplsql' else 'hplsql',
          'server_host': activeEndpoint["host"],
          'server_port': LLAP_SERVER_PORT.get() if name == 'llap' else HIVE_SERVER_PORT.get(),
          'principal': kerberos_principal,
          'http_url': '%(protocol)s://%(host)s:%(port)s/%(end_point)s' % {
              'protocol': 'https' if hiveserver2_use_ssl() else 'http',
              'host': activeEndpoint["host"],
              'port': activeEndpoint["port"],
              'end_point': hiveserver2_thrift_http_path()
            },
          'transport_mode': 'http' if hiveserver2_transport_mode() == 'HTTP' else 'socket',
          'auth_username': AUTH_USERNAME.get(),
          'auth_password': AUTH_PASSWORD.get(),
          'use_sasl': HIVE_USE_SASL.get(),
          'close_sessions': CLOSE_SESSIONS.get(),
          'has_session_pool': has_session_pool(),
          'max_number_of_sessions': MAX_NUMBER_OF_SESSIONS.get()
        }

    if name == 'sparksql':  # Extends Hive as very similar
      from spark.conf import SQL_SERVER_HOST as SPARK_SERVER_HOST, SQL_SERVER_PORT as SPARK_SERVER_PORT, USE_SASL as SPARK_USE_SASL, SQL_SERVER_PRINCIPAL as SPARK_PRINCIPAL

      query_server.update({
          'server_name': 'sparksql',
          'server_host': SPARK_SERVER_HOST.get(),
          'server_port': SPARK_SERVER_PORT.get(),
          'use_sasl': SPARK_USE_SASL.get()
      })

  if not query_server.get('dialect'):
    query_server['dialect'] = query_server['server_name']

  debug_query_server = query_server.copy()
  debug_query_server['auth_password_used'] = bool(debug_query_server.pop('auth_password', None))
  LOG.debug("Query Server: %s" % debug_query_server)

  return query_server

根因结论
sparksql 复用 Hive 的 query_server，但覆写时只改了 server_host/server_port/use_sasl，没有把 principal 从 Hive 改成

Spark。

因此无论 ini 配置怎么写，最终进入 GSSAPI 的身份仍是 Hive，触发 GSS initiate failed。

四、解决方案

处理办法可参考
22207:解决办法

五、验证结果

改完源码并重启 Hue 后，再次点击刷新，日志显示 sparksql 的 principal 已经切换成 spark：

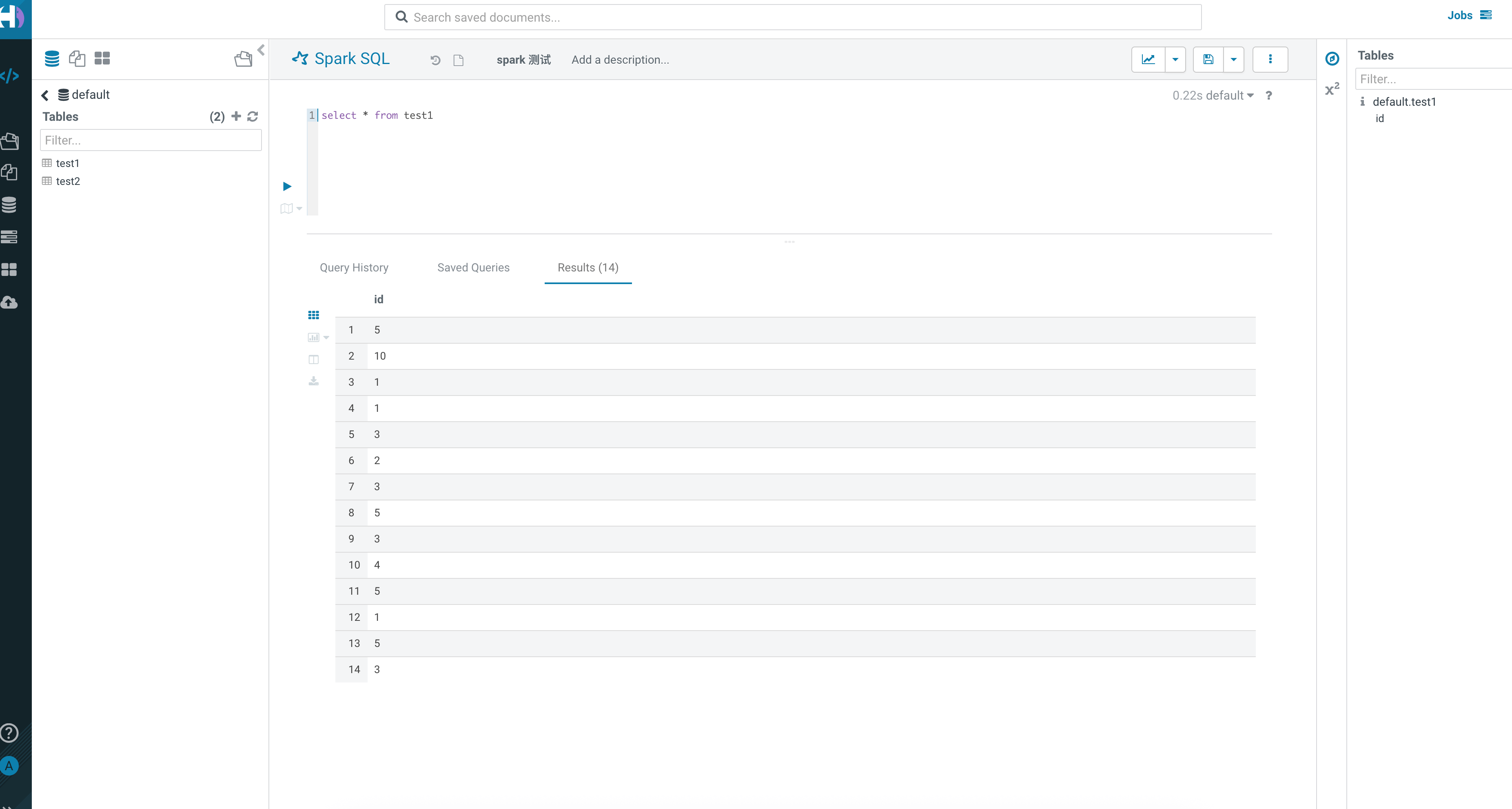

Spark SQL 查询可以正常执行：

验证要点

以 Hue DEBUG 日志为准：Query Server 输出中 principal 必须是 spark/<host>@REALM，且 host/port 指向 Spark Thrift

Server。

两者一致后，GSSAPI 才会以正确服务身份完成握手。
