CANN生态深度解析：ops-nn的归一化算子实现

心态还需努力呀2026-02-07 11:42

CANN生态深度解析：ops-nn的归一化算子实现

参考链接

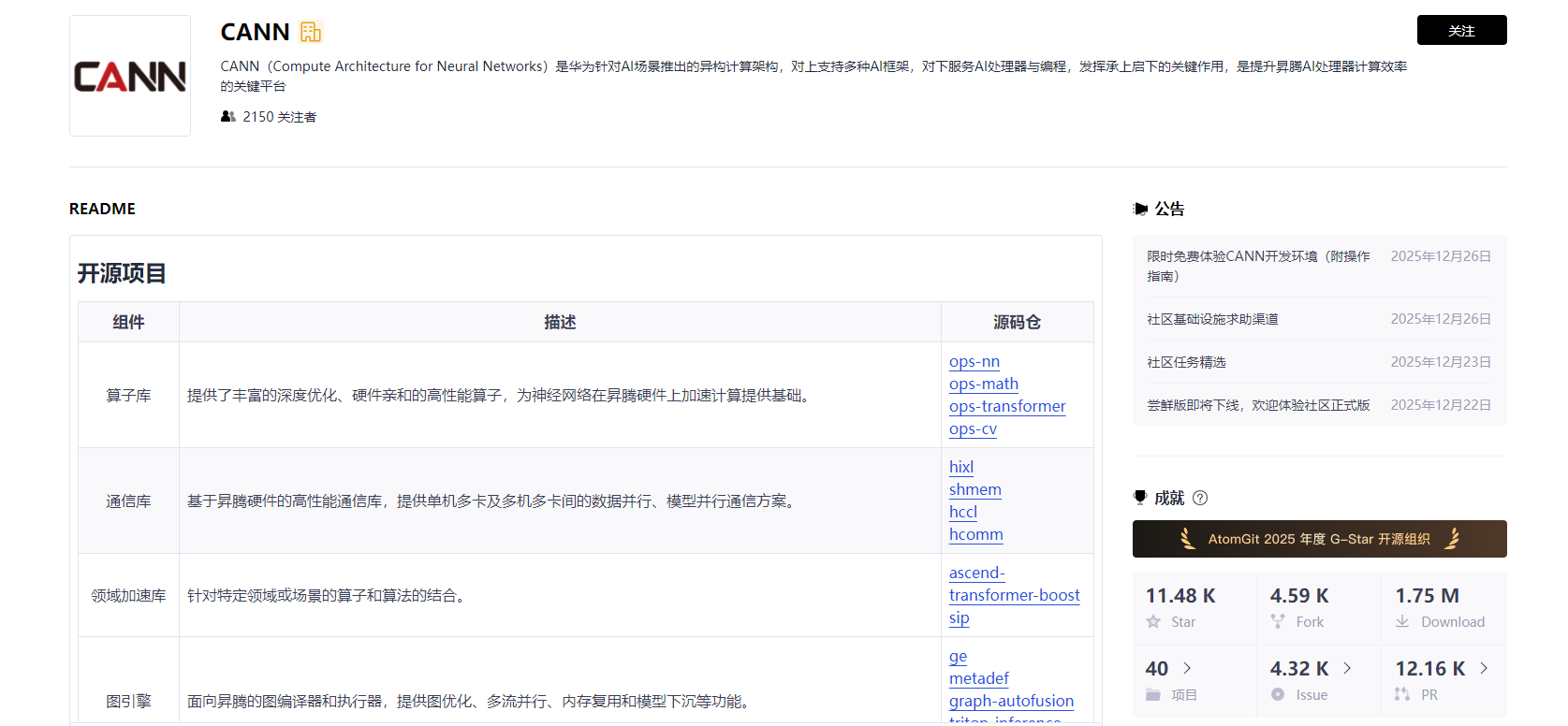

cann组织链接：https://atomgit.com/cann

ops-nn仓库链接：https://atomgit.com/cann/ops-nn

引言

归一化是深度学习模型中的关键组件，用于稳定训练过程、加速收敛和提高模型性能。CANN（Compute Architecture for Neural Networks）生态中的ops-nn仓库，作为算子实现的核心，提供了高性能的归一化算子实现。

本文将深入解析ops-nn中归一化算子的实现与优化技术，包括常见归一化方法、性能优化和硬件适配，旨在帮助开发者理解如何实现高性能的归一化算子。

一、归一化概述

1.1 归一化作用

归一化的主要作用：

  1. 稳定训练：稳定训练过程
  2. 加速收敛：加速模型收敛
  3. 提高性能：提高模型性能
  4. 减少依赖：减少对初始化的依赖

1.2 归一化类型

常见的归一化类型：

  1. Batch Normalization：批量归一化
  2. Layer Normalization：层归一化
  3. Instance Normalization：实例归一化
  4. Group Normalization：组归一化

二、Batch Normalization

2.1 前向传播

c 复制代码
// Batch Normalization前向传播
void batch_norm_forward(const float* input,
                       const float* gamma,
                       const float* beta,
                       const float* running_mean,
                       const float* running_var,
                       float* output,
                       int batch, int channels, int height, int width,
                       float epsilon,
                       bool training) {

    int spatial_size = height * width;

    for (int c = 0; c < channels; c++) {
        float mean, variance;

        if (training) {
            // 计算均值
            mean = 0.0f;
            for (int b = 0; b < batch; b++) {
                for (int i = 0; i < spatial_size; i++) {
                    int idx = ((b * channels + c) * height + i / width) * width + i % width;
                    mean += input[idx];
                }
            }
            mean /= batch * spatial_size;

            // 计算方差
            variance = 0.0f;
            for (int b = 0; b < batch; b++) {
                for (int i = 0; i < spatial_size; i++) {
                    int idx = ((b * channels + c) * height + i / width) * width + i % width;
                    float diff = input[idx] - mean;
                    variance += diff * diff;
                }
            }
            variance /= batch * spatial_size;
        } else {
            // 使用运行时统计量
            mean = running_mean[c];
            variance = running_var[c];
        }

        // 归一化
        float std = sqrtf(variance + epsilon);
        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                output[idx] = gamma[c] * (input[idx] - mean) / std + beta[c];
            }
        }
    }
}

2.2 反向传播

c 复制代码
// Batch Normalization反向传播
void batch_norm_backward(const float* input,
                        const float* gamma,
                        const float* grad_output,
                        float* grad_input,
                        float* grad_gamma,
                        float* grad_beta,
                        int batch, int channels, int height, int width,
                        float epsilon) {

    int spatial_size = height * width;

    for (int c = 0; c < channels; c++) {
        // 计算均值
        float mean = 0.0f;
        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                mean += input[idx];
            }
        }
        mean /= batch * spatial_size;

        // 计算方差
        float variance = 0.0f;
        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                float diff = input[idx] - mean;
                variance += diff * diff;
            }
        }
        variance /= batch * spatial_size;

        // 计算标准差
        float std = sqrtf(variance + epsilon);
        float std_inv = 1.0f / std;

        // 计算gamma梯度
        grad_gamma[c] = 0.0f;
        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                grad_gamma[c] += grad_output[idx] * (input[idx] - mean) * std_inv;
            }
        }

        // 计算beta梯度
        grad_beta[c] = 0.0f;
        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                grad_beta[c] += grad_output[idx];
            }
        }

        // 计算输入梯度
        float grad_mean = 0.0f;
        float grad_variance = 0.0f;

        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                grad_mean += grad_output[idx];
                grad_variance += grad_output[idx] * (input[idx] - mean);
            }
        }

        grad_mean /= batch * spatial_size;
        grad_variance /= batch * spatial_size;

        for (int b = 0; b < batch; b++) {
            for (int i = 0; i < spatial_size; i++) {
                int idx = ((b * channels + c) * height + i / width) * width + i % width;
                float diff = input[idx] - mean;
                grad_input[idx] = gamma[c] * (grad_output[idx] - grad_mean - diff * grad_variance * std_inv) * std_inv;
            }
        }
    }
}

三、Layer Normalization

3.1 前向传播

c 复制代码
// Layer Normalization前向传播
void layer_norm_forward(const float* input,
                       const float* gamma,
                       const float* beta,
                       float* output,
                       int batch, int channels, int height, int width,
                       float epsilon) {

    int feature_size = channels * height * width;

    for (int b = 0; b < batch; b++) {
        // 计算均值
        float mean = 0.0f;
        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            mean += input[idx];
        }
        mean /= feature_size;

        // 计算方差
        float variance = 0.0f;
        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            float diff = input[idx] - mean;
            variance += diff * diff;
        }
        variance /= feature_size;

        // 归一化
        float std = sqrtf(variance + epsilon);
        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            output[idx] = gamma[i % channels] * (input[idx] - mean) / std + beta[i % channels];
        }
    }
}

3.2 反向传播

c 复制代码
// Layer Normalization反向传播
void layer_norm_backward(const float* input,
                        const float* gamma,
                        const float* grad_output,
                        float* grad_input,
                        float* grad_gamma,
                        float* grad_beta,
                        int batch, int channels, int height, int width,
                        float epsilon) {

    int feature_size = channels * height * width;

    for (int c = 0; c < channels; c++) {
        // 计算gamma梯度
        grad_gamma[c] = 0.0f;
        for (int b = 0; b < batch; b++) {
            float mean = 0.0f;
            for (int i = 0; i < feature_size; i++) {
                int idx = b * feature_size + i;
                mean += input[idx];
            }
            mean /= feature_size;

            float variance = 0.0f;
            for (int i = 0; i < feature_size; i++) {
                int idx = b * feature_size + i;
                float diff = input[idx] - mean;
                variance += diff * diff;
            }
            variance /= feature_size;

            float std = sqrtf(variance + epsilon);

            for (int i = c; i < feature_size; i += channels) {
                int idx = b * feature_size + i;
                grad_gamma[c] += grad_output[idx] * (input[idx] - mean) / std;
            }
        }

        // 计算beta梯度
        grad_beta[c] = 0.0f;
        for (int b = 0; b < batch; b++) {
            for (int i = c; i < feature_size; i += channels) {
                int idx = b * feature_size + i;
                grad_beta[c] += grad_output[idx];
            }
        }
    }

    // 计算输入梯度
    for (int b = 0; b < batch; b++) {
        float mean = 0.0f;
        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            mean += input[idx];
        }
        mean /= feature_size;

        float variance = 0.0f;
        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            float diff = input[idx] - mean;
            variance += diff * diff;
        }
        variance /= feature_size;

        float std = sqrtf(variance + epsilon);

        float grad_mean = 0.0f;
        float grad_variance = 0.0f;

        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            grad_mean += grad_output[idx] * gamma[i % channels];
            grad_variance += grad_output[idx] * gamma[i % channels] * (input[idx] - mean);
        }

        grad_mean /= feature_size;
        grad_variance /= feature_size;

        for (int i = 0; i < feature_size; i++) {
            int idx = b * feature_size + i;
            float diff = input[idx] - mean;
            grad_input[idx] = gamma[i % channels] * (grad_output[idx] - grad_mean - diff * grad_variance / std) / std;
        }
    }
}

四、性能优化

4.1 向量化计算

c 复制代码
// 向量化Batch Normalization
void batch_norm_forward_vectorized(const float* input,
                                  const float* gamma,
                                  const float* beta,
                                  const float* running_mean,
                                  const float* running_var,
                                  float* output,
                                  int batch, int channels, int height, int width,
                                  float epsilon,
                                  bool training) {

    int spatial_size = height * width;

    for (int c = 0; c < channels; c++) {
        float mean, variance;

        if (training) {
            // 计算均值（向量化）
            mean = 0.0f;
            int i = 0;
            for (; i + 8 <= batch * spatial_size; i += 8) {
                __m256 input_vec = _mm256_loadu_ps(&input[i * channels + c]);
                __m256 sum_vec = _mm256_hadd_ps(input_vec, input_vec);
                sum_vec = _mm256_hadd_ps(sum_vec, sum_vec);
                mean += sum_vec.m256_f32[0] + sum_vec.m256_f32[4];
            }
            for (; i < batch * spatial_size; i++) {
                mean += input[i * channels + c];
            }
            mean /= batch * spatial_size;

            // 计算方差（向量化）
            variance = 0.0f;
            i = 0;
            for (; i + 8 <= batch * spatial_size; i += 8) {
                __m256 input_vec = _mm256_loadu_ps(&input[i * channels + c]);
                __m256 mean_vec = _mm256_set1_ps(mean);
                __m256 diff_vec = _mm256_sub_ps(input_vec, mean_vec);
                __m256 var_vec = _mm256_mul_ps(diff_vec, diff_vec);
                __m256 sum_vec = _mm256_hadd_ps(var_vec, var_vec);
                sum_vec = _mm256_hadd_ps(sum_vec, sum_vec);
                variance += sum_vec.m256_f32[0] + sum_vec.m256_f32[4];
            }
            for (; i < batch * spatial_size; i++) {
                float diff = input[i * channels + c] - mean;
                variance += diff * diff;
            }
            variance /= batch * spatial_size;
        } else {
            mean = running_mean[c];
            variance = running_var[c];
        }

        // 归一化（向量化）
        float std = sqrtf(variance + epsilon);
        float std_inv = 1.0f / std;
        __m256 gamma_vec = _mm256_set1_ps(gamma[c]);
        __m256 beta_vec = _mm256_set1_ps(beta[c]);
        __m256 mean_vec = _mm256_set1_ps(mean);
        __m256 std_inv_vec = _mm256_set1_ps(std_inv);

        i = 0;
        for (; i + 8 <= batch * spatial_size; i += 8) {
            __m256 input_vec = _mm256_loadu_ps(&input[i * channels + c]);
            __m256 normalized_vec = _mm256_mul_ps(_mm256_sub_ps(input_vec, mean_vec), std_inv_vec);
            __m256 output_vec = _mm256_add_ps(_mm256_mul_ps(gamma_vec, normalized_vec), beta_vec);
            _mm256_storeu_ps(&output[i * channels + c], output_vec);
        }

        for (; i < batch * spatial_size; i++) {
            output[i * channels + c] = gamma[c] * (input[i * channels + c] - mean) * std_inv + beta[c];
        }
    }
}

4.2 融合优化

c 复制代码
// 卷积+Batch Normalization融合
void conv_bn_fusion(const float* input,
                   const float* weight,
                   const float* bias,
                   const float* gamma,
                   const float* beta,
                   const float* running_mean,
                   const float* running_var,
                   float* output,
                   int batch, int in_channels, int out_channels,
                   int in_height, int in_width,
                   int kernel_height, int kernel_width,
                   int stride_height, int stride_width,
                   int pad_height, int pad_width,
                   float epsilon) {

    int out_height = (in_height + 2 * pad_height - kernel_height) / stride_height + 1;
    int out_width = (in_width + 2 * pad_width - kernel_width) / stride_width + 1;

    // 融合权重和偏置
    float* fused_weight = (float*)malloc(out_channels * in_channels * kernel_height * kernel_width * sizeof(float));
    float* fused_bias = (float*)malloc(out_channels * sizeof(float));

    for (int oc = 0; oc < out_channels; oc++) {
        float std = sqrtf(running_var[oc] + epsilon);
        float scale = gamma[oc] / std;

        // 融合权重
        for (int ic = 0; ic < in_channels; ic++) {
            for (int kh = 0; kh < kernel_height; kh++) {
                for (int kw = 0; kw < kernel_width; kw++) {
                    int weight_idx = ((oc * in_channels + ic) * kernel_height + kh) * kernel_width + kw;
                    fused_weight[weight_idx] = weight[weight_idx] * scale;
                }
            }
        }

        // 融合偏置
        fused_bias[oc] = (bias[oc] - running_mean[oc]) * scale + beta[oc];
    }

    // 执行卷积
    for (int b = 0; b < batch; b++) {
        for (int oc = 0; oc < out_channels; oc++) {
            for (int oh = 0; oh < out_height; oh++) {
                for (int ow = 0; ow < out_width; ow++) {
                    float sum = fused_bias[oc];

                    for (int ic = 0; ic < in_channels; ic++) {
                        for (int kh = 0; kh < kernel_height; kh++) {
                            for (int kw = 0; kw < kernel_width; kw++) {
                                int ih = oh * stride_height + kh - pad_height;
                                int iw = ow * stride_width + kw - pad_width;

                                if (ih >= 0 && ih < in_height &&
                                    iw >= 0 && iw < in_width) {
                                    int input_idx = ((b * in_channels + ic) * in_height + ih) * in_width + iw;
                                    int weight_idx = ((oc * in_channels + ic) * kernel_height + kh) * kernel_width + kw;
                                    sum += input[input_idx] * fused_weight[weight_idx];
                                }
                            }
                        }
                    }

                    int output_idx = ((b * out_channels + oc) * out_height + oh) * out_width + ow;
                    output[output_idx] = sum;
                }
            }
        }
    }

    free(fused_weight);
    free(fused_bias);
}

五、应用示例

5.1 使用归一化算子

以下是一个使用ops-nn归一化算子的示例：

python 复制代码
import ops_nn as ops

# 创建Batch Normalization层
batch_norm = ops.BatchNorm2d(num_channels=64)

# 应用Batch Normalization
x = torch.randn(10, 64, 32, 32)
output = batch_norm(x)

5.2 融合归一化算子

以下是一个使用融合归一化算子的示例：

python 复制代码
import ops_nn as ops

# 创建融合层
conv_bn = ops.Conv2dBN(
    in_channels=3,
    out_channels=64,
    kernel_size=3,
    stride=1,
    padding=1
)

# 应用融合层
x = torch.randn(1, 3, 224, 224)
output = conv_bn(x)

六、最佳实践

6.1 归一化选择

  • Batch Normalization：适用于CNN，批量大小较大
  • Layer Normalization：适用于RNN、Transformer
  • Instance Normalization：适用于风格迁移
  • Group Normalization：适用于小批量训练

6.2 性能优化建议

  • 使用向量化：充分利用SIMD指令
  • 使用融合算子：将归一化与其他算子融合
  • 优化内存访问：优化内存访问模式
  • 使用硬件加速：利用硬件加速归一化计算

七、未来发展趋势

7.1 技术演进

  • 自适应归一化：根据模型特点自适应选择归一化方法
  • AI驱动的归一化：利用AI技术优化归一化参数
  • 混合归一化：更精细的混合归一化策略
  • 硬件感知归一化：根据硬件特性优化归一化策略

7.2 功能扩展

  • 更多归一化方法：支持更多归一化方法
  • 更灵活的配置：支持更灵活的归一化配置
  • 更完善的评估：提供更完善的归一化效果评估
  • 更智能的优化：提供更智能的归一化优化建议

八、总结与建议

归一化算子作为ops-nn仓库的核心算子，通过其高效的实现和性能优化，为深度学习应用提供了强大的归一化能力。它不仅稳定了训练过程，还通过灵活的归一化策略适应了不同的应用场景。

对于AI开发者来说，掌握归一化算子的实现和优化技巧，可以显著提高模型的性能。在使用归一化算子时，建议开发者：

  • 根据模型特点选择：根据模型特点选择合适的归一化方法
  • 使用向量化：充分利用SIMD指令
  • 使用融合算子：将归一化与其他算子融合
  • 优化内存访问：优化内存访问模式

通过ops-nn的归一化算子，我们可以更加高效地执行归一化计算，充分发挥硬件性能，为用户提供更加快速、高效的AI应用体验。

相关推荐
熊文豪6 小时前
CANN ops-nn 量化技术深度剖析
算子·cann·ops-nn
那个村的李富贵6 小时前
CANN驱动下的AIGC“智能抠图”：基于Mask2Former的高性能图像分割实战
aigc·cann
较劲男子汉7 小时前
CANN Runtime批处理调度源码解析 小批量推理请求合并的艺术
cann
禁默7 小时前
大模型推理的“氮气加速系统”：全景解读 Ascend Transformer Boost (ATB)
人工智能·深度学习·transformer·cann
那个村的李富贵7 小时前
智能炼金术：CANN加速的新材料AI设计系统
人工智能·算法·aigc·cann
行走正道7 小时前
CANN仓库日志系统架构 分级日志与性能开销优化源码解读
系统架构·cann
云边有个稻草人7 小时前
CANN ops-nn：筑牢AIGC的神经网络算子算力底座
人工智能·神经网络·aigc·cann
解局易否结局7 小时前
从开发到部署的闭环：cann/ops-nn 中的端到端可验证算子交付
cann
心疼你的一切7 小时前
数字智人：CANN加速的实时数字人生成与交互
数据仓库·深度学习·aigc·交互·cann
热门推荐
01GitHub 镜像站点02Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services03Linux下V2Ray安装配置指南04使用 1panel面板 部署 php网站05OpenClaw Chrome扩展使用教程 - 浏览器中继控制06Vue-skills的中文文档07UV安装并设置国内源08让 Trae IDE 智能体 “读懂”文档 Excel+PDF+DOCX ：mcp-documents-reader 工具使用指南09Claude Code Skills 实用使用手册10openclaw配置教程（linux+局域网ollama）
