一、仪表盘系统架构深度解析
仪表盘是数据可视化的重要组成部分，广泛应用于汽车仪表、工业监控、健康数据展示等场景。通过 CustomPainter 和动画系统，我们可以创建各种精美的仪表盘效果。
📱 1.1 仪表盘核心组件
一个完整的仪表盘系统通常包含以下核心组件：
┌─────────────────────────────────────────────────────────────────┐
│ 仪表盘系统架构 │
├─────────────────────────────────────────────────────────────────┤
│ │
│ ┌─────────────────────────────────────────────────────────┐ │
│ │ 仪表盘容器 (Container) │ │
│ │ ┌─────────────────────────────────────────────────┐ │ │
│ │ │ CustomPainter 绘制层 │ │ │
│ │ │ ┌─────────────────────────────────────────┐ │ │ │
│ │ │ │ 外圈装饰 (Outer Ring) │ │ │ │
│ │ │ │ ┌─────────────────────────────────┐ │ │ │ │
│ │ │ │ │ 刻度盘 (Scale Plate) │ │ │ │ │
│ │ │ │ │ ┌─────────────────────────┐ │ │ │ │ │
│ │ │ │ │ │ 进度弧 (Progress Arc) │ │ │ │ │ │
│ │ │ │ │ │ ┌─────────────────┐ │ │ │ │ │ │
│ │ │ │ │ │ │ 指针 (Pointer) │ │ │ │ │ │ │
│ │ │ │ │ │ └─────────────────┘ │ │ │ │ │ │
│ │ │ │ │ │ ┌─────────────────┐ │ │ │ │ │ │
│ │ │ │ │ │ │ 数值显示 │ │ │ │ │ │ │
│ │ │ │ │ │ └─────────────────┘ │ │ │ │ │ │
│ │ │ │ │ └─────────────────────────┘ │ │ │ │ │
│ │ │ │ └─────────────────────────────────┘ │ │ │ │
│ │ │ └─────────────────────────────────────────┘ │ │ │
│ │ └─────────────────────────────────────────────────┘ │ │
│ └─────────────────────────────────────────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────┘仪表盘核心属性：
| 属性 | 类型 | 说明 | 应用场景 |
|---|---|---|---|
| value | double | 当前数值 | 控制指针位置和进度 |
| minValue | double | 最小值 | 刻度范围起点 |
| maxValue | double | 最大值 | 刻度范围终点 |
| startAngle | double | 起始角度 | 仪表盘起始位置 |
| sweepAngle | double | 扫描角度 | 仪表盘覆盖范围 |
| divisions | int | 刻度数量 | 主刻度线数量 |
🔬 1.2 绘制坐标系统
仪表盘绘制使用极坐标系统，需要将极坐标转换为笛卡尔坐标：
dart
// 极坐标转笛卡尔坐标
Offset polarToCartesian(Offset center, double radius, double angle) {
return Offset(
center.dx + radius * cos(angle),
center.dy + radius * sin(angle),
);
}
// 角度计算（从起始角度到当前值对应的角度）
double valueToAngle(double value, double min, double max, double startAngle, double sweepAngle) {
final normalizedValue = (value - min) / (max - min);
return startAngle + normalizedValue * sweepAngle;
}坐标系统示意：
0° (顶部)
│
│
│
270° ────────┼──────── 90°
│
│
│
180° (底部)
Flutter 角度系统：
- 0° 指向右侧 (3点钟方向)
- 角度顺时针增加
- 使用弧度制 (pi = 180°)🎯 1.3 动画系统设计
仪表盘动画通常包含以下类型：
dart
// 指针动画
Animation<double> pointerAnimation = Tween<double>(
begin: 0,
end: targetValue,
).animate(CurvedAnimation(
parent: controller,
curve: Curves.easeOutCubic,
));
// 进度弧动画
Animation<double> progressAnimation = Tween<double>(
begin: 0,
end: 1,
).animate(CurvedAnimation(
parent: controller,
curve: Curves.easeInOut,
));
// 颜色渐变动画
Animation<Color?> colorAnimation = ColorTween(
begin: Colors.green,
end: Colors.red,
).animate(controller);二、基础仪表盘实现
👆 2.1 简单圆形仪表盘
从最基础的圆形仪表盘开始，包含刻度线、指针和数值显示。
dart
import 'dart:math';
import 'package:flutter/material.dart';
/// 简单圆形仪表盘
class SimpleGaugePainter extends CustomPainter {
final double value;
final double minValue;
final double maxValue;
final double startAngle;
final double sweepAngle;
final Color progressColor;
final Color backgroundColor;
SimpleGaugePainter({
required this.value,
this.minValue = 0,
this.maxValue = 100,
this.startAngle = -pi * 0.75,
this.sweepAngle = pi * 1.5,
this.progressColor = Colors.blue,
this.backgroundColor = Colors.grey,
});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height / 2);
final radius = min(size.width, size.height) / 2 - 20;
_drawBackground(canvas, center, radius);
_drawProgress(canvas, center, radius);
_drawTicks(canvas, center, radius);
_drawPointer(canvas, center, radius);
_drawCenter(canvas, center);
_drawValue(canvas, center, radius);
}
void _drawBackground(Canvas canvas, Offset center, double radius) {
final paint = Paint()
..color = backgroundColor.withOpacity(0.2)
..style = PaintingStyle.stroke
..strokeWidth = 20
..strokeCap = StrokeCap.round;
canvas.drawArc(
Rect.fromCircle(center: center, radius: radius),
startAngle,
sweepAngle,
false,
paint,
);
}
void _drawProgress(Canvas canvas, Offset center, double radius) {
final progressSweep = (value - minValue) / (maxValue - minValue) * sweepAngle;
final paint = Paint()
..color = progressColor
..style = PaintingStyle.stroke
..strokeWidth = 20
..strokeCap = StrokeCap.round;
canvas.drawArc(
Rect.fromCircle(center: center, radius: radius),
startAngle,
progressSweep,
false,
paint,
);
}
void _drawTicks(Canvas canvas, Offset center, double radius) {
final tickCount = 10;
final tickPaint = Paint()
..color = Colors.grey
..strokeWidth = 2;
for (int i = 0; i <= tickCount; i++) {
final angle = startAngle + (sweepAngle * i / tickCount);
final isMajor = i % 2 == 0;
final tickLength = isMajor ? 15.0 : 8.0;
final outerPoint = Offset(
center.dx + (radius - 25) * cos(angle),
center.dy + (radius - 25) * sin(angle),
);
final innerPoint = Offset(
center.dx + (radius - 25 - tickLength) * cos(angle),
center.dy + (radius - 25 - tickLength) * sin(angle),
);
canvas.drawLine(innerPoint, outerPoint, tickPaint..strokeWidth = isMajor ? 3 : 1);
}
}
void _drawPointer(Canvas canvas, Offset center, double radius) {
final pointerAngle = startAngle + (value - minValue) / (maxValue - minValue) * sweepAngle;
final pointerLength = radius - 50;
final pointerPaint = Paint()
..color = Colors.red
..strokeWidth = 4
..strokeCap = StrokeCap.round;
final pointerEnd = Offset(
center.dx + pointerLength * cos(pointerAngle),
center.dy + pointerLength * sin(pointerAngle),
);
canvas.drawLine(center, pointerEnd, pointerPaint);
}
void _drawCenter(Canvas canvas, Offset center) {
final centerPaint = Paint()
..color = Colors.red
..style = PaintingStyle.fill;
canvas.drawCircle(center, 10, centerPaint);
}
void _drawValue(Canvas canvas, Offset center, double radius) {
final textPainter = TextPainter(
text: TextSpan(
text: value.toStringAsFixed(0),
style: const TextStyle(
color: Colors.black,
fontSize: 36,
fontWeight: FontWeight.bold,
),
),
textDirection: TextDirection.ltr,
)..layout();
textPainter.paint(
canvas,
Offset(
center.dx - textPainter.width / 2,
center.dy + 30,
),
);
}
@override
bool shouldRepaint(SimpleGaugePainter oldDelegate) => value != oldDelegate.value;
}
/// 简单仪表盘示例
class SimpleGaugeDemo extends StatefulWidget {
const SimpleGaugeDemo({super.key});
@override
State<SimpleGaugeDemo> createState() => _SimpleGaugeDemoState();
}
class _SimpleGaugeDemoState extends State<SimpleGaugeDemo>
with SingleTickerProviderStateMixin {
double _value = 50;
late AnimationController _controller;
late Animation<double> _animation;
@override
void initState() {
super.initState();
_controller = AnimationController(
duration: const Duration(milliseconds: 1500),
vsync: this,
);
_animation = Tween<double>(begin: 0, end: _value).animate(
CurvedAnimation(parent: _controller, curve: Curves.easeOutCubic),
)..addListener(() => setState(() => _value = _animation.value));
_controller.forward();
}
@override
void dispose() {
_controller.dispose();
super.dispose();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('简单圆形仪表盘')),
body: Column(
children: [
Expanded(
child: Center(
child: SizedBox(
width: 300,
height: 300,
child: CustomPaint(
painter: SimpleGaugePainter(value: _value),
),
),
),
),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.grey[100],
borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
),
child: Column(
children: [
Row(
children: [
const SizedBox(width: 60, child: Text('数值:')),
Expanded(
child: Slider(
value: _value,
min: 0,
max: 100,
divisions: 100,
activeColor: Colors.blue,
onChanged: (value) => setState(() => _value = value),
),
),
SizedBox(width: 60, child: Text('${_value.toStringAsFixed(0)}')),
],
),
],
),
),
],
),
);
}
}🔧 2.2 多色渐变仪表盘
通过颜色渐变展示不同数值区间，直观显示数值状态。
dart
/// 多色渐变仪表盘
class GradientGaugePainter extends CustomPainter {
final double value;
final double minValue;
final double maxValue;
final List<Color> gradientColors;
final List<double> colorStops;
GradientGaugePainter({
required this.value,
this.minValue = 0,
this.maxValue = 100,
this.gradientColors = const [Colors.green, Colors.yellow, Colors.orange, Colors.red],
this.colorStops = const [0.0, 0.33, 0.66, 1.0],
});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height / 2);
final radius = min(size.width, size.height) / 2 - 30;
final startAngle = -pi * 0.75;
final sweepAngle = pi * 1.5;
_drawGradientArc(canvas, center, radius, startAngle, sweepAngle);
_drawTickLabels(canvas, center, radius, startAngle, sweepAngle);
_drawPointer(canvas, center, radius, startAngle, sweepAngle);
_drawCenterInfo(canvas, center);
}
void _drawGradientArc(Canvas canvas, Offset center, double radius, double startAngle, double sweepAngle) {
final rect = Rect.fromCircle(center: center, radius: radius);
final gradient = SweepGradient(
center: Alignment.center,
startAngle: startAngle,
endAngle: startAngle + sweepAngle,
colors: gradientColors,
stops: colorStops,
transform: GradientRotation(startAngle),
);
final backgroundPaint = Paint()
..shader = gradient
..style = PaintingStyle.stroke
..strokeWidth = 25
..strokeCap = StrokeCap.round;
canvas.drawArc(rect, startAngle, sweepAngle, false, backgroundPaint);
final shadowPaint = Paint()
..color = Colors.black.withOpacity(0.1)
..style = PaintingStyle.stroke
..strokeWidth = 35
..maskFilter = const MaskFilter.blur(BlurStyle.normal, 8);
canvas.drawArc(rect, startAngle, sweepAngle, false, shadowPaint);
}
void _drawTickLabels(Canvas canvas, Offset center, double radius, double startAngle, double sweepAngle) {
final labels = ['0', '25', '50', '75', '100'];
for (int i = 0; i < labels.length; i++) {
final angle = startAngle + (sweepAngle * i / (labels.length - 1));
final labelRadius = radius - 50;
final textPainter = TextPainter(
text: TextSpan(
text: labels[i],
style: TextStyle(
color: Colors.grey[600],
fontSize: 14,
fontWeight: FontWeight.w500,
),
),
textDirection: TextDirection.ltr,
)..layout();
final offset = Offset(
center.dx + labelRadius * cos(angle) - textPainter.width / 2,
center.dy + labelRadius * sin(angle) - textPainter.height / 2,
);
textPainter.paint(canvas, offset);
}
}
void _drawPointer(Canvas canvas, Offset center, double radius, double startAngle, double sweepAngle) {
final pointerAngle = startAngle + (value - minValue) / (maxValue - minValue) * sweepAngle;
final pointerLength = radius - 60;
final pointerPath = Path();
pointerPath.moveTo(center.dx, center.dy);
pointerPath.lineTo(
center.dx + pointerLength * cos(pointerAngle - 0.05),
center.dy + pointerLength * sin(pointerAngle - 0.05),
);
pointerPath.lineTo(
center.dx + (pointerLength + 10) * cos(pointerAngle),
center.dy + (pointerLength + 10) * sin(pointerAngle),
);
pointerPath.lineTo(
center.dx + pointerLength * cos(pointerAngle + 0.05),
center.dy + pointerLength * sin(pointerAngle + 0.05),
);
pointerPath.close();
final pointerPaint = Paint()
..color = _getValueColor()
..style = PaintingStyle.fill;
canvas.drawPath(pointerPath, pointerPaint);
}
void _drawCenterInfo(Canvas canvas, Offset center) {
final valuePainter = TextPainter(
text: TextSpan(
text: value.toStringAsFixed(0),
style: TextStyle(
color: _getValueColor(),
fontSize: 48,
fontWeight: FontWeight.bold,
),
),
textDirection: TextDirection.ltr,
)..layout();
valuePainter.paint(
canvas,
Offset(center.dx - valuePainter.width / 2, center.dy - 30),
);
final unitPainter = TextPainter(
text: TextSpan(
text: '单位',
style: TextStyle(
color: Colors.grey[600],
fontSize: 14,
),
),
textDirection: TextDirection.ltr,
)..layout();
unitPainter.paint(
canvas,
Offset(center.dx - unitPainter.width / 2, center.dy + 25),
);
}
Color _getValueColor() {
final normalizedValue = (value - minValue) / (maxValue - minValue);
final index = (normalizedValue * (gradientColors.length - 1)).floor();
return gradientColors[index.clamp(0, gradientColors.length - 1)];
}
@override
bool shouldRepaint(GradientGaugePainter oldDelegate) => value != oldDelegate.value;
}
/// 多色渐变仪表盘示例
class GradientGaugeDemo extends StatefulWidget {
const GradientGaugeDemo({super.key});
@override
State<GradientGaugeDemo> createState() => _GradientGaugeDemoState();
}
class _GradientGaugeDemoState extends State<GradientGaugeDemo> {
double _value = 65;
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('多色渐变仪表盘')),
body: Column(
children: [
Expanded(
child: Center(
child: SizedBox(
width: 320,
height: 320,
child: CustomPaint(
painter: GradientGaugePainter(value: _value),
),
),
),
),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.grey[100],
borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
),
child: Row(
children: [
const SizedBox(width: 60, child: Text('数值:')),
Expanded(
child: Slider(
value: _value,
min: 0,
max: 100,
divisions: 100,
activeColor: Colors.teal,
onChanged: (value) => setState(() => _value = value),
),
),
SizedBox(width: 60, child: Text('${_value.toStringAsFixed(0)}')),
],
),
),
],
),
);
}
}三、高级仪表盘效果
🌊 3.1 半圆仪表盘
半圆仪表盘是最常见的仪表盘样式，常用于速度表、转速表等场景。
dart
/// 半圆仪表盘
class SemicircleGaugePainter extends CustomPainter {
final double value;
final double minValue;
final double maxValue;
final String unit;
final String label;
SemicircleGaugePainter({
required this.value,
this.minValue = 0,
this.maxValue = 180,
this.unit = 'km/h',
this.label = '速度',
});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height * 0.7);
final radius = min(size.width, size.height) * 0.6;
final startAngle = pi;
final sweepAngle = pi;
_drawOuterRing(canvas, center, radius);
_drawSpeedArc(canvas, center, radius, startAngle, sweepAngle);
_drawTicks(canvas, center, radius, startAngle, sweepAngle);
_drawPointer(canvas, center, radius, startAngle, sweepAngle);
_drawCenterInfo(canvas, center);
}
void _drawOuterRing(Canvas canvas, Offset center, double radius) {
final outerPaint = Paint()
..color = Colors.grey[200]!
..style = PaintingStyle.stroke
..strokeWidth = 3;
canvas.drawCircle(center, radius + 15, outerPaint);
final innerPaint = Paint()
..color = Colors.grey[100]!
..style = PaintingStyle.fill;
canvas.drawCircle(center, radius - 30, innerPaint);
}
void _drawSpeedArc(Canvas canvas, Offset center, double radius, double startAngle, double sweepAngle) {
final progress = (value - minValue) / (maxValue - minValue);
final gradient = SweepGradient(
center: Alignment.center,
startAngle: startAngle,
endAngle: startAngle + sweepAngle,
colors: const [Colors.green, Colors.lime, Colors.yellow, Colors.orange, Colors.red],
stops: const [0.0, 0.25, 0.5, 0.75, 1.0],
transform: GradientRotation(startAngle),
);
final arcPaint = Paint()
..shader = gradient
..style = PaintingStyle.stroke
..strokeWidth = 20
..strokeCap = StrokeCap.round;
canvas.drawArc(
Rect.fromCircle(center: center, radius: radius),
startAngle,
sweepAngle,
false,
arcPaint,
);
final progressPaint = Paint()
..color = Colors.black.withOpacity(0.3)
..style = PaintingStyle.stroke
..strokeWidth = 20
..strokeCap = StrokeCap.round;
canvas.drawArc(
Rect.fromCircle(center: center, radius: radius),
startAngle + sweepAngle * progress,
sweepAngle * (1 - progress),
false,
progressPaint,
);
}
void _drawTicks(Canvas canvas, Offset center, double radius, double startAngle, double sweepAngle) {
const majorTickCount = 9;
const minorTickCount = 4;
for (int i = 0; i <= majorTickCount; i++) {
final angle = startAngle + (sweepAngle * i / majorTickCount);
final isMajor = true;
_drawTick(canvas, center, radius, angle, isMajor);
if (i < majorTickCount) {
for (int j = 1; j <= minorTickCount; j++) {
final minorAngle = angle + (sweepAngle / majorTickCount * j / (minorTickCount + 1));
_drawTick(canvas, center, radius, minorAngle, false);
}
}
final tickValue = minValue + (maxValue - minValue) * i / majorTickCount;
_drawTickLabel(canvas, center, radius, angle, tickValue);
}
}
void _drawTick(Canvas canvas, Offset center, double radius, double angle, bool isMajor) {
final tickLength = isMajor ? 15.0 : 8.0;
final tickWidth = isMajor ? 3.0 : 1.5;
final paint = Paint()
..color = isMajor ? Colors.black : Colors.grey
..strokeWidth = tickWidth;
final outerPoint = Offset(
center.dx + (radius + 5) * cos(angle),
center.dy + (radius + 5) * sin(angle),
);
final innerPoint = Offset(
center.dx + (radius + 5 - tickLength) * cos(angle),
center.dy + (radius + 5 - tickLength) * sin(angle),
);
canvas.drawLine(innerPoint, outerPoint, paint);
}
void _drawTickLabel(Canvas canvas, Offset center, double radius, double angle, double tickValue) {
final textPainter = TextPainter(
text: TextSpan(
text: tickValue.toInt().toString(),
style: const TextStyle(
color: Colors.black87,
fontSize: 12,
fontWeight: FontWeight.w500,
),
),
textDirection: TextDirection.ltr,
)..layout();
final labelRadius = radius + 30;
final offset = Offset(
center.dx + labelRadius * cos(angle) - textPainter.width / 2,
center.dy + labelRadius * sin(angle) - textPainter.height / 2,
);
textPainter.paint(canvas, offset);
}
void _drawPointer(Canvas canvas, Offset center, double radius, double startAngle, double sweepAngle) {
final pointerAngle = startAngle + (value - minValue) / (maxValue - minValue) * sweepAngle;
final pointerLength = radius - 40;
final pointerPath = Path();
pointerPath.moveTo(
center.dx + 15 * cos(pointerAngle + pi / 2),
center.dy + 15 * sin(pointerAngle + pi / 2),
);
pointerPath.lineTo(
center.dx + pointerLength * cos(pointerAngle),
center.dy + pointerLength * sin(pointerAngle),
);
pointerPath.lineTo(
center.dx + 15 * cos(pointerAngle - pi / 2),
center.dy + 15 * sin(pointerAngle - pi / 2),
);
pointerPath.close();
final pointerPaint = Paint()
..color = Colors.red
..style = PaintingStyle.fill;
canvas.drawPath(pointerPath, pointerPaint);
final shadowPaint = Paint()
..color = Colors.red.withOpacity(0.3)
..maskFilter = const MaskFilter.blur(BlurStyle.normal, 5);
canvas.drawPath(pointerPath.shift(const Offset(2, 2)), shadowPaint);
}
void _drawCenterInfo(Canvas canvas, Offset center) {
final valuePainter = TextPainter(
text: TextSpan(
text: value.toStringAsFixed(0),
style: const TextStyle(
color: Colors.black,
fontSize: 42,
fontWeight: FontWeight.bold,
),
),
textDirection: TextDirection.ltr,
)..layout();
valuePainter.paint(
canvas,
Offset(center.dx - valuePainter.width / 2, center.dy - 50),
);
final unitPainter = TextPainter(
text: TextSpan(
text: unit,
style: TextStyle(
color: Colors.grey[600],
fontSize: 16,
),
),
textDirection: TextDirection.ltr,
)..layout();
unitPainter.paint(
canvas,
Offset(center.dx - unitPainter.width / 2, center.dy - 5),
);
final labelPainter = TextPainter(
text: TextSpan(
text: label,
style: TextStyle(
color: Colors.grey[500],
fontSize: 12,
),
),
textDirection: TextDirection.ltr,
)..layout();
labelPainter.paint(
canvas,
Offset(center.dx - labelPainter.width / 2, center.dy + 20),
);
}
@override
bool shouldRepaint(SemicircleGaugePainter oldDelegate) => value != oldDelegate.value;
}
/// 半圆仪表盘示例
class SemicircleGaugeDemo extends StatefulWidget {
const SemicircleGaugeDemo({super.key});
@override
State<SemicircleGaugeDemo> createState() => _SemicircleGaugeDemoState();
}
class _SemicircleGaugeDemoState extends State<SemicircleGaugeDemo>
with SingleTickerProviderStateMixin {
double _value = 0;
late AnimationController _controller;
late Animation<double> _animation;
@override
void initState() {
super.initState();
_controller = AnimationController(
duration: const Duration(seconds: 2),
vsync: this,
);
_animation = Tween<double>(begin: 0, end: 120.0).animate(
CurvedAnimation(parent: _controller, curve: Curves.easeOutCubic),
)..addListener(() => setState(() => _value = _animation.value));
_controller.forward();
}
@override
void dispose() {
_controller.dispose();
super.dispose();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('半圆仪表盘')),
body: Column(
children: [
Expanded(
child: Center(
child: SizedBox(
width: 350,
height: 280,
child: CustomPaint(
painter: SemicircleGaugePainter(value: _value),
),
),
),
),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.grey[100],
borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
),
child: Row(
children: [
const SizedBox(width: 60, child: Text('速度:')),
Expanded(
child: Slider(
value: _value,
min: 0,
max: 180,
divisions: 180,
activeColor: Colors.red,
onChanged: (value) => setState(() => _value = value),
),
),
SizedBox(width: 60, child: Text('${_value.toStringAsFixed(0)} km/h')),
],
),
),
],
),
);
}

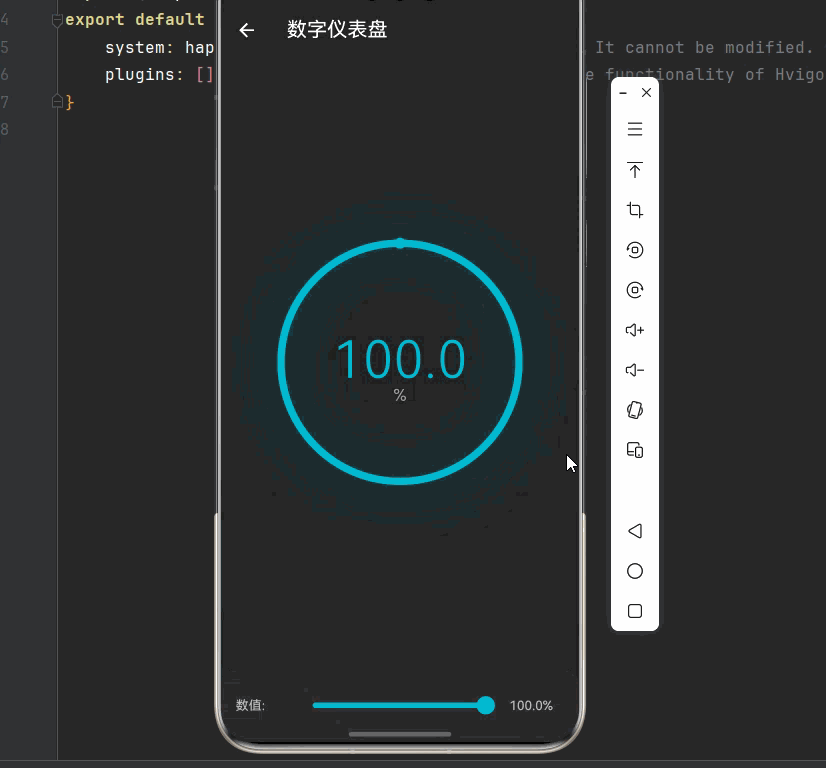

}💬 3.2 数字仪表盘
现代风格的数字仪表盘，适合科技感强的应用场景。
dart
/// 数字仪表盘
class DigitalGaugePainter extends CustomPainter {
final double value;
final double minValue;
final double maxValue;
final String unit;
final Color accentColor;
DigitalGaugePainter({
required this.value,
this.minValue = 0,
this.maxValue = 100,
this.unit = '%',
this.accentColor = Colors.cyan,
});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height / 2);
final radius = min(size.width, size.height) / 2 - 20;
_drawGlowEffect(canvas, center, radius);
_drawProgressRing(canvas, center, radius);
_drawTickMarks(canvas, center, radius);
_drawDigitalValue(canvas, center);
_drawUnit(canvas, center);
}
void _drawGlowEffect(Canvas canvas, Offset center, double radius) {
final progress = (value - minValue) / (maxValue - minValue);
final glowPaint = Paint()
..color = accentColor.withOpacity(0.3)
..style = PaintingStyle.stroke
..strokeWidth = 30
..maskFilter = const MaskFilter.blur(BlurStyle.normal, 20);
canvas.drawArc(
Rect.fromCircle(center: center, radius: radius),
-pi / 2,
2 * pi * progress,
false,
glowPaint,
);
}
void _drawProgressRing(Canvas canvas, Offset center, double radius) {
final progress = (value - minValue) / (maxValue - minValue);
final backgroundPaint = Paint()
..color = Colors.grey.withOpacity(0.1)
..style = PaintingStyle.stroke
..strokeWidth = 8
..strokeCap = StrokeCap.round;
canvas.drawCircle(center, radius, backgroundPaint);
final progressPaint = Paint()
..shader = SweepGradient(
center: Alignment.center,
startAngle: -pi / 2,
endAngle: 2 * pi * progress - pi / 2,
colors: [
accentColor.withOpacity(0.5),
accentColor,
],
transform: const GradientRotation(-pi / 2),
).createShader(Rect.fromCircle(center: center, radius: radius))
..style = PaintingStyle.stroke
..strokeWidth = 8
..strokeCap = StrokeCap.round;
canvas.drawArc(
Rect.fromCircle(center: center, radius: radius),
-pi / 2,
2 * pi * progress,
false,
progressPaint,
);
final dotPaint = Paint()
..color = accentColor
..style = PaintingStyle.fill;
final dotAngle = -pi / 2 + 2 * pi * progress;
final dotPosition = Offset(
center.dx + radius * cos(dotAngle),
center.dy + radius * sin(dotAngle),
);
canvas.drawCircle(dotPosition, 6, dotPaint);
canvas.drawCircle(dotPosition, 10, dotPaint..color = accentColor.withOpacity(0.3));
}
void _drawTickMarks(Canvas canvas, Offset center, double radius) {
const tickCount = 60;
for (int i = 0; i < tickCount; i++) {
final angle = -pi / 2 + 2 * pi * i / tickCount;
final isMajor = i % 5 == 0;
final tickLength = isMajor ? 12.0 : 6.0;
final paint = Paint()
..color = isMajor ? Colors.grey[400]! : Colors.grey[300]!
..strokeWidth = isMajor ? 2 : 1;
final outerPoint = Offset(
center.dx + (radius - 15) * cos(angle),
center.dy + (radius - 15) * sin(angle),
);
final innerPoint = Offset(
center.dx + (radius - 15 - tickLength) * cos(angle),
center.dy + (radius - 15 - tickLength) * sin(angle),
);
canvas.drawLine(innerPoint, outerPoint, paint);
}
}
void _drawDigitalValue(Canvas canvas, Offset center) {
final textPainter = TextPainter(
text: TextSpan(
text: value.toStringAsFixed(1),
style: TextStyle(
color: accentColor,
fontSize: 56,
fontWeight: FontWeight.w300,
letterSpacing: 2,
),
),
textDirection: TextDirection.ltr,
)..layout();
textPainter.paint(
canvas,
Offset(center.dx - textPainter.width / 2, center.dy - 35),
);
}
void _drawUnit(Canvas canvas, Offset center) {
final textPainter = TextPainter(
text: TextSpan(
text: unit,
style: TextStyle(
color: Colors.grey[500],
fontSize: 18,
fontWeight: FontWeight.w500,
),
),
textDirection: TextDirection.ltr,
)..layout();
textPainter.paint(
canvas,
Offset(center.dx - textPainter.width / 2, center.dy + 25),
);
}
@override
bool shouldRepaint(DigitalGaugePainter oldDelegate) => value != oldDelegate.value;
}
/// 数字仪表盘示例
class DigitalGaugeDemo extends StatefulWidget {
const DigitalGaugeDemo({super.key});
@override
State<DigitalGaugeDemo> createState() => _DigitalGaugeDemoState();
}
class _DigitalGaugeDemoState extends State<DigitalGaugeDemo> {
double _value = 75;
@override
Widget build(BuildContext context) {
return Scaffold(
backgroundColor: Colors.grey[900],
appBar: AppBar(
title: const Text('数字仪表盘'),
backgroundColor: Colors.grey[900],
foregroundColor: Colors.white,
),
body: Column(
children: [
Expanded(
child: Center(
child: SizedBox(
width: 300,
height: 300,
child: CustomPaint(
painter: DigitalGaugePainter(value: _value),
),
),
),
),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.grey[850],
borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
),
child: Row(
children: [
const SizedBox(width: 60, child: Text('数值:', style: TextStyle(color: Colors.white70))),
Expanded(
child: Slider(
value: _value,
min: 0,
max: 100,
divisions: 100,
activeColor: Colors.cyan,
onChanged: (value) => setState(() => _value = value),
),
),
SizedBox(width: 60, child: Text('${_value.toStringAsFixed(1)}%', style: const TextStyle(color: Colors.white70))),
],
),
),
],
),
);
}
}四、完整代码示例
以下是本文所有示例的完整代码，可以直接运行体验：
dart
import 'dart:math';
import 'package:flutter/material.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({super.key});
@override
Widget build(BuildContext context) {
return MaterialApp(
debugShowCheckedModeBanner: false,
theme: ThemeData(
colorScheme: ColorScheme.fromSeed(seedColor: Colors.teal),
useMaterial3: true,
),
home: const GaugeHomePage(),
);
}
}
class GaugeHomePage extends StatelessWidget {
const GaugeHomePage({super.key});
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('🎛️ 自定义仪表盘系统')),
body: ListView(
padding: const EdgeInsets.all(16),
children: [
_buildSectionCard(context, title: '简单圆形仪表盘', description: '基础刻度与指针', icon: Icons.speed, color: Colors.blue, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const SimpleGaugeDemo()))),
_buildSectionCard(context, title: '多色渐变仪表盘', description: '颜色渐变显示状态', icon: Icons.gradient, color: Colors.orange, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const GradientGaugeDemo()))),
_buildSectionCard(context, title: '半圆仪表盘', description: '速度表样式', icon: Icons.drive_eta, color: Colors.red, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const SemicircleGaugeDemo()))),
_buildSectionCard(context, title: '数字仪表盘', description: '现代科技风格', icon: Icons.dialpad, color: Colors.cyan, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const DigitalGaugeDemo()))),
],
),
);
}
Widget _buildSectionCard(BuildContext context, {required String title, required String description, required IconData icon, required Color color, required VoidCallback onTap}) {
return Card(
margin: const EdgeInsets.only(bottom: 12),
child: InkWell(
onTap: onTap,
borderRadius: BorderRadius.circular(12),
child: Padding(
padding: const EdgeInsets.all(16),
child: Row(
children: [
Container(width: 56, height: 56, decoration: BoxDecoration(color: color.withOpacity(0.1), borderRadius: BorderRadius.circular(12)), child: Icon(icon, color: color, size: 28)),
const SizedBox(width: 16),
Expanded(child: Column(crossAxisAlignment: CrossAxisAlignment.start, children: [Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)), const SizedBox(height: 4), Text(description, style: TextStyle(fontSize: 13, color: Colors.grey[600]))])),
Icon(Icons.chevron_right, color: Colors.grey[400]),
],
),
),
),
);
}
}
class SimpleGaugePainter extends CustomPainter {
final double value;
final double minValue;
final double maxValue;
final double startAngle;
final double sweepAngle;
final Color progressColor;
final Color backgroundColor;
SimpleGaugePainter({
required this.value,
this.minValue = 0,
this.maxValue = 100,
this.startAngle = -pi * 0.75,
this.sweepAngle = pi * 1.5,
this.progressColor = Colors.blue,
this.backgroundColor = Colors.grey,
});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height / 2);
final radius = min(size.width, size.height) / 2 - 20;
_drawBackground(canvas, center, radius);
_drawProgress(canvas, center, radius);
_drawTicks(canvas, center, radius);
_drawPointer(canvas, center, radius);
_drawCenter(canvas, center);
_drawValue(canvas, center, radius);
}
void _drawBackground(Canvas canvas, Offset center, double radius) {
final paint = Paint()..color = backgroundColor.withOpacity(0.2)..style = PaintingStyle.stroke..strokeWidth = 20..strokeCap = StrokeCap.round;
canvas.drawArc(Rect.fromCircle(center: center, radius: radius), startAngle, sweepAngle, false, paint);
}
void _drawProgress(Canvas canvas, Offset center, double radius) {
final progressSweep = (value - minValue) / (maxValue - minValue) * sweepAngle;
final paint = Paint()..color = progressColor..style = PaintingStyle.stroke..strokeWidth = 20..strokeCap = StrokeCap.round;
canvas.drawArc(Rect.fromCircle(center: center, radius: radius), startAngle, progressSweep, false, paint);
}
void _drawTicks(Canvas canvas, Offset center, double radius) {
final tickCount = 10;
for (int i = 0; i <= tickCount; i++) {
final angle = startAngle + (sweepAngle * i / tickCount);
final isMajor = i % 2 == 0;
final tickLength = isMajor ? 15.0 : 8.0;
final outerPoint = Offset(center.dx + (radius - 25) * cos(angle), center.dy + (radius - 25) * sin(angle));
final innerPoint = Offset(center.dx + (radius - 25 - tickLength) * cos(angle), center.dy + (radius - 25 - tickLength) * sin(angle));
canvas.drawLine(innerPoint, outerPoint, Paint()..color = Colors.grey..strokeWidth = isMajor ? 3 : 1);
}
}
void _drawPointer(Canvas canvas, Offset center, double radius) {
final pointerAngle = startAngle + (value - minValue) / (maxValue - minValue) * sweepAngle;
final pointerLength = radius - 50;
final pointerEnd = Offset(center.dx + pointerLength * cos(pointerAngle), center.dy + pointerLength * sin(pointerAngle));
canvas.drawLine(center, pointerEnd, Paint()..color = Colors.red..strokeWidth = 4..strokeCap = StrokeCap.round);
}
void _drawCenter(Canvas canvas, Offset center) {
canvas.drawCircle(center, 10, Paint()..color = Colors.red..style = PaintingStyle.fill);
}
void _drawValue(Canvas canvas, Offset center, double radius) {
final textPainter = TextPainter(text: TextSpan(text: value.toStringAsFixed(0), style: const TextStyle(color: Colors.black, fontSize: 36, fontWeight: FontWeight.bold)), textDirection: TextDirection.ltr)..layout();
textPainter.paint(canvas, Offset(center.dx - textPainter.width / 2, center.dy + 30));
}
@override
bool shouldRepaint(SimpleGaugePainter oldDelegate) => value != oldDelegate.value;
}
class SimpleGaugeDemo extends StatefulWidget {
const SimpleGaugeDemo({super.key});
@override
State<SimpleGaugeDemo> createState() => _SimpleGaugeDemoState();
}
class _SimpleGaugeDemoState extends State<SimpleGaugeDemo> with SingleTickerProviderStateMixin {
double _value = 50;
late AnimationController _controller;
late Animation<double> _animation;
@override
void initState() {
super.initState();
_controller = AnimationController(duration: const Duration(milliseconds: 1500), vsync: this);
_animation = Tween<double>(begin: 0, end: _value).animate(CurvedAnimation(parent: _controller, curve: Curves.easeOutCubic))..addListener(() => setState(() => _value = _animation.value));
_controller.forward();
}
@override
void dispose() { _controller.dispose(); super.dispose(); }
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('简单圆形仪表盘')),
body: Column(
children: [
Expanded(child: Center(child: SizedBox(width: 300, height: 300, child: CustomPaint(painter: SimpleGaugePainter(value: _value))))),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(color: Colors.grey[100], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
child: Row(children: [const SizedBox(width: 60, child: Text('数值:')), Expanded(child: Slider(value: _value, min: 0, max: 100, divisions: 100, activeColor: Colors.blue, onChanged: (value) => setState(() => _value = value))), SizedBox(width: 60, child: Text('${_value.toStringAsFixed(0)}'))]),
),
],
),
);
}
}
class GradientGaugePainter extends CustomPainter {
final double value;
final List<Color> gradientColors;
GradientGaugePainter({required this.value, this.gradientColors = const [Colors.green, Colors.yellow, Colors.orange, Colors.red]});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height / 2);
final radius = min(size.width, size.height) / 2 - 30;
final startAngle = -pi * 0.75;
final sweepAngle = pi * 1.5;
final gradient = SweepGradient(center: Alignment.center, startAngle: startAngle, endAngle: startAngle + sweepAngle, colors: gradientColors, stops: const [0.0, 0.33, 0.66, 1.0], transform: GradientRotation(startAngle));
final paint = Paint()..shader = gradient.createShader(Rect.fromCircle(center: center, radius: radius))..style = PaintingStyle.stroke..strokeWidth = 25..strokeCap = StrokeCap.round;
canvas.drawArc(Rect.fromCircle(center: center, radius: radius), startAngle, sweepAngle, false, paint);
final pointerAngle = startAngle + value / 100 * sweepAngle;
final pointerEnd = Offset(center.dx + (radius - 60) * cos(pointerAngle), center.dy + (radius - 60) * sin(pointerAngle));
canvas.drawLine(center, pointerEnd, Paint()..color = Colors.red..strokeWidth = 4..strokeCap = StrokeCap.round);
canvas.drawCircle(center, 8, Paint()..color = Colors.red);
final textPainter = TextPainter(text: TextSpan(text: value.toStringAsFixed(0), style: TextStyle(color: gradientColors[(value / 33).floor().clamp(0, 3)], fontSize: 48, fontWeight: FontWeight.bold)), textDirection: TextDirection.ltr)..layout();
textPainter.paint(canvas, Offset(center.dx - textPainter.width / 2, center.dy - 30));
}
@override
bool shouldRepaint(GradientGaugePainter oldDelegate) => value != oldDelegate.value;
}
class GradientGaugeDemo extends StatefulWidget {
const GradientGaugeDemo({super.key});
@override
State<GradientGaugeDemo> createState() => _GradientGaugeDemoState();
}
class _GradientGaugeDemoState extends State<GradientGaugeDemo> {
double _value = 65;
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('多色渐变仪表盘')),
body: Column(
children: [
Expanded(child: Center(child: SizedBox(width: 320, height: 320, child: CustomPaint(painter: GradientGaugePainter(value: _value))))),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(color: Colors.grey[100], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
child: Row(children: [const SizedBox(width: 60, child: Text('数值:')), Expanded(child: Slider(value: _value, min: 0, max: 100, divisions: 100, activeColor: Colors.teal, onChanged: (value) => setState(() => _value = value))), SizedBox(width: 60, child: Text('${_value.toStringAsFixed(0)}'))]),
),
],
),
);
}
}
class SemicircleGaugePainter extends CustomPainter {
final double value;
SemicircleGaugePainter({required this.value});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height * 0.7);
final radius = min(size.width, size.height) * 0.55;
final startAngle = pi;
final sweepAngle = pi;
final gradient = SweepGradient(center: Alignment.center, startAngle: startAngle, endAngle: startAngle + sweepAngle, colors: const [Colors.green, Colors.lime, Colors.yellow, Colors.orange, Colors.red], stops: const [0.0, 0.25, 0.5, 0.75, 1.0], transform: GradientRotation(startAngle));
final arcPaint = Paint()..shader = gradient.createShader(Rect.fromCircle(center: center, radius: radius))..style = PaintingStyle.stroke..strokeWidth = 20..strokeCap = StrokeCap.round;
canvas.drawArc(Rect.fromCircle(center: center, radius: radius), startAngle, sweepAngle, false, arcPaint);
final pointerAngle = startAngle + value / 180 * sweepAngle;
final pointerEnd = Offset(center.dx + (radius - 40) * cos(pointerAngle), center.dy + (radius - 40) * sin(pointerAngle));
canvas.drawLine(center, pointerEnd, Paint()..color = Colors.red..strokeWidth = 4..strokeCap = StrokeCap.round);
canvas.drawCircle(center, 10, Paint()..color = Colors.red);
final textPainter = TextPainter(text: TextSpan(text: value.toStringAsFixed(0), style: const TextStyle(color: Colors.black, fontSize: 42, fontWeight: FontWeight.bold)), textDirection: TextDirection.ltr)..layout();
textPainter.paint(canvas, Offset(center.dx - textPainter.width / 2, center.dy - 50));
}
@override
bool shouldRepaint(SemicircleGaugePainter oldDelegate) => value != oldDelegate.value;
}
class SemicircleGaugeDemo extends StatefulWidget {
const SemicircleGaugeDemo({super.key});
@override
State<SemicircleGaugeDemo> createState() => _SemicircleGaugeDemoState();
}
class _SemicircleGaugeDemoState extends State<SemicircleGaugeDemo> with SingleTickerProviderStateMixin {
double _value = 0;
late AnimationController _controller;
late Animation<double> _animation;
@override
void initState() {
super.initState();
_controller = AnimationController(duration: const Duration(seconds: 2), vsync: this);
_animation = Tween<double>(begin: 0, end: 120.0).animate(CurvedAnimation(parent: _controller, curve: Curves.easeOutCubic))..addListener(() => setState(() => _value = _animation.value));
_controller.forward();
}
@override
void dispose() { _controller.dispose(); super.dispose(); }
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('半圆仪表盘')),
body: Column(
children: [
Expanded(child: Center(child: SizedBox(width: 350, height: 280, child: CustomPaint(painter: SemicircleGaugePainter(value: _value))))),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(color: Colors.grey[100], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
child: Row(children: [const SizedBox(width: 60, child: Text('速度:')), Expanded(child: Slider(value: _value, min: 0, max: 180, divisions: 180, activeColor: Colors.red, onChanged: (value) => setState(() => _value = value))), SizedBox(width: 60, child: Text('${_value.toStringAsFixed(0)} km/h'))]),
),
],
),
);
}
}
class DigitalGaugePainter extends CustomPainter {
final double value;
final Color accentColor;
DigitalGaugePainter({required this.value, this.accentColor = Colors.cyan});
@override
void paint(Canvas canvas, Size size) {
final center = Offset(size.width / 2, size.height / 2);
final radius = min(size.width, size.height) / 2 - 20;
final progress = value / 100;
final glowPaint = Paint()..color = accentColor.withOpacity(0.3)..style = PaintingStyle.stroke..strokeWidth = 30..maskFilter = const MaskFilter.blur(BlurStyle.normal, 20);
canvas.drawArc(Rect.fromCircle(center: center, radius: radius), -pi / 2, 2 * pi * progress, false, glowPaint);
final backgroundPaint = Paint()..color = Colors.grey.withOpacity(0.1)..style = PaintingStyle.stroke..strokeWidth = 8..strokeCap = StrokeCap.round;
canvas.drawCircle(center, radius, backgroundPaint);
final progressPaint = Paint()..color = accentColor..style = PaintingStyle.stroke..strokeWidth = 8..strokeCap = StrokeCap.round;
canvas.drawArc(Rect.fromCircle(center: center, radius: radius), -pi / 2, 2 * pi * progress, false, progressPaint);
final dotAngle = -pi / 2 + 2 * pi * progress;
final dotPosition = Offset(center.dx + radius * cos(dotAngle), center.dy + radius * sin(dotAngle));
canvas.drawCircle(dotPosition, 6, Paint()..color = accentColor);
final textPainter = TextPainter(text: TextSpan(text: value.toStringAsFixed(1), style: TextStyle(color: accentColor, fontSize: 56, fontWeight: FontWeight.w300, letterSpacing: 2)), textDirection: TextDirection.ltr)..layout();
textPainter.paint(canvas, Offset(center.dx - textPainter.width / 2, center.dy - 35));
final unitPainter = TextPainter(text: TextSpan(text: '%', style: TextStyle(color: Colors.grey[500], fontSize: 18)), textDirection: TextDirection.ltr)..layout();
unitPainter.paint(canvas, Offset(center.dx - unitPainter.width / 2, center.dy + 25));
}
@override
bool shouldRepaint(DigitalGaugePainter oldDelegate) => value != oldDelegate.value;
}
class DigitalGaugeDemo extends StatefulWidget {
const DigitalGaugeDemo({super.key});
@override
State<DigitalGaugeDemo> createState() => _DigitalGaugeDemoState();
}
class _DigitalGaugeDemoState extends State<DigitalGaugeDemo> {
double _value = 75;
@override
Widget build(BuildContext context) {
return Scaffold(
backgroundColor: Colors.grey[900],
appBar: AppBar(title: const Text('数字仪表盘'), backgroundColor: Colors.grey[900], foregroundColor: Colors.white),
body: Column(
children: [
Expanded(child: Center(child: SizedBox(width: 300, height: 300, child: CustomPaint(painter: DigitalGaugePainter(value: _value))))),
Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(color: Colors.grey[850], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
child: Row(children: [const SizedBox(width: 60, child: Text('数值:', style: TextStyle(color: Colors.white70))), Expanded(child: Slider(value: _value, min: 0, max: 100, divisions: 100, activeColor: Colors.cyan, onChanged: (value) => setState(() => _value = value))), SizedBox(width: 60, child: Text('${_value.toStringAsFixed(1)}%', style: const TextStyle(color: Colors.white70)))]),
),
],
),
);
}
}五、最佳实践与注意事项
⚡ 5.1 性能优化建议
仪表盘绘制涉及大量图形计算，需要注意以下几点：
1. 避免频繁重绘
使用 shouldRepaint 正确判断是否需要重绘，避免不必要的性能消耗。
2. 缓存计算结果
对于不变的图形元素（如刻度线），可以在构造函数中预计算并缓存。
3. 使用动画优化
配合 AnimatedBuilder 使用，只在动画帧更新时重绘。
🔧 5.2 常见问题与解决方案
问题1：指针抖动
解决方案：
- 使用
Curves.easeOutCubic等平滑曲线 - 确保动画时长足够（建议 1-2 秒）
问题2：刻度线不均匀
解决方案：
- 检查角度计算是否正确
- 确保使用弧度制而非角度制
问题3：渐变效果异常
解决方案：
- 检查
GradientRotation参数 - 确保渐变范围与绘制范围匹配
六、总结
本文详细介绍了 Flutter 中自定义仪表盘系统的实现方法，从基础的圆形仪表盘到高级的数字仪表盘，涵盖了以下核心内容：
- 仪表盘核心概念：理解极坐标系统和绘制原理
- 基础仪表盘：简单圆形仪表盘、多色渐变仪表盘
- 高级仪表盘：半圆仪表盘、数字仪表盘
- 动画系统：指针动画、进度动画的实现
- 性能优化：合理使用 CustomPainter，避免性能问题
自定义仪表盘是 Flutter 中数据可视化的重要组成部分，掌握其实现技巧能够帮助开发者创建更加专业、美观的数据展示界面。在实际开发中，需要根据具体场景选择合适的仪表盘类型，并注意性能优化。
