Btree

B树属于多叉树,在存储大量数据的时候可以降低层高,内节点和叶子节点都可以存储数据.

B+树的内节点不存储数据,用来做索引.

B树的性质

一颗M阶B数T，满足一下条件：

（1）每个结点至多拥有M颗子树。

（2）根结点至少拥有两颗子树。

（3）除了根结点以外，其余每个分支结点至少拥有M/2颗子树。(M为奇数时就向上取整)

（4）所有叶子结点在同一层上。

（5）有K颗子树的分支结点则存在K-1个关键字，关键字按照递增顺序进行排序。

（6）每个节点中的关键字数量满足ceil(M/2)-1 <=n<=M-1。ceil表示向上取整

以M=6为例,6阶B树.

（1）每个结点至多拥有6颗子树。

（2）根结点至少拥有两颗子树。

（3）除了根结点以外，其余每个分支结点至少拥有3颗子树。

（4）所有叶子结点在同一层上。

（5）有K颗子树的分支结点则存在K-1个关键字，关键字按照递增顺序进行排序。

（6）每个节点中的关键字数量满足2<=n<=5

注意:

  1. 结点的所有关键词都是有序的
  2. 父节点的关键词,可以作为分割点分割开来子节点
  3. 父节点的子节点的个数 = 父节点关键词的个数+1

插入

规则: 先分裂再插入

分裂条件: 结点中关键词个数等于M-1

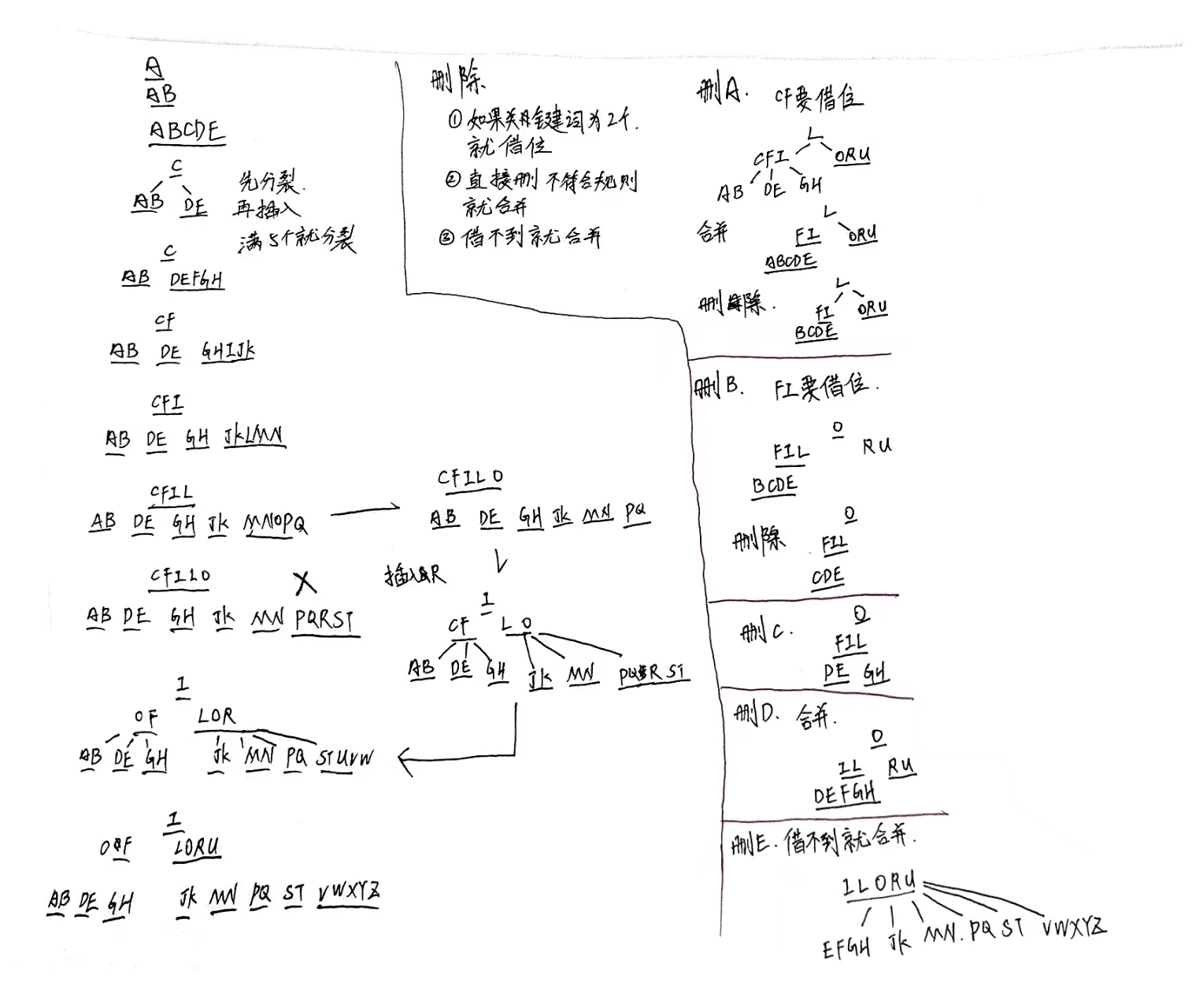

事例:见下图

以二十六个字母为例。

添加F的时候,根节点就需要分裂

插入I的时候,最左侧结点也需要分裂

插入R的时候,根节点需要分裂

子节点的分裂:

  1. 确定分裂的节点y
  2. 创建一个空节点z
  3. 把需要分裂节点y的中间关键词后面的关键词给空节点
  4. 如果需要分裂节点y不是叶子结点,把需要分裂节点的后SUM_B个子树给分裂出来的节点z
  5. 把分裂出来的节点z添加到y的父节点x的子树中
  6. 把需要分裂节点y的中间关键词加入到父节点x中
  7. 把需要分裂节点的中间以及后面的关键词给删除掉

根节点分裂:

  1. 创建一个空节点
  2. 空节点指向根节点
  3. 然后使用上面"子节点的分裂" 分裂根节点

删除

删除非叶子节点元素，最终都会转换成删除叶子结点元素。不改变中序遍历。

规则:

  1. 如果结点中关键词个数等于ceil(M/2)-1就借位
  2. 如果直接删除,关键词的个数小于ceil(M/2)-1,就合并
  3. 借位借不到就合并

合并:

一个父节点和它的两个子节点(左节点和右节点)进行合并,合并到第一个子节点(左节点)上面

  1. 确定父节点和两个需要合并的子节点
  2. 把父节点需要合并的关键词拷贝到第一个子节点(左节点)上面
  3. 把右节点的关键词拷贝到左节点上面
  4. 如果左右节点不是叶子结点,就把右节点的子树拷贝到左节点上面
  5. 销毁有节点
  6. 把父节点的关键词和子节点都往前移动一位
  7. 如果父节点是根节点需要单独考虑

事例:

删除A的时候,结点[CF]需要借位,借位后,结点[AB]需要合并

删除B的时候,结点[FI]需要借位

删除D的时候,结点[DE]需要合并

删除E的时候,结点[IL]需要借位,但借不到,就合并

完整代码：

这里的代码只存储key。

下面还有一份优化代码，存储key、value，并且支持宏定义修改为int 或者 char*类型，并增加查找，修改功能。

复制代码
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
// 参考
//https://blog.csdn.net/Long_xu/article/details/126823578?spm=1001.2014.3001.5502
//https://bbs.csdn.net/topics/619515305

#define SUB_M		3		// M=6, and SUB_M=M/2

typedef int KEY_VALUE;

typedef struct _btree_node {
	//int keys[2 * SUB_M - 1];					// 存储关键字的个数，M-1
	KEY_VALUE *keys;							// 存储关键字,节点有多个关键字
	// void *value;								// 存储数据
	struct _btree_node **childrens;				// 子树，M
	int num;									// 已存储的key数量
	int leaf;									// 是否为叶子结点
}btree_node;

typedef struct _btree {
	btree_node *root;
	int t;				// M阶，t=M/2
}btree;


btree_node *btree_create_node(int t,int leaf)
{
	btree_node *node = (btree_node *)calloc(1, sizeof(btree_node));
	if (node == NULL)
		return NULL;


	node->keys = (KEY_VALUE *)calloc(1, (2 * t - 1)*sizeof(KEY_VALUE));
	if (node->keys == NULL)
	{
		free(node);
		return NULL;
	}

	node->childrens = (btree_node **)calloc(1, (2 * t)*sizeof(btree_node*));
	if (node->childrens == NULL)
	{
		free(node->keys);
		free(node);
		return NULL;
	}
	node->leaf = leaf;
	node->num = 0;

	return node;
}

void btree_destroy_node(btree_node *node)
{
	if (node == NULL)
		return;
	if (node->childrens != NULL)
		free(node->childrens);
	if (node->keys != NULL)
		free(node->keys);
	free(node);
}

/**********************分裂 split************************/
// 子节点分裂
void btree_split_child(btree *T, btree_node *x, int idx)
{

	int t = T->t;

	btree_node *y = x->childrens[idx];
	btree_node *z = btree_create_node(t,y->leaf);

	z->num = t - 1;
	int i = 0;
	for (i = 0; i < t - 1; i++)
		z->keys[i] = y->keys[t + i];

	if (y->leaf == 0)//inner,内节点
	{
		for (i = 0; i < t; i++)
			z->childrens[i] = y->childrens[t + i];
	}

	y->num = t-1;

	// 移动、插入结点
	for (i = x->num; i >= idx + 1; i--)
	{
		x->childrens[i + 1] = x->childrens[i];
	}
	x->childrens[idx + 1] = z;

	// key 交换
	for (i = x->num-1; i >= idx; i--)
	{
		x->keys[i + 1] = x->keys[i];
	}
	x->keys[idx] = y->keys[t-1];
	x->num += 1;
}

/*************************分裂 split end*****************************/

// 创建根结点
void btree_create(btree *T, int t) {
	T->t = t;

	btree_node *x = btree_create_node(t, 1);
	T->root = x;

}

void btree_insert_nonfull(btree *T, btree_node *x, KEY_VALUE k) {

	int i = x->num - 1;

	if (x->leaf == 1) {

		while (i >= 0 && x->keys[i] > k) {
			x->keys[i + 1] = x->keys[i];
			i--;
		}
		x->keys[i + 1] = k;
		x->num += 1;

	}
	else {
		while (i >= 0 && x->keys[i] > k) i--;

		if (x->childrens[i + 1]->num == (2 * (T->t)) - 1) {
			btree_split_child(T, x, i + 1);
			if (k > x->keys[i + 1]) i++;
		}

		btree_insert_nonfull(T, x->childrens[i + 1], k);
	}
}

void btree_insert(btree *T, KEY_VALUE key) {

	btree_node *r = T->root;

	if (r->num == 2 * T->t - 1) {

		btree_node *node = btree_create_node(T->t, 0);
		T->root = node;

		node->childrens[0] = r;

		btree_split_child(T, node, 0);

		int i = 0;
		if (node->keys[0] < key) i++;
		btree_insert_nonfull(T, node->childrens[i], key);

	}
	else {
		btree_insert_nonfull(T, r, key);
	}
}

/*************************合并 merge*****************************/
void btree_merge(btree *T, btree_node *x, int idx)
{
	btree_node *left = x->childrens[idx];
	btree_node *right = x->childrens[idx + 1];

	int i = 0;

	// 合并keys
	left->keys[T->t-1] = x->keys[idx];
	for (i = 0; i < T->t-1; i++)
	{
		left->keys[T->t + i] = right->keys[i];
	}

	// 如果不是子树，需要拷贝结点
	if (!left->leaf) {
		for (i = 0; i < T->t; i++) {
			left->childrens[T->t + i] = right->childrens[i];
		}
	}
	left->num += T->t;

	btree_destroy_node(right);

	// x 的key前移
	for (i = idx + 1; i < x->num; i++)
	{
		x->keys[i - 1] = x->keys[i];
		x->childrens[i] = x->childrens[i + 1];
	}

	x->childrens[i + 1] = NULL;
	x->num -= 1;

	if (x->num == 0) {
		T->root = left;
		btree_destroy_node(x);
	}
}

void btree_delete_key(btree *T, btree_node *node, KEY_VALUE key) {

	if (node == NULL) return;

	int idx = 0, i;

	while (idx < node->num && key > node->keys[idx]) {
		idx++;
	}

	if (idx < node->num && key == node->keys[idx]) {

		if (node->leaf) {

			for (i = idx; i < node->num - 1; i++) {
				node->keys[i] = node->keys[i + 1];
			}

			node->keys[node->num - 1] = 0;
			node->num--;

			if (node->num == 0) { //root
				free(node);
				T->root = NULL;
			}

			return;
		}
		else if (node->childrens[idx]->num >= T->t) {

			btree_node *left = node->childrens[idx];
			node->keys[idx] = left->keys[left->num - 1];

			btree_delete_key(T, left, left->keys[left->num - 1]);

		}
		else if (node->childrens[idx + 1]->num >= T->t) {

			btree_node *right = node->childrens[idx + 1];
			node->keys[idx] = right->keys[0];

			btree_delete_key(T, right, right->keys[0]);

		}
		else {

			btree_merge(T, node, idx);
			btree_delete_key(T, node->childrens[idx], key);

		}

	}
	else {

		btree_node *child = node->childrens[idx];
		if (child == NULL) {
			printf("Cannot del key = %d\n", key);
			return;
		}

		if (child->num == T->t - 1) {

			btree_node *left = NULL;
			btree_node *right = NULL;
			if (idx - 1 >= 0)
				left = node->childrens[idx - 1];
			if (idx + 1 <= node->num)
				right = node->childrens[idx + 1];

			if ((left && left->num >= T->t) ||
				(right && right->num >= T->t)) {

				int richR = 0;
				if (right) richR = 1;
				if (left && right) richR = (right->num > left->num) ? 1 : 0;

				if (right && right->num >= T->t && richR) { //borrow from next
					child->keys[child->num] = node->keys[idx];
					child->childrens[child->num + 1] = right->childrens[0];
					child->num++;

					node->keys[idx] = right->keys[0];
					for (i = 0; i < right->num - 1; i++) {
						right->keys[i] = right->keys[i + 1];
						right->childrens[i] = right->childrens[i + 1];
					}

					right->keys[right->num - 1] = 0;
					right->childrens[right->num - 1] = right->childrens[right->num];
					right->childrens[right->num] = NULL;
					right->num--;

				}
				else { //borrow from prev

					for (i = child->num; i > 0; i--) {
						child->keys[i] = child->keys[i - 1];
						child->childrens[i + 1] = child->childrens[i];
					}

					child->childrens[1] = child->childrens[0];
					child->childrens[0] = left->childrens[left->num];
					child->keys[0] = node->keys[idx - 1];

					child->num++;

					node->keys[idx - 1] = left->keys[left->num - 1];
					left->keys[left->num - 1] = 0;
					left->childrens[left->num] = NULL;
					left->num--;
				}

			}
			else if ((!left || (left->num == T->t - 1))
				&& (!right || (right->num == T->t - 1))) {

				if (left && left->num == T->t - 1) {
					btree_merge(T, node, idx - 1);
					child = left;
				}
				else if (right && right->num == T->t - 1) {
					btree_merge(T, node, idx);
				}
			}
		}

		btree_delete_key(T, child, key);
	}

}


int btree_delete(btree *T, KEY_VALUE key) {
	if (!T->root) return -1;

	btree_delete_key(T, T->root, key);
	return 0;
}


/******************测试************************/

void btree_print(btree *T, btree_node *node, int layer)
{
	btree_node* p = node;
	int i;
	if (p) {
		printf("\nlayer = %d keynum = %d is_leaf = %d\n", layer, p->num, p->leaf);
		for (i = 0; i < node->num; i++)
			printf("%c ", p->keys[i]);
		printf("\n");
		layer++;
		for (i = 0; i <= p->num; i++)
			if (p->childrens[i])
				btree_print(T, p->childrens[i], layer);
	}
	else printf("the tree is empty\n");
}


int main() {
	btree T = { 0 };

	btree_create(&T, SUB_M);
	srand(48);

	int i = 0;
	char key[30] = "ABCDEFGHIJKLMNOPQRSTUVWXYZ";
	for (i = 0; i < 26; i++) {
		//key[i] = rand() % 1000;
		printf("插入%c ", key[i]);
		btree_insert(&T, key[i]);
		//btree_print(&T, T.root, 0);
		//printf("---------------------------------\n");
	}

	btree_print(&T, T.root, 0);

	for (i = 0; i < 26; i++) {
		printf("\n删除%c---------------------------------\n",key[25 - i]);
		btree_delete(&T, key[25 - i]);
		//btree_traverse(T.root);
		btree_print(&T, T.root, 0);
	}
	return 0;
}

优化的代码版本：可以存储key、value，并且支持宏定义修改为int 或者 char*类型，并增加了查找和修改的功能。

复制代码
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
// 6阶B树
#define SUB_M		3		// M=6, and SUB_M=M/2

/*
必须完全懂得代码，明白什么时候可以浅拷贝？什么时候得深拷贝？
浅拷贝：我有一块内存，你也有一块内存，先释放你，你再指向我
深拷贝：你申请一块内存，我copy给你，我释放
*/
#define KEY_TYPE_CHAR
//#define KEY_TYPE_INT

#ifdef  KEY_TYPE_INT
	typedef int* KEY_TYPE; //可以修改key的类型
#endif
#ifdef  KEY_TYPE_CHAR
	typedef char* KEY_TYPE;
#endif
/*
int  --->  char *

赋值：
node->key = del_node->key;
--->
void *temp = node->key;// 这是交换啊
node->key = del_node->key;
del_node->key = temp;

比较：
if( a > b )
-->
strcmp(a,b) > 0


*/

typedef struct _btree_node {
	//int keys[2 * SUB_M - 1];					// 存储关键字的个数，M-1
	// KEY_TYPE* == char**，即 char* keys[2*t-1]。 keys是一数组，存储的是字符型指针
	KEY_TYPE *keys;							// 存储关键字,节点有多个关键字
	KEY_TYPE *values;								// 存储数据
	struct _btree_node **childrens;				// 子树，M
	int num;									// 已存储的key数量
	int leaf;									// 是否为叶子结点
}btree_node;

typedef struct _btree {
	btree_node *root;
	int node_count;
	int t;				// M阶，t=M/2
}btree;

char* strdup(const char* s) {
    if (!s) return NULL;
    char* p = malloc(strlen(s) + 1);
    if (p) strcpy(p, s);
    return p;
}

btree_node *btree_create_node(int t,int leaf)
{
	btree_node *node = (btree_node *)calloc(1, sizeof(btree_node));
	if (node == NULL)
		return NULL;


	node->keys = (KEY_TYPE *)calloc(1, (2 * t - 1)*sizeof(KEY_TYPE));
	if (node->keys == NULL)
	{
		free(node);
		return NULL;
	}
	node->values = (KEY_TYPE *)calloc(1, (2 * t - 1)*sizeof(KEY_TYPE));
	if (node->values == NULL)
	{
		free(node->keys);
		free(node);
		return NULL;
	}

	node->childrens = (btree_node **)calloc(1, (2 * t)*sizeof(btree_node*));
	if (node->childrens == NULL)
	{
		free(node->keys);
		free(node->values);
		free(node);
		return NULL;
	}
	node->leaf = leaf;
	node->num = 0;

	return node;
}

void btree_destroy_node(btree_node *node) {
    if (node == NULL)
        return;
	// 如果是内部节点，应该先递归删除所有子节点
    if (!node->leaf) {
        for (int i = 0; i <= node->num; i++) {
            if (node->childrens[i]) {
                btree_destroy_node(node->childrens[i]);
            }
        }
    }
    if (node->keys != NULL) {
        for (int i = 0; i < node->num; i++) {
            if (node->keys[i] != NULL) {
                free(node->keys[i]);  // 释放每个 char* 字符串
            }
        }
        free(node->keys);  // 释放指针数组本身
    }

    if (node->values != NULL) {
        for (int i = 0; i < node->num; i++) {
            if (node->values[i] != NULL) {
                free(node->values[i]);  // 释放每个 char* 字符串
            }
        }
        free(node->values);  // 释放指针数组本身
    }

    if (node->childrens != NULL) {
        free(node->childrens);  // 释放子节点指针数组
    }
    free(node);
}

/**********************分裂 split************************/
// 子节点分裂
// x是需要分裂节点的父节点
// idx表示x节点下的第几颗子树
// 需要分裂的节点就是x下的第idx颗子树

void btree_split_child(btree *T, btree_node *x, int idx)
{

	int t = T->t;

	btree_node *y = x->childrens[idx];// 需要分解的节点
	btree_node *z = btree_create_node(t, y->leaf);
    // 根节点是一分为三,这样就需要创建两个空节点,这里的代码参考btree_insert函数
    // 非根节点是一分为二,需要创建一个空节点z
	z->num = t - 1;
	int i = 0;
	// 把需要分裂节点y中间关键词后面的关键词给空节点z
	for (i = 0; i < t - 1; i++)
	{
#ifdef  KEY_TYPE_INT
		z->keys[i] = y->keys[t + i];
		z->values[i] = y->values[t + i];
#endif
#ifdef  KEY_TYPE_CHAR
		// z->keys[i] = y->keys[t + i];// 浅拷贝
		// z->values[i] = y->values[t + i];
		z->keys[i] = strdup(y->keys[t + i]);      // 深拷贝 key
		z->values[i] = strdup(y->values[t + i]);  // 深拷贝 value
		// 不需要释放，只需将原指针置NULL
		y->keys[t + i] = NULL;
		y->values[t + i] = NULL;
#endif
	}

	if (y->leaf == 0) // inner,内节点
	{
		for (i = 0; i < t; i++)
		{
			z->childrens[i] = y->childrens[t + i];
		}
	}

	y->num = t-1;

	// 移动、插入结点
	for (i = x->num; i >= idx + 1; i--)
	{
		x->childrens[i + 1] = x->childrens[i];
	}
	x->childrens[idx + 1] = z;

	// key 交换
	for (i = x->num-1; i >= idx; i--)
	{
		x->keys[i + 1] = x->keys[i];
		x->values[i + 1] = x->values[i];
	}

	x->keys[idx] = y->keys[t-1];
	x->values[idx] = y->values[t-1];
	x->num += 1;
}

// 创建根结点
void btree_create(btree *T, int t) {
	T->t = t;

	btree_node *x = btree_create_node(t, 1);
	T->root = x;
	T->node_count = 0;
}
// 结点x插入关键词k
void btree_insert_nonfull(btree *T, btree_node *x, KEY_TYPE key, KEY_TYPE value) {

	int i = x->num - 1;

	if (x->leaf == 1) {
#ifdef  KEY_TYPE_INT
	while (i >= 0 && x->keys[i] > key)
#endif
#ifdef  KEY_TYPE_CHAR
	while (i >= 0 && (strcmp(x->keys[i] , key) > 0) ) {
#endif
			x->keys[i + 1] = x->keys[i];
			x->values[i + 1] = x->values[i];
			i--;
		}
#ifdef  KEY_TYPE_INT
		x->keys[i + 1] = key;
		x->values[i + 1] = value;
#endif
#ifdef  KEY_TYPE_CHAR
    x->keys[i + 1] = strdup(key);      // 分配内存并拷贝字符串
    x->values[i + 1] = strdup(value);  // 分配内存并拷贝字符串
#endif
/*
#ifdef  KEY_TYPE_CHAR
		x->keys[i + 1] = malloc(strlen(key) + 1);
		memset(x->keys[i + 1], 0, strlen(key) + 1);
		strcpy(x->keys[i + 1], key);

		x->values[i + 1] = malloc(strlen(value) + 1);
		memset(x->values[i + 1], 0, strlen(value) + 1);
		strcpy(x->values[i + 1], value);

#endif
*/
		x->num += 1;

	}
	else {
#ifdef  KEY_TYPE_INT
	while (i >= 0 && x->keys[i] > key) i--;
#endif
#ifdef  KEY_TYPE_CHAR
	while (i >= 0 && (strcmp( x->keys[i] , key) > 0)) i--;
#endif
		if (x->childrens[i + 1]->num == (2 * (T->t)) - 1) {
			btree_split_child(T, x, i + 1);

			#ifdef  KEY_TYPE_INT
				if (key > x->keys[i + 1]) i++;
			#endif
			#ifdef  KEY_TYPE_CHAR
				if (strcmp(key , x->keys[i + 1]) > 0)
					i++;
			#endif

		}

		btree_insert_nonfull(T, x->childrens[i + 1], key, value);
	}
}

void btree_insert(btree *T, KEY_TYPE key, KEY_TYPE value) {

	btree_node *r = T->root;

	if (r->num == 2 * T->t - 1) {

		btree_node *node = btree_create_node(T->t, 0);
		T->root = node;

		node->childrens[0] = r;

		btree_split_child(T, node, 0);

		int i = 0;

		#ifdef  KEY_TYPE_INT
			if (node->keys[0] < key) i++;

		#endif
		#ifdef  KEY_TYPE_CHAR
			if(strcmp(node->keys[0],key) < 0)
				i++;
		#endif

		btree_insert_nonfull(T, node->childrens[i], key, value);

	}
	else {
		btree_insert_nonfull(T, r, key, value);
	}
	T->node_count++;
}


/*************************合并 merge*****************************/

void btree_merge(btree *T, btree_node *x, int idx)
{
	btree_node *left = x->childrens[idx];
	btree_node *right = x->childrens[idx + 1];

	int i = 0;

	// 合并keys
	left->keys[T->t-1] = x->keys[idx];
	left->values[T->t-1] = x->values[idx];
	x->keys[idx] = NULL;  // 置NULL，避免重复释放
    x->values[idx] = NULL;
	for (i = 0; i < T->t-1; i++)
	{
		left->keys[T->t + i] = right->keys[i];
		left->values[T->t + i] = right->values[i];
		right->keys[i] = NULL;  // 置NULL
        right->values[i] = NULL;
	}

	// 如果不是子树，需要拷贝结点
	if (!left->leaf) {
		for (i = 0; i < T->t; i++) {
			left->childrens[T->t + i] = right->childrens[i];
			right->childrens[i] = NULL;
		}
	}

	left->num += T->t;
	right->num = 0;  // 清空计数，避免btree_destroy_node时释放

	//btree_destroy_node(right);
    // 只释放right节点本身，不递归释放其子节点（因为它们已被转移）
    if (right->childrens != NULL) {
        free(right->childrens);
        right->childrens = NULL;
    }
    free(right->keys);
    free(right->values);
    free(right);


	// x 的key前移
	for (i = idx + 1; i < x->num; i++)
	{
		x->keys[i - 1] = x->keys[i];
		x->values[i - 1] = x->values[i];
		x->childrens[i] = x->childrens[i + 1];
	}

	//x->childrens[i + 1] = NULL;
	x->childrens[x->num] = NULL;
	x->num -= 1;

	if (x->num == 0) {
		T->root = left;
		x->childrens[0] = NULL;
		btree_destroy_node(x);
	}
}

void btree_delete_key(btree *T, btree_node *node, KEY_TYPE key) {

	if (node == NULL) return;

	int idx = 0, i;
#ifdef  KEY_TYPE_INT
	while (idx < node->num && key > node->keys[idx]) {
		idx++;
	}
#endif
#ifdef  KEY_TYPE_CHAR
	while (idx < node->num && (strcmp(key , node->keys[idx]) > 0)) {
		idx++;
	}
#endif

#ifdef  KEY_TYPE_INT
	if (idx < node->num && key == node->keys[idx])
#endif
#ifdef  KEY_TYPE_CHAR
	if (idx < node->num && (strcmp(key , node->keys[idx]) == 0)) {
#endif
		if (node->leaf) {
			// 先释放要删除的key的内存
			if (node->keys[idx]) {
				free(node->keys[idx]);
				node->keys[idx] = NULL;
			}
			if (node->values[idx]) {
				free(node->values[idx]);
				node->values[idx] = NULL;
			}

			for (i = idx; i < node->num - 1; i++) {
				node->keys[i] = node->keys[i + 1];
				node->values[i] = node->values[i + 1];
			}
			node->keys[node->num - 1] = NULL;
			node->values[node->num - 1] = NULL;
			node->num--;

			if (node->num == 0) { //root
				free(node);
				T->root = NULL;
			}

			return;
		}
		else if (node->childrens[idx]->num >= T->t) {

			btree_node *left = node->childrens[idx];
			node->keys[idx] = left->keys[left->num - 1];
			node->values[idx] = left->values[left->num - 1];

			btree_delete_key(T, left, left->keys[left->num - 1]);

		}
		else if (node->childrens[idx + 1]->num >= T->t) {

			btree_node *right = node->childrens[idx + 1];
			node->keys[idx] = right->keys[0];
			node->values[idx] = right->values[0];

			btree_delete_key(T, right, right->keys[0]);

		}
		else {

			btree_merge(T, node, idx);
			btree_delete_key(T, node->childrens[idx], key);

		}

	}
	else {

		btree_node *child = node->childrens[idx];
		if (child == NULL) {
			#ifdef  KEY_TYPE_INT
				printf("Cannot del key = %d\n", key);
			#endif
			#ifdef  KEY_TYPE_CHAR
				printf("Cannot del key = %s\n", key);
			#endif

			return;
		}

		if (child->num == T->t - 1)
		{
			btree_node *left = NULL;
			btree_node *right = NULL;
			if (idx - 1 >= 0)
				left = node->childrens[idx - 1];
			if (idx + 1 <= node->num)
				right = node->childrens[idx + 1];
			if ((left && left->num >= T->t) ||
				(right && right->num >= T->t)) {
				int richR = 0;
				if (right) richR = 1;
				if (left && right) richR = (right->num > left->num) ? 1 : 0;

				if (right && right->num >= T->t && richR) { //borrow from next
					child->keys[child->num] = node->keys[idx];
					child->values[child->num] = node->values[idx];
					child->childrens[child->num + 1] = right->childrens[0];
					child->num++;

					node->keys[idx] = right->keys[0];
					node->values[idx] = right->values[0];
					for (i = 0; i < right->num - 1; i++) {
						right->keys[i] = right->keys[i + 1];
						right->values[i] = right->values[i + 1];
						right->childrens[i] = right->childrens[i + 1];
					}

					right->keys[right->num - 1] = 0;
					right->values[right->num - 1] = 0;
					right->childrens[right->num - 1] = right->childrens[right->num];
					right->childrens[right->num] = NULL;
					right->num--;
				}
				else { //borrow from prev
					for (i = child->num; i > 0; i--) {
						child->keys[i] = child->keys[i - 1];
						child->values[i] = child->values[i - 1];
						child->childrens[i + 1] = child->childrens[i];
					}

					child->childrens[1] = child->childrens[0];
					child->childrens[0] = left->childrens[left->num];
					child->keys[0] = node->keys[idx - 1];
					child->values[0] = node->values[idx - 1];

					child->num++;

					node->keys[idx - 1] = left->keys[left->num - 1];
					node->values[idx - 1] = left->values[left->num - 1];
					left->keys[left->num - 1] = NULL;
					left->values[left->num - 1] = NULL;
					left->childrens[left->num] = NULL;
					left->num--;
				}

			}
			else if ((!left || (left->num == T->t - 1))
				&& (!right || (right->num == T->t - 1))) {
				if (left && left->num == T->t - 1) {
					btree_merge(T, node, idx - 1);
					child = left;
				}
				else if (right && right->num == T->t - 1) {
					btree_merge(T, node, idx);
				}
			}
		}

		btree_delete_key(T, child, key);
	}

}


int btree_delete(btree *T, KEY_TYPE key) {
	if (!T->root) return -1;
	btree_delete_key(T, T->root, key);
	T->node_count--;
	return 0;
}

// 节点数量
int btree_node_count(btree *T)
{
	return T->node_count;
}

// 根据key查找value
KEY_TYPE btree_search(btree *T, KEY_TYPE key) {
    if (!T || !T->root) return NULL;

    btree_node *node = T->root;
    int idx = 0;

    while (node != NULL) {
        idx = 0;

        // 在当前节点中查找key的位置
#ifdef KEY_TYPE_INT
        while (idx < node->num && key > node->keys[idx]) {
            idx++;
        }

        // 如果找到，返回value
        if (idx < node->num && key == node->keys[idx]) {
            return node->values[idx];
        }
#endif

#ifdef KEY_TYPE_CHAR
        while (idx < node->num && strcmp(key, node->keys[idx]) > 0) {
            idx++;
        }

        // 如果找到，返回value
        if (idx < node->num && strcmp(key, node->keys[idx]) == 0) {
            return node->values[idx];
        }
#endif

        // 如果是叶子节点，没找到
        if (node->leaf) {
            break;
        }

        // 否则进入相应的子节点继续查找
        node = node->childrens[idx];
    }

    return NULL;  // 没找到
}

// 根据key修改value
int btree_update(btree *T, KEY_TYPE key, KEY_TYPE new_value) {
    if (!T || !T->root) return -1;

    btree_node *node = T->root;
    int idx = 0;
    int found = 0;

    while (node != NULL && !found) {
        idx = 0;

        // 在当前节点中查找key的位置
#ifdef KEY_TYPE_INT
        while (idx < node->num && key > node->keys[idx]) {
            idx++;
        }

        if (idx < node->num && key == node->keys[idx]) {
            found = 1;
        }
#endif

#ifdef KEY_TYPE_CHAR
        while (idx < node->num && strcmp(key, node->keys[idx]) > 0) {
            idx++;
        }

        if (idx < node->num && strcmp(key, node->keys[idx]) == 0) {
            found = 1;
        }
#endif

        if (found) {
            // 找到key，更新value
#ifdef KEY_TYPE_CHAR
            // 对于字符串类型，需要先释放原来的内存，再分配新内存
            if (node->values[idx] != NULL) {
                free(node->values[idx]);
            }
            node->values[idx] = strdup(new_value);
#else
            // 对于整数类型，直接赋值
            node->values[idx] = new_value;
#endif
            return 0;  // 修改成功
        }

        // 如果是叶子节点，没找到
        if (node->leaf) {
            break;
        }

        // 否则进入相应的子节点继续查找
        node = node->childrens[idx];
    }

    return -1;  // 没找到key
}
/******************测试************************/

void btree_print(btree *T, btree_node *node, int layer)
{
	btree_node* p = node;
	int i;
	if (p) {
		printf("\nlayer = %d keynum = %d is_leaf = %d\n", layer, p->num, p->leaf);
		for (i = 0; i < node->num; i++)
#ifdef  KEY_TYPE_INT
			printf("key:%c value:%c", p->keys[i], p->values[i]);
#endif
#ifdef  KEY_TYPE_CHAR
			printf("key:%s value:%s   ", p->keys[i], p->values[i]);
#endif
		printf("\n");
		layer++;
		for (i = 0; i <= p->num; i++)
			if (p->childrens[i])
				btree_print(T, p->childrens[i], layer);
	}
	else printf("the tree is empty\n");
}

/****************** TEST FUNCTIONS ******************/
// 此测试代码由AI生成
void test_insert_search_update_delete() {
    printf("\n========== B-TREE TEST (INSERT/SEARCH/UPDATE/DELETE) ==========\n");

    btree T = {0};
    btree_create(&T, SUB_M);

    // Test data
    char *keys[] = {"dog", "cat", "fish", "bird", "snake", "cow", "sheep", "horse"};
    char *values[] = {"bark", "meow", "bubble", "tweet", "hiss", "moo", "baa", "neigh"};
    int n = sizeof(keys) / sizeof(keys[0]);

    printf("\n--- 1. INSERT TEST ---\n");
    for (int i = 0; i < n; i++) {
        printf("insert: key=%s, value=%s\n", keys[i], values[i]);
        btree_insert(&T, keys[i], values[i]);
    }
    printf("\nTotal nodes: %d\n", btree_node_count(&T));

    printf("\n--- B-tree structure after insert ---\n");
    btree_print(&T, T.root, 0);

    printf("\n--- 2. SEARCH TEST ---\n");
    char *search_keys[] = {"cat", "horse", "lion", "dog", "tiger"};
    for (int i = 0; i < 5; i++) {
        char *result = btree_search(&T, search_keys[i]);
        if (result) {
            printf("search key=%s, found value=%s\n", search_keys[i], result);
        } else {
            printf("search key=%s, not found\n", search_keys[i]);
        }
    }

    printf("\n--- 3. UPDATE TEST ---\n");
    printf("before update - cat: %s\n", btree_search(&T, "cat"));
    printf("updating cat value to 'purr'\n");
    btree_update(&T, "cat", "purr");
    printf("after update - cat: %s\n", btree_search(&T, "cat"));

    printf("\nbefore update - dog: %s\n", btree_search(&T, "dog"));
    printf("updating dog value to 'woof'\n");
    btree_update(&T, "dog", "woof");
    printf("after update - dog: %s\n", btree_search(&T, "dog"));

    printf("\ntrying to update non-existing key 'elephant':\n");
    int ret = btree_update(&T, "elephant", "trumpet");
    if (ret == -1) {
        printf("update failed, key not found\n");
    }

    printf("\n--- B-tree structure after update ---\n");
    btree_print(&T, T.root, 0);

    printf("\n--- 4. DELETE TEST ---\n");
    printf("deleting key: cat\n");
    btree_delete(&T, "cat");
    printf("search cat after delete: %s\n", btree_search(&T, "cat") ? "found" : "not found");

    printf("\ndeleting key: fish\n");
    btree_delete(&T, "fish");
    printf("search fish after delete: %s\n", btree_search(&T, "fish") ? "found" : "not found");

    printf("\ndeleting key: horse\n");
    btree_delete(&T, "horse");
    printf("search horse after delete: %s\n", btree_search(&T, "horse") ? "found" : "not found");

    printf("\n--- B-tree structure after delete ---\n");
    btree_print(&T, T.root, 0);

    printf("\n--- 5. FINAL SEARCH TEST ---\n");
    char *final_keys[] = {"dog", "bird", "snake", "cow", "sheep"};
    for (int i = 0; i < 5; i++) {
        char *result = btree_search(&T, final_keys[i]);
        if (result) {
            printf("key=%s, value=%s\n", final_keys[i], result);
        } else {
            printf("key=%s, not found\n", final_keys[i]);
        }
    }

    printf("\n--- Clean up ---\n");
    btree_destroy_node(T.root);
    printf("Test completed\n");
}

int main() {
	btree T = { 0 };

	btree_create(&T, SUB_M);
	srand(48);

	int i = 0;
#ifdef  KEY_TYPE_INT
	char key[30] = "ABCDEFGHIJKLMNOPQRSTUVWXYZ";
	char value[30] = "abcdefghijklmnopqrstuvwxyz";
	for (i = 0; i < 26; i++) {
		//key[i] = rand() % 1000;
		printf("insert key:%c  value:%c", key[i], value[i]);
		btree_insert(&T, key[i], value[i]);
		//btree_print(&T, T.root, 0);
		//printf("---------------------------------\n");
	}

	btree_print(&T, T.root, 0);

	for (i = 0; i < 26; i++) {
		printf("\n del: %c---------------------------------\n",key[25 - i]);
		btree_delete(&T, key[25 - i]);
		//btree_traverse(T.root);
		btree_print(&T, T.root, 0);
	}
#endif
#ifdef  KEY_TYPE_CHAR

#if 0
char *keys[26] = {
    "aa", "bb", "cc", "dd", "ee",
    "ff", "gg", "hh", "ii", "jj",
    "kk", "ll", "mm", "nn", "oo",
    "pp", "qq", "rr", "ss", "tt",
    "uu", "vv", "ww", "xx", "yy", "zz"
};

char *values[26] = {
    "Vaa", "Vbb", "Vcc", "Vdd", "Vee",
    "Vff", "Vgg", "Vhh", "Vii", "Vjj",
    "Vkk", "Vll", "Vmm", "Vnn", "Voo",
    "Vpp", "Vqq", "Vrr", "Vss", "Vtt",
    "Vuu", "Vvv", "Vww", "Vxx", "Vyy", "Vzz"
};

for (i = 0; i < 26; i++)
{
	printf("insert key:%s  value:%s\n", keys[i], values[i]);
	btree_insert(&T, keys[i], values[i]);
}
	printf("trv begin---------------------------------\n\n");
	btree_print(&T, T.root, 0);
	printf("trv end---------------------------------\n\n");

	for (i = 0; i < 26; i++) {
		printf("del: %s\n",keys[i]);
		btree_delete(&T, keys[i]);
		printf("trv begin---------------------------------\n\n");
		btree_print(&T, T.root, 0);
		printf("trv end---------------------------------\n\n");
	}
#else
	test_insert_search_update_delete();
#endif

#endif


	return 0;
}
相关推荐
靓仔建17 小时前
Vue3导入组件出错does not provide an export named ‘user_setting‘ (at index.vue:180:10)
开发语言·前端·typescript
仰泳的熊猫18 小时前
题目2194:蓝桥杯2018年第九届真题-递增三元组
数据结构·c++·算法
赶路人儿18 小时前
UTC时间和时间戳介绍
java·开发语言
6+h18 小时前
【java】基本数据类型与包装类：拆箱装箱机制
java·开发语言·python
啊哦呃咦唔鱼19 小时前
LeetCode hot100-15 三数之和
数据结构·算法·leetcode
leluckys19 小时前
算法-链表-二、成对交换两个节点
数据结构·算法·链表
未来之窗软件服务20 小时前
幽冥大陆(一百12)js打造json硬件管道——东方仙盟筑基期
开发语言·javascript·算法·json·仙盟创梦ide·东方仙盟·东方仙盟算法
人道领域20 小时前
苍穹外卖：菜品分页查询与删除功能（保姆级详解）
java·开发语言·数据库·后端·spring
EverestVIP20 小时前
c++前置声明的方式与说明
开发语言·c++
天远云服21 小时前
天远企业司法认证API对接实战：PHP构建B2B供应链合规防火墙
大数据·开发语言·后端·node.js·php
热门推荐
01GitHub 镜像站点02OpenClaw 使用和管理 MCP 完全指南03Qwen3.5 开源全解析：从 0.8B 到 397B，代际升级 + 全场景选型指南04本地部署 OpenClaw + DeepSeek-R1 完全指南05OpenClaw macOS 完整安装与本地模型配置教程（实战版）06OpenClaw 飞书机器人不回复消息？3 小时踩坑总结07得物前端部门，没了08OpenClaw 连接飞书完整指南：插件安装、配置与踩坑记录09UV安装并设置国内源10Window 10部署openclaw报错node.exe : npm error code 128
