前言

1 训练环境地形：平地生成逻辑

1-1 代码一栏
  • 我们先来整体看看legged_gym/envs/base/legged_robot.py中有关地形生成的全部代码
python 复制代码
from legged_gym import LEGGED_GYM_ROOT_DIR, envs
import time
from warnings import WarningMessage
import numpy as np
import os

from isaacgym.torch_utils import *
from isaacgym import gymtorch, gymapi, gymutil

import torch
from torch import Tensor
from typing import Tuple, Dict

from legged_gym import LEGGED_GYM_ROOT_DIR
from legged_gym.envs.base.base_task import BaseTask
from legged_gym.utils.math import wrap_to_pi
from legged_gym.utils.isaacgym_utils import get_euler_xyz as get_euler_xyz_in_tensor
from legged_gym.utils.helpers import class_to_dict
from .legged_robot_config import LeggedRobotCfg

class LeggedRobot(BaseTask):
    def __init__(self, cfg: LeggedRobotCfg, sim_params, physics_engine, sim_device, headless):
        """ Parses the provided config file,
            calls create_sim() (which creates, simulation and environments),
            initilizes pytorch buffers used during training

        Args:
            cfg (Dict): Environment config file
            sim_params (gymapi.SimParams): simulation parameters
            physics_engine (gymapi.SimType): gymapi.SIM_PHYSX (must be PhysX)
            device_type (string): 'cuda' or 'cpu'
            device_id (int): 0, 1, ...
            headless (bool): Run without rendering if True
        """
        self.cfg = cfg
        self.sim_params = sim_params
        self.height_samples = None
        self.debug_viz = False
        self.init_done = False
        self._parse_cfg(self.cfg)
        super().__init__(self.cfg, sim_params, physics_engine, sim_device, headless)

        if not self.headless:
            self.set_camera(self.cfg.viewer.pos, self.cfg.viewer.lookat)
        self._init_buffers()
        self._prepare_reward_function()
        self.init_done = True
    def create_sim(self):
        """ Creates simulation, terrain and evironments
        """
        self.up_axis_idx = 2 # 2 for z, 1 for y -> adapt gravity accordingly
        self.sim = self.gym.create_sim(self.sim_device_id, self.graphics_device_id, self.physics_engine, self.sim_params)
        self._create_ground_plane()
        self._create_envs()
    def _create_ground_plane(self):
        """ Adds a ground plane to the simulation, sets friction and restitution based on the cfg.
        """
        plane_params = gymapi.PlaneParams()
        plane_params.normal = gymapi.Vec3(0.0, 0.0, 1.0)
        plane_params.static_friction = self.cfg.terrain.static_friction
        plane_params.dynamic_friction = self.cfg.terrain.dynamic_friction
        plane_params.restitution = self.cfg.terrain.restitution
        self.gym.add_ground(self.sim, plane_params)

    def _create_envs(self):
        """ Creates environments:
             1. loads the robot URDF/MJCF asset,
             2. For each environment
                2.1 creates the environment,
                2.2 calls DOF and Rigid shape properties callbacks,
                2.3 create actor with these properties and add them to the env
             3. Store indices of different bodies of the robot
        """
        asset_path = self.cfg.asset.file.format(LEGGED_GYM_ROOT_DIR=LEGGED_GYM_ROOT_DIR)
        asset_root = os.path.dirname(asset_path)
        asset_file = os.path.basename(asset_path)

        asset_options = gymapi.AssetOptions()
        asset_options.default_dof_drive_mode = self.cfg.asset.default_dof_drive_mode
        asset_options.collapse_fixed_joints = self.cfg.asset.collapse_fixed_joints
        asset_options.replace_cylinder_with_capsule = self.cfg.asset.replace_cylinder_with_capsule
        asset_options.flip_visual_attachments = self.cfg.asset.flip_visual_attachments
        asset_options.fix_base_link = self.cfg.asset.fix_base_link
        asset_options.density = self.cfg.asset.density
        asset_options.angular_damping = self.cfg.asset.angular_damping
        asset_options.linear_damping = self.cfg.asset.linear_damping
        asset_options.max_angular_velocity = self.cfg.asset.max_angular_velocity
        asset_options.max_linear_velocity = self.cfg.asset.max_linear_velocity
        asset_options.armature = self.cfg.asset.armature
        asset_options.thickness = self.cfg.asset.thickness
        asset_options.disable_gravity = self.cfg.asset.disable_gravity

        robot_asset = self.gym.load_asset(self.sim, asset_root, asset_file, asset_options)
        self.num_dof = self.gym.get_asset_dof_count(robot_asset)
        self.num_bodies = self.gym.get_asset_rigid_body_count(robot_asset)
        dof_props_asset = self.gym.get_asset_dof_properties(robot_asset)
        rigid_shape_props_asset = self.gym.get_asset_rigid_shape_properties(robot_asset)

        # save body names from the asset
        body_names = self.gym.get_asset_rigid_body_names(robot_asset)
        self.dof_names = self.gym.get_asset_dof_names(robot_asset)
        self.num_bodies = len(body_names)
        self.num_dofs = len(self.dof_names)
        feet_names = [s for s in body_names if self.cfg.asset.foot_name in s]
        penalized_contact_names = []
        for name in self.cfg.asset.penalize_contacts_on:
            penalized_contact_names.extend([s for s in body_names if name in s])
        termination_contact_names = []
        for name in self.cfg.asset.terminate_after_contacts_on:
            termination_contact_names.extend([s for s in body_names if name in s])

        base_init_state_list = self.cfg.init_state.pos + self.cfg.init_state.rot + self.cfg.init_state.lin_vel + self.cfg.init_state.ang_vel
        self.base_init_state = to_torch(base_init_state_list, device=self.device, requires_grad=False)
        start_pose = gymapi.Transform()
        start_pose.p = gymapi.Vec3(*self.base_init_state[:3])

        self._get_env_origins()
        env_lower = gymapi.Vec3(0., 0., 0.)
        env_upper = gymapi.Vec3(0., 0., 0.)
        self.actor_handles = []
        self.envs = []
        for i in range(self.num_envs):
            # create env instance
            env_handle = self.gym.create_env(self.sim, env_lower, env_upper, int(np.sqrt(self.num_envs)))
            pos = self.env_origins[i].clone()
            pos[:2] += torch_rand_float(-1., 1., (2,1), device=self.device).squeeze(1)
            start_pose.p = gymapi.Vec3(*pos)

            rigid_shape_props = self._process_rigid_shape_props(rigid_shape_props_asset, i)
            self.gym.set_asset_rigid_shape_properties(robot_asset, rigid_shape_props)
            actor_handle = self.gym.create_actor(env_handle, robot_asset, start_pose, self.cfg.asset.name, i, self.cfg.asset.self_collisions, 0)
            dof_props = self._process_dof_props(dof_props_asset, i)
            self.gym.set_actor_dof_properties(env_handle, actor_handle, dof_props)
            body_props = self.gym.get_actor_rigid_body_properties(env_handle, actor_handle)
            body_props = self._process_rigid_body_props(body_props, i)
            self.gym.set_actor_rigid_body_properties(env_handle, actor_handle, body_props, recomputeInertia=True)
            self.envs.append(env_handle)
            self.actor_handles.append(actor_handle)

        self.feet_indices = torch.zeros(len(feet_names), dtype=torch.long, device=self.device, requires_grad=False)
        for i in range(len(feet_names)):
            self.feet_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], feet_names[i])

        self.penalised_contact_indices = torch.zeros(len(penalized_contact_names), dtype=torch.long, device=self.device, requires_grad=False)
        for i in range(len(penalized_contact_names)):
            self.penalised_contact_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], penalized_contact_names[i])

        self.termination_contact_indices = torch.zeros(len(termination_contact_names), dtype=torch.long, device=self.device, requires_grad=False)
        for i in range(len(termination_contact_names)):
            self.termination_contact_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], termination_contact_names[i])

    def _get_env_origins(self):
        """ Sets environment origins. On rough terrain the origins are defined by the terrain platforms.
            Otherwise create a grid.
        """

        self.custom_origins = False
        self.env_origins = torch.zeros(self.num_envs, 3, device=self.device, requires_grad=False)
        # create a grid of robots
        num_cols = np.floor(np.sqrt(self.num_envs))
        num_rows = np.ceil(self.num_envs / num_cols)
        xx, yy = torch.meshgrid(torch.arange(num_rows), torch.arange(num_cols))
        spacing = self.cfg.env.env_spacing
        self.env_origins[:, 0] = spacing * xx.flatten()[:self.num_envs]
        self.env_origins[:, 1] = spacing * yy.flatten()[:self.num_envs]
        self.env_origins[:, 2] = 0.
  • 其中create_sim()函数在LeggedRobot类初始化时候调用父类BaseTask的构造函数时被调用
1-2 create_sim()函数
python 复制代码
def create_sim(self):
	""" Creates simulation, terrain and evironments
	"""
	self.up_axis_idx = 2 # 2 for z, 1 for y -> adapt gravity accordingly
	self.sim = self.gym.create_sim(self.sim_device_id, self.graphics_device_id, self.physics_engine, self.sim_params)
	self._create_ground_plane()
	self._create_envs()
  • self.up_axis_idx = 2，表示Z 轴是向上，规定地面朝向和重力方向
  • 紧接着这里创建了Isaac Gym Sim实例，然后调用了两个函数
1-3 _create_ground_plane()
python 复制代码
def _create_ground_plane(self):
	""" Adds a ground plane to the simulation, sets friction and restitution based on the cfg.
	"""
	plane_params = gymapi.PlaneParams()
	plane_params.normal = gymapi.Vec3(0.0, 0.0, 1.0)
	plane_params.static_friction = self.cfg.terrain.static_friction
	plane_params.dynamic_friction = self.cfg.terrain.dynamic_friction
	plane_params.restitution = self.cfg.terrain.restitution
	self.gym.add_ground(self.sim, plane_params)
  • 这个函数顾名思义就是给仿真世界加一个"地板"，并定义摩擦 + 弹性
1-4 _create_envs()核心
python 复制代码
def _create_envs(self):
        """ Creates environments:
             1. loads the robot URDF/MJCF asset,
             2. For each environment
                2.1 creates the environment,
                2.2 calls DOF and Rigid shape properties callbacks,
                2.3 create actor with these properties and add them to the env
             3. Store indices of different bodies of the robot
        """
        asset_path = self.cfg.asset.file.format(LEGGED_GYM_ROOT_DIR=LEGGED_GYM_ROOT_DIR)
        asset_root = os.path.dirname(asset_path)
        asset_file = os.path.basename(asset_path)

        asset_options = gymapi.AssetOptions()
        asset_options.default_dof_drive_mode = self.cfg.asset.default_dof_drive_mode
        asset_options.collapse_fixed_joints = self.cfg.asset.collapse_fixed_joints
        asset_options.replace_cylinder_with_capsule = self.cfg.asset.replace_cylinder_with_capsule
        asset_options.flip_visual_attachments = self.cfg.asset.flip_visual_attachments
        asset_options.fix_base_link = self.cfg.asset.fix_base_link
        asset_options.density = self.cfg.asset.density
        asset_options.angular_damping = self.cfg.asset.angular_damping
        asset_options.linear_damping = self.cfg.asset.linear_damping
        asset_options.max_angular_velocity = self.cfg.asset.max_angular_velocity
        asset_options.max_linear_velocity = self.cfg.asset.max_linear_velocity
        asset_options.armature = self.cfg.asset.armature
        asset_options.thickness = self.cfg.asset.thickness
        asset_options.disable_gravity = self.cfg.asset.disable_gravity

        robot_asset = self.gym.load_asset(self.sim, asset_root, asset_file, asset_options)
        self.num_dof = self.gym.get_asset_dof_count(robot_asset)
        self.num_bodies = self.gym.get_asset_rigid_body_count(robot_asset)
        dof_props_asset = self.gym.get_asset_dof_properties(robot_asset)
        rigid_shape_props_asset = self.gym.get_asset_rigid_shape_properties(robot_asset)

        # save body names from the asset
        body_names = self.gym.get_asset_rigid_body_names(robot_asset)
        self.dof_names = self.gym.get_asset_dof_names(robot_asset)
        self.num_bodies = len(body_names)
        self.num_dofs = len(self.dof_names)
        feet_names = [s for s in body_names if self.cfg.asset.foot_name in s]
        penalized_contact_names = []
        for name in self.cfg.asset.penalize_contacts_on:
            penalized_contact_names.extend([s for s in body_names if name in s])
        termination_contact_names = []
        for name in self.cfg.asset.terminate_after_contacts_on:
            termination_contact_names.extend([s for s in body_names if name in s])

        base_init_state_list = self.cfg.init_state.pos + self.cfg.init_state.rot + self.cfg.init_state.lin_vel + self.cfg.init_state.ang_vel
        self.base_init_state = to_torch(base_init_state_list, device=self.device, requires_grad=False)
        start_pose = gymapi.Transform()
        start_pose.p = gymapi.Vec3(*self.base_init_state[:3])

        self._get_env_origins()
        env_lower = gymapi.Vec3(0., 0., 0.)
        env_upper = gymapi.Vec3(0., 0., 0.)
        self.actor_handles = []
        self.envs = []
        for i in range(self.num_envs):
            # create env instance
            env_handle = self.gym.create_env(self.sim, env_lower, env_upper, int(np.sqrt(self.num_envs)))
            pos = self.env_origins[i].clone()
            pos[:2] += torch_rand_float(-1., 1., (2,1), device=self.device).squeeze(1)
            start_pose.p = gymapi.Vec3(*pos)

            rigid_shape_props = self._process_rigid_shape_props(rigid_shape_props_asset, i)
            self.gym.set_asset_rigid_shape_properties(robot_asset, rigid_shape_props)
            actor_handle = self.gym.create_actor(env_handle, robot_asset, start_pose, self.cfg.asset.name, i, self.cfg.asset.self_collisions, 0)
            dof_props = self._process_dof_props(dof_props_asset, i)
            self.gym.set_actor_dof_properties(env_handle, actor_handle, dof_props)
            body_props = self.gym.get_actor_rigid_body_properties(env_handle, actor_handle)
            body_props = self._process_rigid_body_props(body_props, i)
            self.gym.set_actor_rigid_body_properties(env_handle, actor_handle, body_props, recomputeInertia=True)
            self.envs.append(env_handle)
            self.actor_handles.append(actor_handle)

        self.feet_indices = torch.zeros(len(feet_names), dtype=torch.long, device=self.device, requires_grad=False)
        for i in range(len(feet_names)):
            self.feet_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], feet_names[i])

        self.penalised_contact_indices = torch.zeros(len(penalized_contact_names), dtype=torch.long, device=self.device, requires_grad=False)
        for i in range(len(penalized_contact_names)):
            self.penalised_contact_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], penalized_contact_names[i])

        self.termination_contact_indices = torch.zeros(len(termination_contact_names), dtype=torch.long, device=self.device, requires_grad=False)
        for i in range(len(termination_contact_names)):
            self.termination_contact_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], termination_contact_names[i])
  • 这个函数的作用：批量创建 N 个机器人环境 + 绑定物理属性 + 建立所有索引（脚、碰撞、终止）
  • 下面我们一部分一部分看
1-4-1 配置机器人物理属性
python 复制代码
asset_options.fix_base_link
asset_options.disable_gravity
asset_options.density
...
  • 这里一开始配置机器人属性，这些属性都定义在legged_gym/envs/base/legged_robot_config.py的asset类中
1-4-2 加载机器人模型并读取读取机器人结构信息
python 复制代码
robot_asset = self.gym.load_asset(self.sim, asset_root, asset_file, asset_options)
self.num_dof = self.gym.get_asset_dof_count(robot_asset)
self.num_bodies = self.gym.get_asset_rigid_body_count(robot_asset)
dof_props_asset = self.gym.get_asset_dof_properties(robot_asset)
rigid_shape_props_asset = self.gym.get_asset_rigid_shape_properties(robot_asset)

# save body names from the asset
body_names = self.gym.get_asset_rigid_body_names(robot_asset)
self.dof_names = self.gym.get_asset_dof_names(robot_asset)
self.num_bodies = len(body_names)
self.num_dofs = len(self.dof_names)
feet_names = [s for s in body_names if self.cfg.asset.foot_name in s]
penalized_contact_names = []
for name in self.cfg.asset.penalize_contacts_on:
	penalized_contact_names.extend([s for s in body_names if name in s])
termination_contact_names = []
for name in self.cfg.asset.terminate_after_contacts_on:
	termination_contact_names.extend([s for s in body_names if name in s])
  • 这里先加载了机器人模型，并读取机器人结构信息
  • 同时这里初始化了两个用于计算奖励的列表penalized_contact_names,termination_contact_names。
1-4-3 初始化机器人位置（核心）
python 复制代码
base_init_state_list = self.cfg.init_state.pos + self.cfg.init_state.rot + self.cfg.init_state.lin_vel + self.cfg.init_state.ang_vel
self.base_init_state = to_torch(base_init_state_list, device=self.device, requires_grad=False)
start_pose = gymapi.Transform()
start_pose.p = gymapi.Vec3(*self.base_init_state[:3])

self._get_env_origins()
  • 这里非常关键，定义了机器人出生时候的位姿和速度
  • 其中_get_env_origins定义如下：
python 复制代码
def _get_env_origins(self):
	""" Sets environment origins. On rough terrain the origins are defined by the terrain platforms.
		Otherwise create a grid.
	"""

	self.custom_origins = False
	self.env_origins = torch.zeros(self.num_envs, 3, device=self.device, requires_grad=False)
	# create a grid of robots
	num_cols = np.floor(np.sqrt(self.num_envs))
	num_rows = np.ceil(self.num_envs / num_cols)
	xx, yy = torch.meshgrid(torch.arange(num_rows), torch.arange(num_cols))
	spacing = self.cfg.env.env_spacing
	self.env_origins[:, 0] = spacing * xx.flatten()[:self.num_envs]
	self.env_origins[:, 1] = spacing * yy.flatten()[:self.num_envs]
	self.env_origins[:, 2] = 0.
  • 他的作用是给每个 env 分配一个"出生坐标"，让所有机器人排成网格。
  • 这个函数一会我们生成复杂地形的时候需要进行修改。
1-4-4 根据配置参数初始化环境
python 复制代码
for i in range(self.num_envs):
	# create env instance
	env_handle = self.gym.create_env(self.sim, env_lower, env_upper, int(np.sqrt(self.num_envs)))
	pos = self.env_origins[i].clone()
	pos[:2] += torch_rand_float(-1., 1., (2,1), device=self.device).squeeze(1)
	start_pose.p = gymapi.Vec3(*pos)

	rigid_shape_props = self._process_rigid_shape_props(rigid_shape_props_asset, i)
	self.gym.set_asset_rigid_shape_properties(robot_asset, rigid_shape_props)
	actor_handle = self.gym.create_actor(env_handle, robot_asset, start_pose, self.cfg.asset.name, i, self.cfg.asset.self_collisions, 0)
	dof_props = self._process_dof_props(dof_props_asset, i)
	self.gym.set_actor_dof_properties(env_handle, actor_handle, dof_props)
	body_props = self.gym.get_actor_rigid_body_properties(env_handle, actor_handle)
	body_props = self._process_rigid_body_props(body_props, i)
	self.gym.set_actor_rigid_body_properties(env_handle, actor_handle, body_props, recomputeInertia=True)
	self.envs.append(env_handle)
	self.actor_handles.append(actor_handle)

self.feet_indices = torch.zeros(len(feet_names), dtype=torch.long, device=self.device, requires_grad=False)
for i in range(len(feet_names)):
	self.feet_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], feet_names[i])

self.penalised_contact_indices = torch.zeros(len(penalized_contact_names), dtype=torch.long, device=self.device, requires_grad=False)
for i in range(len(penalized_contact_names)):
	self.penalised_contact_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], penalized_contact_names[i])

self.termination_contact_indices = torch.zeros(len(termination_contact_names), dtype=torch.long, device=self.device, requires_grad=False)
for i in range(len(termination_contact_names)):
	self.termination_contact_indices[i] = self.gym.find_actor_rigid_body_handle(self.envs[0], self.actor_handles[0], termination_contact_names[i])
  • 然后这里就是根据前面配置的参数进行初始化。
1-5 小结
  • 不难看出，如果我们需要自定义复杂地形，我们只需要修改：
    • create_sim()：添加新地形
    • _get_env_origins()：修改机器人初始化函数

2 Terrain类

2-1 代码一栏
  • 在正式修改函数前，我们需要看一下这个类，这是一个高度场生成类，用来生成机器人训练环境中的复杂地形（台阶、坡道、坑、石头等），并最终生成 Isaac Gym 可用的 height_samples 或三角网格 vertices/triangles。
  • 位置：legged_gym/utils/terrain.py
python 复制代码
import numpy as np
from numpy.random import choice
from scipy import interpolate

from isaacgym import terrain_utils
from legged_gym.envs.base.legged_robot_config import LeggedRobotCfg

class Terrain:
    def __init__(self, cfg: LeggedRobotCfg.terrain, num_robots) -> None:

        self.cfg = cfg
        self.num_robots = num_robots
        self.type = cfg.mesh_type
        if self.type in ["none", 'plane']:
            return
        self.env_length = cfg.terrain_length
        self.env_width = cfg.terrain_width
        self.proportions = [np.sum(cfg.terrain_proportions[:i+1]) for i in range(len(cfg.terrain_proportions))]

        self.cfg.num_sub_terrains = cfg.num_rows * cfg.num_cols
        self.env_origins = np.zeros((cfg.num_rows, cfg.num_cols, 3))

        self.width_per_env_pixels = int(self.env_width / cfg.horizontal_scale)
        self.length_per_env_pixels = int(self.env_length / cfg.horizontal_scale)

        self.border = int(cfg.border_size/self.cfg.horizontal_scale)
        self.tot_cols = int(cfg.num_cols * self.width_per_env_pixels) + 2 * self.border
        self.tot_rows = int(cfg.num_rows * self.length_per_env_pixels) + 2 * self.border

        self.height_field_raw = np.zeros((self.tot_rows , self.tot_cols), dtype=np.int16)
        if cfg.curriculum:
            self.curiculum()
        elif cfg.selected:
            self.selected_terrain()
        else:
            self.randomized_terrain()

        self.heightsamples = self.height_field_raw
        if self.type=="trimesh":
            self.vertices, self.triangles = terrain_utils.convert_heightfield_to_trimesh(   self.height_field_raw,
                                                                                            self.cfg.horizontal_scale,
                                                                                            self.cfg.vertical_scale,
                                                                                            self.cfg.slope_treshold)

    def randomized_terrain(self):
        for k in range(self.cfg.num_sub_terrains):
            # Env coordinates in the world
            (i, j) = np.unravel_index(k, (self.cfg.num_rows, self.cfg.num_cols))

            choice = np.random.uniform(0, 1)
            difficulty = np.random.choice([0.5, 0.75, 0.9])
            terrain = self.make_terrain(choice, difficulty)
            self.add_terrain_to_map(terrain, i, j)

    def curiculum(self):
        for j in range(self.cfg.num_cols):
            for i in range(self.cfg.num_rows):
                difficulty = i / self.cfg.num_rows
                choice = j / self.cfg.num_cols + 0.001

                terrain = self.make_terrain(choice, difficulty)
                self.add_terrain_to_map(terrain, i, j)

    def selected_terrain(self):
        terrain_type = self.cfg.terrain_kwargs.pop('type')
        for k in range(self.cfg.num_sub_terrains):
            # Env coordinates in the world
            (i, j) = np.unravel_index(k, (self.cfg.num_rows, self.cfg.num_cols))

            terrain = terrain_utils.SubTerrain("terrain",
                              width=self.width_per_env_pixels,
                              length=self.width_per_env_pixels,
                              vertical_scale=self.vertical_scale,
                              horizontal_scale=self.horizontal_scale)

            eval(terrain_type)(terrain, **self.cfg.terrain_kwargs.terrain_kwargs)
            self.add_terrain_to_map(terrain, i, j)

    def make_terrain(self, choice, difficulty):
        terrain = terrain_utils.SubTerrain(   "terrain",
                                width=self.width_per_env_pixels,
                                length=self.width_per_env_pixels,
                                vertical_scale=self.cfg.vertical_scale,
                                horizontal_scale=self.cfg.horizontal_scale)
        slope = difficulty * 0.4
        step_height = 0.05 + 0.18 * difficulty
        discrete_obstacles_height = 0.05 + difficulty * 0.2
        stepping_stones_size = 1.5 * (1.05 - difficulty)
        stone_distance = 0.05 if difficulty==0 else 0.1
        gap_size = 1. * difficulty
        pit_depth = 1. * difficulty
        if choice < self.proportions[0]:
            if choice < self.proportions[0]/ 2:
                slope *= -1
            terrain_utils.pyramid_sloped_terrain(terrain, slope=slope, platform_size=3.)
        elif choice < self.proportions[1]:
            terrain_utils.pyramid_sloped_terrain(terrain, slope=slope, platform_size=3.)
            terrain_utils.random_uniform_terrain(terrain, min_height=-0.05, max_height=0.05, step=0.005, downsampled_scale=0.2)
        elif choice < self.proportions[3]:
            if choice<self.proportions[2]:
                step_height *= -1
            terrain_utils.pyramid_stairs_terrain(terrain, step_width=0.31, step_height=step_height, platform_size=3.)
        elif choice < self.proportions[4]:
            num_rectangles = 20
            rectangle_min_size = 1.
            rectangle_max_size = 2.
            terrain_utils.discrete_obstacles_terrain(terrain, discrete_obstacles_height, rectangle_min_size, rectangle_max_size, num_rectangles, platform_size=3.)
        elif choice < self.proportions[5]:
            terrain_utils.stepping_stones_terrain(terrain, stone_size=stepping_stones_size, stone_distance=stone_distance, max_height=0., platform_size=4.)
        elif choice < self.proportions[6]:
            gap_terrain(terrain, gap_size=gap_size, platform_size=3.)
        else:
            pit_terrain(terrain, depth=pit_depth, platform_size=4.)

        return terrain

    def add_terrain_to_map(self, terrain, row, col):
        i = row
        j = col
        # map coordinate system
        start_x = self.border + i * self.length_per_env_pixels
        end_x = self.border + (i + 1) * self.length_per_env_pixels
        start_y = self.border + j * self.width_per_env_pixels
        end_y = self.border + (j + 1) * self.width_per_env_pixels
        self.height_field_raw[start_x: end_x, start_y:end_y] = terrain.height_field_raw

        env_origin_x = (i + 0.5) * self.env_length
        env_origin_y = (j + 0.5) * self.env_width
        x1 = int((self.env_length/2. - 1) / terrain.horizontal_scale)
        x2 = int((self.env_length/2. + 1) / terrain.horizontal_scale)
        y1 = int((self.env_width/2. - 1) / terrain.horizontal_scale)
        y2 = int((self.env_width/2. + 1) / terrain.horizontal_scale)
        env_origin_z = np.max(terrain.height_field_raw[x1:x2, y1:y2])*terrain.vertical_scale
        self.env_origins[i, j] = [env_origin_x, env_origin_y, env_origin_z]

def gap_terrain(terrain, gap_size, platform_size=1.):
    gap_size = int(gap_size / terrain.horizontal_scale)
    platform_size = int(platform_size / terrain.horizontal_scale)

    center_x = terrain.length // 2
    center_y = terrain.width // 2
    x1 = (terrain.length - platform_size) // 2
    x2 = x1 + gap_size
    y1 = (terrain.width - platform_size) // 2
    y2 = y1 + gap_size

    terrain.height_field_raw[center_x-x2 : center_x + x2, center_y-y2 : center_y + y2] = -1000
    terrain.height_field_raw[center_x-x1 : center_x + x1, center_y-y1 : center_y + y1] = 0

def pit_terrain(terrain, depth, platform_size=1.):
    depth = int(depth / terrain.vertical_scale)
    platform_size = int(platform_size / terrain.horizontal_scale / 2)
    x1 = terrain.length // 2 - platform_size
    x2 = terrain.length // 2 + platform_size
    y1 = terrain.width // 2 - platform_size
    y2 = terrain.width // 2 + platform_size
    terrain.height_field_raw[x1:x2, y1:y2] = -depth
2-2 初始化函数
python 复制代码
def __init__(self, cfg: LeggedRobotCfg.terrain, num_robots) -> None:
	self.cfg = cfg
	self.num_robots = num_robots
	self.type = cfg.mesh_type
	if self.type in ["none", 'plane']:
		return

	self.env_length = cfg.terrain_length
	self.env_width = cfg.terrain_width
	self.proportions = [np.sum(cfg.terrain_proportions[:i+1]) for i in range(len(cfg.terrain_proportions))]

	self.cfg.num_sub_terrains = cfg.num_rows * cfg.num_cols
	self.env_origins = np.zeros((cfg.num_rows, cfg.num_cols, 3))

	self.width_per_env_pixels = int(self.env_width / cfg.horizontal_scale)
	self.length_per_env_pixels = int(self.env_length / cfg.horizontal_scale)

	self.border = int(cfg.border_size/self.cfg.horizontal_scale)
	self.tot_cols = int(cfg.num_cols * self.width_per_env_pixels) + 2 * self.border
	self.tot_rows = int(cfg.num_rows * self.length_per_env_pixels) + 2 * self.border

	self.height_field_raw = np.zeros((self.tot_rows , self.tot_cols), dtype=np.int16)
	if cfg.curriculum:
		self.curiculum()
	elif cfg.selected:
		self.selected_terrain()
	else:
		self.randomized_terrain()

	self.heightsamples = self.height_field_raw
	if self.type=="trimesh":
		self.vertices, self.triangles =
2-1-1 函数输入与初始化
python 复制代码
def __init__(self, cfg: LeggedRobotCfg.terrain, num_robots) -> None:
	self.cfg = cfg
	self.num_robots = num_robots
	self.type = cfg.mesh_type
	if self.type in ["none", 'plane']:
		return
  • cfg：地形配置（高度、宽度、水平/垂直比例、台阶/坡比例等）
  • num_robots：用于训练的机器人数量
2-1-2 计算整个训练环境大小
python 复制代码
self.env_length = cfg.terrain_length
self.env_width  = cfg.terrain_width
self.proportions = [np.sum(cfg.terrain_proportions[:i+1]) for i in range(len(cfg.terrain_proportions))]
  • self.proportions 用于决定生成地形的类型（坡、台阶、坑等）的概率累积和
2-1-3 地形初始化计算
python 复制代码
# Patch 与总格子数计算
self.cfg.num_sub_terrains = cfg.num_rows * cfg.num_cols # 总 patch 数
self.env_origins = np.zeros((cfg.num_rows, cfg.num_cols, 3))# 每个 patch 在世界坐标系的中心位置
# 每个 patch 的分辨率（以格子数计）
	# 每个 patch 的宽度/长度的格子数 = 实际尺寸 ÷ 水平比例（horizontal_scale）
self.width_per_env_pixels  = int(self.env_width / cfg.horizontal_scale)
self.length_per_env_pixels = int(self.env_length / cfg.horizontal_scale)
# 边界格子
	# 为 heightfield 增加边界格子，避免机器人掉出训练区
self.border = int(cfg.border_size / self.cfg.horizontal_scale)
# 总格子数（最终 heightfield 的尺寸）
self.tot_cols = int(cfg.num_cols * self.width_per_env_pixels) + 2 * self.border
self.tot_rows = int(cfg.num_rows * self.length_per_env_pixels) + 2 * self.border
# 高度场数组初始化
	# 存放整个训练环境的高度值（整数，单位是格子高度）
self.height_field_raw = np.zeros((self.tot_rows, self.tot_cols), dtype=np.int16)
2-1-4 地形生成策略
python 复制代码
if cfg.curriculum:
    self.curiculum()
elif cfg.selected:
    self.selected_terrain()
else:
    self.randomized_terrain()
  • curriculum → 按列/行逐步增加难度
  • selected → 用户指定特定地形类型
  • randomized → 随机生成
2-2 curiculum()
python 复制代码
def curiculum(self):
	for j in range(self.cfg.num_cols):
		for i in range(self.cfg.num_rows):
			difficulty = i / self.cfg.num_rows
			choice = j / self.cfg.num_cols + 0.001

			terrain = self.make_terrain(choice, difficulty)
			self.add_terrain_to_map(terrain, i, j)
  • 按列/行顺序生成地形
  • 难度随行数递增
  • choice 决定地形类型
  • 用于训练逐渐增加难度
2-3 selected_terrain()
python 复制代码
 def selected_terrain(self):
	terrain_type = self.cfg.terrain_kwargs.pop('type')
	for k in range(self.cfg.num_sub_terrains):
		# Env coordinates in the world
		(i, j) = np.unravel_index(k, (self.cfg.num_rows, self.cfg.num_cols))

		terrain = terrain_utils.SubTerrain("terrain",
						  width=self.width_per_env_pixels,
						  length=self.width_per_env_pixels,
						  vertical_scale=self.vertical_scale,
						  horizontal_scale=self.horizontal_scale)

		eval(terrain_type)(terrain, **self.cfg.terrain_kwargs.terrain_kwargs)
		self.add_terrain_to_map(terrain, i, j)
  • 指定地形类型和参数，生成固定 patch
2-4 randomized_terrain()
python 复制代码
def randomized_terrain(self):
	for k in range(self.cfg.num_sub_terrains):
		# Env coordinates in the world
		(i, j) = np.unravel_index(k, (self.cfg.num_rows, self.cfg.num_cols))

		choice = np.random.uniform(0, 1)
		difficulty = np.random.choice([0.5, 0.75, 0.9])
		terrain = self.make_terrain(choice, difficulty)
		self.add_terrain_to_map(terrain, i, j)
  • 遍历每个 patch（按行列展开）
  • 随机选择地形类型和难度
  • 调用 make_terrain() 生成单个 patch
  • 调用 add_terrain_to_map() 拼接到总 heightfield

3 自定义复杂地形

3-1 地形生成代码一栏
3-1-1 自定义地形
  • 我们在legged_gym/envs/base/legged_robot.py添加如下函数
python 复制代码
def _create_heightfield(self):
	""" Adds a heightfield terrain to the simulation, sets parameters based on the cfg.
	"""
	hf_params = gymapi.HeightFieldParams()
	hf_params.column_scale = self.terrain.cfg.horizontal_scale
	hf_params.row_scale = self.terrain.cfg.horizontal_scale
	hf_params.vertical_scale = self.terrain.cfg.vertical_scale
	hf_params.nbRows = self.terrain.tot_rows
	hf_params.nbColumns = self.terrain.tot_cols
	hf_params.transform.p.x = -self.terrain.cfg.border_size
	hf_params.transform.p.y = -self.terrain.cfg.border_size
	hf_params.transform.p.z = 0.0
	hf_params.static_friction = self.cfg.terrain.static_friction
	hf_params.dynamic_friction = self.cfg.terrain.dynamic_friction
	hf_params.restitution = self.cfg.terrain.restitution

	self.gym.add_heightfield(self.sim, self.terrain.heightsamples, hf_params)
	self.height_samples = torch.tensor(self.terrain.heightsamples).view(self.terrain.tot_rows, self.terrain.tot_cols).to(self.device)
def _create_trimesh(self):
	""" Adds a triangle mesh terrain to the simulation, sets parameters based on the cfg.
	"""
	tm_params = gymapi.TriangleMeshParams()
	tm_params.nb_vertices = self.terrain.vertices.shape[0]
	tm_params.nb_triangles = self.terrain.triangles.shape[0]

	tm_params.transform.p.x = -self.terrain.cfg.border_size
	tm_params.transform.p.y = -self.terrain.cfg.border_size
	tm_params.transform.p.z = 0.0
	tm_params.static_friction = self.cfg.terrain.static_friction
	tm_params.dynamic_friction = self.cfg.terrain.dynamic_friction
	tm_params.restitution = self.cfg.terrain.restitution
	self.gym.add_triangle_mesh(self.sim, self.terrain.vertices.flatten(order='C'), self.terrain.triangles.flatten(order='C'), tm_params)
	self.height_samples = torch.tensor(self.terrain.heightsamples).view(self.terrain.tot_rows, self.terrain.tot_cols).to(self.device)

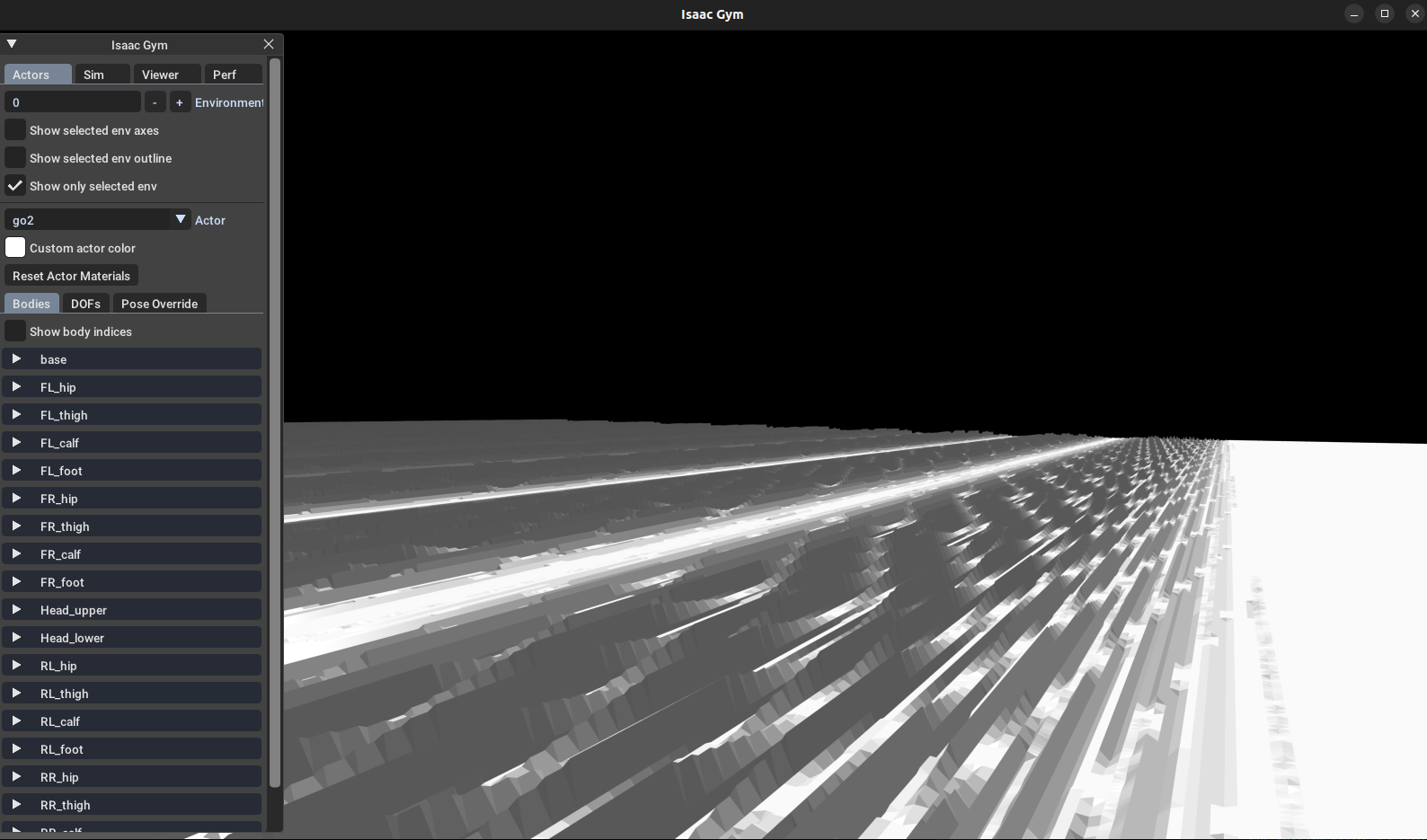

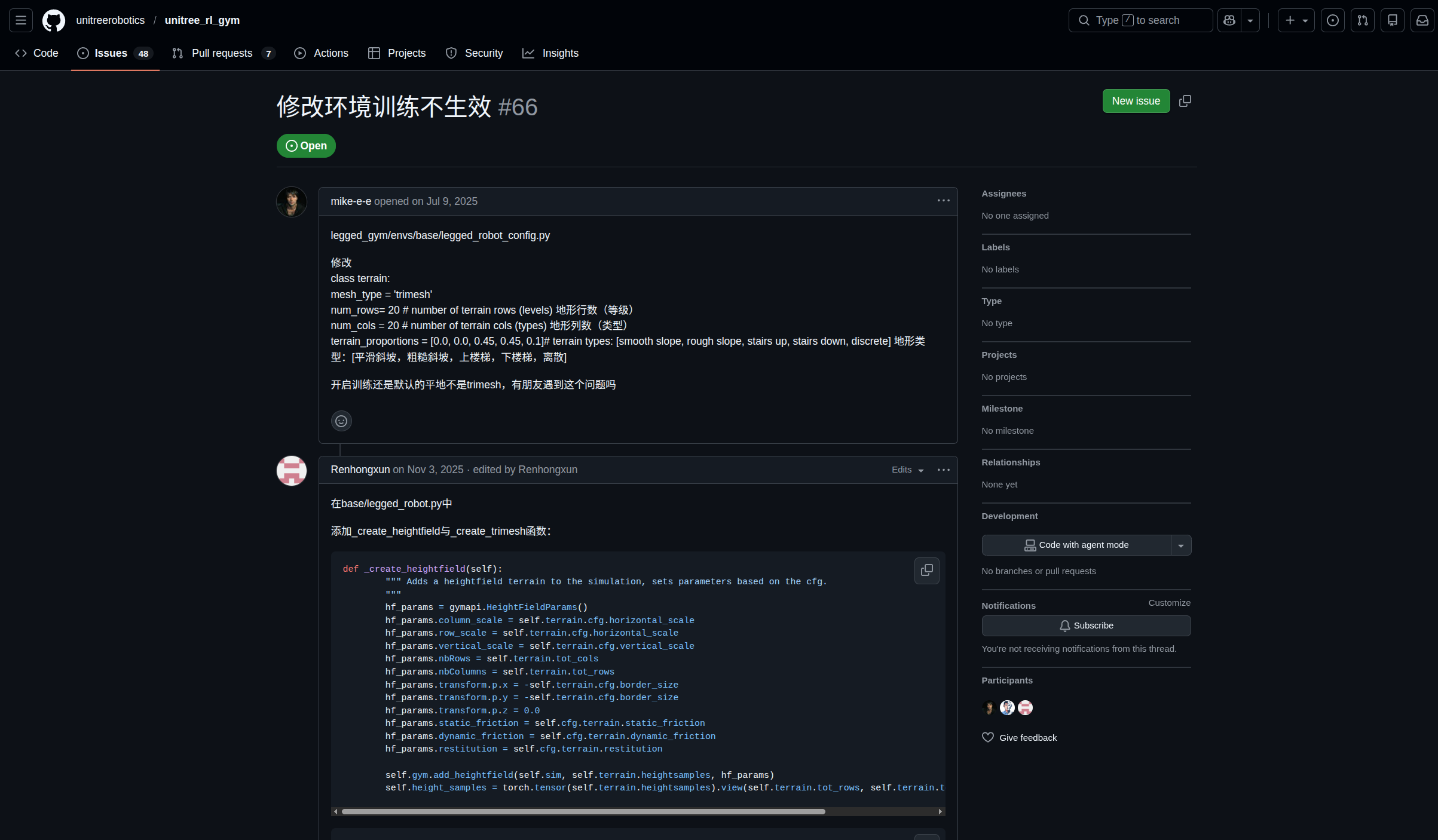

  • 注意nbRows和nbColumns要和tot_rows以及tot_cols对上，不然会生成这样的地：

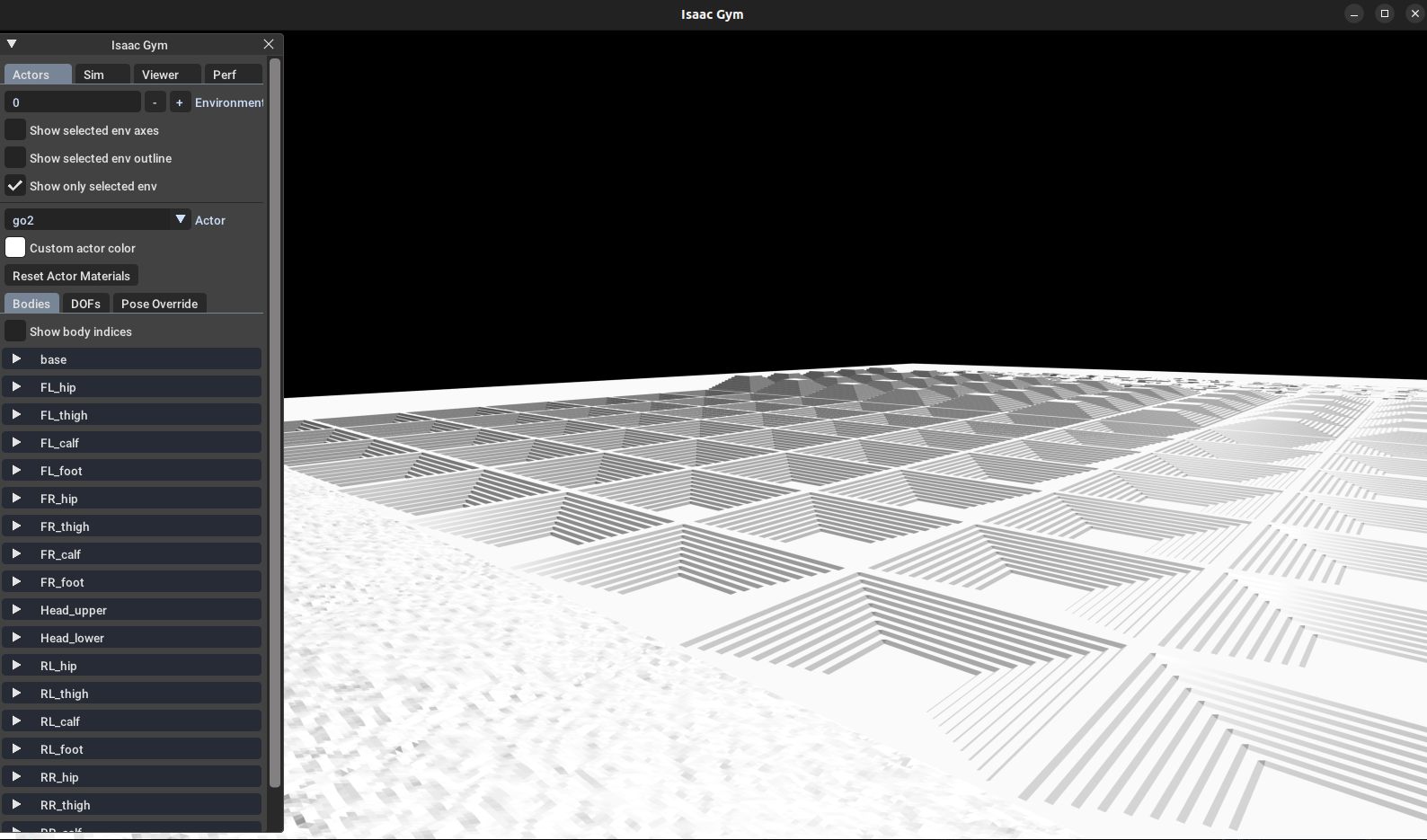

  • 正常的应该是这样的

3-1-2 修改生成函数
  • 同时我们修改create_sim函数：
python 复制代码
def create_sim(self):
	""" Creates simulation, terrain and evironments
	"""
	# self.up_axis_idx = 2 # 2 for z, 1 for y -> adapt gravity accordingly
	# self.sim = self.gym.create_sim(self.sim_device_id, self.graphics_device_id, self.physics_engine, self.sim_params)
	# self._create_ground_plane()
	# self._create_envs()

	self.up_axis_idx = 2 # 2 for z, 1 for y -> adapt gravity accordingly
	self.sim = self.gym.create_sim(self.sim_device_id, self.graphics_device_id, self.physics_engine, self.sim_params)
	mesh_type = self.cfg.terrain.mesh_type
	if mesh_type in ['heightfield', 'trimesh']:
		self.terrain = Terrain(self.cfg.terrain, self.num_envs)
	if mesh_type in ['heightfield', 'trimesh']:
		self.terrain = Terrain(self.cfg.terrain, self.num_envs)
	if mesh_type=='plane':
		self._create_ground_plane()
	elif mesh_type=='heightfield':
		self._create_heightfield()
	elif mesh_type=='trimesh':
		self._create_trimesh()
	elif mesh_type is not None:
		raise ValueError("Terrain mesh type not recognised. Allowed types are [None, plane, heightfield, trimesh]")
	self._create_envs()
  • 注意我们需要再这里添加头文集
python 复制代码
from legged_gym.utils.terrain import Terrain
3-1-3 修改配置项
  • 同时我们需要修改legged_gym/envs/base/legged_robot_config.py
python 复制代码
class LeggedRobotCfg(BaseConfig):
    class terrain:
        mesh_type = 'heightfield' # "heightfield" # none, plane, heightfield or trimesh
3-1-4 测试

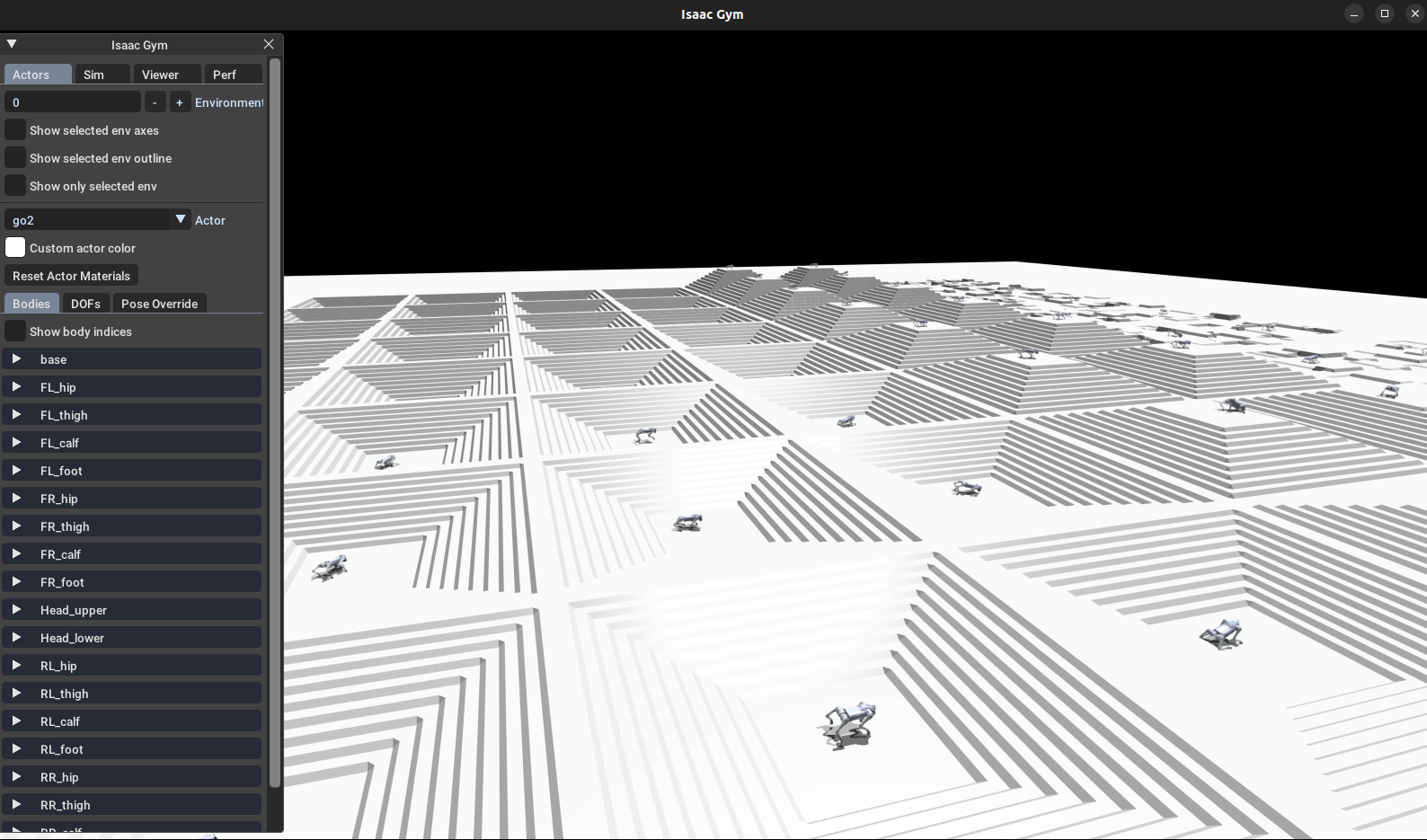

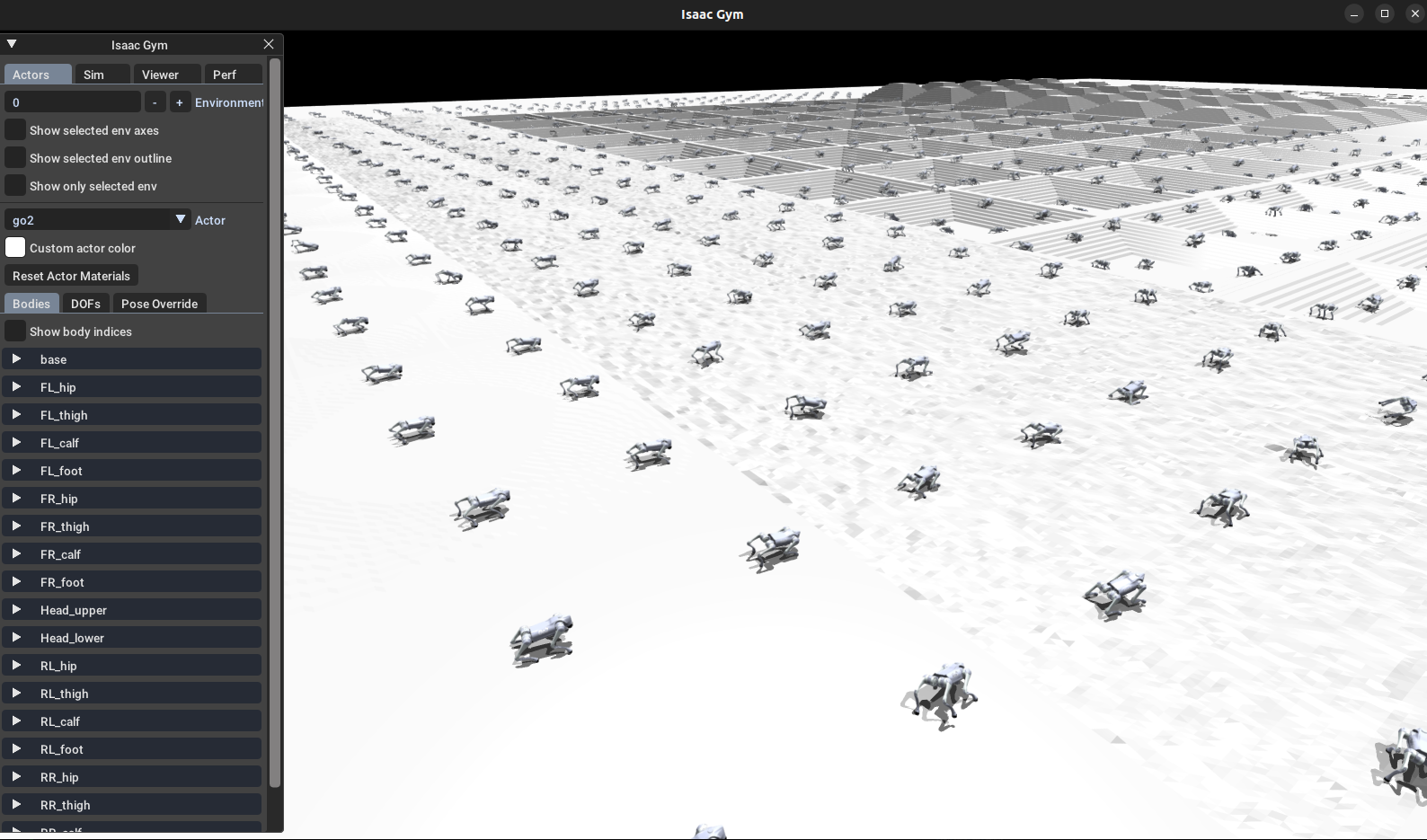

  • 修改好代码后，我们运行train.py，可以看到新的地形已经被生成，但是机器人生产并没有在地形中心

  • 那么接下来我们需要修改_get_env_origins()

3-2 修改机器人初始化位姿
  • legged_gym/envs/base/legged_robot.py
  • 这里我们直接根据地形数据，吧机器人初始化在地形中心即可
    • 注：这里的x,y坐标需要翻转（
python 复制代码
 def _get_env_origins(self):
	self.custom_origins = False
	self.env_origins = torch.zeros(self.num_envs, 3, device=self.device, requires_grad=False)

	if hasattr(self, 'terrain') and self.terrain.type in ['heightfield', 'trimesh']:
		env_count = 0

		num_cols = self.terrain.cfg.num_cols
		num_rows = self.terrain.cfg.num_rows
		assert self.num_envs == num_rows * num_cols, \
		f"num_envs ({self.num_envs}) must equal num_rows*num_cols ({num_rows*num_cols}) for terrain placement"
		for i in range(num_rows):
			for j in range(num_cols):
				if env_count >= self.num_envs:
					break

				x = self.terrain.env_origins[i, j, 1]
				y = self.terrain.env_origins[i, j, 0]
				z = self.terrain.env_origins[i, j, 2]
				self.env_origins[env_count] = torch.tensor([x, y, z], device=self.device)
				env_count += 1

	else:

		num_cols = int(np.floor(np.sqrt(self.num_envs)))
		num_rows = int(np.ceil(self.num_envs / num_cols))
		xx, yy = torch.meshgrid(torch.arange(num_rows), torch.arange(num_cols), indexing='ij')  # 行优先
		spacing = self.cfg.env.env_spacing
		self.env_origins[:, 0] = yy.flatten()[:self.num_envs] * spacing  # x
		self.env_origins[:, 1] = xx.flatten()[:self.num_envs] * spacing  # y
		self.env_origins[:, 2] = 0.0
  • 值得一提的是我们为地形数据加入了断言限制
python 复制代码
assert self.num_envs == num_rows * num_cols, \

f"num_envs ({self.num_envs}) must equal num_rows*num_cols ({num_rows*num_cols}) for terrain placement"
  • 这要确保你在配置环境参数和地形参数时候需要保持数量一致：
    • legged_gym/envs/base/legged_robot_config.py
python 复制代码
class LeggedRobotCfg(BaseConfig):
    class env:
        num_envs = 100
    class terrain:
        num_rows= 10 # number of terrain rows (levels)
        num_cols = 10 # number of terrain cols (types)
  • 你需要保证num_rows* num_cols=num_envs
  • 当然你在使用play.py的时候请务必也设置这样
3-3 测试

  • 修改好代码后再次运行train.py

  • 可以看到每个机器狗都在对应的环境内进行训练，且每次reset都能回到原地

小结

  • 本期我们分析了LeggedRobot 类的环境创建逻辑，并且修改代码实现了复杂地形的生成以及对应地形机器人的初始化。
  • 下一期我们将开始修改奖励函数来适应复杂地形的训练(已经拖了两期实在抱歉，前置的工作需要做完先)
  • 如有错误，欢迎指出！感谢观看

参考

相关推荐
python猿2 小时前
打卡Python王者归来--第30天
开发语言·python
2401_831824962 小时前
为你的Python脚本添加图形界面（GUI）
jvm·数据库·python
2401_879693872 小时前
用Pygame开发你的第一个小游戏
jvm·数据库·python
用户0332126663672 小时前
使用 Python 查找并高亮 Word 文档中的文本
python
xushichao19892 小时前
实战：用OpenCV和Python进行人脸识别
jvm·数据库·python
yy我不解释2 小时前
关于comfyui的mmaudio音频生成插件时时间不一致问题（三）
开发语言·python·ai作画·音视频·comfyui
逄逄不是胖胖3 小时前
《动手学深度学习》-69预训练bert数据集实现
人工智能·深度学习·bert
冗量3 小时前
langchain的学习路径
python·langchain
love530love3 小时前
不用聊天软件 OpenClaw 手机浏览器远程访问控制：Tailscale 配置、设备配对与常见问题全解
人工智能·windows·python·智能手机·tailscale·openclaw·远程访问控制
热门推荐
01GitHub 镜像站点02Qwen3.5 开源全解析：从 0.8B 到 397B，代际升级 + 全场景选型指南03围棋-html版本04小黑课堂计算机二级WPSoffice题库软件下载安装教程（2026年3月最新版）05班级宠物园部署指南06OpenClaw 使用和管理 MCP 完全指南07AI 编程三剑客：Spec-Kit、OpenSpec、Superpowers 深度对比与实战指南08UV安装并设置国内源09OpenClaw Control UI安全上下文访问配置10“wsl --install -d Ubuntu-22.04”下载慢，中国地区离线安装 Ubuntu 22.04 WSL方法（亲测2025年5月6日）
