1. 写在前面

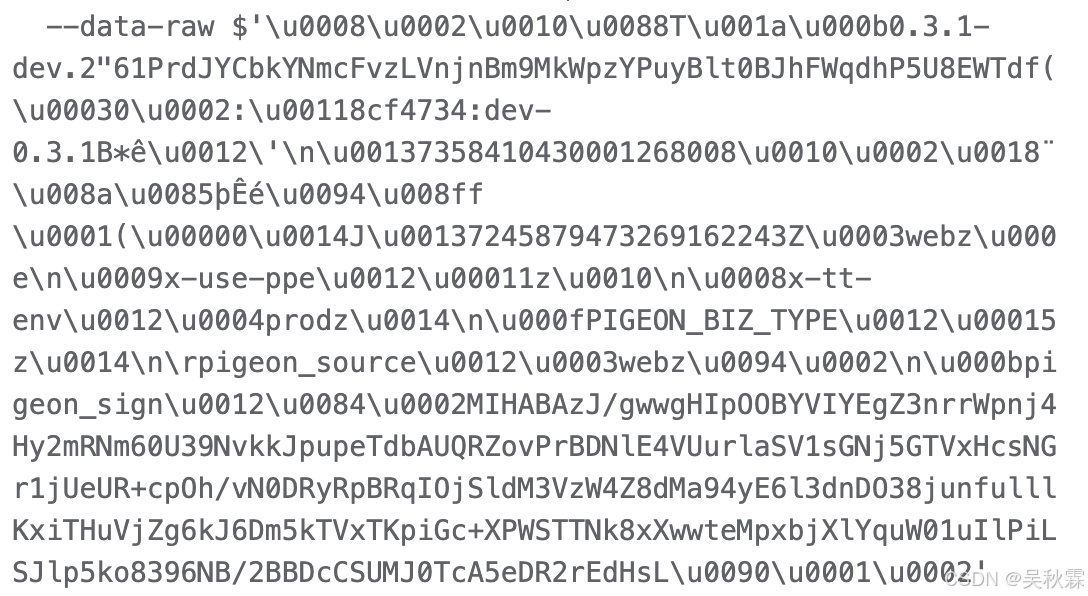

本期分析一个某电商后台聊天会话实时消息明文数据解析！在很多IM、实时消息，请求体并不是JSON，而是Protobuf二进制流，请求头里面通常会出现application/x-protobuf，真正的业务字段不在URL里面，而是在二进制payload中，前端代码中往往可以看到encode|decode及RequestBody.create(...)一类逻辑
所以本期我们需要完成的事情主要包括:
构造Protobuf请求对象 -> 序列化二进制payload -> 再把响应内容反序列化 -> 最终将消息结构转为JSON
2. 接口分析

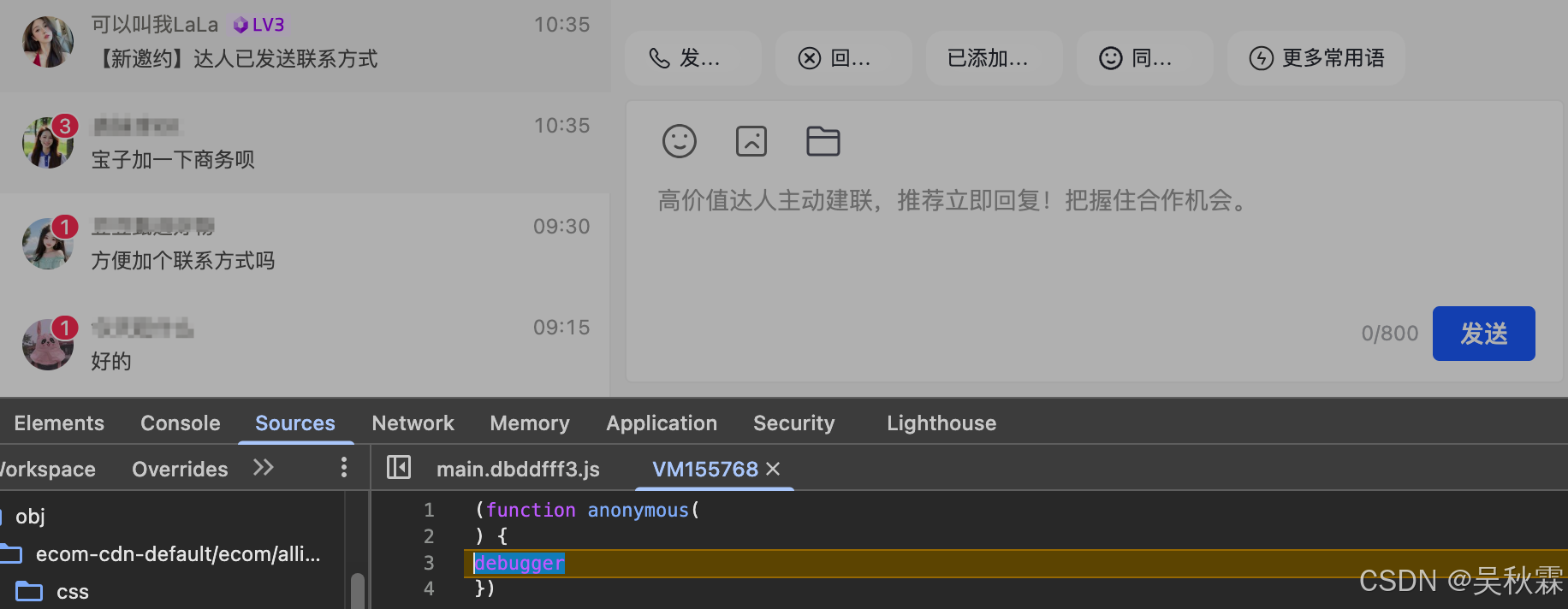

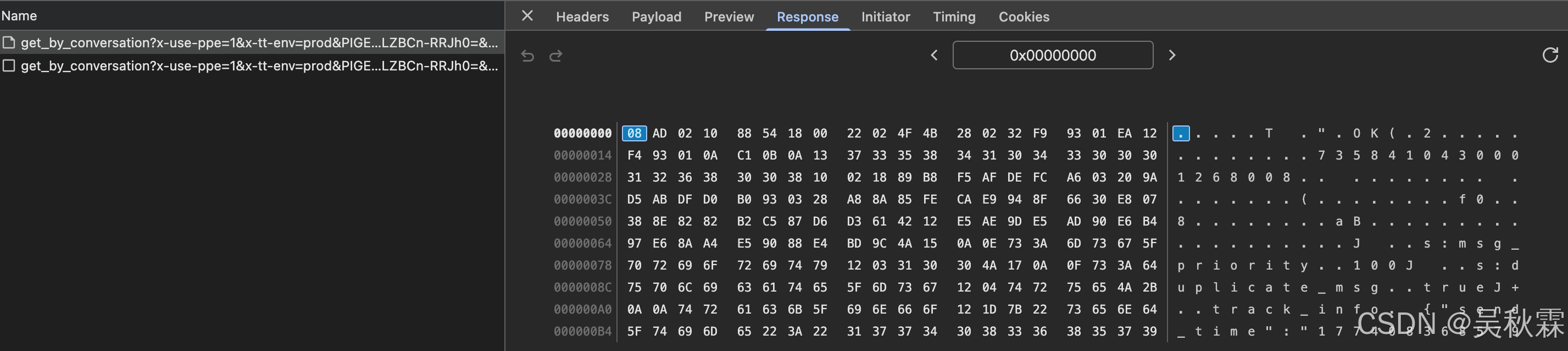

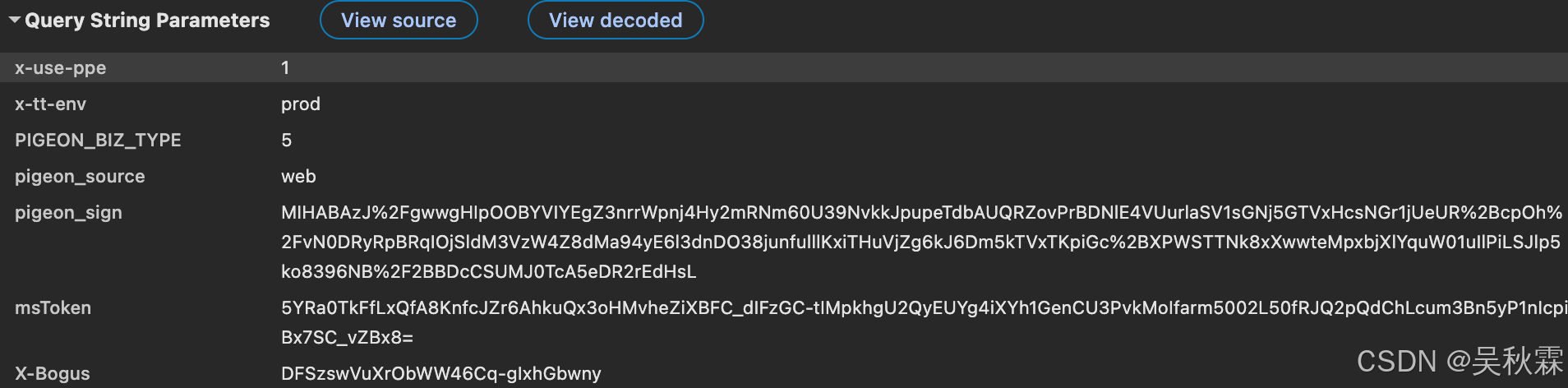

打开精选联盟后打开消息，有一个小插曲debugger，直接跳过即可，然后主要看get_by_conversation接口，获取聊天会话消息的，请求头中pigeon_sign参数固定测试也是可以的，然后msToken、X-Bogus两个参数一样（同之前分享的巨量文章中算法一致），如下所示：

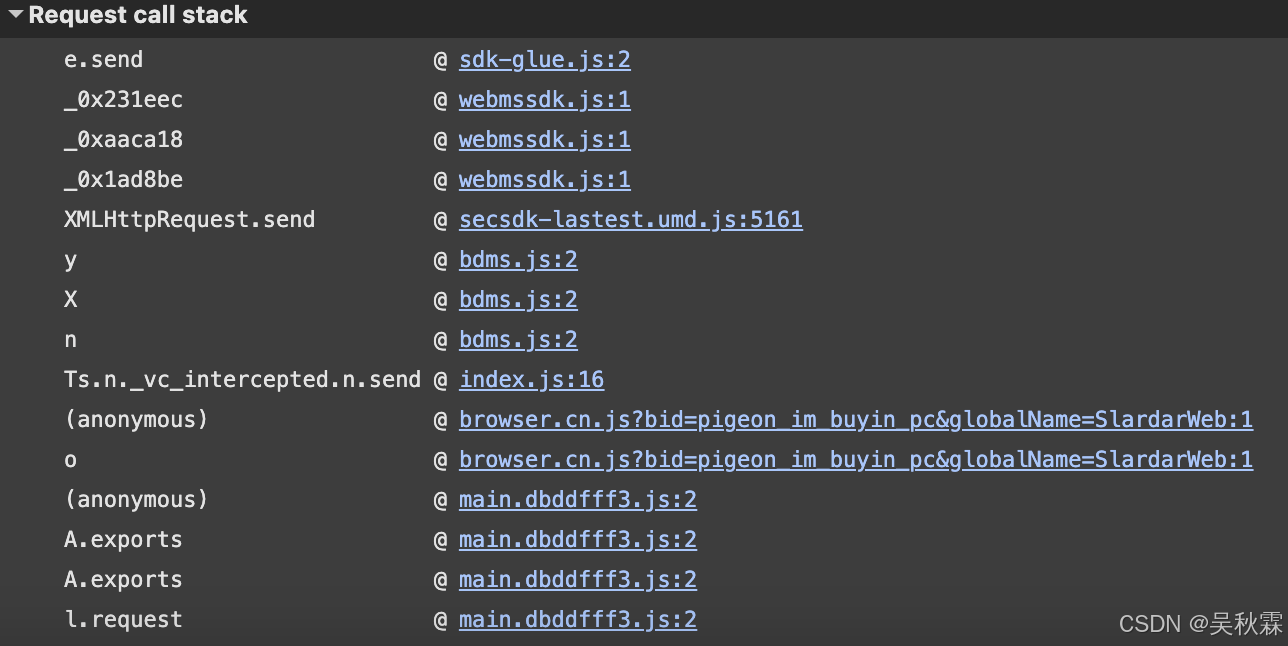

看调用栈的话可以看到有很熟悉的文件名称（webmssdk、bdms），protobuf相关的操作均在main.dbddfff3.js文件中，请求体也是经过序列化操作的，如下所示：
3. JS分析

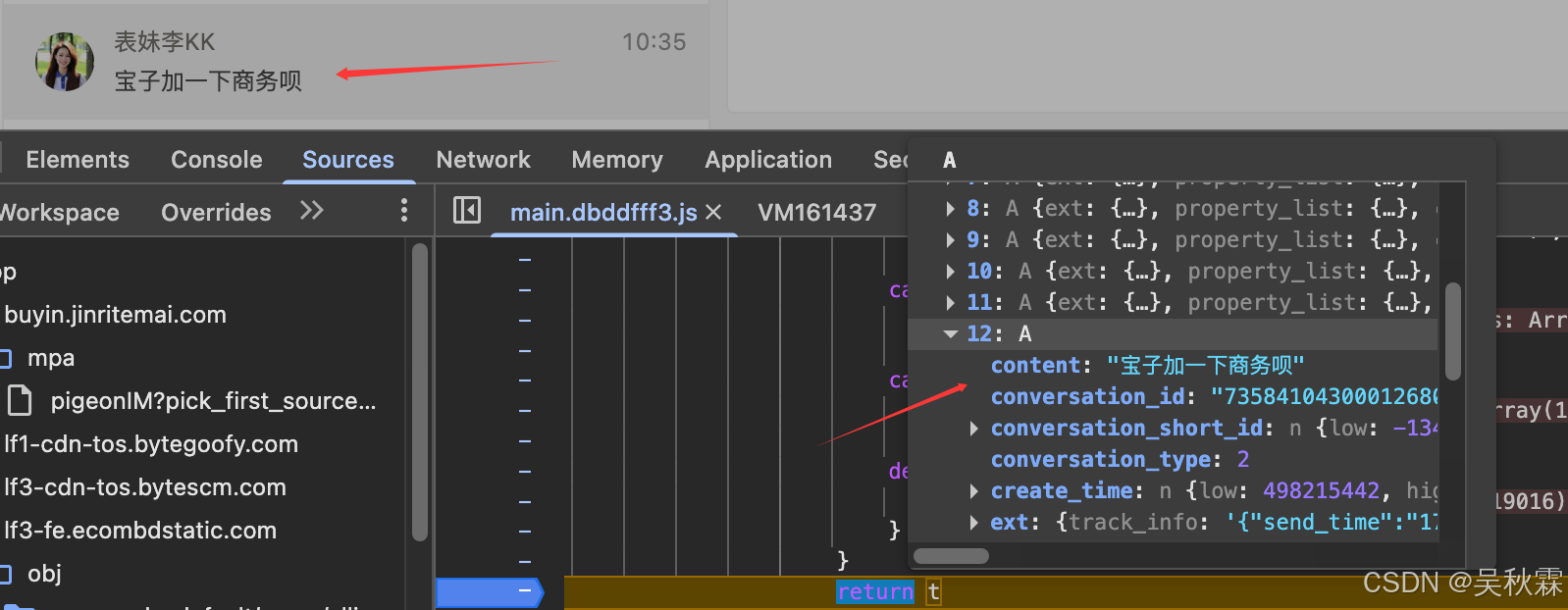

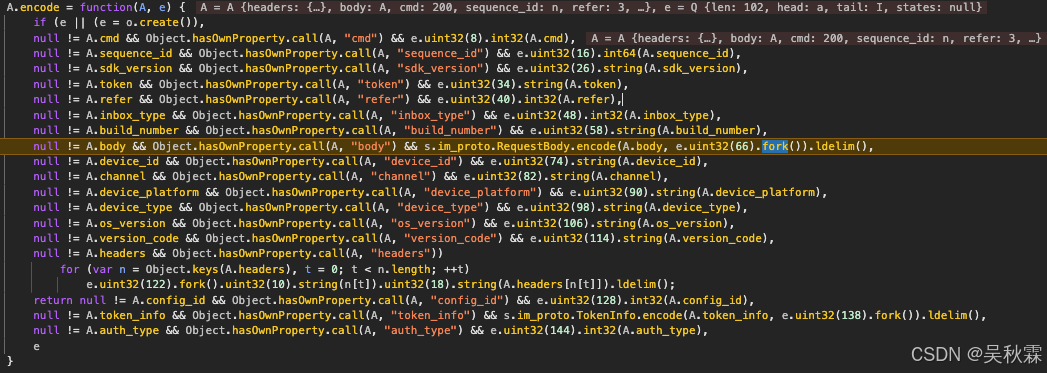

进入到这个JS中可以看到实现了一整套完整的IM会话、消息Protobuf编解码实现，前端将JS对象编码成二进制发给后端，返回二进制再通过decode还原成明文对象渲染，如下所示：
其中uint32、int64、skipType这些就是为了将二进制翻译成我们能够看懂的明文对象

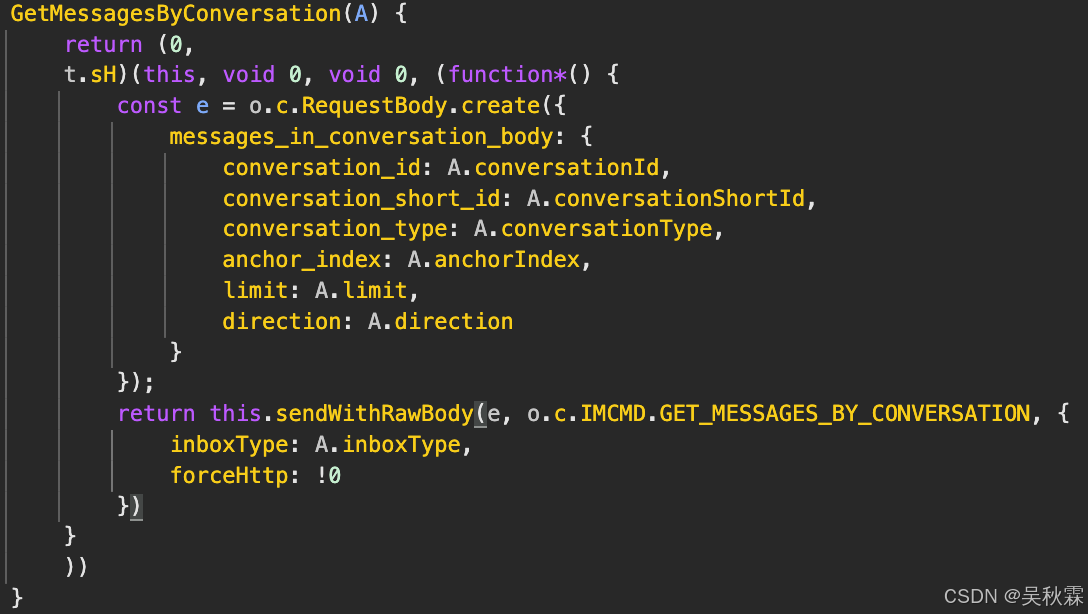

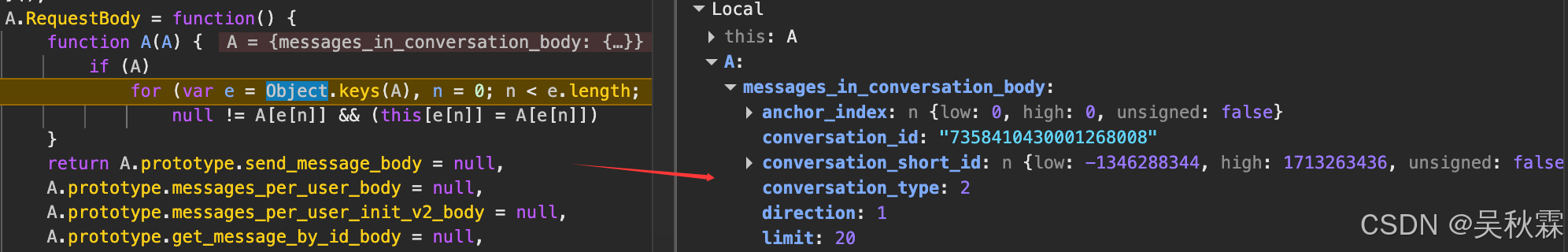

这里就是构造符合服务端要求的Protobuf请求包，cmd是拉取会话消息，conversation_id指定要拉取哪个会话，limit是拉取的条数以及token|inbox_type相关的鉴权字段，实现如下所示：
python
def build_conversation_messages_request():
request_envelope = message_pb2.RequestEnvelope(
cmd=301,
sequence_id=25275,
sdk_version="0.3.1-dev.2",
token="",
refer=3,
inbox_type=2,
build_number="8cf4734:dev-0.3.1",
device_platform="web",
)
conversation_request = request_envelope.body.conversation_messages
conversation_request.conversation_id = "7564320634436666674" # 会话ID
conversation_request.conversation_type = 2
conversation_request.conversation_short_id = 7564320634436666674 # 会话ID
conversation_request.direction = 1
conversation_request.anchor_index = 0
conversation_request.limit = 20

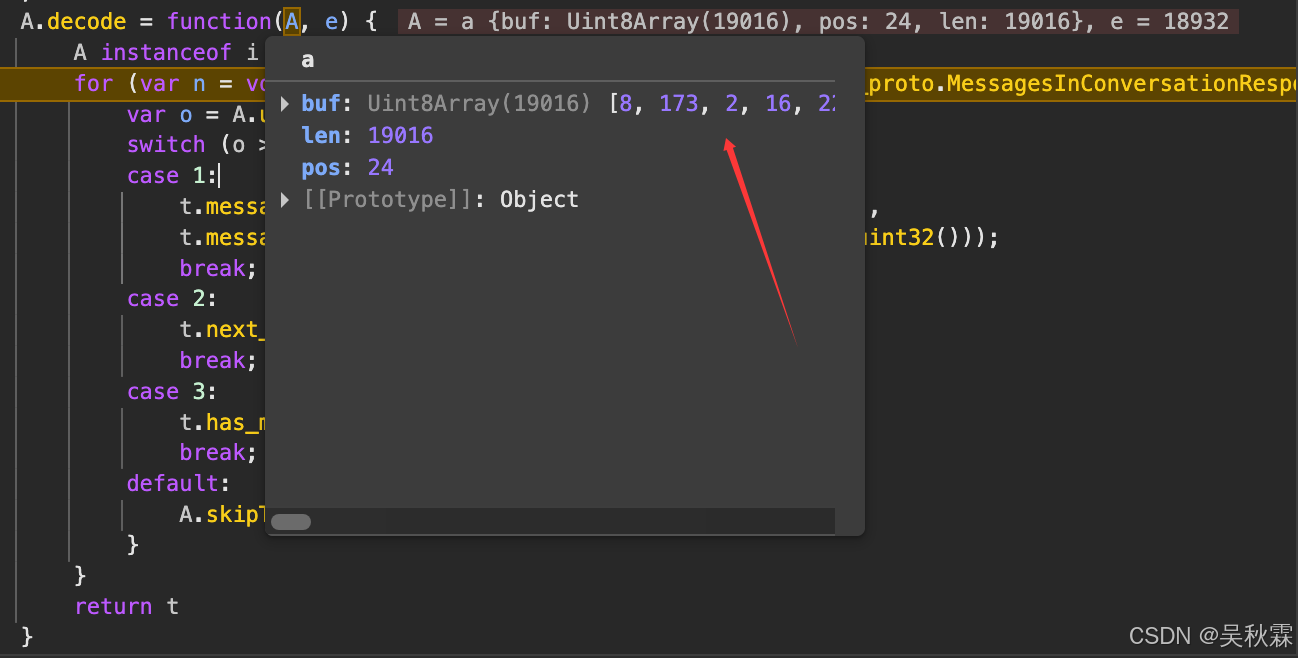

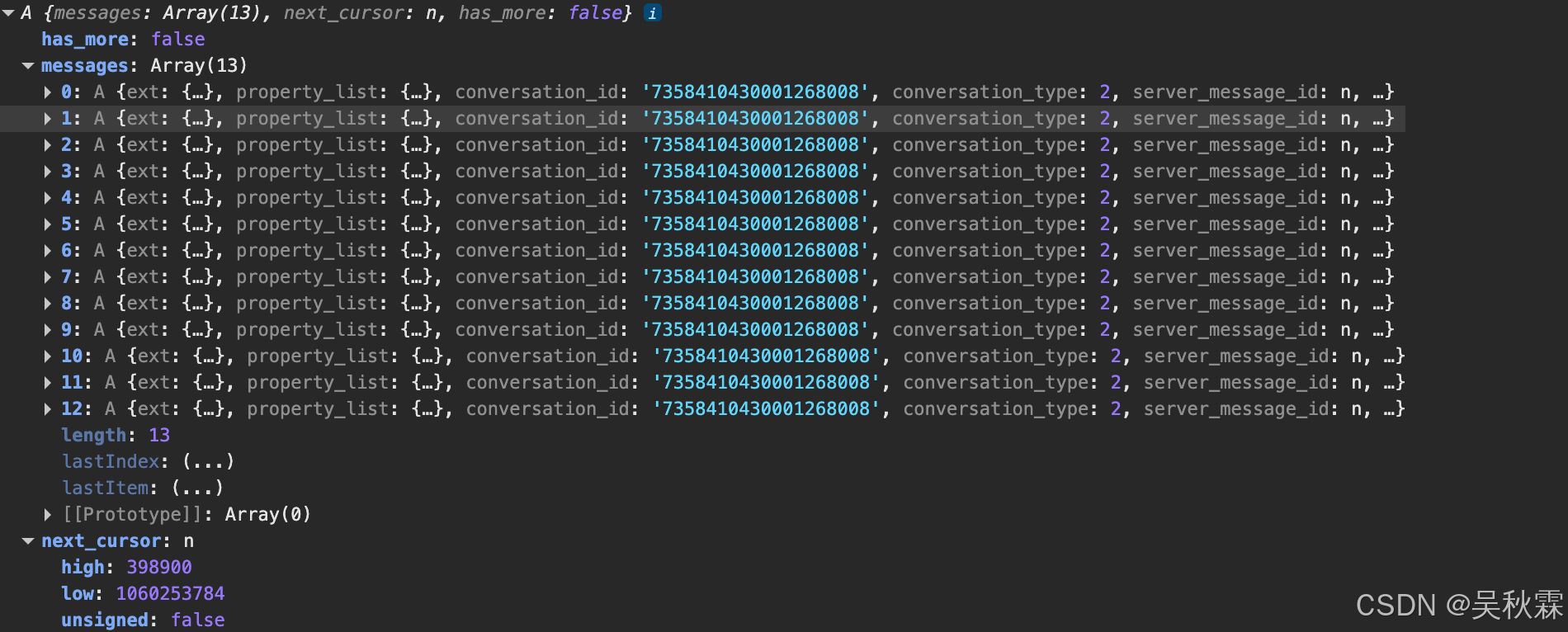

return request_envelope往下到Protobuf的解码位置，A是自定义的二进制读取器实例，s.im_proto.MessagesInConversationResponseBody是解码后的结构化数据，最后返回的t即明文数据，如下所示：
4. proto文件实现
其实上面的分析现在借助AI基本是很快就能还原出来，接下来需要对上面JS还原成.proto文件（新手可以理解为前后端约定好的数据结构模版），实现如下所示：
javascript
syntax = "proto3";
package message;
message RequestEnvelope {
int32 cmd = 1;
int64 sequence_id = 2;
string sdk_version = 3;
string token = 4;
int32 refer = 5;
int32 inbox_type = 6;
string build_number = 7;
RequestPayload body = 8;
string device_id = 9;
string channel = 10;
string device_platform = 11;
string device_type = 12;
string os_version = 13;
string version_code = 14;
map<string, string> headers = 15;
int32 config_id = 16;
TokenInfo token_info = 17;
int32 auth_type = 18;
}
message TokenInfo {
int32 mark_id = 1;
int32 type = 2;
int32 app_id = 3;
int64 user_id = 4;
int64 timestamp = 5;
}
message RequestPayload {
SendMessageRequest send_message = 100;
ConversationMessagesRequest conversation_messages = 301;
}
message SendMessageRequest {
string conversation_id = 1;
int32 conversation_type = 2;
int64 conversation_short_id = 3;
string content = 4;
map<string, string> ext = 5;
int32 message_type = 6;
string ticket = 7;
string client_message_id = 8;
repeated int64 mentioned_users = 9;
QuotedMessage quoted_message = 11;
}
message QuotedMessage {
int64 referenced_message_id = 1;
string hint = 2;
int64 root_message_id = 3;
int64 root_message_conv_index = 4;
}
message ConversationMessagesRequest {
string conversation_id = 1;
int32 conversation_type = 2;
int64 conversation_short_id = 3;
int32 direction = 4;
int64 anchor_index = 5;
int32 limit = 6;
}
message ResponseEnvelope {
int32 cmd = 1;
int64 sequence_id = 2;
int32 status_code = 3;
string error_desc = 4;
int32 inbox_type = 5;
ResponsePayload body = 6;
string log_id = 7;
map<string, string> headers = 8;
int64 start_time_stamp = 9;
int64 request_arrived_time = 10;
int64 server_execution_end_time = 11;
}
message ResponsePayload {
SendMessageResponse send_message = 100;
ConversationMessagesResponse conversation_messages = 301;
}
message SendMessageResponse {
int64 server_message_id = 1;
string extra_info = 2;
int32 status = 3;
string client_message_id = 4;
int64 check_code = 5;
string check_message = 6;
}
message ConversationMessagesResponse {
repeated ConversationMessage messages = 1;
int64 next_cursor = 2;
bool has_more = 3;
}
message ConversationMessage {
string conversation_id = 1;
int32 conversation_type = 2;
int64 server_message_id = 3;
int64 index_in_conversation = 4;
int64 conversation_short_id = 5;
int32 message_type = 6;
int64 sender = 7;
string content = 8;
map<string, string> ext = 9;
int64 create_time = 10;
int64 version = 11;
int32 status = 12;
int64 order_in_conversation = 13;
string sec_sender = 14;
map<string, MessagePropertyList> property_list = 15;
MessageReference reference = 18;
}
message MessageProperty {
int64 uid = 1;
string sec_uid = 2;
int64 create_time = 3;
string idempotent_id = 4;
string value = 5;
}
message MessagePropertyList {
repeated MessageProperty entries = 1;
}
message MessageReference {
int64 referenced_message_id = 1;
string hint = 2;
int64 ref_message_type = 3;
int32 referenced_message_status = 4;
int64 root_message_id = 5;
int64 root_message_conv_index = 6;

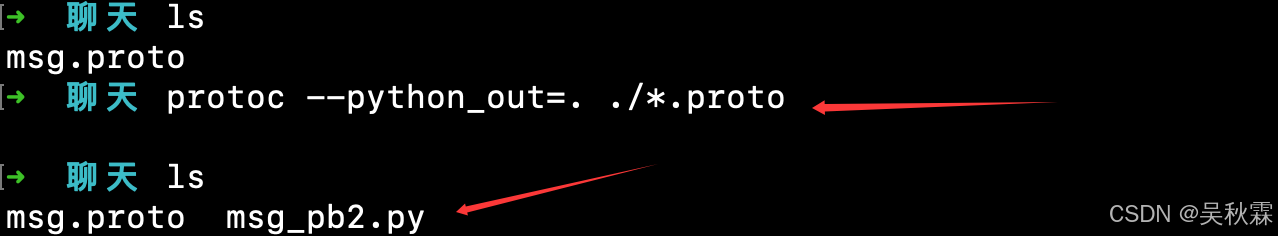

}接下来使用protoc将.proto文件翻译成各种语言的代码（比如Py），它会读取我们上面写的结构自动生成能在Py里直接使用的类文件，最终生成*_pb2.py，如下所示：
bash
protoc --python_out=. ./*.proto
python
# -*- coding: utf-8 -*-
# Generated by the protocol buffer compiler. DO NOT EDIT!
# NO CHECKED-IN PROTOBUF GENCODE
# source: msg.proto
# Protobuf Python Version: 5.29.3
"""Generated protocol buffer code."""
from google.protobuf import descriptor as _descriptor
from google.protobuf import descriptor_pool as _descriptor_pool
from google.protobuf import runtime_version as _runtime_version
from google.protobuf import symbol_database as _symbol_database
from google.protobuf.internal import builder as _builder
_runtime_version.ValidateProtobufRuntimeVersion(
_runtime_version.Domain.PUBLIC,
5,
29,
3,
'',
'msg.proto'
)
# @@protoc_insertion_point(imports)
_sym_db = _symbol_database.Default()
DESCRIPTOR = _descriptor_pool.Default().AddSerializedFile(b'\n\tmsg.proto\x12\x07message\"\xe9\x03\n\x0fRequestEnvelope\x12\x0b\n\x03\x63md\x18\x01 \x01(\x05\x12\x13\n\x0bsequence_id\x18\x02 \x01(\x03\x12\x13\n\x0bsdk_version\x18\x03 \x01(\t\x12\r\n\x05token\x18\x04 \x01(\t\x12\r\n\x05refer\x18\x05 \x01(\x05\x12\x12\n\ninbox_type\x18\x06 \x01(\x05\x12\x14\n\x0c\x62uild_number\x18\x07 \x01(\t\x12%\n\x04\x62ody\x18\x08 \x01(\x0b\x32\x17.message.RequestPayload\x12\x11\n\tdevice_id\x18\t \x01(\t\x12\x0f\n\x07\x63hannel\x18\n \x01(\t\x12\x17\n\x0f\x64\x65vice_platform\x18\x0b \x01(\t\x12\x13\n\x0b\x64\x65vice_type\x18\x0c \x01(\t\x12\x12\n\nos_version\x18\r \x01(\t\x12\x14\n\x0cversion_code\x18\x0e \x01(\t\x12\x36\n\x07headers\x18\x0f \x03(\x0b\x32%.message.RequestEnvelope.HeadersEntry\x12\x11\n\tconfig_id\x18\x10 \x01(\x05\x12&\n\ntoken_info\x18\x11 \x01(\x0b\x32\x12.message.TokenInfo\x12\x11\n\tauth_type\x18\x12 \x01(\x05\x1a.\n\x0cHeadersEntry\x12\x0b\n\x03key\x18\x01 \x01(\t\x12\r\n\x05value\x18\x02 \x01(\t:\x02\x38\x01\"^\n\tTokenInfo\x12\x0f\n\x07mark_id\x18\x01 \x01(\x05\x12\x0c\n\x04type\x18\x02 \x01(\x05\x12\x0e\n\x06\x61pp_id\x18\x03 \x01(\x05\x12\x0f\n\x07user_id\x18\x04 \x01(\x03\x12\x11\n\ttimestamp\x18\x05 \x01(\x03\"\x89\x01\n\x0eRequestPayload\x12\x31\n\x0csend_message\x18\x64 \x01(\x0b\x32\x1b.message.SendMessageRequest\x12\x44\n\x15\x63onversation_messages\x18\xad\x02 \x01(\x0b\x32$.message.ConversationMessagesRequest\"\xe1\x02\n\x12SendMessageRequest\x12\x17\n\x0f\x63onversation_id\x18\x01 \x01(\t\x12\x19\n\x11\x63onversation_type\x18\x02 \x01(\x05\x12\x1d\n\x15\x63onversation_short_id\x18\x03 \x01(\x03\x12\x0f\n\x07\x63ontent\x18\x04 \x01(\t\x12\x31\n\x03\x65xt\x18\x05 \x03(\x0b\x32$.message.SendMessageRequest.ExtEntry\x12\x14\n\x0cmessage_type\x18\x06 \x01(\x05\x12\x0e\n\x06ticket\x18\x07 \x01(\t\x12\x19\n\x11\x63lient_message_id\x18\x08 \x01(\t\x12\x17\n\x0fmentioned_users\x18\t \x03(\x03\x12.\n\x0equoted_message\x18\x0b \x01(\x0b\x32\x16.message.QuotedMessage\x1a*\n\x08\x45xtEntry\x12\x0b\n\x03key\x18\x01 \x01(\t\x12\r\n\x05value\x18\x02 \x01(\t:\x02\x38\x01\"v\n\rQuotedMessage\x12\x1d\n\x15referenced_message_id\x18\x01 \x01(\x03\x12\x0c\n\x04hint\x18\x02 \x01(\t\x12\x17\n\x0froot_message_id\x18\x03 \x01(\x03\x12\x1f\n\x17root_message_conv_index\x18\x04 \x01(\x03\"\xa8\x01\n\x1b\x43onversationMessagesRequest\x12\x17\n\x0f\x63onversation_id\x18\x01 \x01(\t\x12\x19\n\x11\x63onversation_type\x18\x02 \x01(\x05\x12\x1d\n\x15\x63onversation_short_id\x18\x03 \x01(\x03\x12\x11\n\tdirection\x18\x04 \x01(\x05\x12\x14\n\x0c\x61nchor_index\x18\x05 \x01(\x03\x12\r\n\x05limit\x18\x06 \x01(\x05\"\xed\x02\n\x10ResponseEnvelope\x12\x0b\n\x03\x63md\x18\x01 \x01(\x05\x12\x13\n\x0bsequence_id\x18\x02 \x01(\x03\x12\x13\n\x0bstatus_code\x18\x03 \x01(\x05\x12\x12\n\nerror_desc\x18\x04 \x01(\t\x12\x12\n\ninbox_type\x18\x05 \x01(\x05\x12&\n\x04\x62ody\x18\x06 \x01(\x0b\x32\x18.message.ResponsePayload\x12\x0e\n\x06log_id\x18\x07 \x01(\t\x12\x37\n\x07headers\x18\x08 \x03(\x0b\x32&.message.ResponseEnvelope.HeadersEntry\x12\x18\n\x10start_time_stamp\x18\t \x01(\x03\x12\x1c\n\x14request_arrived_time\x18\n \x01(\x03\x12!\n\x19server_execution_end_time\x18\x0b \x01(\x03\x1a.\n\x0cHeadersEntry\x12\x0b\n\x03key\x18\x01 \x01(\t\x12\r\n\x05value\x18\x02 \x01(\t:\x02\x38\x01\"\x8c\x01\n\x0fResponsePayload\x12\x32\n\x0csend_message\x18\x64 \x01(\x0b\x32\x1c.message.SendMessageResponse\x12\x45\n\x15\x63onversation_messages\x18\xad\x02 \x01(\x0b\x32%.message.ConversationMessagesResponse\"\x9a\x01\n\x13SendMessageResponse\x12\x19\n\x11server_message_id\x18\x01 \x01(\x03\x12\x12\n\nextra_info\x18\x02 \x01(\t\x12\x0e\n\x06status\x18\x03 \x01(\x05\x12\x19\n\x11\x63lient_message_id\x18\x04 \x01(\t\x12\x12\n\ncheck_code\x18\x05 \x01(\x03\x12\x15\n\rcheck_message\x18\x06 \x01(\t\"u\n\x1c\x43onversationMessagesResponse\x12.\n\x08messages\x18\x01 \x03(\x0b\x32\x1c.message.ConversationMessage\x12\x13\n\x0bnext_cursor\x18\x02 \x01(\x03\x12\x10\n\x08has_more\x18\x03 \x01(\x08\"\xea\x04\n\x13\x43onversationMessage\x12\x17\n\x0f\x63onversation_id\x18\x01 \x01(\t\x12\x19\n\x11\x63onversation_type\x18\x02 \x01(\x05\x12\x19\n\x11server_message_id\x18\x03 \x01(\x03\x12\x1d\n\x15index_in_conversation\x18\x04 \x01(\x03\x12\x1d\n\x15\x63onversation_short_id\x18\x05 \x01(\x03\x12\x14\n\x0cmessage_type\x18\x06 \x01(\x05\x12\x0e\n\x06sender\x18\x07 \x01(\x03\x12\x0f\n\x07\x63ontent\x18\x08 \x01(\t\x12\x32\n\x03\x65xt\x18\t \x03(\x0b\x32%.message.ConversationMessage.ExtEntry\x12\x13\n\x0b\x63reate_time\x18\n \x01(\x03\x12\x0f\n\x07version\x18\x0b \x01(\x03\x12\x0e\n\x06status\x18\x0c \x01(\x05\x12\x1d\n\x15order_in_conversation\x18\r \x01(\x03\x12\x12\n\nsec_sender\x18\x0e \x01(\t\x12\x45\n\rproperty_list\x18\x0f \x03(\x0b\x32..message.ConversationMessage.PropertyListEntry\x12,\n\treference\x18\x12 \x01(\x0b\x32\x19.message.MessageReference\x1a*\n\x08\x45xtEntry\x12\x0b\n\x03key\x18\x01 \x01(\t\x12\r\n\x05value\x18\x02 \x01(\t:\x02\x38\x01\x1aQ\n\x11PropertyListEntry\x12\x0b\n\x03key\x18\x01 \x01(\t\x12+\n\x05value\x18\x02 \x01(\x0b\x32\x1c.message.MessagePropertyList:\x02\x38\x01\"j\n\x0fMessageProperty\x12\x0b\n\x03uid\x18\x01 \x01(\x03\x12\x0f\n\x07sec_uid\x18\x02 \x01(\t\x12\x13\n\x0b\x63reate_time\x18\x03 \x01(\x03\x12\x15\n\ridempotent_id\x18\x04 \x01(\t\x12\r\n\x05value\x18\x05 \x01(\t\"@\n\x13MessagePropertyList\x12)\n\x07\x65ntries\x18\x01 \x03(\x0b\x32\x18.message.MessageProperty\"\xb6\x01\n\x10MessageReference\x12\x1d\n\x15referenced_message_id\x18\x01 \x01(\x03\x12\x0c\n\x04hint\x18\x02 \x01(\t\x12\x18\n\x10ref_message_type\x18\x03 \x01(\x03\x12!\n\x19referenced_message_status\x18\x04 \x01(\x05\x12\x17\n\x0froot_message_id\x18\x05 \x01(\x03\x12\x1f\n\x17root_message_conv_index\x18\x06 \x01(\x03\x62\x06proto3')
_globals = globals()
_builder.BuildMessageAndEnumDescriptors(DESCRIPTOR, _globals)
_builder.BuildTopDescriptorsAndMessages(DESCRIPTOR, 'msg_pb2', _globals)
if not _descriptor._USE_C_DESCRIPTORS:
DESCRIPTOR._loaded_options = None
_globals['_REQUESTENVELOPE_HEADERSENTRY']._loaded_options = None
_globals['_REQUESTENVELOPE_HEADERSENTRY']._serialized_options = b'8\001'
_globals['_SENDMESSAGEREQUEST_EXTENTRY']._loaded_options = None
_globals['_SENDMESSAGEREQUEST_EXTENTRY']._serialized_options = b'8\001'
_globals['_RESPONSEENVELOPE_HEADERSENTRY']._loaded_options = None
_globals['_RESPONSEENVELOPE_HEADERSENTRY']._serialized_options = b'8\001'
_globals['_CONVERSATIONMESSAGE_EXTENTRY']._loaded_options = None
_globals['_CONVERSATIONMESSAGE_EXTENTRY']._serialized_options = b'8\001'
_globals['_CONVERSATIONMESSAGE_PROPERTYLISTENTRY']._loaded_options = None
_globals['_CONVERSATIONMESSAGE_PROPERTYLISTENTRY']._serialized_options = b'8\001'
_globals['_REQUESTENVELOPE']._serialized_start=23
_globals['_REQUESTENVELOPE']._serialized_end=512
_globals['_REQUESTENVELOPE_HEADERSENTRY']._serialized_start=466
_globals['_REQUESTENVELOPE_HEADERSENTRY']._serialized_end=512
_globals['_TOKENINFO']._serialized_start=514
_globals['_TOKENINFO']._serialized_end=608
_globals['_REQUESTPAYLOAD']._serialized_start=611
_globals['_REQUESTPAYLOAD']._serialized_end=748
_globals['_SENDMESSAGEREQUEST']._serialized_start=751
_globals['_SENDMESSAGEREQUEST']._serialized_end=1104
_globals['_SENDMESSAGEREQUEST_EXTENTRY']._serialized_start=1062
_globals['_SENDMESSAGEREQUEST_EXTENTRY']._serialized_end=1104
_globals['_QUOTEDMESSAGE']._serialized_start=1106
_globals['_QUOTEDMESSAGE']._serialized_end=1224
_globals['_CONVERSATIONMESSAGESREQUEST']._serialized_start=1227
_globals['_CONVERSATIONMESSAGESREQUEST']._serialized_end=1395
_globals['_RESPONSEENVELOPE']._serialized_start=1398
_globals['_RESPONSEENVELOPE']._serialized_end=1763
_globals['_RESPONSEENVELOPE_HEADERSENTRY']._serialized_start=466
_globals['_RESPONSEENVELOPE_HEADERSENTRY']._serialized_end=512
_globals['_RESPONSEPAYLOAD']._serialized_start=1766
_globals['_RESPONSEPAYLOAD']._serialized_end=1906
_globals['_SENDMESSAGERESPONSE']._serialized_start=1909
_globals['_SENDMESSAGERESPONSE']._serialized_end=2063
_globals['_CONVERSATIONMESSAGESRESPONSE']._serialized_start=2065
_globals['_CONVERSATIONMESSAGESRESPONSE']._serialized_end=2182
_globals['_CONVERSATIONMESSAGE']._serialized_start=2185
_globals['_CONVERSATIONMESSAGE']._serialized_end=2803
_globals['_CONVERSATIONMESSAGE_EXTENTRY']._serialized_start=1062
_globals['_CONVERSATIONMESSAGE_EXTENTRY']._serialized_end=1104
_globals['_CONVERSATIONMESSAGE_PROPERTYLISTENTRY']._serialized_start=2722
_globals['_CONVERSATIONMESSAGE_PROPERTYLISTENTRY']._serialized_end=2803
_globals['_MESSAGEPROPERTY']._serialized_start=2805
_globals['_MESSAGEPROPERTY']._serialized_end=2911
_globals['_MESSAGEPROPERTYLIST']._serialized_start=2913
_globals['_MESSAGEPROPERTYLIST']._serialized_end=2977
_globals['_MESSAGEREFERENCE']._serialized_start=2980
_globals['_MESSAGEREFERENCE']._serialized_end=3162
# @@protoc_insertion_point(module_scope)5. 源码实现

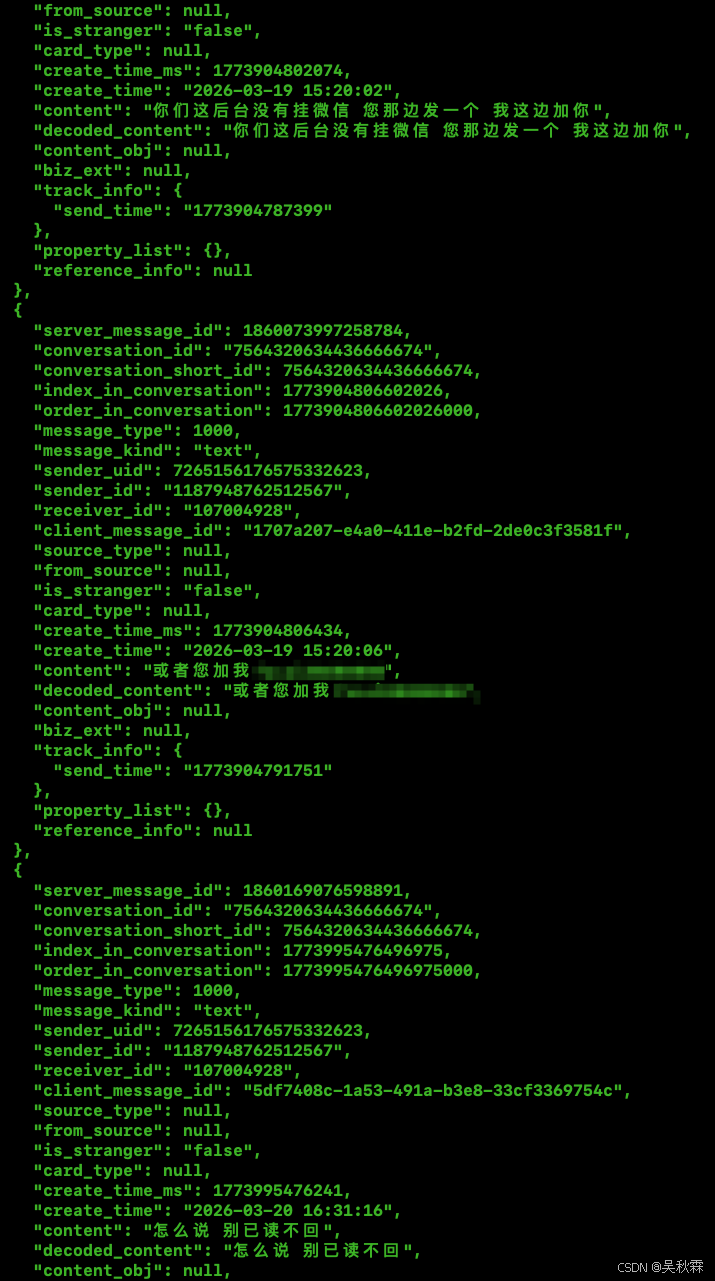

最后再使用Py实现对二进制数据的解析以此拿到明文数据，完整的代码实现如下：
python
import json
from datetime import datetime
from urllib.parse import unquote
import requests
from loguru import logger
import message_pb2
REQUEST_HEADERS = {} # 自行获取
REQUEST_URL = "https://imapi.jinritemai.com/v1/message/get_by_conversation"
REQUEST_QUERY = {
"x-use-ppe": "1",
"x-tt-env": "prod",
"PIGEON_BIZ_TYPE": "5",
"pigeon_source": "web",
"pigeon_sign": "",
"msToken": "",
"X-Bogus": "",
}
def build_conversation_messages_request():
request_envelope = message_pb2.RequestEnvelope(
cmd=301,
sequence_id=25275,
sdk_version="0.3.1-dev.2",
token="",
refer=3,
inbox_type=2,
build_number="8cf4734:dev-0.3.1",
device_platform="web",
)
conversation_request = request_envelope.body.conversation_messages
conversation_request.conversation_id = "7564320634436666674" # 会话ID
conversation_request.conversation_type = 2
conversation_request.conversation_short_id = 7564320634436666674 # 会话ID
conversation_request.direction = 1
conversation_request.anchor_index = 0
conversation_request.limit = 20
return request_envelope
def parse_json_if_possible(raw_value):
if not raw_value:
return None
decoded_value = unquote(raw_value)
candidates = [decoded_value] if decoded_value != raw_value else []
candidates.append(raw_value)
for candidate in candidates:
try:
return json.loads(candidate)
except json.JSONDecodeError:
continue
return None
def format_timestamp(timestamp_ms):
if not timestamp_ms:
return None
try:
return datetime.fromtimestamp(timestamp_ms / 1000).strftime("%Y-%m-%d %H:%M:%S")
except Exception:
return None
def to_plain_ext_map(ext_map):
if hasattr(ext_map, "items"):
return dict(ext_map.items())
if isinstance(ext_map, dict):
return dict(ext_map)
return {item.key: item.value for item in ext_map}
def normalize_message_properties(property_map):
if not property_map:
return {}
normalized_property_map = {}
property_items = property_map.items() if hasattr(property_map, "items") else property_map
for property_key, property_list in property_items:
normalized_property_map[property_key] = [
{
"uid": int(property_item.uid),
"sec_uid": property_item.sec_uid,
"create_time": int(property_item.create_time),
"idempotent_id": property_item.idempotent_id,
"value": property_item.value,
}
for property_item in property_list.entries
]
return normalized_property_map
def normalize_message_reference(message_reference):
if message_reference is None:
return None
if not getattr(message_reference, "referenced_message_id", 0):
return None
return {
"referenced_message_id": int(message_reference.referenced_message_id),
"hint": message_reference.hint,
"ref_message_type": int(message_reference.ref_message_type),
"referenced_message_status": message_reference.referenced_message_status,
"root_message_id": int(message_reference.root_message_id),
"root_message_conv_index": int(message_reference.root_message_conv_index),
}
def normalize_message(conversation_message):
ext_map = to_plain_ext_map(conversation_message.ext)
parsed_content = parse_json_if_possible(conversation_message.content)
parsed_business_ext = parse_json_if_possible(ext_map.get("biz_ext"))
parsed_track_info = parse_json_if_possible(ext_map.get("track_info"))
decoded_content = unquote(conversation_message.content)
return {
"server_message_id": int(conversation_message.server_message_id),
"conversation_id": conversation_message.conversation_id,
"conversation_short_id": int(conversation_message.conversation_short_id),
"index_in_conversation": int(conversation_message.index_in_conversation),
"order_in_conversation": int(conversation_message.order_in_conversation),
"message_type": conversation_message.message_type,
"message_kind": ext_map.get("type"),
"sender_uid": int(conversation_message.sender),
"sender_id": ext_map.get("sender_id"),
"receiver_id": ext_map.get("receiver_id"),
"client_message_id": ext_map.get("s:client_message_id"),
"source_type": ext_map.get("source_type"),
"from_source": ext_map.get("p:from_source"),
"is_stranger": ext_map.get("s:is_stranger"),
"card_type": ext_map.get("card_type"),
"create_time_ms": int(conversation_message.create_time),
"create_time": format_timestamp(int(conversation_message.create_time)),
"content": conversation_message.content,
"decoded_content": decoded_content,
"content_obj": parsed_content,
"biz_ext": parsed_business_ext,
"track_info": parsed_track_info,
"property_list": normalize_message_properties(conversation_message.property_list),
"reference_info": normalize_message_reference(conversation_message.reference),
}
def main():
request_envelope = build_conversation_messages_request()
payload = request_envelope.SerializeToString()
request_headers = {**REQUEST_HEADERS, "content-length": str(len(payload))}
http_response = requests.post(
REQUEST_URL,
headers=request_headers,
params=REQUEST_QUERY,
data=payload,
cookies=REQUEST_COOKIES,
timeout=30,
)
print(
json.dumps(
{
"http_status": http_response.status_code,
"content_type": http_response.headers.get("content-type", ""),
"content_length": len(http_response.content),
},
ensure_ascii=False,
indent=2,
)
)
response_envelope = message_pb2.ResponseEnvelope()
try:
response_envelope.ParseFromString(http_response.content)
except Exception as exc:
print(f"protobuf parse failed: {exc}")
print(http_response.text[:1000])
raise
conversation_messages = response_envelope.body.conversation_messages
normalized_messages = [normalize_message(message) for message in conversation_messages.messages]
logger.success(
json.dumps(
normalized_messages,
ensure_ascii=False,
indent=2,
)
)
if __name__ == "__main__":

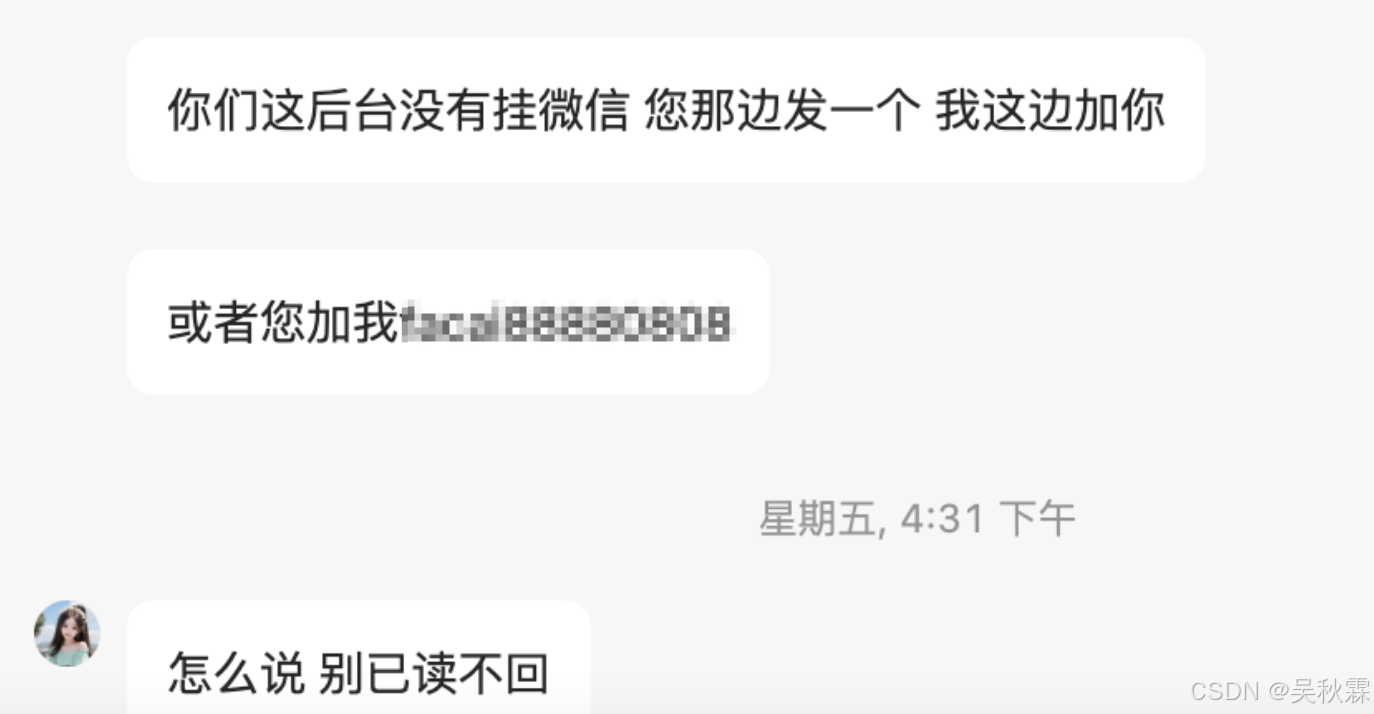

main()在页面中拿一个会话ID运行测试i可以看到解析数据JSON中的消息内容与网页聊天窗口内信息一致。如下所示：
