二进制基于kubeasz部署 K8s 1.34.x 高可用集群实战指南-第三章：Harbor 私有镜像仓库部署（3-4）

第三章：Harbor 私有镜像仓库部署 (主节点 104)

目标：在 104 节点部署 Harbor 主仓库，为集群提供镜像存储服务。

3.1 部署 Harbor 主节点 (192.168.44.104)

复制代码

# 1. 登录 harbor1 节点
ssh root@192.168.44.104

# 2. 配置 hosts
cat >> /etc/hosts << EOF
192.168.44.104 harbor.myarchitect.online
EOF

# 3. 创建证书目录
mkdir -p /apps/harbor/certs
cd /apps/harbor/certs

# 4. 生成自签名证书
# 生成CA私钥
openssl genrsa -out ca.key 4096

# 生成CA证书
openssl req -x509 -new -nodes -sha512 -days 3650 \
  -subj "/C=CN/ST=Beijing/L=Beijing/O=Harbor/CN=HarborCA" \
  -key ca.key -out ca.crt

# 生成域名私钥
openssl genrsa -out harbor.myarchitect.online.key 4096

# 生成证书签名请求
openssl req -sha512 -new \
  -subj "/C=CN/ST=Beijing/L=Beijing/O=Harbor/CN=harbor.myarchitect.online" \
  -key harbor.myarchitect.online.key \
  -out harbor.myarchitect.online.csr

# 生成扩展文件
cat > v3.ext << EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage=digitalSignature,keyEncipherment
extendedKeyUsage=serverAuth
subjectAltName=IP:192.168.44.104,DNS:harbor.myarchitect.online
EOF

# 签发证书
openssl x509 -req -sha512 -days 3650 \
  -extfile v3.ext \
  -CA ca.crt -CAkey ca.key -CAcreateserial \
  -in harbor.myarchitect.online.csr \
  -out harbor.myarchitect.online.crt

记得安装docker
 tar -zxvf runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz
  ./runtime-install.sh docker

# 5. 解压并配置 Harbor
mkdir -p /apps && cd /apps
tar xvf harbor-offline-installer-v2.14.1.tgz
cd harbor

# 复制配置文件
cp harbor.yml.tmpl harbor.yml

# 6. 编辑配置文件
vim harbor.yml

3.1.1 harbor.yml 配置内容

复制代码

# 域名
hostname: harbor.myarchitect.online

# HTTP 配置
http:
  port: 80

# HTTPS 配置
https:
  port: 443
  certificate: /apps/harbor/certs/harbor.myarchitect.online.crt
  private_key: /apps/harbor/certs/harbor.myarchitect.online.key

# 管理员密码
harbor_admin_password: Harbor12345

# 数据库密码
database:
  password: root123

# 数据目录
data_volume: /data/harbor

3.1.2 安装 Harbor

复制代码

# 执行安装
./install.sh --with-trivy

# 验证安装
docker ps | grep harbor

# 预期输出：
# goharbor/nginx-photon:v2.14.0
# goharbor/harbor-core:v2.14.0
# goharbor/registry-photon:v2.14.0
# ...

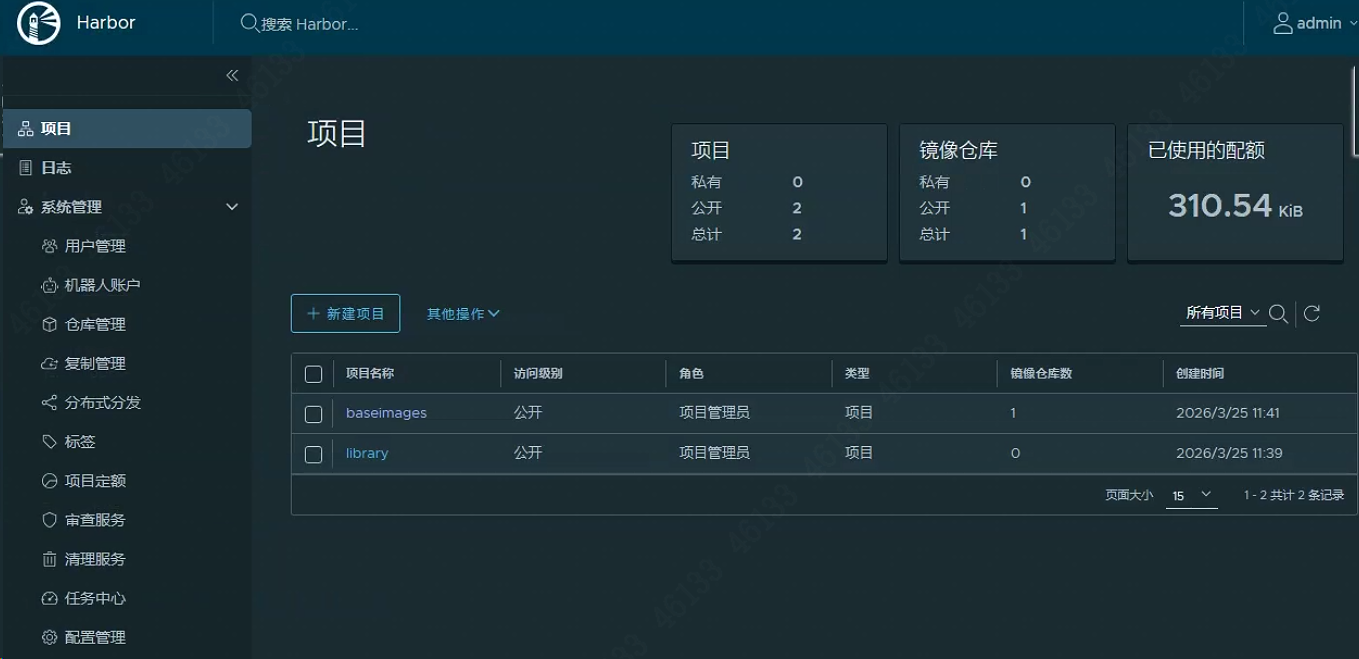

3.2 创建项目并准备镜像

复制代码

# 1. 创建 baseimages 项目 (通过 API)
curl -k -u "admin:Harbor12345" -X POST \
  "https://harbor.myarchitect.online/api/v2.0/projects" \
  -H "Content-Type: application/json" \
  -d '{"project_name": "baseimages", "public": true}'


----------------------------------------------------------------
#配置 Docker 信任自签名证书 (推荐)
mkdir -p /etc/docker/certs.d/harbor.myarchitect.online
# 2. 复制证书
cp ca.crt /etc/docker/certs.d/harbor.myarchitect.online/
cp harbor.myarchitect.online.crt /etc/docker/certs.d/harbor.myarchitect.online/harbor.myarchitect.online.cert
cp harbor.myarchitect.online.key /etc/docker/certs.d/harbor.myarchitect.online/
# 3. 配置 insecure-registry
cat > /etc/docker/daemon.json << EOF
{
  "insecure-registries": ["harbor.myarchitect.online"]
}
EOF

# 4. 重启 Docker
systemctl restart docker

apt update && apt install -y docker-compose
# 验证是否安装成功
docker compose version
然后再执行重启 Harbor 就正常了：
cd /apps/harbor
docker compose down
docker compose up -d
---------------------------------------------------------------


# 2. 拉取并推送 pause 镜像
docker pull registry.aliyuncs.com/google_containers/pause:3.10
docker tag registry.aliyuncs.com/google_containers/pause:3.10 \
  harbor.myarchitect.online/baseimages/pause:3.10
docker login harbor.myarchitect.online -u admin -p Harbor12345
docker push harbor.myarchitect.online/baseimages/pause:3.10

# 3. 拉取测试镜像
docker pull registry.cn-hangzhou.aliyuncs.com/myhubregistry/rockylinux:9.3.20231119
docker tag registry.cn-hangzhou.aliyuncs.com/myhubregistry/rockylinux:9.3.20231119 \
  harbor.myarchitect.online/baseimages/rockylinux:9.3.20231119
docker push harbor.myarchitect.online/baseimages/rockylinux:9.3.20231119

# 4. 查看已推送镜像
curl -k -u "admin:Harbor12345" \
  "https://harbor.myarchitect.online/api/v2.0/projects/baseimages/repositories"

3.3 分发 Harbor CA 证书到所有节点

复制代码

# 在 104 节点导出证书
cd /apps/harbor/certs

# 复制到所有节点
for ip in 101 102 103 105 106 107 108 109 110 111 112 113 160; do
    scp ca.crt root@192.168.44.$ip:/usr/local/share/ca-certificates/harbor-ca.crt
    ssh root@192.168.44.$ip "update-ca-certificates"
    echo "=== 192.168.44.$ip 证书已安装 ==="
done

3.4 验证 Harbor 可用性

复制代码

# 在部署节点 (160) 测试
ssh root@192.168.44.160

# 配置 hosts
echo "192.168.44.104 harbor.myarchitect.online" >> /etc/hosts

# 测试 Docker 登录
docker login harbor.myarchitect.online -u admin -p Harbor12345

# 测试拉取镜像
docker pull harbor.myarchitect.online/baseimages/pause:3.10

# 验证成功
docker images | grep pause

PS问题和技巧:

问题处理1：

复制代码

# 一键修复 docker-proxy + 清理日志配置 + 启动 Harbor
cat > /etc/docker/daemon.json <<'EOF'
{"insecure-registries":["harbor.myarchitect.online"],"userland-proxy":false}
EOF

systemctl daemon-reload
systemctl restart docker

cd /apps/harbor
sed -i '/^    logging:/,/^        tag:/d' docker-compose.yml

docker-compose down -v
docker-compose up -d

# 查看启动结果
docker-compose ps

简易重启指令技巧：

复制代码

docker-compose version
然后再执行重启 Harbor 就正常了：
cd /apps/harbor
docker-compose down
docker-compose up -d

离线文件准备：

runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz，

harbor-offline-installer-v2.14.1.tgz

需要自行下载！！
