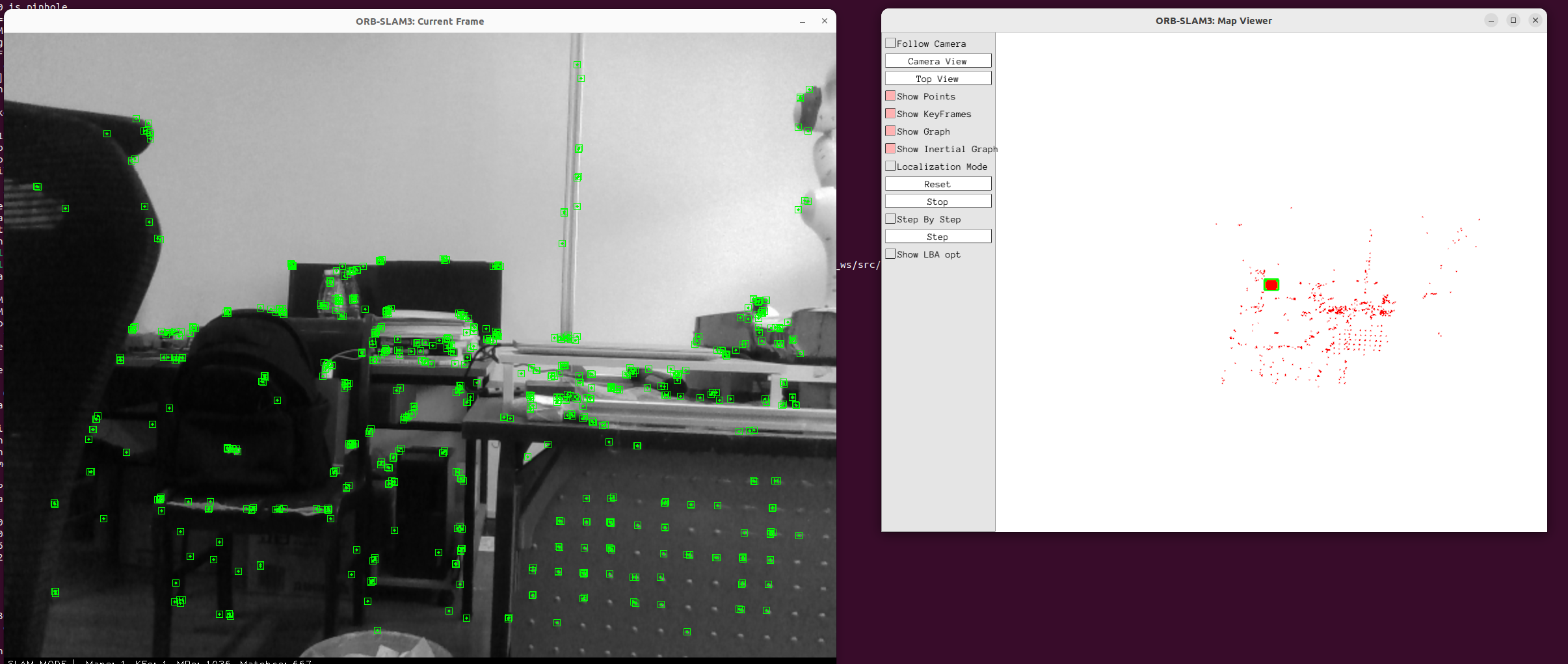

Ubuntu22.04 + ROS2 Humble + ORB-SLAM3 下从环境配置到深度相机d435实时SLAM

MIXLLRED2026-04-11 8:40

一、安装部署ORB-SLAM3

1. 准备工作与基础环境

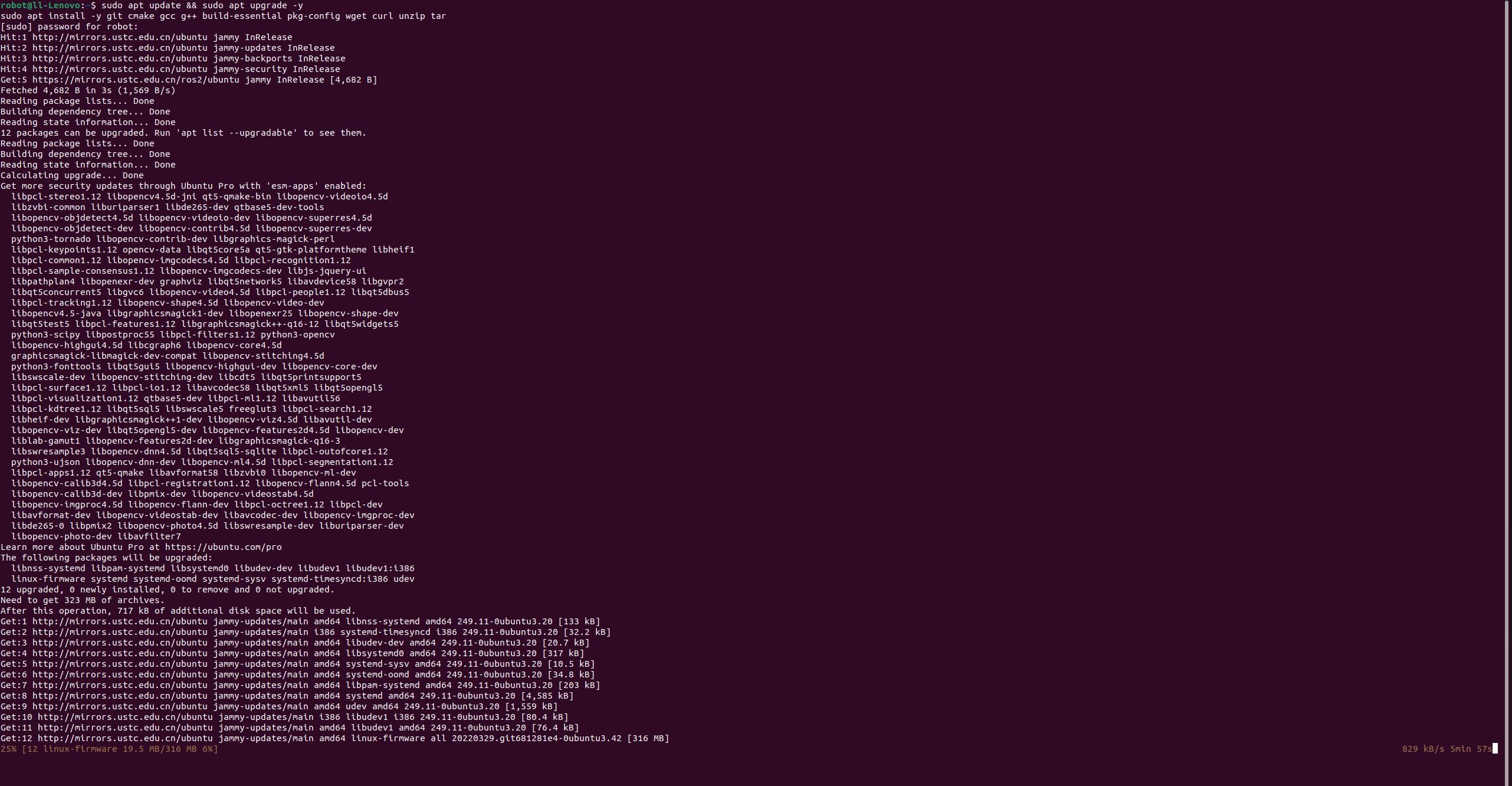

首先，请确保你的Ubuntu 22.04系统已经更新，并安装了build-essential, cmake, git等基础编译工具：

bash 复制代码
sudo apt update && sudo apt upgrade -y
sudo apt install -y git cmake gcc g++ build-essential pkg-config wget curl unzip tar

2. 安装关键依赖库

ORB-SLAM3的运行依赖于多个第三方库，需要逐一正确安装。如果之前二进制安装过以下包，需要先把它们都卸载移除。

（1）Eigen3 (版本 3.3.9)

用于高效的线性代数运算，推荐从源码编译安装。

打开终端，依次输入：

bash 复制代码
cd ~

克隆代码：

bash 复制代码
git clone -b 3.3.9 https://gitlab.com/libeigen/eigen.git

创建并进入 build 目录：

bash 复制代码
cd eigen && mkdir build && cd build

编译：

bash 复制代码
cmake ..

安装：

bash 复制代码
sudo make install

（2）Pangolin (版本 v0.6)

用于可视化，需先安装其图形依赖。

打开终端，依次输入：

bash 复制代码
cd ~
bash 复制代码
sudo apt install -y libgl1-mesa-dev libglew-dev libwayland-dev libxkbcommon-dev wayland-protocols libegl1-mesa-dev libpython3-dev

克隆代码：

bash 复制代码
git clone -b v0.6 https://github.com/stevenlovegrove/Pangolin.git

创建并进入 build 目录：

bash 复制代码
cd Pangolin && mkdir build && cd build

编译：

bash 复制代码
cmake .. -DCMAKE_BUILD_TYPE=Release
bash 复制代码
make -j$(nproc)

安装：

bash 复制代码
sudo make install

（3）OpenCV (推荐4.5.4)

Ubuntu 22.04的官方源默认提供，可直接安装：

bash 复制代码
sudo apt install -y libopencv-dev python3-opencv

3. 编译ORB-SLAM3核心库

独立编译ORB-SLAM3算法库，确保其在不依赖ROS的情况下能正常工作。

（1）克隆源码

在用户主目录下克隆官方仓库：

bash 复制代码
cd ~
git clone https://github.com/UZ-SLAMLab/ORB_SLAM3.git
bash 复制代码
cd ORB_SLAM3
注意：

检查CMakeLists.txt文件中OpenCV和Eigen3的查找路径是否正确，或手动指定路径。

bash 复制代码
cmake_minimum_required(VERSION 2.8)
set(CMAKE_CXX_STANDARD 14)
project(ORB_SLAM3)

IF(NOT CMAKE_BUILD_TYPE)
  SET(CMAKE_BUILD_TYPE Release)
ENDIF()

MESSAGE("Build type: " ${CMAKE_BUILD_TYPE})

set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS}  -Wall   -O3")
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall   -O3")
set(CMAKE_C_FLAGS_RELEASE "${CMAKE_C_FLAGS_RELEASE} -march=native")
set(CMAKE_CXX_FLAGS_RELEASE "${CMAKE_CXX_FLAGS_RELEASE} -march=native")

# Check C++11 or C++0x support
include(CheckCXXCompilerFlag)
CHECK_CXX_COMPILER_FLAG("-std=c++11" COMPILER_SUPPORTS_CXX11)
CHECK_CXX_COMPILER_FLAG("-std=c++0x" COMPILER_SUPPORTS_CXX0X)
if(COMPILER_SUPPORTS_CXX11)
   set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11")
   add_definitions(-DCOMPILEDWITHC11)
   message(STATUS "Using flag -std=c++11.")
elseif(COMPILER_SUPPORTS_CXX0X)
   set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++0x")
   add_definitions(-DCOMPILEDWITHC0X)
   message(STATUS "Using flag -std=c++0x.")
else()
   message(FATAL_ERROR "The compiler ${CMAKE_CXX_COMPILER} has no C++11 support. Please use a different C++ compiler.")
endif()

LIST(APPEND CMAKE_MODULE_PATH ${PROJECT_SOURCE_DIR}/cmake_modules)

find_package(OpenCV 4.4)
   if(NOT OpenCV_FOUND)
      message(FATAL_ERROR "OpenCV > 4.4 not found.")
   endif()

MESSAGE("OPENCV VERSION:")
MESSAGE(${OpenCV_VERSION})

find_package(Eigen3 3.1.0 REQUIRED)
find_package(Pangolin REQUIRED)
find_package(realsense2)

include_directories(
${PROJECT_SOURCE_DIR}
${PROJECT_SOURCE_DIR}/include
${PROJECT_SOURCE_DIR}/include/CameraModels
${PROJECT_SOURCE_DIR}/Thirdparty/Sophus
${EIGEN3_INCLUDE_DIR}
${Pangolin_INCLUDE_DIRS}
)

set(CMAKE_LIBRARY_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/lib)

add_library(${PROJECT_NAME} SHARED
src/System.cc
src/Tracking.cc
src/LocalMapping.cc
src/LoopClosing.cc
src/ORBextractor.cc
src/ORBmatcher.cc
src/FrameDrawer.cc
src/Converter.cc
src/MapPoint.cc
src/KeyFrame.cc
src/Atlas.cc
src/Map.cc
src/MapDrawer.cc
src/Optimizer.cc
src/Frame.cc
src/KeyFrameDatabase.cc
src/Sim3Solver.cc
src/Viewer.cc
src/ImuTypes.cc
src/G2oTypes.cc
src/CameraModels/Pinhole.cpp
src/CameraModels/KannalaBrandt8.cpp
src/OptimizableTypes.cpp
src/MLPnPsolver.cpp
src/GeometricTools.cc
src/TwoViewReconstruction.cc
src/Config.cc
src/Settings.cc
include/System.h
include/Tracking.h
include/LocalMapping.h
include/LoopClosing.h
include/ORBextractor.h
include/ORBmatcher.h
include/FrameDrawer.h
include/Converter.h
include/MapPoint.h
include/KeyFrame.h
include/Atlas.h
include/Map.h
include/MapDrawer.h
include/Optimizer.h
include/Frame.h
include/KeyFrameDatabase.h
include/Sim3Solver.h
include/Viewer.h
include/ImuTypes.h
include/G2oTypes.h
include/CameraModels/GeometricCamera.h
include/CameraModels/Pinhole.h
include/CameraModels/KannalaBrandt8.h
include/OptimizableTypes.h
include/MLPnPsolver.h
include/GeometricTools.h
include/TwoViewReconstruction.h
include/SerializationUtils.h
include/Config.h
include/Settings.h)

add_subdirectory(Thirdparty/g2o)

target_link_libraries(${PROJECT_NAME}
${OpenCV_LIBS}
${EIGEN3_LIBS}
${Pangolin_LIBRARIES}
${PROJECT_SOURCE_DIR}/Thirdparty/DBoW2/lib/libDBoW2.so
${PROJECT_SOURCE_DIR}/Thirdparty/g2o/lib/libg2o.so
-lboost_serialization
-lcrypto
)

# If RealSense SDK is found the library is added and its examples compiled
if(realsense2_FOUND)
    include_directories(${PROJECT_NAME}
    ${realsense_INCLUDE_DIR}
    )
    target_link_libraries(${PROJECT_NAME}
    ${realsense2_LIBRARY}
    )
endif()


# Build examples

# RGB-D examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/RGB-D)

add_executable(rgbd_tum
        Examples/RGB-D/rgbd_tum.cc)
target_link_libraries(rgbd_tum ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(rgbd_realsense_D435i
            Examples/RGB-D/rgbd_realsense_D435i.cc)
    target_link_libraries(rgbd_realsense_D435i ${PROJECT_NAME})
endif()


# RGB-D inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/RGB-D-Inertial)

if(realsense2_FOUND)
    add_executable(rgbd_inertial_realsense_D435i
            Examples/RGB-D-Inertial/rgbd_inertial_realsense_D435i.cc)
    target_link_libraries(rgbd_inertial_realsense_D435i ${PROJECT_NAME})
endif()

#Stereo examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Stereo)

add_executable(stereo_kitti
        Examples/Stereo/stereo_kitti.cc)
target_link_libraries(stereo_kitti ${PROJECT_NAME})

add_executable(stereo_euroc
        Examples/Stereo/stereo_euroc.cc)
target_link_libraries(stereo_euroc ${PROJECT_NAME})

add_executable(stereo_tum_vi
        Examples/Stereo/stereo_tum_vi.cc)
target_link_libraries(stereo_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_realsense_t265
            Examples/Stereo/stereo_realsense_t265.cc)
    target_link_libraries(stereo_realsense_t265 ${PROJECT_NAME})

    add_executable(stereo_realsense_D435i
            Examples/Stereo/stereo_realsense_D435i.cc)
    target_link_libraries(stereo_realsense_D435i ${PROJECT_NAME})
endif()

#Monocular examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Monocular)

add_executable(mono_tum
        Examples/Monocular/mono_tum.cc)
target_link_libraries(mono_tum ${PROJECT_NAME})

add_executable(mono_kitti
        Examples/Monocular/mono_kitti.cc)
target_link_libraries(mono_kitti ${PROJECT_NAME})

add_executable(mono_euroc
        Examples/Monocular/mono_euroc.cc)
target_link_libraries(mono_euroc ${PROJECT_NAME})

add_executable(mono_tum_vi
        Examples/Monocular/mono_tum_vi.cc)
target_link_libraries(mono_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_realsense_t265
            Examples/Monocular/mono_realsense_t265.cc)
    target_link_libraries(mono_realsense_t265 ${PROJECT_NAME})

    add_executable(mono_realsense_D435i
            Examples/Monocular/mono_realsense_D435i.cc)
    target_link_libraries(mono_realsense_D435i ${PROJECT_NAME})
endif()

#Monocular inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Monocular-Inertial)

add_executable(mono_inertial_euroc
        Examples/Monocular-Inertial/mono_inertial_euroc.cc)
target_link_libraries(mono_inertial_euroc ${PROJECT_NAME})

add_executable(mono_inertial_tum_vi
        Examples/Monocular-Inertial/mono_inertial_tum_vi.cc)
target_link_libraries(mono_inertial_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_inertial_realsense_t265
            Examples/Monocular-Inertial/mono_inertial_realsense_t265.cc)
    target_link_libraries(mono_inertial_realsense_t265 ${PROJECT_NAME})

    add_executable(mono_inertial_realsense_D435i
            Examples/Monocular-Inertial/mono_inertial_realsense_D435i.cc)
    target_link_libraries(mono_inertial_realsense_D435i ${PROJECT_NAME})
endif()

#Stereo Inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Stereo-Inertial)

add_executable(stereo_inertial_euroc
        Examples/Stereo-Inertial/stereo_inertial_euroc.cc)
target_link_libraries(stereo_inertial_euroc ${PROJECT_NAME})

add_executable(stereo_inertial_tum_vi
        Examples/Stereo-Inertial/stereo_inertial_tum_vi.cc)
target_link_libraries(stereo_inertial_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_inertial_realsense_t265
            Examples/Stereo-Inertial/stereo_inertial_realsense_t265.cc)
    target_link_libraries(stereo_inertial_realsense_t265 ${PROJECT_NAME})

    add_executable(stereo_inertial_realsense_D435i
            Examples/Stereo-Inertial/stereo_inertial_realsense_D435i.cc)
    target_link_libraries(stereo_inertial_realsense_D435i ${PROJECT_NAME})
endif()

set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Calibration)
if(realsense2_FOUND)
    add_executable(recorder_realsense_D435i
            Examples/Calibration/recorder_realsense_D435i.cc)
    target_link_libraries(recorder_realsense_D435i ${PROJECT_NAME})

    add_executable(recorder_realsense_T265
            Examples/Calibration/recorder_realsense_T265.cc)
    target_link_libraries(recorder_realsense_T265 ${PROJECT_NAME})
endif()

#Old examples

# RGB-D examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/RGB-D)

add_executable(rgbd_tum_old
        Examples_old/RGB-D/rgbd_tum.cc)
target_link_libraries(rgbd_tum_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(rgbd_realsense_D435i_old
            Examples_old/RGB-D/rgbd_realsense_D435i.cc)
    target_link_libraries(rgbd_realsense_D435i_old ${PROJECT_NAME})
endif()


# RGB-D inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/RGB-D-Inertial)

if(realsense2_FOUND)
    add_executable(rgbd_inertial_realsense_D435i_old
            Examples_old/RGB-D-Inertial/rgbd_inertial_realsense_D435i.cc)
    target_link_libraries(rgbd_inertial_realsense_D435i_old ${PROJECT_NAME})
endif()

#Stereo examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Stereo)

add_executable(stereo_kitti_old
        Examples_old/Stereo/stereo_kitti.cc)
target_link_libraries(stereo_kitti_old ${PROJECT_NAME})

add_executable(stereo_euroc_old
        Examples_old/Stereo/stereo_euroc.cc)
target_link_libraries(stereo_euroc_old ${PROJECT_NAME})

add_executable(stereo_tum_vi_old
        Examples_old/Stereo/stereo_tum_vi.cc)
target_link_libraries(stereo_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_realsense_t265_old
            Examples_old/Stereo/stereo_realsense_t265.cc)
    target_link_libraries(stereo_realsense_t265_old ${PROJECT_NAME})

    add_executable(stereo_realsense_D435i_old
            Examples_old/Stereo/stereo_realsense_D435i.cc)
    target_link_libraries(stereo_realsense_D435i_old ${PROJECT_NAME})
endif()

#Monocular examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Monocular)

add_executable(mono_tum_old
        Examples_old/Monocular/mono_tum.cc)
target_link_libraries(mono_tum_old ${PROJECT_NAME})

add_executable(mono_kitti_old
        Examples_old/Monocular/mono_kitti.cc)
target_link_libraries(mono_kitti_old ${PROJECT_NAME})

add_executable(mono_euroc_old
        Examples_old/Monocular/mono_euroc.cc)
target_link_libraries(mono_euroc_old ${PROJECT_NAME})

add_executable(mono_tum_vi_old
        Examples_old/Monocular/mono_tum_vi.cc)
target_link_libraries(mono_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_realsense_t265_old
            Examples_old/Monocular/mono_realsense_t265.cc)
    target_link_libraries(mono_realsense_t265_old ${PROJECT_NAME})

    add_executable(mono_realsense_D435i_old
            Examples_old/Monocular/mono_realsense_D435i.cc)
    target_link_libraries(mono_realsense_D435i_old ${PROJECT_NAME})
endif()

#Monocular inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Monocular-Inertial)

add_executable(mono_inertial_euroc_old
        Examples_old/Monocular-Inertial/mono_inertial_euroc.cc)
target_link_libraries(mono_inertial_euroc_old ${PROJECT_NAME})

add_executable(mono_inertial_tum_vi_old
        Examples_old/Monocular-Inertial/mono_inertial_tum_vi.cc)
target_link_libraries(mono_inertial_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_inertial_realsense_t265_old
            Examples_old/Monocular-Inertial/mono_inertial_realsense_t265.cc)
    target_link_libraries(mono_inertial_realsense_t265_old ${PROJECT_NAME})

    add_executable(mono_inertial_realsense_D435i_old
            Examples_old/Monocular-Inertial/mono_inertial_realsense_D435i.cc)
    target_link_libraries(mono_inertial_realsense_D435i_old ${PROJECT_NAME})
endif()

#Stereo Inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Stereo-Inertial)

add_executable(stereo_inertial_euroc_old
        Examples_old/Stereo-Inertial/stereo_inertial_euroc.cc)
target_link_libraries(stereo_inertial_euroc_old ${PROJECT_NAME})

add_executable(stereo_inertial_tum_vi_old
        Examples_old/Stereo-Inertial/stereo_inertial_tum_vi.cc)
target_link_libraries(stereo_inertial_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_inertial_realsense_t265_old
            Examples_old/Stereo-Inertial/stereo_inertial_realsense_t265.cc)
    target_link_libraries(stereo_inertial_realsense_t265_old ${PROJECT_NAME})

    add_executable(stereo_inertial_realsense_D435i_old
            Examples_old/Stereo-Inertial/stereo_inertial_realsense_D435i.cc)
    target_link_libraries(stereo_inertial_realsense_D435i_old ${PROJECT_NAME})
endif()

（2）执行编译

使用官方提供的build.sh脚本进行编译：

bash 复制代码
chmod +x build.sh
bash 复制代码
./build.sh

3. 在ROS2工作空间中集成

将ORB-SLAM3库集成到ROS2 Humble环境中。

（1）创建ROS2工作空间

如果还没有专门的工作空间，请创建一个：

bash 复制代码
mkdir -p ~/orb_slam3_ws/src
bash 复制代码
cd ~/orb_slam3_ws/src

（2）克隆ROS2封装代码

在src目录下克隆社区提供的ROS2封装：

bash 复制代码
git clone https://github.com/benaissa-tayeb37/orb_slam3_ros2.git

（3）配置与编译

返回工作空间根目录，安装ROS2依赖并编译。

bash 复制代码
cd ~/orb_slam3_ws
colcon build --symlink-install

二、可能遇到的问题

1. std::bad_array_new_length

问题：

bash 复制代码
robot@ll-Lenovo:~/d7lros2/orb_slam3_ws$ ros2 run orbslam3 mono \
  ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/vocabulary/ORBvoc.txt \
  ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/config/monocular/TUM1.yaml

ORB-SLAM3 Copyright (C) 2017-2020 Carlos Campos, Richard Elvira, Juan J. Gómez, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
ORB-SLAM2 Copyright (C) 2014-2016 Raúl Mur-Artal, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
This program comes with ABSOLUTELY NO WARRANTY;
This is free software, and you are welcome to redistribute it
under certain conditions. See LICENSE.txt.

Input sensor was set to: Monocular

Loading ORB Vocabulary. This could take a while...
Vocabulary loaded!

Initialization of Atlas from scratch
Creation of new map with id: 0
Creation of new map with last KF id: 0
Seq. Name:

Camera Parameters:
- Camera: Pinhole
- Image scale: 1
- fx: 517.306
- fy: 516.469
- cx: 318.643
- cy: 255.314
- k1: 0.262383
- k2: -0.953104
- p1: -0.005358
- p2: 0.002628
- k3: 1.16331
- fps: 30
- color order: RGB (ignored if grayscale)

ORB Extractor Parameters:
- Number of Features: 1000
- Scale Levels: 8
- Scale Factor: 1.2
- Initial Fast Threshold: 20
- Minimum Fast Threshold: 7
There are 1 cameras in the atlas
Camera 0 is pinhole
terminate called after throwing an instance of 'std::bad_array_new_length'
  what():  std::bad_array_new_length
[ros2run]: Aborted

解决方法见文章：

解决：terminate called after throwing an instance of 'std::bad_array_new_length' what()

2. double free or corruption (out)

问题：

bash 复制代码
robot@ll-Lenovo:~/d7lros2/orb_slam3_ws$ ros2 run orbslam3 rgbd   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/vocabulary/ORBvoc.txt   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/config/rgb-d/RealSense_D435i.yaml

ORB-SLAM3 Copyright (C) 2017-2020 Carlos Campos, Richard Elvira, Juan J. Gómez, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
ORB-SLAM2 Copyright (C) 2014-2016 Raúl Mur-Artal, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
This program comes with ABSOLUTELY NO WARRANTY;
This is free software, and you are welcome to redistribute it
under certain conditions. See LICENSE.txt.

Input sensor was set to: RGB-D

Loading ORB Vocabulary. This could take a while...
Vocabulary loaded!

Initialization of Atlas from scratch
Creation of new map with id: 0
Creation of new map with last KF id: 0
Seq. Name:

Camera Parameters:
- Camera: Pinhole
- Image scale: 0.5
- fx: 308.6
- fy: 308.681
- cx: 162.318
- cy: 121.231
- k1: 0
- k2: 0
- p1: 0
- p2: 0
- fps: 30
- color order: RGB (ignored if grayscale)

Depth Threshold (Close/Far Points): 2.98185

ORB Extractor Parameters:
- Number of Features: 1250
- Scale Levels: 8
- Scale Factor: 1.2
- Initial Fast Threshold: 20
- Minimum Fast Threshold: 7
There are 1 cameras in the atlas
Camera 0 is pinhole
Shutdown

Saving keyframe trajectory to KeyFrameTrajectory.txt ...
double free or corruption (out)
[ros2run]: Aborted
robot@ll-Lenovo:~/d7lros2/orb_slam3_ws$

解决方法见文章：

解决：ShutdownSaving keyframe trajectory to KeyFrameTrajectory.txt ...double free or corruption

三、深度相机的配置和ORB_SLAM3建图启动

见文章：解决：ShutdownSaving keyframe trajectory to KeyFrameTrajectory.txt ...double free or corruption

内容重复，不再赘述。

相关推荐
Industio_触觉智能18 小时前
玩转RK3588远程控制，Ubuntu22.04 Wayland安装RustDesk工具
linux·ubuntu·rk3588·远程工具·rustdesk·wayland·ubuntu22.04
YQ_013 天前
Ubuntu 22.04 下让 Gazebo / RViz 使用 NVIDIA GPU 渲染
ros2
小手智联老徐4 天前
ROS2：与 Gazebo 版本对应关系解析
机器人·ros2·gazebo
rqtz5 天前
【机器人】ROS2配置solidworks模型转换的URDF文件
ros2·urdf·solidworks
小手智联老徐5 天前
ROS2：Humble 安装详解（Ubuntu 22.04）
ros2·humble·colcon
rqtz5 天前
【机器人】ROS2 功能包创建与 CMake 编译链路探秘
机器人·cmake·ros2
maxmaxma6 天前
ROS2机器人少年创客营：Python第三课
开发语言·python·机器人·ros2
小手智联老徐6 天前
ROS2 ：Node 与 Topic 初探（Python）
ros2
kyle~8 天前
ROS2 --- WaitSet（等待集） 等待实体就绪，管理执行回调函数
大数据·c++·机器人·ros2
热门推荐
01GitHub 镜像站点02一周AI热点速览（2026.03.31-04.06）：GPT-6曝光、谷歌开源Gemma 4、资本狂飙与模型军备竞赛03OpenClaw 请求超时 llm request timed out 怎么解决？3 种方案实测，附完整排查流程04AI 编程效率翻倍：Superpowers Skills 上手清单 + 完整指南05实测！Gemma 4 成功跑在安卓手机上：离线 AI 助手终于来了06MySQL表约束详解：8大核心约束实战指南07VMware Workstation Pro 17 虚拟机完整安装教程（2026最新）08Oh My Codex 快速使用指南09CodeBuddy与WorkBuddy深度对比：腾讯两款AI工具差异及实操指南10UV安装并设置国内源
